Model Whirlpool REP34800 – Common Parts & Diagrams

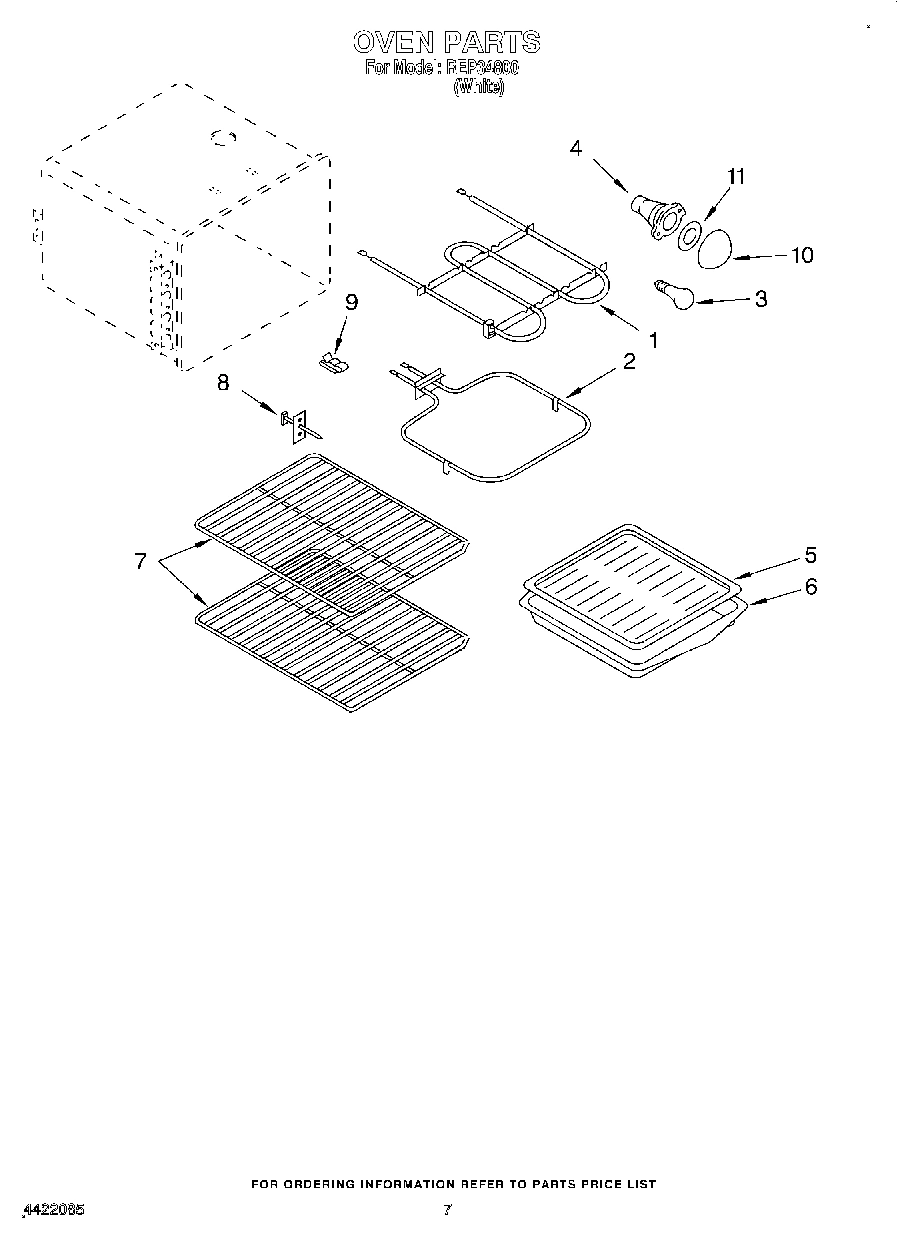

05 - OVEN, LIT/OPTIONAL

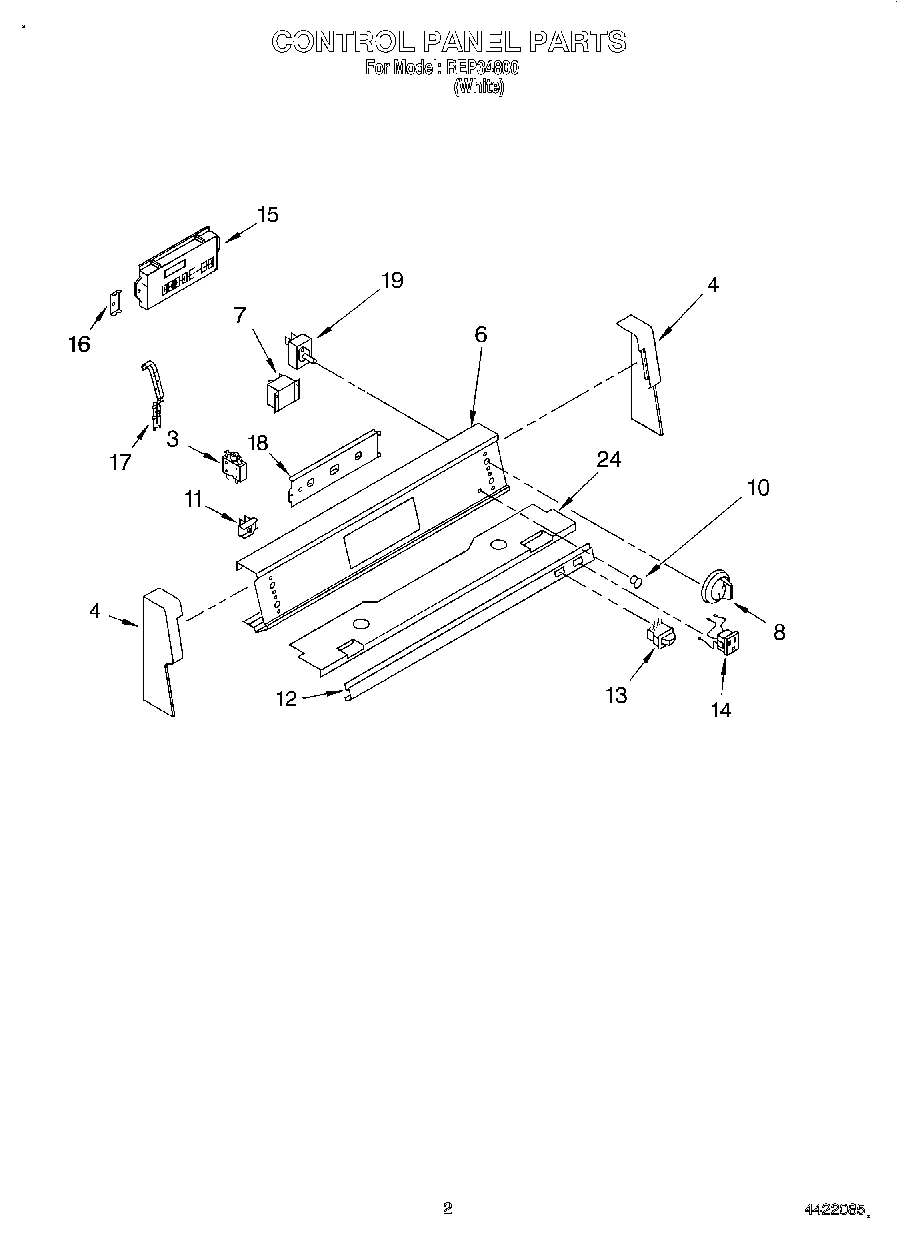

02 - CONTROL PANEL

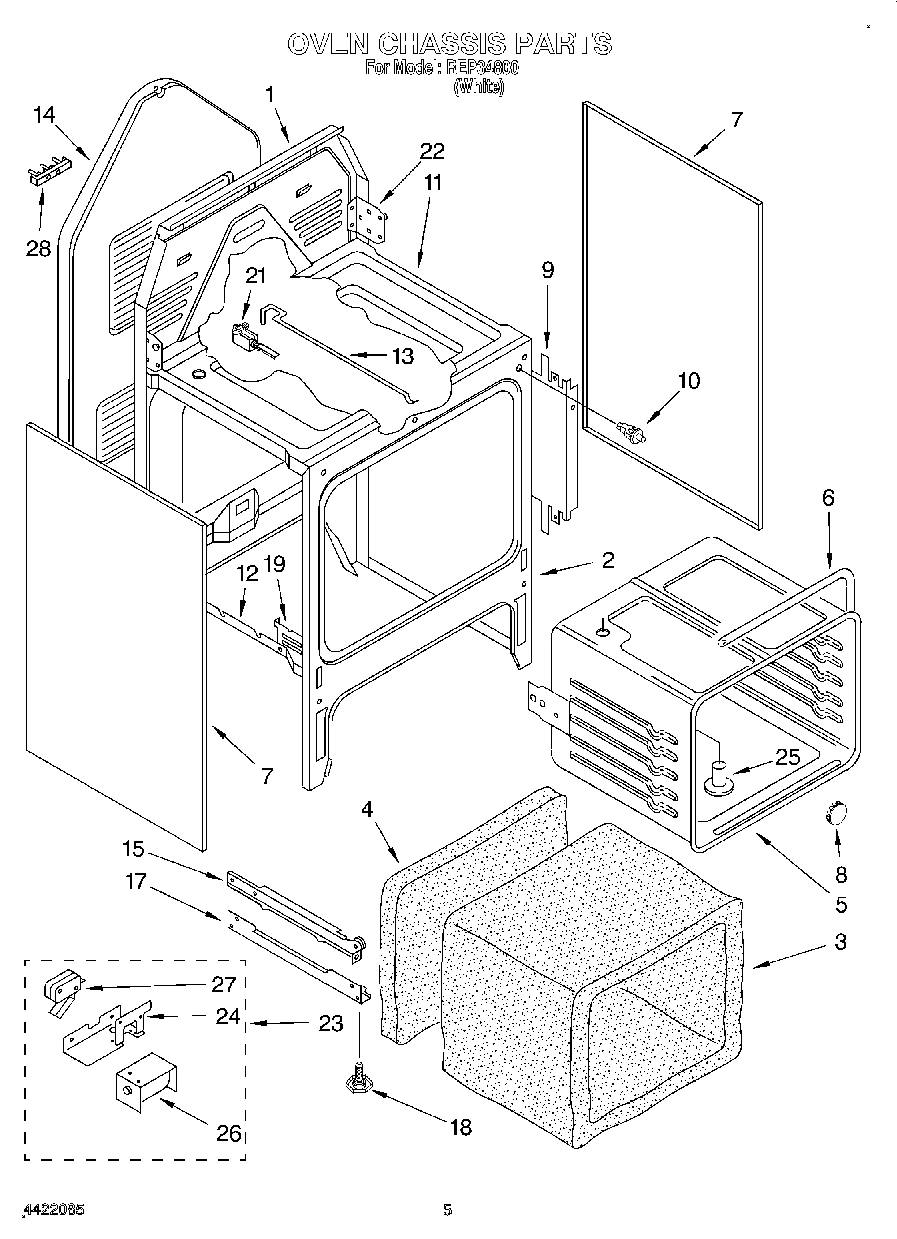

04 - OVEN CHASSIS

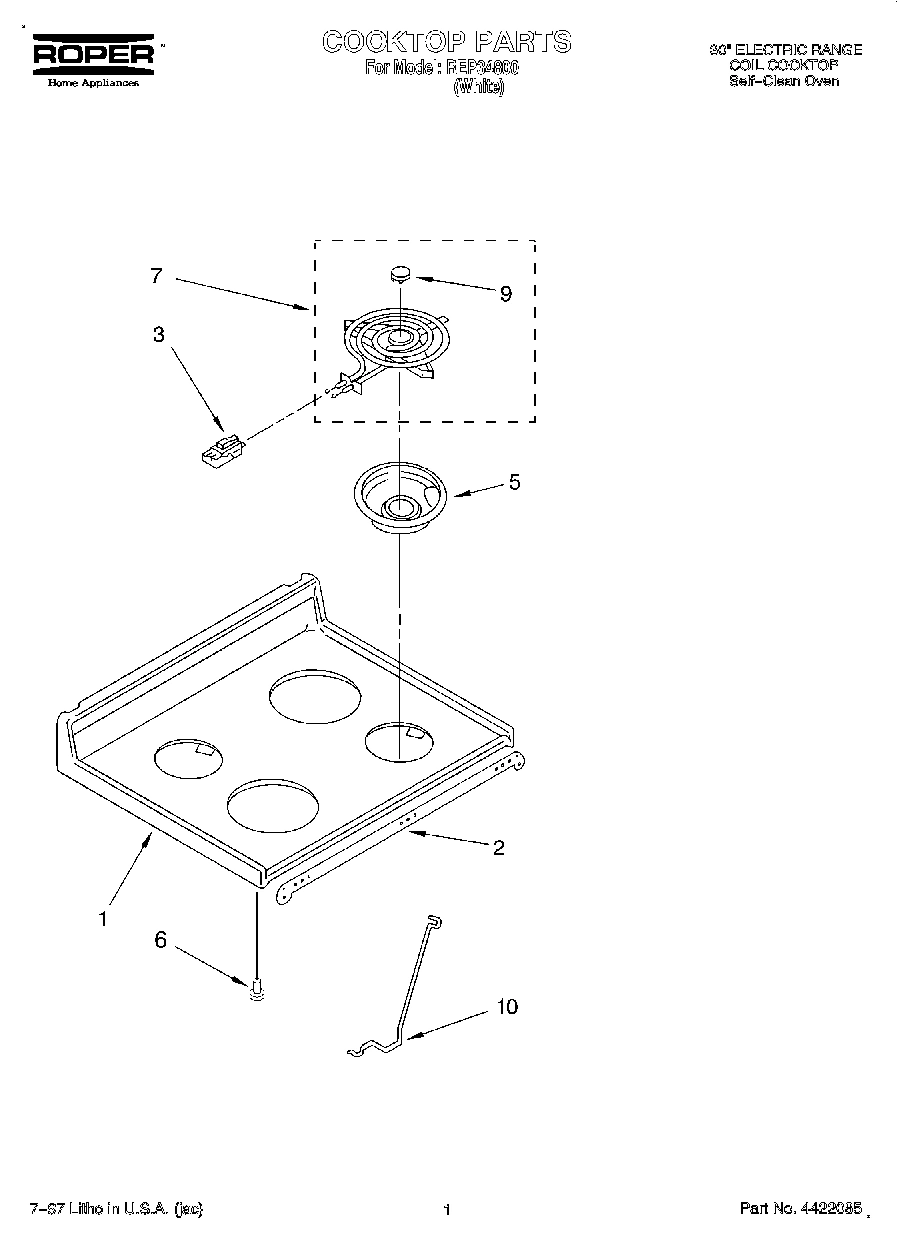

01 - COOKTOP

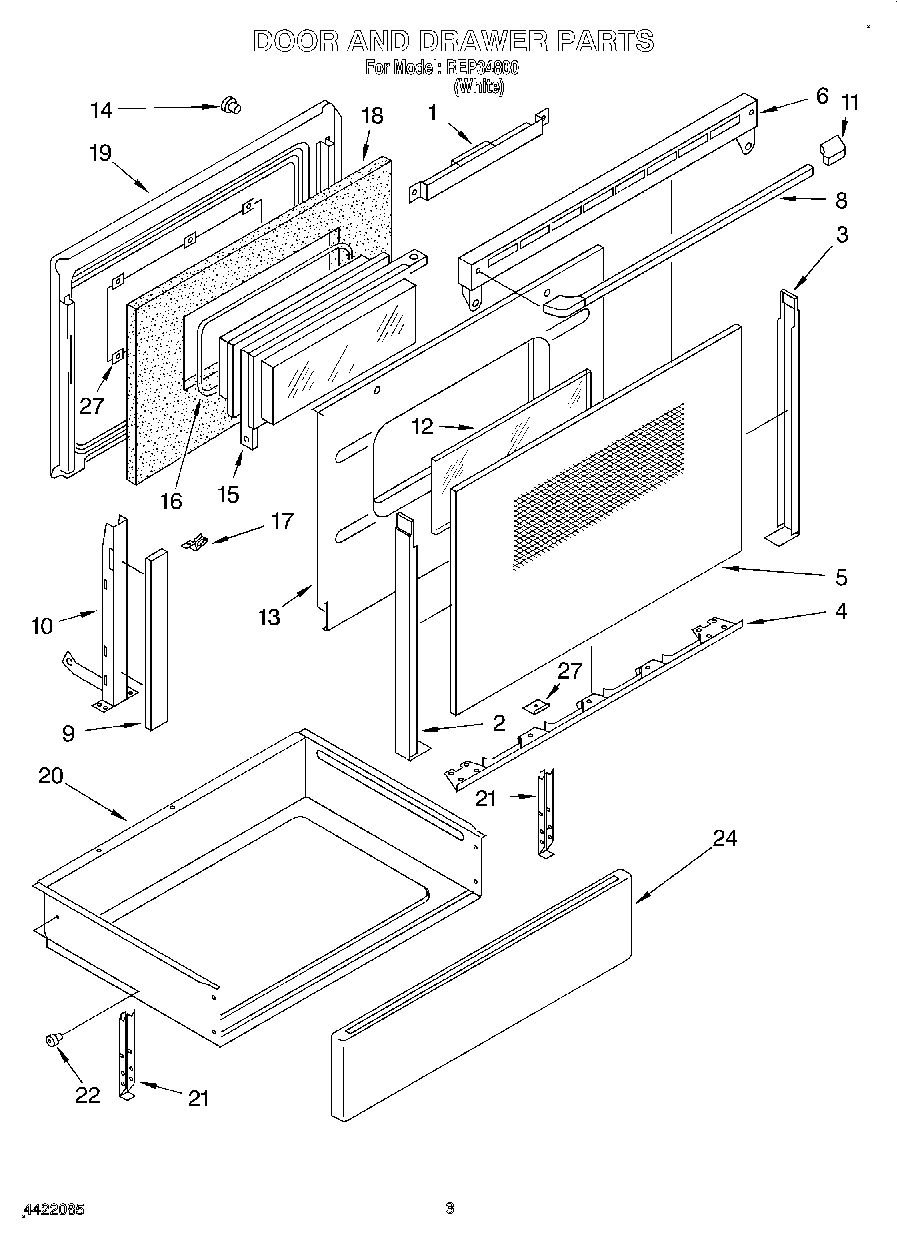

03 - DOOR AND DRAWER
Common parts from model Whirlpool REP34800
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Cooktop, Coil WPL 9750160GW Contact Us For Availability
1
Channel, Heat WPL 9750693 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Screw, (2) WPL 9780270 Contact Us For Availability
2
Guard, Wire WPL 9780585 Contact Us For Availability
2
Trim, Door-Left WPL 9750631PW Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Breaker, 15 Amp WPL 3191073 Contact Us For Availability
3
Receptacle Clip WPL 9781324 Contact Us For Availability
3
Trim, Door-Right WPL 9750632PW Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
End Cap (Left) WPL 9752416FW Contact Us For Availability
4
End Cap (Right) WPL 9752417FW Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Glass, Door Front WPL 3191134 Contact Us For Availability
6
Panel, Control WPL 9752482 Contact Us For Availability
6
Screw, (2) 8 x 3/8 WPL 9780852 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Vent, Door WPL 9781166GW Contact Us For Availability
6
Gasket, Door Vent WPL 9781450 Contact Us For Availability
6
Seal, Door Vent Side WPL 9781490 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Oven, Side Panel WPL 9750148PW Contact Us For Availability
7
Element, Surface (Coil, 8`` LF-RR (2)) WPL 3191024 Contact Us For Availability
8
Knobs, Control (4) WPL 9750272FW Contact Us For Availability
8
Button, Plug WPL 9780578 Contact Us For Availability
8
Handle, Door WPL 9751690PW Contact Us For Availability
8
Screw (2) 10 x 1 1/4 WPL 9781196 Contact Us For Availability
9
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Medallion, (4) WPL 4211952 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Door Switch (oven Light) WPL 9752798 Contact Us For Availability
10
Rod, Support (2) WPL 9751538 Contact Us For Availability
11
Light, Indicator (2) (Cooktop) WPL 313102 Contact Us For Availability
11
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
11
WPL 799344 WPL 799344 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
11
Grease WPL 261582 Contact Us For Availability
11
Coffee WPL 261886 Contact Us For Availability
11
New Avocado WPL 261888 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
11
Toast WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
11
Platinum (Uncut) WPL 285368 Contact Us For Availability
11
Paint, Touch-Up 1/2 Oz. ( WPL 72108 Contact Us For Availability
11
WPL 72112 WPL 72112 Contact Us For Availability
11
WPL 799832 WPL 799832 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
End Cap, Handle (R or L) WPL 9752030FW Contact Us For Availability
11
screw (2) 10-24 x 5/8 WPL 9780266 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Trim Strip WPL 9752442PW Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Switch, Oven Light WPL 3191100FW Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
13
Shield, Door WPL 9750233 Contact Us For Availability
14
Outlet, Untimed WPL 9751480FW Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Timer WPL 3191085 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Window Pack (Assembly) WPL 9751245 Contact Us For Availability
16
Spacer - CT150 WPL 9752783 Contact Us For Availability
16
Seal, Window WPL 9751135 Contact Us For Availability
17
Bracket, Timer WPL 3191038 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Retainer, Glass WPL 9750676 Contact Us For Availability
18
Support. Relay WPL 3191039 Contact Us For Availability
19
Receiver, Hinge (R or L) WPL 9750149 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Single Position Device WPL 9752462 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
Oven Lock Assembly (Includes No.21, No.24, N WPL 9752404 Contact Us For Availability
24
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
24
Base, Console WPL 9752439 Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
24
Front, Drawer WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
Solenoid (2) WPL 9752409 Contact Us For Availability
26
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
26
Washer, No.10 WPL 424238 Contact Us For Availability
27
Screw, (2) WPL 9750887 Contact Us For Availability
27
Nut (2) WPL 9750888 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
27
Spacer, Door (8) WPL 9781502 Contact Us For Availability
28
Screw (2) WPL 98884 Contact Us For Availability
× ![]()
