Model Electrolux REM77BDB3 WALL OVEN – Common Parts & Diagrams
02 - LOWER OVEN DOOR PARTS
03 - CONTROL PANEL

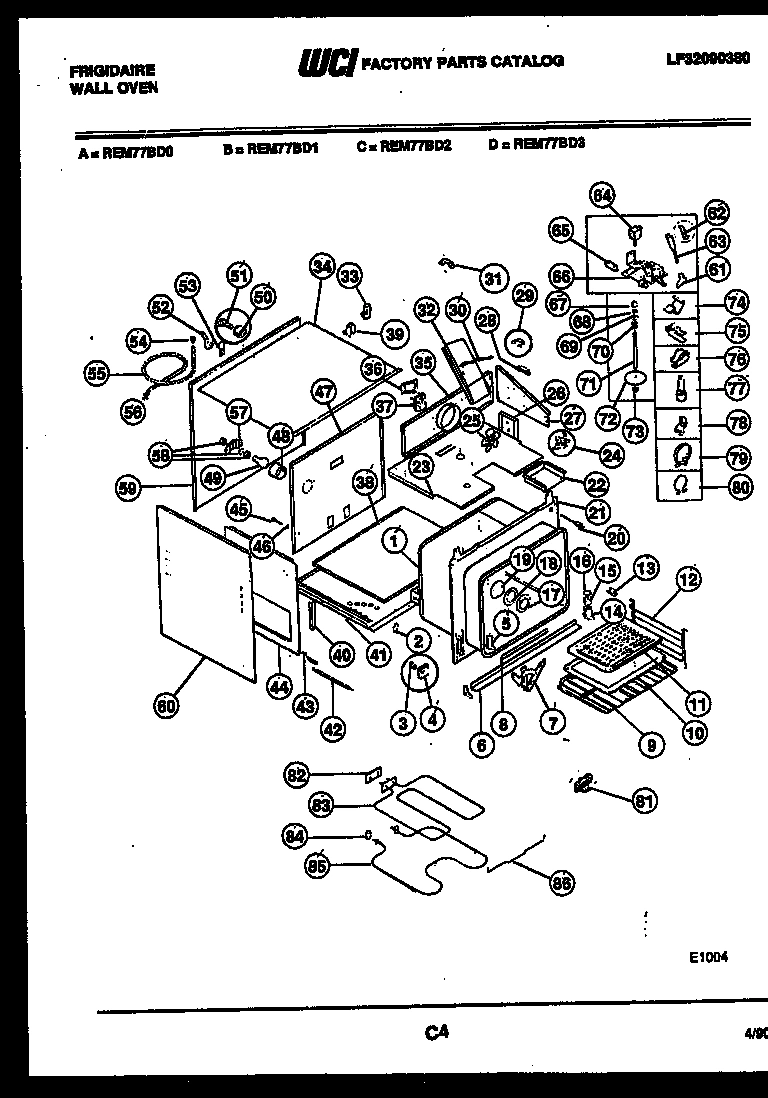

04 - LOWER BODY PARTS

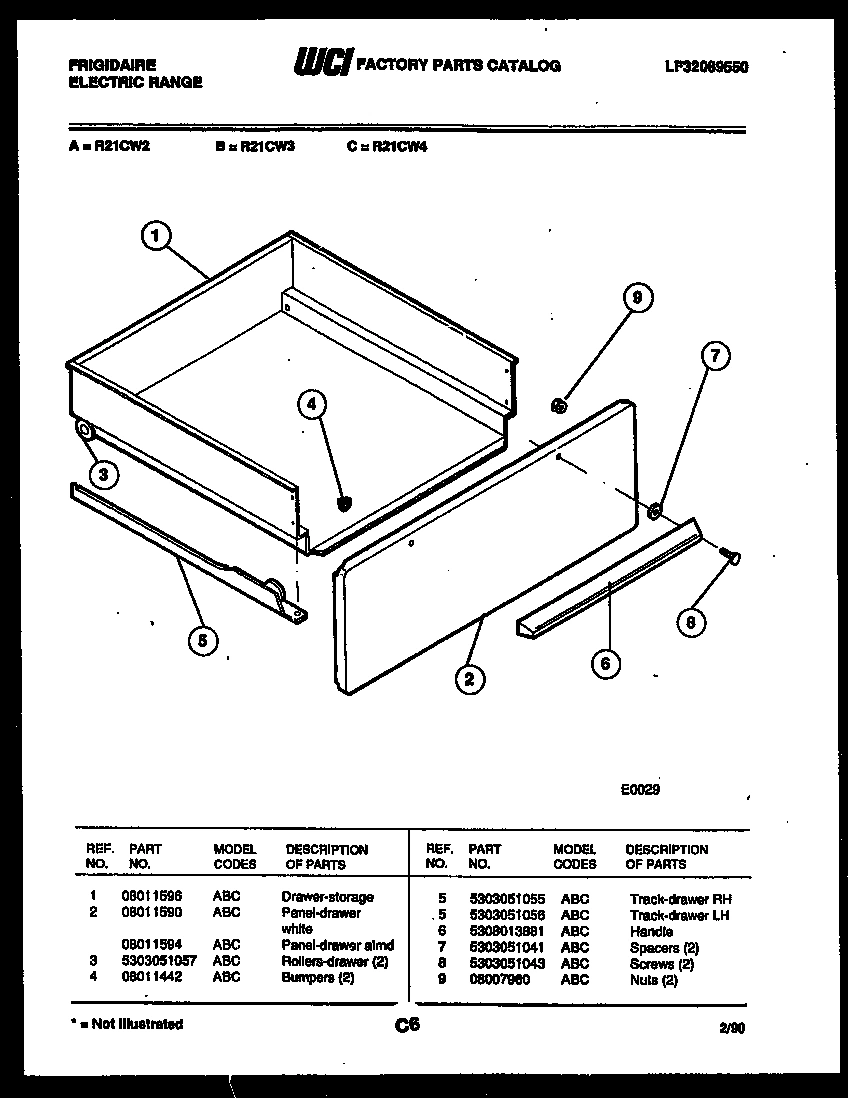

05 - DRAWER PARTS

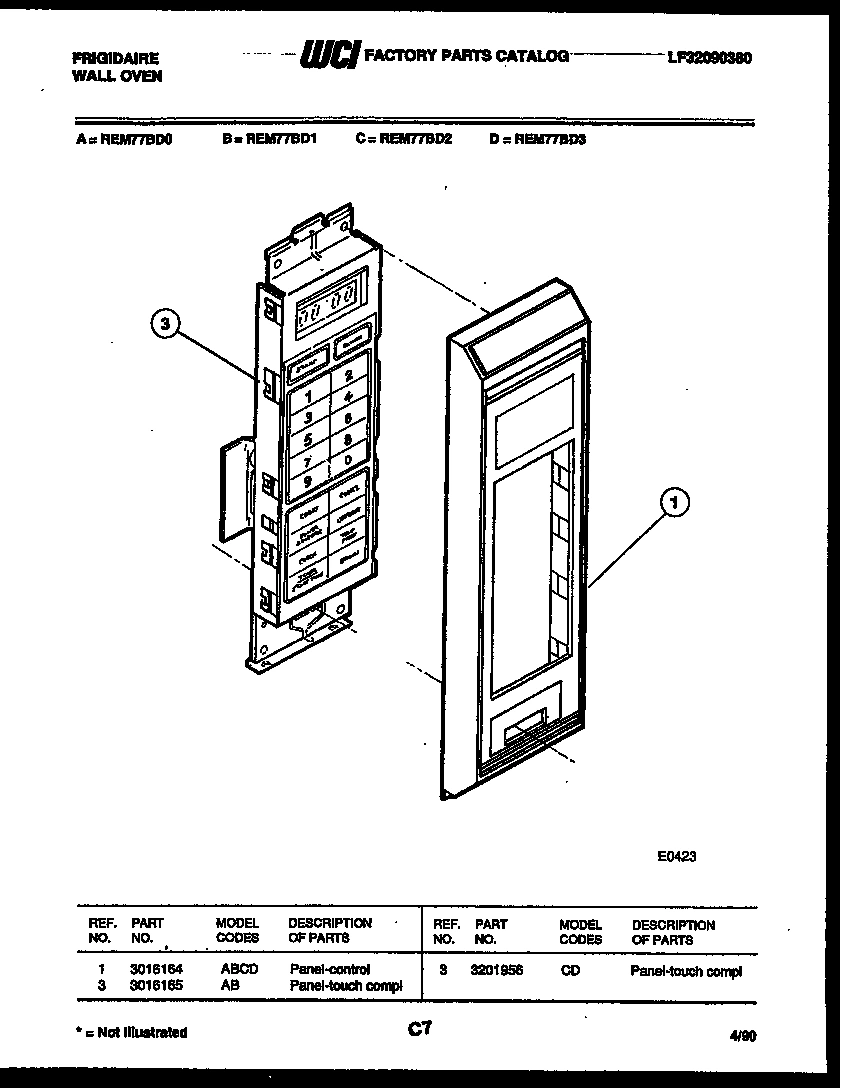

06 - CONTROL PANEL

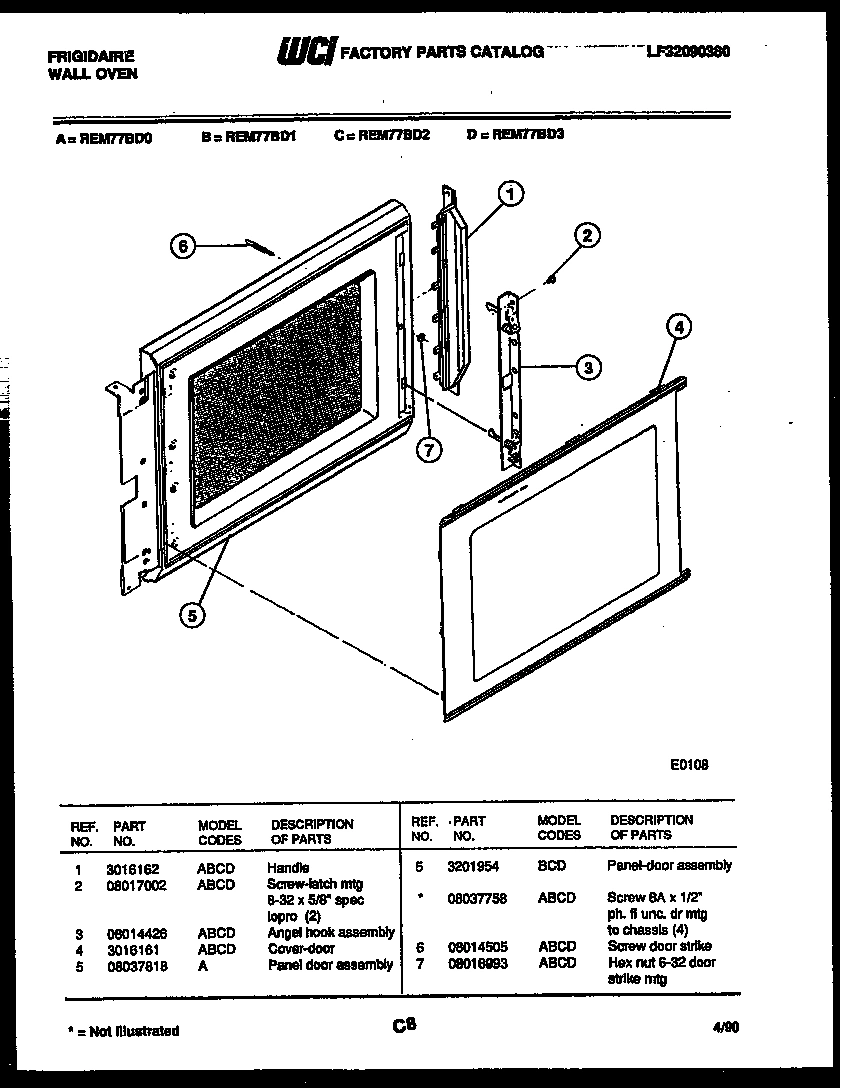

07 - UPPER OVEN DOOR PARTS

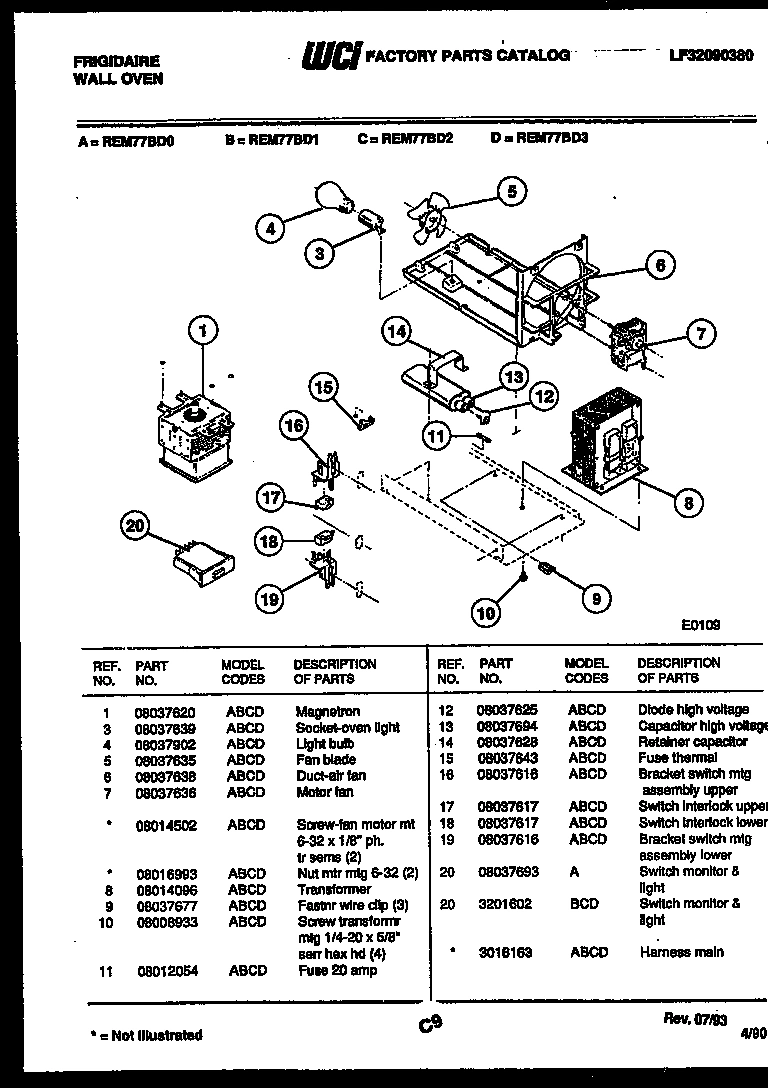

08 - POWER CONTROL

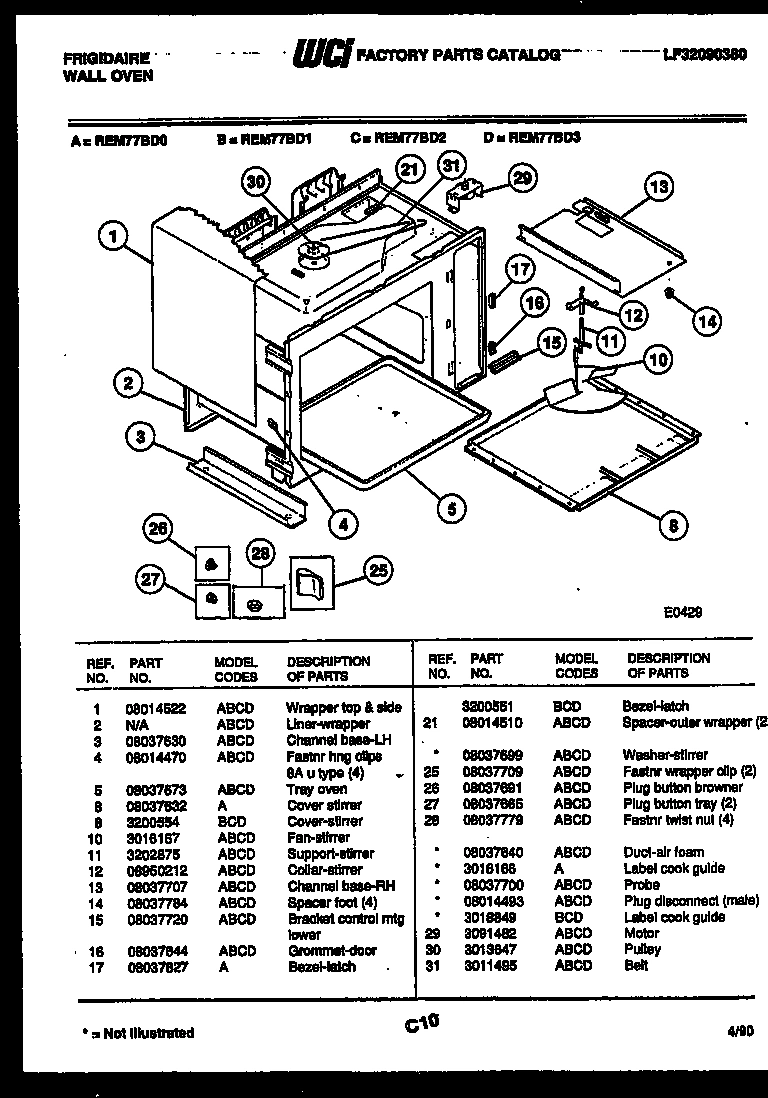

09 - UPPER BODY PARTS
Common parts from model Electrolux REM77BDB3 WALL OVEN
*21788
INSULATION 1 1/2 X 18 1/2 X 24 WCI 3015957 Contact Us For Availability
*21788
INSULATION 1 1/2 X 14 X 18 WCI 3015958 Contact Us For Availability
*21789
INSULATION CERAFELT 1/8 X 18 1/2 X 24 WCI 3015959 Contact Us For Availability
*21789
INSULATION CERAFELT 1/8 X 14 X 18 WCI 3015960 Contact Us For Availability
*21795
INSULATION-WRAPPER WCI 3015953 Contact Us For Availability
*21795
INSULATION-BACK WCI 3015954 Contact Us For Availability
*21799
WCI 3016163 WCI 3016163 Contact Us For Availability
1
WCI 08012079 WCI 08012079 Contact Us For Availability
1
WCI 08014490 WCI 08014490 Contact Us For Availability
1
WCI 08014483 WCI 08014483 Contact Us For Availability
1
WCI 08011596 WCI 08011596 Contact Us For Availability
1
WCI 3016164 WCI 3016164 Contact Us For Availability
1
WCI 3016162 WCI 3016162 Contact Us For Availability
1
MAGNETRON WCI 08037620 Contact Us For Availability
1
WCI 08014522 WCI 08014522 Contact Us For Availability
2
WCI 08014515 WCI 08014515 Contact Us For Availability
2
FASTNR-CLOCK MTG (4) WCI 08011713 Contact Us For Availability
2
FASTNR OVEN MTG (2) WCI 08010560 Contact Us For Availability
2
SCREW-LATCH MTG 8-32 X 5/8`` SPEC LOPRO (2) WCI 08017002 Contact Us For Availability
2
WCI 08011590 WCI 08011590 Contact Us For Availability
2
WCI 08011594 WCI 08011594 Contact Us For Availability
3
WCI 08012081 WCI 08012081 Contact Us For Availability
3
WCI 08014451 WCI 08014451 Contact Us For Availability
3
WCI 08012142 WCI 08012142 Contact Us For Availability
3
ROLLERS-DRAWER (2) WCI 5303051057 Contact Us For Availability
3
WCI 3201956 WCI 3201956 Contact Us For Availability
3
WCI 08014426 WCI 08014426 Contact Us For Availability
3
SOCKET-OVEN LIGHT WCI 08037639 Contact Us For Availability
3
WCI 08037630 WCI 08037630 Contact Us For Availability
4
WCI 08012082 WCI 08012082 Contact Us For Availability
4
WCI 08037901 WCI 08037901 Contact Us For Availability
4
BUMPERS (2) WCI 08011442 Contact Us For Availability
4
WCI 3016161 WCI 3016161 Contact Us For Availability
4
LIGHT BULB WCI 08037902 Contact Us For Availability
5
WCI 08012083 WCI 08012083 Contact Us For Availability
5
WCI 08012796 WCI 08012796 Contact Us For Availability
5
WCI 08017003 WCI 08017003 Contact Us For Availability
5
WCI 5303051055 WCI 5303051055 Contact Us For Availability
5
WCI 5303051056 WCI 5303051056 Contact Us For Availability
5
WCI 3201954 WCI 3201954 Contact Us For Availability
5
WCI 08037635 WCI 08037635 Contact Us For Availability
5
TRAY OVEN WCI 08037673 Contact Us For Availability
5A
SCREW 8A X 1/2`` PH. FL UNC. DR MTG TO CHASSI WCI 08037758 Contact Us For Availability
6
WCI 08012084 WCI 08012084 Contact Us For Availability
6
WCI 08012046 WCI 08012046 Contact Us For Availability
6
WCI 08014516 WCI 08014516 Contact Us For Availability
6
WCI 5308013881 WCI 5308013881 Contact Us For Availability
6
SCREW, DOOR STRIKE WCI 08014505 Contact Us For Availability
6
WCI 08037638 WCI 08037638 Contact Us For Availability
7
WCI 08012085 WCI 08012085 Contact Us For Availability
7
WCI 08012047 WCI 08012047 Contact Us For Availability
7
WCI 08012159 WCI 08012159 Contact Us For Availability
7
WCI 08012160 WCI 08012160 Contact Us For Availability
7
SPACERS (2) WCI 5303051041 Contact Us For Availability
7
WCI 08037636 WCI 08037636 Contact Us For Availability
7A
SCREW-FAN MOTOR MT 6-32 X 1/8`` PH. TR SEMS ( WCI 08014502 Contact Us For Availability
7B
NUT MTR MTG 6-32 (2) (NON-ILLUSTRATED) WCI 08016993 Contact Us For Availability
8
WCI 08012086 WCI 08012086 Contact Us For Availability
8
WCI 08014473 WCI 08014473 Contact Us For Availability
8
WCI 08014509 WCI 08014509 Contact Us For Availability
8
TRANSFORMER WCI 08014096 Contact Us For Availability
8
COVER-STIRRER WCI 3200554 Contact Us For Availability
8A
FASTNR SPACER (6) 1/8`` (NON-ILLUSTRATED) WCI 08012088 Contact Us For Availability
9
WCI 08010463 WCI 08010463 Contact Us For Availability
9
WCI 08012027 WCI 08012027 Contact Us For Availability
9
RACK-OVEN (2) WCI 08012158 Contact Us For Availability
9
FASTNR WIRE CLIP (3) WCI 08037677 Contact Us For Availability
10
WCI 08012087 WCI 08012087 Contact Us For Availability
10
WCI 08012037 WCI 08012037 Contact Us For Availability
10
BROILER PAN WCI 08016612 Contact Us For Availability
10
SCREW TRANSFORMR MTG 1/4-20 X 5/8`` SERR HEX WCI 08008933 Contact Us For Availability
10
WCI 3016167 WCI 3016167 Contact Us For Availability
11
WCI 08010454 WCI 08010454 Contact Us For Availability
11
WCI 08014506 WCI 08014506 Contact Us For Availability
11
WCI 08016608 WCI 08016608 Contact Us For Availability
11
WCI 08012054 WCI 08012054 Contact Us For Availability
11
WCI 3202875 WCI 3202875 Contact Us For Availability
12
WCI 08014491 WCI 08014491 Contact Us For Availability
12
WCI 08010416 WCI 08010416 Contact Us For Availability
12
WCI 08016607 WCI 08016607 Contact Us For Availability
12
DIODE HIGH VOLTAGE WCI 08037625 Contact Us For Availability
12
COLLAR-STIRRER WCI 08950212 Contact Us For Availability
13
WCI 08010453 WCI 08010453 Contact Us For Availability
13
WCI 08014513 WCI 08014513 Contact Us For Availability
13
WCI 08010612 WCI 08010612 Contact Us For Availability
13
CAPACITOR HIGH VOLTAGE WCI 08037694 Contact Us For Availability
13
WCI 08037707 WCI 08037707 Contact Us For Availability
14
LINER-DOOR WCI 3015956 Contact Us For Availability
14
INDICATOR LIGHT 250V WCI 08012032 Contact Us For Availability
14
WCI 08012165 WCI 08012165 Contact Us For Availability
14
RETAINER CAPACITOR WCI 08037628 Contact Us For Availability
14
SPACER FOOT (4) WCI 08037784 Contact Us For Availability
15
WCI 08012090 WCI 08012090 Contact Us For Availability
15
WCI 08010413 WCI 08010413 Contact Us For Availability
15
WCI 08012166 WCI 08012166 Contact Us For Availability
15
WCI 08037643 WCI 08037643 Contact Us For Availability
15
BRACKET CONTROL MTG LOWER WCI 08037720 Contact Us For Availability
16
WCI 08017000 WCI 08017000 Contact Us For Availability
16
WCI 08014363 WCI 08014363 Contact Us For Availability
16
WCI 08012167 WCI 08012167 Contact Us For Availability
16
WCI 08037644 WCI 08037644 Contact Us For Availability
17
WCI 08012092 WCI 08012092 Contact Us For Availability
17
HEX NUT SWITCH MTG WCI 08012773 Contact Us For Availability
17
WCI 08010609 WCI 08010609 Contact Us For Availability
17
BEZEL LATCH WCI 3200551 Contact Us For Availability
18
WCI 08010450 WCI 08010450 Contact Us For Availability
18
WCI 08010610 WCI 08010610 Contact Us For Availability
18
SWITCH INTERLOCK LOWER WCI 08037617 Contact Us For Availability
19
WCI 08012094 WCI 08012094 Contact Us For Availability
19
WCI 08010611 WCI 08010611 Contact Us For Availability
19
BRACKET SWITCH MTG ASSEMBLY LOWER WCI 08037616 Contact Us For Availability
20
SHIELD-LINER WCI 08016990 Contact Us For Availability
20
WCI 08012146 WCI 08012146 Contact Us For Availability
20
SWITCH MONITOR & LIGHT WCI 3201602 Contact Us For Availability
21
WCI 08012096 WCI 08012096 Contact Us For Availability
21
WCI 08014471 WCI 08014471 Contact Us For Availability
21
SPACER-OUTER WRAPPER (2) WCI 08014510 Contact Us For Availability
21A
WCI 08037699 WCI 08037699 Contact Us For Availability
22
WCI 08012148 WCI 08012148 Contact Us For Availability
23
WCI 08014507 WCI 08014507 Contact Us For Availability
24
WCI 08012168 WCI 08012168 Contact Us For Availability
25
WCI 08016985 WCI 08016985 Contact Us For Availability
25
FASTNR WRAPPER CLIP (2) WCI 08037709 Contact Us For Availability
25A
FAN BLADE-SET SCREW (NON-ILLUSTRATED) WCI 08012199 Contact Us For Availability
26
WCI 08014440 WCI 08014440 Contact Us For Availability
26
PLUG BUTTON BROWNER WCI 08037691 Contact Us For Availability
27
WCI 08014429 WCI 08014429 Contact Us For Availability
27
WCI 08014430 WCI 08014430 Contact Us For Availability
27
PLUG BUTTON TRAY (2) WCI 08037665 Contact Us For Availability
28
BLOCK-TERMINAL WCI 08012033 Contact Us For Availability
28
FASTNR TWIST NUT (4) WCI 08037779 Contact Us For Availability
28A
DUCT, AIR FOAM (NON-ILLUSTRATED) WCI 08037640 Contact Us For Availability
28C
PROBE (NON-ILLUSTRATED) WCI 08037700 Contact Us For Availability
28D
WCI 08014493 WCI 08014493 Contact Us For Availability
28E
LABEL COOK GUIDE (NON-ILLUSTRATED) WCI 3018849 Contact Us For Availability
29
MOTOR WCI 3091482 Contact Us For Availability
30
WCI 08012171 WCI 08012171 Contact Us For Availability
30
PULLEY WCI 3013647 Contact Us For Availability
31
WCI 08012172 WCI 08012172 Contact Us For Availability
31
WCI 3011495 WCI 3011495 Contact Us For Availability
32
WCI 3015955 WCI 3015955 Contact Us For Availability
33
WCI 08014494 WCI 08014494 Contact Us For Availability
34
WCI 08014454 WCI 08014454 Contact Us For Availability
35
WCI 08012173 WCI 08012173 Contact Us For Availability
36
WCI 08012184 WCI 08012184 Contact Us For Availability
37
MOTOR-FAN WCI 08012183 Contact Us For Availability
38
WCI 08012176 WCI 08012176 Contact Us For Availability
39
WCI 08014457 WCI 08014457 Contact Us For Availability
40
WCI 08014431 WCI 08014431 Contact Us For Availability
41
WCI 08014432 WCI 08014432 Contact Us For Availability
42
WCI 08012161 WCI 08012161 Contact Us For Availability
43
WCI 08012162 WCI 08012162 Contact Us For Availability
44
WCI 08012178 WCI 08012178 Contact Us For Availability
45
WCI 08010579 WCI 08010579 Contact Us For Availability
46
WCI 08011695 WCI 08011695 Contact Us For Availability
47
WCI 08012180 WCI 08012180 Contact Us For Availability
48
WCI 08010586 WCI 08010586 Contact Us For Availability
51
WCI 08012119 WCI 08012119 Contact Us For Availability
52
CONNECTOR-CONDUIT WCI 08012117 Contact Us For Availability
53
WCI 08012118 WCI 08012118 Contact Us For Availability
54
BUSHING INSULATOR (2) WCI 08012121 Contact Us For Availability
56
WCI 08014427 WCI 08014427 Contact Us For Availability
56
WCI 08014428 WCI 08014428 Contact Us For Availability
57
BRACKET-OVEN LIGHT MTG WCI 08010585 Contact Us For Availability
58
WCI 08010584 WCI 08010584 Contact Us For Availability
59
WCI 08014521 WCI 08014521 Contact Us For Availability
60
WCI 08012130 WCI 08012130 Contact Us For Availability
61
KNOB-DOOR LATCH HANDLE WCI 08013189 Contact Us For Availability
62
WCI 08013188 WCI 08013188 Contact Us For Availability
63
WCI 08014476 WCI 08014476 Contact Us For Availability
63A
WCI 08012194 WCI 08012194 Contact Us For Availability
64
WCI 08014453 WCI 08014453 Contact Us For Availability
65
WCI 08012187 WCI 08012187 Contact Us For Availability
66
WCI 08012189 WCI 08012189 Contact Us For Availability
67
WCI 08012154 WCI 08012154 Contact Us For Availability
68
RETAINER-RING CLIP WCI 08012153 Contact Us For Availability
69
WASHER VENT (2) WCI 08012152 Contact Us For Availability
70
WCI 08012151 WCI 08012151 Contact Us For Availability
71
WCI 08012150 WCI 08012150 Contact Us For Availability
72
WCI 08012163 WCI 08012163 Contact Us For Availability
73
WCI 08014485 WCI 08014485 Contact Us For Availability
74
WCI 08012196 WCI 08012196 Contact Us For Availability
76
FASTNR CLAMP PWR CORD WCI 08012198 Contact Us For Availability
77
WCI 08014511 WCI 08014511 Contact Us For Availability
78
CLIP THERMO BULB (2) WCI 08010556 Contact Us For Availability
79
FASTNR TY RAP (2) WCI 08012195 Contact Us For Availability
80
WCI 08012197 WCI 08012197 Contact Us For Availability
81
THERMO CUTOUT WCI 3051147 Contact Us For Availability
82
WCI 08010471 WCI 08010471 Contact Us For Availability
84
GASKET-BAKE ELEMENT WCI 08010473 Contact Us For Availability
85
WCI 08012097 WCI 08012097 Contact Us For Availability
86
WCI 08010470 WCI 08010470 Contact Us For Availability
× ![]()
