Model Electrolux REGS38BNW2 RANGE – Common Parts & Diagrams

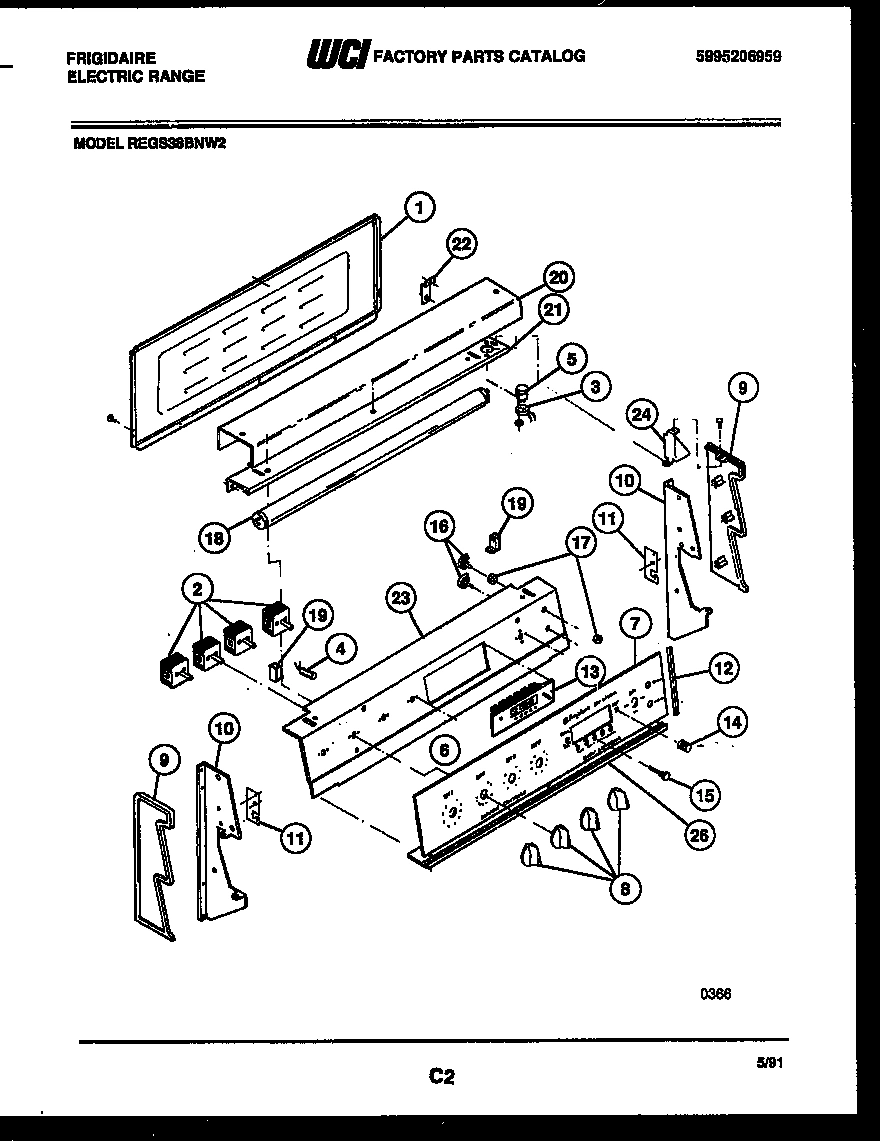

02 - BACKGUARD

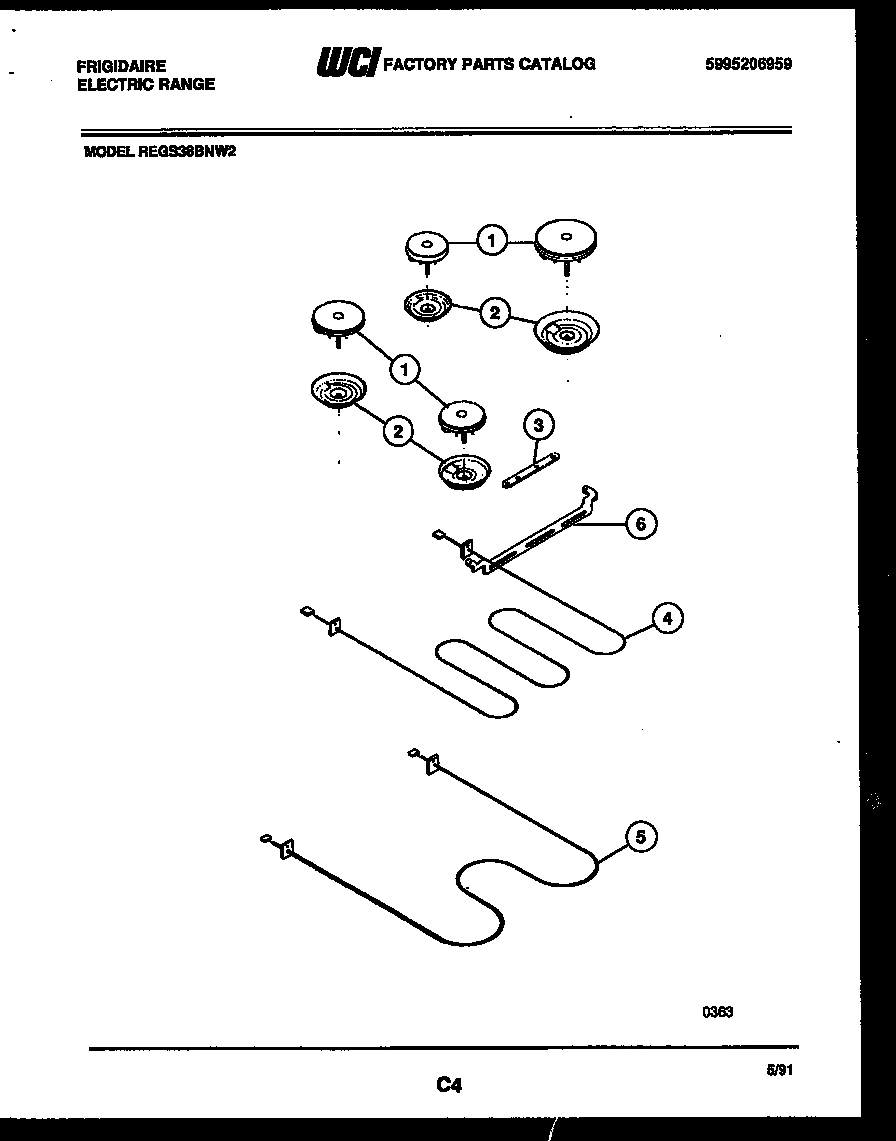

03 - BROILER PARTS

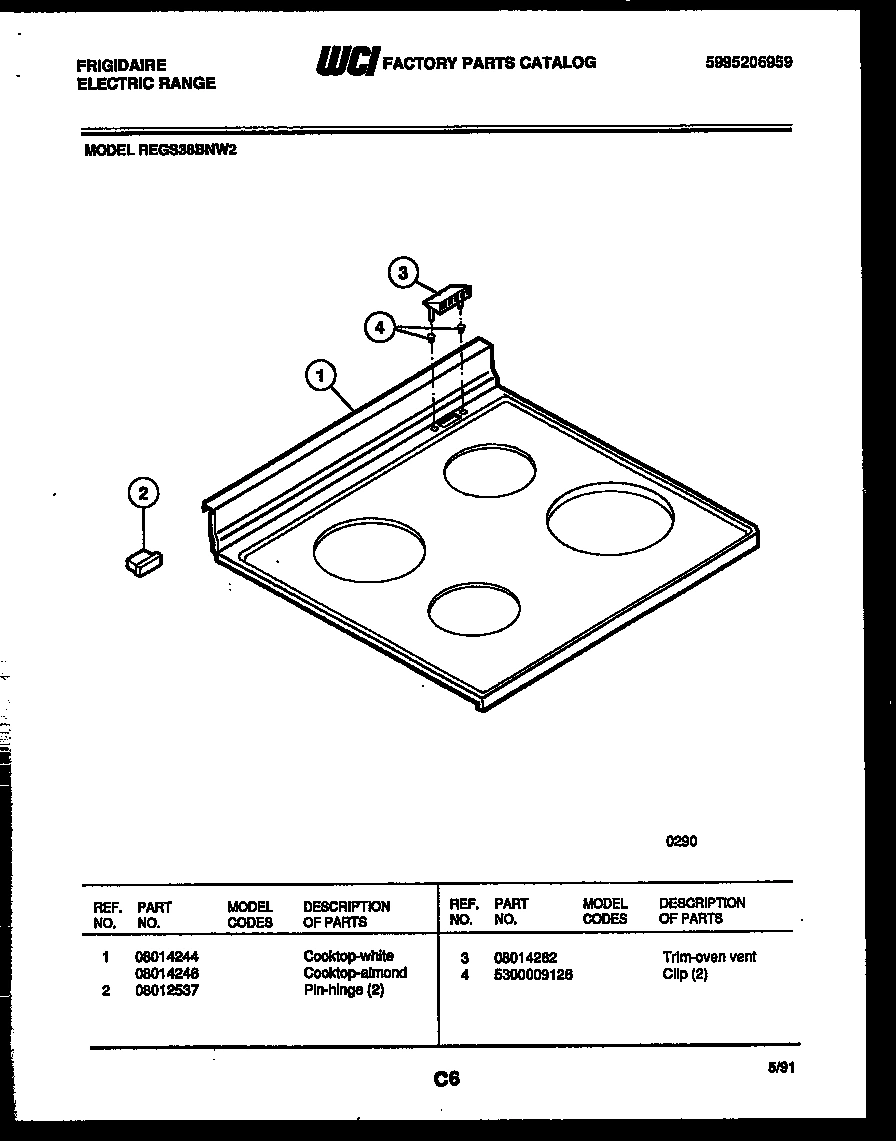

04 - COOKTOP PARTS

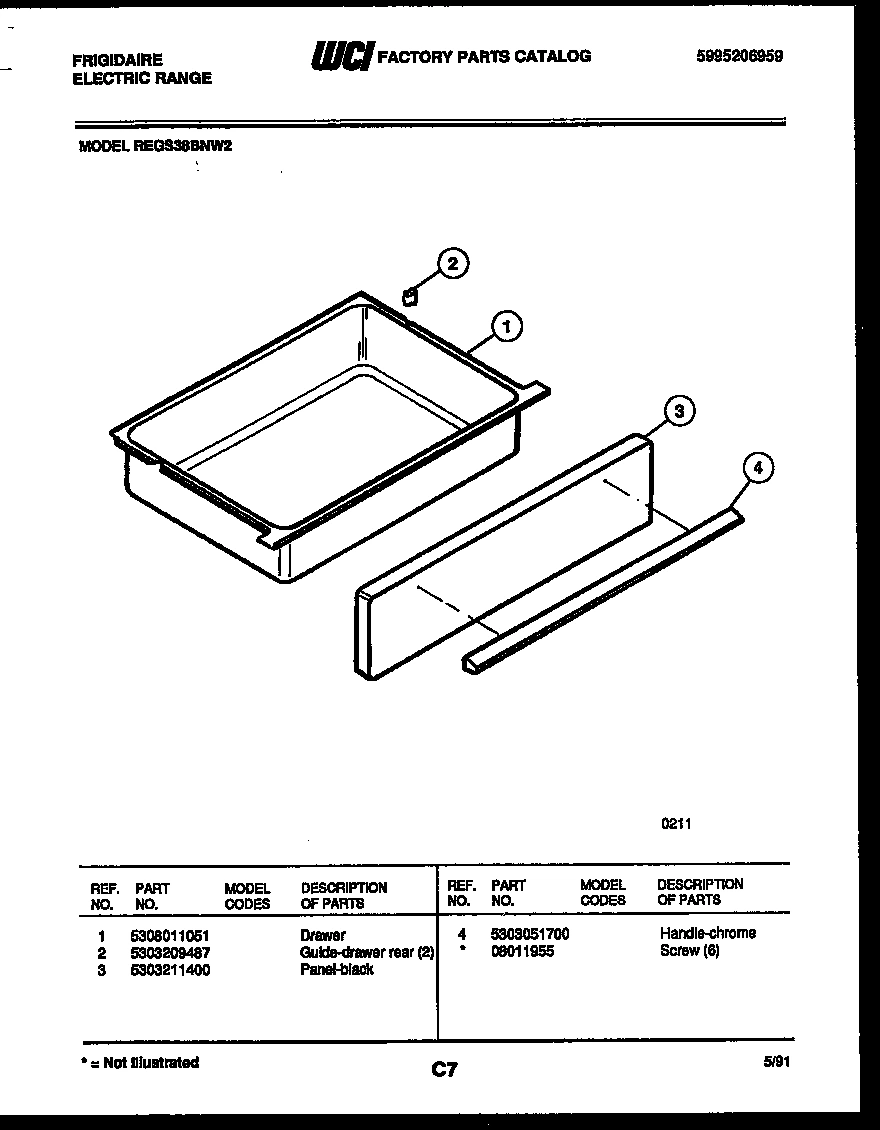

05 - DRAWER PARTS
06 - BODY PARTS

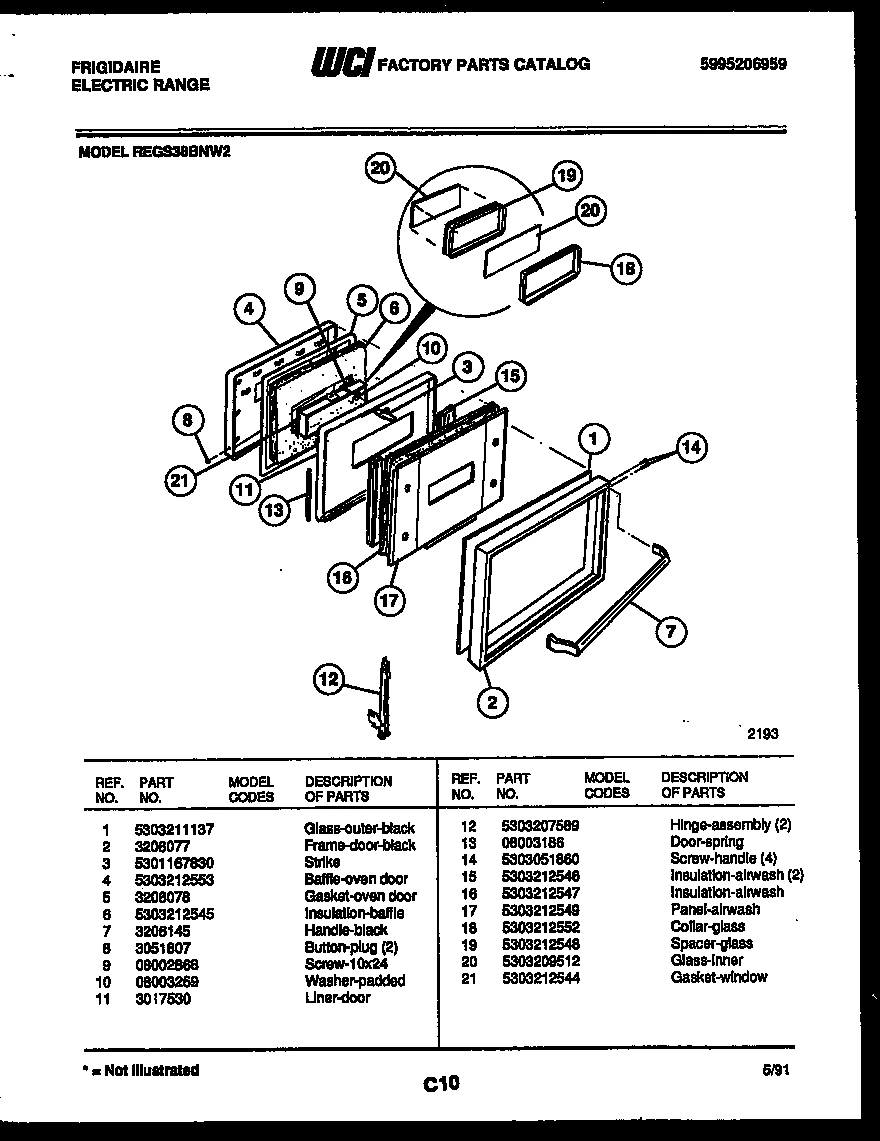

07 - DOOR PARTS
Common parts from model Electrolux REGS38BNW2 RANGE
1
SURFACE UNIT SM (2) WCI 5303051142 Contact Us For Availability
1
SURFACE UNIT, AUTO. WCI 5308014251 Contact Us For Availability
1
SURFACE UNIT LARGE WCI 5308014263 Contact Us For Availability
1
WCI 08014244 WCI 08014244 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
SIDE PANEL, RH WHITE WCI 5308012527 Contact Us For Availability
1
WCI 5303211137 WCI 5303211137 Contact Us For Availability
1A
SIDE PANEL, LH WHITE WCI 5308012528 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
PAN-SMALL (2) WCI 5303051662 Contact Us For Availability
2
WCI 5305129602 WCI 5305129602 Contact Us For Availability
2
PAN, AUTO WCI 5305129701 Contact Us For Availability
2
FRAME-DOOR (BLACK) WCI 3206077 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 5303211400 WCI 5303211400 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
4
LIGHT-PILOT S/U WCI 08017086 Contact Us For Availability
4
HANDLE - CHROME WCI 5303051700 Contact Us For Availability
4
BAFFLE-OVEN DOOR WCI 5303212553 Contact Us For Availability
5
STARTER - FLUOR LIGHT WCI 3201543 Contact Us For Availability
5
GASKET, OVEN DOOR WCI 3206078 Contact Us For Availability
6
WCI 3206118 WCI 3206118 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
INSULATION-BAFFLE WCI 5303212545 Contact Us For Availability
7
WCI 5303212190 WCI 5303212190 Contact Us For Availability
7
HANDLE-BLACK WCI 3206145 Contact Us For Availability
8
KNOBS-GRAY W/BURGUNDY (4) WCI 5303210413 Contact Us For Availability
8
WCI 3051807 WCI 3051807 Contact Us For Availability
9
WCI 08015974 WCI 08015974 Contact Us For Availability
9
WCI 08015975 WCI 08015975 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
SUPPORT - LH WCI 5308015967 Contact Us For Availability
10
WASHER-PADDED WCI 08003259 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3017530 WCI 3017530 Contact Us For Availability
12
TRIM-CONT PANEL (2) WCI 08017099 Contact Us For Availability
12
HINGE-ASSEMBLY (2) WCI 5303207589 Contact Us For Availability
13
WCI 3205213 WCI 3205213 Contact Us For Availability
13
DOOR - SPRING WCI 08003186 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
14
KNOB - CLOCK (GRAY) WCI 3202378 Contact Us For Availability
15
BUTTON - CLOCK (GRAY) (8) WCI 3202376 Contact Us For Availability
15
INSULATION-AIRWASH (2) WCI 5303212546 Contact Us For Availability
16
SWITCH-FLUOR LIGHT & OVEN LIGHT (2) WCI 5308003383 Contact Us For Availability
16
INSULATION- AIRWASH WCI 5303212547 Contact Us For Availability
17
NUT-SWITCH (2) WCI 08012572 Contact Us For Availability
17
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
18
BULB-FLUOR WCI 5308012712 Contact Us For Availability
18
COLLAR-GLASS WCI 5303212552 Contact Us For Availability
19
HOLDER-FLUOR LIGHT (2) WCI 08012748 Contact Us For Availability
19
WCI 5303212548 WCI 5303212548 Contact Us For Availability
20
GLASS-INNER WCI 5303209512 Contact Us For Availability
20
WCI 5303210112 WCI 5303210112 Contact Us For Availability
21
WCI 08017089 WCI 08017089 Contact Us For Availability
21
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
22
WCI 08017090 WCI 08017090 Contact Us For Availability
23
BRACKET-CONT MTG WCI 3017796 Contact Us For Availability
24
WCI 3017797 WCI 3017797 Contact Us For Availability
26
WCI 08015987 WCI 08015987 Contact Us For Availability
× ![]()
