Model Electrolux REG38BNL4 RANGE – Common Parts & Diagrams
01 - RANGE, ELECTRIC

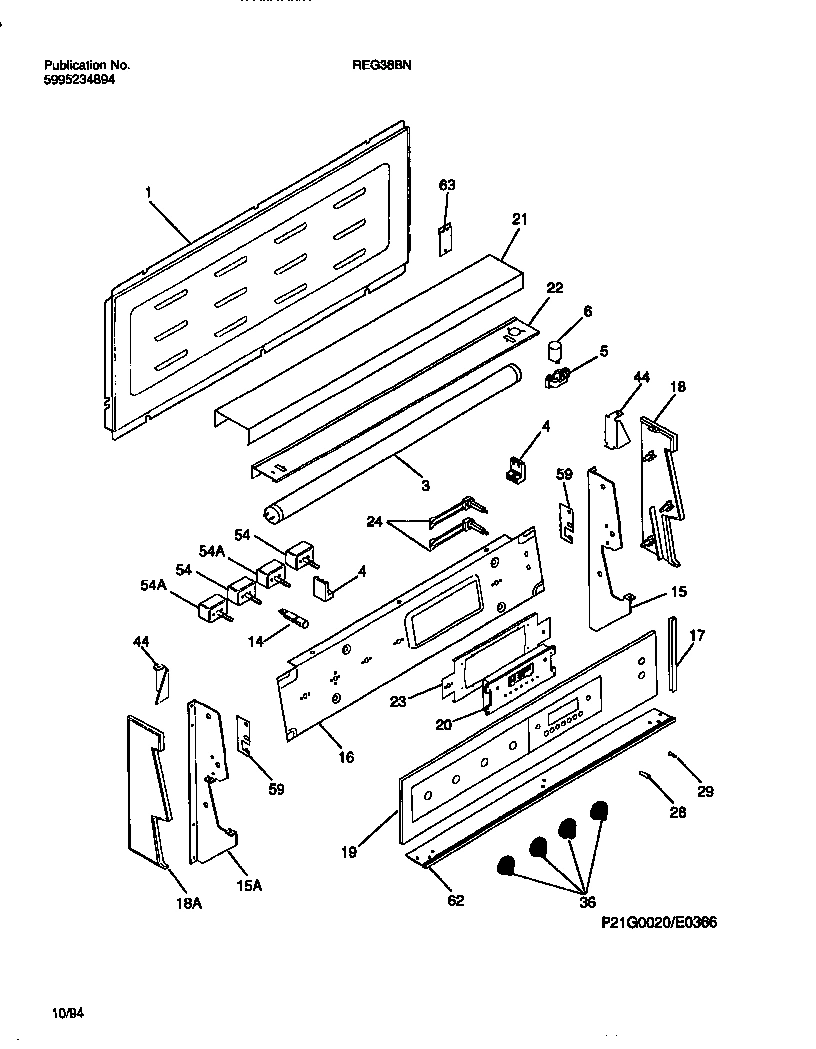

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux REG38BNL4 RANGE
1
BACK-MAIN WCI 3205757 Contact Us For Availability
1
DRAWER-UTILITY WCI 5308011051 Contact Us For Availability
1A
BALLAST-LAMP WCI 3017556 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, RH WCI 5308012529 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 3206077 Contact Us For Availability
3A
PANEL-BODYSIDE, ALMOND, LH, (NON-ILLUSTRATED) WCI 5308012530 Contact Us For Availability
4
WCI 5303292692 WCI 5303292692 Contact Us For Availability
4
PANEL-DRAWER, BLACK WCI 5303211400 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 5303211137 Contact Us For Availability
5
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
5A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
6
STARTER-LAMP WCI 3206218 Contact Us For Availability
6
WCI 5303212549 WCI 5303212549 Contact Us For Availability
6A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
7
GILDE-DRAWER, REAR WCI 5303209487 Contact Us For Availability
7
WCI 5303212545 WCI 5303212545 Contact Us For Availability
7A
WCI 5303212547 WCI 5303212547 Contact Us For Availability
7C
INSULATION, OVEN DOOR, (2) WCI 5303212546 Contact Us For Availability
9
WCI 5303292688 WCI 5303292688 Contact Us For Availability
9
WCI 316041903 WCI 316041903 Contact Us For Availability
10
SCREW-HANDLE MTG, FLT HD SQDR, 6-32 X 1/2, (4 WCI 5303051860 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 3017800 Contact Us For Availability
12
SWITCH-LATCH WCI 5308003081 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3206078 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 08007445 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 5303211310 WCI 5303211310 Contact Us For Availability
17
RETAINER-GLASS WCI 5303205904 Contact Us For Availability
17
WCI 5303211119 WCI 5303211119 Contact Us For Availability
17
WCI 5303212548 WCI 5303212548 Contact Us For Availability
17A
WCI 5303211120 WCI 5303211120 Contact Us For Availability
17B
SCREW-SHOULDER, (NON-ILLUSTRATED) WCI 3051050 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
WCI 08012537 WCI 08012537 Contact Us For Availability
18
WCI 5303212544 WCI 5303212544 Contact Us For Availability
18A
WCI 08015975 WCI 08015975 Contact Us For Availability
19
WCI 5303211909 WCI 5303211909 Contact Us For Availability
19
PAN-SURFACE ELEMENT, LARGE/8 INCH WCI 3018310 Contact Us For Availability
19
WCI 5303212552 WCI 5303212552 Contact Us For Availability
19A
PAN-SURFACE ELEMENT, SMALL/6 INCH WCI 3018311 Contact Us For Availability
20
WCI 5303270370 WCI 5303270370 Contact Us For Availability
21
TRIM RING-LARGE WCI 5308003114 Contact Us For Availability
21
WCI 5303295907 WCI 5303295907 Contact Us For Availability
21
SPACER-BODYSDIE WCI 3051653 Contact Us For Availability
21A
TRIM RING-SMALL WCI 5308003113 Contact Us For Availability
22
SUPPORT-RECEPTABLE WCI 08017089 Contact Us For Availability
23
WCI 3206118 WCI 3206118 Contact Us For Availability
23
WCI 5303207589 WCI 5303207589 Contact Us For Availability
23A
WCI 08003264 WCI 08003264 Contact Us For Availability
24
SWITCH/OVEN LIGHT, PUSH BUTTON, BLACK, FLUOR- WCI 5303279413 Contact Us For Availability
24A
NUT-KNURLED, R269205 WCI 08012572 Contact Us For Availability
25
WCI 5303292734 WCI 5303292734 Contact Us For Availability
28
PUSH BUTTON, CLOCK/TIMER/EOC, OLIVE GREY, (8) WCI 3202376 Contact Us For Availability
28
STRIKE PLATE WCI 5301167830 Contact Us For Availability
29
KNOB-EOC CONTROL, OLIVE GREY WCI 3202378 Contact Us For Availability
29
GUILDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
32
WCI 5303207391 WCI 5303207391 Contact Us For Availability
36
KNOB-CONTROL WCI 5303271673 Contact Us For Availability
39
HANDLE-DRAWER/DOOR, BRUSHED CHROME WCI 5303280334 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 3206145 Contact Us For Availability
41
RETAINNER-DOOR WCI 3019063 Contact Us For Availability
44
BRACKET-BACKGUARD, (2) WCI 3017797 Contact Us For Availability
53
WCI 3206095 WCI 3206095 Contact Us For Availability
54
SWITCH-6`` ELEMENT WCI 5303015702 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
54A
SWITCH-8`` ELEMENT WCI 5308017080 Contact Us For Availability
55
SHIELD-FLUE WCI 3051634 Contact Us For Availability
58A
INSULATION, OVEN WRAP WCI 3203029 Contact Us For Availability
58B
INSUALTION, OVEN BACK WCI 5303051630 Contact Us For Availability
59
WCI 5308012538 WCI 5308012538 Contact Us For Availability
59
TUBE-OVEN VENT WCI 08012574 Contact Us For Availability
62
BASE PLATE-CONTROL PANEL WCI 08015987 Contact Us For Availability
62
WCI 530653359 WCI 530653359 Contact Us For Availability
63
WCI 08017090 WCI 08017090 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
68
SUPPORT-ELEMENT WCI 3205756 Contact Us For Availability
70
SHEILD-INSULATION WCI 3051632 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 5303051856 Contact Us For Availability
72
COVER-ROD END WCI 08007444 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
75
COVER-OVEN SEAM WCI 3202082 Contact Us For Availability
76
WCI 316042101 WCI 316042101 Contact Us For Availability
77
WCI 5308015746 WCI 5308015746 Contact Us For Availability
77A
RAIL-DRAWER LH, (NON-ILLUSTRATED) WCI 3051652 Contact Us For Availability
80
SPRING-OVEN REAR WCI 3016281 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3206275 Contact Us For Availability
83
WCI 5303293178 WCI 5303293178 Contact Us For Availability
83A
PLUG-BUTTON, LINER, (NON-ILLUSTRATED) WCI 3016334 Contact Us For Availability
84
WCI 3017482 WCI 3017482 Contact Us For Availability
84A
GUSSET-REAR, RH, (NON-ILLUSTRATED) WCI 3017481 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH, AUTO WCI 3051649 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
91
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
92
STUD-AXIE WCI 5308012004 Contact Us For Availability
× ![]()
