Model Whirlpool REE32302 30`` ELECTRIC RANGE COIL COOKTOP E-Z Clean Oven – Common Parts & Diagrams

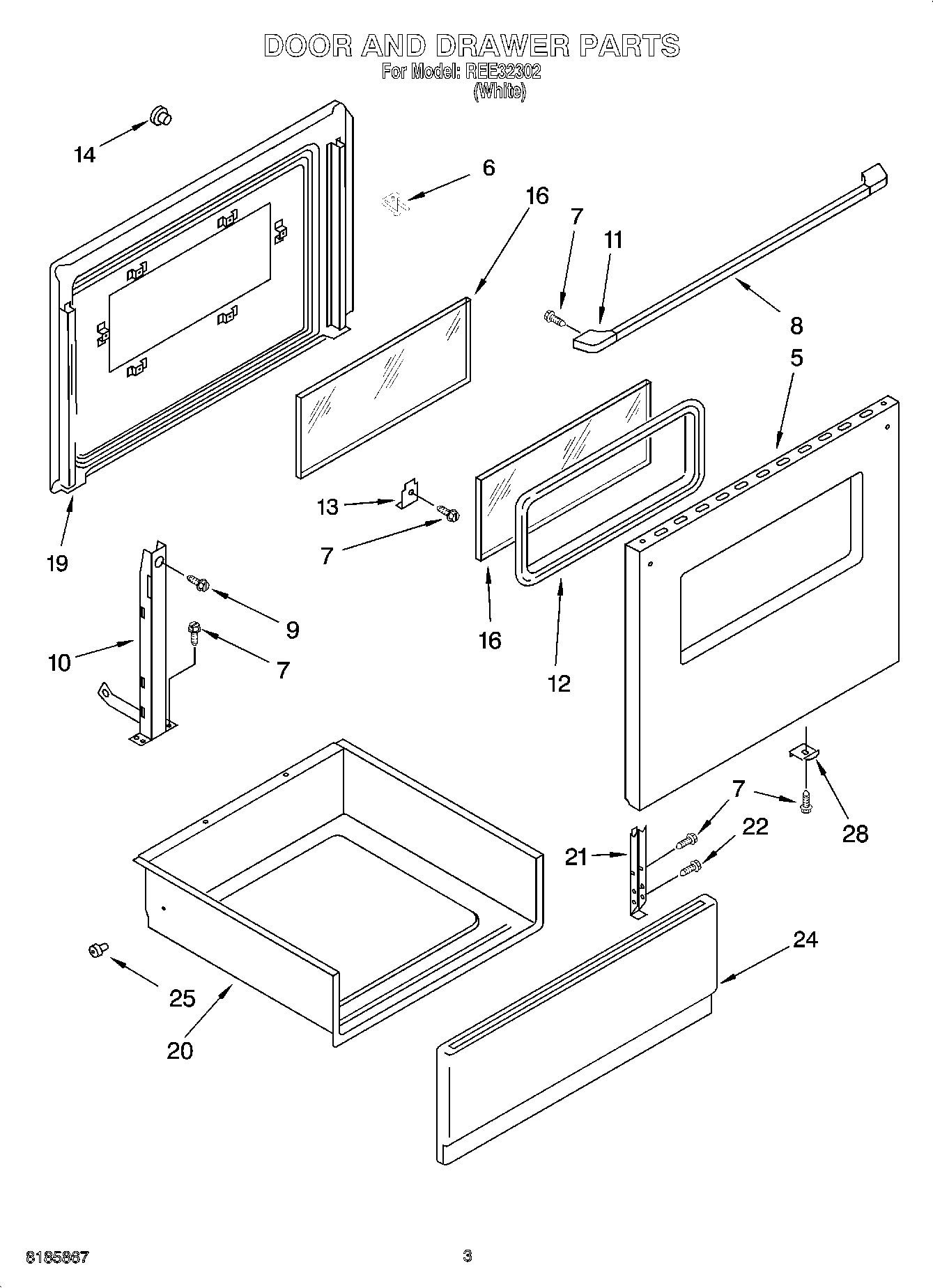

03 - DOOR AND DRAWER PARTS

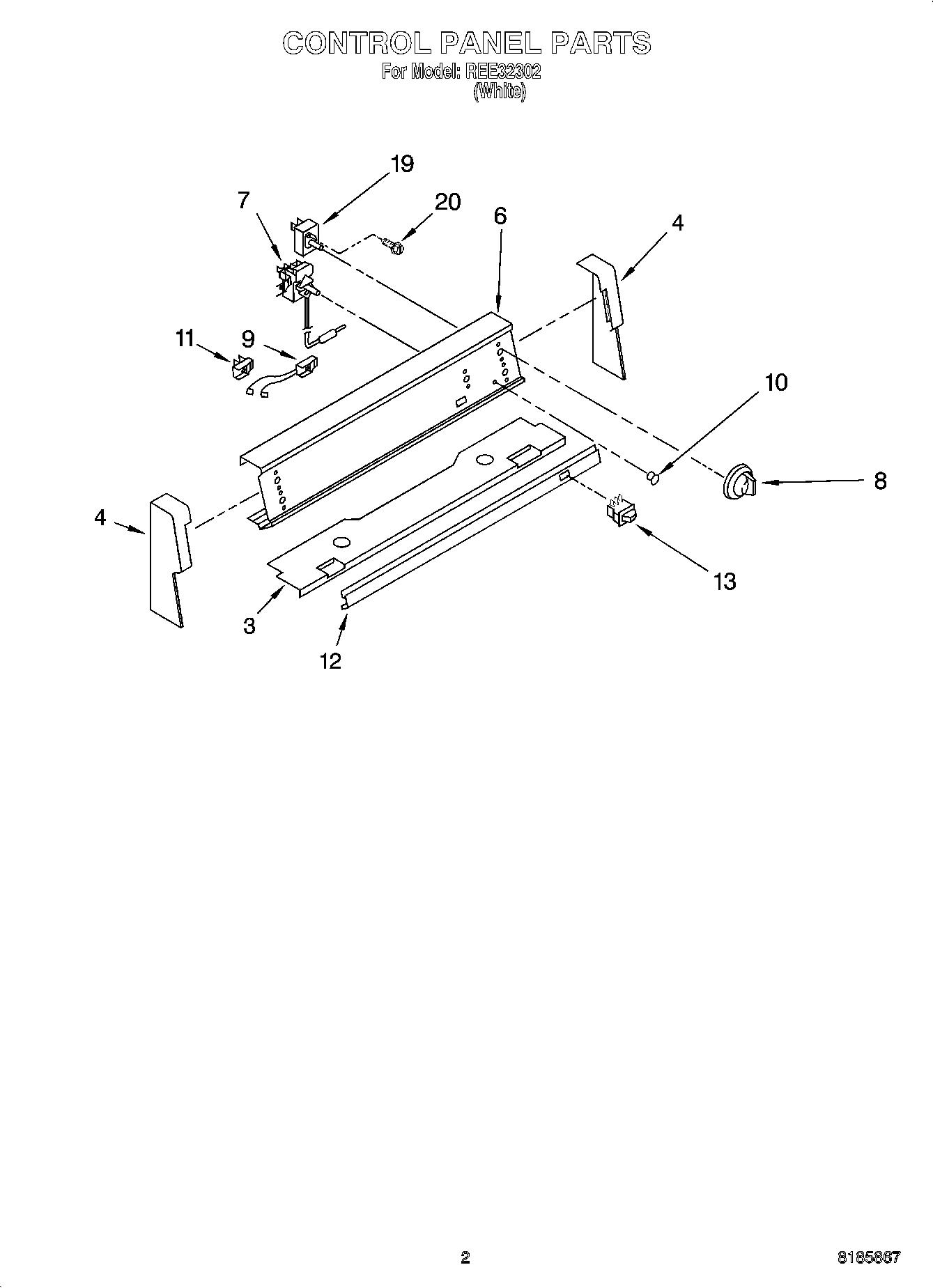

02 - CONTROL PANEL PARTS
01 - COOKTOP PARTS
04 - OVEN CHASSIS PARTS
05 - OVEN PARTS, MISCELLANEOUS PARTS
Common parts from model Whirlpool REE32302 30`` ELECTRIC RANGE COIL COOKTOP E-Z Clean Oven
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
Hanger, Cable WPL 9750984 Contact Us For Availability
Ground, Lead WPL 9751003 Contact Us For Availability
Harness, W WPL 9751014 Contact Us For Availability
WPL 9752771 WPL 9752771 Contact Us For Availability
WPL 9752848 WPL 9752848 Contact Us For Availability
WPL 9753071 WPL 9753071 Contact Us For Availability
WPL 9753301 WPL 9753301 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI121398A WPL ARI121398A Contact Us For Availability
WPL ARI121399A WPL ARI121399A Contact Us For Availability
WPL ARI121400A WPL ARI121400A Contact Us For Availability
WPL ARI121401A WPL ARI121401A Contact Us For Availability
WPL ARI121402A WPL ARI121402A Contact Us For Availability
WPL ARI121403A WPL ARI121403A Contact Us For Availability
WPL ARI121404A WPL ARI121404A Contact Us For Availability
WPL ARI121405A WPL ARI121405A Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT3189944 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754174 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9781875 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Cooktop, Coil WPL 9781989GW Contact Us For Availability
2
Chassis, Front WPL 9750477GM Contact Us For Availability
3
Receptacle, Clip WPL 9782013 Contact Us For Availability
3
Insulation, Wrap WPL 9754001 Contact Us For Availability
4
End Cap (Left) WPL 9752416FW Contact Us For Availability
4
End Cap (Right) WPL 9752417FW Contact Us For Availability
4
Insulation, Rear WPL 9754010 Contact Us For Availability
4
Light Assembly WPL 9750962 Contact Us For Availability
5
Oven Liner WPL 9781294GM Contact Us For Availability
6
Panel, Control WPL 9752478 Contact Us For Availability
6
Screw, 8 x 3/8 WPL 9780852 Contact Us For Availability
6
Gasket, Oven WPL 9750691 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Screw (2) WPL 3400853 Contact Us For Availability
7
Thermostat WPL 9750401 Contact Us For Availability
7
Element, Surface (Coil, 8`` LF-RR) WPL 9782073 Contact Us For Availability
7
Element, Surface (Coil, 6`` LR-RF) WPL 9782076 Contact Us For Availability
7
Oven, Side Panel WPL 9781907PW Contact Us For Availability
8
Knobs, Control (5) WPL 9750272FW Contact Us For Availability
8
Button, Plug WPL 9780578 Contact Us For Availability
9
Screw, 10-16 x 1/2 WPL 3149333 Contact Us For Availability
9
Light, Indicator (Oven) WPL 9780801 Contact Us For Availability
9
Medallion, (4) WPL 4211952 Contact Us For Availability
10
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
11
Light, Indicator (2) (Burners) WPL 313102 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
12
Trim Strip WPL 9752441PW Contact Us For Availability
12
Rod, Support WPL 9780585 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
13
Switch, Oven Light WPL 3191100FW Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
19
Hinge, Receiver (R or L) WPL 9782005 Contact Us For Availability
20
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
25
Vent Tube WPL 9750391 Contact Us For Availability
28
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
× ![]()
