Model GE RE2H80R6-1NCWW – Common Parts & Diagrams

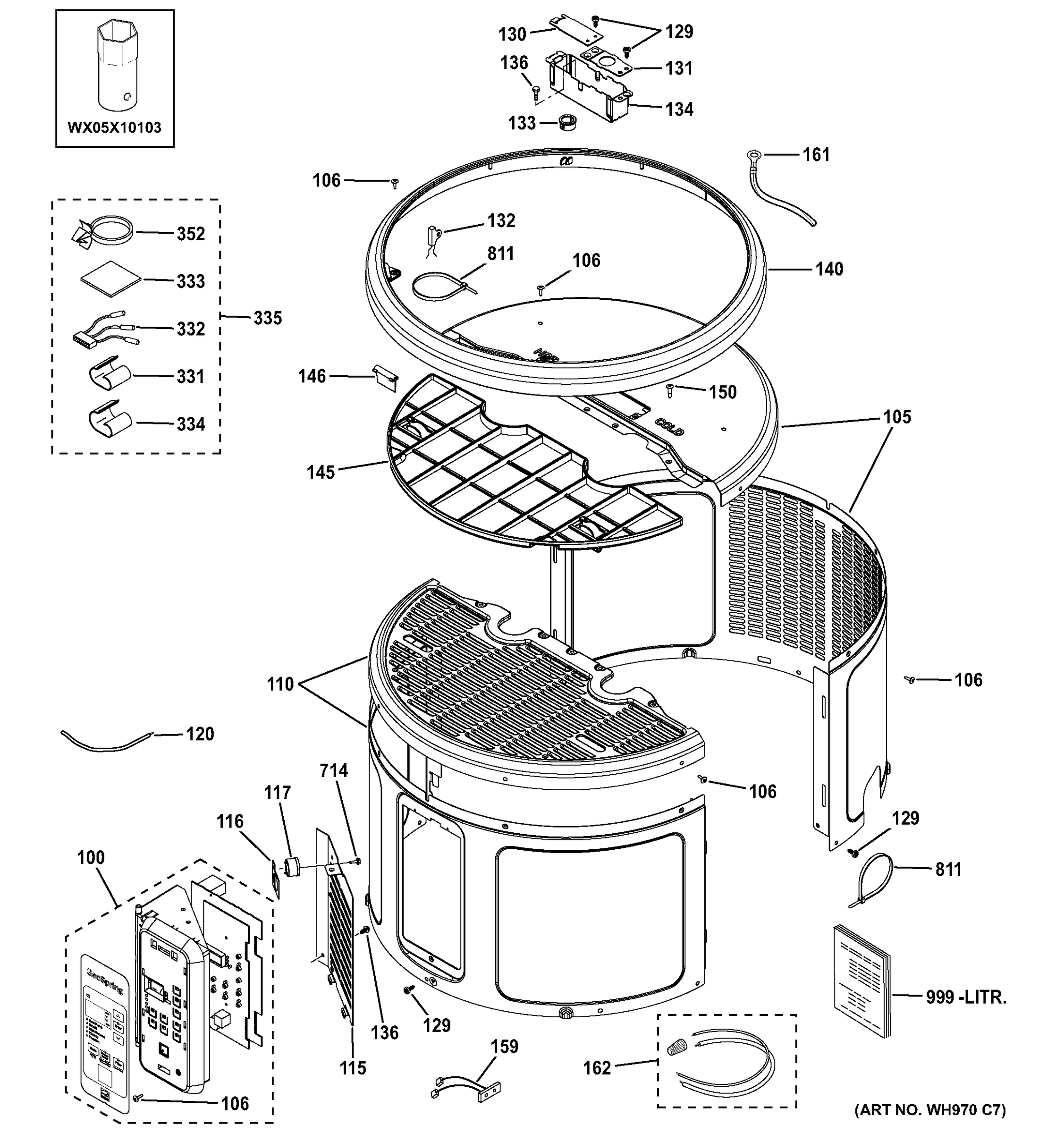

CONTROL PANEL & SHROUD

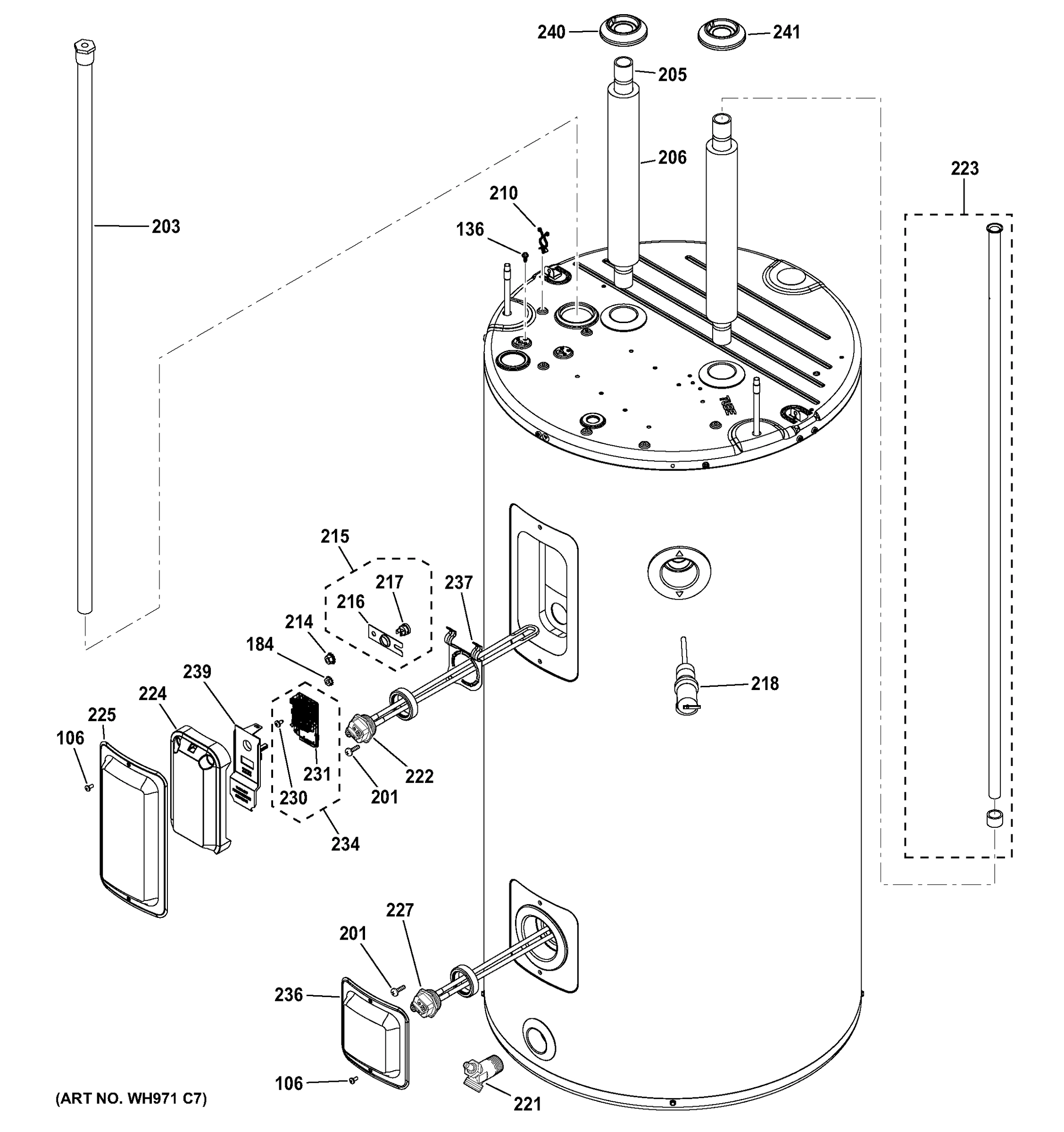

BODY PARTS
UNIT PARTS
Common parts from model GE RE2H80R6-1NCWW
106
SCR 8-18 B PNT7/16 S RED GEN WS02X10083 Contact Us For Availability
129
SCR 10-32 GX PNT20 1/2 S GEN WS02X10086 Contact Us For Availability
131
COVER FIXED J- BOX GEN WS01X20383 Contact Us For Availability
132
SENSOR T5 GEN WS17X10008 Contact Us For Availability
133
GROMMET DC (J-BOX) GEN WS02X10072 Contact Us For Availability
134
CAVITY JUNCTION BOX GEN WS01X20381 Contact Us For Availability
140
TRIM RING GEN WS31X10061 Contact Us For Availability
145
FILTER AIR GEN WS31X10058 Contact Us For Availability
159
T2 WIRE REPAIR KIT GEN WS19X10040 Contact Us For Availability
161
GROUND WIRE TO J-BOX GEN WS19X10038 Contact Us For Availability
162
WIRE L1-L2 REPAIR KIT GEN WS19X10039 Contact Us For Availability
184
NUT KEPS 10-32 SPECIAL GEN WH02X10300 Contact Us For Availability
201
SCR 10-32 PNUP 13/32 S GEN WS02X10077 Contact Us For Availability
203
ROD ANODE GEN WS02X10071 Contact Us For Availability
205
WATER EXTENSION PIPE GEN WS07X20401 Contact Us For Availability
214
1/4-20 HEX NUT - LOCKING GEN WS02X10075 Contact Us For Availability
215
T2 TANK THERMISTOR ASM GEN WS17X10013 Contact Us For Availability
216
BRACKET THERMISTOR T2 GEN WS28X10074 Contact Us For Availability
217
TANK THERMISTOR T2 GEN WS17X10006 Contact Us For Availability
218
VALVE, TEMP/PRESSURE REL GEN WS06X10014 Contact Us For Availability
221
VALVE DRAIN STRAIGHT GEN WS06X20402 Contact Us For Availability
222
ELEMENT HEATING W GASKET GEN WS51X10002 Contact Us For Availability
223
DIPTUBE ASM GEN WS08X20361 Contact Us For Availability
224
COVER ELMNT (UPPER) EPS GEN WS82X10006 Contact Us For Availability
225
COVER ELMNT METAL U. RED GEN WS31X10055 Contact Us For Availability
227
ELEMENT HEATING W GASKET GEN WS51X20161 Contact Us For Availability
231
TCO (THERMAL CUT OUT) GEN WS17X10009 Contact Us For Availability
234
TCO DLB AND SCREWS GEN WS17X10012 Contact Us For Availability
236
COVER ELMNT METAL L. RED GEN WS31X10056 Contact Us For Availability
239
BARRIER DIELECTRIC GEN WS34X10026 Contact Us For Availability
240
GROMMET OUTLET, RED GEN WS01X10050 Contact Us For Availability
241
GROMMET INLET, BLUE GEN WS01X10051 Contact Us For Availability
300
COMPRESSOR GEN WS87X20403 Contact Us For Availability
313
SERVICE KIT DRAIN PAN GEN WS35X20681 Contact Us For Availability
315
SCR 10-32 HXW 2 1/2 S GEN WS02X10085 Contact Us For Availability
326
OVERLOAD COMP GEN WS08X20405 Contact Us For Availability
339
TUBE DRYER GEN WS07X20389 Contact Us For Availability
340
EEV VALVE GEN WS17X20390 Contact Us For Availability
341
EEV VALVE ASM KIT GEN WS35X20386 Contact Us For Availability
348
WIRE (G-B) GRD COMPRESSO GEN WS19X10034 Contact Us For Availability
350
FAN MOTOR EC GEN WS26X20393 Contact Us For Availability
362
SEAL FOAM EVAP GEN WS16X10002 Contact Us For Availability
380
EVAPORATOR KIT GEN WS35X20201 Contact Us For Availability
999
HYBRID WATER HEATER GEN 3175035 Contact Us For Availability
999
PM USE & CARE GEN 4950300 Contact Us For Availability
× ![]()
