Model Whirlpool RE253G1 – Common Parts & Diagrams
03 - AIR FLOW AND CONTROL
05 - OPTIONAL
02 - UNIT, LITERATURE
04 - CABINET

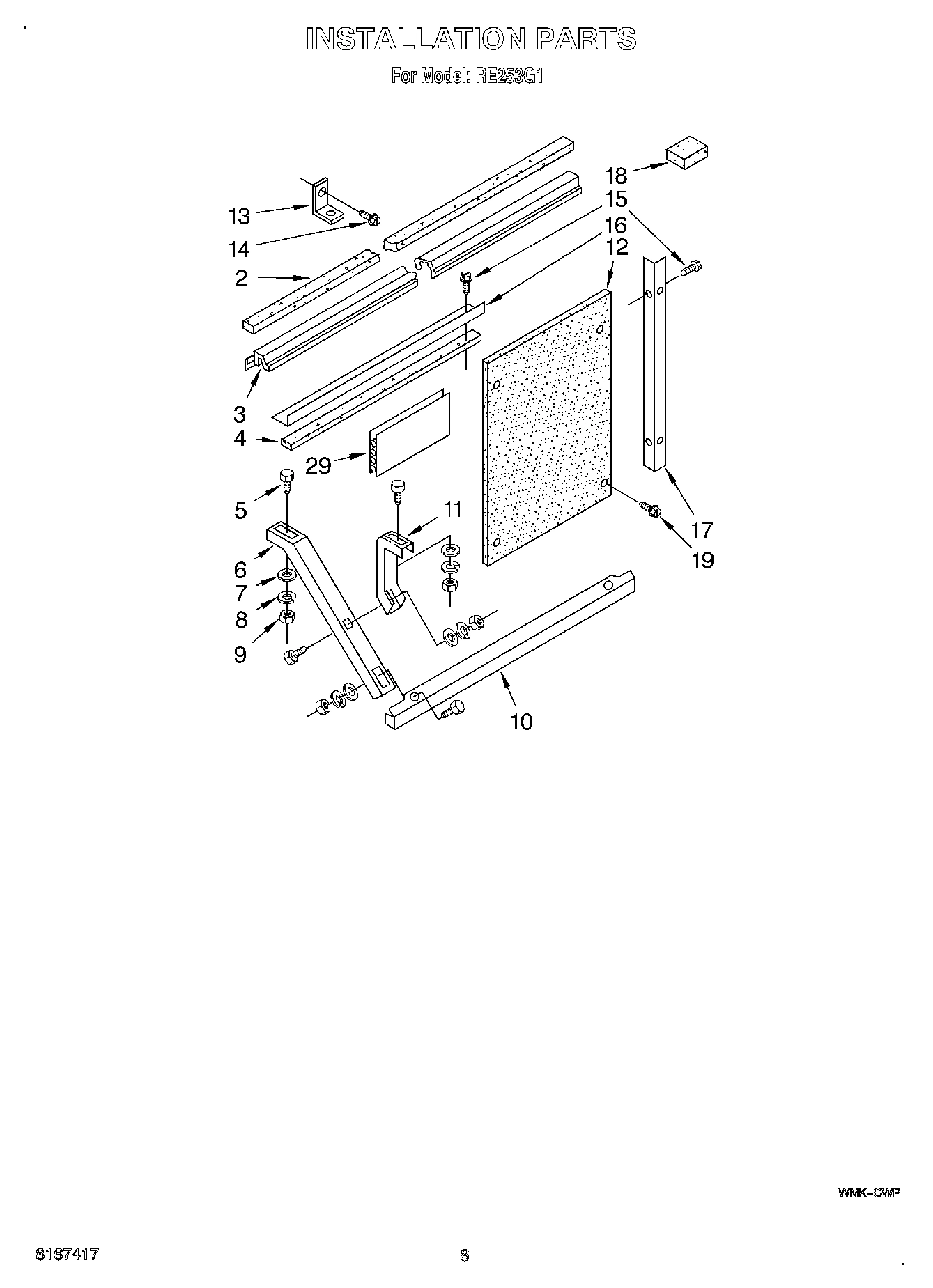

06 - INSTALLATION
Common parts from model Whirlpool RE253G1
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Wiring Diagram WPL LIT1165720 Contact Us For Availability
1
Use & Care Guide WPL LIT1182935 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1168478 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (30) WPL 708532 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (2) WPL 708531 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Insulation, Top (Cabinet) WPL 1183415 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor (5) WPL 1182809 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1169509 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Front, Cabinet WPL 1168499 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Motor, Fan WPL 1183428 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Evaporator WPL 1169765 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Wetloop WPL 1183416 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
16
Condenser WPL 1160100 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
17
Bend, Return Evaporator (10) WPL 854624 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
18
Base WPL 1168486 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Return Bend Condenser (1) WPL 1156329 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Harness, Wiring WPL 1183656 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1168496 Contact Us For Availability
21
Compressor WPL 1182808 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1168493 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Front, Complete WPL 1168498 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Switch Rotary WPL 1183512 Contact Us For Availability
26
Distributor WPL 1163760 Contact Us For Availability
27
Tube, Wetloop Connect WPL 1183830 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1182636 Contact Us For Availability
28
Actuator, Louver WPL 1182348 Contact Us For Availability
29
Filter WPL 1168500 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1167094 Contact Us For Availability
31
Return Bend Evaporator (7) WPL 855199 Contact Us For Availability
32
Manifold, Suction WPL 1164563 Contact Us For Availability
32
Spring, Detent WPL 1167095 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
34
Tube, Suction WPL 1182751 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1182942 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
38
Control Box (R.S.) WPL 1182937 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Element, Heating WPL 1182738 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
44
Link, Fuse WPL 4388360 Contact Us For Availability
44
Bend, Return Evaporator (10) WPL 855644 Contact Us For Availability
45
Switch, Limit WPL 4388458 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1183511 Contact Us For Availability
46
Tube, Discharge WPL 1182750 Contact Us For Availability
47
Insulation, Top Cover WPL 1163758 Contact Us For Availability
47
Gasket, Nut WPL 1182120 Contact Us For Availability
48
Harness, Heater WPL 1162061 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
51
Tube, Feeder WPL 1160357 Contact Us For Availability
52
Tube, Feeder WPL 1160358 Contact Us For Availability
53
Tube, Flow Divider WPL 1159832 Contact Us For Availability
× ![]()
