Model Whirlpool RDP34582 – Common Parts & Diagrams

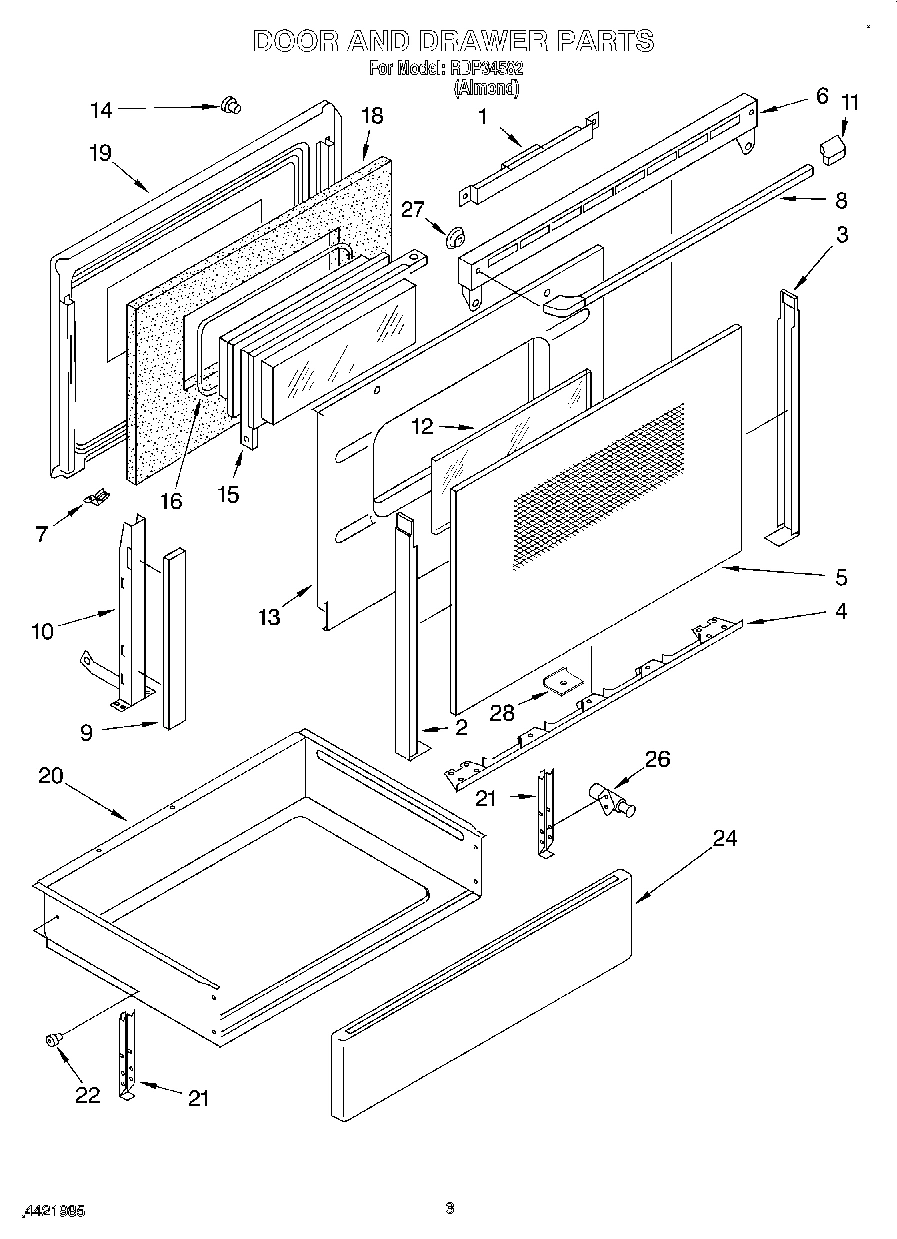

03 - DOOR AND DRAWER

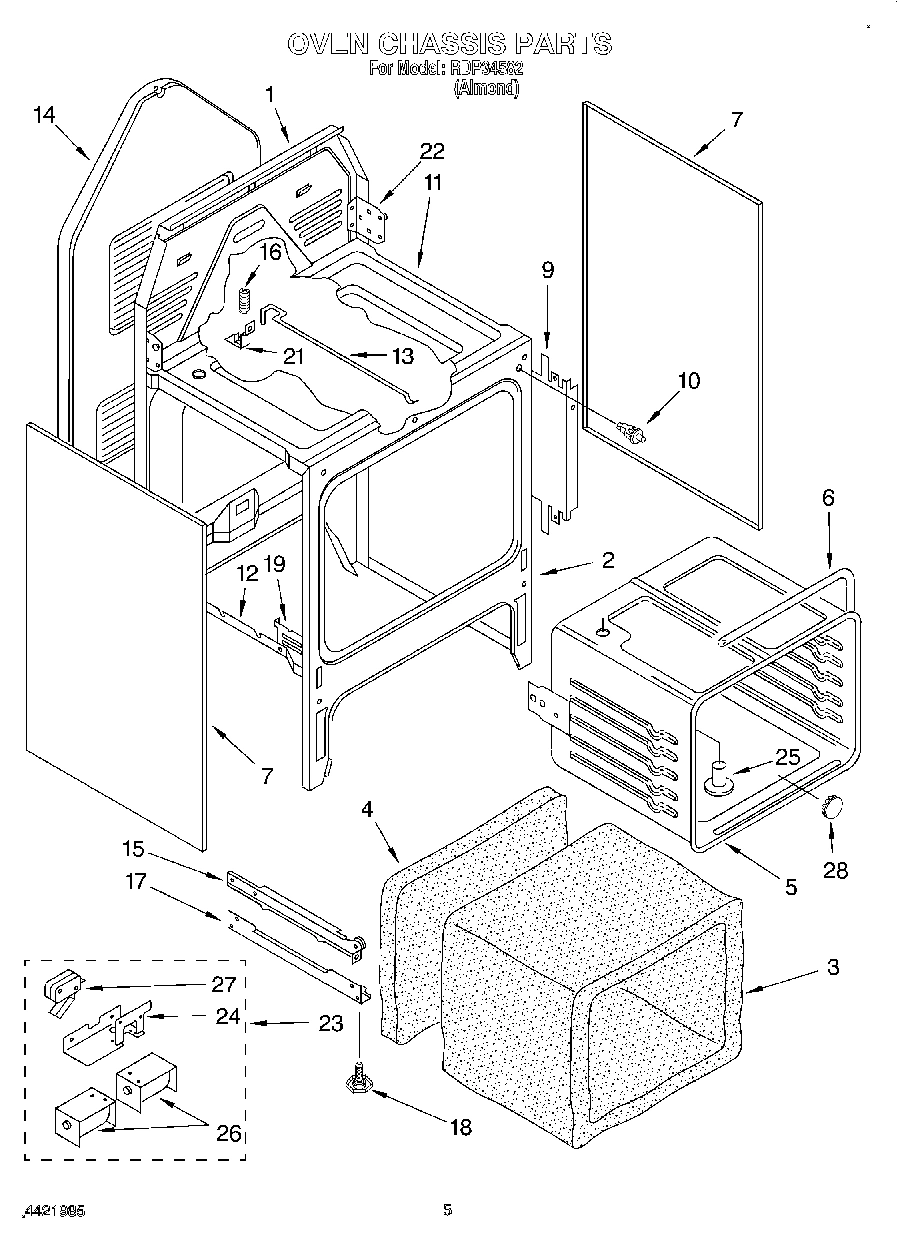

04 - OVEN CHASSIS

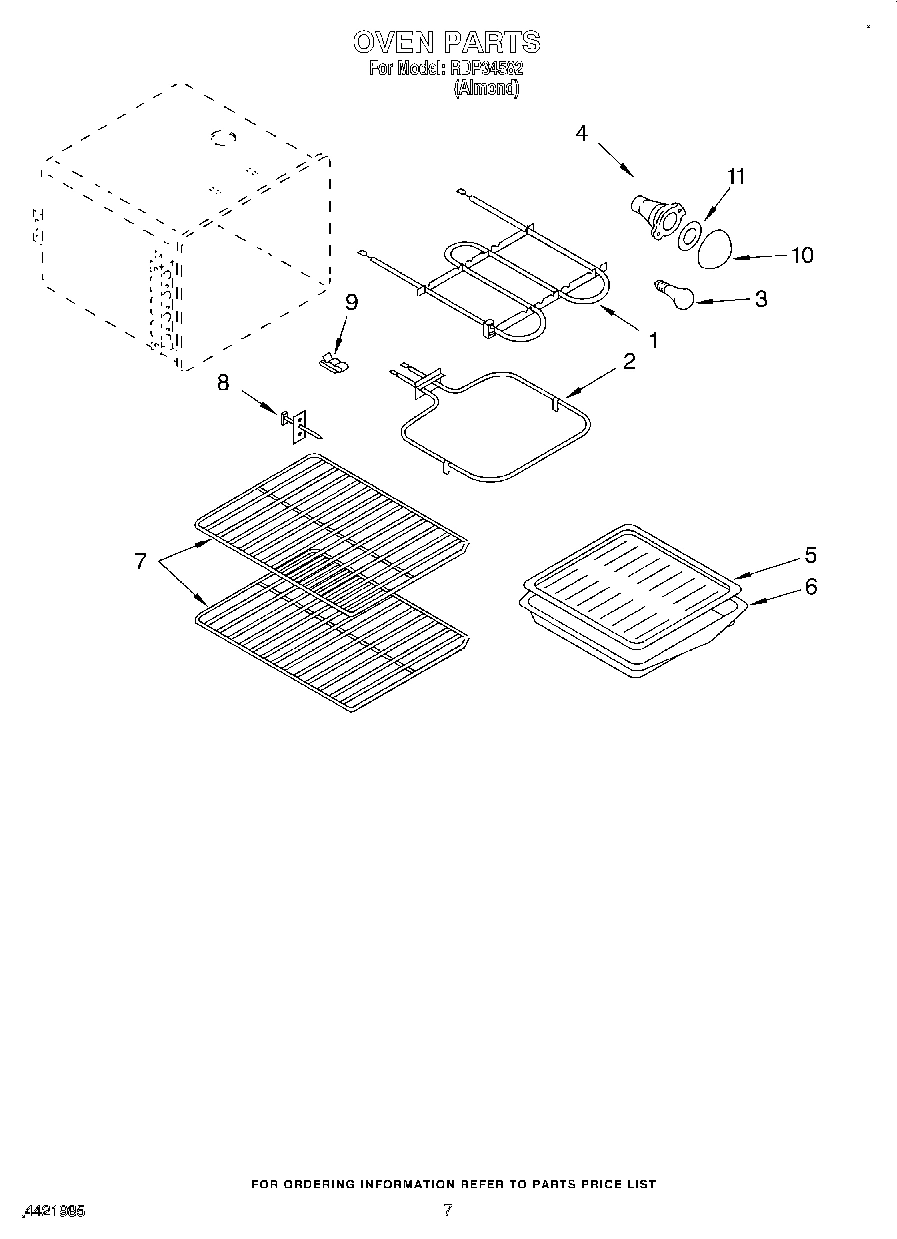

05 - OVEN, OPTIONAL

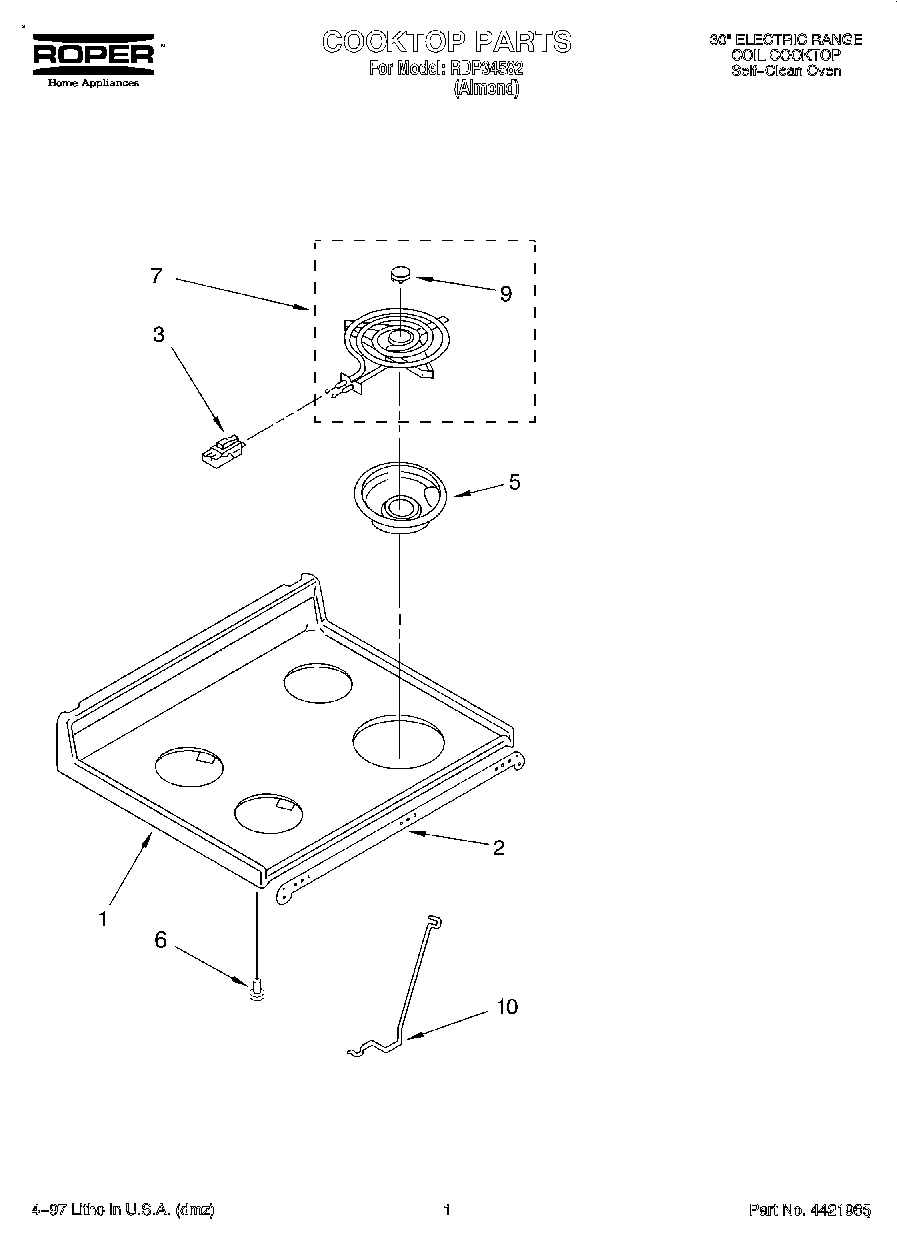

01 - COOKTOP, LITERATURE

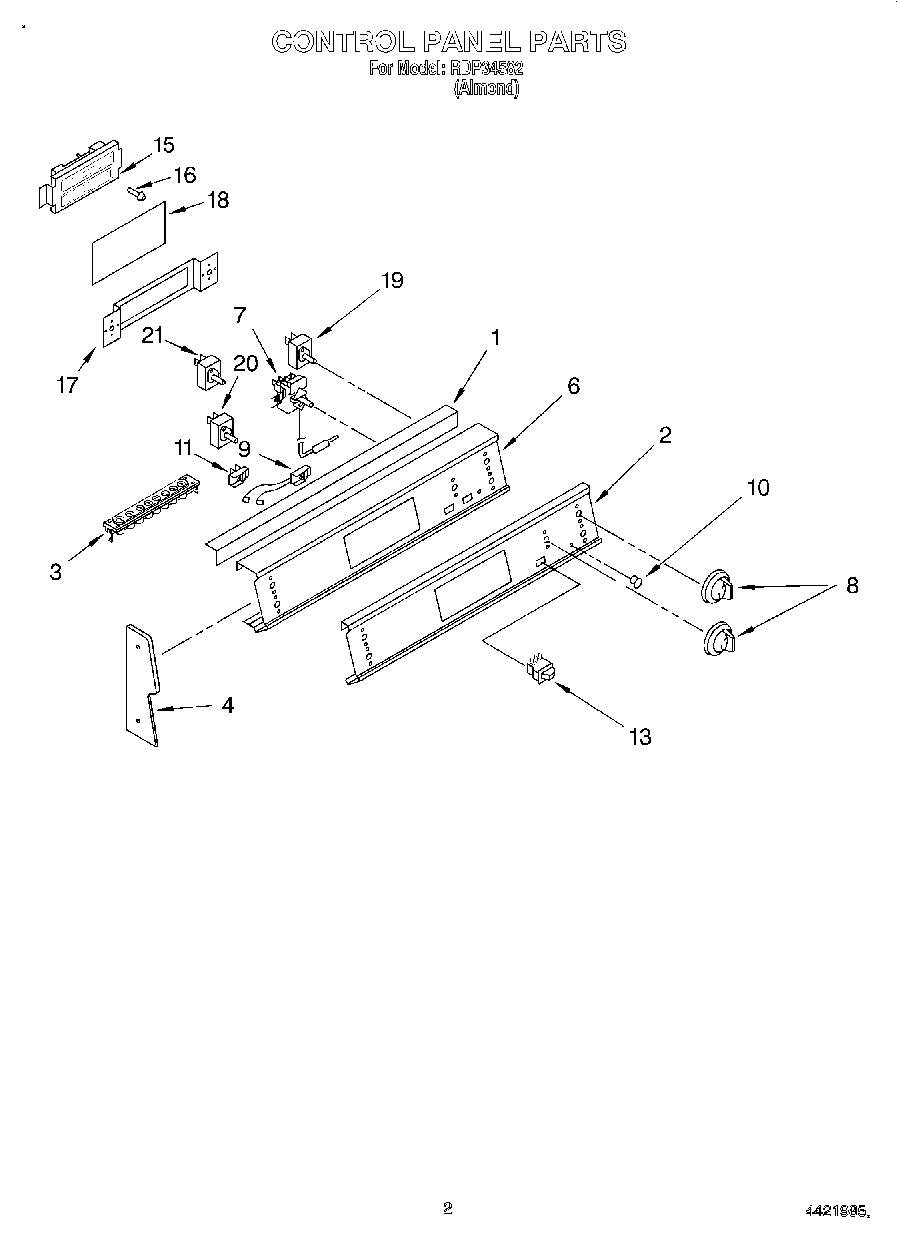

02 - CONTROL PANEL
Common parts from model Whirlpool RDP34582
Label, Instruction (Lamp Cover) WPL LIT3189886 Contact Us For Availability
Wiring Diagram WPL LIT9781295 Contact Us For Availability
Use And Care Guide WPL LIT9781516 Contact Us For Availability
Use & Care (French) WPL LIT9781517 Contact Us For Availability
1
Main Chassis, Back WPL 9780810 Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
1
Cooktop, Coil (Almond) WPL 9750160GT Contact Us For Availability
1
Cover, Lamp WPL 9751255PB Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Screw, (2) WPL 9780270 Contact Us For Availability
2
Screw, Elements WPL 9781509 Contact Us For Availability
2
Guard, Wire WPL 9780585 Contact Us For Availability
2
Panel, Control (Overlay) WPL 9781436 Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Clip, Receptacle WPL 9750735 Contact Us For Availability
3
Screw (2) WPL 98884 Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
End Cap (Left) WPL 9750262FB Contact Us For Availability
4
End Cap (Right) WPL 9750263FB Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
6
Screw (2) 10AB x 1/2 WPL 3149333 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Panel, Control WPL 3190062 Contact Us For Availability
6
Screw, (2) 8 x 3/8 WPL 9780852 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Oven , Side Panel (White, L or R) WPL 9750148PT Contact Us For Availability
7
Element, Surface (Coil, 6`` LR (Accu-Simmer)) WPL 9781327 Contact Us For Availability
7
Thermostat WPL 9781315 Contact Us For Availability
8
Limit Switch, Saftey WPL 9781311 Contact Us For Availability
8
Knobs, Control (6) WPL 9750272FB Contact Us For Availability
9
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Medallion, (3) WPL 4211952 Contact Us For Availability
9
Medallion, (1) (Accu-Simmer) WPL 4211986 Contact Us For Availability
9
Light, Indicator (Oven - Thermostat) WPL 9780801 Contact Us For Availability
9
Light, Indicator (Switch, Selector (2)) WPL 9780802 Contact Us For Availability
10
Door Switch (Oven Light) WPL 9781580 Contact Us For Availability
10
Rod, Support (2) WPL 9751538 Contact Us For Availability
11
WPL W10355051 No Longer Available
11
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
11
WPL 799344 WPL 799344 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Lock Washer WPL 424238 Contact Us For Availability
11
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
11
Grease WPL 261582 Contact Us For Availability
11
Coffee WPL 261886 Contact Us For Availability
11
New Avocado WPL 261888 Contact Us For Availability
11
Harvest Gold WPL 261890 Contact Us For Availability
11
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
11
Toast WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
11
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
11
Platinum (Uncut) WPL 285368 Contact Us For Availability
11
WPL 72108 WPL 72108 Contact Us For Availability
11
WPL 72112 WPL 72112 Contact Us For Availability
11
WPL 799832 WPL 799832 Contact Us For Availability
11
WPL 9750744 WPL 9750744 Contact Us For Availability
11
WPL 9750984 WPL 9750984 Contact Us For Availability
11
WPL 9751003 WPL 9751003 Contact Us For Availability
11
WPL 9751014 WPL 9751014 Contact Us For Availability
11
WPL 9781218 WPL 9781218 Contact Us For Availability
11
WPL 9781444 WPL 9781444 Contact Us For Availability
11
WPL 9781445 WPL 9781445 Contact Us For Availability
11
WPL 9781446 WPL 9781446 Contact Us For Availability
11
WPL 9781461 WPL 9781461 Contact Us For Availability
11
WPL 9781540 WPL 9781540 Contact Us For Availability
11
WPL 978883 WPL 978883 Contact Us For Availability
11
Light, Indicator (2) (Cooktop) WPL 9750964 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
13
Switch, Oven Light WPL 9780355 Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Timer WPL 9750302 Contact Us For Availability
16
Spring, Door Lock WPL 9750833 Contact Us For Availability
16
Button, Timer (8) WPL 9750296FB Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Bracket, Timer WPL 9750715 Contact Us For Availability
18
Lens, Timer WPL 9750901 Contact Us For Availability
19
Receiver, Hinge (R or L) WPL 9750149 Contact Us For Availability
21
Bracket, Spring WPL 9750834 Contact Us For Availability
21
Switch, Selector WPL 9781313 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
Oven Lock Assembly WPL 9750522 Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability
26
Screw (2) 10-32 x 5/16 WPL 422222 Contact Us For Availability
26
Solenoid, (2) WPL 9750524 Contact Us For Availability
27
Spacer, Door Vent WPL 9781453 Contact Us For Availability
27
Screw, (2) WPL 9750887 Contact Us For Availability
27
Nut (2) WPL 9750888 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
28
Retainer, Glass WPL 9781206 Contact Us For Availability
28
Plug, Button WPL 9780578 Contact Us For Availability
× ![]()
