Model LG RDIIM10 Disinfection Robot – Common Parts & Diagrams

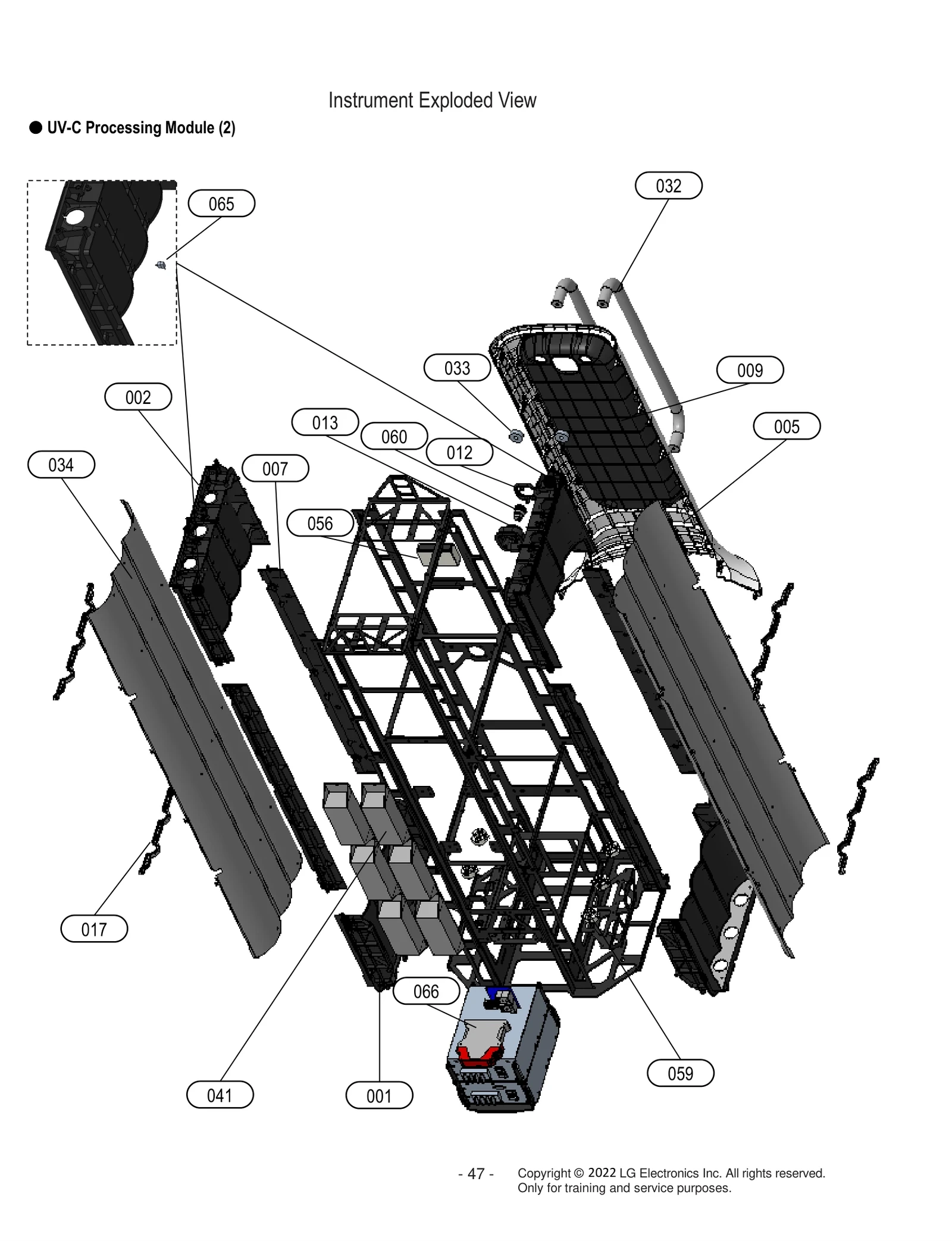

001
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV36905701 Contact Us For Availability
View on Model
002
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV36905801 Contact Us For Availability
View on Model
004
Cover,Outsourcing
Cover,Outsourcing LGE COV36906001 Contact Us For Availability
View on Model
005
Cover,Outsourcing
Cover,Outsourcing LGE COV36906101 Contact Us For Availability
View on Model
006
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV36906201 Contact Us For Availability
View on Model
008
Cover,Outsourcing
Cover,Outsourcing LGE COV36906401 Contact Us For Availability
View on Model
009
Cover,Outsourcing
Cover,Outsourcing LGE COV36906501 Contact Us For Availability
View on Model
010
Cover,Outsourcing
Cover,Outsourcing LGE COV36906601 Contact Us For Availability
View on Model
011
Link,Outsourcing
Link,Outsourcing LGE COV36906701 Contact Us For Availability
View on Model
012
Holder Assembly,Outsourcing
Holder Assembly,Outsourcing LGE COV36906801 Contact Us For Availability
View on Model
014
Holder Assembly,Outsourcing
Holder Assembly,Outsourcing LGE COV36907001 Contact Us For Availability
View on Model
015
Holder Assembly,Outsourcing
Holder Assembly,Outsourcing LGE COV36907101 Contact Us For Availability
View on Model
016
Holder Assembly,Outsourcing
Holder Assembly,Outsourcing LGE COV36907201 Contact Us For Availability
View on Model
017
Lamp Holder,Outsourcing
Lamp Holder,Outsourcing LGE COV36907301 Contact Us For Availability
View on Model

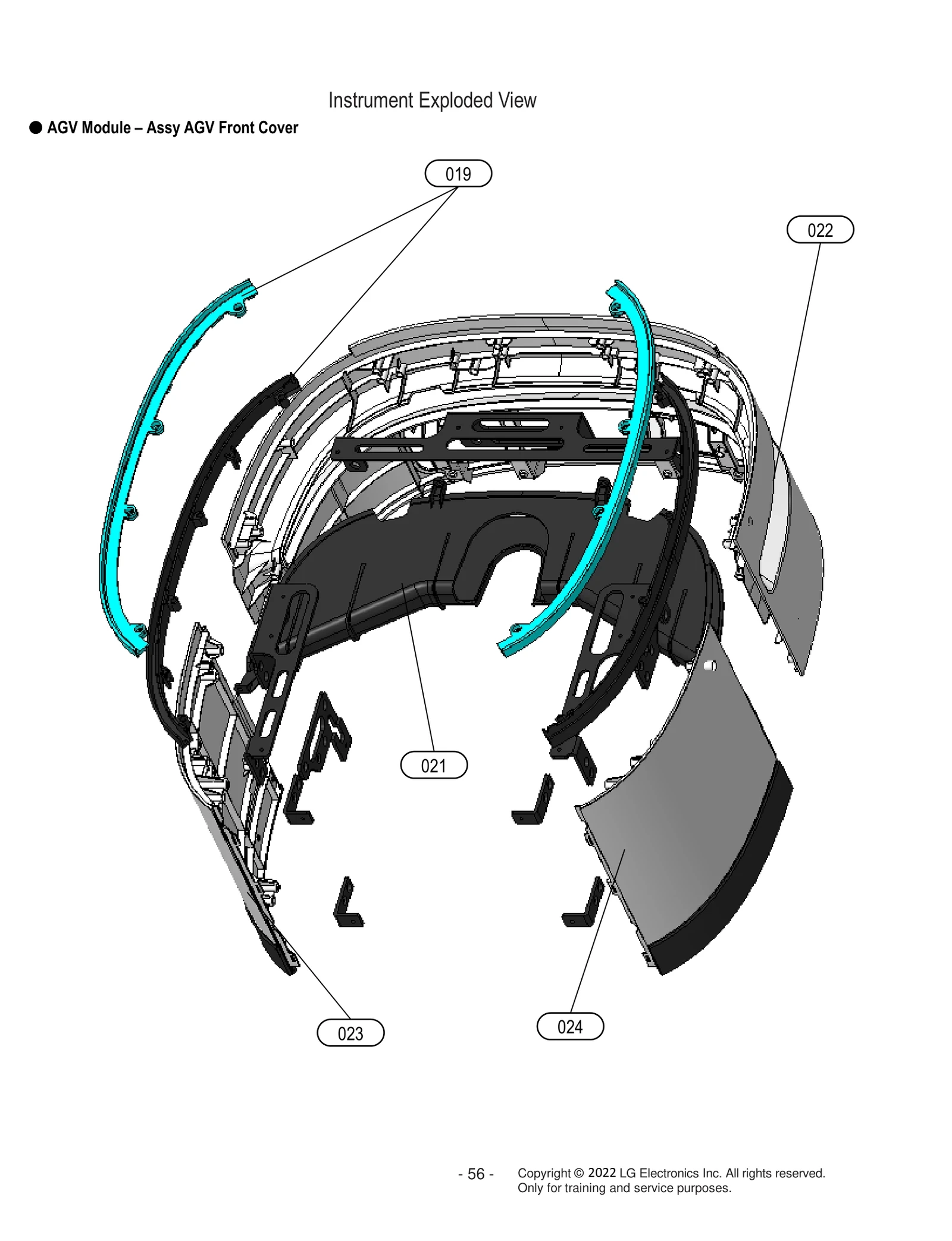

019
LED Assembly,Outsourcing
LED Assembly,Outsourcing LGE COV36913601 Contact Us For Availability
View on Model

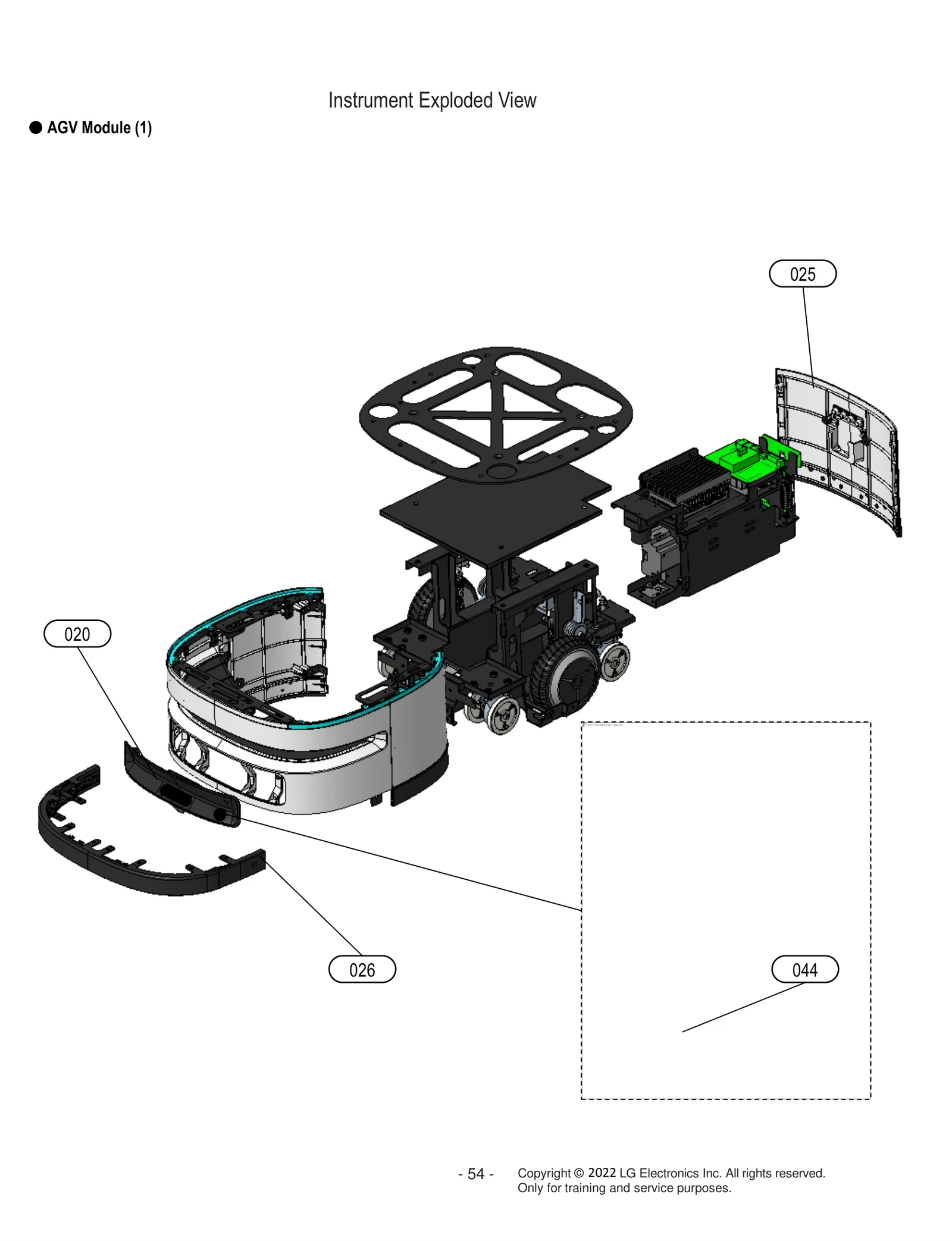

020
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV36907801 Contact Us For Availability
View on Model
021
Guide,Outsourcing
Guide,Outsourcing LGE COV36907901 Contact Us For Availability
View on Model
022
Cover,Outsourcing
Cover,Outsourcing LGE COV36908001 Contact Us For Availability
View on Model
023
Cover,Outsourcing
Cover,Outsourcing LGE COV36908201 Contact Us For Availability
View on Model
024
Cover,Outsourcing
Cover,Outsourcing LGE COV36908301 Contact Us For Availability
View on Model
025
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV36908401 Contact Us For Availability
View on Model
026
Bumper,Outsourcing
Bumper,Outsourcing LGE COV36913701 Contact Us For Availability
View on Model

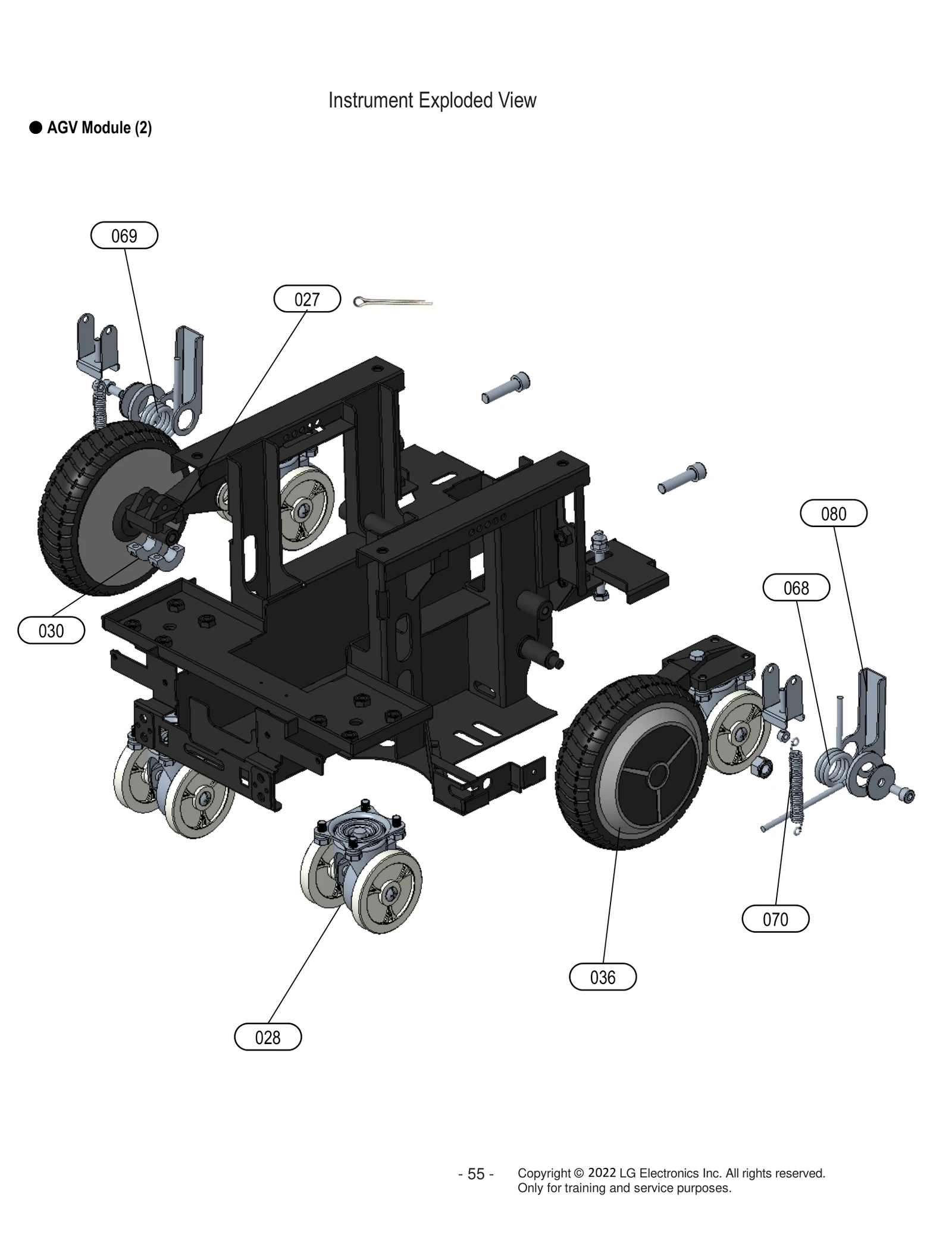

028
Wheel,Outsourcing
Wheel,Outsourcing LGE COV36908801 Contact Us For Availability
View on Model
029
Frame,Outsourcing
Frame,Outsourcing LGE COV36908901 Contact Us For Availability
View on Model
030
Collar,Outsourcing
Collar,Outsourcing LGE COV36909001 Contact Us For Availability
View on Model
031
Indicator,Outsourcing
Indicator,Outsourcing LGE COV36909101 Contact Us For Availability
View on Model
032
Handle,Outsourcing
Handle,Outsourcing LGE COV36909201 Contact Us For Availability
View on Model
033
Gasket,Outsourcing
Gasket,Outsourcing LGE COV36909701 Contact Us For Availability
View on Model
036
DC Motor,Outsourcing
DC Motor,Outsourcing LGE COV36795701 Contact Us For Availability
View on Model
037
Battery Assembly,Outsourcing
Battery Assembly,Outsourcing LGE COV36909901 Contact Us For Availability
View on Model

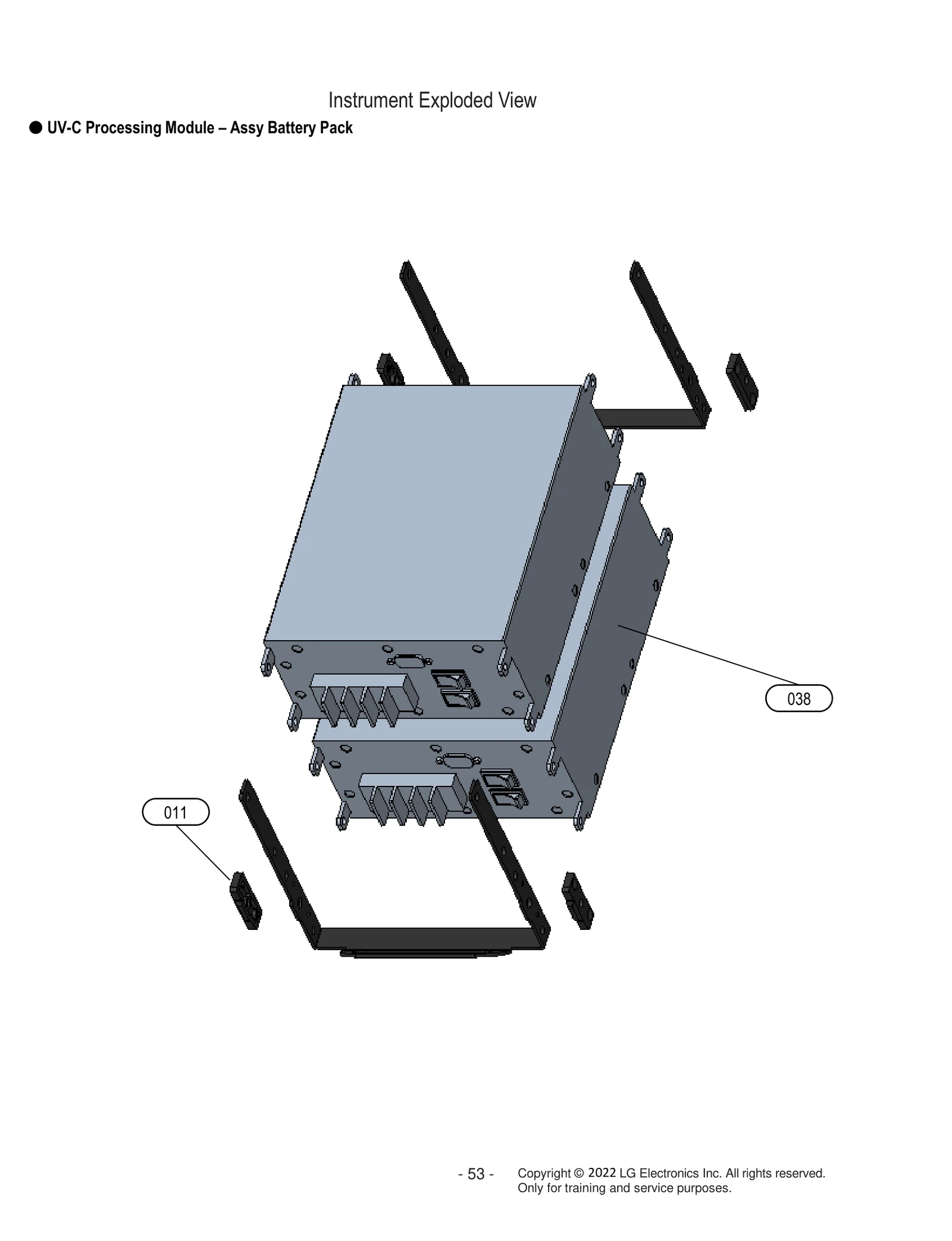

038
Battery Assembly,Outsourcing
Battery Assembly,Outsourcing LGE COV36909801 Contact Us For Availability
View on Model

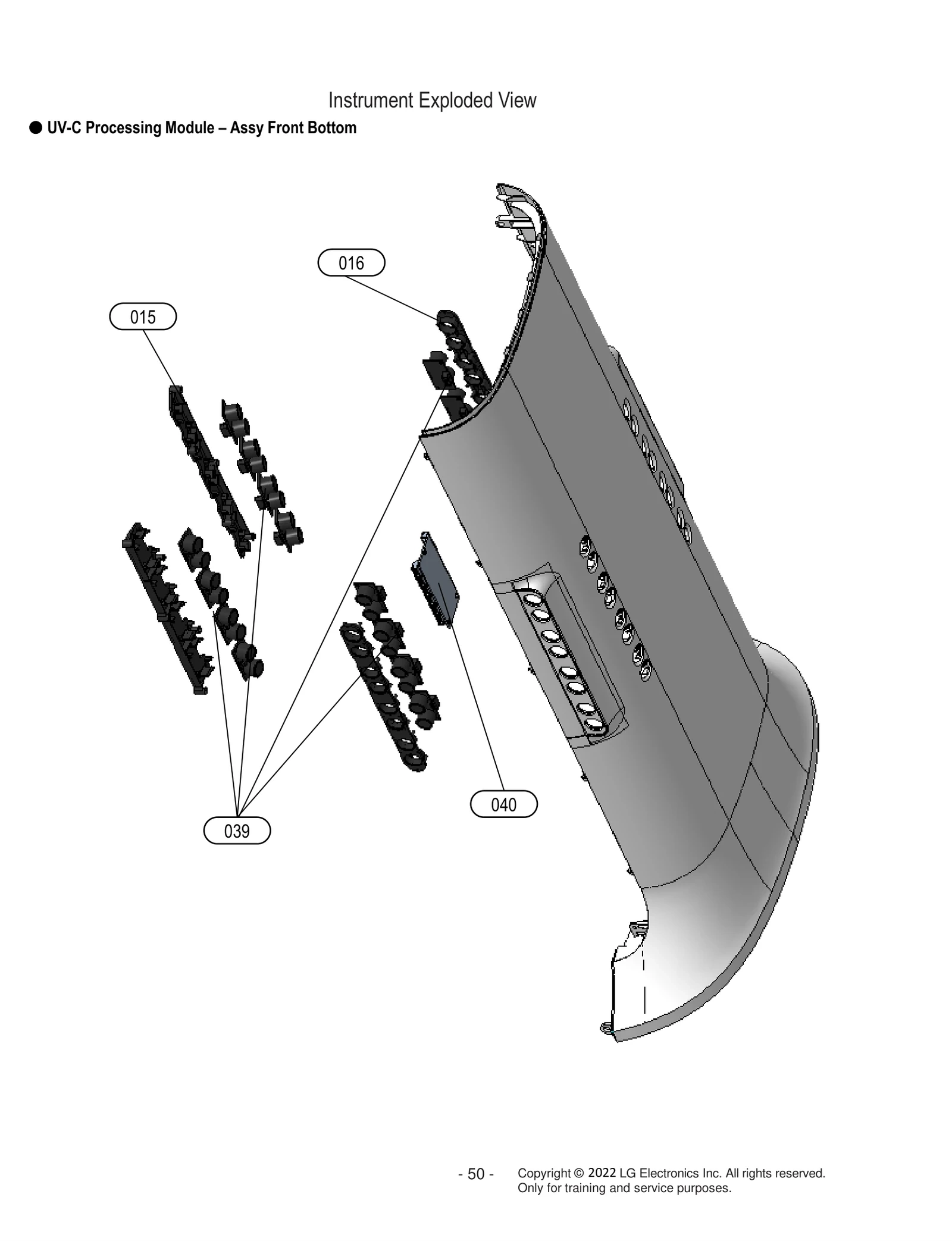

039
Sensor,Outsourcing
Sensor,Outsourcing LGE COV36797901 Contact Us For Availability
View on Model
040
PCB Assembly,Outsourcing
PCB Assembly,Outsourcing LGE COV36851301 Contact Us For Availability
View on Model
041
Ballast,Outsourcing
Ballast,Outsourcing LGE COV36851001 Contact Us For Availability
View on Model
042
Power Supply,Outsourcing
Power Supply,Outsourcing LGE COV36796201 Contact Us For Availability
View on Model
043
Sensor,Outsourcing
Sensor,Outsourcing LGE COV36797201 Contact Us For Availability
View on Model
044
Sensor,Outsourcing
Sensor,Outsourcing LGE COV36905201 Contact Us For Availability
View on Model
046
Driver Assembly,Outsourcing
Driver Assembly,Outsourcing LGE COV36795601 Contact Us For Availability
View on Model
047
Relay,Outsourcing
Relay,Outsourcing LGE COV36796301 Contact Us For Availability
View on Model
048
PCB Assembly,CPU,Outsourcing
PCB Assembly,CPU,Outsourcing LGE COV36795401 Contact Us For Availability
View on Model
049
PCB Assembly,CPU,Outsourcing
PCB Assembly,CPU,Outsourcing LGE COV36804301 Contact Us For Availability
View on Model
051
PCB Assembly,Outsourcing
PCB Assembly,Outsourcing LGE COV36905501 Contact Us For Availability
View on Model
052
PCB Assembly,Module,Outsourcing
PCB Assembly,Module,Outsourcing LGE COV36796401 Contact Us For Availability
View on Model
053
Lamp,Outsourcing
Lamp,Outsourcing LGE COV36797401 Contact Us For Availability
View on Model

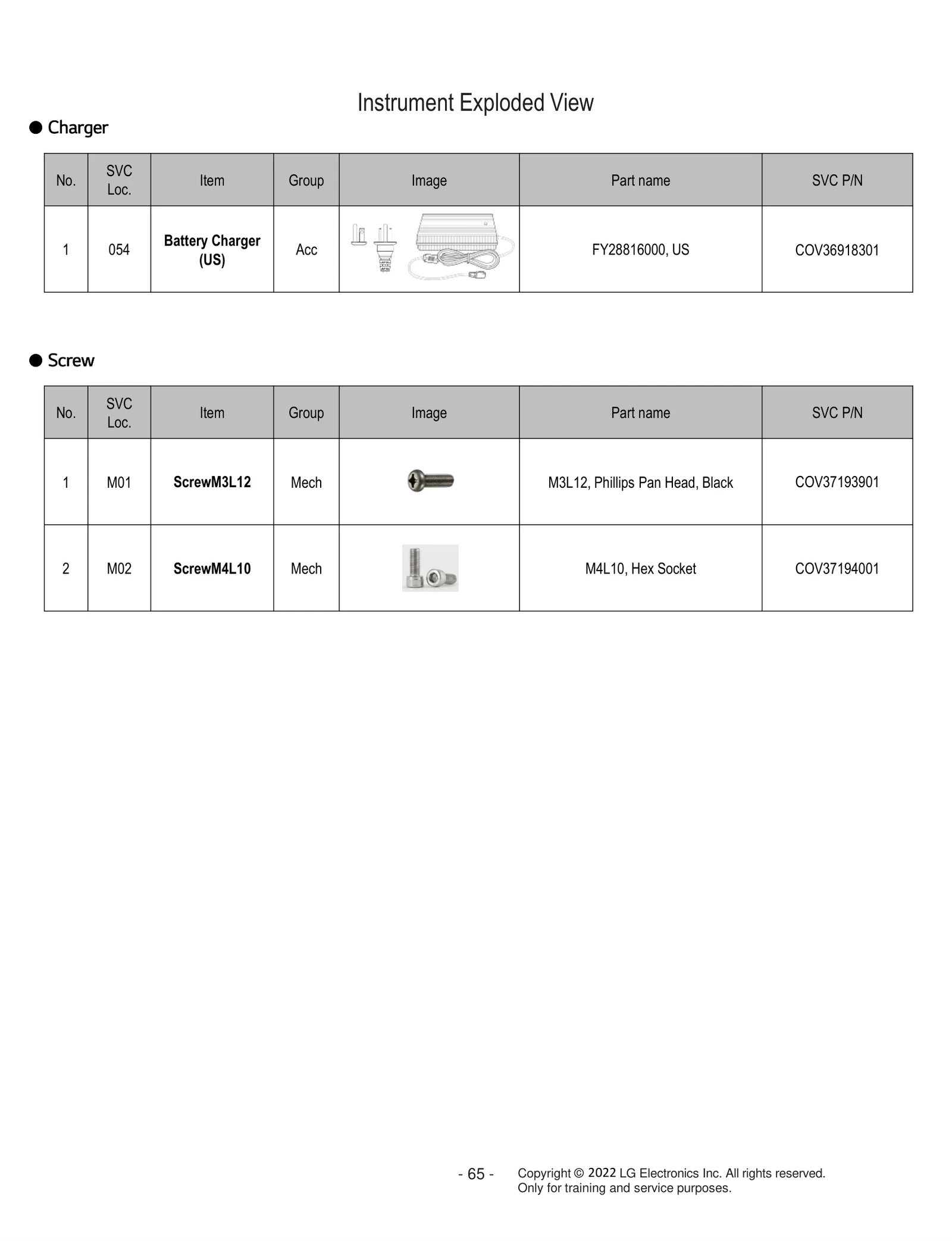

054
Charger,Outsourcing
Charger,Outsourcing LGE COV36918301 Contact Us For Availability
View on Model
056
Hub,Outsourcing
Hub,Outsourcing LGE COV36798601 Contact Us For Availability
View on Model
057
Rocker Switch,Outsourcing
Rocker Switch,Outsourcing LGE COV36852301 Contact Us For Availability
View on Model
059
Lamp Socket,Outsourcing
Lamp Socket,Outsourcing LGE COV36905601 Contact Us For Availability
View on Model
060
Push Button Switch,Outsourcing
Push Button Switch,Outsourcing LGE COV36851101 Contact Us For Availability
View on Model

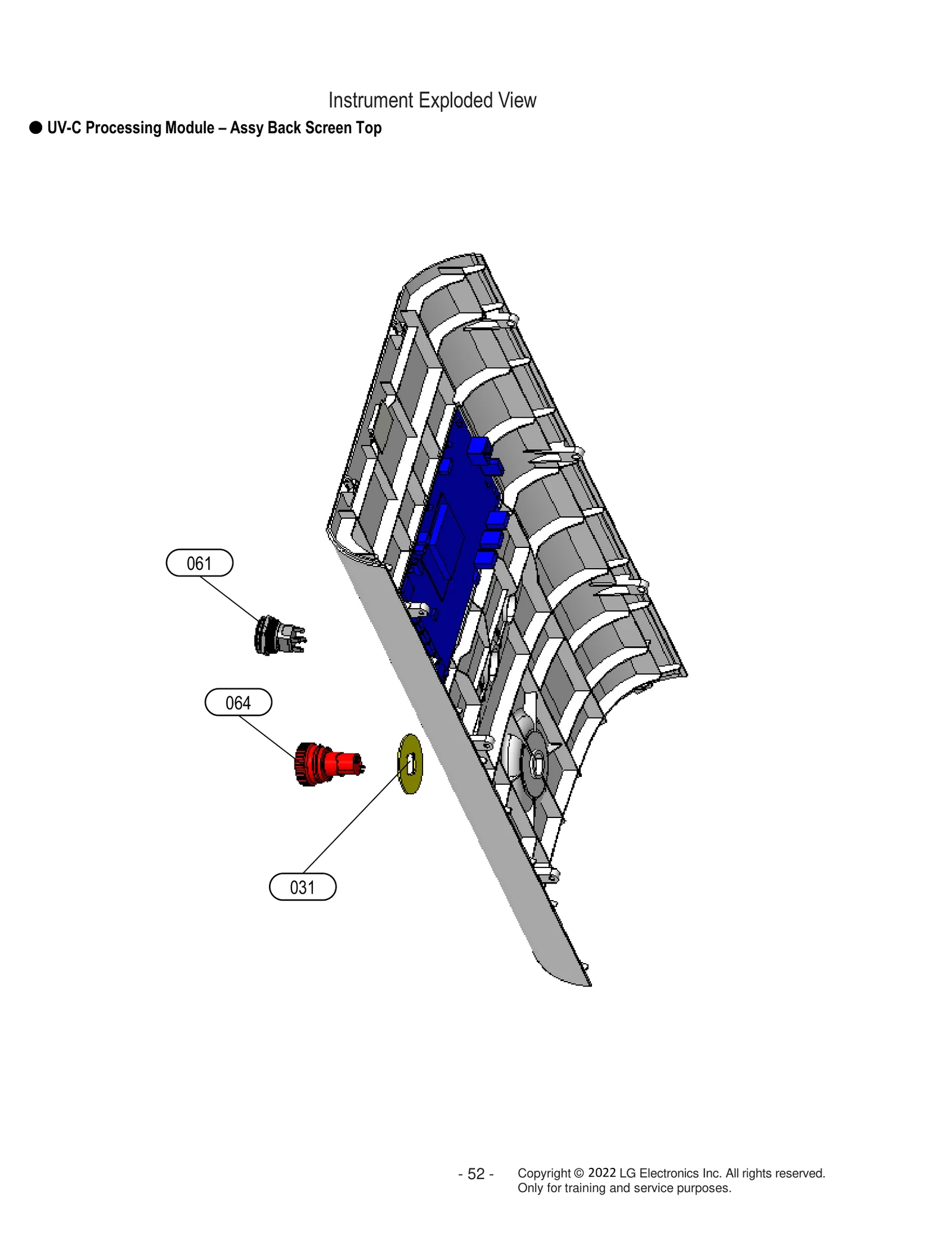

061
Button,Outsourcing
Button,Outsourcing LGE COV36796101 Contact Us For Availability
View on Model

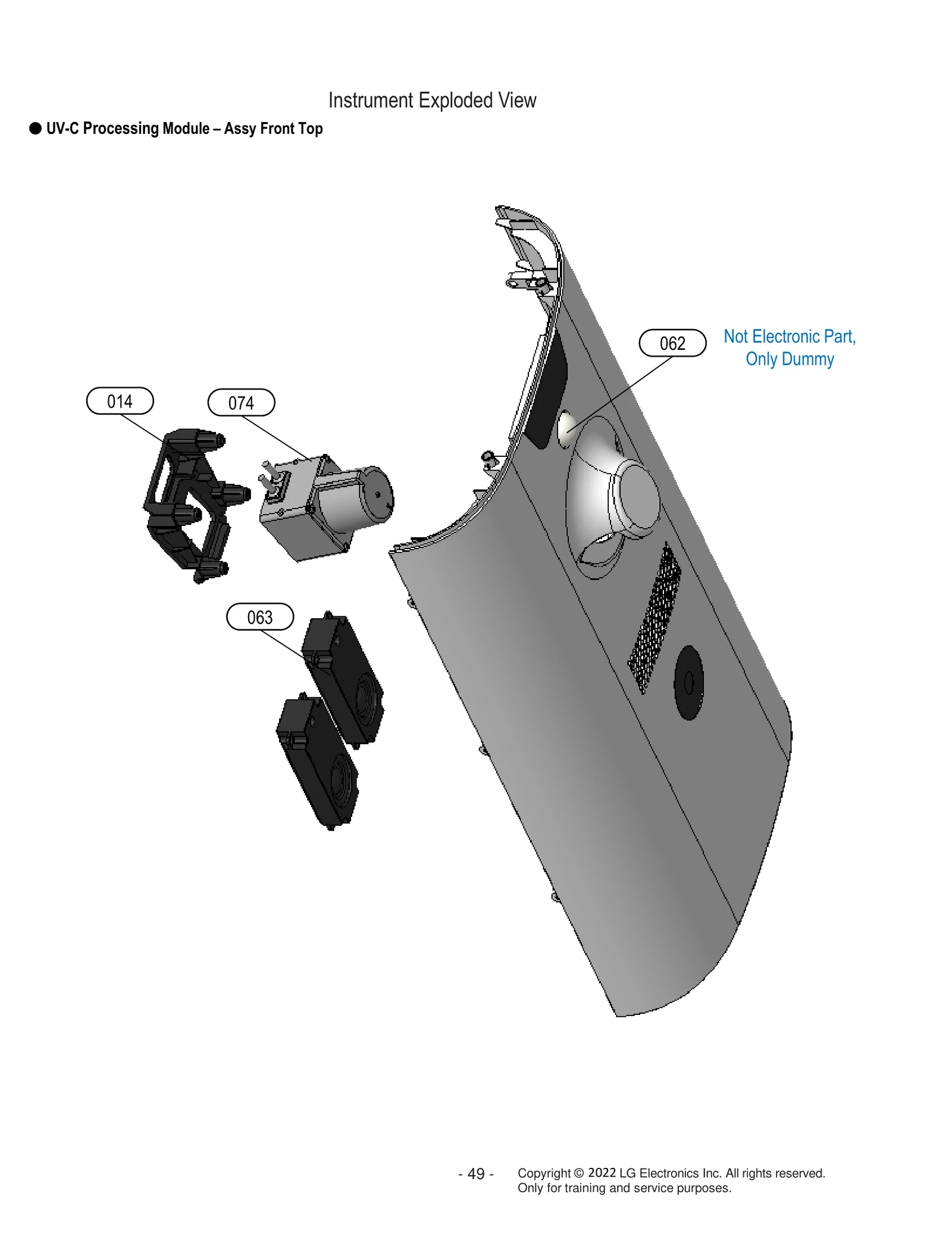

062
Sensor,Outsourcing
Sensor,Outsourcing LGE COV36798301 Contact Us For Availability
View on Model
063
Speaker Unit,Outsourcing
Speaker Unit,Outsourcing LGE COV36804601 Contact Us For Availability
View on Model
064
Button,Outsourcing
Button,Outsourcing LGE COV36797701 Contact Us For Availability
View on Model
065
Switch Assembly,Outsourcing
Switch Assembly,Outsourcing LGE COV36913801 Contact Us For Availability
View on Model
066
Relay,Outsourcing
Relay,Outsourcing LGE COV36853101 Contact Us For Availability
View on Model
067
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV36935201 Contact Us For Availability
View on Model
068
Spring,Outsourcing
Spring,Outsourcing LGE COV37009401 Contact Us For Availability
View on Model
069
Spring,Outsourcing
Spring,Outsourcing LGE COV37009501 Contact Us For Availability
View on Model
070
Spring,Outsourcing
Spring,Outsourcing LGE COV37009601 Contact Us For Availability
View on Model
071
Ring,Outsourcing
Ring,Outsourcing LGE COV37009701 Contact Us For Availability
View on Model
073
Tag,Outsourcing
Tag,Outsourcing LGE COV37150301 Contact Us For Availability
View on Model
074
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37181801 Contact Us For Availability
View on Model

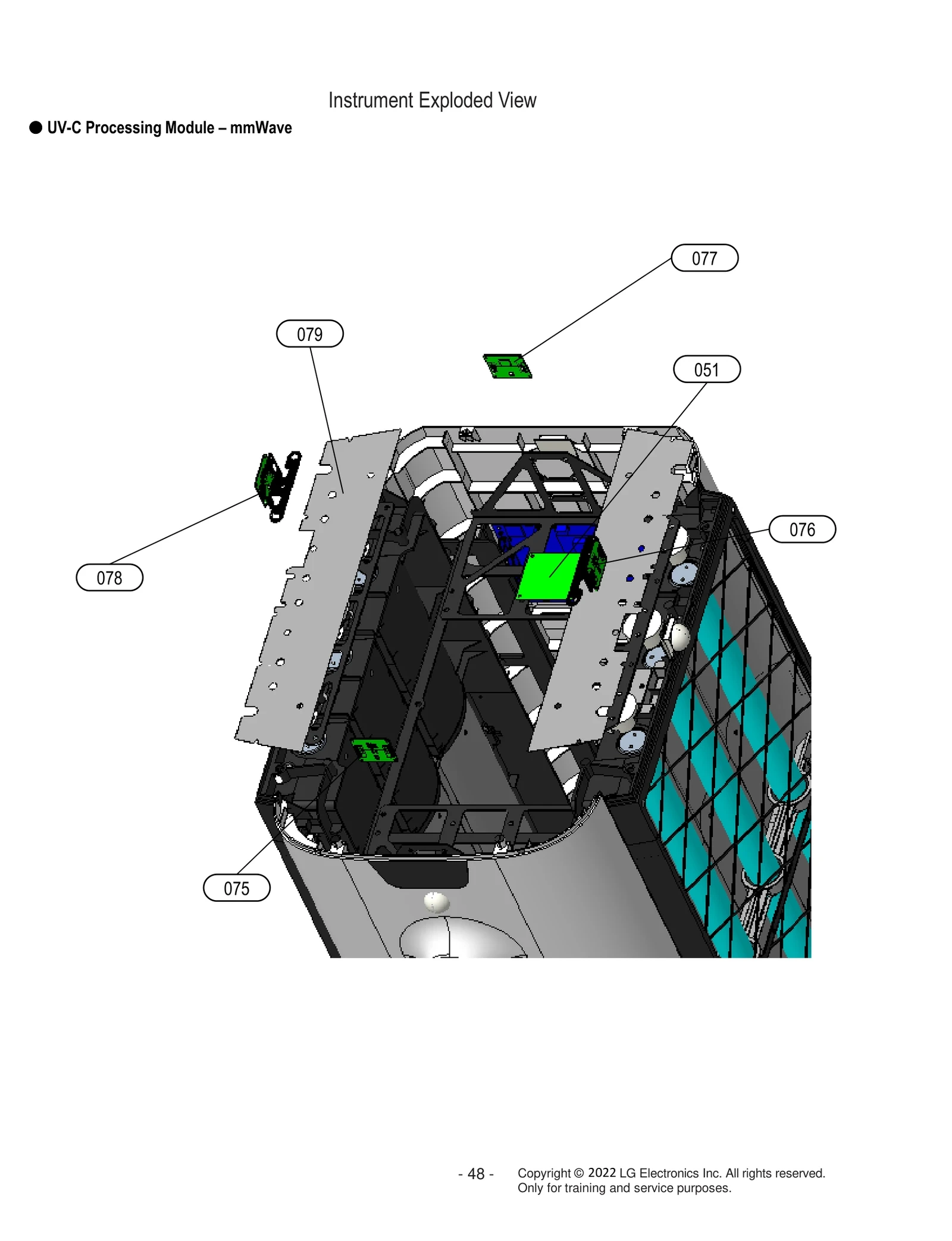

075
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37181901 Contact Us For Availability
View on Model
076
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182001 Contact Us For Availability
View on Model
077
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182101 Contact Us For Availability
View on Model
078
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182201 Contact Us For Availability
View on Model
079
Plate,Protector,Outsourcing
Plate,Protector,Outsourcing LGE COV37221901 Contact Us For Availability
View on Model
080
Guide,Outsourcing
Guide,Outsourcing LGE COV37243701 Contact Us For Availability
View on Model

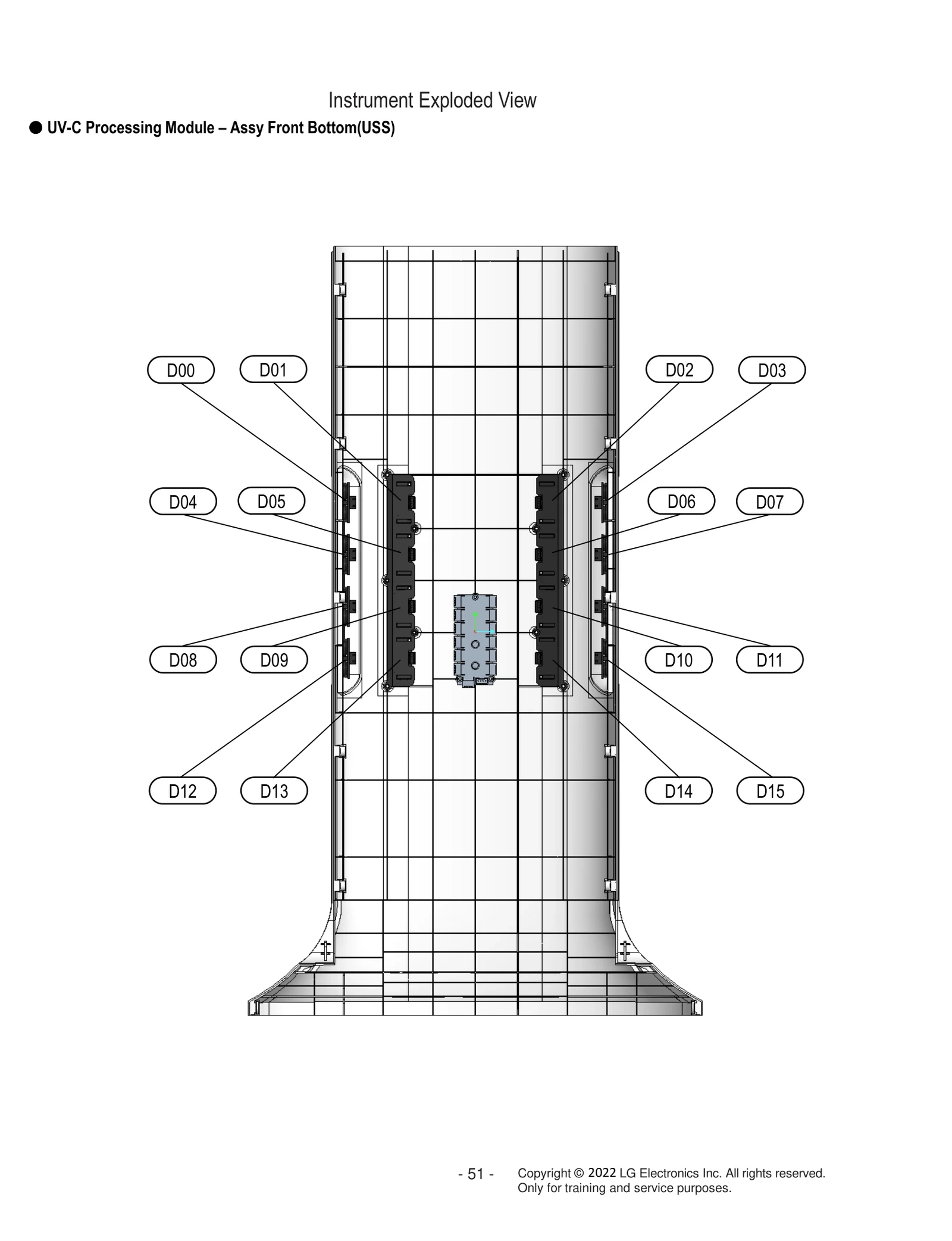

D01
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182401 Contact Us For Availability
View on Model
D02
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182501 Contact Us For Availability
View on Model
D04
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182701 Contact Us For Availability
View on Model
D05
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182801 Contact Us For Availability
View on Model
D06
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37182901 Contact Us For Availability
View on Model
D09
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37183201 Contact Us For Availability
View on Model
D10
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37183301 Contact Us For Availability
View on Model
D12
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37183501 Contact Us For Availability
View on Model
D13
Sensor Assembly,Outsourcing
Sensor Assembly,Outsourcing LGE COV37183601 Contact Us For Availability
View on Model

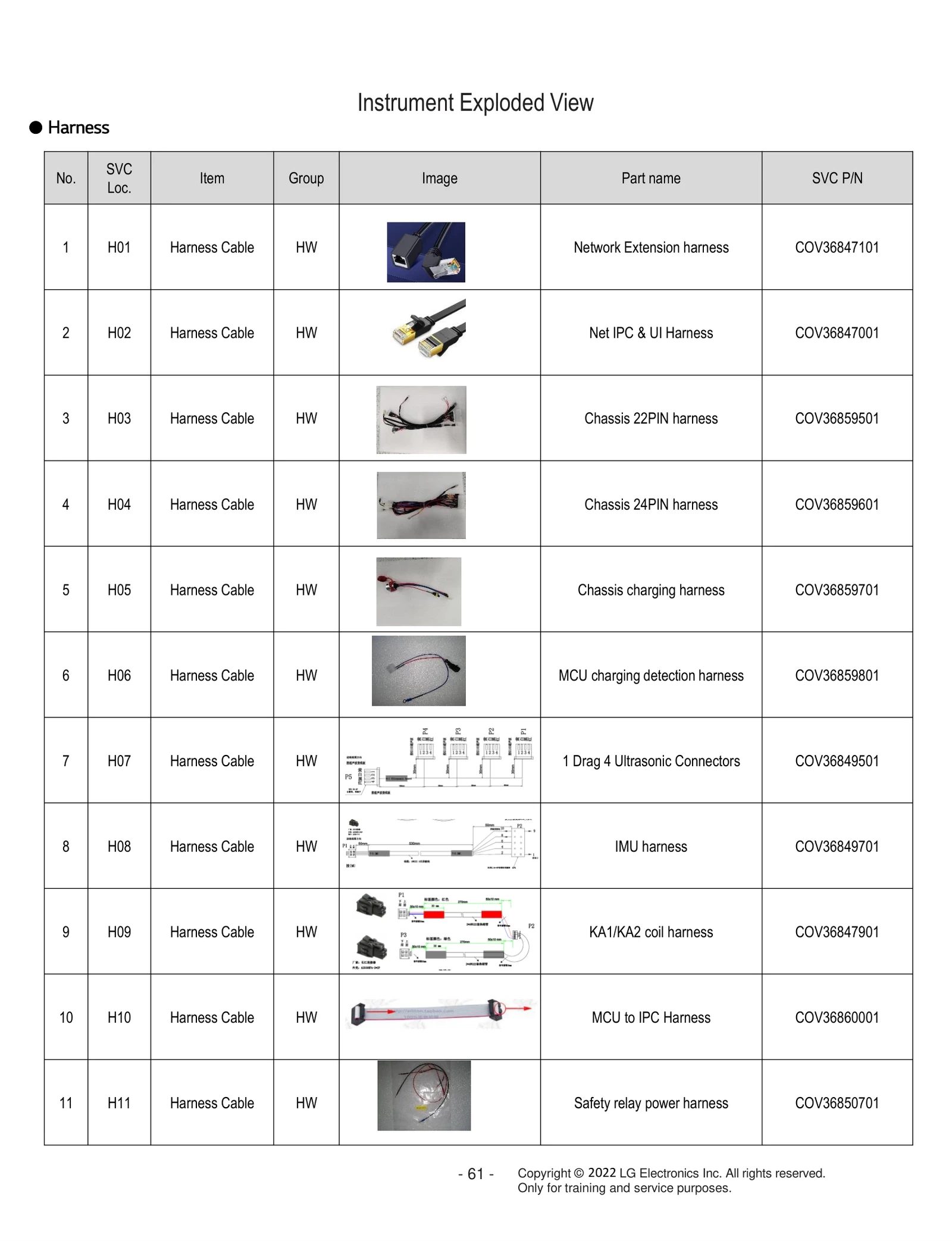

H01
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36847101 Contact Us For Availability
View on Model
H02
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36847001 Contact Us For Availability
View on Model
H04
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36859601 Contact Us For Availability
View on Model
H05
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36859701 Contact Us For Availability
View on Model
H06
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36859801 Contact Us For Availability
View on Model
H08
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36849701 Contact Us For Availability
View on Model
H09
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36847901 Contact Us For Availability
View on Model
H11
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36850701 Contact Us For Availability
View on Model

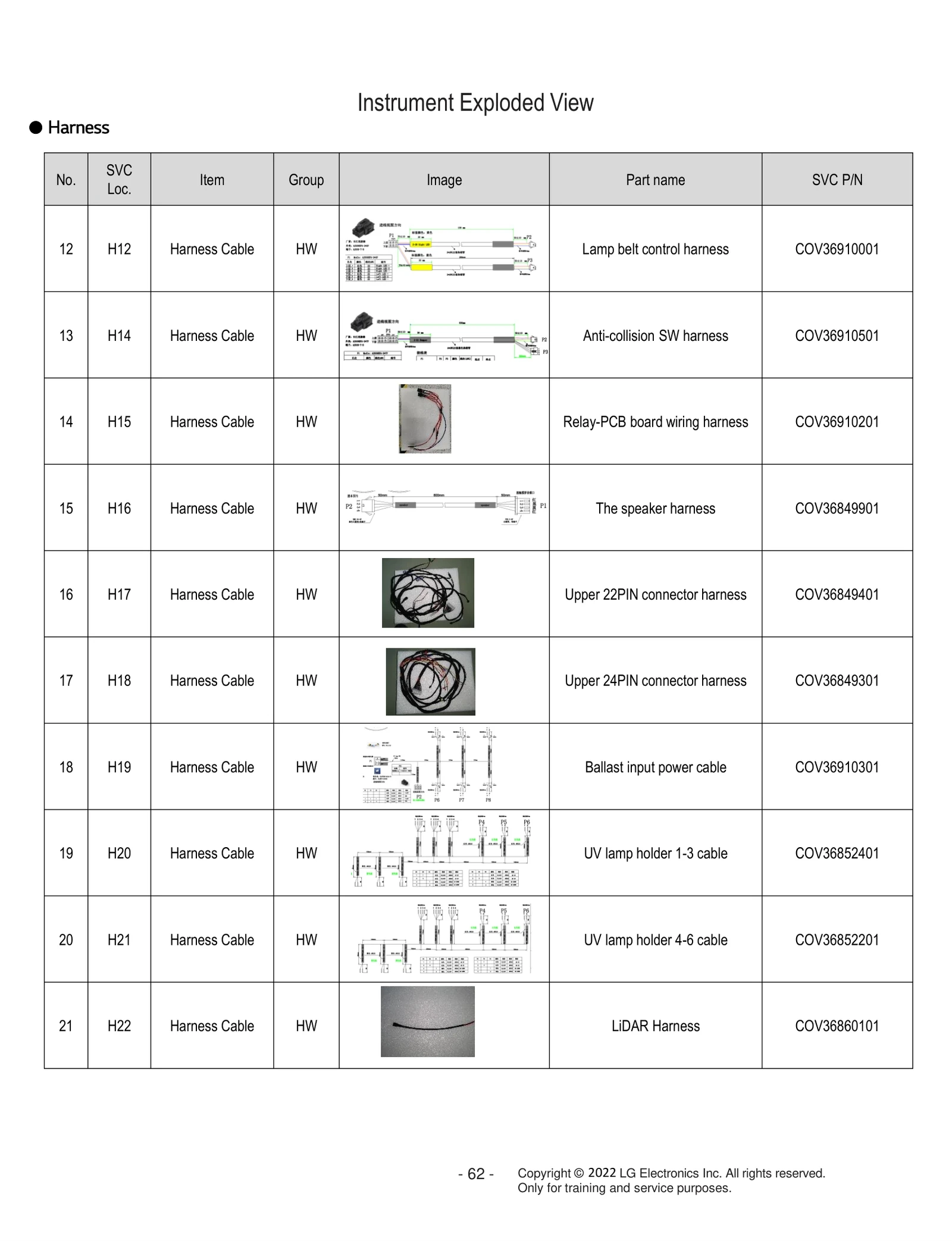

H12
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36910001 Contact Us For Availability
View on Model
H14
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36910501 Contact Us For Availability
View on Model
H15
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36910201 Contact Us For Availability
View on Model
H16
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36849901 Contact Us For Availability
View on Model
H17
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36849401 Contact Us For Availability
View on Model
H18
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36849301 Contact Us For Availability
View on Model
H19
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36910301 Contact Us For Availability
View on Model
H20
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36852401 Contact Us For Availability
View on Model
H21
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36852201 Contact Us For Availability
View on Model
H22
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36860101 Contact Us For Availability
View on Model

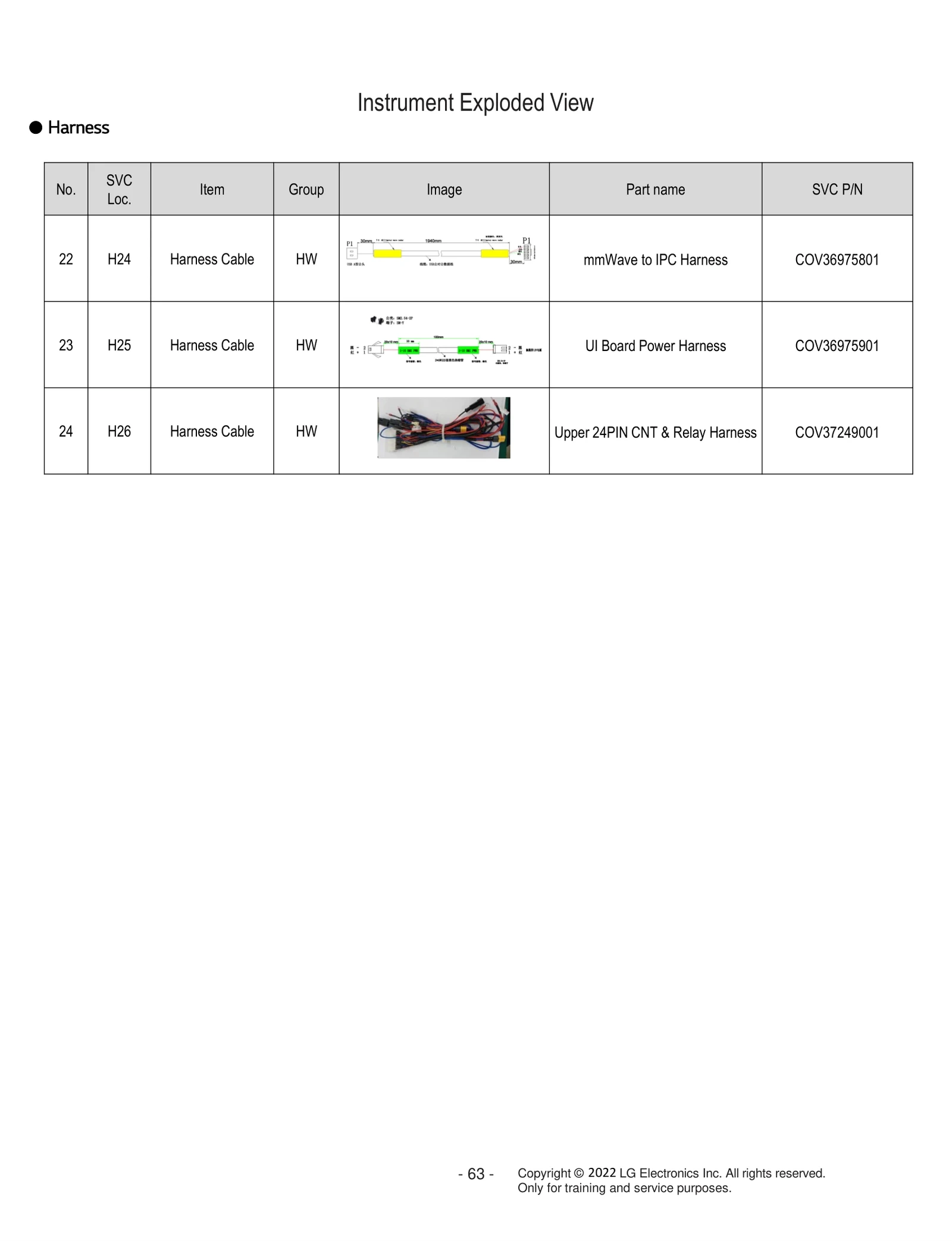

H24
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36975801 Contact Us For Availability
View on Model
H25
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV36975901 Contact Us For Availability
View on Model
H26
Harness Assembly,Outsourcing
Harness Assembly,Outsourcing LGE COV37249001 Contact Us For Availability
View on Model
M01
Screw,Outsourcing
Screw,Outsourcing LGE COV37193901 Contact Us For Availability
View on Model
M02
Screw,Outsourcing
Screw,Outsourcing LGE COV37194001 Contact Us For Availability
View on Model

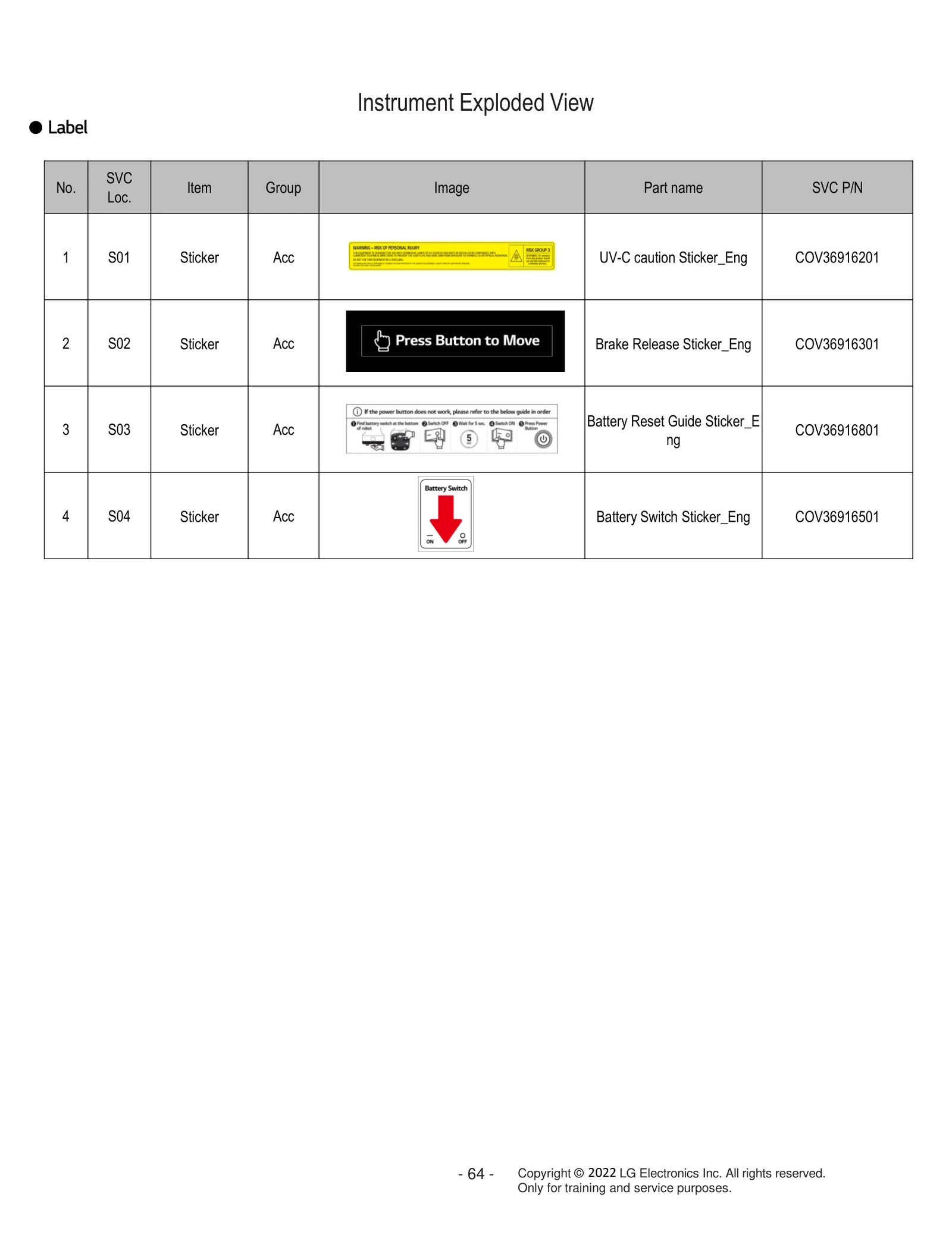

S01
Accessory,Outsourcing
Accessory,Outsourcing LGE COV36916201 Contact Us For Availability
View on Model
S02
Accessory,Outsourcing
Accessory,Outsourcing LGE COV36916301 Contact Us For Availability
View on Model
S03
Accessory,Outsourcing
Accessory,Outsourcing LGE COV36916801 Contact Us For Availability
View on Model
S04
Accessory,Outsourcing
Accessory,Outsourcing LGE COV36916501 Contact Us For Availability
View on Model
