Model Electrolux RD21F9WT3F REFRIGERATOR – Common Parts & Diagrams

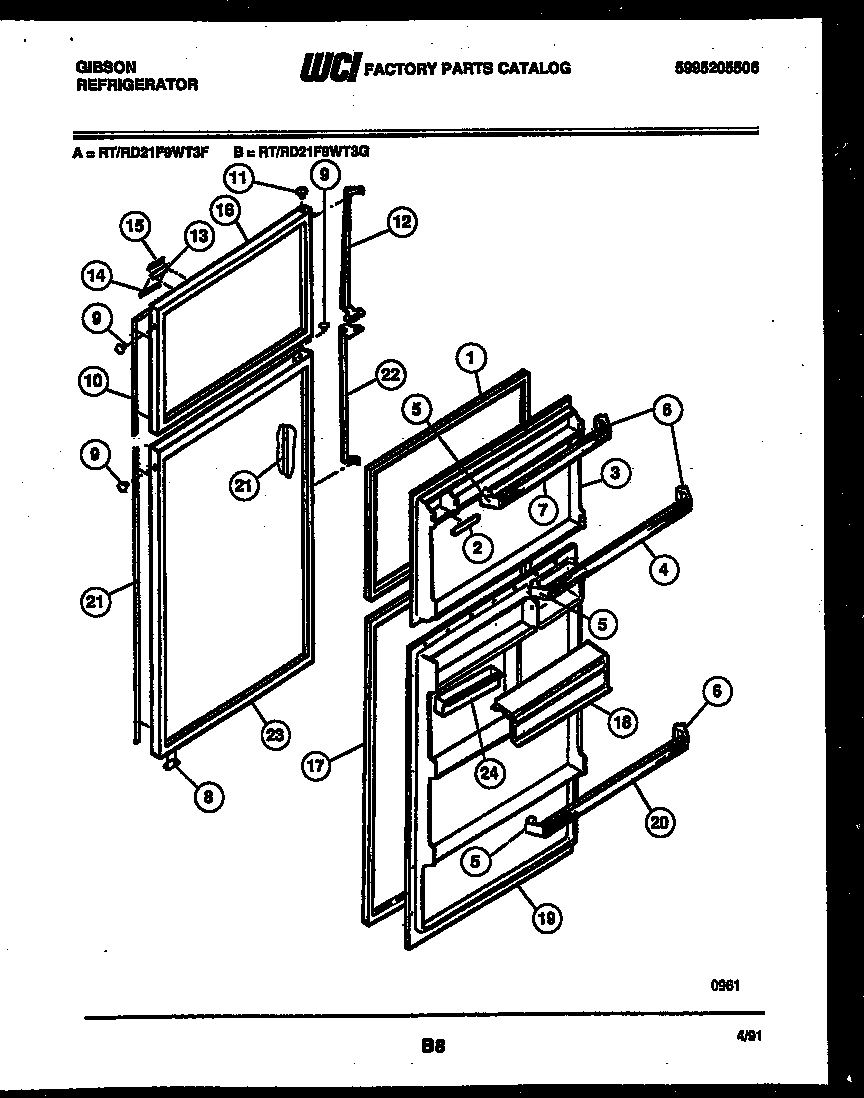

02 - DOOR PARTS

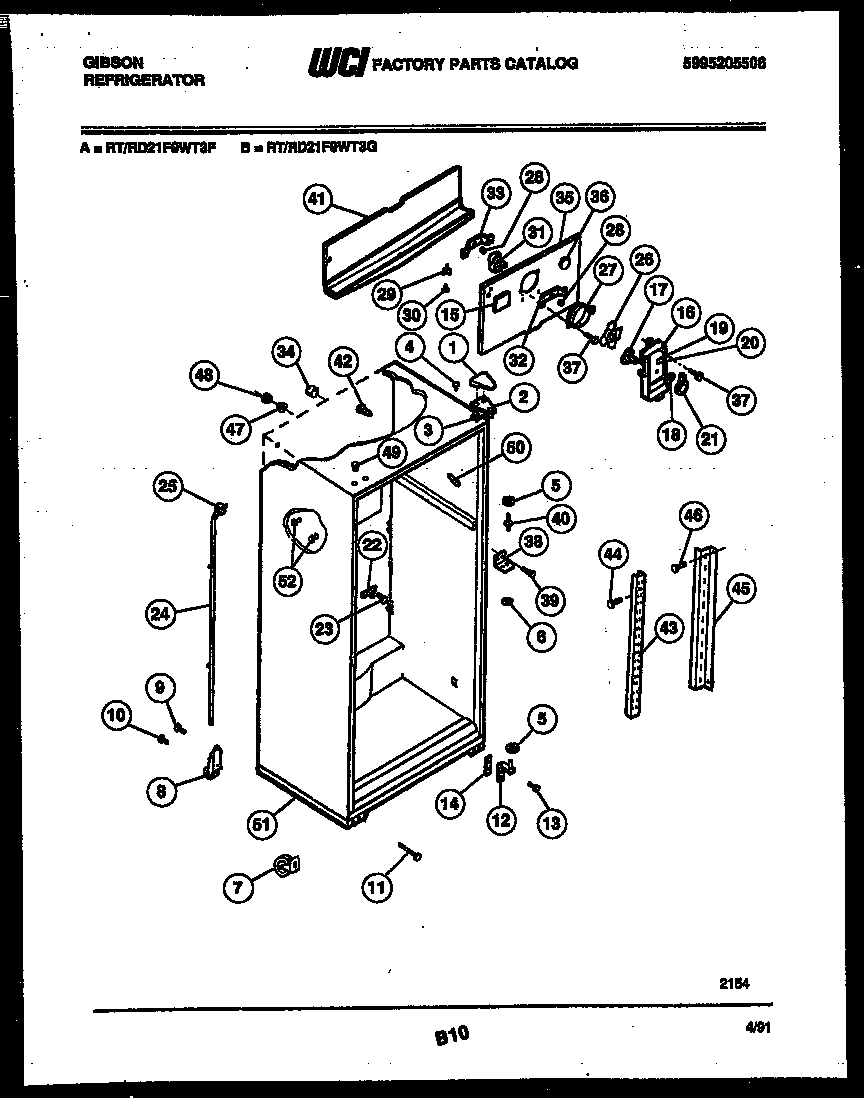

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RD21F9WT3F REFRIGERATOR
*43545
BUTTON-PLUG LINER (6) WCI 5308016571 Contact Us For Availability
*43545
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*43565
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
COVER - HINGE-AVOC WCI 5303001664 Contact Us For Availability
1
COVER - HINGE-WHEAT WCI 5303001665 Contact Us For Availability
1
COVER - HINGE-COFFEE WCI 5303001666 Contact Us For Availability
1
COVER - HINGE-WHITE WCI 5308012820 Contact Us For Availability
1
COVER-HINGE-ALMOND WCI 5308012933 Contact Us For Availability
2
BRACKET-HINGE UPPER WCI 5308012843 Contact Us For Availability
2
WCI 5349001549 WCI 5349001549 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
SHRIM-HINGE-UPPER WCI 5303001037 Contact Us For Availability
3
PAN-CRISPER RH WCI G176639-29 Contact Us For Availability
3
BRACKET-CONDENSER (2) WCI 5303001342 Contact Us For Availability
4
COVER-CRISPER WCI 5349006408 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
GASKET-COVER CRISPER WCI 5303200329 Contact Us For Availability
6
WASHER-NYLON (2) WCI 5308000186 No Longer Available
6
SUPPORT-COVER ADJ WCI 5303205987 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
WCI 5303212490 WCI 5303212490 Contact Us For Availability
7
WCI G187181-02 WCI G187181-02 Contact Us For Availability
7
CORD-SERVICE WCI 5316254901 Contact Us For Availability
8
WCI 5308009773 WCI 5308009773 Contact Us For Availability
8
TRIM-MEAT PAN WCI G177343-19 Contact Us For Availability
9
ICE CONTAINER WCI G163022-03 Contact Us For Availability
9
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
10
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
10
TRIM-CRISPER PAN LH WCI 3201093 Contact Us For Availability
10
WASHER-COMPRESSOR (4) WCI 5308003633 Contact Us For Availability
11
BUTTON-ALMOND WCI 5303001308 Contact Us For Availability
11
BUTTON-WHITE WCI 5308000134 Contact Us For Availability
11
BOLT 1/4-28 X 2-3/4 (2) WCI 5303271412 Contact Us For Availability
11
TRIM-CRISPER PAN RH WCI G177343-18 Contact Us For Availability
12
BRACKET-HINGE LOWER WCI 5303212489 Contact Us For Availability
12
SHELF-GLASS (3) WCI G171654-57 Contact Us For Availability
12
NUT WCI 5303001348 Contact Us For Availability
12A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
12B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
13
WCI 5317241005 WCI 5317241005 Contact Us For Availability
13
WCI 5308017532 WCI 5308017532 Contact Us For Availability
14
WCI 5303007173 WCI 5303007173 Contact Us For Availability
14
SHIM-HINGE LOWER WCI 5303212488 Contact Us For Availability
14
WCI 3001427 WCI 3001427 Contact Us For Availability
15
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
15
HANGER-PAN LH WCI 5303211236 Contact Us For Availability
15A
HANGER-PAN RH (NON-ILLUSTRATED) WCI 5303211237 Contact Us For Availability
15B
SCREW-HANGER (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
16
WCI 5303201444 WCI 5303201444 Contact Us For Availability
16
FRAME-CANTILEVER WCI G187218-11 Contact Us For Availability
16
COMPRESSOR W/ ELECTRICALS WCI 5303916012 Contact Us For Availability
17
DAMPER WCI 5303001331 Contact Us For Availability
17
FRAME-CANTILEVER (2) WCI G171608-20 Contact Us For Availability
17
PAN DEFROST-SERVICE COMPRESSOR WCI 5300184715 Contact Us For Availability
18
NUT, PUSH WCI 5303001028 Contact Us For Availability
18
TRIM-REAR (2) WCI 3001425 Contact Us For Availability
18
PLATE-COMPRESSOR WCI 5308013663 Contact Us For Availability
19
CAP PROTECTOR (2) WCI 3201150 No Longer Available
19
LABEL - UPPER WCI G185863 Contact Us For Availability
19
WASHER EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
20
LABEL - LOWER WCI G185864 Contact Us For Availability
20
WCI G17654-54 WCI G17654-54 Contact Us For Availability
20
CAPACITOR WCI 5303916391 Contact Us For Availability
21
TRIM (2) WCI G167150-11 Contact Us For Availability
21
KNOB-DAMPER WCI 5308011763 Contact Us For Availability
21
BLOCK INSULATION-LH WCI 5308017227 Contact Us For Availability
22
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
22
WCI 5316850501 WCI 5316850501 Contact Us For Availability
22
TRIM-REAR 4 IN 1 WCI G172436-19 Contact Us For Availability
22
BLOCK INSULATION-RH WCI 5308013648 Contact Us For Availability
22A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
23
PANEL-OUTER-WHITE-REFRIG WCI G188239 Contact Us For Availability
23
PANEL-OUTER-AVOC-REFRIG WCI G188239-08 Contact Us For Availability
23
PANEL-OUTER-WHEAT-REFRIG WCI G188239-09 Contact Us For Availability
23
PANEL-OUTER-COFFEE-REFRIG WCI G188239-10 Contact Us For Availability
23
PANEL-OUTER-ALMOND-REFRIG WCI G188239-11 Contact Us For Availability
23
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
23
WCI G186661-02 WCI G186661-02 Contact Us For Availability
23
PLUG-INSULATION RH WCI 5303007287 Contact Us For Availability
23A
BEARING-HINGE (4) (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
24
TUBE-DRAIN W/RING SEAL WCI 5303210377 Contact Us For Availability
24
WCI 5303270563 WCI 5303270563 Contact Us For Availability
24
FRAME-CANTILEVER WCI G186665-03 Contact Us For Availability
25
RING - SEAL WCI 5303207353 Contact Us For Availability
25
TRIM-SHELF WCI 5317241002 Contact Us For Availability
25
EVAPORATOR WCI 5303271578 Contact Us For Availability
26
SHELF-FREEZER WCI G177059-07 Contact Us For Availability
27
RING, ORIFICE WCI 5308000124 Contact Us For Availability
27
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
28
WCI 5300157666 WCI 5300157666 Contact Us For Availability
28
KNOB-CONTROL WCI 5308010011 Contact Us For Availability
29
INSULATOR-EVAP WCI 5316651102 Contact Us For Availability
29
WCI 5308000107 WCI 5308000107 Contact Us For Availability
30
CONTROL WCI 5303200810 Contact Us For Availability
30
HARNESS-COMPRESSOR WCI 5303001347 Contact Us For Availability
30A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
31
SOCKET-BULB WCI 5308000129 Contact Us For Availability
31
HARNESS-DIVIDER WCI 3001475 Contact Us For Availability
32
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
32
WCI 5317672203 WCI 5317672203 Contact Us For Availability
33
WCI 5303205119 WCI 5303205119 Contact Us For Availability
33
SWITCH-SLIDE WCI 5303001670 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
WCI 5303270583 WCI 5303270583 Contact Us For Availability
35
COVER, COIL WCI 5308013665 Contact Us For Availability
35A
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
36
WCI 5308000071 WCI 5308000071 Contact Us For Availability
37
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
38
BRACKET-HINGE-CENTER WCI 5303001369 Contact Us For Availability
38
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
39
WCI 5303210351 WCI 5303210351 Contact Us For Availability
40
PIN-HINGE CENTER WCI 5308000184 Contact Us For Availability
40
WCI 5303200366 WCI 5303200366 Contact Us For Availability
40
MULLION, AVOC WCI 5303200367 Contact Us For Availability
40
WCI 5303200368 WCI 5303200368 Contact Us For Availability
40
WCI 5303200369 WCI 5303200369 Contact Us For Availability
40
WCI 5303200370 WCI 5303200370 Contact Us For Availability
41
WCI 5303001470 WCI 5303001470 Contact Us For Availability
41
STRAP-MULLION WCI 5308010008 Contact Us For Availability
42
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
43
WCI 5303015409 WCI 5303015409 Contact Us For Availability
43
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
44
SCREW-CHANNEL CENTER (3) WCI 5308016568 Contact Us For Availability
44
WCI 5308013674 WCI 5308013674 Contact Us For Availability
45
CHANNEL-SHELF (2) WCI 5308000302 Contact Us For Availability
45
TOP-REFRIGERATOR WCI 5303001651 Contact Us For Availability
45A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
46
WCI 5308012258 WCI 5308012258 Contact Us For Availability
47
WCI 5303001286 WCI 5303001286 Contact Us For Availability
47
WASHER-MULLION (2) WCI 5303206754 Contact Us For Availability
48
WCI 5303001287 WCI 5303001287 Contact Us For Availability
49
BUTTON-PLUG-ALMOND WCI 5303001389 Contact Us For Availability
49
BUTTON PLUG-WHITE WCI 5303001388 Contact Us For Availability
49
BUTTON-PLUG-AVOC WCI 5303001677 Contact Us For Availability
49
BUTTON-PLUG-WHEAT WCI 5303001678 Contact Us For Availability
49
BUTTON-PLUG-COFFEE WCI 5303001679 Contact Us For Availability
50
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
50
WCI 5303202337 WCI 5303202337 Contact Us For Availability
50
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
50
WCI 5303202339 WCI 5303202339 Contact Us For Availability
50
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
51
WCI 5303212487 WCI 5303212487 Contact Us For Availability
× ![]()
