Model Electrolux RD19F9WT3E REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

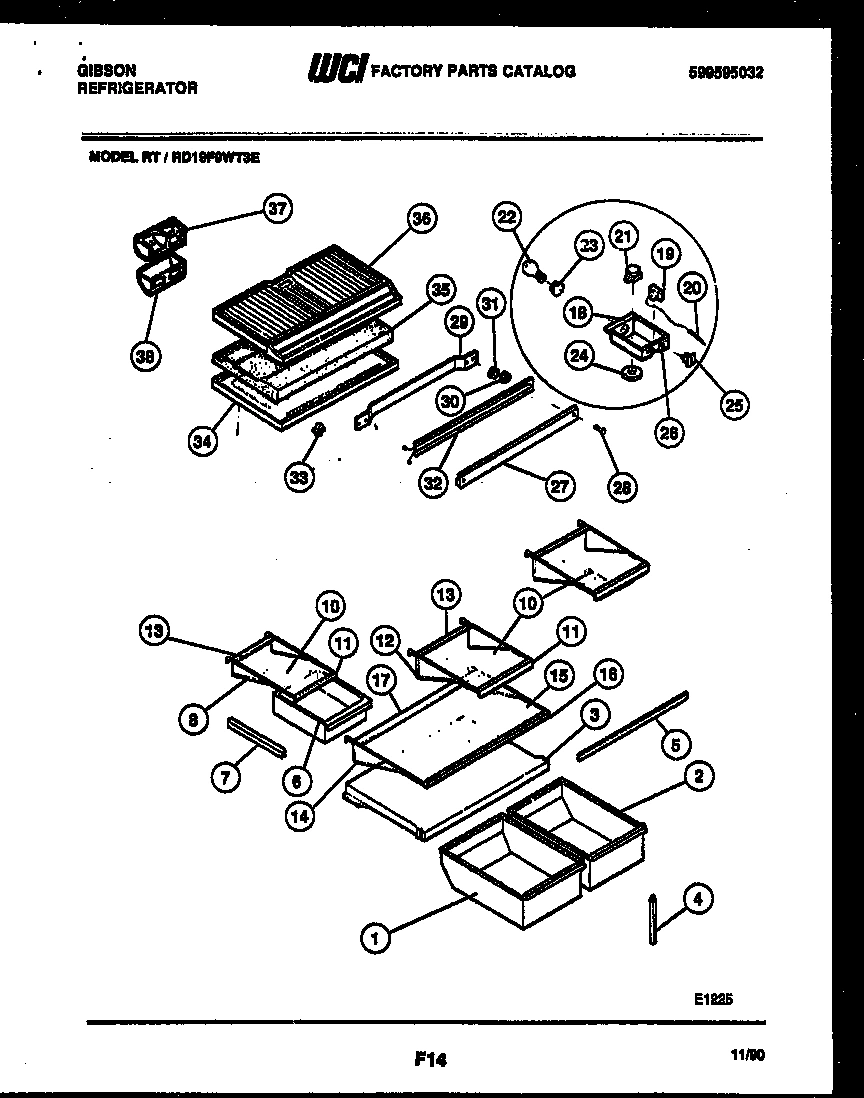

04 - SHELVES AND SUPPORTS

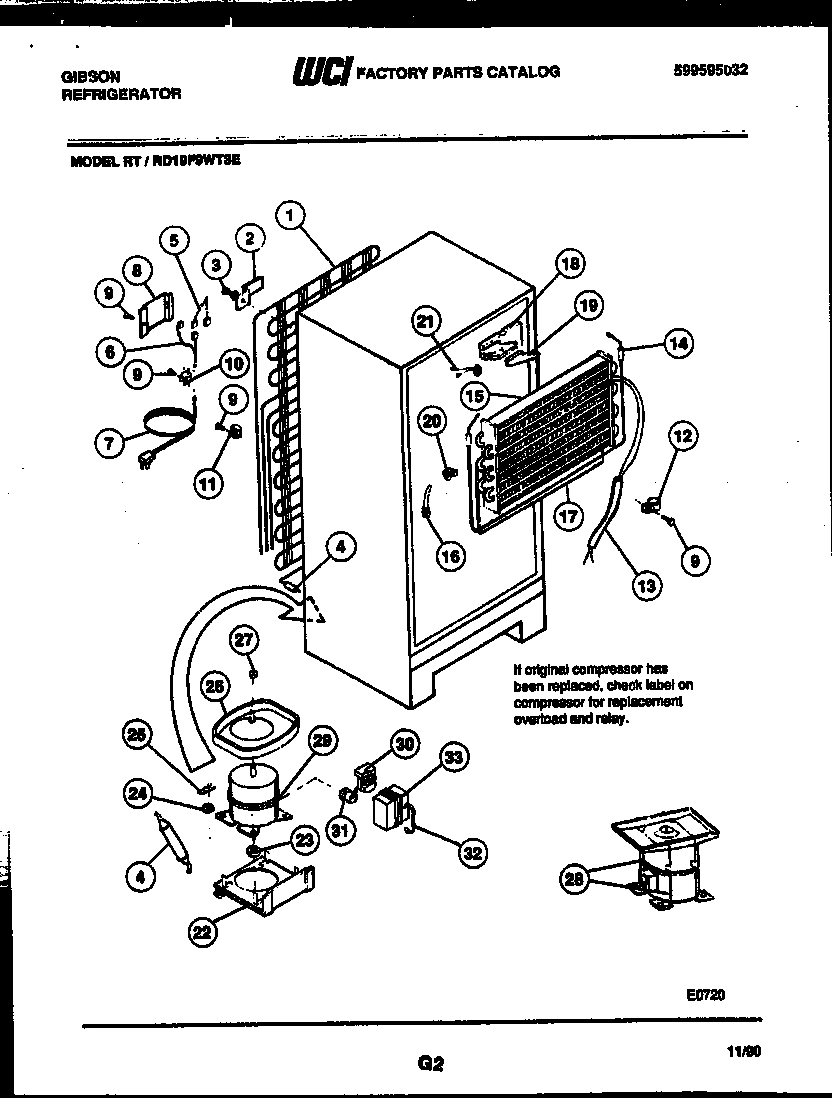

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RD19F9WT3E REFRIGERATOR
*34463
BUTTON - LINER (3) WCI 5308016571 Contact Us For Availability
*34473
TRIM-LOCK WCI 5303211351 Contact Us For Availability
*34483
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
COVER-HINGE-AVOCADO WCI 5303001664 Contact Us For Availability
1
COVER - HINGE-WHEAT WCI 5303001665 Contact Us For Availability
1
COVER - HINGE-COFFEE WCI 5303001666 Contact Us For Availability
1
COVER - HINGE-WHITE WCI 5308012820 Contact Us For Availability
1
COVER-HINGE-ALMOND WCI 5308012933 Contact Us For Availability
1
WCI 5349001537 WCI 5349001537 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
HINGE-UPPER BRACKET WCI 5308012843 Contact Us For Availability
2
PAN-CRISPER RH WCI G176639-19 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI 5303001342 Contact Us For Availability
2A
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
2A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
4
SUPPORT-COVER ADJ WCI 5303205987 Contact Us For Availability
5
WASHER-HINGE (2) WCI 5308000007 Contact Us For Availability
5
WIRING HARNESS-CONTROL WCI 3001383 Contact Us For Availability
5
GASKET-COVER WCI 5308009647 Contact Us For Availability
6
WASHER - HINGE WCI 5308000186 No Longer Available
6
MEAT PAN WCI G176918-13 Contact Us For Availability
6
WIRING HARNESS-COMP WCI 5303001347 Contact Us For Availability
7
ROLLER ASSEMBLY-FRONT WCI 5303212490 Contact Us For Availability
7
HANGER-PAN LH WCI 5303210016 Contact Us For Availability
7
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7A
HANGER-PAN RH (NON-ILLUSTRATED) WCI 5303210017 Contact Us For Availability
7B
SCREW-MTG (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
8
ROLLER ASSEMBLY-REAR WCI 5308009773 Contact Us For Availability
8
WCI 5303210754 WCI 5303210754 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BUTTON-ALMOND WCI 5303001308 Contact Us For Availability
9
BUTTON-WHITE WCI 5308000134 Contact Us For Availability
10
WCI 5303211424 WCI 5303211424 Contact Us For Availability
10A
RETAINER-GLASS, (3) (NON-ILLUSTRATED) WCI 5303209263 Contact Us For Availability
11
SPRING - ADJ (2) WCI 5308009790 Contact Us For Availability
11
WCI 5303211423 WCI 5303211423 Contact Us For Availability
12
WCI 5303001296 WCI 5303001296 Contact Us For Availability
12
BOLT-ROLLER ADJ (2) WCI 5308009762 Contact Us For Availability
12
FRAME-SHELF (2) WCI 5303209869 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
WCI 5303211422 WCI 5303211422 Contact Us For Availability
13
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
14
FRAME-FULL SHELF WCI 5303210022 Contact Us For Availability
15
HINGE BRACKET-LOWER WCI 5303212489 Contact Us For Availability
15
WCI 5303210989 WCI 5303210989 Contact Us For Availability
15
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
15A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
15A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
15B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
16
WCI 5303210991 WCI 5303210991 Contact Us For Availability
17
WCI 5316651102 WCI 5316651102 Contact Us For Availability
17
WCI 5303210988 WCI 5303210988 Contact Us For Availability
18
WCI 5308009730 WCI 5308009730 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303200810 WCI 5303200810 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
PANEL-OUTER-WHITE WCI 5300178694 Contact Us For Availability
21
WCI 5317869408 WCI 5317869408 Contact Us For Availability
21
WCI 5317869409 WCI 5317869409 Contact Us For Availability
21
PANEL-OUTER-COFFEE WCI 5317869410 Contact Us For Availability
21
WCI 5317869411 WCI 5317869411 Contact Us For Availability
22
GASKET-REFRIG DOOR WCI 5308015544 No Longer Available
22
WCI 5303211425 WCI 5303211425 Contact Us For Availability
22
WCI 530300179 WCI 530300179 Contact Us For Availability
22
PLATE-COMPRESSOR MTG WCI 5308013663 Contact Us For Availability
23
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
23
BOTTOM HANDLE END CAP WCI 5303001295 Contact Us For Availability
23
WCI 5303211426 WCI 5303211426 Contact Us For Availability
24
CAP - PROTECTOR SHELF (2) WCI 3201150 No Longer Available
24
HINGE BEARING (8) WCI 5308012007 Contact Us For Availability
24
WCI 08006978 WCI 08006978 Contact Us For Availability
24
WASHER (4) WCI 5308003633 Contact Us For Availability
25
INSULATION, BULK WCI 5303007739 Contact Us For Availability
25
BUTTON - DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
25
SWITCH-SLIDE WCI 5303200998 Contact Us For Availability
25
CLIP (4) WCI 5308003596 Contact Us For Availability
26
WCI 5308011745 WCI 5308011745 Contact Us For Availability
26
DAMPER WCI 5303001331 Contact Us For Availability
26
LABEL - CONTROL BOX WCI G185865 Contact Us For Availability
26
DRAIN PAN WCI 5300184715 Contact Us For Availability
27
NUT, PUSH WCI 5303001028 Contact Us For Availability
27
WCI 5303200366 WCI 5303200366 Contact Us For Availability
27
WCI 5303200367 WCI 5303200367 Contact Us For Availability
27
WCI 5303200368 WCI 5303200368 Contact Us For Availability
27
WCI 5303200369 WCI 5303200369 Contact Us For Availability
27
WCI 5303200370 WCI 5303200370 Contact Us For Availability
27
LOCK NUT-PAN MOUNTING WCI 5303001348 Contact Us For Availability
28
WCI 5308011763 WCI 5308011763 Contact Us For Availability
28
WCI 5308012258 WCI 5308012258 Contact Us For Availability
28
PAN RETAINER KIT-SERVICE WCI 3916001 Contact Us For Availability
29
WCI 5316306176 WCI 5316306176 Contact Us For Availability
29
WCI 5308010008 WCI 5308010008 Contact Us For Availability
29
COMPRESSOR W/ ELECTRICALS-SERVICE WCI 5303916411 Contact Us For Availability
29A
WCI 5300186232 WCI 5300186232 Contact Us For Availability
30
WASHER (2) WCI 5303206754 Contact Us For Availability
31
WCI 5308000056 WCI 5308000056 Contact Us For Availability
31
SPACER (2) WCI 5303200464 Contact Us For Availability
32
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
32
WCI 5303210351 WCI 5303210351 Contact Us For Availability
33
TUBE-DRAIN & RING SEAL WCI 5303210377 Contact Us For Availability
33A
RING SEAL (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
34
WCI 5303016367 WCI 5303016367 Contact Us For Availability
34A
BUSHING-SNAP (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
34B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
35
RING, ORIFICE WCI 5308000124 Contact Us For Availability
35
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
36
WCI 5300157666 WCI 5300157666 Contact Us For Availability
36
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
37
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
38
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
38
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
39
WCI 5303205119 WCI 5303205119 Contact Us For Availability
39B
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI 5308000107 Contact Us For Availability
40
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
41
COVER, COIL WCI 5308009771 Contact Us For Availability
41A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI 5303001369 Contact Us For Availability
44
WCI 5308000184 WCI 5308000184 Contact Us For Availability
45
WCI 5303001470 WCI 5303001470 Contact Us For Availability
46
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
48
WCI 5303015409 WCI 5303015409 Contact Us For Availability
49
SCREW (3) WCI 5308016568 Contact Us For Availability
50
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
52
WCI 5303001286 WCI 5303001286 Contact Us For Availability
53
WCI 5303001287 WCI 5303001287 Contact Us For Availability
54
BUTTON-HINGE-ALMOND WCI 5303001389 Contact Us For Availability
54
BUTTON-HINGE (WHITE) WCI 5303001388 Contact Us For Availability
54
BUTTON-HINGE-AVOCADO WCI 5303001677 Contact Us For Availability
54
BUTTON-HINGE-WHEAT WCI 5303001678 Contact Us For Availability
54
BUTTON-HINGE (COFFEE) WCI 5303001679 Contact Us For Availability
56
CABINET BASE WCI 5303212487 Contact Us For Availability
57
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
57
CORNER WCI 5303202337 Contact Us For Availability
57
WCI 5303202338 WCI 5303202338 Contact Us For Availability
57
WCI 5303202339 WCI 5303202339 Contact Us For Availability
57
WCI 5303202340 WCI 5303202340 Contact Us For Availability
× ![]()
