Model Electrolux RD19F9WT3C REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

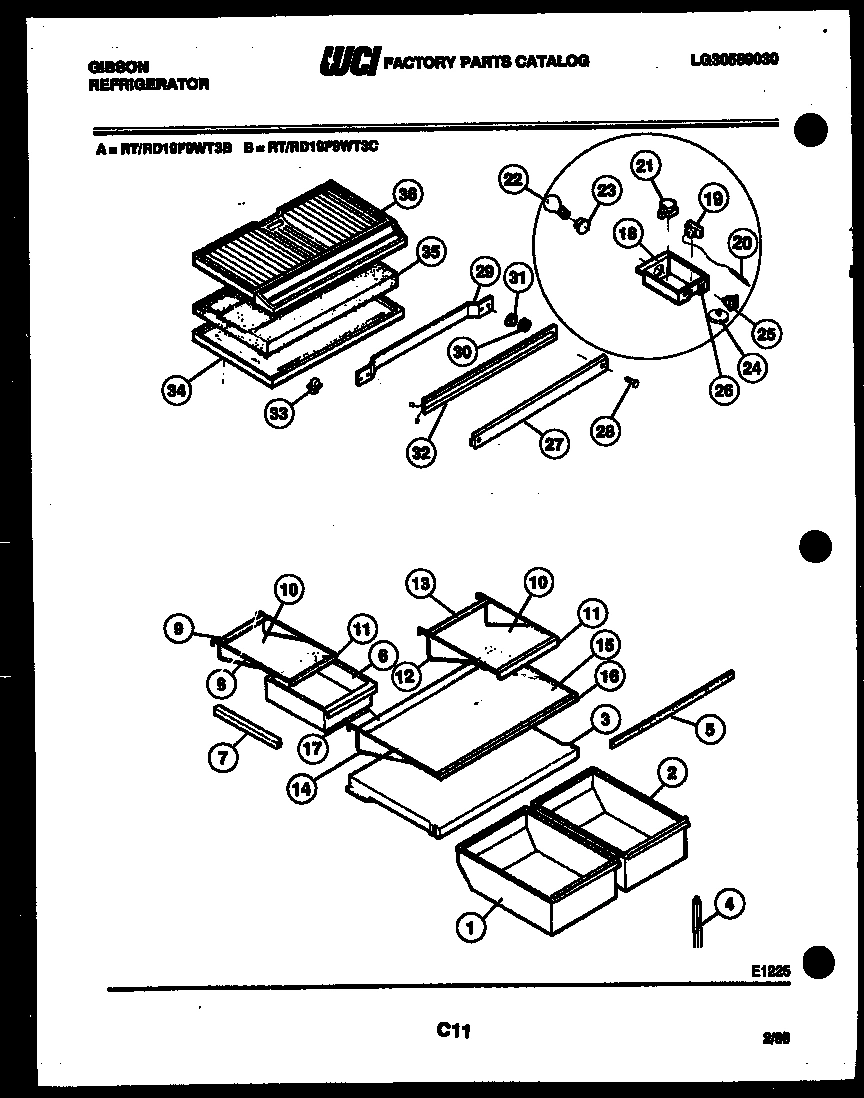

04 - SHELVES AND SUPPORTS

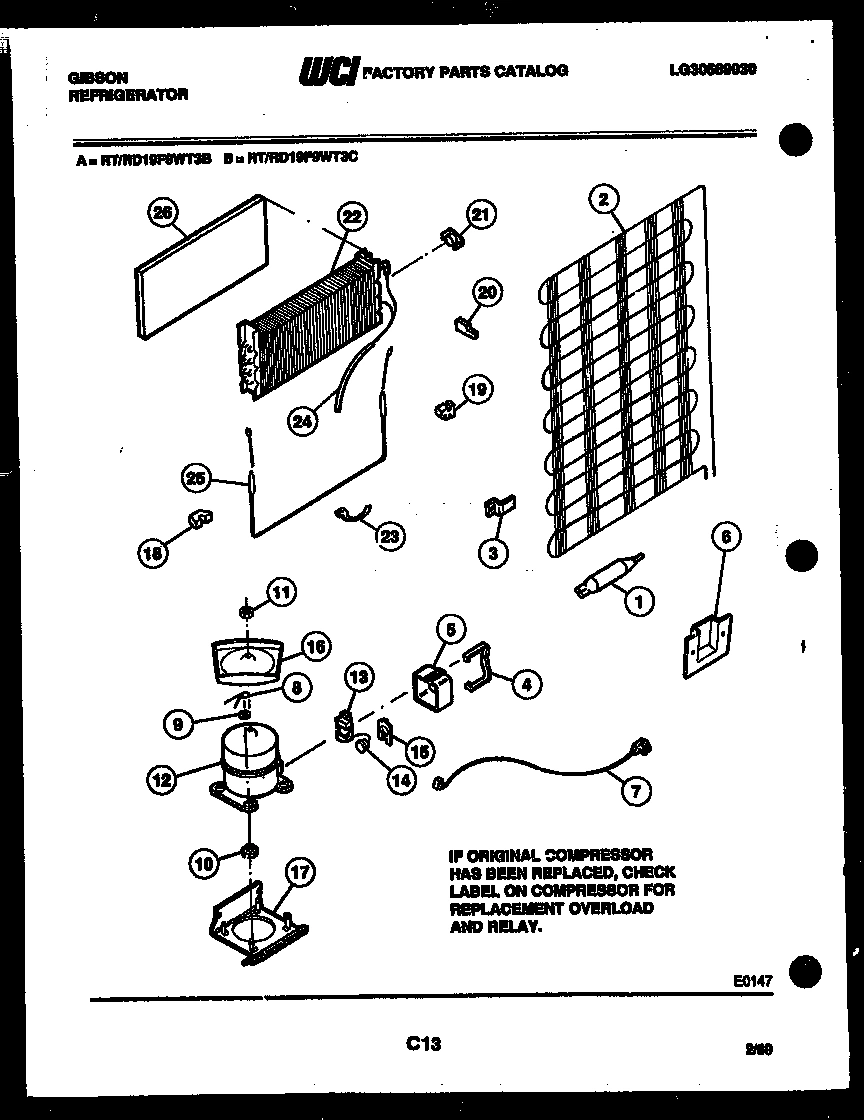

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RD19F9WT3C REFRIGERATOR
*17597
BUTTON, LINER (2) WCI G162892-01 Contact Us For Availability
*17597
TAPPING PLATE (4) WCI G179797 Contact Us For Availability
*17597
WCI G183073 WCI G183073 Contact Us For Availability
*17597
BUTTON-I/M HOLE (3) WCI G187599 Contact Us For Availability
*17604
HARNESS, DIVIDER WCI G174818 Contact Us For Availability
*17611
PAN RETAINER KIT-SERVICE WCI 3916001 Contact Us For Availability
*17611
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*17611
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
COVER HINGE, AVOC. WCI G183558-08 Contact Us For Availability
1
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
1
WCI G183558-1 WCI G183558-1 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
PAN-CRISPER LS WCI G490015-37 Contact Us For Availability
2
WCI G185626-01 WCI G185626-01 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
PAN-CRISPER RS WCI G176639-19 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
COVER, CRISPER WCI G490064-01 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
4
SUPPORT LH (2) WCI G152887-04 Contact Us For Availability
4
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
4
STRAP-BALE WCI 08016584 Contact Us For Availability
5
WCI G103903 No Longer Available
5
SUPPORT RH (2) WCI G152888-04 Contact Us For Availability
5
GASKET, COVER WCI G180108-04 Contact Us For Availability
5
WCI 08016583 WCI 08016583 Contact Us For Availability
6
DOOR STOP (2) WCI G155072 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
MEAT PAN WCI G176918-13 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G177021 WCI G177021 Contact Us For Availability
7
HANGER, PAN LS WCI G187215-03 Contact Us For Availability
7
WCI G162549-01 WCI G162549-01 Contact Us For Availability
7A
HANGER, PAN RS (NON-ILLUSTRATED) WCI G187216-03 Contact Us For Availability
7B
SCREW, MTG (2) (NON-ILLUSTRATED) WCI G184823 Contact Us For Availability
8
WCI G162977-08 WCI G162977-08 Contact Us For Availability
8
WCI G162977-09 WCI G162977-09 Contact Us For Availability
8
WCI G162977-10 WCI G162977-10 Contact Us For Availability
8
WCI G162977-11 WCI G162977-11 Contact Us For Availability
8
WCI G183407 WCI G183407 Contact Us For Availability
8
WCI G187218-05 WCI G187218-05 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
8A
LEVELING SCREW (NON-ILLUSTRATED) WCI G185713 Contact Us For Availability
9
WCI G160332-11 WCI G160332-11 Contact Us For Availability
9
WCI G169332-01 WCI G169332-01 Contact Us For Availability
9
WCI G169332-08 WCI G169332-08 Contact Us For Availability
9
WCI G169332-09 WCI G169332-09 Contact Us For Availability
9
WCI G169332-10 WCI G169332-10 Contact Us For Availability
9
TRIM-REAR WCI G172436-13 Contact Us For Availability
9
WCI G168120 WCI G168120 Contact Us For Availability
10
WCI 3200545 WCI 3200545 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
WCI G171654-51 WCI G171654-51 Contact Us For Availability
11
END CAP-TOP WCI G179800 Contact Us For Availability
11
WCI G178494 WCI G178494 Contact Us For Availability
11
TRIM-FRONT (3) WCI G172410-17 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
WCI G187329-01 WCI G187329-01 Contact Us For Availability
12
WCI G177024 WCI G177024 Contact Us For Availability
12
FRAME-SHELF (2) WCI G171608-14 Contact Us For Availability
12
COMPRESSOR WCI 3916021 Contact Us For Availability
12A
WCI G185566 WCI G185566 Contact Us For Availability
13
NAMEPLATE WCI G175117-02 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
TRIM-REAR (2) WCI G172436-14 Contact Us For Availability
13A
RELAY-ORIGINAL WCI 3201562 Contact Us For Availability
14
LABEL-LOWER WCI 3019041 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
FRAME-FULL SHELF WCI G171608-15 Contact Us For Availability
14
WCI 3201563 WCI 3201563 Contact Us For Availability
15
LABEL, UPPER WCI G188378-02 Contact Us For Availability
15
HINGE BRACKET-BOTTOM WCI G191474 Contact Us For Availability
15
SHELF GLASS-FULL WCI G171654-52 Contact Us For Availability
16
PANEL, OUTER, WHITE WCI G178690 Contact Us For Availability
16
PANEL, OUTER, AVOCADO WCI G178690-08 Contact Us For Availability
16
PANEL, OUTER, WHEAT WCI G178690-09 Contact Us For Availability
16
WCI G178690-10 WCI G178690-10 Contact Us For Availability
16
PANEL, OUTER, ALMOND WCI G178690-11 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
TRIM-FRONT WCI G172410-07 Contact Us For Availability
16
DEFROST PAN-ORIGINAL COMPRESSOR WCI G171129 Contact Us For Availability
16A
CLIP-SHELF (8) (NON-ILLUSTRATED) WCI G170910 Contact Us For Availability
16A
DEFROST PAN-SERVICE COMPRESSOR WCI G184715 Contact Us For Availability
17
DAIRY DOOR (2) WCI G178500-21 Contact Us For Availability
17
TRIM-REAR WCI G172436-18 Contact Us For Availability
17
COMPRESSOR PLATE-MOUNTING WCI G184599 Contact Us For Availability
18
PANEL-INNER WCI G184896-01 Contact Us For Availability
18
WCI G174765-03 WCI G174765-03 Contact Us For Availability
18
BLOCK-INSUL LS WCI G188375 Contact Us For Availability
19
RACK-DOOR (2) WCI G162887-22 Contact Us For Availability
19
WCI 3200810 WCI 3200810 Contact Us For Availability
19
BLOCK-INSUL RS WCI G185299 Contact Us For Availability
19A
WCI G107080 WCI G107080 Contact Us For Availability
20
TRIM-REFRIG DOOR WCI G167150-12 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
PANEL, OUTER, WHITE WCI G178694 Contact Us For Availability
21
PANEL, OUTER, AVOCADO WCI G178694-08 Contact Us For Availability
21
PANEL, OUTER, WHEAT WCI G178694-09 Contact Us For Availability
21
WCI G178694-10 WCI G178694-10 Contact Us For Availability
21
PANEL, OUTER, ALMOND WCI G178694-11 Contact Us For Availability
21
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
21A
BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
22
DOOR CONVERSION KIT-AVOCADO WCI G168981-08 Contact Us For Availability
22
DOOR CONVERSION KIT-WHEAT WCI G168981-09 Contact Us For Availability
22
DOOR CONVERSION KIT-COFFEE WCI G168981-10 Contact Us For Availability
22
DOOR CONVERSION KIT-ALMOND WCI G168981-11 Contact Us For Availability
22
GASKET, REFRIG. DOOR WCI G186932-13 Contact Us For Availability
22
WCI G177059-09 WCI G177059-09 Contact Us For Availability
22
EVAPORATOR WCI G162506 Contact Us For Availability
22A
DOOR CONVERSION KIT-WHITE (NON-ILLUSTRATED) WCI G168981-01 Contact Us For Availability
23
HANDLE END CAP-BOTTOM WCI G179801 Contact Us For Availability
23
TRIM-SHELF WCI G172410-02 Contact Us For Availability
23
SOCKET LIGHT WCI G168302 Contact Us For Availability
24
INSULATION-BULK WCI 3007739 Contact Us For Availability
24
END CAP-SHELF (2) WCI G166495-01 Contact Us For Availability
24
KNOB, CONTROL WCI G174759-01 Contact Us For Availability
24
HEAT EXCHANGER WCI G147918 Contact Us For Availability
25
WCI G162827-13 WCI G162827-13 Contact Us For Availability
25
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
LABEL - CONTROL BOX WCI G185865 Contact Us For Availability
26
INSULATOR WCI G166511-02 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
MULLION, WHITE WCI G180373-01 Contact Us For Availability
27
WCI G180373-08 WCI G180373-08 Contact Us For Availability
27
WCI G180373-09 WCI G180373-09 Contact Us For Availability
27
WCI G180373-10 WCI G180373-10 Contact Us For Availability
27
WCI G180373-11 WCI G180373-11 Contact Us For Availability
28
KNOB-DAMPER CONTROL WCI G168702 Contact Us For Availability
28
SCREW, MTG (2) WCI G183103 Contact Us For Availability
29
WCI G163061-76 WCI G163061-76 Contact Us For Availability
29
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
30
WASHER (2) WCI G166847 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
31
SPACER (2) WCI G490082 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
32
WCI G177254 WCI G177254 Contact Us For Availability
33
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
34
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
34A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
35
DIVIDER, STYROFOAM WCI G176777 Contact Us For Availability
36
WCI G185912 WCI G185912 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
40
TUBE, RUBBER WCI G85642 Contact Us For Availability
41
WCI G177529 WCI G177529 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
WCI G170695 WCI G170695 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
49
WCI G187449 WCI G187449 Contact Us For Availability
50
WCI G163669 WCI G163669 Contact Us For Availability
51
BUTTON-PLUG WCI G166912 Contact Us For Availability
52
WCI G174733 WCI G174733 Contact Us For Availability
53
WCI G174734 WCI G174734 Contact Us For Availability
54
WCI G174747-01 WCI G174747-01 Contact Us For Availability
54
WCI G174747-08 WCI G174747-08 Contact Us For Availability
54
WCI G174747-09 WCI G174747-09 Contact Us For Availability
54
WCI G174747-10 WCI G174747-10 Contact Us For Availability
54
WCI G174747-11 WCI G174747-11 Contact Us For Availability
56
WCI G490004-02 WCI G490004-02 Contact Us For Availability
57
WCI G179684-01 WCI G179684-01 Contact Us For Availability
57
WCI G179684-08 WCI G179684-08 Contact Us For Availability
57
WCI G179684-09 WCI G179684-09 Contact Us For Availability
57
WCI G179684-10 WCI G179684-10 Contact Us For Availability
57
WCI G179684-11 WCI G179684-11 Contact Us For Availability
× ![]()
