Model Electrolux RD19F8WU3B REFRIGERATOR – Common Parts & Diagrams

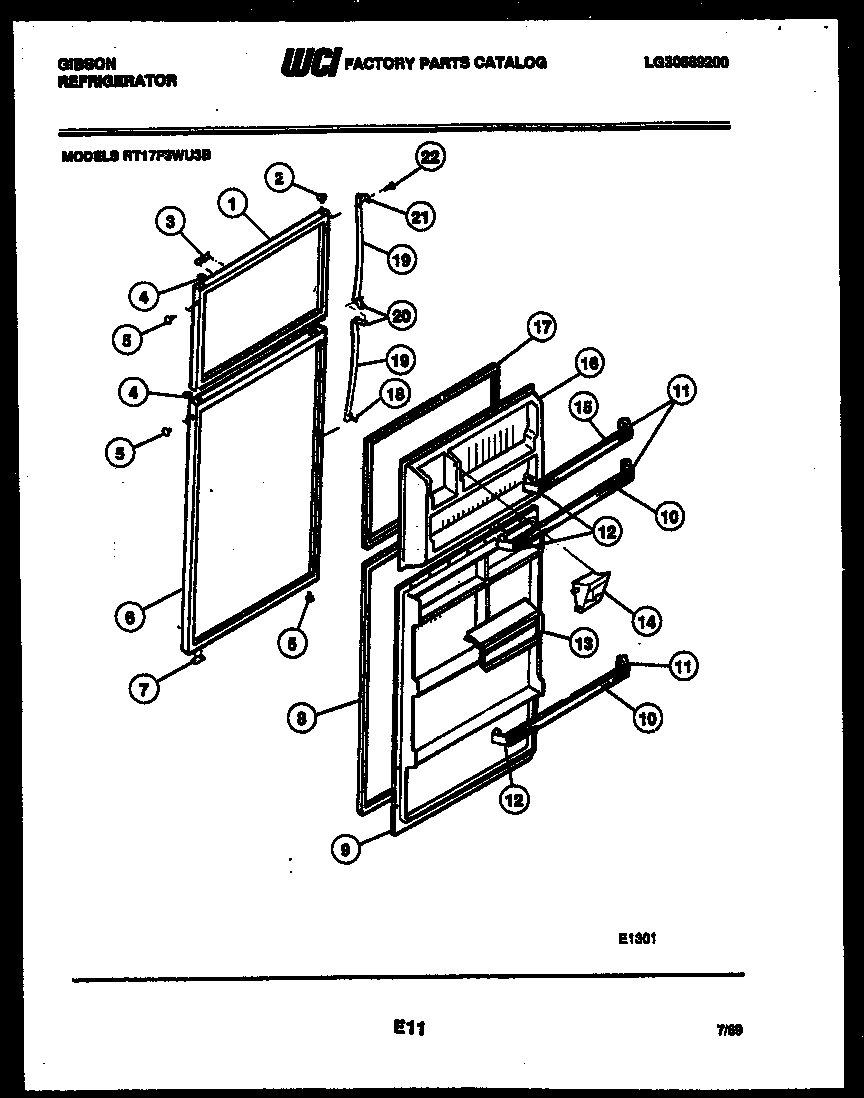

02 - DOOR PARTS

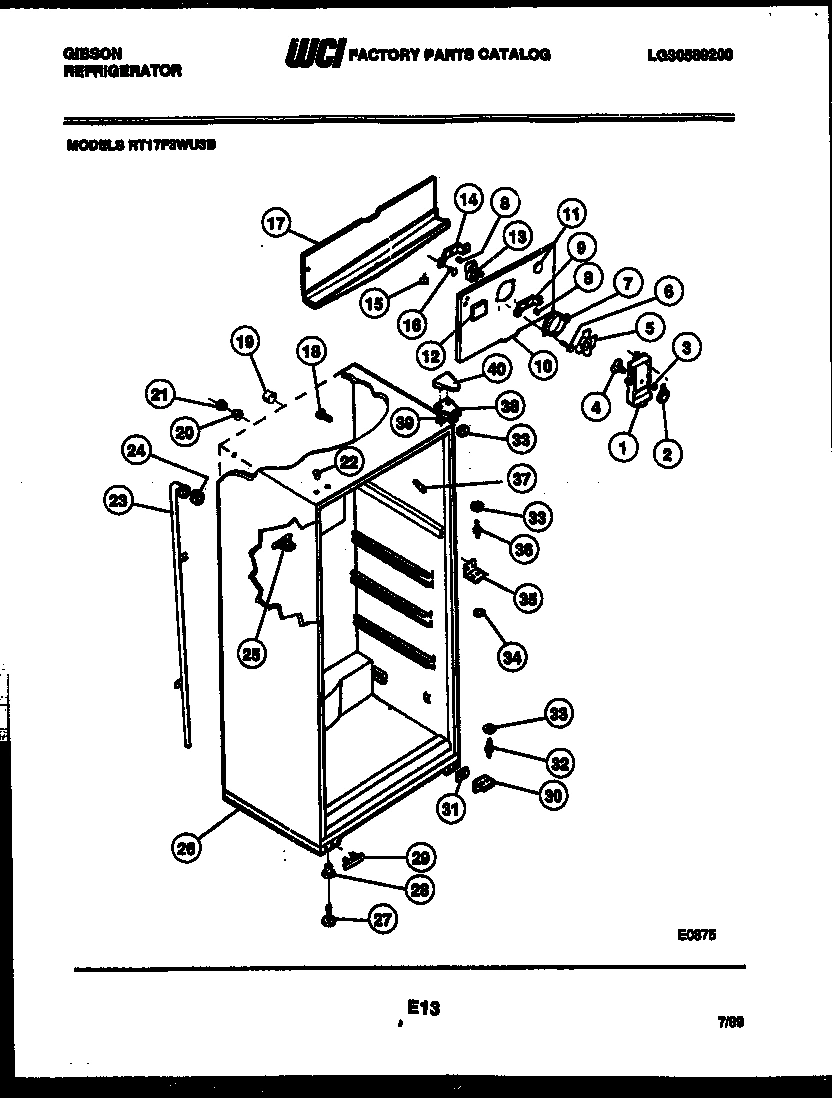

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
06 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux RD19F8WU3B REFRIGERATOR
*17882
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
WCI G163061-81 WCI G163061-81 Contact Us For Availability
1
STRAP, MULLION MOUNTING WCI G490087 Contact Us For Availability
1
WCI G162739 WCI G162739 Contact Us For Availability
1
MOLD & HEATER ASSEMBLY WCI G159912 Contact Us For Availability
2
WCI G162747-05 WCI G162747-05 Contact Us For Availability
2
WCI G184572-04 WCI G184572-04 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
2
WCI G137756 WCI G137756 Contact Us For Availability
3
END CAP-SHELF (2) WCI 3201150 No Longer Available
3
INNER PANEL-REFRIGERATOR WCI G187452-02 Contact Us For Availability
3
WCI G162662 WCI G162662 Contact Us For Availability
3
WCI G181117 WCI G181117 Contact Us For Availability
4
WCI G162661 WCI G162661 Contact Us For Availability
4
SHELF-REFRIGERATOR (3) WCI G181153-06 Contact Us For Availability
4
WCI G174818 WCI G174818 Contact Us For Availability
4
WCI G159911 WCI G159911 Contact Us For Availability
5
SUPPORT-RS (4) WCI G178287-02 Contact Us For Availability
5
WCI G172410-06 WCI G172410-06 Contact Us For Availability
5
WCI G166062-01 WCI G166062-01 Contact Us For Availability
5
WCI G159910 WCI G159910 Contact Us For Availability
6
WCI G187284-02 WCI G187284-02 Contact Us For Availability
6
WCI G490064-01 WCI G490064-01 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G187460-01 WCI G187460-01 Contact Us For Availability
7
WCI G167217 WCI G167217 Contact Us For Availability
7
PAN-SMALL LS WCI G490015-39 Contact Us For Availability
7
WCI G137748 WCI G137748 Contact Us For Availability
8
RACK-FREEZER-LOWER WCI 3016720 Contact Us For Availability
8
WCI G176639-23 WCI G176639-23 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
8
WCI G137743 WCI G137743 Contact Us For Availability
9
WCI G161019-59 WCI G161019-59 Contact Us For Availability
9
WCI G185302 WCI G185302 Contact Us For Availability
9
WCI G166310-02 WCI G166310-02 Contact Us For Availability
10
COVER-EVAPORATOR COIL WCI G177529 Contact Us For Availability
10
CONTROL BOX WCI G176722-03 Contact Us For Availability
10
WCI G73986 WCI G73986 Contact Us For Availability
10
WCI G137745 WCI G137745 Contact Us For Availability
10A
WCI 3202032 WCI 3202032 Contact Us For Availability
10A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
11
WCI 3203048 WCI 3203048 Contact Us For Availability
11
WCI 3018768 WCI 3018768 Contact Us For Availability
11
WCI G490107-02 WCI G490107-02 Contact Us For Availability
11
PAN, DEFROST WCI G184715 Contact Us For Availability
12
WCI G169332-01 WCI G169332-01 Contact Us For Availability
12
WCI G169332-08 WCI G169332-08 Contact Us For Availability
12
WCI G169332-09 WCI G169332-09 Contact Us For Availability
12
WCI G169332-10 WCI G169332-10 Contact Us For Availability
12
WCI G169332-11 WCI G169332-11 Contact Us For Availability
12
SWITCH-ENERGY SAVER WCI G178402-02 Contact Us For Availability
12
LOCK NUT-PAN MOUNTING WCI G164958 Contact Us For Availability
12
WCI G159913 WCI G159913 Contact Us For Availability
13
FREEZER PANEL-WHITE WCI G178690 Contact Us For Availability
13
FREEZER PANEL-AVOCADO WCI G178690-08 Contact Us For Availability
13
FREEZER PANEL-WHEAT WCI G178690-09 Contact Us For Availability
13
FREEZER PANEL-COFFEE WCI G178690-10 Contact Us For Availability
13
FREEZER PANEL-ALMOND WCI G178690-11 Contact Us For Availability
13
LABEL-CONTROL BOX WCI G188379-01 Contact Us For Availability
13
WCI G159907 WCI G159907 Contact Us For Availability
14
NAMEPLATE-FRAME WCI G175117-02 Contact Us For Availability
14
WCI G185303 WCI G185303 Contact Us For Availability
14
CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability
14
CLIP (4) WCI G163204 Contact Us For Availability
14
WCI G137742 WCI G137742 Contact Us For Availability
14A
TAPE, NAMEPLATE (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
14A
WCI G107080 WCI G107080 Contact Us For Availability
15
LABEL-NAMEPLATE-UPPER WCI G188378-02 Contact Us For Availability
15
WCI G164571 WCI G164571 Contact Us For Availability
15
WASHER (4) WCI G164634 Contact Us For Availability
15
WCI G164767 WCI G164767 Contact Us For Availability
16
WCI 3019041 WCI 3019041 Contact Us For Availability
16
WCI G137753 WCI G137753 Contact Us For Availability
17
WCI G162977-08 WCI G162977-08 Contact Us For Availability
17
WCI G162977-09 WCI G162977-09 Contact Us For Availability
17
WCI G162977-10 WCI G162977-10 Contact Us For Availability
17
WCI G162977-11 WCI G162977-11 Contact Us For Availability
17
DRAIN TROUGH WCI G177534 Contact Us For Availability
17
WCI G168302 WCI G168302 Contact Us For Availability
17
PLATE-COMPRESSOR MOUNTING WCI G184599 Contact Us For Availability
17
WCI G185809 WCI G185809 Contact Us For Availability
18
REFRIGERATOR PANEL-WHITE WCI G178694 Contact Us For Availability
18
REFRIGERATOR PANEL-AVOCADO WCI G178694-08 Contact Us For Availability
18
REFRIGERATOR PANEL-WHEAT WCI G178694-09 Contact Us For Availability
18
REFRIGERATOR PANEL-COFFEE WCI G178694-10 Contact Us For Availability
18
REFRIGERATOR PANEL-ALMOND WCI G178694-11 Contact Us For Availability
18
WCI G163669 WCI G163669 Contact Us For Availability
18
COMPRESSOR WITH ELECTRICALS WCI 3916004 Contact Us For Availability
18
WCI G186572 WCI G186572 Contact Us For Availability
18A
BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
19
DOOR STOP (2) WCI G155072 Contact Us For Availability
19
WCI G85642 WCI G85642 Contact Us For Availability
19
WCI G182225-18 WCI G182225-18 Contact Us For Availability
19
WCI G137735 WCI G137735 Contact Us For Availability
20
WCI G179801 WCI G179801 Contact Us For Availability
20
WCI G174733 WCI G174733 Contact Us For Availability
20
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
20
WCI G188877 WCI G188877 Contact Us For Availability
20
WCI G137741 WCI G137741 Contact Us For Availability
20A
SCREW-TOP MOUNTING (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
21
WCI G170495-24 WCI G170495-24 Contact Us For Availability
21
WCI G174734 WCI G174734 Contact Us For Availability
21
WCI G162675 WCI G162675 Contact Us For Availability
22
WCI G187329-01 WCI G187329-01 Contact Us For Availability
22
WCI G174747-01 WCI G174747-01 Contact Us For Availability
22
WCI G174747-08 WCI G174747-08 Contact Us For Availability
22
WCI G174747-09 WCI G174747-09 Contact Us For Availability
22
WCI G174747-10 WCI G174747-10 Contact Us For Availability
22
WCI G174747-11 WCI G174747-11 Contact Us For Availability
22
WCI G162178 WCI G162178 Contact Us For Availability
22
WCI G137737 WCI G137737 Contact Us For Availability
23
WCI G179800 WCI G179800 Contact Us For Availability
23
WCI G184920-01 WCI G184920-01 Contact Us For Availability
23
DIVIDER, STYROFOAM WCI G176777 Contact Us For Availability
23
WCI G188885-02 WCI G188885-02 Contact Us For Availability
23
WCI G159905 WCI G159905 Contact Us For Availability
24
WCI G185566 WCI G185566 Contact Us For Availability
24
WCI G176853 WCI G176853 Contact Us For Availability
24
WCI G185912 WCI G185912 Contact Us For Availability
24
STRAP, CAPACITOR MOUNTING WCI G188897 Contact Us For Availability
24
SWITCH-SPST WCI G164770 Contact Us For Availability
25
WCI G162179 WCI G162179 Contact Us For Availability
25
SCREW-MULLION (4) WCI G183103 Contact Us For Availability
25
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
25A
PUSH PIN-SPOUT (2) (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability
26
WCI G490004-02 WCI G490004-02 Contact Us For Availability
26
WASHER-NO. 10 STEEL (4) WCI G166847 Contact Us For Availability
26
WCI G177531 WCI G177531 Contact Us For Availability
26
WCI G137744 WCI G137744 Contact Us For Availability
27
WCI G185713 WCI G185713 Contact Us For Availability
27
WCI 3200366 WCI 3200366 Contact Us For Availability
27
WCI 3200367 WCI 3200367 Contact Us For Availability
27
WCI 3200368 WCI 3200368 Contact Us For Availability
27
WCI 3200369 WCI 3200369 Contact Us For Availability
27
WCI 3200370 WCI 3200370 Contact Us For Availability
27
WCI G137738 WCI G137738 Contact Us For Availability
28
WCI G183073 WCI G183073 Contact Us For Availability
28
WCI 3200464 WCI 3200464 Contact Us For Availability
29
WCI G166912 WCI G166912 Contact Us For Availability
29
WCI 3018916 WCI 3018916 Contact Us For Availability
29
WCI G164572 WCI G164572 Contact Us For Availability
29
WCI G159901 WCI G159901 Contact Us For Availability
30
WCI G191474 WCI G191474 Contact Us For Availability
30
WCI G159909 WCI G159909 Contact Us For Availability
31
WCI G163203 WCI G163203 Contact Us For Availability
31
INSULATOR-EVAPORATOR WCI G166511-01 Contact Us For Availability
31
SCREW 8-32/1/4 WCI G159898 Contact Us For Availability
31A
WCI G170797 WCI G170797 Contact Us For Availability
32
WCI G185299 WCI G185299 Contact Us For Availability
32
WCI G159902 WCI G159902 Contact Us For Availability
33
WCI G103903 WCI G103903 Contact Us For Availability
33
WCI G185276 WCI G185276 Contact Us For Availability
33
WCI M1090016 WCI M1090016 Contact Us For Availability
34
WCI G164355 WCI G164355 Contact Us For Availability
34
WCI G188375 WCI G188375 Contact Us For Availability
34
WCI G159906 WCI G159906 Contact Us For Availability
35
WCI G193207 WCI G193207 Contact Us For Availability
35
WCI G159914 WCI G159914 Contact Us For Availability
36
WCI G142220 WCI G142220 Contact Us For Availability
36
WCI M1090120 WCI M1090120 Contact Us For Availability
37
WCI G179684-01 WCI G179684-01 Contact Us For Availability
37
WCI G179684-08 WCI G179684-08 Contact Us For Availability
37
WCI G179684-09 WCI G179684-09 Contact Us For Availability
37
WCI G179684-10 WCI G179684-10 Contact Us For Availability
37
WCI G179684-11 WCI G179684-11 Contact Us For Availability
37
WCI G159908 WCI G159908 Contact Us For Availability
37A
WCI 3200851 WCI 3200851 Contact Us For Availability
38
WCI G183714 WCI G183714 Contact Us For Availability
38
WCI G164769 WCI G164769 Contact Us For Availability
39
WCI G183861 WCI G183861 Contact Us For Availability
39
WCI G164766 WCI G164766 Contact Us For Availability
40
WCI G183558-01 WCI G183558-01 Contact Us For Availability
40
HINGE COVER-AVOCADO WCI G183558-08 Contact Us For Availability
40
WCI G183558-09 WCI G183558-09 Contact Us For Availability
40
WCI G183558-10 WCI G183558-10 Contact Us For Availability
40
WCI G183558-11 WCI G183558-11 Contact Us For Availability
40
WCI G185266 WCI G185266 Contact Us For Availability
46
CLAMP HARNESS & INLET TUBE MOUNTING (3) WCI G161655 Contact Us For Availability
49
CLIP, HARNESS LOCATION WCI G163706 Contact Us For Availability
50
NUT-INLET TO SOLENOID WCI G143689 Contact Us For Availability
52
WCI G160347 WCI G160347 Contact Us For Availability
53
TUBE WATER FILL WCI G165773 Contact Us For Availability
56
BRACKET, VALVE TO REAR PANEL WCI G163309 Contact Us For Availability
57
WCI G159415 WCI G159415 Contact Us For Availability
58
WCI G99428 WCI G99428 Contact Us For Availability
× ![]()
