Model Electrolux RD19F6WT3C REFRIGERATOR – Common Parts & Diagrams

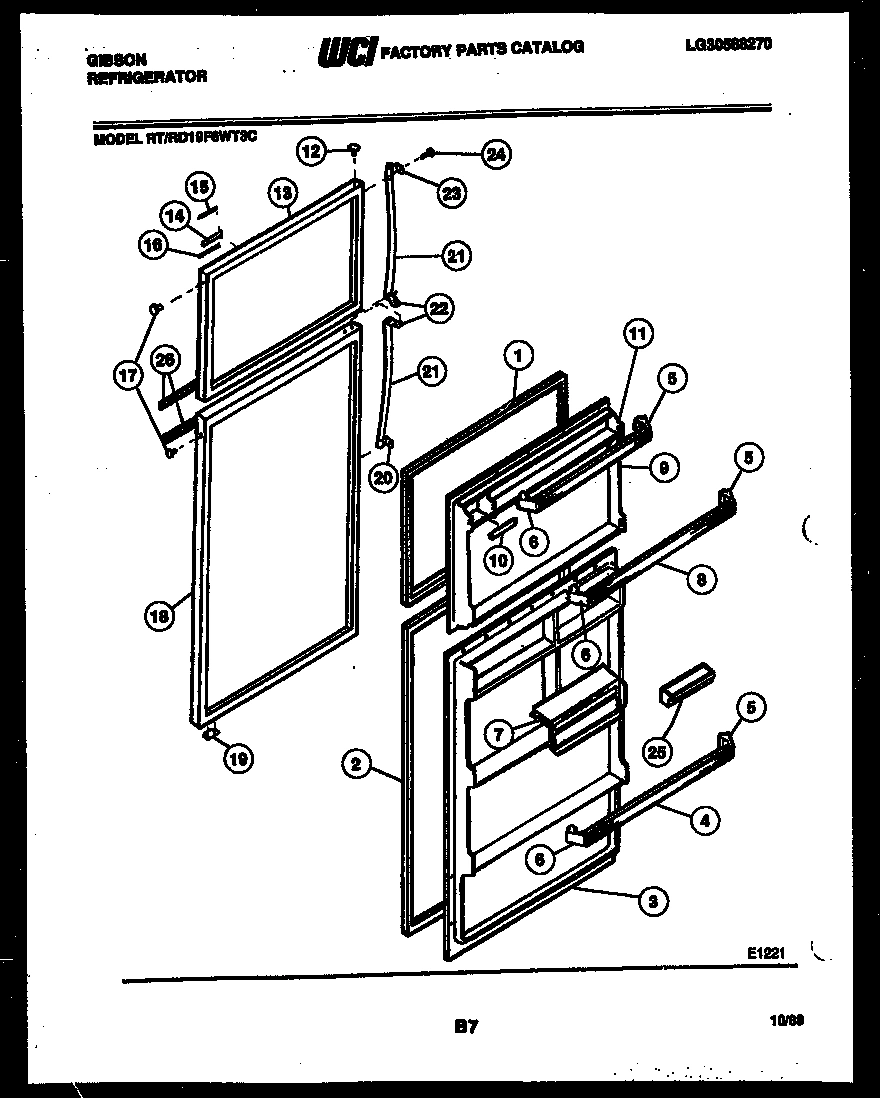

02 - DOOR PARTS

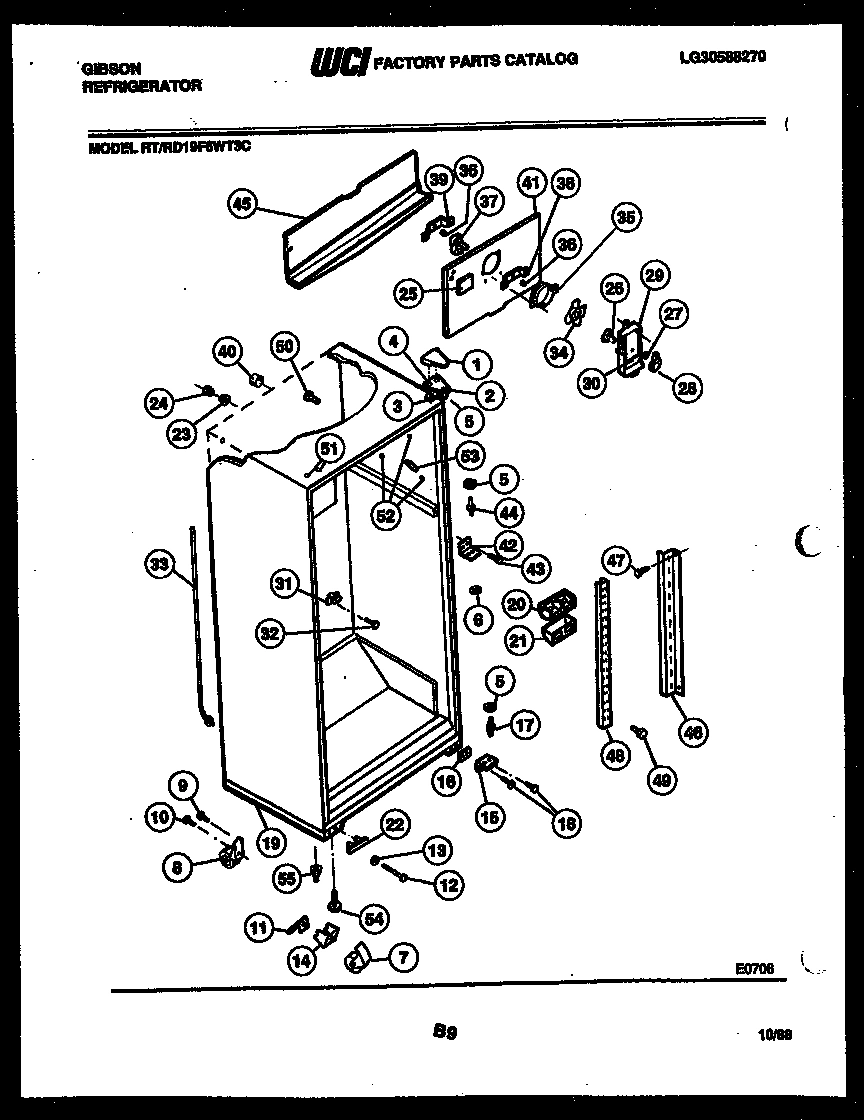

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RD19F6WT3C REFRIGERATOR
*12958
RAIL-STRAIGHT (RS) WCI G187214-03 Contact Us For Availability
*12963
WCI G166602-01 WCI G166602-01 Contact Us For Availability
*12964
WCI G167234 WCI G167234 Contact Us For Availability
*12964
HARNESS, WIRING WCI G174818 Contact Us For Availability
*12964
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
COVER HINGE, AVOCADO WCI G183558-08 Contact Us For Availability
1
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
1
PAN-CRISPER-RS WCI G176639-28 Contact Us For Availability
2
PROTECTOR-CAP (2) WCI 3201150 No Longer Available
2
GASKET-REFR WCI G186932-13 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
3
WCI G187452-02 WCI G187452-02 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
PAN-CRISPER-LS WCI G490015-46 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI G164637 Contact Us For Availability
4
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
5
WCI G103903 WCI G103903 Contact Us For Availability
5
SUPPORT-RS (4) WCI G178287-02 Contact Us For Availability
5
COVER, CRISPER WCI G490064-01 Contact Us For Availability
6
SUPPORT-LS (4) WCI G178284-02 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
GASKET, COVER WCI G180108-07 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
DAIRY DOOR WCI G187460-02 Contact Us For Availability
7
ROLLER ASSEMBLY (2) WCI G177021 Contact Us For Availability
7
TRIM-FRONT WCI G172410-07 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
8
RACK-FREEZER LOWER WCI G161019-62 Contact Us For Availability
8
ROLLER ASSEMBLY (2) WCI G183407 Contact Us For Availability
8
FRAME-FULL SHELF WCI G177390-14 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
9
RACK-FREEZER UPPER WCI G161019-61 Contact Us For Availability
9
TRIM-FRONT (2) WCI G172410-17 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
10
RACK, JUICE CAN WCI G187492-02 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
FRAME-HALF (2) WCI G177390-15 Contact Us For Availability
11
WCI G187493-02 WCI G187493-02 Contact Us For Availability
11
SPRING-ADJUSTMENT (2) WCI G178494 Contact Us For Availability
11
WCI G187181-01 WCI G187181-01 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
WCI G169332-01 WCI G169332-01 Contact Us For Availability
12
WCI G169332-08 WCI G169332-08 Contact Us For Availability
12
WCI G169332-09 WCI G169332-09 Contact Us For Availability
12
WCI G169332-10 WCI G169332-10 Contact Us For Availability
12
WCI G169332-11 WCI G169332-11 Contact Us For Availability
12
BOLT-ROLLER ADJUSTMENT WCI G177024 Contact Us For Availability
12
WCI G187195-01 WCI G187195-01 Contact Us For Availability
12
COMPRESSOR-SERVICE WCI 3916020 Contact Us For Availability
13
FRZR PANEL-WHITE WCI G178690 Contact Us For Availability
13
FRZR PANEL-AVOCADO WCI G178690-08 Contact Us For Availability
13
FRZR PANEL-WHEAT WCI G178690-09 Contact Us For Availability
13
FRZR PANEL-COFFEE WCI G178690-10 Contact Us For Availability
13
FRZR PANEL-ALMOND WCI G178690-11 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
TRIM-FRONT WCI G172410-08 Contact Us For Availability
13
RELAY-SERVICE WCI 3007171 Contact Us For Availability
13A
RELAY-PRODUCTION WCI 3201562 Contact Us For Availability
14
NAMEPLATE-FRAME WCI G175117-02 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
WCI G177059-09 WCI G177059-09 Contact Us For Availability
14
OVERLOAD-SERVICE WCI 3007416 Contact Us For Availability
14A
TAPE-NAMEPLATE MTG (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
14A
OVERLOAD-PRODUCTION WCI 3201563 Contact Us For Availability
15
LABEL-NAMEPLATE UPR WCI G188378-02 Contact Us For Availability
15
HINGE BRACKET-BOTTOM WCI G191474 Contact Us For Availability
15
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
15
INSULATOR-PLASTIC WCI G166511-01 Contact Us For Availability
15A
WCI G162673 WCI G162673 Contact Us For Availability
16
LABEL-NAMEPLATE LWR WCI 3019041 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
PAN-DEFROST-PRODUCTION WCI G171778 Contact Us For Availability
16A
PAN-DEFROST SERVICE WCI G184715 Contact Us For Availability
17
WCI G162977-08 WCI G162977-08 Contact Us For Availability
17
WCI G162977-09 WCI G162977-09 Contact Us For Availability
17
WCI G162977-10 WCI G162977-10 Contact Us For Availability
17
WCI G162977-11 WCI G162977-11 Contact Us For Availability
17
WCI 3018916 WCI 3018916 Contact Us For Availability
17
PLATE-COMPRESSOR WCI G184599 Contact Us For Availability
18
REFR PANEL-WHITE WCI G178694 Contact Us For Availability
18
REFR PANEL-AVOCADO WCI G178694-08 Contact Us For Availability
18
REFR PANEL-WHEAT WCI G178694-09 Contact Us For Availability
18
REFR PANEL-COFFEE WCI G178694-10 Contact Us For Availability
18
REFR PANEL-ALMOND WCI G178694-11 Contact Us For Availability
18
WCI 3200366 WCI 3200366 Contact Us For Availability
18
WCI 3200367 WCI 3200367 Contact Us For Availability
18
WCI 3200368 WCI 3200368 Contact Us For Availability
18
WCI 3200369 WCI 3200369 Contact Us For Availability
18
WCI 3200370 WCI 3200370 Contact Us For Availability
18
BLOCK-INSULATION LS WCI G188375 Contact Us For Availability
18A
BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
19
DOOR STOP (2) WCI G155072 Contact Us For Availability
19
WCI G490004-02 WCI G490004-02 Contact Us For Availability
19
SCREW-MOUNTING (4) WCI G183103 Contact Us For Availability
19
BLOCK-INSULATION RS WCI G185299 Contact Us For Availability
20
WCI G179801 WCI G179801 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
STRAP, MULLION MOUNTING WCI G490087 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
WCI G170495-24 WCI G170495-24 Contact Us For Availability
21
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
21
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
22
WCI G187329-01 WCI G187329-01 Contact Us For Availability
22
WCI G166912 WCI G166912 Contact Us For Availability
22
SPACER (2) WCI G490082 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
23
WCI G179800 WCI G179800 Contact Us For Availability
23
WCI G174733 WCI G174733 Contact Us For Availability
23
DIVIDER, STYRO WCI G176777 Contact Us For Availability
24
WCI G185566 WCI G185566 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
WCI G185912 WCI G185912 Contact Us For Availability
24
HEAT EXCHANGER WCI G147918 Contact Us For Availability
24A
INSULATION-BULK (NON-ILLUSTRATED) WCI G89643 Contact Us For Availability
25
WCI G187461-01 WCI G187461-01 Contact Us For Availability
25
WCI G162827-13 WCI G162827-13 Contact Us For Availability
26
TRIM-DOOR (2) WCI G167150-12 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
SOCKET LIGHT WCI G168302 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
WCI G176772-03 WCI G176772-03 Contact Us For Availability
28
WCI G162747-06 WCI G162747-06 Contact Us For Availability
28
LABEL-CONTROL BOX WCI G188379-02 Contact Us For Availability
29
WCI G163061-76 WCI G163061-76 Contact Us For Availability
29
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
30
LABEL, COVER WCI G186232 Contact Us For Availability
30
WCI G178402-02 WCI G178402-02 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
32
CONTROL-TEMP WCI 3200810 Contact Us For Availability
32A
WCI G107080 WCI G107080 Contact Us For Availability
33
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
35
RAIL-OFFSET LS WCI G187213-03 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
40
WCI G85642 WCI G85642 Contact Us For Availability
41
WCI G177529 WCI G177529 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
CHANNEL-RS AND LS WCI G170695 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
49
WCI G187449 WCI G187449 Contact Us For Availability
50
WCI G163669 WCI G163669 Contact Us For Availability
51
WCI G174747-01 WCI G174747-01 Contact Us For Availability
51
WCI G174747-08 WCI G174747-08 Contact Us For Availability
51
WCI G174747-09 WCI G174747-09 Contact Us For Availability
51
WCI G174747-10 WCI G174747-10 Contact Us For Availability
51
WCI G174747-11 WCI G174747-11 Contact Us For Availability
53
WCI G179684-01 WCI G179684-01 Contact Us For Availability
53
WCI G179684-08 WCI G179684-08 Contact Us For Availability
53
WCI G179684-09 WCI G179684-09 Contact Us For Availability
53
WCI G179684-10 WCI G179684-10 Contact Us For Availability
53
WCI G179684-11 WCI G179684-11 Contact Us For Availability
53A
BUTTON, I/M HOLE (5) (NON-ILLUSTRATED) WCI G187599 Contact Us For Availability
53B
TAPPING PLATE (4) (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
54
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
55
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
× ![]()
