Model Electrolux RD15F4WU2B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

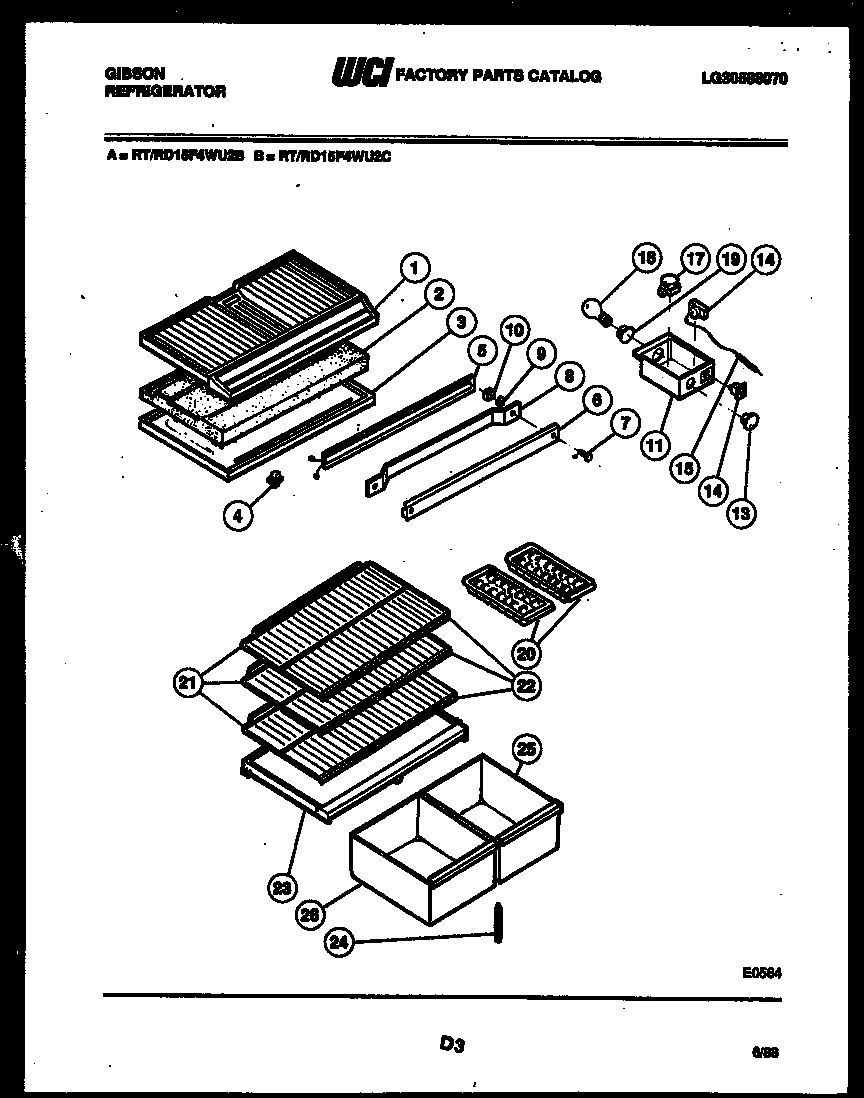

04 - SHELVES AND SUPPORTS

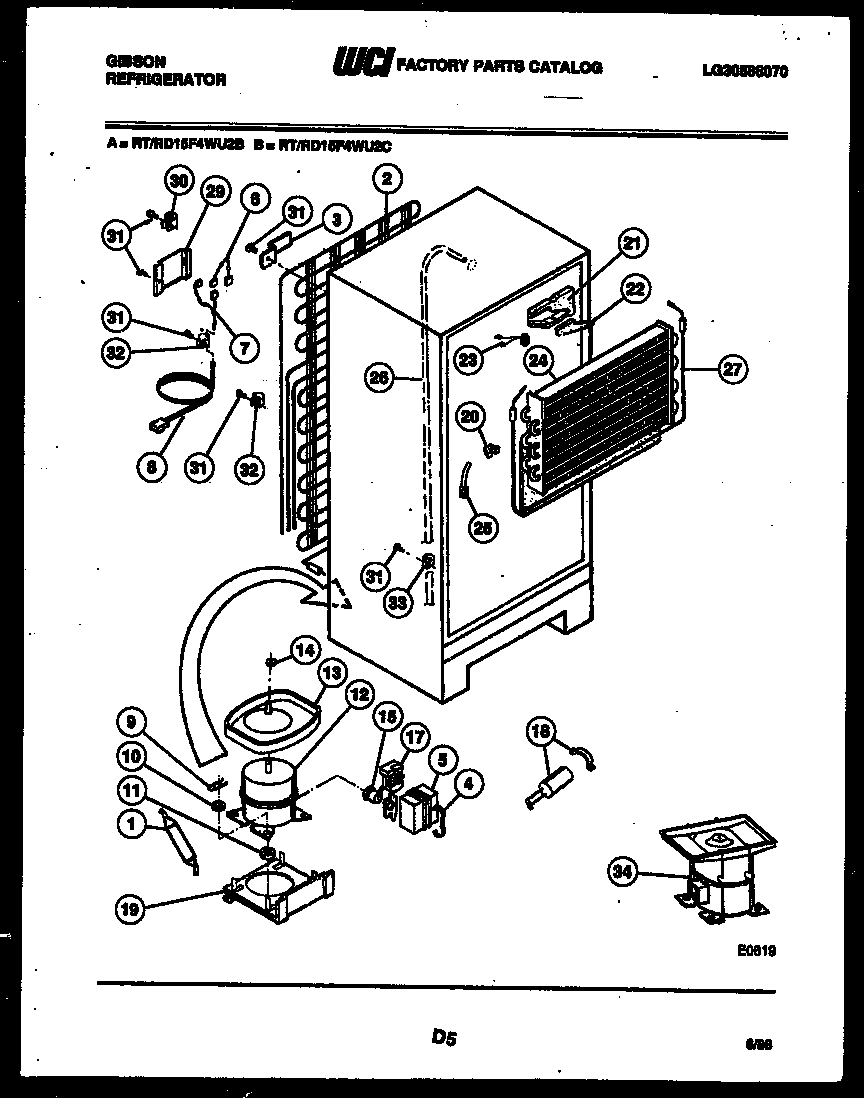

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RD15F4WU2B REFRIGERATOR
*10604
PLUG-LINER (8) WCI G187599 Contact Us For Availability
*10612
HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability
1
FREEZER DOOR-AVOC WCI G171427-08 Contact Us For Availability
1
WCI G171427-09 WCI G171427-09 Contact Us For Availability
1
WCI G171427-10 WCI G171427-10 Contact Us For Availability
1
WCI G171427-11 WCI G171427-11 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
1
FREEZER BOTTOM WCI G162857 Contact Us For Availability
2
FRAME-NAMEPLATE WCI G175117-01 Contact Us For Availability
2
WCI G163219 WCI G163219 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
2A
TAPE-NAMEPLATE MTG (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
3
WCI G188378-02 WCI G188378-02 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
REFRIGERATOR TOP WCI 3015448 Contact Us For Availability
3
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
3A
SCREW-TOP MOUNTING (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
4
GASKET-FREEZER WCI G186932-03 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
5
INNER PANEL-FREEZER WCI G188754-02 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
WCI G187921 WCI G187921 Contact Us For Availability
6
BUSHING (2) WCI G187559 Contact Us For Availability
6
WIRING HARNESS, DIVIDER WCI G174818 Contact Us For Availability
6
WCI G174520-01 WCI G174520-01 Contact Us For Availability
6
WCI G174520-08 WCI G174520-08 Contact Us For Availability
6
WCI G174520-09 WCI G174520-09 Contact Us For Availability
6
WCI G174520-10 WCI G174520-10 Contact Us For Availability
6
WCI G174520-11 WCI G174520-11 Contact Us For Availability
7
DOOR RACK-FREEZER WCI G164698-47 Contact Us For Availability
7
SCREW (4) WCI G183103 Contact Us For Availability
7
WCI G166062-01 WCI G166062-01 Contact Us For Availability
8
WCI 3015679 WCI 3015679 Contact Us For Availability
8
DAMPER WCI G162661 Contact Us For Availability
8
STRAP, MULLION MOUNTING WCI G166709 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
9
DOOR RACK-REFR (2) WCI G164698-48 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WASHER-STEEL (2) WCI G166847 Contact Us For Availability
9
CLIP (4) WCI G163204 Contact Us For Availability
10
INNER PANEL-REFR WCI G189034-02 Contact Us For Availability
10
WCI G162747-05 WCI G162747-05 Contact Us For Availability
10
SPACER (2) WCI G166848 Contact Us For Availability
10
WASHER (4) WCI G164634 Contact Us For Availability
11
GASKET-REFRIGERATOR WCI G186932-02 Contact Us For Availability
11
WCI G163061-74 WCI G163061-74 Contact Us For Availability
11
CONTROL BOX WCI G176722-03 Contact Us For Availability
11A
PLUG-TIMER ACCESS (NON-ILLUSTRATED) WCI G183060 Contact Us For Availability
12
WCI G171426 WCI G171426 Contact Us For Availability
12
WCI G171426-08 WCI G171426-08 Contact Us For Availability
12
WCI G171426-09 WCI G171426-09 Contact Us For Availability
12
WCI G171426-10 WCI G171426-10 Contact Us For Availability
12
WCI G171426-11 WCI G171426-11 Contact Us For Availability
12
WCI G183558-01 WCI G183558-01 Contact Us For Availability
12
HINGE COVER-AVOCADO WCI G183558-08 Contact Us For Availability
12
WCI G183558-09 WCI G183558-09 Contact Us For Availability
12
WCI G183558-10 WCI G183558-10 Contact Us For Availability
12
WCI G183558-11 WCI G183558-11 Contact Us For Availability
12
LABEL-CONTROL BOX WCI G188379-01 Contact Us For Availability
12
COMPRESSOR W/ELEC WCI G189457 Contact Us For Availability
13
BEARING HINGE (8) WCI G183138 Contact Us For Availability
13
WCI G183714 WCI G183714 Contact Us For Availability
13
WCI G490107-02 WCI G490107-02 Contact Us For Availability
13
DEFROST PAN WCI G184715 Contact Us For Availability
14
WCI G103903 No Longer Available
14
WCI G162977-08 WCI G162977-08 Contact Us For Availability
14
WCI G162977-09 WCI G162977-09 Contact Us For Availability
14
WCI G162977-10 WCI G162977-10 Contact Us For Availability
14
WCI G162977-11 WCI G162977-11 Contact Us For Availability
14
SWITCH-ENERGY SAVER WCI G178402-02 Contact Us For Availability
14
LOCK NUT 1/4-20 WCI G164958 Contact Us For Availability
15
WCI G169332-01 WCI G169332-01 Contact Us For Availability
15
WCI G169332-08 WCI G169332-08 Contact Us For Availability
15
WCI G169332-09 WCI G169332-09 Contact Us For Availability
15
WCI G169332-10 WCI G169332-10 Contact Us For Availability
15
WCI G169332-11 WCI G169332-11 Contact Us For Availability
15
WCI G183861 WCI G183861 Contact Us For Availability
15
WCI G188877 WCI G188877 Contact Us For Availability
16
WCI G89643 WCI G89643 Contact Us For Availability
16
WASHER-CTR HINGE (2) WCI G164355 Contact Us For Availability
16
WCI G162205-12 WCI G162205-12 Contact Us For Availability
16
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
16A
WCI G107080 WCI G107080 Contact Us For Availability
17
HANDLE GRIP WCI G170495-24 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI G182225-18 WCI G182225-18 Contact Us For Availability
18
WCI G187329-01 WCI G187329-01 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
WCI G188885-01 WCI G188885-01 Contact Us For Availability
18
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
19
WCI G179800 WCI G179800 Contact Us For Availability
19
SOCKET-LIGHT BULB WCI G168302 Contact Us For Availability
19
WCI G162822 WCI G162822 Contact Us For Availability
20
WCI G179801 WCI G179801 Contact Us For Availability
20
WCI G162675 WCI G162675 Contact Us For Availability
20
WCI G188375 WCI G188375 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21
WCI 3017594 WCI 3017594 Contact Us For Availability
21
WCI G185299 WCI G185299 Contact Us For Availability
22
WCI 3017595 WCI 3017595 Contact Us For Availability
22
WCI G185276 WCI G185276 Contact Us For Availability
23
WCI G181019 WCI G181019 Contact Us For Availability
23
COVER-STORAGE PANS WCI G162957-01 Contact Us For Availability
24
WCI G166310-02 WCI G166310-02 Contact Us For Availability
24
EVAPORATOR COIL WCI G164563 Contact Us For Availability
24A
TAPPING PLATE (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
25
WCI G163203 WCI G163203 Contact Us For Availability
25
STORAGE PAN-FRUIT WCI G177253-07 Contact Us For Availability
26
WCI G166912 WCI G166912 Contact Us For Availability
26
STORAGE PAN-VEGETABLE WCI G177253-08 Contact Us For Availability
26
WCI G163389 WCI G163389 Contact Us For Availability
27
WCI G185713 WCI G185713 Contact Us For Availability
27
WCI G162432-02 WCI G162432-02 Contact Us For Availability
27A
ANCHOR NUT-SCREW (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
28
WCI G163205 WCI G163205 Contact Us For Availability
28
INSULATOR-EVAPORATOR WCI G169024-02 Contact Us For Availability
29
WCI G161998-01 WCI G161998-01 Contact Us For Availability
29
WCI G183584 WCI G183584 Contact Us For Availability
30
WCI G174747-01 WCI G174747-01 Contact Us For Availability
30
WCI G174747-08 WCI G174747-08 Contact Us For Availability
30
WCI G174747-09 WCI G174747-09 Contact Us For Availability
30
WCI G174747-10 WCI G174747-10 Contact Us For Availability
30
WCI G174747-11 WCI G174747-11 Contact Us For Availability
30
CLAMP-CABLE WCI G73986 Contact Us For Availability
31
WCI G174733 WCI G174733 Contact Us For Availability
32
WCI G174734 WCI G174734 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
34
WCI G163290 WCI G163290 Contact Us For Availability
34
WCI G167234 WCI G167234 Contact Us For Availability
34A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
36
WCI G162827-12 WCI G162827-12 Contact Us For Availability
37
WCI G163292 WCI G163292 Contact Us For Availability
38
WCI G162364-01 WCI G162364-01 Contact Us For Availability
38
WCI G162364-08 WCI G162364-08 Contact Us For Availability
38
WCI G162364-09 WCI G162364-09 Contact Us For Availability
38
WCI G162364-10 WCI G162364-10 Contact Us For Availability
38
WCI G162364-11 WCI G162364-11 Contact Us For Availability
× ![]()
