Model Electrolux RD15F4WU2A REFRIGERATOR – Common Parts & Diagrams

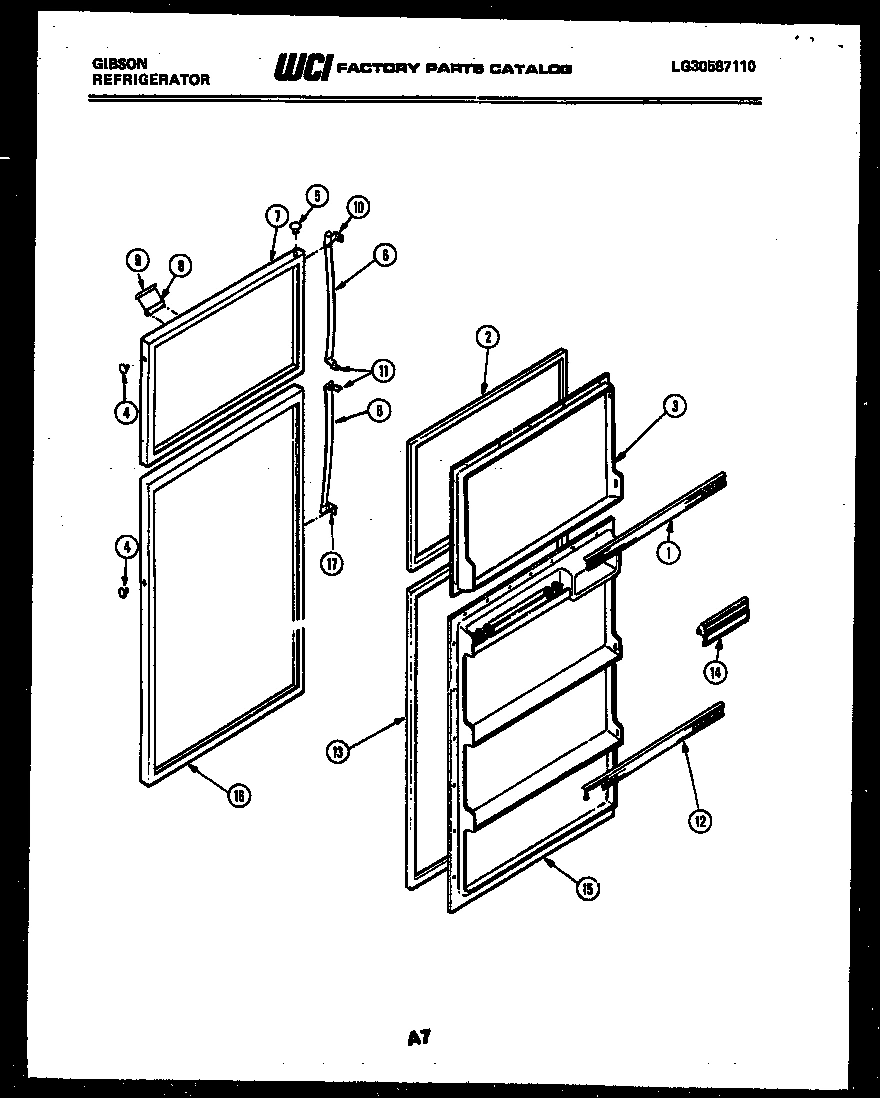

02 - DOOR PARTS

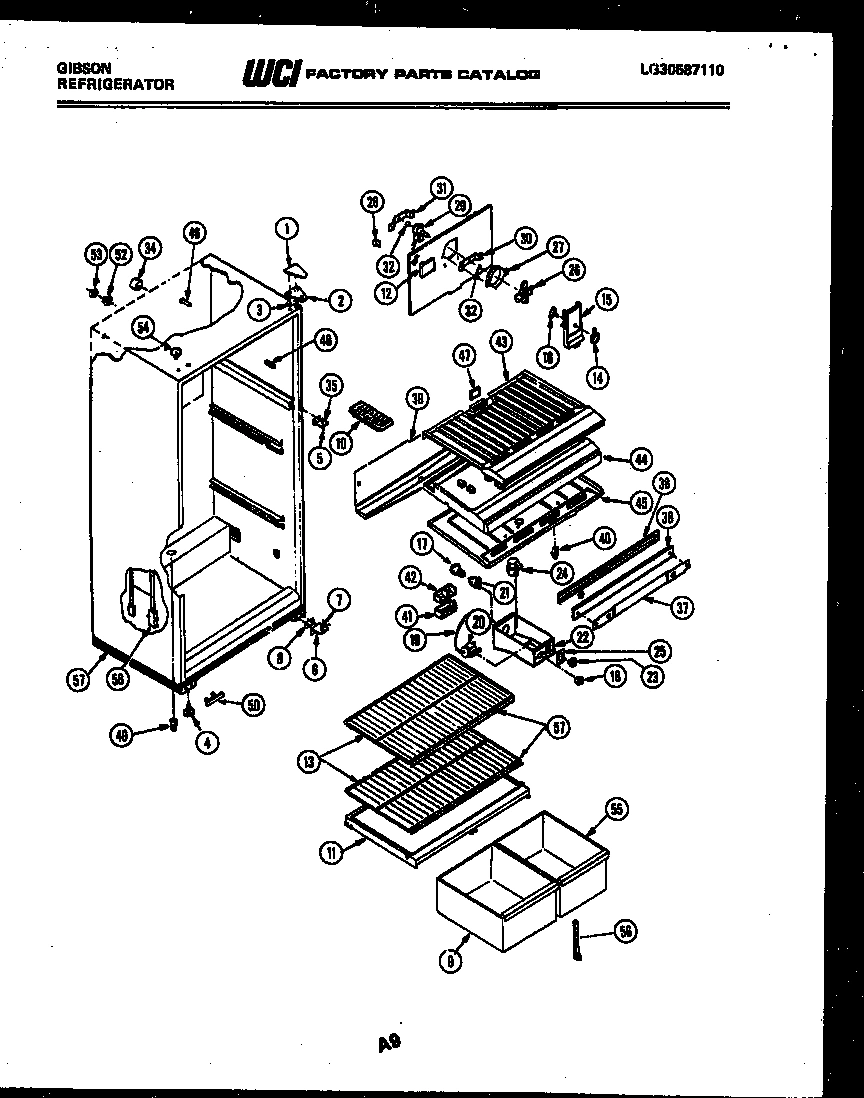

03 - CABINET PARTS

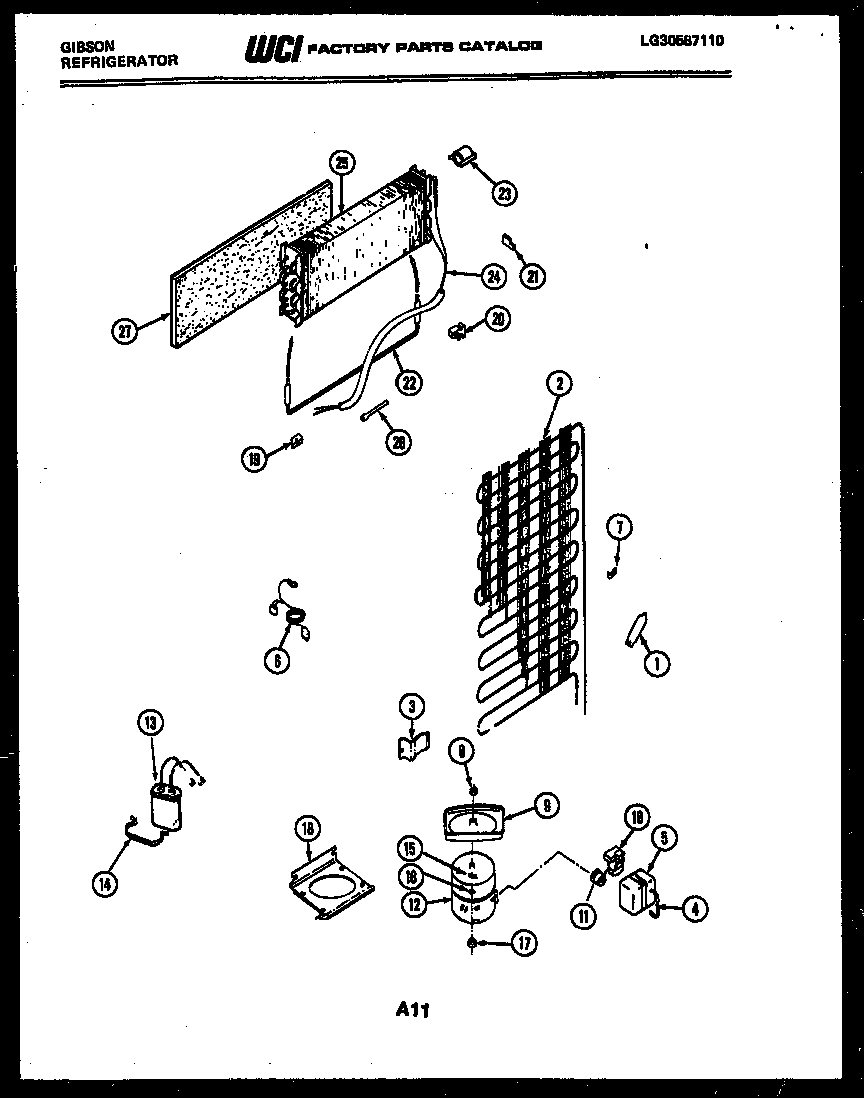

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RD15F4WU2A REFRIGERATOR
*46353
HARNESS-COMPR WCI G166062-01 Contact Us For Availability
*46357
WCI G183584 WCI G183584 Contact Us For Availability
1
COVER-HNG WHTE WCI G183558-01 Contact Us For Availability
1
COVER-HNG AVOC. WCI G183558-08 Contact Us For Availability
1
COVER-HNG WEAT WCI G183558-09 Contact Us For Availability
1
COVER-HNG COFE WCI G183558-10 Contact Us For Availability
1
COVER-HNG ALMD WCI G183558-11 Contact Us For Availability
2
HINGE WCI G183714 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
3
WCI G188754-02 WCI G188754-02 Contact Us For Availability
3
SHIM WCI G183861 Contact Us For Availability
3
BRACKET (4) WCI G164637 Contact Us For Availability
3A
WCI G103903 No Longer Available
3B
WSHR-NYLN 5/16 X 5/8 (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
4
WCI G162977-08 WCI G162977-08 Contact Us For Availability
4
WCI G162977-09 WCI G162977-09 Contact Us For Availability
4
WCI G162977-10 WCI G162977-10 Contact Us For Availability
4
WCI G162977-11 WCI G162977-11 Contact Us For Availability
4
LEG-LEVELING WCI G185713 Contact Us For Availability
4A
NUT-ANCHOR (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
5
WCI G169332-01 WCI G169332-01 Contact Us For Availability
5
WCI G169332-08 WCI G169332-08 Contact Us For Availability
5
WCI G169332-10 WCI G169332-10 Contact Us For Availability
5
WCI G169332-11 WCI G169332-11 Contact Us For Availability
5
WCI Q169332-09 WCI Q169332-09 Contact Us For Availability
5
WCI G142220 WCI G142220 Contact Us For Availability
6
GRIP-HANDLE WCI G170495-24 Contact Us For Availability
6
BRACKET-HNG. WCI G181019 Contact Us For Availability
6
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7
PANEL-OUTER-WHTE WCI G171427 Contact Us For Availability
7
PANEL-OUTER-AVOC WCI G171427-08 Contact Us For Availability
7
PANEL-OUTER-WEAT WCI G171427-09 Contact Us For Availability
7
PANEL-OUTER-COFE WCI G171427-10 Contact Us For Availability
7
PANEL-OUTER-ALMD WCI G171427-11 Contact Us For Availability
7
WCI G101747 WCI G101747 Contact Us For Availability
8
WCI G175117-01 WCI G175117-01 Contact Us For Availability
8
SHIM WCI G163203 Contact Us For Availability
8
NUT WCI G164958 Contact Us For Availability
9
WCI G188378-02 WCI G188378-02 Contact Us For Availability
9
WCI G177253-08 WCI G177253-08 Contact Us For Availability
9
PAN & NUT WCI G184715 Contact Us For Availability
10
END-HNDL WCI G179800 Contact Us For Availability
10
WCI G182225-18 WCI G182225-18 Contact Us For Availability
11
END-HNDL (2) WCI G187329-01 Contact Us For Availability
11
COVER-CRSPR. WCI G162957-01 Contact Us For Availability
11
WCI G188877 WCI G188877 Contact Us For Availability
12
RACK-DOOR (2) WCI G164698-48 Contact Us For Availability
12
BTN-DECOR. WCI G162827-12 Contact Us For Availability
12
COMPR. W/ELECT. WCI G189457 Contact Us For Availability
13
GASKET WCI G186932-02 Contact Us For Availability
13
WCI G172175-04 WCI G172175-04 Contact Us For Availability
13
WCI G188885-01 WCI G188885-01 Contact Us For Availability
14
WCI G187490-04 WCI G187490-04 Contact Us For Availability
14
KNOB-DMPR. WCI G162747-05 Contact Us For Availability
14
STRAP WCI G188897 Contact Us For Availability
15
WCI G189034-02 WCI G189034-02 Contact Us For Availability
15
COVER-FAN WCI G163061-74 Contact Us For Availability
15
CLIP WCI G163204 Contact Us For Availability
16
PANEL-OUTER-WHTE WCI G171426 Contact Us For Availability
16
PANEL-OUTER-AVOC WCI G171426-08 Contact Us For Availability
16
PANEL-OUTER-WEAT WCI G171426-09 Contact Us For Availability
16
PANEL-OUTER-COFE WCI G171426-10 Contact Us For Availability
16
PANEL-OUTER-ALMD WCI G171426-11 Contact Us For Availability
16
DAMPER WCI G162661 Contact Us For Availability
16
WASHER WCI G164634 Contact Us For Availability
16A
BEARING-HNG (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
16A
NUT-PUSH (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
17
KIT CONV. WHTE WCI G169699-01 Contact Us For Availability
17
KIT CONV. AVOC. WCI G169699-08 Contact Us For Availability
17
KIT CONV. WEAT WCI G169699-09 Contact Us For Availability
17
KIT CONV. COFE WCI G169699-10 Contact Us For Availability
17
KIT CONV. ALMD WCI G169699-11 Contact Us For Availability
17
END-HNDL WCI G179801 Contact Us For Availability
17A
WCI G185566 WCI G185566 Contact Us For Availability
18
KNOB WCI G490107-02 Contact Us For Availability
18
PLATE-MTG. WCI G162822 Contact Us For Availability
19
BLOCK-LH WCI G188375 Contact Us For Availability
20
CONTROL WCI G162205-12 Contact Us For Availability
20
BLOCK RH WCI G185299 Contact Us For Availability
20A
WCI G107080 WCI G107080 Contact Us For Availability
21
SOCKET WCI G168302 Contact Us For Availability
21
PLUG, BLOCK WCI G185276 Contact Us For Availability
22
WCI G176722-03 WCI G176722-03 Contact Us For Availability
22
WCI G162432-02 WCI G162432-02 Contact Us For Availability
22A
BTN-PLUG (NON-ILLUSTRATED) WCI G183060 Contact Us For Availability
23
WCI G178402-02 WCI G178402-02 Contact Us For Availability
24
WCI G163389 WCI G163389 Contact Us For Availability
25
WCI G188379-01 WCI G188379-01 Contact Us For Availability
25
WCI G164563 WCI G164563 Contact Us For Availability
27
RING-ORIFICE WCI G167217 Contact Us For Availability
27
INSULATOR WCI G169024-02 Contact Us For Availability
28
BRACKET WCI G164571 Contact Us For Availability
30
WCI G185302 WCI G185302 Contact Us For Availability
31
WCI G185303 WCI G185303 Contact Us For Availability
32
GOMMET WCI G187559 Contact Us For Availability
33A
COVER WCI G163290 Contact Us For Availability
34
TUBE, RUBBER WCI G85642 Contact Us For Availability
35
BRACKET-HNG WCI G163207 Contact Us For Availability
35A
SCREW (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
36
MULLION-WHTE WCI G174520-01 Contact Us For Availability
36
MULLION-AVOC. WCI G174520-08 Contact Us For Availability
36
MULLION-WEAT WCI G174520-09 Contact Us For Availability
36
MULLION-COFE WCI G174520-10 Contact Us For Availability
36
MULLION-ALMD WCI G174520-11 Contact Us For Availability
36A
WCI G166848 WCI G166848 Contact Us For Availability
36B
WASHER (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
37
STRAP-MULLION WCI G166709 Contact Us For Availability
38
WCI G187921 WCI G187921 Contact Us For Availability
39
TROUGH-DRAIN WCI G163292 Contact Us For Availability
41
COVER-DEFL. WCI G162178 Contact Us For Availability
42
DEFL.-AIR WCI G162675 Contact Us For Availability
43
BTM-FZR. WCI G162857 Contact Us For Availability
44
DIVIDER-STYRO. WCI G163219 Contact Us For Availability
45
TOP-REFR. WCI G174713 Contact Us For Availability
45A
SCREW NO. 8 X 1 3/4 (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
46
SUPT. CVR. (2) WCI G163669 Contact Us For Availability
47
WCI G182809 WCI G182809 Contact Us For Availability
48
TRIM-CORNER-WHTE WCI G162364-01 Contact Us For Availability
48
TRIM-CORNER-AVOC WCI G162364-08 Contact Us For Availability
48
TRIM-CORNER-WEAT WCI G162364-09 Contact Us For Availability
48
TRIM-CORNER-COFE WCI G162364-10 Contact Us For Availability
48
TRIM-CORNER-ALMD WCI G162364-11 Contact Us For Availability
49
TUBE-DRAIN WCI G163205 Contact Us For Availability
50
BTN-PLUG WCI G166912 Contact Us For Availability
51
BASE-CABINET WCI G161998-01 Contact Us For Availability
52
WCI G174733 WCI G174733 Contact Us For Availability
53
WCI G174734 WCI G174734 Contact Us For Availability
54
WCI G174747-01 WCI G174747-01 Contact Us For Availability
54
WCI G174747-08 WCI G174747-08 Contact Us For Availability
54
WCI G174747-09 WCI G174747-09 Contact Us For Availability
54
WCI G174747-10 WCI G174747-10 Contact Us For Availability
54
WCI G174747-11 WCI G174747-11 Contact Us For Availability
55
WCI G177253-07 WCI G177253-07 Contact Us For Availability
56
SUPT-COVER WCI G166310-02 Contact Us For Availability
57
WCI G141727-33 WCI G141727-33 Contact Us For Availability
57A
WCI G138399 WCI G138399 Contact Us For Availability
58
HARNESS, DIVIDER WCI G174818 Contact Us For Availability
58A
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
58A
WCI G174797 WCI G174797 Contact Us For Availability
58B
BTN-PLUG LINER (2) WCI G162892-01 Contact Us For Availability
58C
BTN-PLUG LINER (8) WCI G187599 Contact Us For Availability
× ![]()
