Model Electrolux RD11F2WVJB REFRIGERATOR – Common Parts & Diagrams

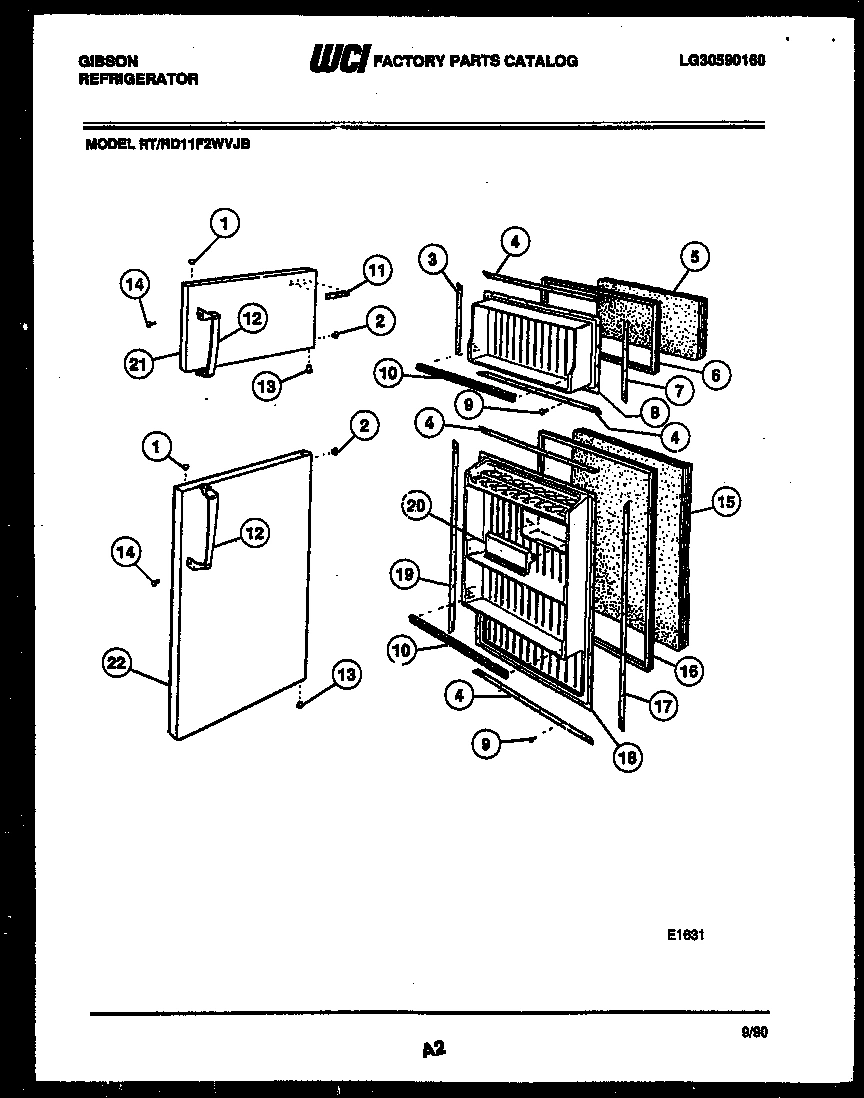

02 - DOOR PARTS

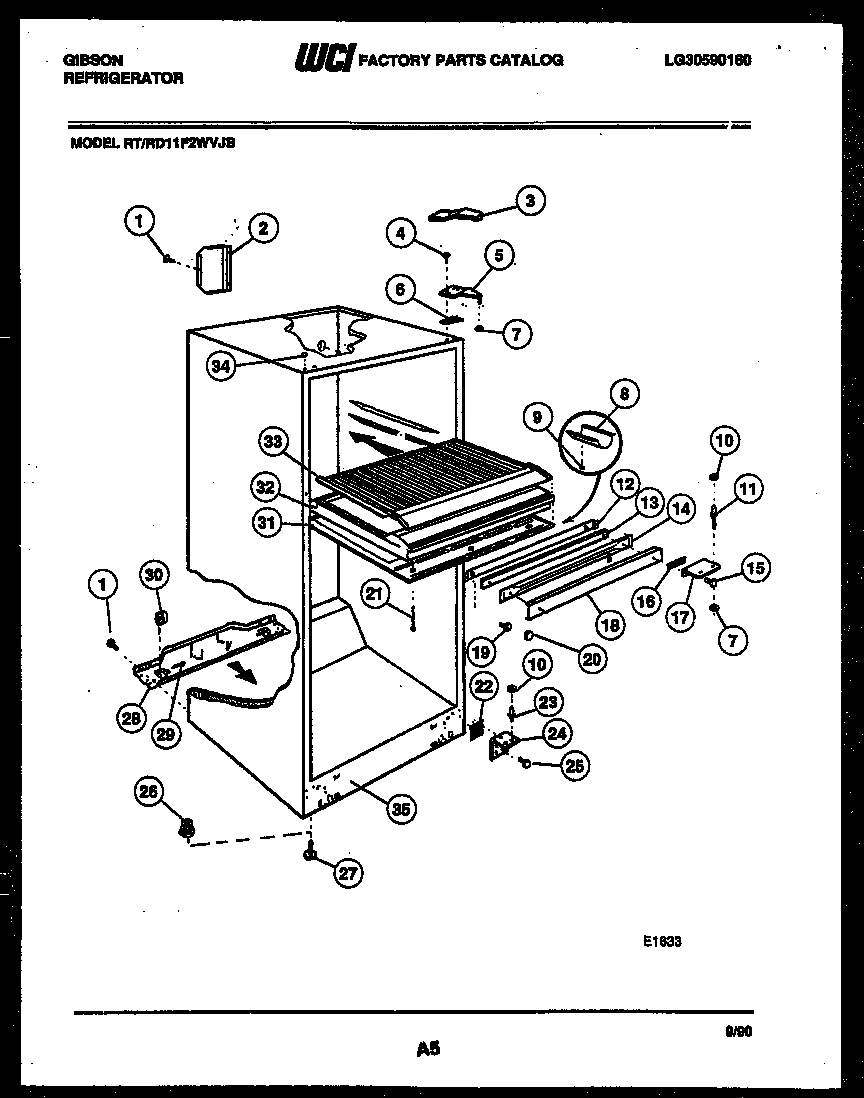

04 - CABINET PARTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
06 - SHELVES AND SUPPORTS
Common parts from model Electrolux RD11F2WVJB REFRIGERATOR
1
PLUG-HINGE-ALMD WCI 5303001308 Contact Us For Availability
1
PLUG, HINGE, WHITE WCI 5308000134 Contact Us For Availability
1
REAR SUPPORT MOTOR WCI 5303211318 Contact Us For Availability
2
COVER WCI 08011184 Contact Us For Availability
2
WCI 08011129 WCI 08011129 Contact Us For Availability
2
DAMPER-CONTROL WCI 08011183 Contact Us For Availability
3
COVER-HINGE-WHITE WCI 3001694 Contact Us For Availability
3
COVER-HINGE-ALMD WCI 3001695 Contact Us For Availability
3
COVER-HINGE-WHEAT WCI 3001696 Contact Us For Availability
3
WCI 5303211320 WCI 5303211320 Contact Us For Availability
3
DEFLECTOR W/ LABEL WCI 5303211316 Contact Us For Availability
4
RETAINER-TOP/BTM WCI 08011191 Contact Us For Availability
4
SCREW-HINGE (2) WCI 5303211326 Contact Us For Availability
4
WCI 5308011165 WCI 5308011165 Contact Us For Availability
4
WCI G185112 WCI G185112 Contact Us For Availability
5
HINGE BRKT-TOP WCI 08011172 Contact Us For Availability
5
SCREW-BRKT (2) WCI 08011121 Contact Us For Availability
5
WCI 08011225 WCI 08011225 Contact Us For Availability
6
GASKET-FRZR WCI 08011185 Contact Us For Availability
6
WCI 08011177 WCI 08011177 Contact Us For Availability
6
WCI 5303211335 WCI 5303211335 Contact Us For Availability
6
MLDG W/ HOLE-RS WCI 3001692 Contact Us For Availability
6A
MLDG W/O HOLES-RS (NON-ILLUSTRATED) WCI 08011228 Contact Us For Availability
7
RETAINER-FRZR RS WCI 08011189 Contact Us For Availability
7
WASHER-HINGE (2) WCI 08011152 Contact Us For Availability
7
SWITCH-PWR SAVER WCI 3204943 Contact Us For Availability
7
MLDG W/O HOLE-LS WCI 08011227 Contact Us For Availability
7A
MLDG W/ HOLE-LS (NON-ILLUSTRATED) WCI 3001693 Contact Us For Availability
8
CONTROL-TEMP WCI 5303211156 Contact Us For Availability
8
PANEL-INNER-FRZR WCI G185131 Contact Us For Availability
8
SHIELD-LIGHT WCI 08011200 Contact Us For Availability
8
MOULDING-BTM WCI 08011226 Contact Us For Availability
9
SCREW-MTG (54) WCI 08011123 Contact Us For Availability
9
WCI 08011625 WCI 08011625 Contact Us For Availability
9
WCI G185116 WCI G185116 Contact Us For Availability
10
WCI G185133 WCI G185133 Contact Us For Availability
10
WASHER-HINGE (2) WCI G185082 Contact Us For Availability
10
WCI 08011203 WCI 08011203 Contact Us For Availability
10
COVER-CRISPER WCI 08011196 Contact Us For Availability
11
PIN, CTR HINGE WCI 5308000184 Contact Us For Availability
11
WCI G185124 WCI G185124 Contact Us For Availability
11
WCI 08011153 WCI 08011153 Contact Us For Availability
11
SUPPORT-COVER (4) WCI R000900715 Contact Us For Availability
12
WCI G185121 WCI G185121 Contact Us For Availability
12
SUPPORT-MULLION MTG WCI 08011211 Contact Us For Availability
12
SPACER-RS WCI 08011220 Contact Us For Availability
12
WCI G185119 WCI G185119 Contact Us For Availability
12A
WCI G185122 WCI G185122 Contact Us For Availability
13
BEARING-HINGE (4) WCI G185123 Contact Us For Availability
13
INSULATION WCI 08011192 Contact Us For Availability
13
WCI 5308011156 WCI 5308011156 Contact Us For Availability
14
WCI 5308011745 WCI 5308011745 Contact Us For Availability
14
WCI 3204929 WCI 3204929 Contact Us For Availability
15
INSULATION-REFR WCI 5303007739 Contact Us For Availability
15
WCI 5308012258 WCI 5308012258 Contact Us For Availability
15
WCI 0801134 WCI 0801134 Contact Us For Availability
16
GASKET-REFR WCI 08011186 Contact Us For Availability
16
SHIM-CTR HINGE WCI G185091 Contact Us For Availability
16
SCREW-MTG WCI G185156 Contact Us For Availability
17
RETAINER-REFR RS WCI 08011187 Contact Us For Availability
17
HINGE-BRKT-CTR WCI 08011173 Contact Us For Availability
17
SCREW-MTG (4) WCI 08011122 Contact Us For Availability
18
WCI G185138 WCI G185138 Contact Us For Availability
18
WCI 08011212 WCI 08011212 Contact Us For Availability
18
MULLION-ALMD WCI 08011213 Contact Us For Availability
18
MULLION - WHEAT WCI G185150-09 Contact Us For Availability
18
KNOB-CONTROL WCI 5303211327 Contact Us For Availability
19
RETAINER-REFR-LS WCI 08011188 Contact Us For Availability
19
SCREW-SUPPORT (2) WCI 3205085 Contact Us For Availability
19
COVER-COIL WCI 5303211321 Contact Us For Availability
19A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
20
WCI G185139 WCI G185139 Contact Us For Availability
20
COVER-WHITE (2) WCI 3001697 Contact Us For Availability
20
COVER-ALMD (2) WCI 3001698 Contact Us For Availability
20
COVER-WHEAT (2) WCI 3001699 Contact Us For Availability
21
PANEL-OUTER-WHITE WCI 3001686 Contact Us For Availability
21
PANEL-OUTER-WHEAT WCI 3001687 Contact Us For Availability
21
WCI 3001688 WCI 3001688 Contact Us For Availability
21
SCREW-TOP MTG (3) WCI 08011124 Contact Us For Availability
21
SOCKET-LIGHT WCI 08011171 Contact Us For Availability
22
PANEL-OUTER-WHITE WCI 3001689 Contact Us For Availability
22
PANEL-OUTER-WHEAT WCI 3001690 Contact Us For Availability
22
WCI 3001691 WCI 3001691 Contact Us For Availability
22
SHIM-BTM HINGE WCI 08011167 Contact Us For Availability
23
PIN-BTM HINGE WCI 5303001321 Contact Us For Availability
23
WCI 08011178 WCI 08011178 Contact Us For Availability
24
SCREW-COVER MTG (6) WCI G185085 Contact Us For Availability
24
HINGE BRKT-BTM WCI 08011174 Contact Us For Availability
25
SCREW-SEMS (3) WCI 08011142 Contact Us For Availability
25
SCREW (2) WCI 08011119 Contact Us For Availability
26
SCREW-MTG WCI G185075 Contact Us For Availability
26
TEE NUT (2) WCI 3001700 Contact Us For Availability
27
SCREW-LEVING (2) WCI 08011117 Contact Us For Availability
28
WCI 08012871 WCI 08012871 Contact Us For Availability
28
CLAMP WCI 08011144 Contact Us For Availability
29
PIN-ROLLER (2) WCI 08011131 Contact Us For Availability
29
WCI 5303211329 WCI 5303211329 Contact Us For Availability
30
ROLLER-REAR (2) WCI 08011155 Contact Us For Availability
30
RETAINER (2) WCI 5303211336 Contact Us For Availability
31
TOP-REFR WCI 08011195 Contact Us For Availability
31
COMPRESSOR WCI 5303211330 Contact Us For Availability
32
DIVIDER WCI 08011194 Contact Us For Availability
32
WCI 5303211322 WCI 5303211322 Contact Us For Availability
33
BOTTOM-FRZR WCI 08011193 Contact Us For Availability
33
WCI 3205383 WCI 3205383 Contact Us For Availability
34
WCI 5303211323 WCI 5303211323 Contact Us For Availability
34
WCI 5303211324 WCI 5303211324 Contact Us For Availability
34
WCI 5303211325 WCI 5303211325 Contact Us For Availability
34
WCI 5303211328 WCI 5303211328 Contact Us For Availability
35
PLUG-WHITE (3) WCI 3204939 Contact Us For Availability
35
PLUG-ALMD (3) WCI 3204940 Contact Us For Availability
35
WCI 3204941 WCI 3204941 Contact Us For Availability
35
RETAINER WCI 3204976 Contact Us For Availability
36
WCI 3204977 WCI 3204977 Contact Us For Availability
37
BALE STRAP WCI 08007439 Contact Us For Availability
38
TRAP BRACKET WCI 08011157 Contact Us For Availability
39
WCI 08013300 WCI 08013300 Contact Us For Availability
40
BRKT-COND LWR (2) WCI 08011160 Contact Us For Availability
41
WCI 08011149 WCI 08011149 Contact Us For Availability
42
RETAINER WCI 5303211317 Contact Us For Availability
43
ELBOW WCI 3001706 Contact Us For Availability
44
CLIP WCI 3205110 Contact Us For Availability
45
WCI 5308011209 WCI 5308011209 Contact Us For Availability
46
HEATER-KIT WCI 08011624 Contact Us For Availability
47
EVAPORATOR WCI 3203857 Contact Us For Availability
48
SPACER-LS WCI 08011205 Contact Us For Availability
49
WCI 3204684 WCI 3204684 Contact Us For Availability
51
TROUGH-DRAIN WCI 08011216 Contact Us For Availability
52
SPOUT-DRAIN WCI 08011170 Contact Us For Availability
53
BRKT-COND UPR (2) WCI 08011161 Contact Us For Availability
54
WCI 3001709 WCI 3001709 Contact Us For Availability
55
SUPPORT-COIL CVR (2) WCI 08011136 Contact Us For Availability
55A
SUPPORT-COIL CVR (1) (NON-ILLUSTRATED) WCI 3204989 Contact Us For Availability
55B
SERVICE CORD (NON-ILLUSTRATED) WCI 08011215 Contact Us For Availability
56
WCI 5303211319 WCI 5303211319 Contact Us For Availability
× ![]()
