Model Whirlpool RCS2012RS01 20`` ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool RCS2012RS01 20`` ELECTRIC BUILT-IN COOKTOP

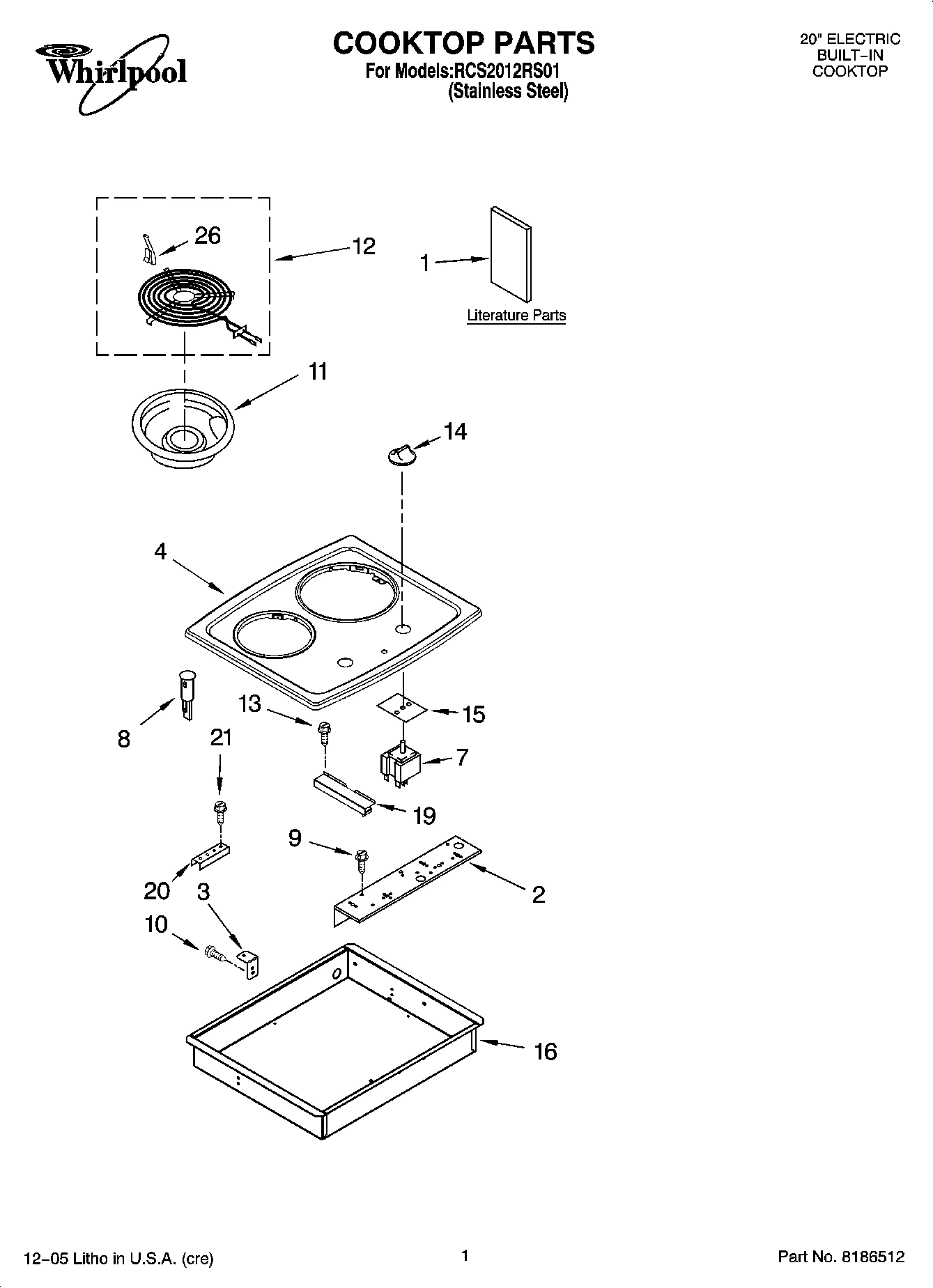

01 - COOKTOP PARTS, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

View on Model

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

View on Model

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

View on Model

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

View on Model

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

View on Model

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

View on Model

Conduit Assembly WPL 8286394 Contact Us For Availability

View on Model

FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE WPL ARI121289A Contact Us For Availability

View on Model

WIRING HARNESS PARTS WIRING HARNESS PARTS WPL ARI121290A Contact Us For Availability

View on Model

1

Installation, Instructions WPL 8286310 Contact Us For Availability

View on Model

1

Use & Care Guide WPL 8286613 Contact Us For Availability

View on Model

1

Safer Cooking Tips WPL 9759133 Contact Us For Availability

View on Model

2

WP8286443 Whirlpool Mounting Bracket Backorder WPL WP8286443 View Details $39.38

View on Model

3

3192454 Whirlpool Oven Mounting Bracket Backorder WPL 3192454 View Details $28.80

View on Model

4

WPW10140169 Whirlpool Cooktop Backorder WPL WPW10140169 View Details $189.82

View on Model

7

WP3191471 Whirlpool Infinite Switch Backorder WPL WP3191471 View Details $78.99

View on Model

7

WP3191472 Whirlpool Infinite Switch In Stock WPL WP3191472 View Details $70.61

View on Model

8

WP4456181 Whirlpool Indicator Light In Stock WPL WP4456181 View Details $35.32

View on Model

9

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

10

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $3.04

View on Model

11

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $2.12

View on Model

12

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 View Details $53.12

View on Model

12

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 View Details $63.64

View on Model

13

W10491985 Whirlpool Screw In Stock WPL W10491985 View Details $2.51

View on Model

14

WP8286043BL Whirlpool Knob In Stock WPL WP8286043BL View Details $11.84

View on Model

15

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

16

Burner Box WPL 8286376 Contact Us For Availability

View on Model

19

Cover, Conduit WPL 8286377 Contact Us For Availability

View on Model

20

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

21

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

26

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 View Details $3.70

View on Model

×
