Model Whirlpool RCS2002RS01 20``ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool RCS2002RS01 20``ELECTRIC BUILT-IN COOKTOP

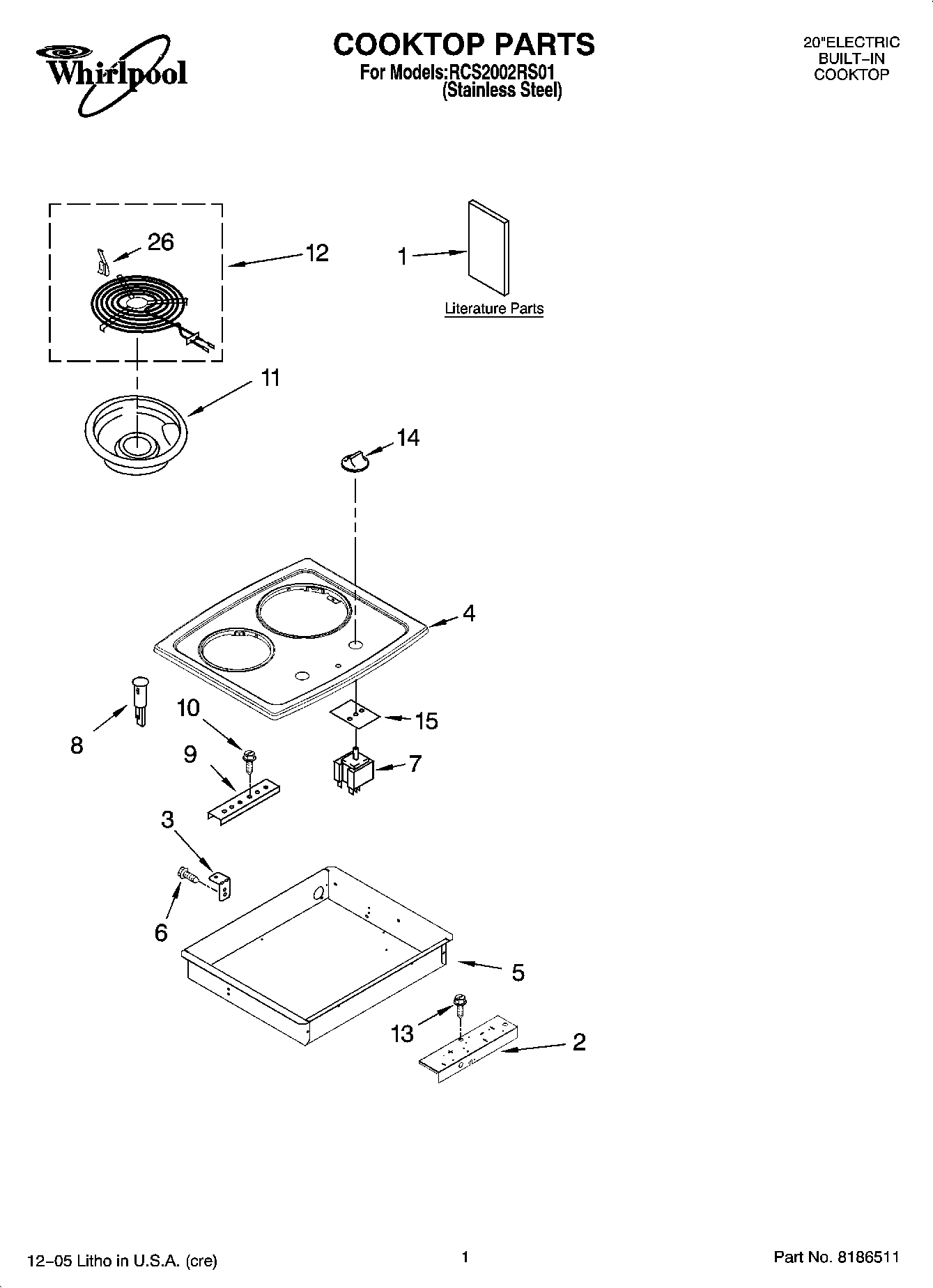

01 - COOKTOP PARTS, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

View on Model

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

View on Model

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

View on Model

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

View on Model

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

View on Model

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

View on Model

Bracket, Harness Cover WPL 8286388 Contact Us For Availability

View on Model

Cord, Power WPL 8286395 Contact Us For Availability

View on Model

FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE WPL ARI121269A Contact Us For Availability

View on Model

WIRING HARNESS PARTS WIRING HARNESS PA WPL ARI121270A Contact Us For Availability

View on Model

1

Safer Cooking Tips WPL 3191638 Contact Us For Availability

View on Model

1

Installation, Instructions WPL 8286310 Contact Us For Availability

View on Model

1

Use & Care Guide WPL 8286613 Contact Us For Availability

View on Model

1

Safer Cooking Tips WPL 9759133 Contact Us For Availability

View on Model

2

WP8286443 Whirlpool Mounting Bracket Backorder WPL WP8286443 View Details $39.38

View on Model

3

3192454 Whirlpool Oven Mounting Bracket Backorder WPL 3192454 View Details $28.80

View on Model

4

WPW10140169 Whirlpool Cooktop Backorder WPL WPW10140169 View Details $189.82

View on Model

5

Burner Box WPL 8286376 Contact Us For Availability

View on Model

6

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

7

WP3191472 Whirlpool Infinite Switch In Stock WPL WP3191472 View Details $70.61

View on Model

7

Switch Infinite (Use W/8`` Element (Yellow Sh WPL 3191475 Contact Us For Availability

View on Model

8

Light, Indicator WPL 3192213 Contact Us For Availability

View on Model

9

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

10

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $3.04

View on Model

11

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $2.12

View on Model

12

WP3191460 Whirlpool Surface Element Backorder WPL WP3191460 View Details $63.33

View on Model

12

Element, Surface (8``) WPL 3191459 Contact Us For Availability

View on Model

13

3400855 Whirlpool Oven Screw Backorder WPL 3400855 View Details $4.39

View on Model

14

WP8286043BL Whirlpool Knob In Stock WPL WP8286043BL View Details $11.84

View on Model

15

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

26

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 View Details $3.70

View on Model

×
