Model Whirlpool RCS2002LS02 20``ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool RCS2002LS02 20``ELECTRIC BUILT-IN COOKTOP

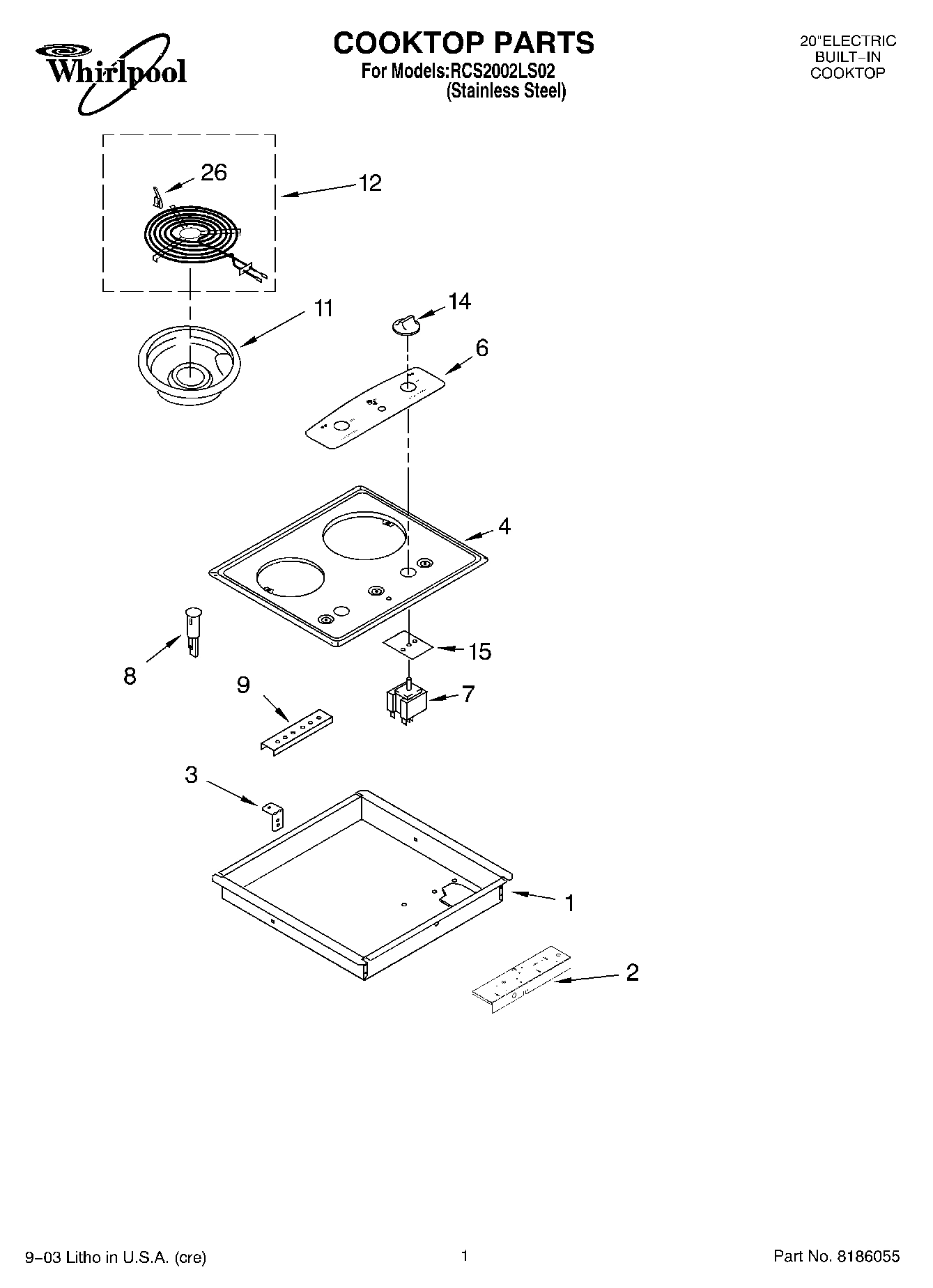

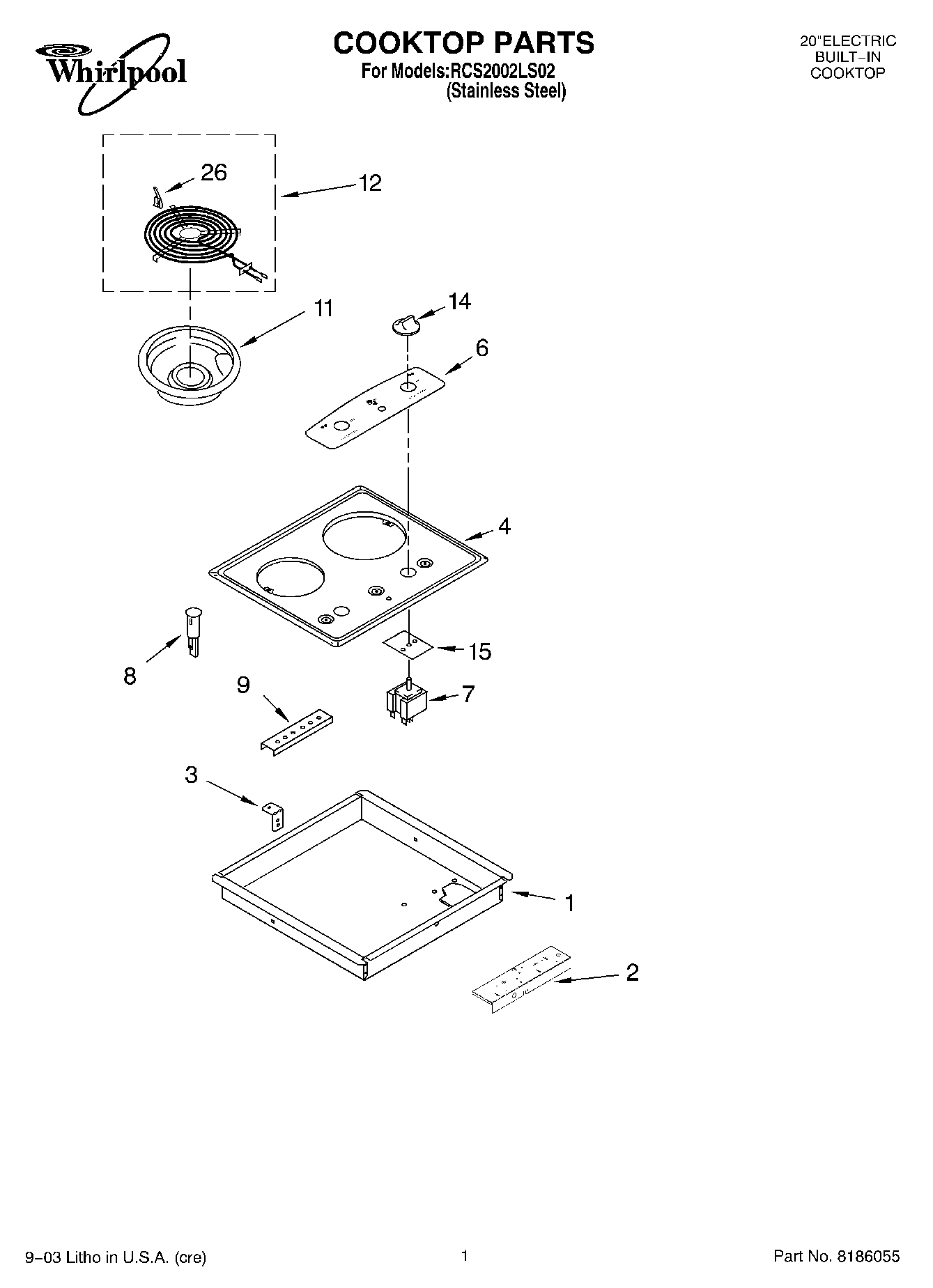

01 - COOKTOP PARTS, MISCELLANEOUS PARTS

Print

• This Diagram
• All Diagrams

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

View on Model

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

View on Model

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

View on Model

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

View on Model

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

View on Model

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

View on Model

Harness, Wiring (Main) WPL 3191232 Contact Us For Availability

View on Model

Harness, Wire (Light) WPL 3191510 Contact Us For Availability

View on Model

WPL 8285502 WPL 8285502 Contact Us For Availability

View on Model

WPL 8285503 WPL 8285503 Contact Us For Availability

View on Model

WPL ARI121264A WPL ARI121264A Contact Us For Availability

View on Model

WPL ARI121265A WPL ARI121265A Contact Us For Availability

View on Model

1

Burner Box WPL 8285501 Contact Us For Availability

View on Model

2

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

2

Bracket, Switch Mounting WPL 3192118 Contact Us For Availability

View on Model

3

3192454 Whirlpool Oven Mounting Bracket Backorder WPL 3192454 View Details $28.80

View on Model

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

4

Cooktop (Stainless Steel) WPL 3191166 Contact Us For Availability

View on Model

6

Panel, Control WPL 8285118 Contact Us For Availability

View on Model

7

3400855 Whirlpool Oven Screw Backorder WPL 3400855 View Details $4.39

View on Model

7

WP3191472 Whirlpool Infinite Switch In Stock WPL WP3191472 View Details $70.61

View on Model

7

Switch Infinite (Use W/8`` Element (Yellow Sh WPL 3191475 Contact Us For Availability

View on Model

8

Light, Indicator WPL 3192213 Contact Us For Availability

View on Model

9

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

9

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $3.04

View on Model

11

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $2.12

View on Model

12

WP3191460 Whirlpool Surface Element Backorder WPL WP3191460 View Details $63.33

View on Model

12

Element, Surface (8``) WPL 3191459 Contact Us For Availability

View on Model

14

WP8522566 Whirlpool Knob Backorder WPL WP8522566 View Details $11.14

View on Model

15

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

26

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 View Details $3.70

View on Model

26

LITERATURE PARTS WPL ARI121263A Contact Us For Availability

View on Model

26

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

View on Model

26

Literature Parts (Wire Diagram) WPL LIT3192350 Contact Us For Availability

View on Model

26

Literature Parts (Use & Care Guide) WPL LIT8285327 Contact Us For Availability

View on Model

26

Literature Parts (Installation, Instructions) WPL LIT8285529 Contact Us For Availability

View on Model

×
