Model Accelerated Cooking Products RCS10A-P1330203M Amana Menumaster RCS10A – Common Parts & Diagrams
ANTENNA, TRAY, OUTER CASE,
BASE AND FILTER

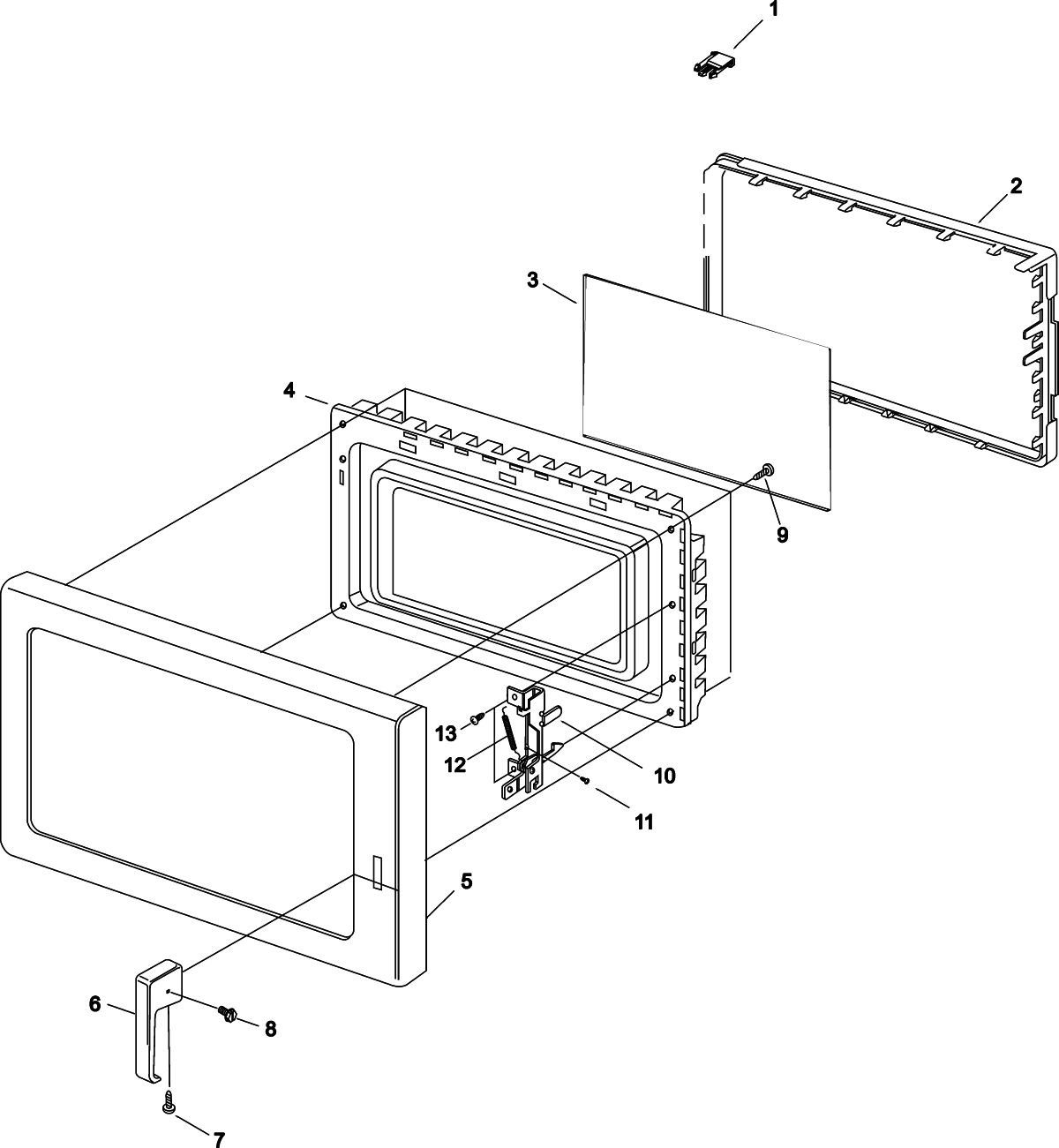

DOOR

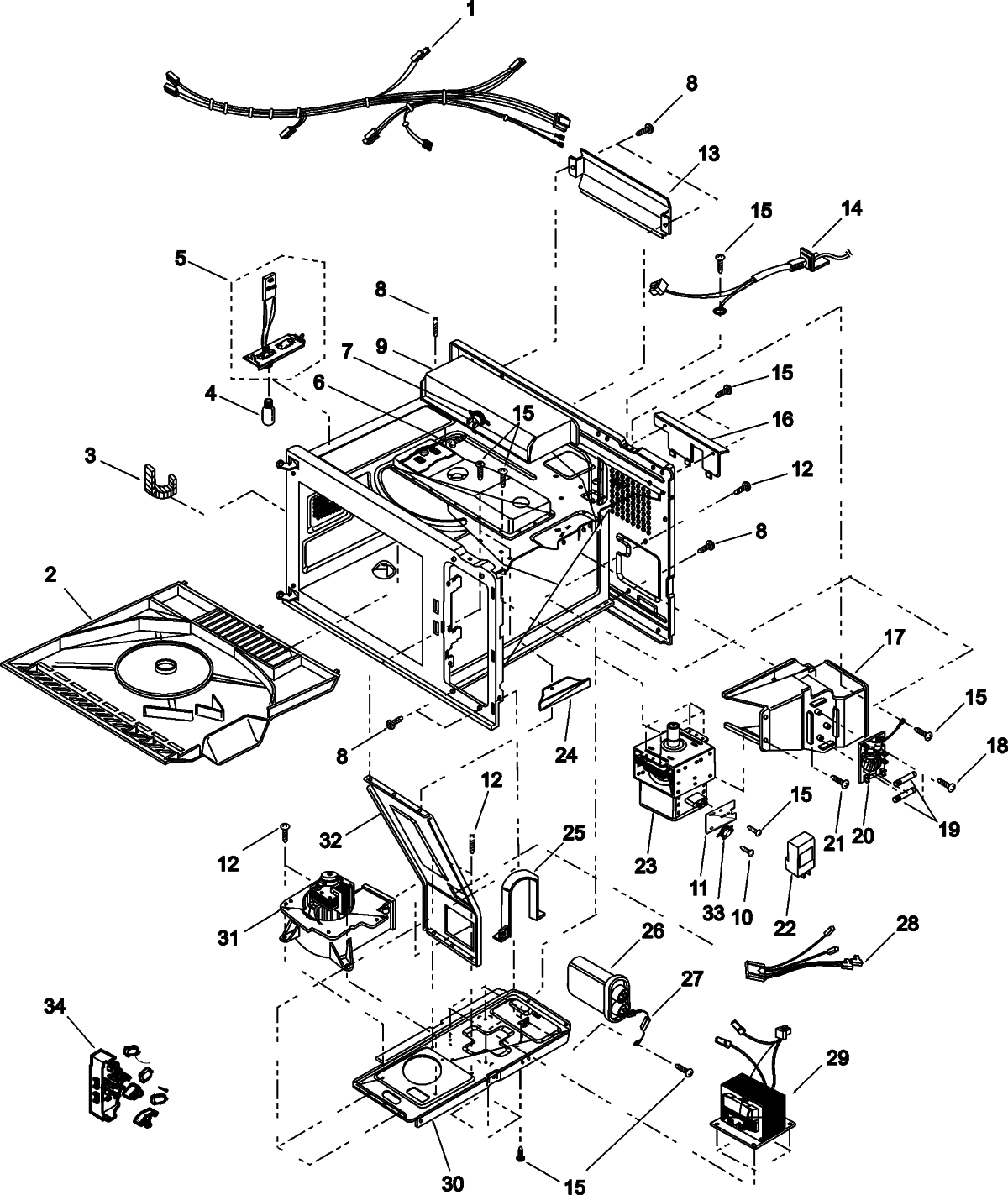

ELECTRICAL, GREASE SHIELD, DUCTS,
SUPPLEMENTAL INFORMATION

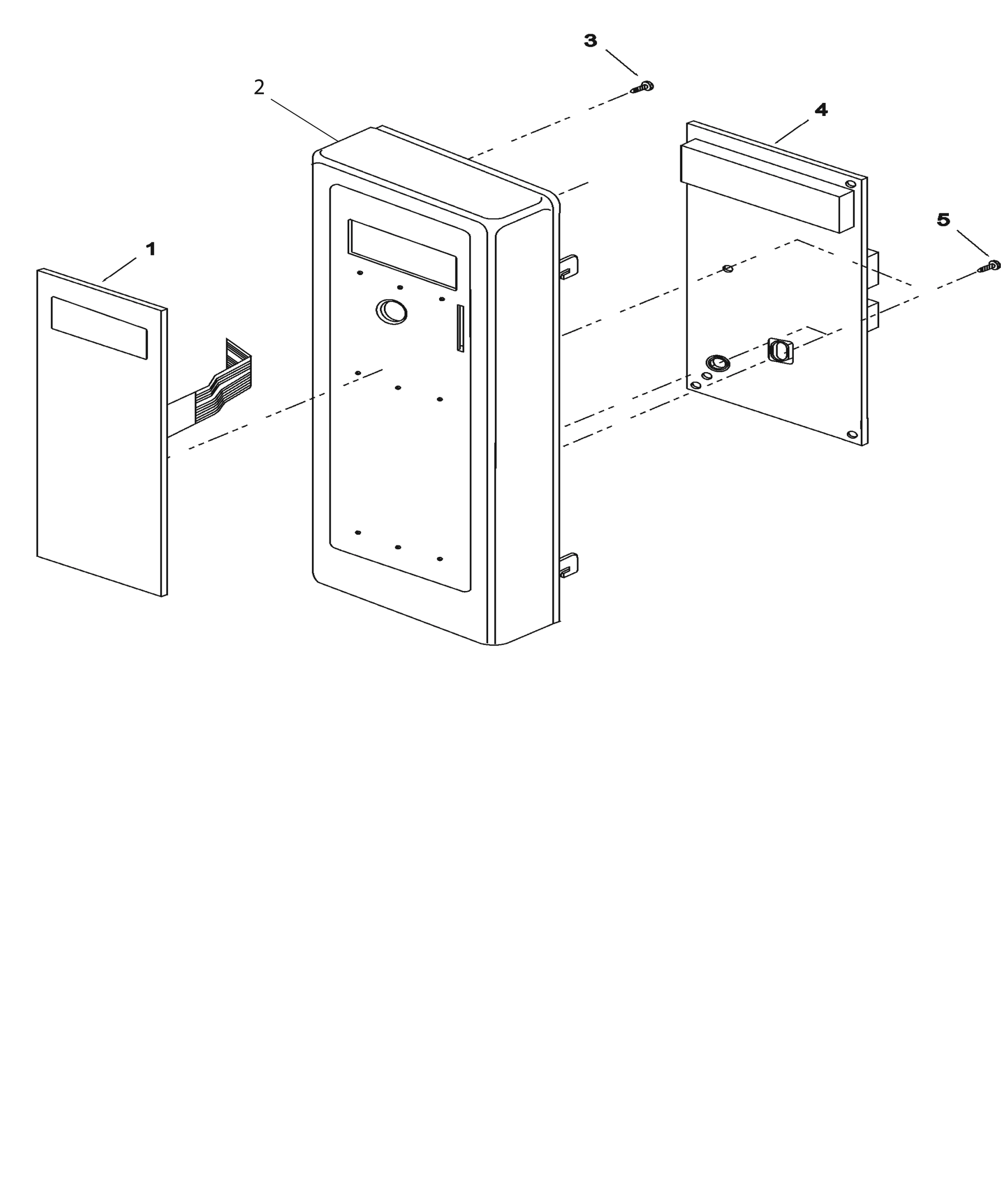

TIMER AND ESCUTCHEON
Common parts from model Accelerated Cooking Products RCS10A-P1330203M Amana Menumaster RCS10A
1
HARNESS, MAIN ACP 53001646 Contact Us For Availability
1
TOUCH PANEL ACP 53001603 Contact Us For Availability
2
ANTENNA SHIELD ACP 53002003 Contact Us For Availability
2
ESCUTCHEON/TOUCH PANEL ASSY ACP 53001605 Contact Us For Availability
3
WINDOW, INNER ACP 13066801 Contact Us For Availability
3
GASKET ACP 53001610 Contact Us For Availability
3
TECH SHT, 2004 RCS/RFS COMM MW ACP 16023295 Contact Us For Availability
3
SCREW, SPECIAL D ACP R0654178 Contact Us For Availability
4
GASKET, BASE- FRONT ACP R0000413 Contact Us For Availability
4
LAMP ACP 54137074 Contact Us For Availability
4
BOARD, HV/LV ACP 53001612 Contact Us For Availability
5
SCREW ACP 13004401 Contact Us For Availability
5
LAMP RECEPTACLE / BRACKET ASSY ACP 20050601 Contact Us For Availability
5
SCREW, PAN HEAD ACP 54116044 Contact Us For Availability
6
SCREW, PAN HD S/TAP ACP R0654030 Contact Us For Availability
7
FILTER, AIR- W/THUMB SCREW ACP 54116015 Contact Us For Availability
7
THERMAL CUTOUT- CAVITY ACP 53001561 Contact Us For Availability
8
SCREW, HANDLE BOTTOM ACP 12002453 Contact Us For Availability
8
SCREW, TAPPING TRUSS HEAD ACP R0131246 Contact Us For Availability
9
MOTOR, ANTENNA ACP 56002013 Contact Us For Availability
9
DUCT, OUTLET-TOP ACP 20058101 Contact Us For Availability
10
SCREW, TAPPING,PAN HEAD ACP R0131307 Contact Us For Availability
11
RIVET ASSY ACP 54116064 Contact Us For Availability
11
BRACKET, THERMOSTAT ACP 20058401 Contact Us For Availability
12
TRAY, CERAMIC ACP 53002009 Contact Us For Availability
12
SPRING ACP 59194707 Contact Us For Availability
12
SCREW, TRUSS HD ACP R0654183 Contact Us For Availability
13
DEFLECTOR, AIR ACP 20058601 Contact Us For Availability
14
POWER CORD ACP 53001562 Contact Us For Availability
15
SCREW, BINING HD S/TAP ACP R0654028 Contact Us For Availability
16
COVER, POWER CORD ACP 20058501 Contact Us For Availability
17
DUCT, MAIN ACP 20056501 Contact Us For Availability
19
FUSE-12A ACP M0805105 Contact Us For Availability
20
FUSE BLOCK / FILTER ASSY ACP 53001564 Contact Us For Availability
21
SCREW, PAN HD ACP R0654180 Contact Us For Availability
22
FILTER ASSEMBLY ACP 53001565 Contact Us For Availability
23
MAGNETRON ACP 53002004 Contact Us For Availability
24
BRACKET ACP 53001622 Contact Us For Availability
25
BRACKET, CAPACITOR ACP 53001623 Contact Us For Availability
26
CAPACITOR, .95. ACP 53002017 Contact Us For Availability
27
DIODE ACP 20057401 Contact Us For Availability
28
HARNESS, TRANSFORMER PRIMARY ACP 53001624 Contact Us For Availability
29
TRANSFORMER, HV ACP 53002011 Contact Us For Availability
30
BASE, TRANSFORMER ACP 20056301 Contact Us For Availability
31
BLOWER MOTOR ASSY ACP 53002005 Contact Us For Availability
32
GUIDE, AIR ACP 53001570 Contact Us For Availability
33
THERMAL CUTOUT, MAG ACP 20241405 Contact Us For Availability
34
SWITCH, INTERLOCK ASSY ACP 14164113 Contact Us For Availability
× ![]()
