Model Whirlpool RCC3024RQ01 30`` ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool RCC3024RQ01 30`` ELECTRIC BUILT-IN COOKTOP

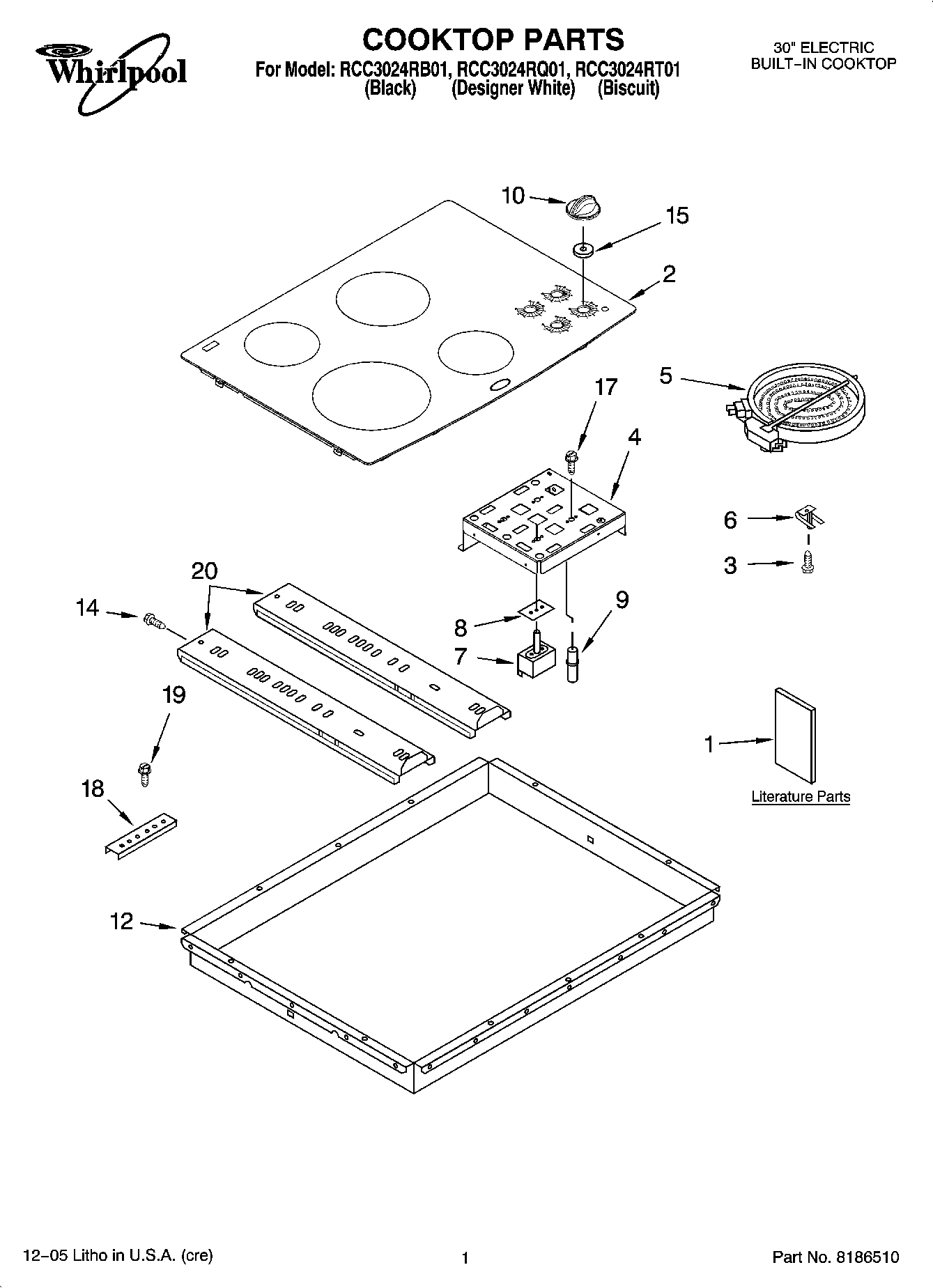

01 - COOKTOP PARTS, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

View on Model

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

View on Model

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

View on Model

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

View on Model

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

View on Model

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

View on Model

WPL 3172515 WPL 3172515 Contact Us For Availability

View on Model

WPL 8286346 WPL 8286346 Contact Us For Availability

View on Model

WPL ARI121227A WPL ARI121227A Contact Us For Availability

View on Model

WPL ARI121228A WPL ARI121228A Contact Us For Availability

View on Model

WPL ARI121229A WPL ARI121229A Contact Us For Availability

View on Model

WPL ARI121230A WPL ARI121230A Contact Us For Availability

View on Model

WPL ARI121231A WPL ARI121231A Contact Us For Availability

View on Model

1

Safe Cooking Tips WPL 3191638 Contact Us For Availability

View on Model

1

INSTALLATION INSTRUCTIONS WPL 8286066 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 8286337 Contact Us For Availability

View on Model

1

Use & Care Guide WPL 8286614 Contact Us For Availability

View on Model

1

SAFECOOKING TIPS COOKTOP PARTS WPL 9759133 Contact Us For Availability

View on Model

2

Cooktop, Glass (Black) WPL 8285981 Contact Us For Availability

View on Model

2

Cooktop, Glass (Designer White) WPL 8286041 Contact Us For Availability

View on Model

2

Cooktop, Glass (Biscuit) WPL 8286042 Contact Us For Availability

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

W10491985 Whirlpool Screw In Stock WPL W10491985 View Details $2.51

View on Model

4

Bracket, Switch Mounting WPL 8285935 Contact Us For Availability

View on Model

5

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 View Details $94.12

View on Model

5

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 View Details $117.46

View on Model

5

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 View Details $100.91

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $65.67

View on Model

7

WP3191050 Whirlpool Infinite Switch In Stock WPL WP3191050 View Details $68.87

View on Model

7

WP4454541 Whirlpool Infinite Switch Backorder WPL WP4454541 View Details $61.68

View on Model

8

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

9

3193012 Whirlpool Oven Indicator Light Backorder WPL 3193012 View Details $36.64

View on Model

10

8286043BT Whirlpool Knob Backorder WPL 8286043BT View Details $38.17

View on Model

10

8286043WH Whirlpool Knob Backorder WPL 8286043WH View Details $11.58

View on Model

10

WP8286043BL Whirlpool Knob In Stock WPL WP8286043BL View Details $11.84

View on Model

12

Box, Burner WPL 8285862 Contact Us For Availability

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

15

8285469 Whirlpool Oven Seal Switch In Stock WPL 8285469 View Details $29.74

View on Model

17

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $3.11

View on Model

18

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

19

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

20

Rail, Element WPL 8286585 Contact Us For Availability

View on Model

×
