Model Whirlpool RCC3024GZ0 30`` ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams

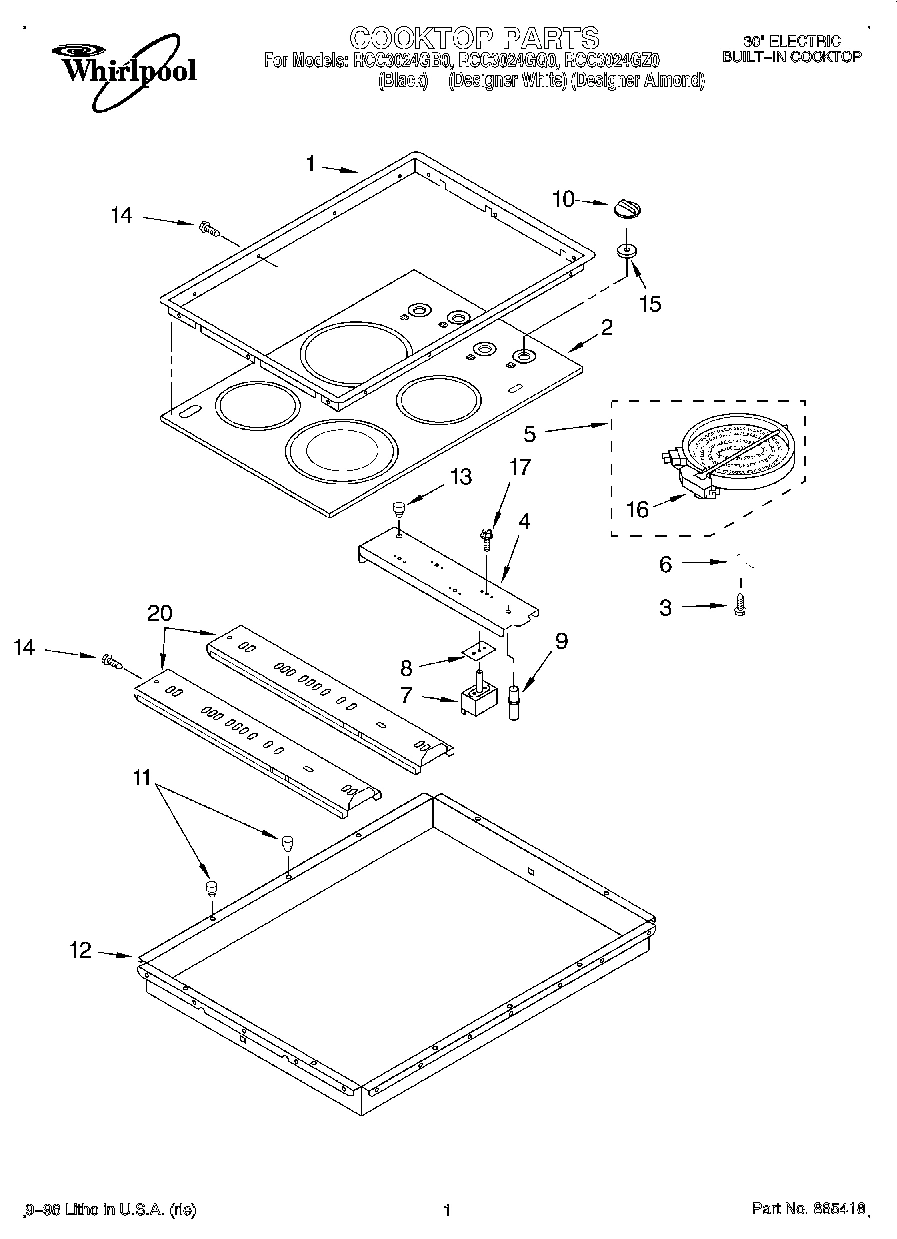

Common parts from model Whirlpool RCC3024GZ0 30`` ELECTRIC BUILT-IN COOKTOP

01 - SECTION

Print

• This Diagram
• All Diagrams

Wire, White 14 Ga. 15 WPL 242826 Contact Us For Availability

View on Model

WPL 242827 WPL 242827 Contact Us For Availability

View on Model

WPL 242828 WPL 242828 Contact Us For Availability

View on Model

WPL 242829 WPL 242829 Contact Us For Availability

View on Model

WPL 242830 WPL 242830 Contact Us For Availability

View on Model

WPL 242832 WPL 242832 Contact Us For Availability

View on Model

WPL 3172515 WPL 3172515 Contact Us For Availability

View on Model

WPL 3179589 WPL 3179589 Contact Us For Availability

View on Model

WPL 3191547 WPL 3191547 Contact Us For Availability

View on Model

WPL 3191566 WPL 3191566 Contact Us For Availability

View on Model

WPL LIT3191770 WPL LIT3191770 Contact Us For Availability

View on Model

WPL LIT3191771 WPL LIT3191771 Contact Us For Availability

View on Model

WPL LIT3191772 WPL LIT3191772 Contact Us For Availability

View on Model

1

Trim Ring, Cooktop (Black) WPL 3190940 Contact Us For Availability

View on Model

1

Trim Ring, Cooktop (Designer White) WPL 3190941 Contact Us For Availability

View on Model

1

Trim Ring, Cooktop (Designer Almond) WPL 3190942 Contact Us For Availability

View on Model

2

Cooktop, Glass (Designer White) WPL 3191189 Contact Us For Availability

View on Model

2

Cooktop, Glass (Designer Almond) WPL 3191190 Contact Us For Availability

View on Model

2

Cooktop, Glass (Black) WPL 3191843 Contact Us For Availability

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

Bracket, Switch Mounting WPL 3191310 Contact Us For Availability

View on Model

5

W10823693 Whirlpool Surface Element In Stock WPL W10823693 View Details $120.79

View on Model

5

Element, Surface (2400W Left Front) WPL 3191983 Contact Us For Availability

View on Model

5

Element, Surface (1200W Left Rear & Right Fro WPL 3191984 Contact Us For Availability

View on Model

6

Spring, Locator (8) WPL 3191791 Contact Us For Availability

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $65.67

View on Model

7

WP3191050 Whirlpool Infinite Switch In Stock WPL WP3191050 View Details $68.87

View on Model

7

WP4454541 Whirlpool Infinite Switch Backorder WPL WP4454541 View Details $61.68

View on Model

8

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

9

Light, Indicator WPL 3191952 Contact Us For Availability

View on Model

10

WP3196231 Whirlpool Knob In Stock WPL WP3196231 View Details $11.02

View on Model

10

WP3196232 Whirlpool Knob In Stock WPL WP3196232 View Details $10.76

View on Model

10

Knob, Control (4) (Designer Almond) WPL 3196233 Contact Us For Availability

View on Model

11

Bumper, Silicone WPL 9750835 Contact Us For Availability

View on Model

12

Box, Burner WPL 3191162 Contact Us For Availability

View on Model

13

Bumper, Silicone WPL 3191953 Contact Us For Availability

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

15

Seal, Switch Shaft (4) WPL 3182435 Contact Us For Availability

View on Model

16

Switch, Limiter (Use W/3191982 Element) WPL 3191988 Contact Us For Availability

View on Model

16

Switch, Limiter (Use W/3191984 Element) WPL 3191990 Contact Us For Availability

View on Model

16

Switch, Limiter (Use W/3191983 Element) WPL 3191991 Contact Us For Availability

View on Model

17

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $3.11

View on Model

20

Rail, Element WPL 3191515 Contact Us For Availability

View on Model

×
