Model Whirlpool RC8850XRH2 – Common Parts & Diagrams
01 - SECTION
03 - SECTION

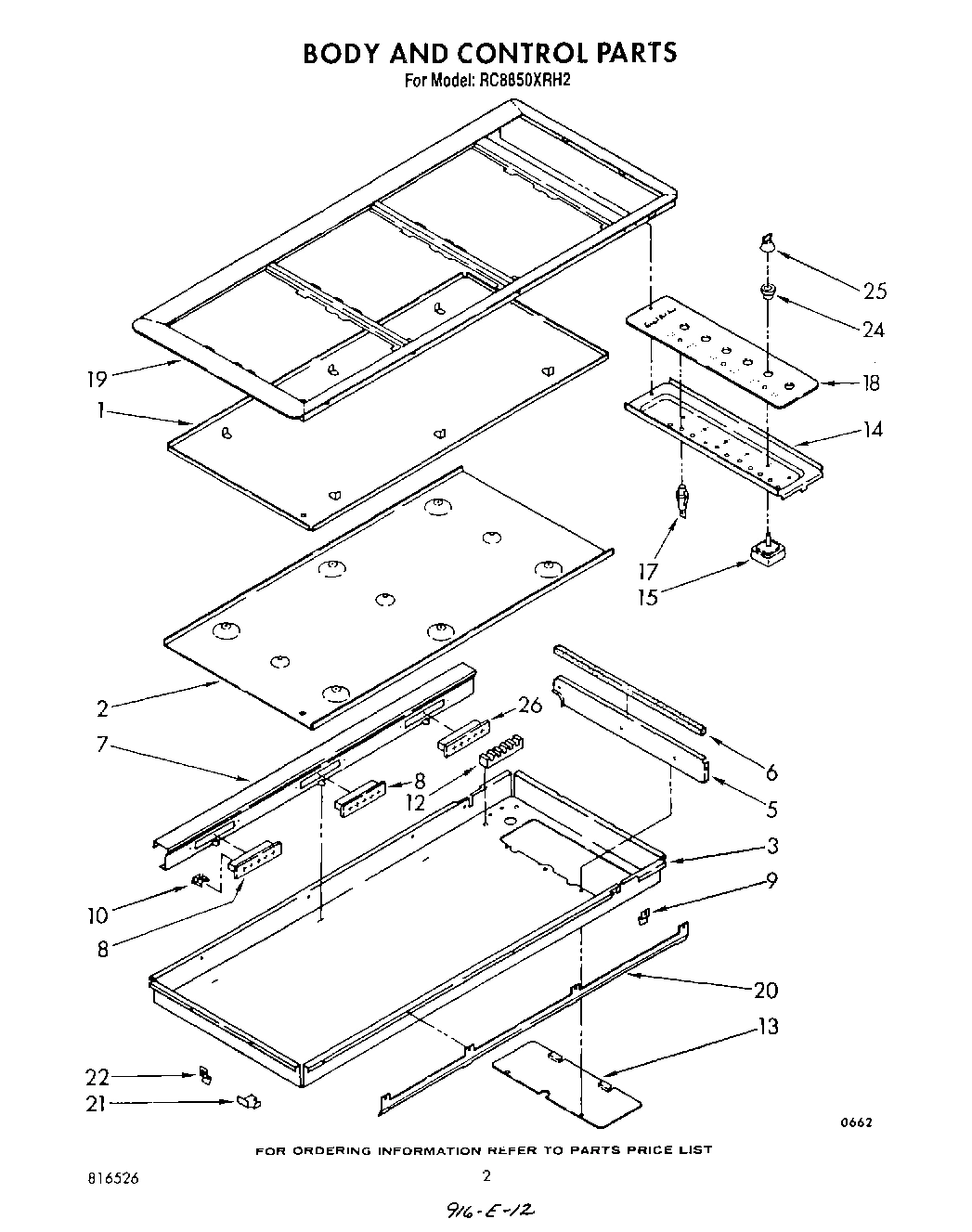

02 - SECTION
Common parts from model Whirlpool RC8850XRH2
Wiring Diagram WPL LIT816095 Contact Us For Availability
List, Repair Parts WPL LIT816526 Contact Us For Availability
Instructions, Installation WPL LIT868967 Contact Us For Availability
Guide, Cooking WPL LIT877952 Contact Us For Availability
1
Grill Kit, Complete WPL 816530 Contact Us For Availability
1
Retainer, Insulation WPL 877559 Contact Us For Availability
2
Pan, Grill WPL 816527 Contact Us For Availability
2
Shield, Bottom WPL 877560 Contact Us For Availability
3
Rack, Grill (2) WPL 877549 Contact Us For Availability
3
Screw,10-24 x 1/2 WPL 680363 Contact Us For Availability
3
Box, Outer WPL 877561 Contact Us For Availability
4
Unit, Dual (2200W) WPL 877541 Contact Us For Availability
5
Divider, Box WPL 868417 Contact Us For Availability
6
Receptacle, Male WPL 868437 Contact Us For Availability
6
Pushnut, 1/4`` WPL 868878 Contact Us For Availability
6
Pad, Foam WPL 868461 Contact Us For Availability
7
Shield, Wire WPL 868419 Contact Us For Availability
8
Frame, Basket (2) WPL 816528 Contact Us For Availability
8
Receptacle, Female (2) WPL 868420 Contact Us For Availability
9
Handle, Basket (2) WPL 877543 Contact Us For Availability
10
Rocks, Lava (4 Lbs.) WPL 868460 Contact Us For Availability
10
Terminal, Female (15) WPL 816083 Contact Us For Availability
11
Rotisserie Kit (RCK 892) WPL 242886 Contact Us For Availability
11
Coil Element Module, 1-6`` Front 1-8`` Rear ( WPL 242903 Contact Us For Availability
11
Griddle Kit (RCK 884) WPL 261950 Contact Us For Availability
11
Screen, Basket (2) WPL 816529 Contact Us For Availability
11
Coil Element Module 2-6`` (RCK 886-2) WPL 877860 Contact Us For Availability
11
Solid Element Module WPL 877959 Contact Us For Availability
12
Nut, 10-32 (6) WPL 487836 Contact Us For Availability
12
Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability
13
Screw, 10-24 x 1/4 (2) WPL 868959 Contact Us For Availability
13
Cover, Access WPL 868423 Contact Us For Availability
14
Bracket, Control WPL 877554 Contact Us For Availability
15
Switch, Infinite (6) WPL 868955 Contact Us For Availability
15
Screw, 8-32 x 3/16 (12) WPL 877919 Contact Us For Availability
17
Light, Indicator (3) WPL 868433 Contact Us For Availability
18
Panel, Control (Glass) WPL 816525 Contact Us For Availability
18
Tape, Foam WPL 866454 Contact Us For Availability
19
Frame, Cooktop WPL 877564 Contact Us For Availability
20
Screw (5) WPL 865751 Contact Us For Availability
20
Clip (4) WPL 868467 Contact Us For Availability
20
Shield, Front WPL 877565 Contact Us For Availability
21
Spacer, End WPL 877558 Contact Us For Availability
22
Screw 10-24 x 1/2 WPL 868430 Contact Us For Availability
22
Clip, Receptacle Mounting WPL 868421 Contact Us For Availability
24
Bushing, Switch (6) WPL 868465 Contact Us For Availability
25
Control Knob (6) WPL 877924 Contact Us For Availability
26
Receptacle, Female (1) WPL 868601 Contact Us For Availability
× ![]()
