Model Whirlpool RC8640XBQ2 – Common Parts & Diagrams
01 - SECTION
02 - SECTION
Common parts from model Whirlpool RC8640XBQ2
WPL 242824 WPL 242824 Contact Us For Availability
WPL 242825 WPL 242825 Contact Us For Availability
WPL 242826 WPL 242826 Contact Us For Availability
WPL 242827 WPL 242827 Contact Us For Availability
WPL 242828 WPL 242828 Contact Us For Availability
WPL 242829 WPL 242829 Contact Us For Availability
WPL 242830 WPL 242830 Contact Us For Availability
WPL 242832 WPL 242832 Contact Us For Availability
WPL 258644 WPL 258644 Contact Us For Availability
WPL 3150320 WPL 3150320 Contact Us For Availability
WPL 3172515 WPL 3172515 Contact Us For Availability
WPL 3179589 WPL 3179589 Contact Us For Availability
WPL LIT3188921 WPL LIT3188921 Contact Us For Availability
WPL LIT3189547 WPL LIT3189547 Contact Us For Availability
WPL LIT3189548 WPL LIT3189548 Contact Us For Availability
1

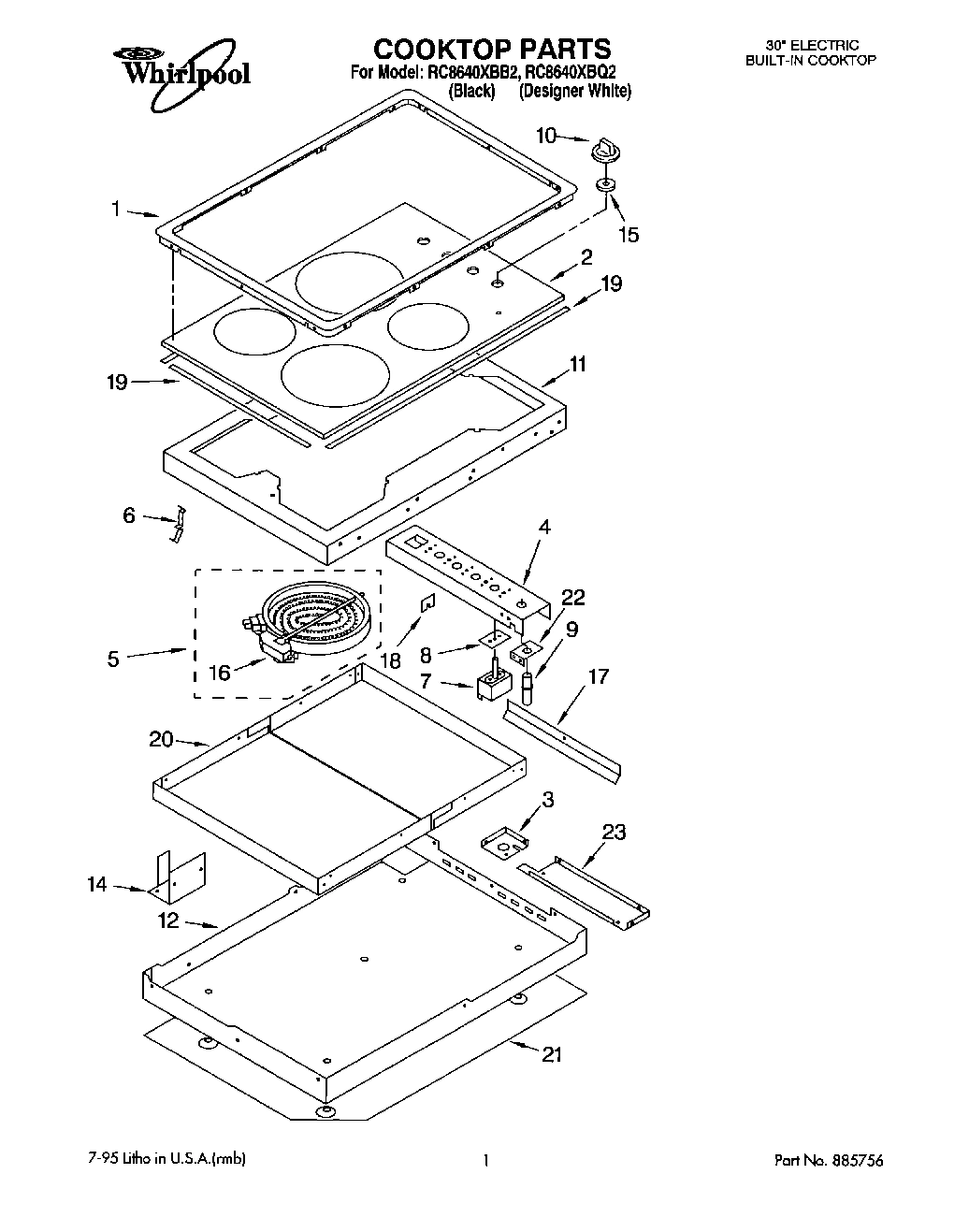

Trim Ring, Cooktop (Black) WPL 3189551 Contact Us For Availability
1
Trim Ring, Cooktop (Designer White) WPL 3189552 Contact Us For Availability
1

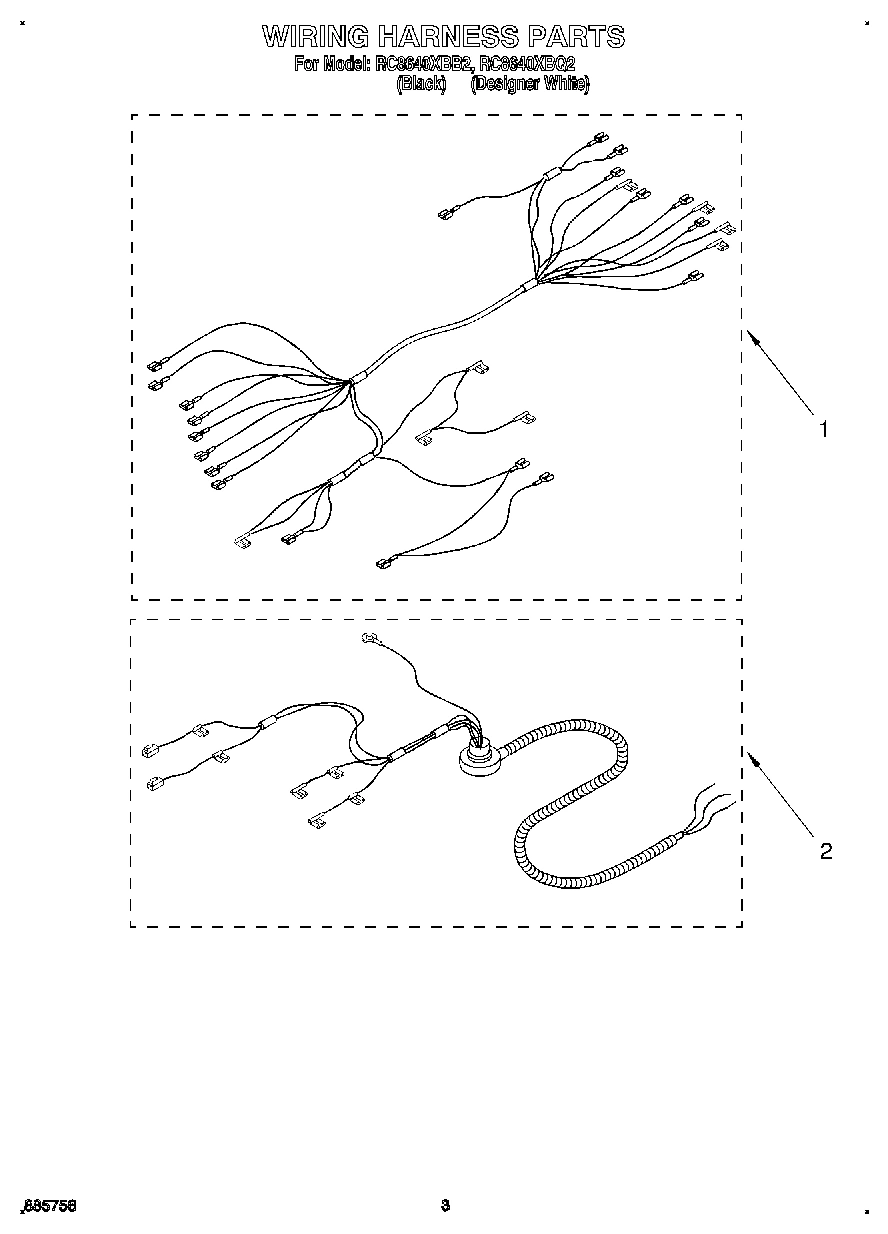

Wiring Harness Surface Unit WPL 3189787 Contact Us For Availability
1
Screw WPL 4159372 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 3187115 Contact Us For Availability
2
Cooktop, Glass (Designer White) WPL 3187116 Contact Us For Availability
2
Harness, Conduit WPL 3188525 Contact Us For Availability
3
Cover, Conduit WPL 3189340 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3189342 Contact Us For Availability
5
Element, Surface (1400W Left Rear) WPL 3184951 Contact Us For Availability
5
Element, Surface (1700W Right Front) WPL 3184953 Contact Us For Availability
5
Element, Surface (2000W Right Rear) WPL 3187114 Contact Us For Availability
6
Spring, Locator (8) WPL 3189165 Contact Us For Availability
7
Switch, Infinite (Use W/1400W Left Rear & 170 WPL 3148949 Contact Us For Availability
9
Light, Indicator WPL 4454437 Contact Us For Availability
10
Knob, Control (4) (Black) WPL 3150374 Contact Us For Availability
10
Knob, Control (4) (Designer White) WPL 3150020 Contact Us For Availability
11
Backer, Plate WPL 3189341 Contact Us For Availability
12
Cover, Bottom WPL 3189778 Contact Us For Availability
14
Bracket, Wireway WPL 3189546 Contact Us For Availability
15
Seal, Switch Shaft (4) WPL 3182435 Contact Us For Availability
16
Switch, Limiter (Use W/3184951 Element) WPL 3187528 Contact Us For Availability
16
Switch, Limiter (Use W/3184953 Element) WPL 3187529 Contact Us For Availability
16
Switch, Limiter (Use W/3187114 Element) WPL 3187531 Contact Us For Availability
16
Switch, Limiter (Use W/3187188 Element) WPL 3187536 Contact Us For Availability
17
screw (2) WPL 254225 Contact Us For Availability
17
Plate, Louver WPL 3189502 Contact Us For Availability
18
Grommet, Wire Way WPL 3188533 Contact Us For Availability
19
Seal, Silicone (Small (4)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability
20
Shie WPL 3189336 Contact Us For Availability
21
WPL 3189617 WPL 3189617 Contact Us For Availability
22
WPL 3189779 WPL 3189779 Contact Us For Availability
23
WPL 4168863 WPL 4168863 Contact Us For Availability
23
WPL 4159456 WPL 4159456 Contact Us For Availability
23
WPL 3189501 WPL 3189501 Contact Us For Availability
× ![]()
