Model Whirlpool RC8600XXB0 – Common Parts & Diagrams
02 - SECTION
01 - SECTION
03 - SECTION

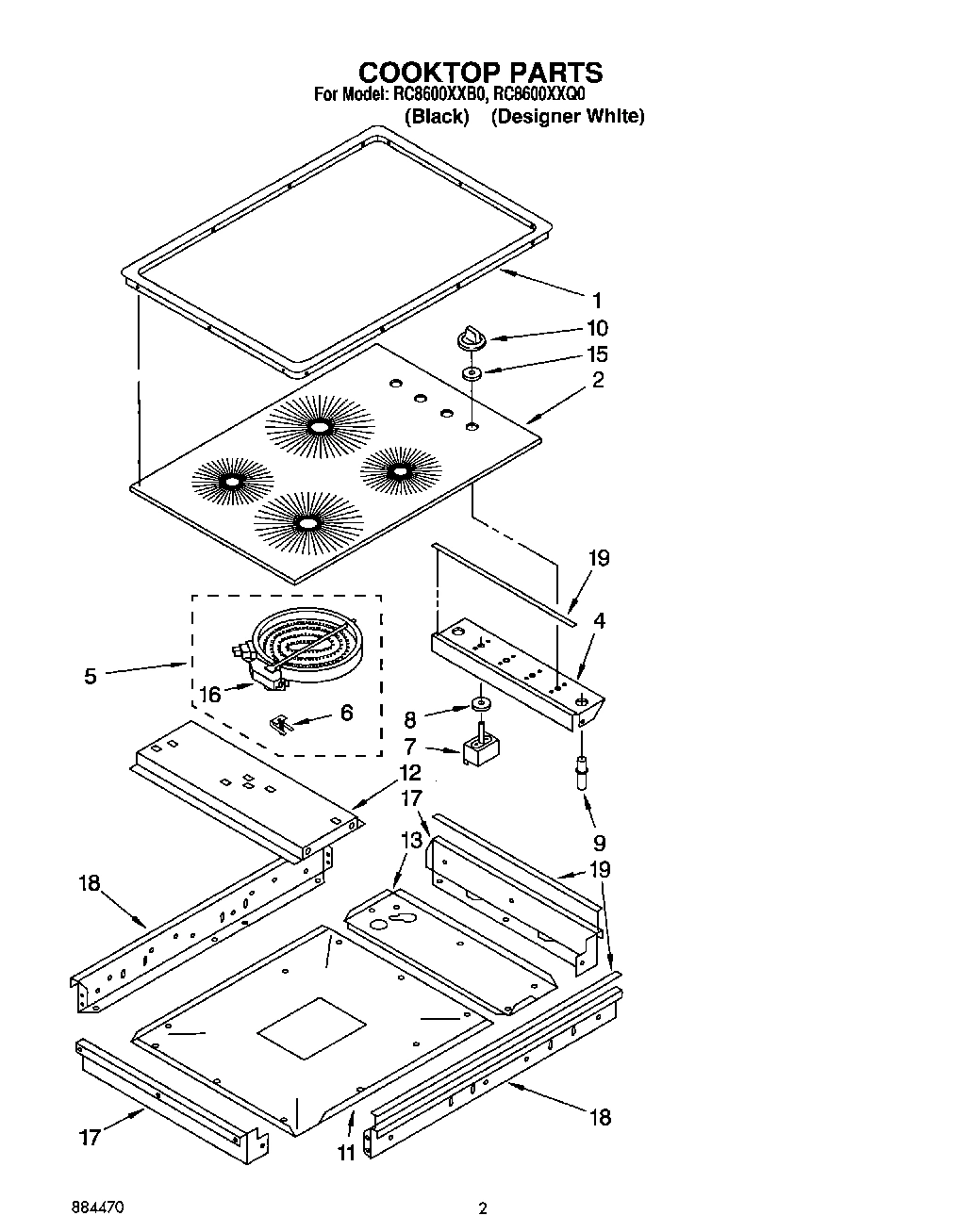

Common parts from model Whirlpool RC8600XXB0
WPL 242824 WPL 242824 Contact Us For Availability
WPL 242825 WPL 242825 Contact Us For Availability
WPL 242826 WPL 242826 Contact Us For Availability
WPL 242827 WPL 242827 Contact Us For Availability
WPL 242828 WPL 242828 Contact Us For Availability
WPL 242829 WPL 242829 Contact Us For Availability
WPL 242830 WPL 242830 Contact Us For Availability
WPL 242832 WPL 242832 Contact Us For Availability
WPL 258644 WPL 258644 Contact Us For Availability
WPL 3150320 WPL 3150320 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147386 WPL LIT3147386 Contact Us For Availability
WPL LIT3149929 WPL LIT3149929 Contact Us For Availability
WPL LIT884470 WPL LIT884470 Contact Us For Availability
1
Trim Ring, Cooktop (Black) WPL 3150305 Contact Us For Availability
1
Trim Ring, Cooktop (White) WPL 3150306 Contact Us For Availability
1
Trim Ring, Cooktop (Screw (14)) WPL 4168863 Contact Us For Availability
1
Wiring Harness Surface Unit WPL 3149969 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 3150192 Contact Us For Availability
2
Cooktop, Glass (White) WPL 3150194 Contact Us For Availability
2
Wiring Harness Infinite Switch WPL 3181502 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3150328 Contact Us For Availability
5
Element, Surface (1400W Left Rear) WPL 3148825 Contact Us For Availability
5
Element, Surface (1700W Right Front) WPL 3148826 Contact Us For Availability
5
Element, Surface (2100W Right Rear) WPL 3148827 Contact Us For Availability
6
Spring Locator (8) WPL 3149191 Contact Us For Availability
7
Switch, Infinite (Use W/1400W Left Rear & 170 WPL 3148949 Contact Us For Availability
7
Switch, Infinite (Use W/2100W Right Rear Burn WPL 3148950 Contact Us For Availability
7
Switch, Infinite (Use W/2400W Left Front Burn WPL 3148965 Contact Us For Availability
8
Seal, Switch Shaft WPL 309839 Contact Us For Availability
9
Light, Indicator WPL 3149978 Contact Us For Availability
10
Knob, Control (4) (Black) WPL 3150374 Contact Us For Availability
10
Knob, Control (4) (White) WPL 3150020 Contact Us For Availability
11
Cover, Bottom WPL 3150317 Contact Us For Availability
12
Element Support (2) WPL 3150316 Contact Us For Availability
13
Cover, Service WPL 3150318 Contact Us For Availability
15
Seal, Switch (4) WPL 3182435 Contact Us For Availability
16
Switch, Limiter (Use W/3148827 Element) WPL 3149123 Contact Us For Availability
16
Switch, Limiter (Use W/3148825 Element) WPL 3149125 Contact Us For Availability
16
Switch, Limiter (Use W/3148826 Element) WPL 3149126 Contact Us For Availability
16
Switch, Limiter (Use W/3148828 Element) WPL 3149127 Contact Us For Availability
17
Rail, Side (Right Hand) WPL 3150325 Contact Us For Availability
17
Rail, Side (Left Hand) WPL 3150326 Contact Us For Availability
18
Rail, Front & Rear WPL 3183380 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3181644 Contact Us For Availability
19
Seal, Silicone (Small (3)) WPL 3181645 Contact Us For Availability
× ![]()
