Model Whirlpool RC8430XAB0 – Common Parts & Diagrams
01 - SECTION
02 - SECTION

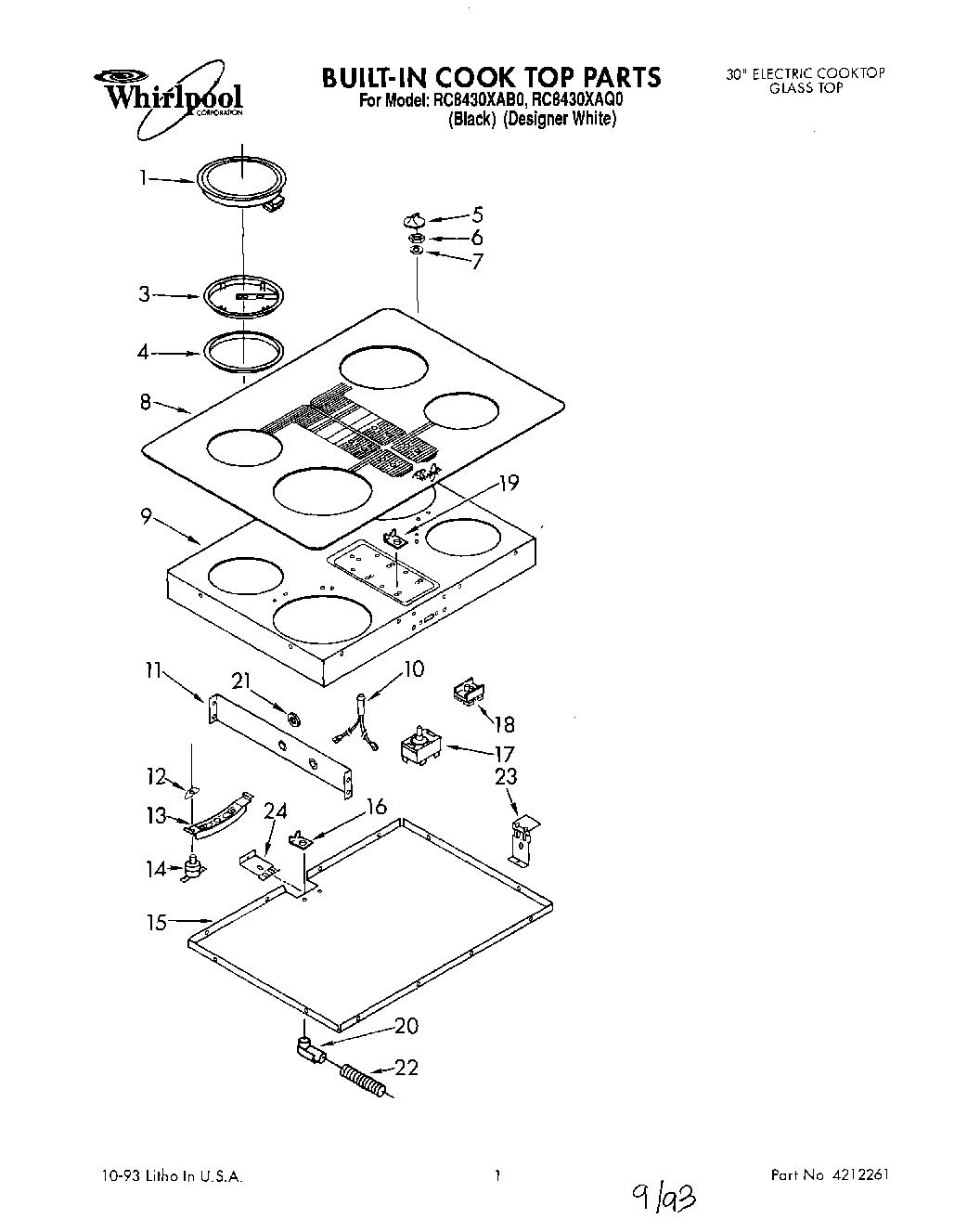

Common parts from model Whirlpool RC8430XAB0
WPL LIT4211801 WPL LIT4211801 Contact Us For Availability
WPL LIT4212221 WPL LIT4212221 Contact Us For Availability
WPL LIT9751225 WPL LIT9751225 Contact Us For Availability
WPL LIT9751226 WPL LIT9751226 Contact Us For Availability
1
Surface Unit (2600W, LF-RR) WPL 9750553 Contact Us For Availability
1

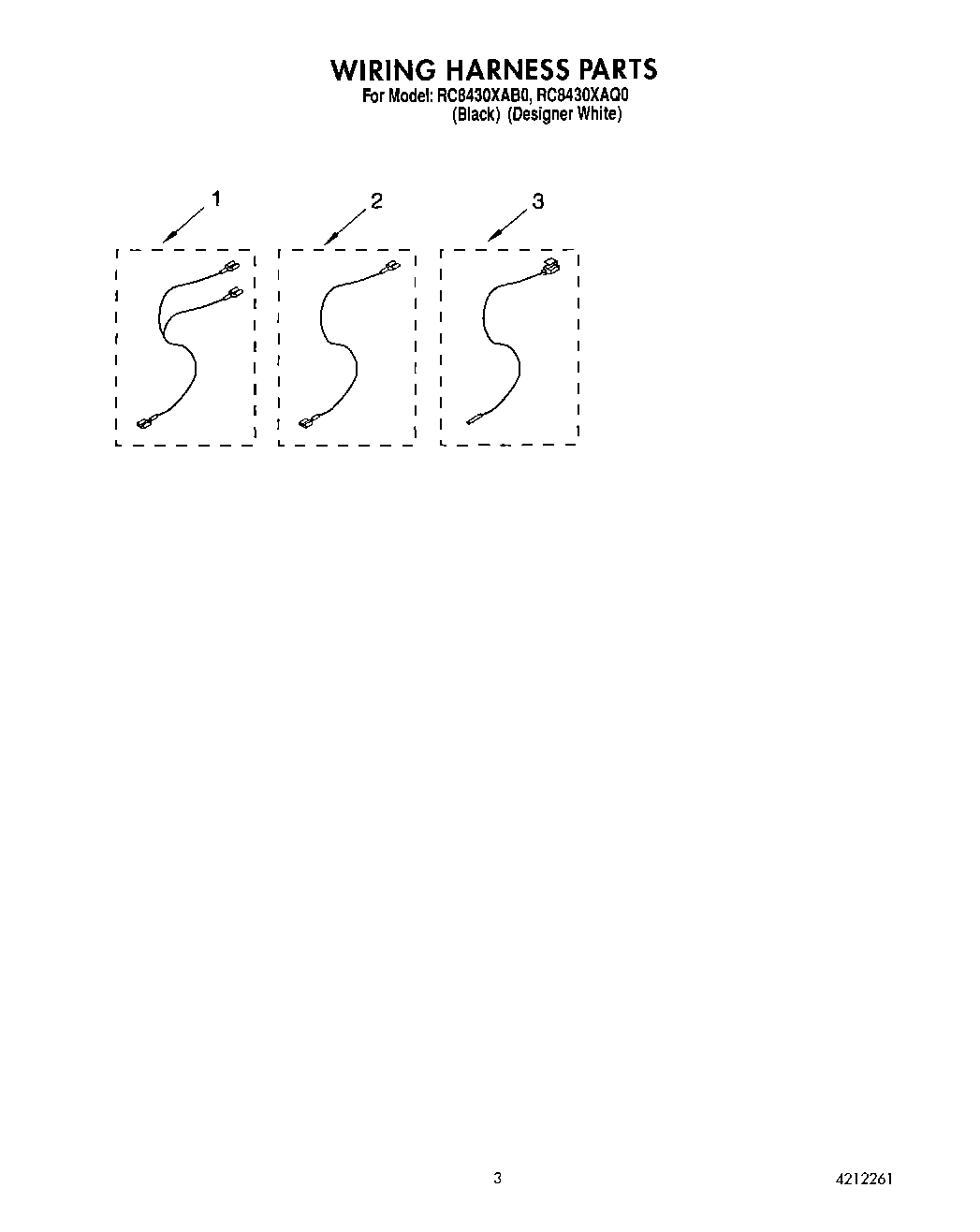

9`` Wire, Red (4) WPL 9780639 Contact Us For Availability
1
7`` Wire, (4) WPL 9780642 Contact Us For Availability
2
11`` Wire, Black (4) WPL 9780625 Contact Us For Availability
2
12`` Wire, Red (4) WPL 9780629 Contact Us For Availability
3
Collar, Intermediate (6``(2)) WPL 4211836 Contact Us For Availability
3
Collar, Intermediate (8`` (2)) WPL 4211839 Contact Us For Availability
3
9`` Wire, Black (4) WPL 9780632 Contact Us For Availability
4
Gasket (6``(2)) WPL 4211828 Contact Us For Availability
4
Gasket (8`` (2)) WPL 4211834 Contact Us For Availability
5
Knob, Control (4) (White Mdl.) WPL 3183100 Contact Us For Availability
5
Knob, Control (4) (Black Mdl.) WPL 3183101 Contact Us For Availability
6
Nut (4) WPL 4211830 Contact Us For Availability
7
Seal, Shaft (4) WPL 4211860 Contact Us For Availability
8
Cooktop, Glass (White Mdl.) WPL 9751219 Contact Us For Availability
8
Cooktop, Glass (Black Mdl.) WPL 9751220 Contact Us For Availability
9
Screw, 10-24 X 1/2 WPL 4211812 Contact Us For Availability
9
Burner Box WPL 4211827 Contact Us For Availability
9
Lockwasher WPL 4211882 Contact Us For Availability
10
Indicator Light (4) WPL 4211833 Contact Us For Availability
11
Shield, Infinite Switch (2) WPL 4211808 Contact Us For Availability
12
Spring, Leaf (4) WPL 4211822 Contact Us For Availability
13
Bracket, Mounting (Nut (4)) WPL 4211821 Contact Us For Availability
13
Bracket, Mounting (8`` Element (2)) WPL 4211805 Contact Us For Availability
13
Bracket, Mounting (6`` Element (2)) WPL 4211820 Contact Us For Availability
14
Nut,(4) WPL 4211806 Contact Us For Availability
14
Protector, Thermal Switch (4) WPL 4211857 Contact Us For Availability
15
Screw, 10-3/8 (14) WPL 4211804 Contact Us For Availability
15
Cover, Burner Box WPL 4211823 Contact Us For Availability
16
Brace, Cable WPL 4211883 Contact Us For Availability
17
Infinite Switch (2000 Watt,(2)) WPL 9750769 Contact Us For Availability
17
Infinite Switch (2600 Watt,(2)) WPL 9750770 Contact Us For Availability
18
Screw, 10-3/4 (2) WPL 4211831 Contact Us For Availability
18
Terminal Block WPL 4211832 Contact Us For Availability
19
Support, Cooktop WPL 4212110 Contact Us For Availability
20
90~ Connector WPL 4211815 Contact Us For Availability
21
Bushing, Wiring WPL 4211816 Contact Us For Availability
22
Flex Cable WPL 4211817 Contact Us For Availability
23
Screw, 10-3/8 (6) WPL 4211813 Contact Us For Availability
23
Bracket, Burner Box WPL 4211858 Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire, White WPL 242826 Contact Us For Availability
24
WPL 242827 WPL 242827 Contact Us For Availability
24
WPL 242828 WPL 242828 Contact Us For Availability
24
WPL 242829 WPL 242829 Contact Us For Availability
24
WPL 242830 WPL 242830 Contact Us For Availability
24
WPL 242832 WPL 242832 Contact Us For Availability
24
WPL 4211814 WPL 4211814 Contact Us For Availability
24
WPL 4211856 WPL 4211856 Contact Us For Availability
24
WPL 4212164 WPL 4212164 Contact Us For Availability
24
WPL 9751114 WPL 9751114 Contact Us For Availability
× ![]()
