Model Whirlpool RC8200XBW0 – Common Parts & Diagrams
02 - SECTION
01 - SECTION

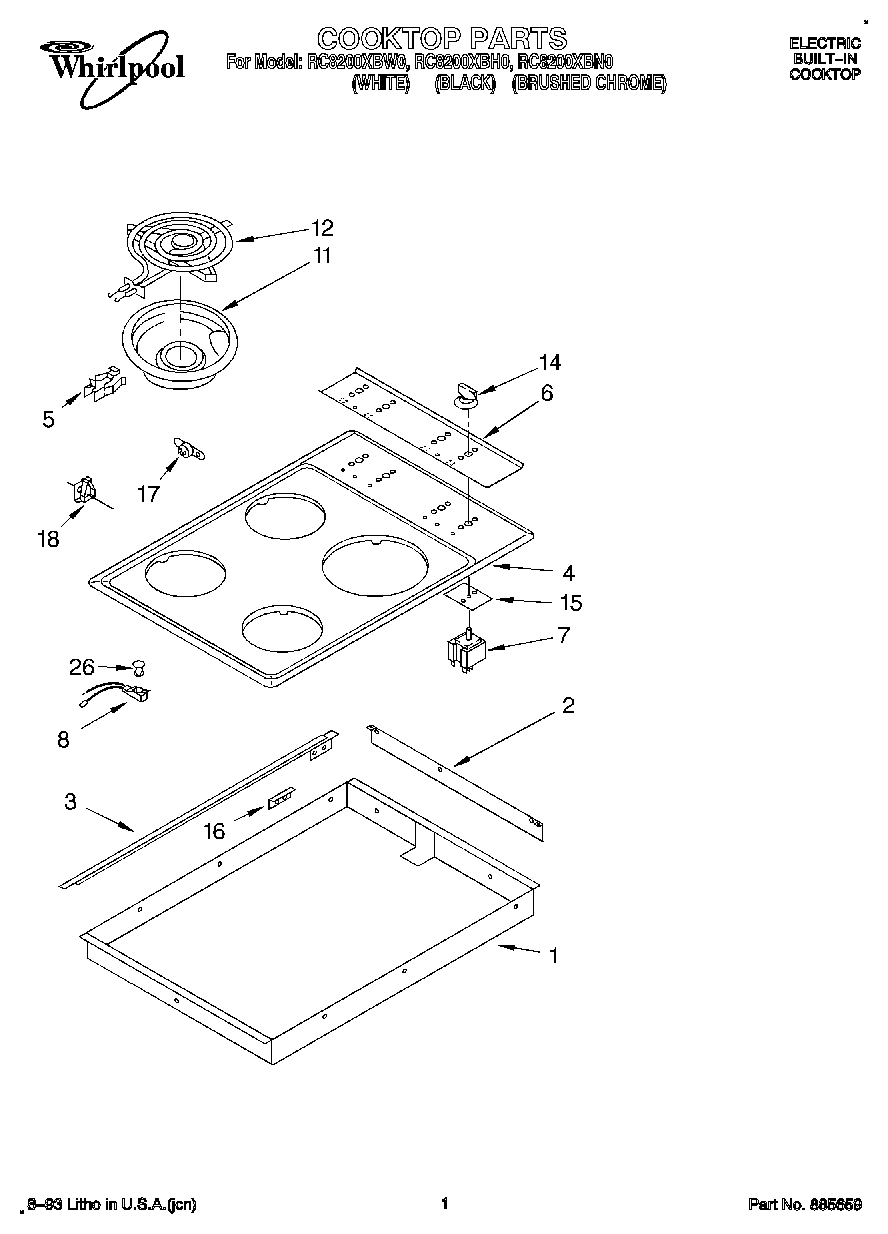

Common parts from model Whirlpool RC8200XBW0
Installation Instructions WPL LIT311437 Contact Us For Availability
Use & Care Guide WPL LIT3185371 Contact Us For Availability
Wire Diagram WPL LIT3187832 Contact Us For Availability
1
Burner Box WPL 3188765 Contact Us For Availability
2
Shield, Heat WPL 3187446 Contact Us For Availability
3

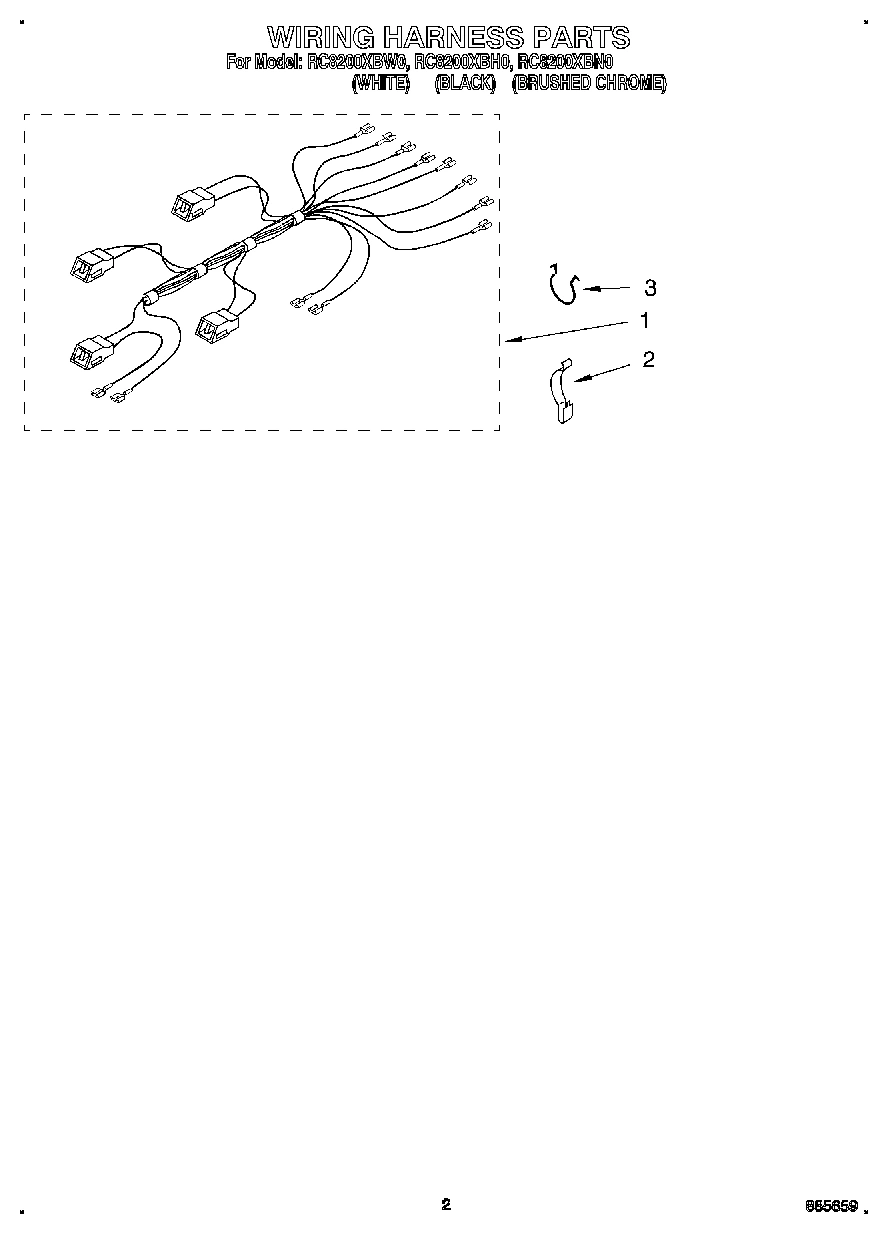

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
3
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
3
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
3
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
3
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
3
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
3
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
3
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
3
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
3
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
3
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
3
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
3
Support, Cooktop WPL 3188766 Contact Us For Availability
4
Cooktop (White) WPL 3148754 Contact Us For Availability
4
Cooktop (Almond) WPL 3148755 Contact Us For Availability
4
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
6
Panel, Control WPL 3185692 Contact Us For Availability
7
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148968 Contact Us For Availability
8
Light, Indicator WPL 3187778 Contact Us For Availability
14
Knob, Control (4) WPL 3183120 Contact Us For Availability
16
Bracket WPL 3188767 Contact Us For Availability
17
Screw WPL 4159456 Contact Us For Availability
26
Lens, Light WPL 313602 Contact Us For Availability
× ![]()
