Model Maytag RC5MCSS COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - TRAY, GREASE SHIELD, CABINET,
02 - DOOR

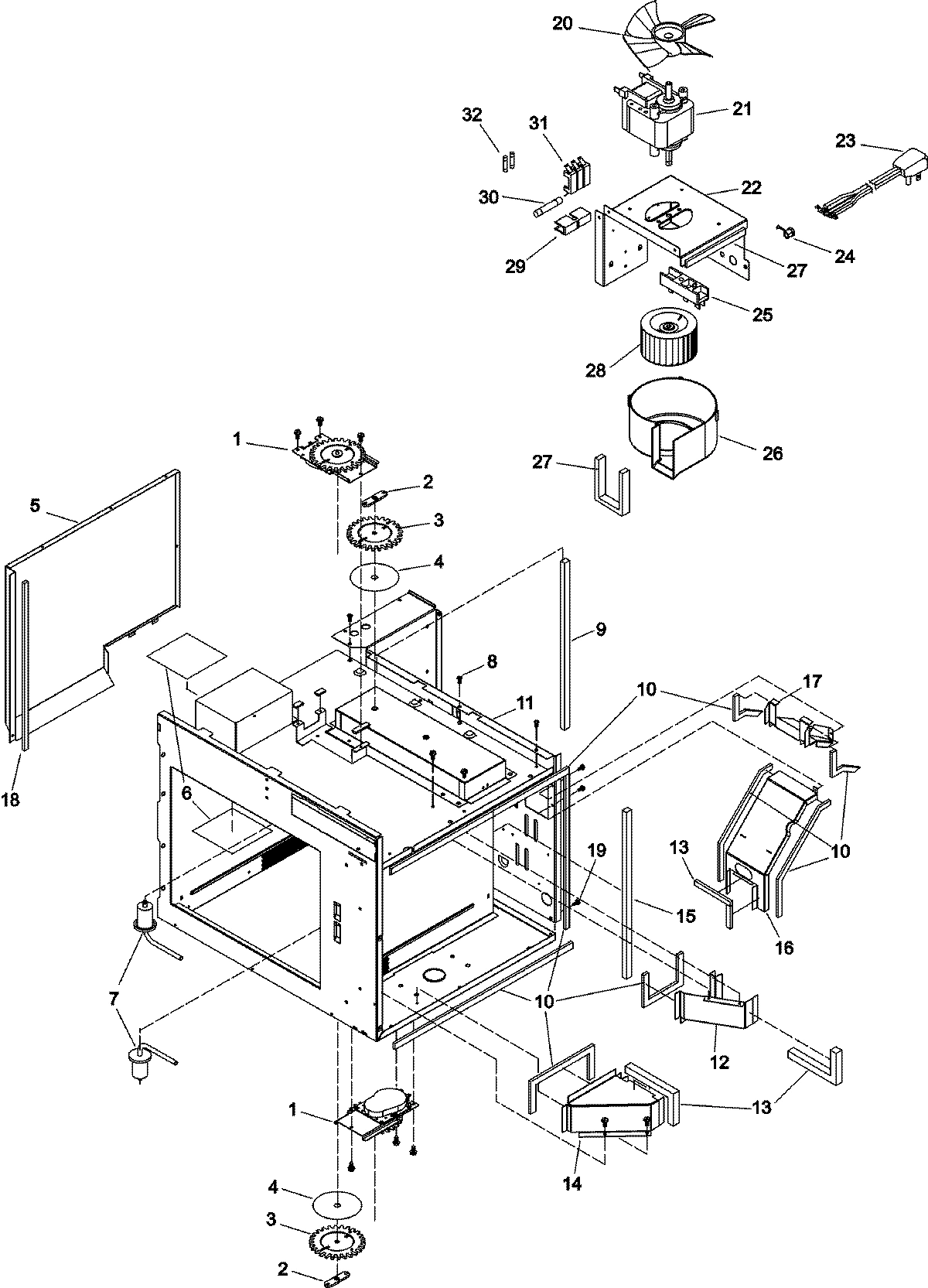

03 - FUSES, ANTENNAS, BLOWER, DUCTS,

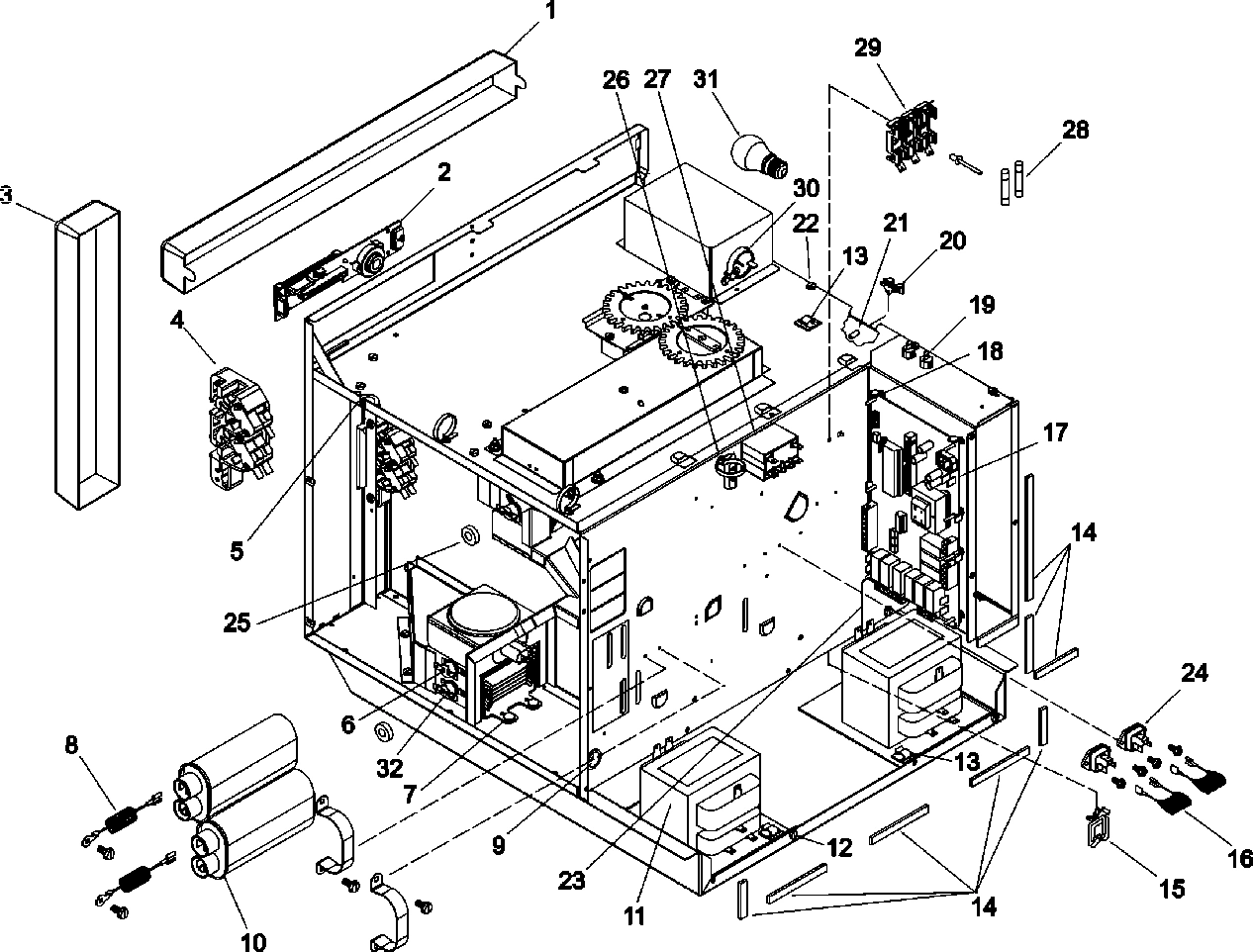

04 - ELECTRICAL COMPONENTS
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION

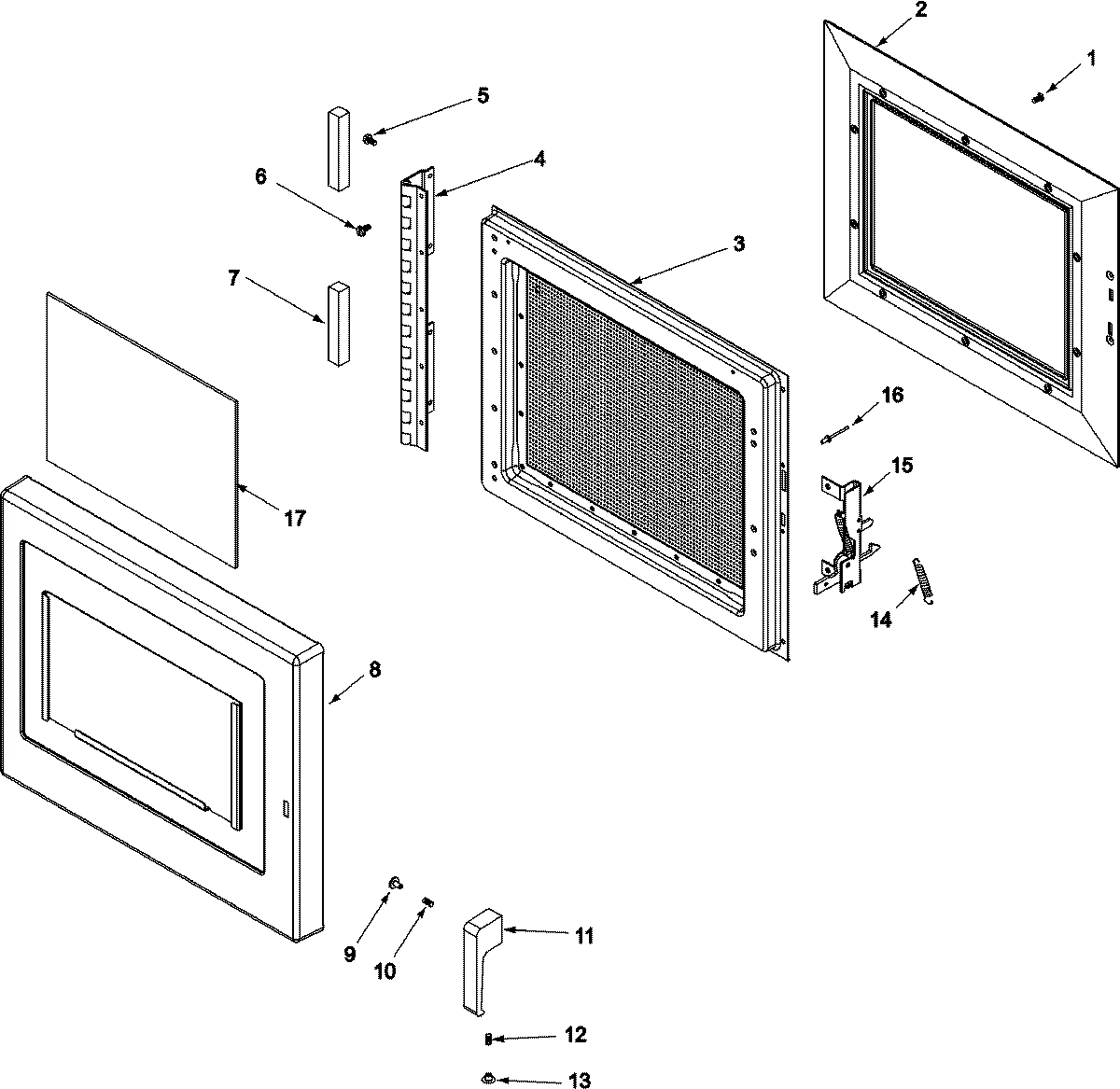

01 - DOOR

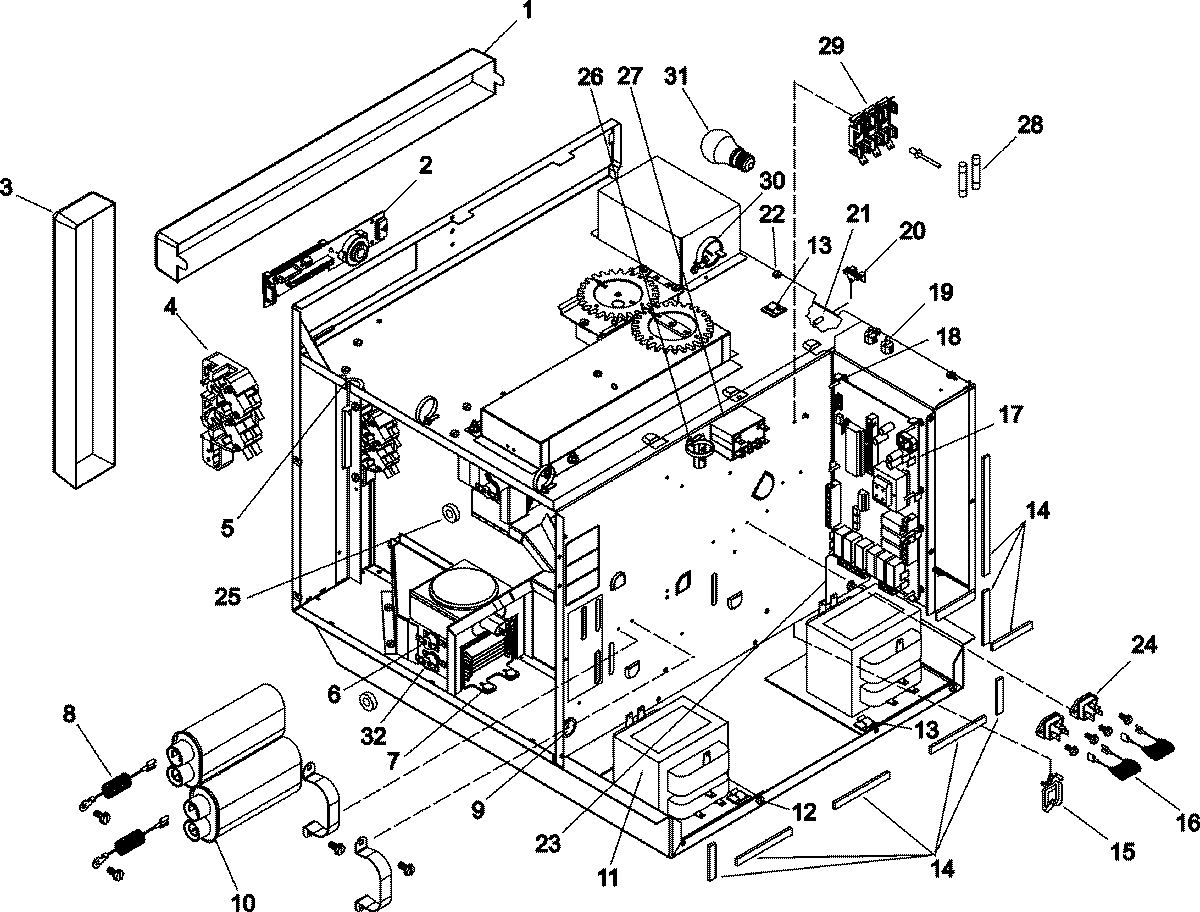

02 - ELECTRICAL COMPONENTS

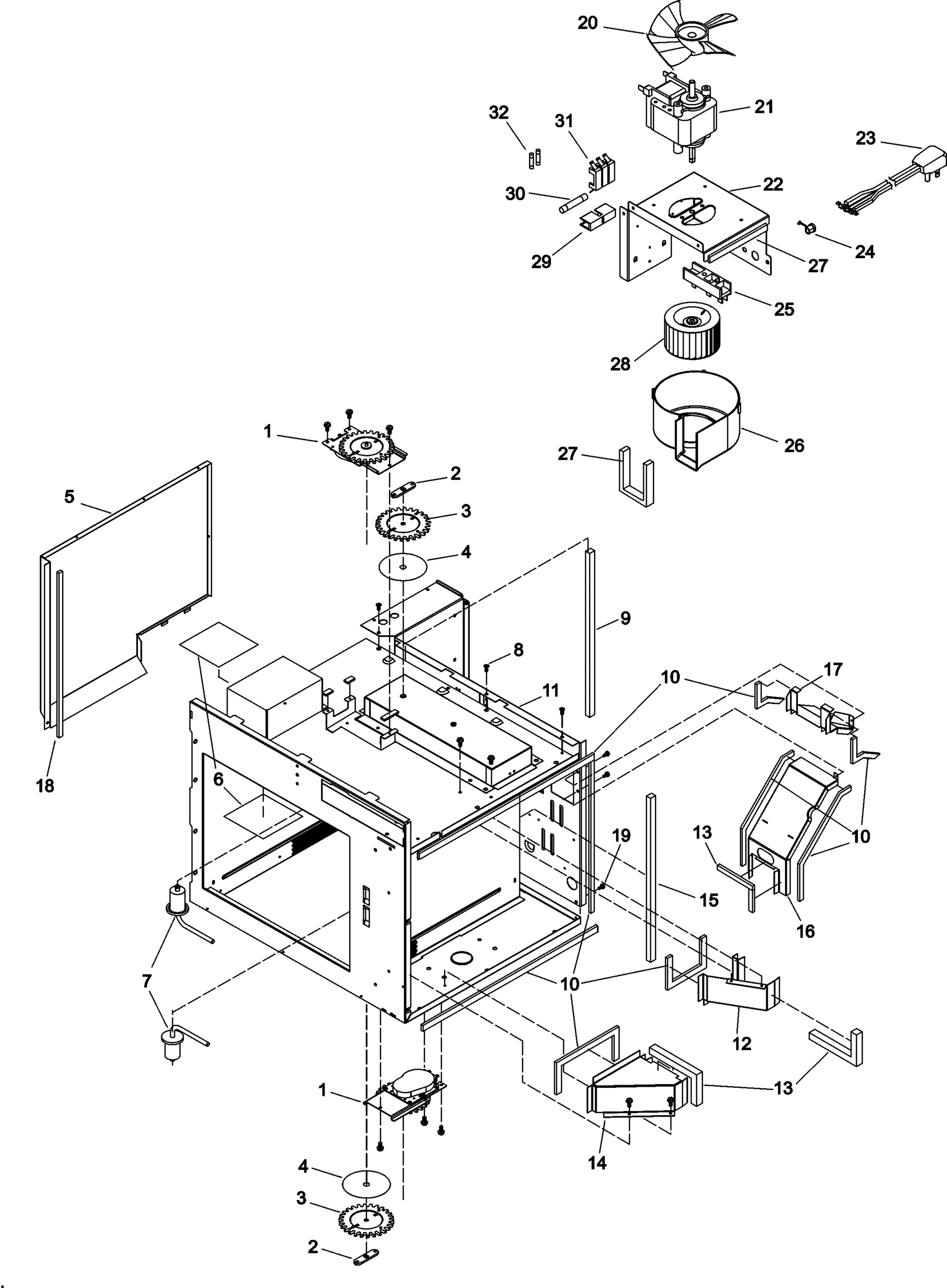

03 - FUSES, ANTENNAS, BLOWER, DUCTS,
04 - SUPPLEMENTAL INFORMATION

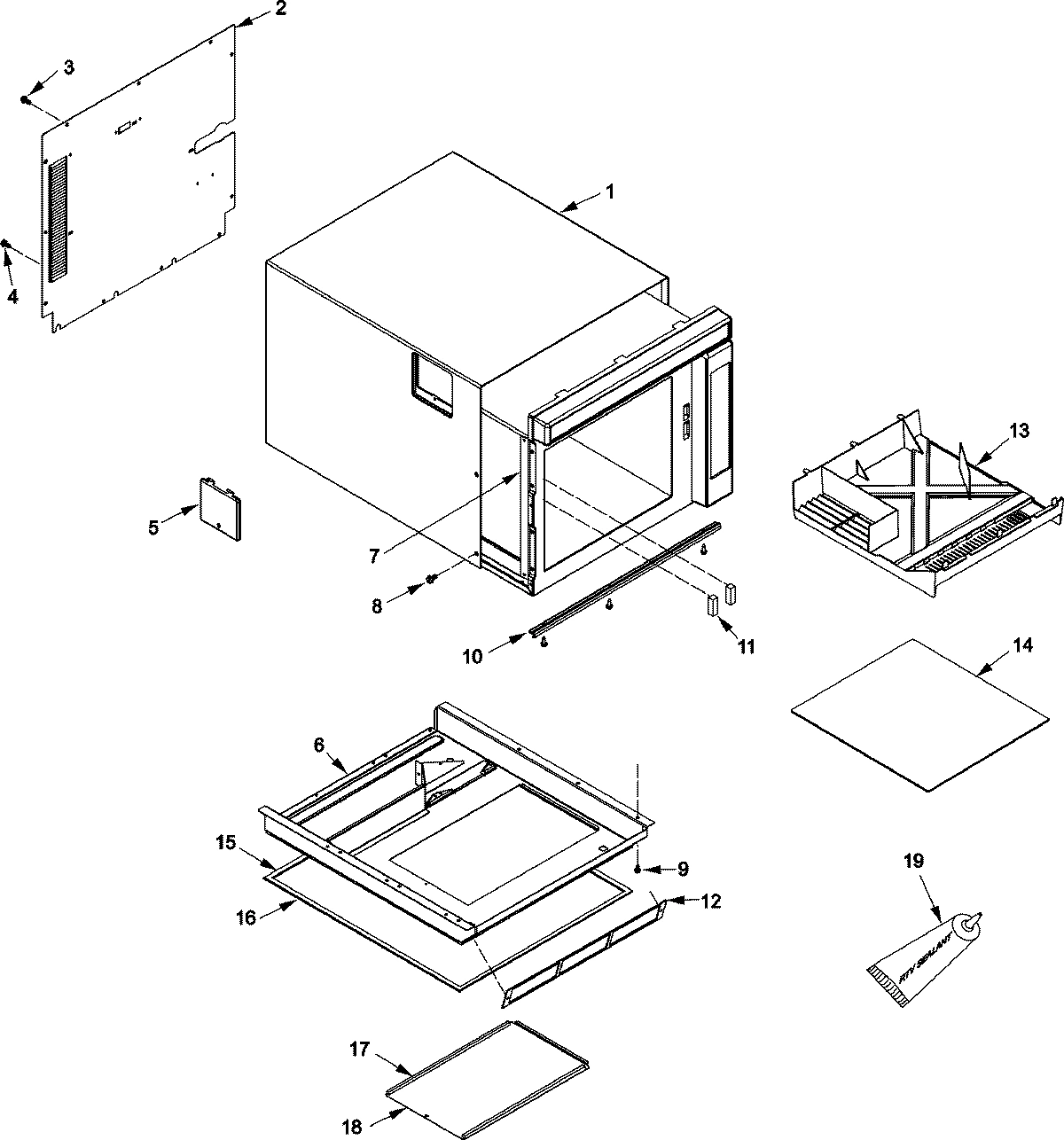

05 - TRAY, GREASE SHIELD, CABINET,

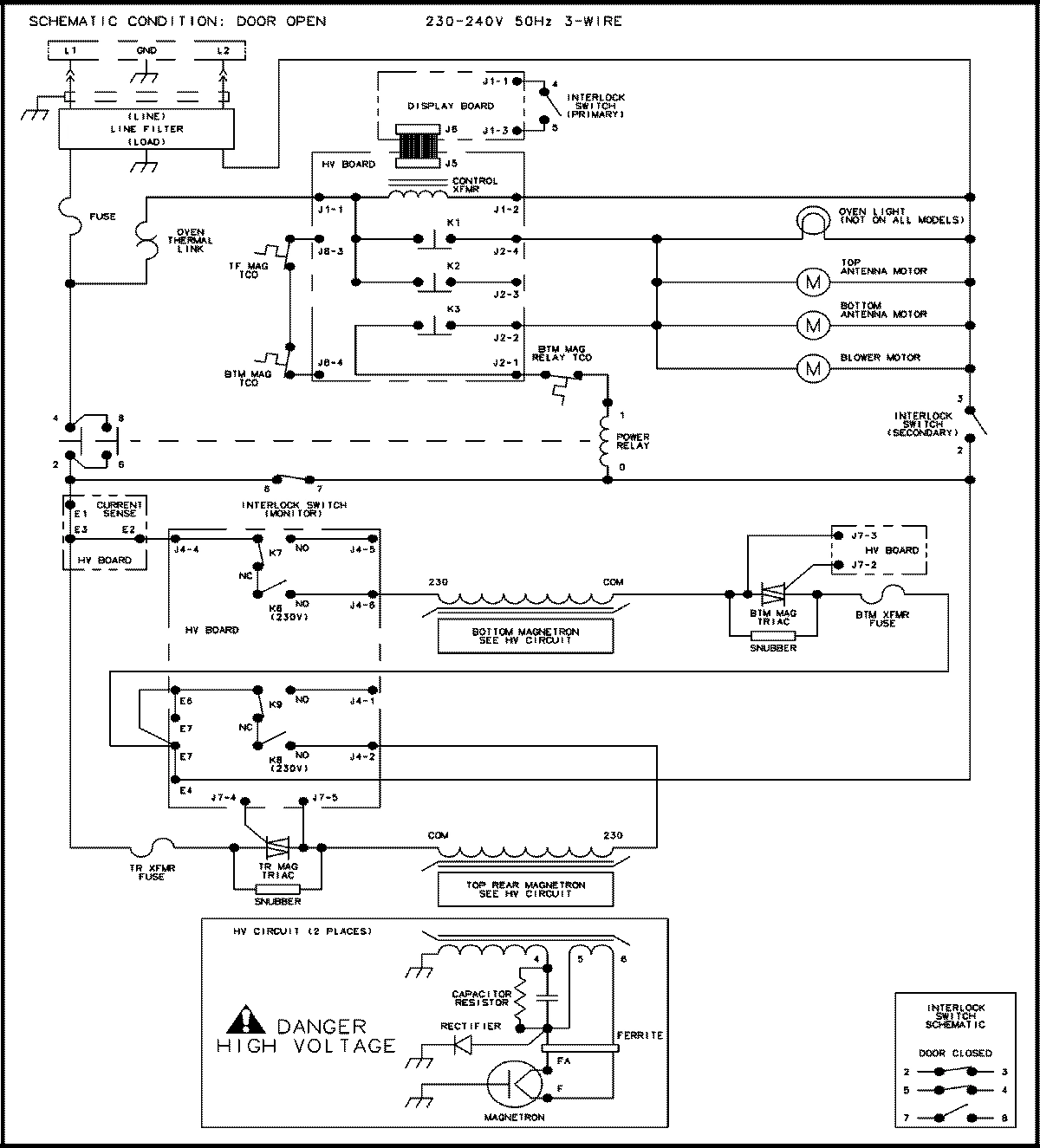

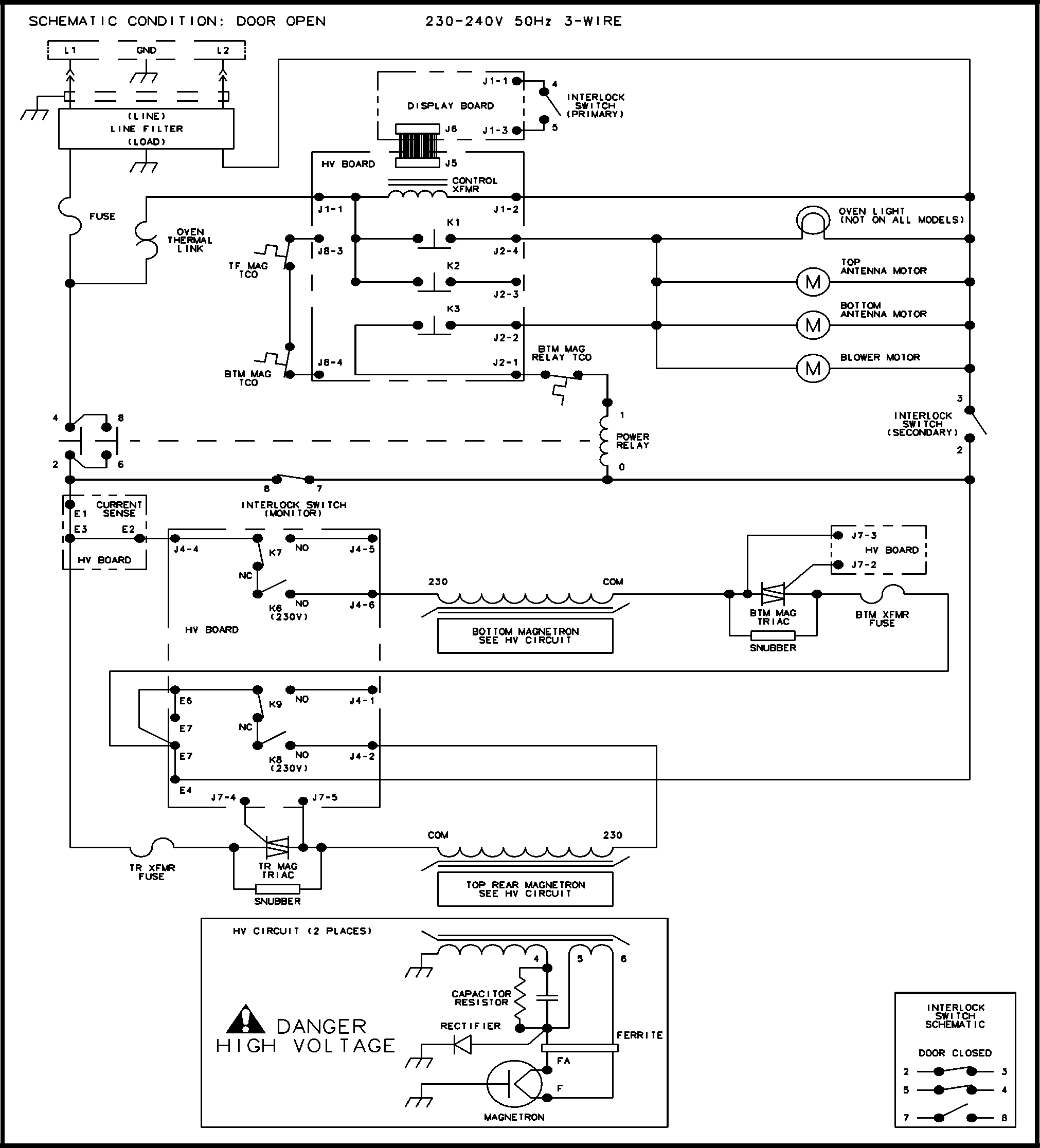

06 - WIRING INFORMATION
Common parts from model Maytag RC5MCSS COMMERCIAL MICROWAVE
001
WIRING INFORMATION MAY NLA Contact Us For Availability
1
MAY 67003392 MAY 67003392 Contact Us For Availability
1
MOTOR-ANTENNA STIRRER (230V) MAY R0130263 Contact Us For Availability
1
WRAPPER-OC (SS) MAY 10908901Q Contact Us For Availability
2
MAY 12002103 MAY 12002103 Contact Us For Availability
2
MAY 12570201 MAY 12570201 Contact Us For Availability
2
BOARD,DISPLAY xxx MAY 12502401 Contact Us For Availability
2
SCREW MAY M0234114 Contact Us For Availability
2
MAY R0156970 MAY R0156970 Contact Us For Availability
3
MAY D7683729 MAY D7683729 Contact Us For Availability
3
GEAR,SPUR MAY 12570101 Contact Us For Availability
3
MAY R0130109 MAY R0130109 Contact Us For Availability
4
MAY 12003804 MAY 12003804 Contact Us For Availability
4
MAY M0216716 MAY M0216716 Contact Us For Availability
4
MAY 10903002 MAY 10903002 Contact Us For Availability
4
MAY 59001154 MAY 59001154 Contact Us For Availability
5
MAY 10781901 MAY 10781901 Contact Us For Availability
5
MAY 12164101 MAY 12164101 Contact Us For Availability
5
COVER LIGHT (SS) MAY 10785608 Contact Us For Availability
5
MAY M0288213 MAY M0288213 Contact Us For Availability
6
MAY 59001130 MAY 59001130 Contact Us For Availability
6
MAY B8367701 MAY B8367701 Contact Us For Availability
6
THERMAL PROTECTOR MAY B5684106 Contact Us For Availability
7
MAY 12189003 MAY 12189003 Contact Us For Availability
7
MAY M0231717 MAY M0231717 Contact Us For Availability
7
MAY A3263904 MAY A3263904 Contact Us For Availability
7
MAY R0130262 MAY R0130262 Contact Us For Availability
7
MAY 59001484 MAY 59001484 Contact Us For Availability
8
MAY R0156920 MAY R0156920 Contact Us For Availability
8
MAY B8383102 MAY B8383102 Contact Us For Availability
8
MAY M0200316 MAY M0200316 Contact Us For Availability
9
MAY 59001128 MAY 59001128 Contact Us For Availability
10
MAY M0249632 MAY M0249632 Contact Us For Availability
10
SET SCREW MAY M0208943 Contact Us For Availability
10
MAY A3030330 MAY A3030330 Contact Us For Availability
10
MAY 59001037 MAY 59001037 Contact Us For Availability
10
MAY A4055406 MAY A4055406 Contact Us For Availability
10
MAY 10909001 MAY 10909001 Contact Us For Availability
11
MAY 3010003001 MAY 3010003001 Contact Us For Availability
11
MAY 12490901 MAY 12490901 Contact Us For Availability
11
MAY 59001204 MAY 59001204 Contact Us For Availability
11
MAY 10788609 MAY 10788609 Contact Us For Availability
12
MAY M0209701 MAY M0209701 Contact Us For Availability
12
MAY M0274066 MAY M0274066 Contact Us For Availability
12
SCREW, SET MAY M0208342 Contact Us For Availability
12
MAY R0156984 MAY R0156984 Contact Us For Availability
13
MAY 10766601 MAY 10766601 Contact Us For Availability
13
MAY M0310305 MAY M0310305 Contact Us For Availability
14
MAY R0156942 MAY R0156942 Contact Us For Availability
14
MAY C8893502 MAY C8893502 Contact Us For Availability
14
MAY R0156985 MAY R0156985 Contact Us For Availability
15
MAY 59001646 MAY 59001646 Contact Us For Availability
15
MAY R0000282 MAY R0000282 Contact Us For Availability
15
MAY A3030311 MAY A3030311 Contact Us For Availability
15
MAY B5667304 MAY B5667304 Contact Us For Availability
16
MAY 59001647 MAY 59001647 Contact Us For Availability
16
MAY R0156987 MAY R0156987 Contact Us For Availability
16
MAY 10172901Q MAY 10172901Q Contact Us For Availability
17
MAY A3030301 MAY A3030301 Contact Us For Availability
17
MAY 10432501 MAY 10432501 Contact Us For Availability
17
MAY R0156986 MAY R0156986 Contact Us For Availability
17
MAY 59001497 MAY 59001497 Contact Us For Availability
18
MAY 10782402 MAY 10782402 Contact Us For Availability
18
SUPPORT P-C BD A MAY M0590602 Contact Us For Availability
19
MAY M0275598 MAY M0275598 Contact Us For Availability
19
SCREW MAY 5078-CC Contact Us For Availability
19
MAY M0325401 MAY M0325401 Contact Us For Availability
20
MAY B5706704 MAY B5706704 Contact Us For Availability
21
MAY 59001482 MAY 59001482 Contact Us For Availability
21
MAY M0308801 MAY M0308801 Contact Us For Availability
22
MAY 59001483 MAY 59001483 Contact Us For Availability
22
MAY M0231617 MAY M0231617 Contact Us For Availability
023
MAY YM0200316 MAY YM0200316 Contact Us For Availability
23
MAY 59001499 MAY 59001499 Contact Us For Availability
023
MAY 59001655 MAY 59001655 Contact Us For Availability
23
MAY 10847601 MAY 10847601 Contact Us For Availability
24
MAY M0370009 MAY M0370009 Contact Us For Availability
24
MAY R0157373 MAY R0157373 Contact Us For Availability
25
MAY B5677203 MAY B5677203 Contact Us For Availability
25
TOROID (ARC SUPPRESSOR) MAY 44780P01 Contact Us For Availability
26
MAY 12552001 MAY 12552001 Contact Us For Availability
26
MAY M0216517 MAY M0216517 Contact Us For Availability
26
MAY M0322202 MAY M0322202 Contact Us For Availability
27
MAY A3030303 MAY A3030303 Contact Us For Availability
28
MAY C3670809 MAY C3670809 Contact Us For Availability
29
MAY A4539601 MAY A4539601 Contact Us For Availability
29
FUSE HOLDER MAY 10091101 Contact Us For Availability
30
MAY M0805205 MAY M0805205 Contact Us For Availability
30
MAY B8376801 MAY B8376801 Contact Us For Availability
31
MAY M0234117 MAY M0234117 Contact Us For Availability
31
MAY 12136502 MAY 12136502 Contact Us For Availability
32
MAY M0805102 MAY M0805102 Contact Us For Availability
32
MAY M0229916 MAY M0229916 Contact Us For Availability
32
MAY 59001564 MAY 59001564 Contact Us For Availability
NI
MAY 16022149 MAY 16022149 Contact Us For Availability
NI
MAY 59001488 MAY 59001488 Contact Us For Availability
NI
MAY 16022002 MAY 16022002 Contact Us For Availability
NI
MAY 59001486 MAY 59001486 Contact Us For Availability
NI
MAY 59001487 MAY 59001487 Contact Us For Availability
NI
MAY R0130265 MAY R0130265 Contact Us For Availability
NI
MAY 59001635 MAY 59001635 Contact Us For Availability
NI
MAY 12598201 MAY 12598201 Contact Us For Availability
NI
MAY 59001173 MAY 59001173 Contact Us For Availability
NI
MAY 59001656 MAY 59001656 Contact Us For Availability
NI
MAY R0193574 MAY R0193574 Contact Us For Availability
NI
MAY 15003260 MAY 15003260 Contact Us For Availability
× ![]()
