Model Maytag RC517MP COMMERCIAL MICROWAVE – Common Parts & Diagrams

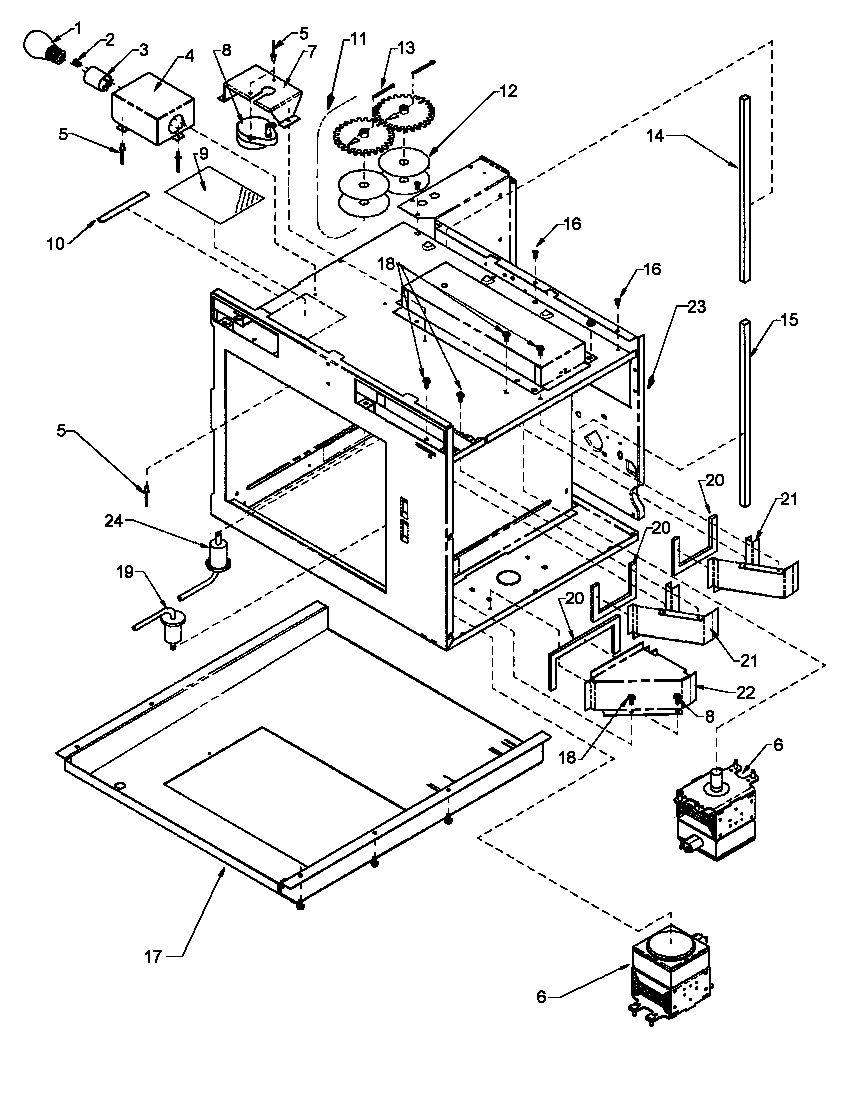

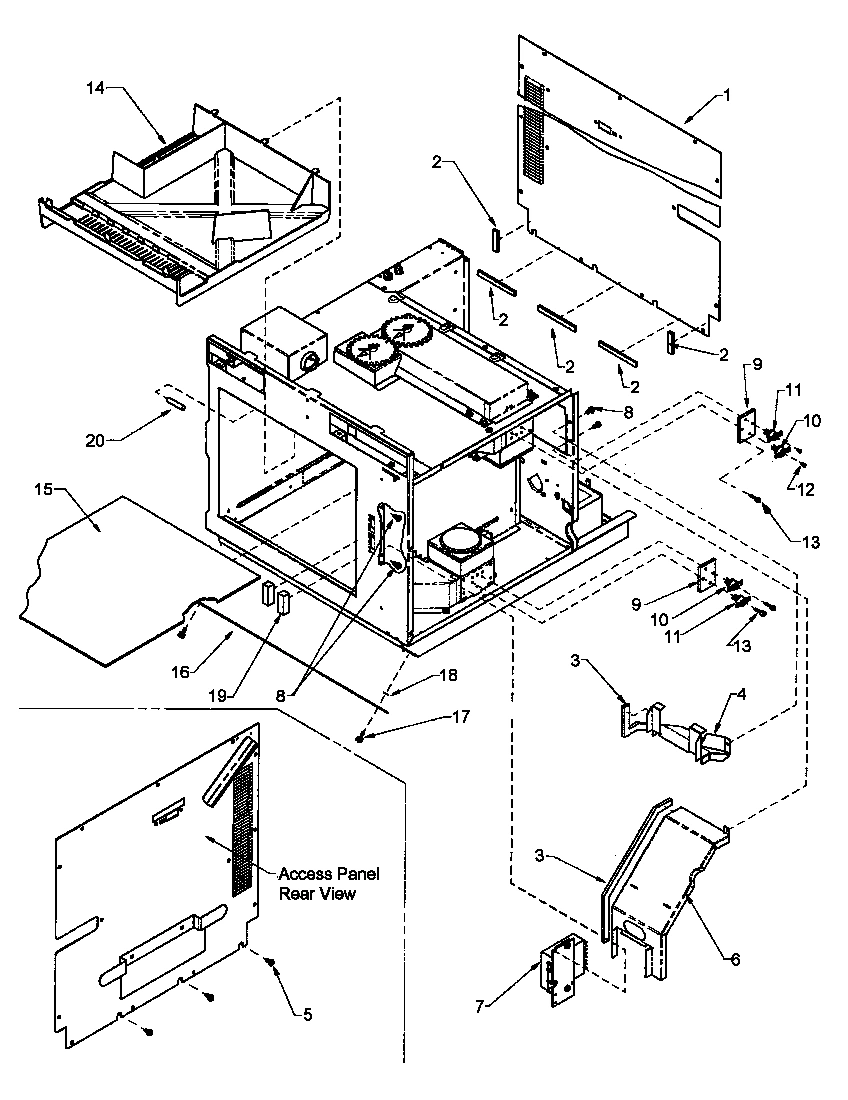

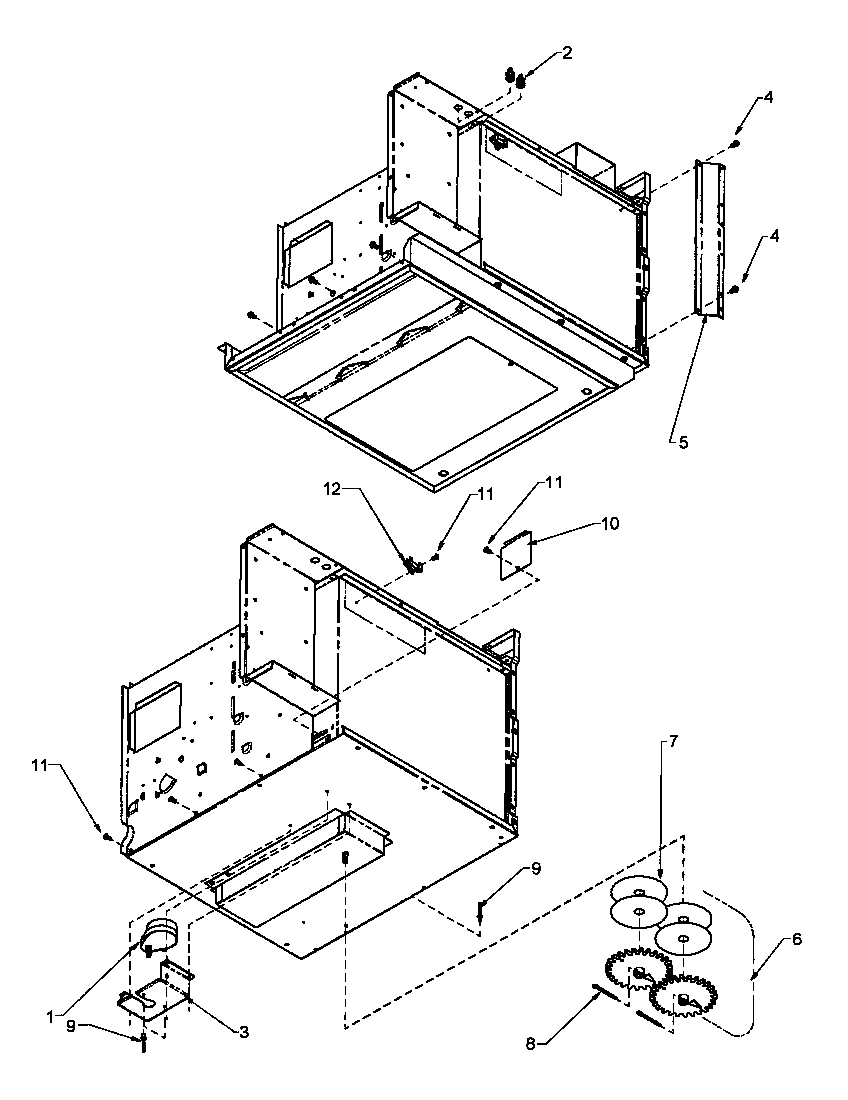

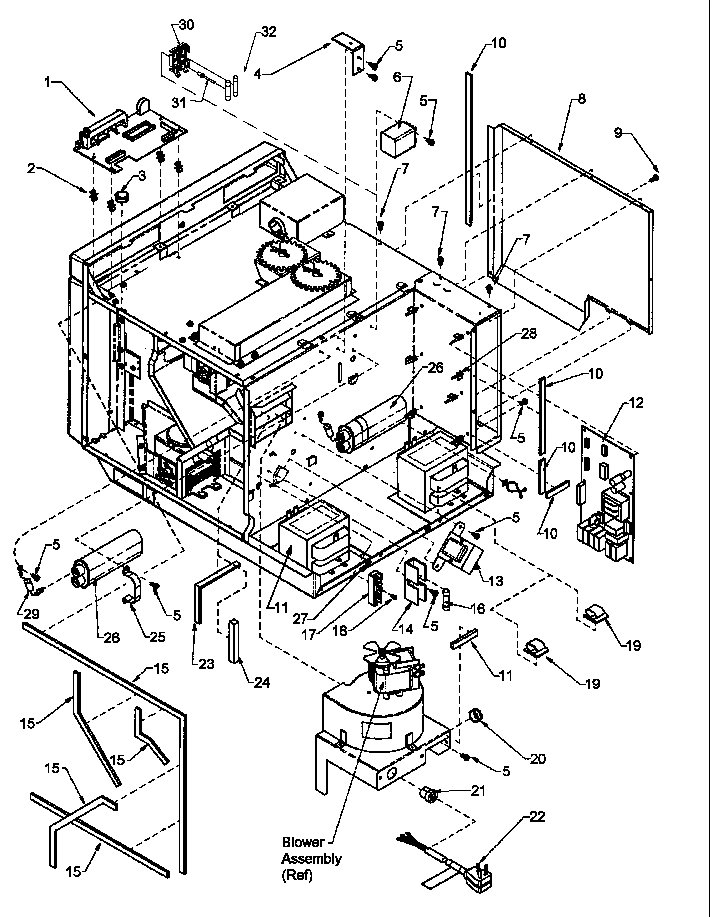

01 - MISCELLAEOUS INFORMATION

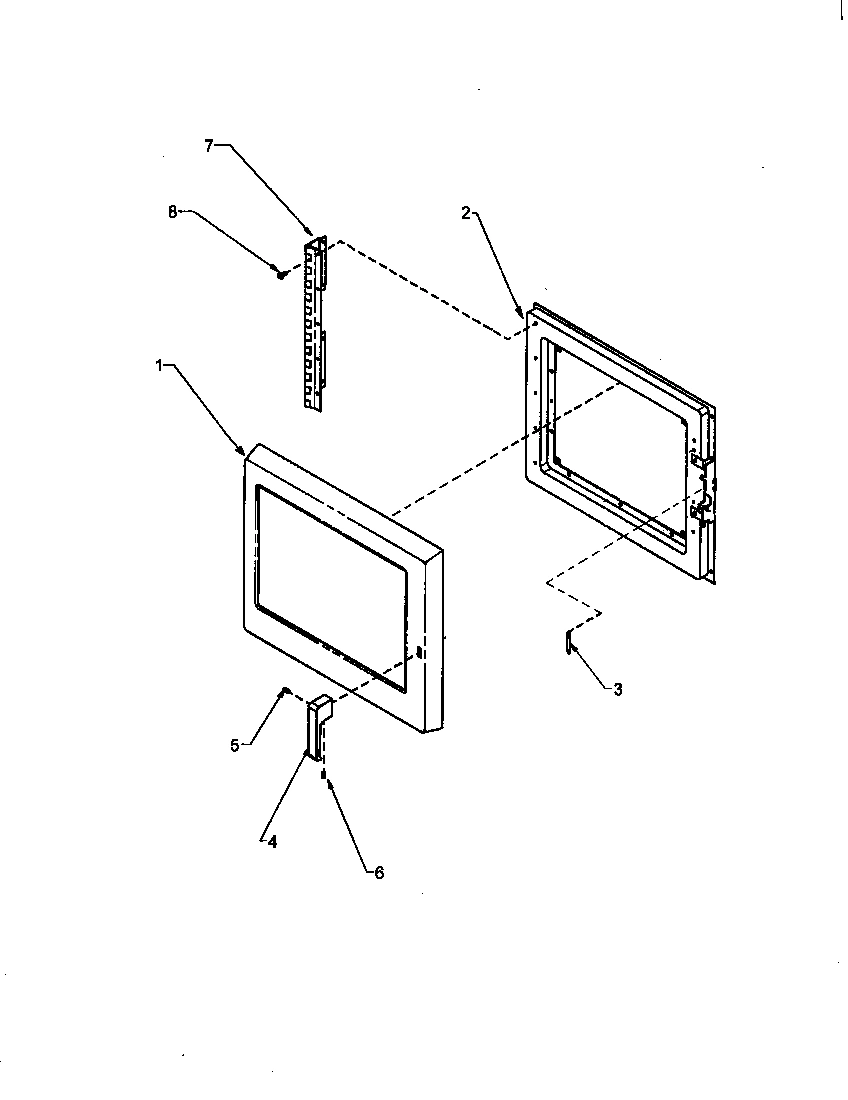

02 - DOOR ASSY

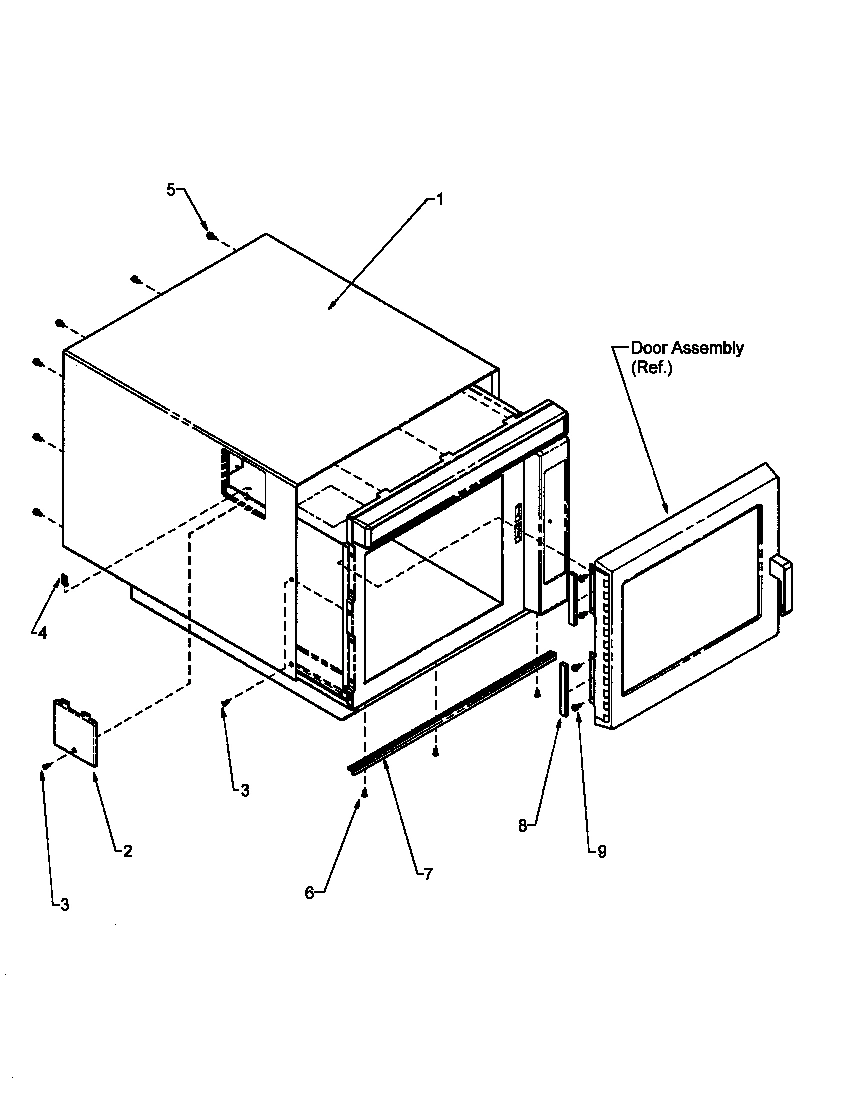

03 - OUTERCASE ASSY

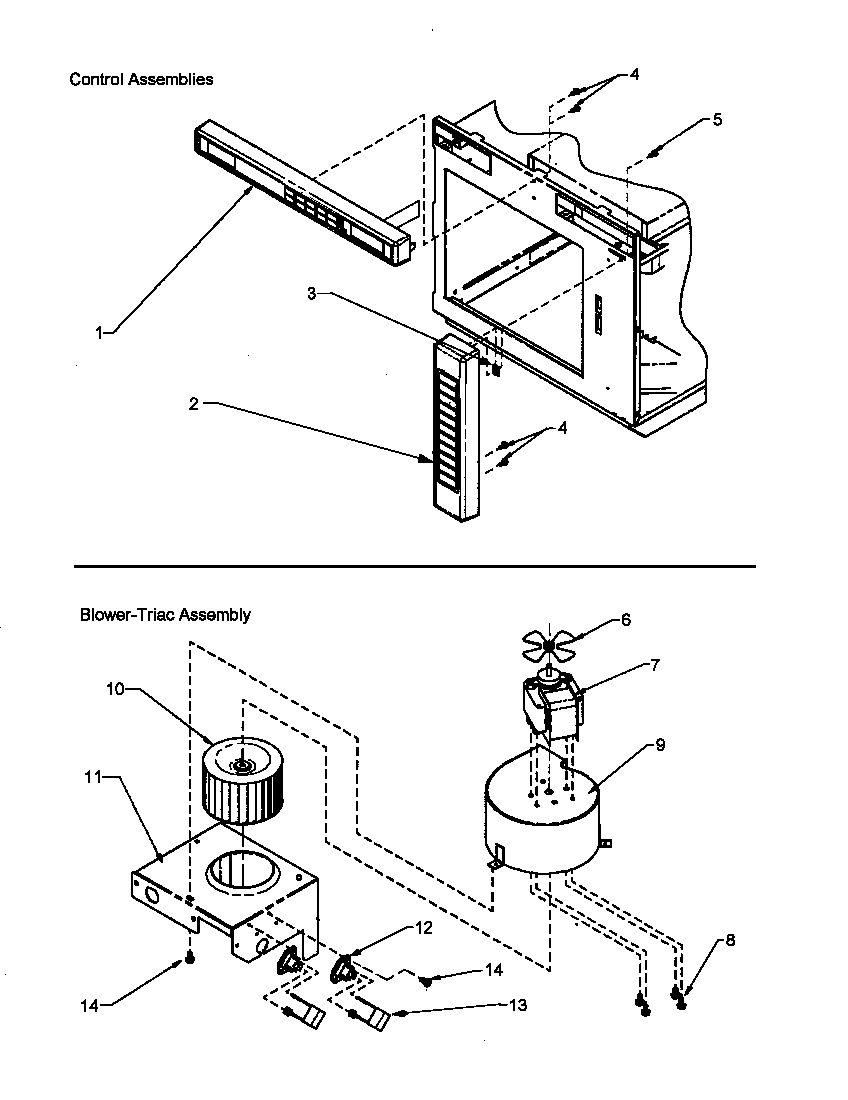

04 - CONTROLS & BLOWER/TRIAC ASSEMBLIES
05 - CHASSIS ASSY PARTS
06 - CHASSIS ASSY PARTS
07 - CHASSIS ASSY PARTS
08 - CHASSIS ASSY PARTS
01 - CHASSIS ASSY PARTS
02 - CHASSIS ASSY PARTS
03 - CHASSIS ASSY PARTS
04 - CHASSIS ASSY PARTS
05 - CONTROLS & BLOWER/TRIAC ASSEMBLIES
06 - DOOR ASSY
07 - OUTERCASE ASSY
Common parts from model Maytag RC517MP COMMERCIAL MICROWAVE
1
OUTER DOOR/LENS RETAINER ASSY MAY R0156918 Contact Us For Availability
1
WRAPPER-OC (SS) MAY 10908901 Contact Us For Availability
1
ASSY, TOUCH PANEL MAY R0156972 Contact Us For Availability
1
ASSY, ACCESS PNL MAY R0156938 Contact Us For Availability
1
L.V. BOARD MAY 10937212 Contact Us For Availability
1
BULB, LIGHT(240) MAY A0282802 Contact Us For Availability
1
MOTOR-ANTENNA MAY R0154047 Contact Us For Availability
2
INNER DOOR & GLASS ASSY MAY R0156921 Contact Us For Availability
2
MAY 10785602 MAY 10785602 Contact Us For Availability
2
ASSY, TOUCH PNL- SIDE MAY R0156975 Contact Us For Availability
2
MAY M0585505 MAY M0585505 Contact Us For Availability
2
MAY M0216529 MAY M0216529 Contact Us For Availability
2
MAY M0325401 MAY M0325401 Contact Us For Availability
3
MAY C8893502 MAY C8893502 Contact Us For Availability
3
MAY M0249619 MAY M0249619 Contact Us For Availability
3
SPEED NUT MAY M0288102 Contact Us For Availability
3
MAY 12164101 MAY 12164101 Contact Us For Availability
3
MAY B8376801 MAY B8376801 Contact Us For Availability
3
BRKT-MOTOR MTG MAY 10782201 Contact Us For Availability
4
MAY 10822301 MAY 10822301 Contact Us For Availability
4
ASSY, REAR DIVIDER MAY R0156935 Contact Us For Availability
4
MAY 10853001 MAY 10853001 Contact Us For Availability
4
MAY M0231717 MAY M0231717 Contact Us For Availability
4
MAY 10782501 MAY 10782501 Contact Us For Availability
4
MAY M0288213 MAY M0288213 Contact Us For Availability
5
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
5
MAY M0216517 MAY M0216517 Contact Us For Availability
5
BRKT, HINGE SUPPORT MAY 10772401 Contact Us For Availability
6
SCREW, SET MAY M0208342 Contact Us For Availability
6
MAY M0234016 MAY M0234016 Contact Us For Availability
6
MAY B5706703 MAY B5706703 Contact Us For Availability
6
ASSY, BOT DIVIDER MAY R0156936 Contact Us For Availability
6
MAGNETRON-T MAY D7831006 Contact Us For Availability
6
KIT, GEAR MAY R0156917 Contact Us For Availability
7
MAY C8961808 MAY C8961808 Contact Us For Availability
7
MAY 10773303 MAY 10773303 Contact Us For Availability
7
MAY 10985002 MAY 10985002 Contact Us For Availability
7
BRKT-MOTOR MTG MAY 10782202 Contact Us For Availability
7
MAY 10903001 MAY 10903001 Contact Us For Availability
7
MAY 10909001 MAY 10909001 Contact Us For Availability
8
MAY M0218118 MAY M0218118 Contact Us For Availability
8
MAY A3263904 MAY A3263904 Contact Us For Availability
8
MAY M0253916 MAY M0253916 Contact Us For Availability
8
ASSY, EXH DUCT MAY R0156941 Contact Us For Availability
8
MAY M1200005 MAY M1200005 Contact Us For Availability
9
WELD, SCROLL MAY 10797202 Contact Us For Availability
9
MAY B8380601 MAY B8380601 Contact Us For Availability
9
MAY M0231604 MAY M0231604 Contact Us For Availability
9
MAY A4539605 MAY A4539605 Contact Us For Availability
9
MAY B8367702 MAY B8367702 Contact Us For Availability
10
MAY C3670808 MAY C3670808 Contact Us For Availability
10
MAY A3030301 MAY A3030301 Contact Us For Availability
10
THERMAL PROTECTOR MAY B5684106 Contact Us For Availability
10
MAY M0275035 MAY M0275035 Contact Us For Availability
10
MAY 10847601 MAY 10847601 Contact Us For Availability
11
MAY 10984008 MAY 10984008 Contact Us For Availability
11
CUTOUT, THERMAL MAY B5684118 Contact Us For Availability
11
MAY 10788609 MAY 10788609 Contact Us For Availability
12
MAY D7681501 MAY D7681501 Contact Us For Availability
12
MAY M0232012 MAY M0232012 Contact Us For Availability
12
BOARD, H.V. MAY 10763203 Contact Us For Availability
12
MAY B5795306 MAY B5795306 Contact Us For Availability
13
MAY 10172901 MAY 10172901 Contact Us For Availability
13
MAY M0229916 MAY M0229916 Contact Us For Availability
13
MAY C8901508 MAY C8901508 Contact Us For Availability
14
MAY 10766601 MAY 10766601 Contact Us For Availability
14
FUSE HOLDER MAY 10091101 Contact Us For Availability
15
MAY R0156942 MAY R0156942 Contact Us For Availability
15
MAY A3030311 MAY A3030311 Contact Us For Availability
16
MAY M0805201 MAY M0805201 Contact Us For Availability
17
MAY M0209701 MAY M0209701 Contact Us For Availability
17
MAY B5677203 MAY B5677203 Contact Us For Availability
17
MAY R0156924 MAY R0156924 Contact Us For Availability
18
MAY M0274066 MAY M0274066 Contact Us For Availability
18
MAY M0234117 MAY M0234117 Contact Us For Availability
19
MAY 3010003001 MAY 3010003001 Contact Us For Availability
19
MAY M0104101 MAY M0104101 Contact Us For Availability
19
MAY 12049502 MAY 12049502 Contact Us For Availability
20
MAY A3030330 MAY A3030330 Contact Us For Availability
20
MAY M0308801 MAY M0308801 Contact Us For Availability
20
MAY A3293503 MAY A3293503 Contact Us For Availability
21
MAY M0370009 MAY M0370009 Contact Us For Availability
21
ASSY, TOP EXH DUCT MAY R0156940 Contact Us For Availability
022
DUCT-BOTTOM EXHAUST MAY NLA Contact Us For Availability
22
MAY B5669019 MAY B5669019 Contact Us For Availability
22
MAY R0156939 MAY R0156939 Contact Us For Availability
23
MAY A3030302 MAY A3030302 Contact Us For Availability
23
MAY 10768304 MAY 10768304 Contact Us For Availability
24
ASSY, ANTENNA MAY 12049501 Contact Us For Availability
25
MAY A4055405 MAY A4055405 Contact Us For Availability
26
CAPACITOR MAY 10366907 Contact Us For Availability
27
MAY M0216716 MAY M0216716 Contact Us For Availability
28
SUPPORT P-C BD A MAY M0590602 Contact Us For Availability
29
MAY B8383102 MAY B8383102 Contact Us For Availability
30
MAY 12136501 MAY 12136501 Contact Us For Availability
31
MAY A4539601 MAY A4539601 Contact Us For Availability
NI
HARNESS, XFMR MAY 10994401 Contact Us For Availability
NI
MAY 12085902 MAY 12085902 Contact Us For Availability
NI
MAY 12137301 MAY 12137301 Contact Us For Availability
NI
MAY 10979301 MAY 10979301 Contact Us For Availability
NI
MAY 10979501 MAY 10979501 Contact Us For Availability
× ![]()
