Model Electrolux RC36DE60PBC COOKTOP, ELECTRIC, DOWNDRAFT, 36 INCH – Common Parts & Diagrams

Common parts from model Electrolux RC36DE60PBC COOKTOP, ELECTRIC, DOWNDRAFT, 36 INCH

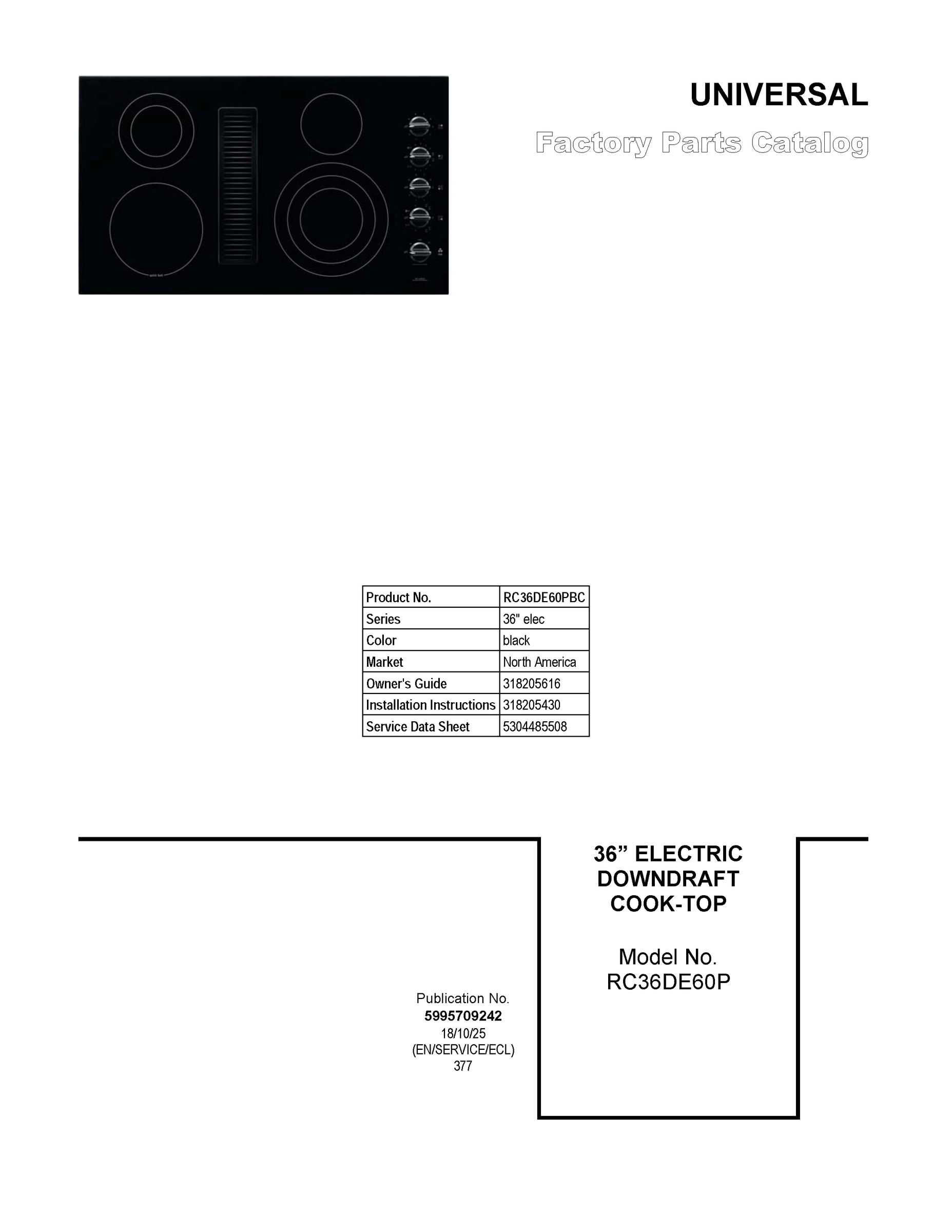

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

3

KNOB, CONTROL, BLACK, BLOWER WCI 316564422 Contact Us For Availability

View on Model

8

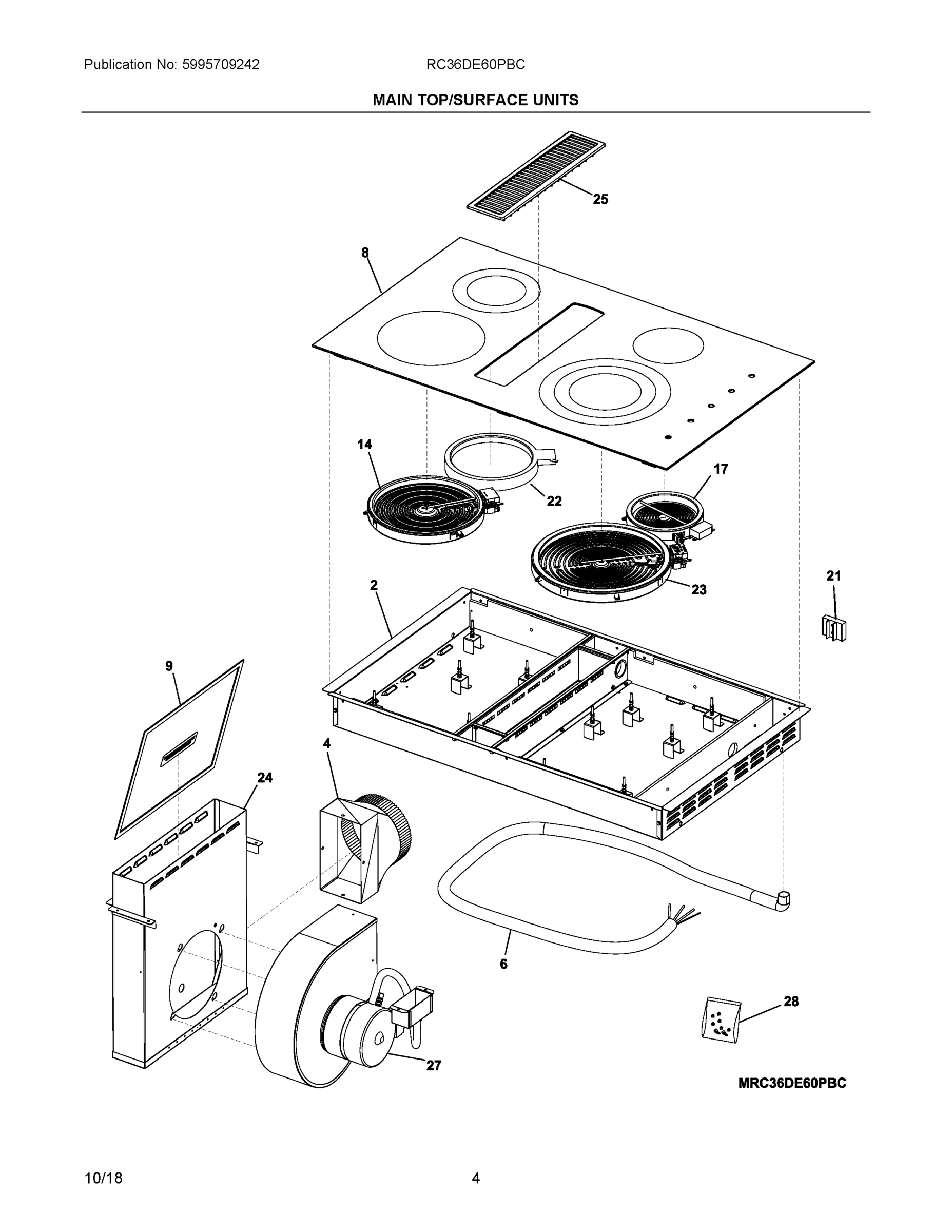

MAIN TOP ASSEMBLY, GLASS, BLACK WCI 5304517117 Contact Us For Availability

View on Model

9

FILTER, BLOWER AIR WCI 5304485479 Contact Us For Availability

View on Model

11

SWITCH, BLOWER, 3 SPEED, ROTARY WCI 5304485481 Contact Us For Availability

View on Model

12

KNOB, CONTROL, BLACK, (3) WCI 316564421 Contact Us For Availability

View on Model

14

HEATING ELEMENT In Stock WCI 8583165300010 View Details $23.74

View on Model

16

318191000 Frigidaire Oven Switch In Stock WCI 318191000 View Details $59.29

View on Model

17

318178110 Frigidaire Oven Range 6" Surface El In Stock WCI 318178110 View Details $64.96

View on Model

18

318293824 Frigidaire Oven Switch In Stock WCI 318293824 View Details $57.39

View on Model

20

318531500 Frigidaire Oven Switch Backorder WCI 318531500 View Details $80.21

View on Model

21

BLOCK, TERMINAL WCI 5304485482 Contact Us For Availability

View on Model

22

ELEMENT, DUAL, 1800/800 WATT, RADIANT WCI 5304485483 Contact Us For Availability

View on Model

24

PLENUM ASSEMBLY, BLOWER WCI 5304485484 Contact Us For Availability

View on Model

25

GRATE, VENT, W/PACKAGING WCI 5304491865 Contact Us For Availability

View on Model

27

5304485487 Frigidaire Blower Assembly Backorder WCI 5304485487 View Details $913.40

View on Model

28

HARDWARE ASSEMBLY, COOKTOP MTG. WCI 5304491866 Contact Us For Availability

View on Model

NI

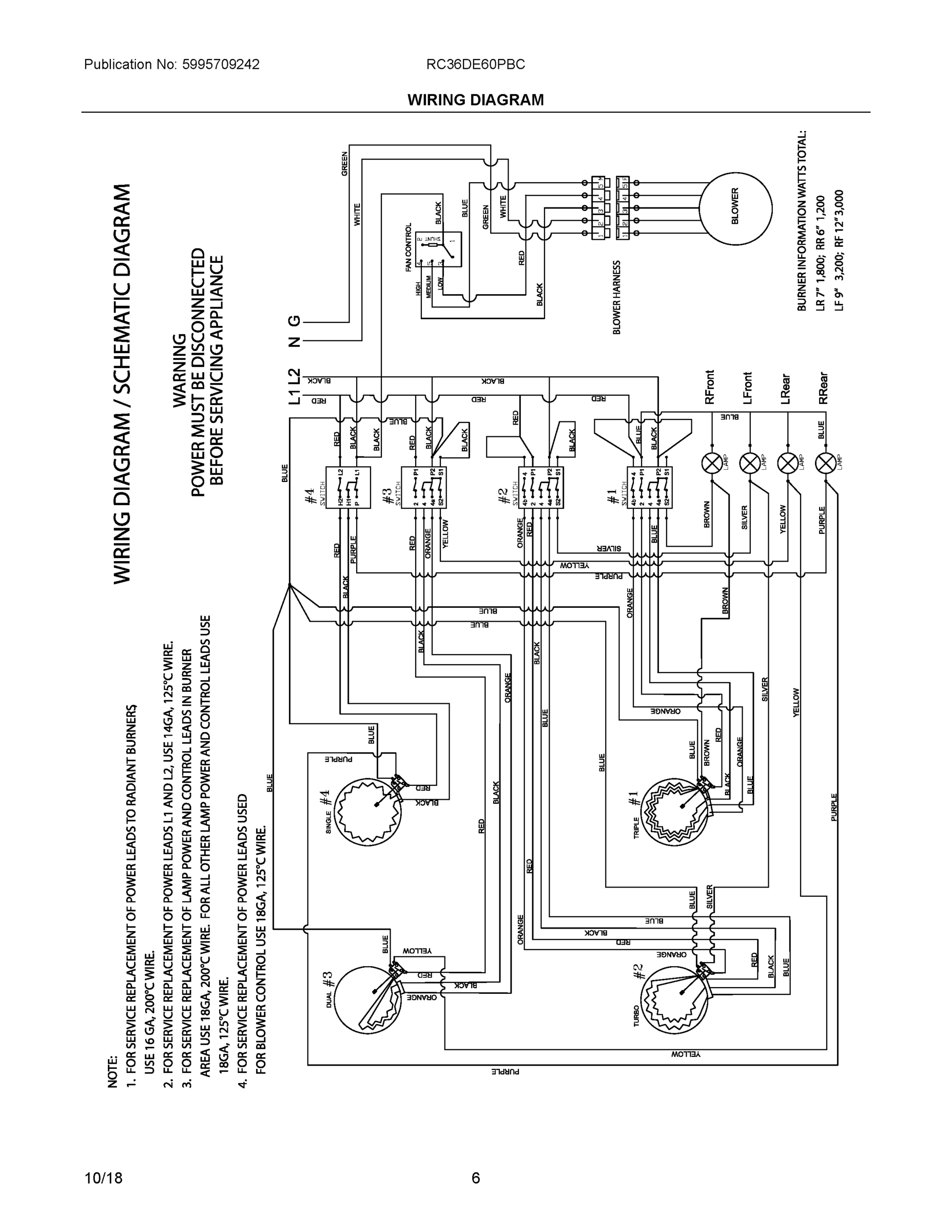

HARNESS, WIRING, MAIN WCI 5304519994 Contact Us For Availability

View on Model

×
