Model Accelerated Cooking Products RC27-P1198618M Amana Menumaster RC27 – Common Parts & Diagrams
CHASSIS ASSEMBLY PARTS
DOOR ASSEMBLY
MISCELLAEOUS INFORMATION

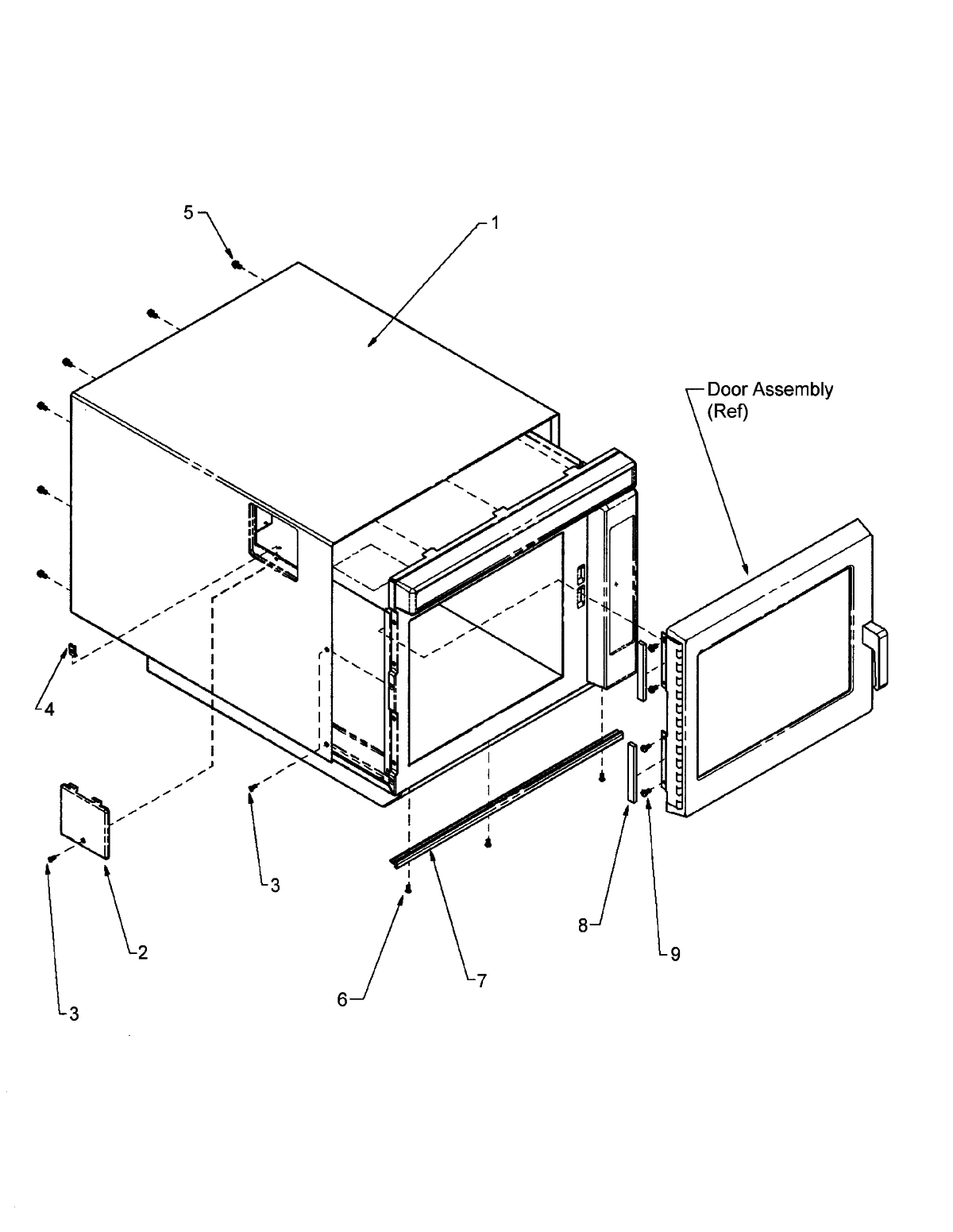

OUTERCASE ASSEMBLY

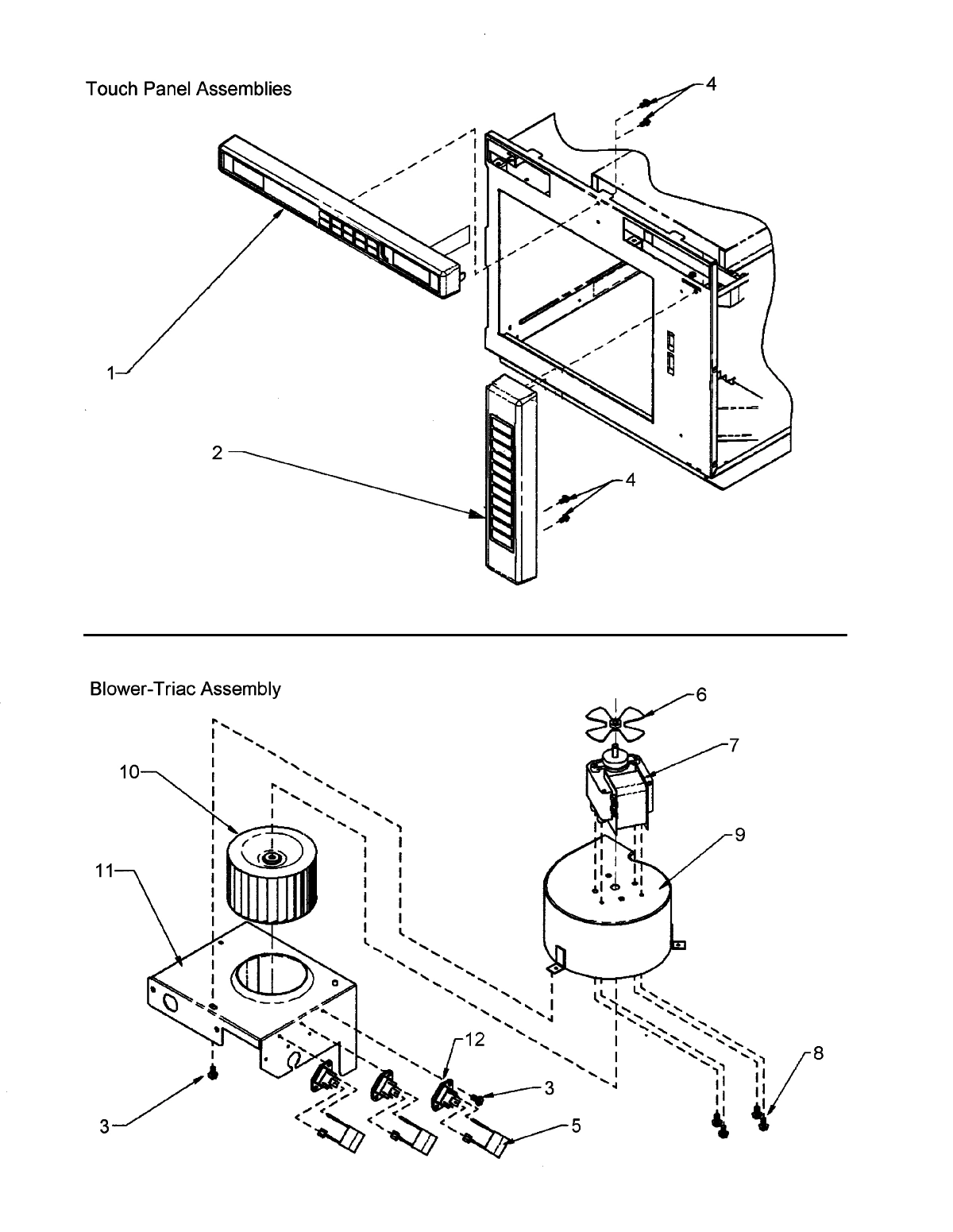

TOUCH PANEL & BLOWER-TRIAC ASSEMBLY
Common parts from model Accelerated Cooking Products RC27-P1198618M Amana Menumaster RC27
1
TOUCH PANEL ASSY ACP R0156972 Contact Us For Availability
2
KIT, INNER DOOR & WELD ACP R0156921 Contact Us For Availability
2
TOUCH PANEL ASSY- SIDE ACP R0156975 Contact Us For Availability
7
KIT, CAVITY- 3 TUBE ACP R0000108 Contact Us For Availability
7
MOTOR- BLOWER ACP 10773305 Contact Us For Availability
8
KIT, FUSE- 15 AMP ACP 12001916 Contact Us For Availability
9
WELD, SCROLL ACP 10797202 Contact Us For Availability
13
PIN, COTTER ACP M1200005 Contact Us For Availability
13
TRANSFORMER, AUTO ACP C8901507 Contact Us For Availability
17
BASE PAN ASSY ACP R0156923 Contact Us For Availability
19
CLIP-CORD ACP M0104106 Contact Us For Availability
20
CAP-SCREW ACP M0308801 Contact Us For Availability
20
BUSHING, SNAP ACP A3293503 Contact Us For Availability
21
RELIEF-STRAIN ACP M0370011 Contact Us For Availability
22
DUCT-BTM EXHAUST ACP 14179136 Contact Us For Availability
23
ANTENNA ASSY, BLUE TIP ACP 10787602 Contact Us For Availability
24
ANTENNA ASSY, PLAIN TIP ACP 10787601 Contact Us For Availability
27
SCREW ACP M0216716 Contact Us For Availability
28
SUPPORT ACP 59174558 Contact Us For Availability
31
CAPACITOR-.74 ACP D8547928 Contact Us For Availability
32
CAPACITOR- .80 ACP D8547929 Contact Us For Availability
999
HARNESS, OVEN LAMP ACP 10901201 Contact Us For Availability
999
WIRE, JUMPER #6 ACP 10902941 Contact Us For Availability
999
HARNESS, TRANSFORMER ACP 12424801 Contact Us For Availability
999
HARNESS, HV ACP 12424701 Contact Us For Availability
999
HARNESS, WIRE ACP 12329001 Contact Us For Availability
× ![]()
