Model Whirlpool RC24LN-3AW REFRIGERATOR – Common Parts & Diagrams

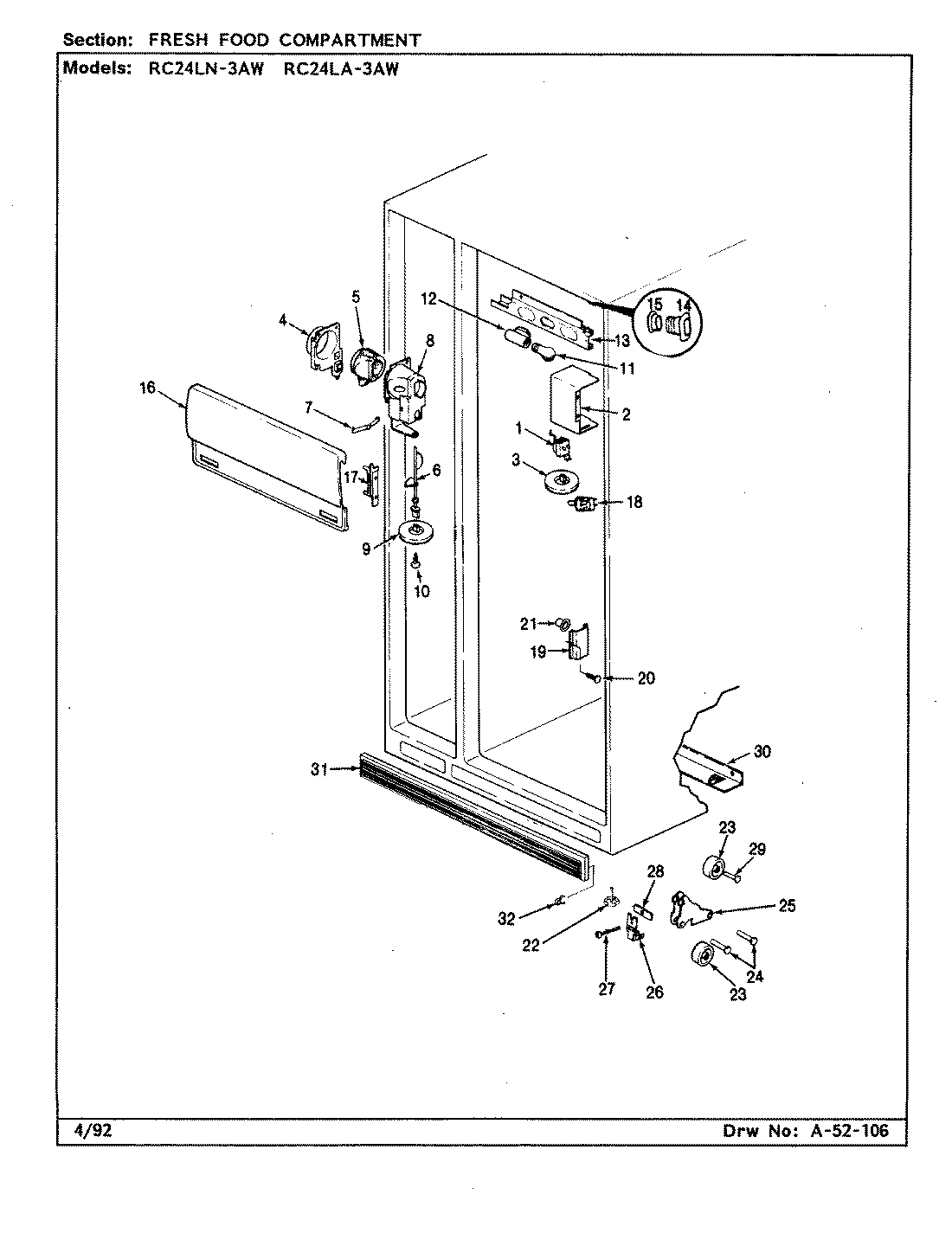

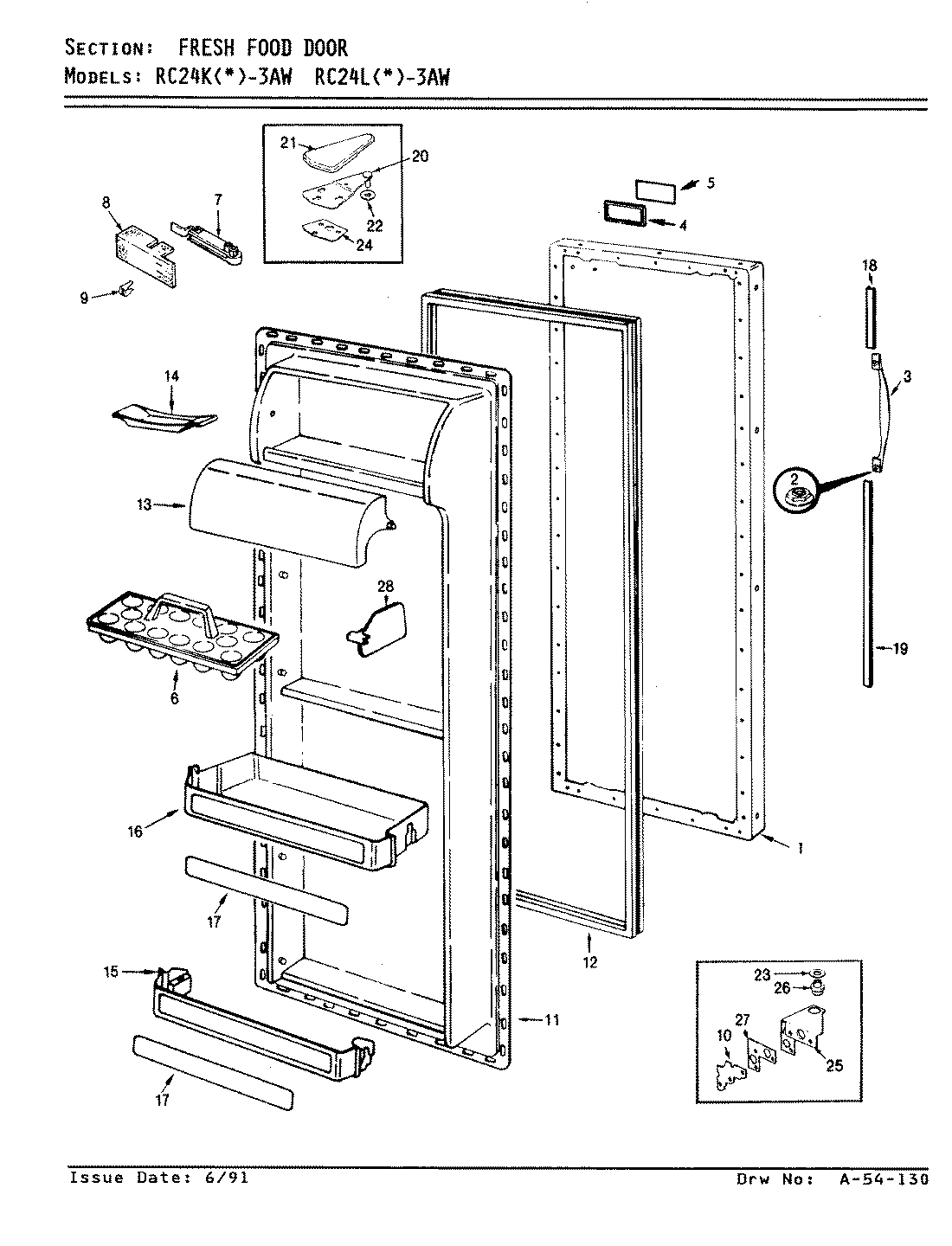

02 - FRESH FOOD COMPARTMENT

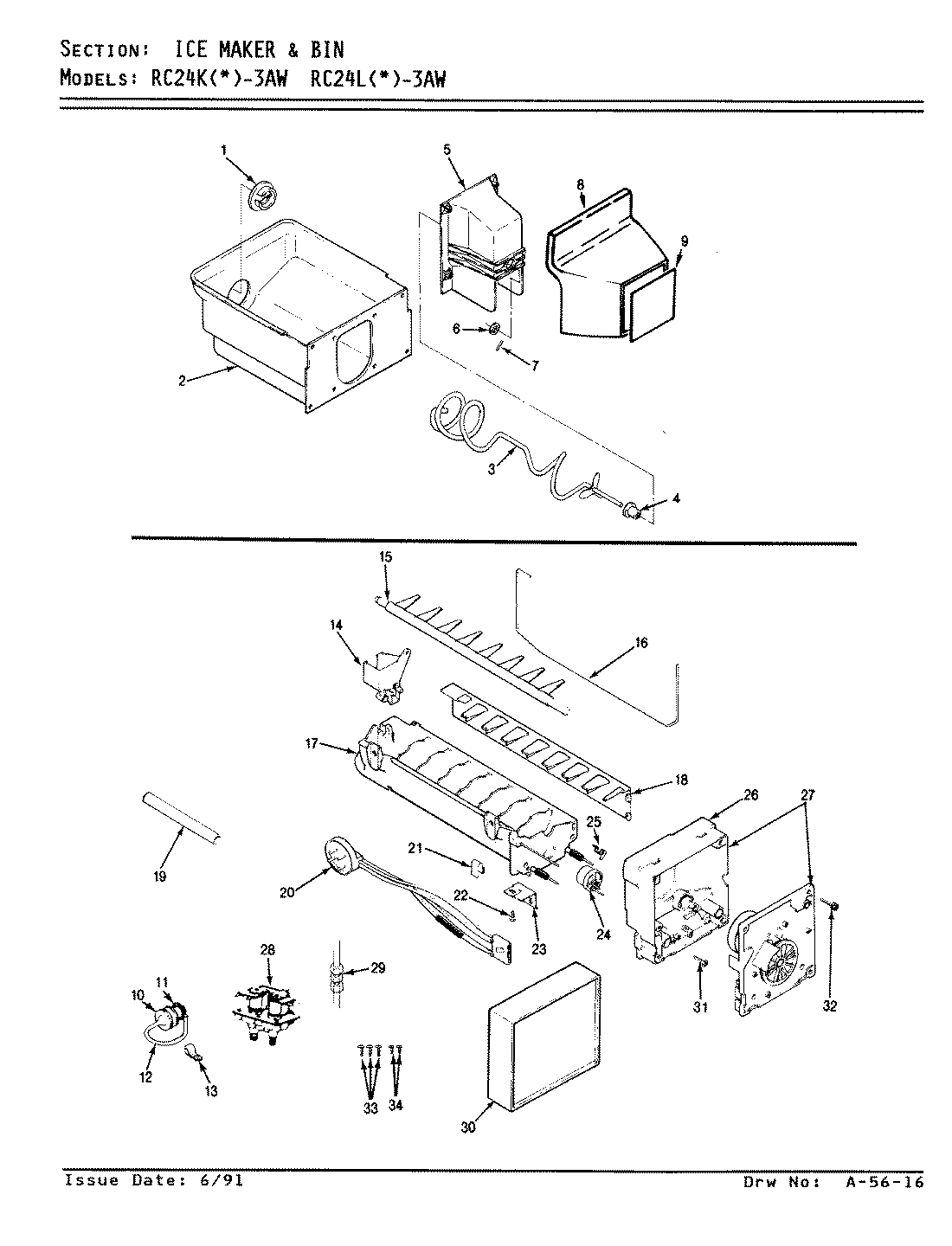

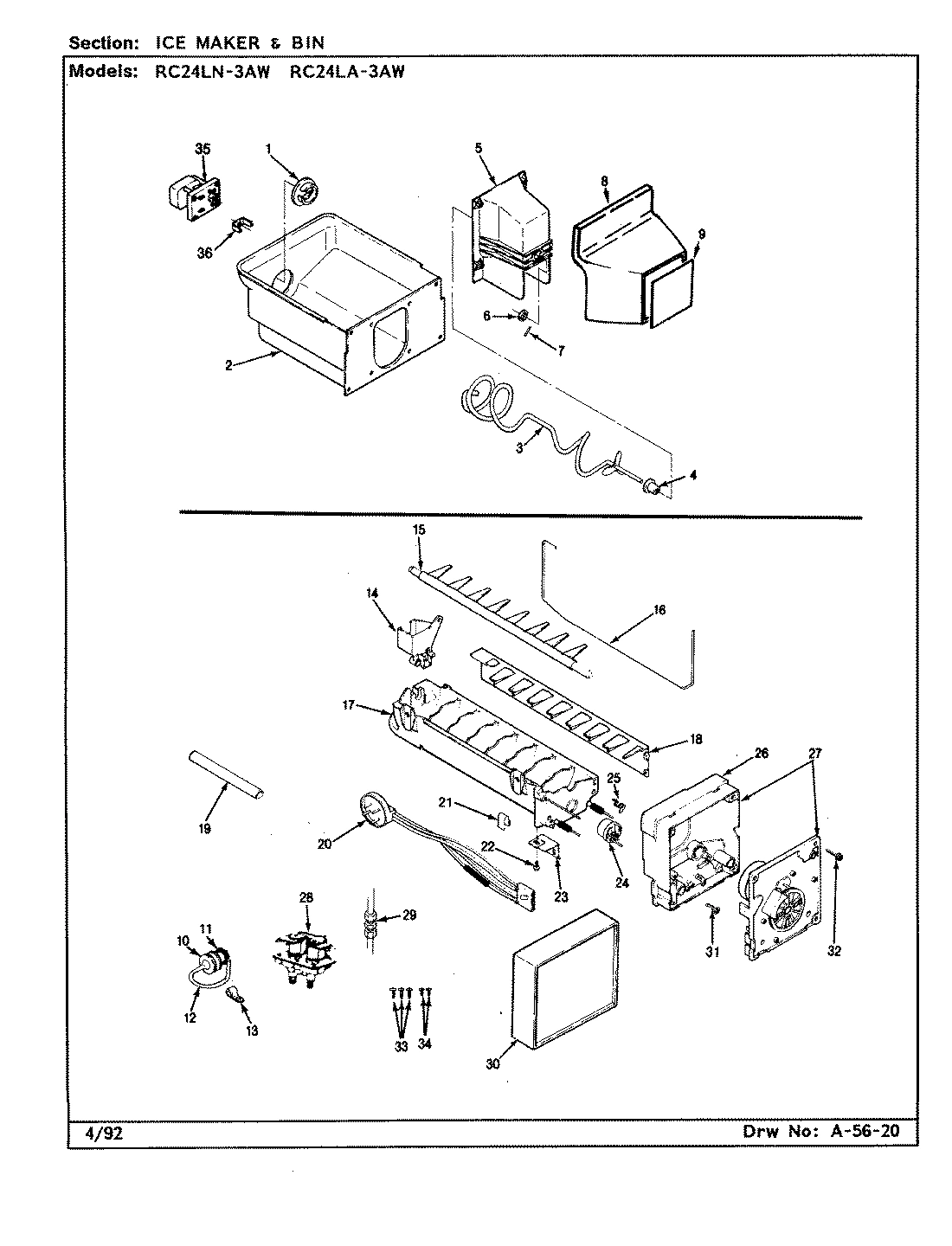

04 - ICE MAKER & BIN

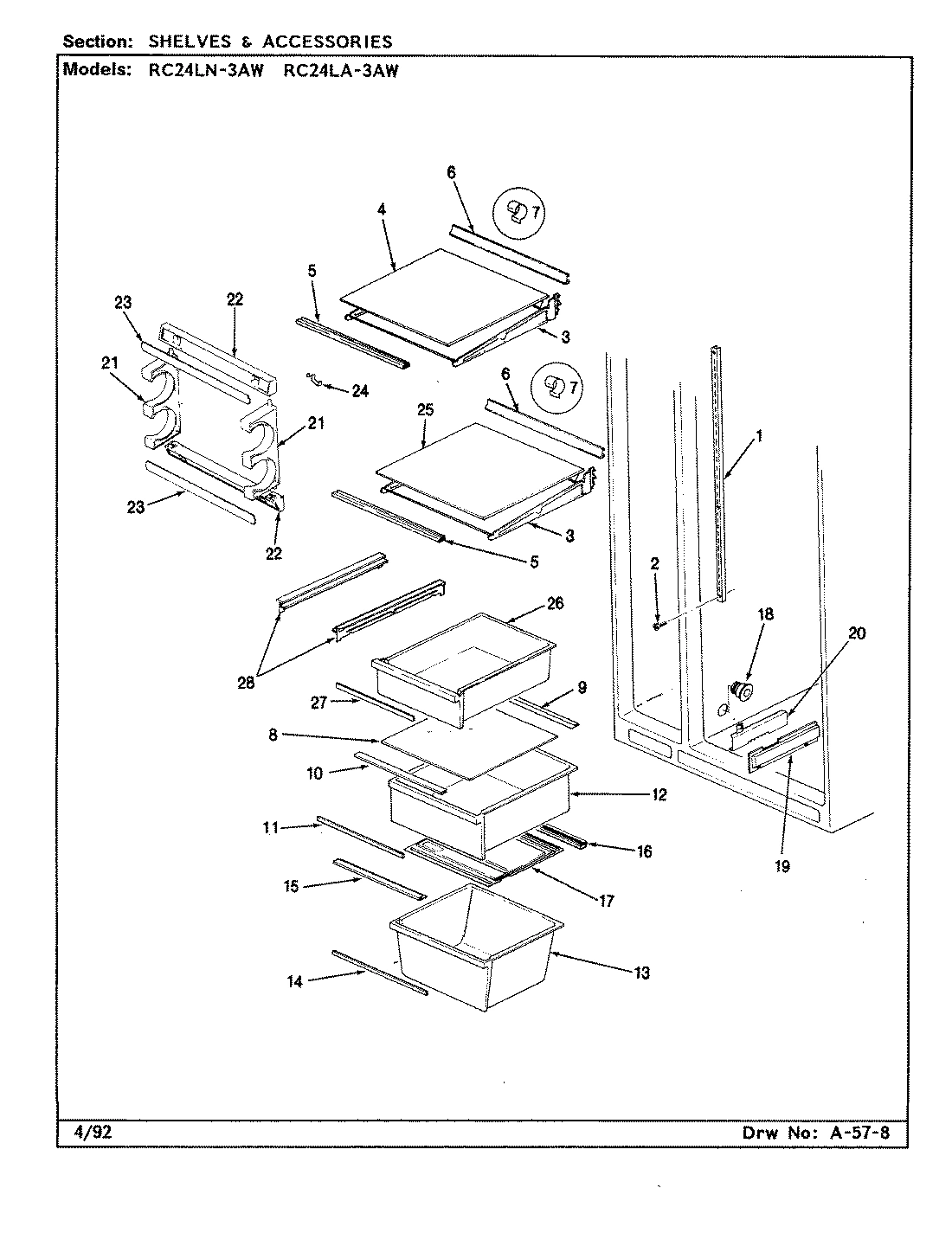

05 - SHELVES & ACCESSORIES

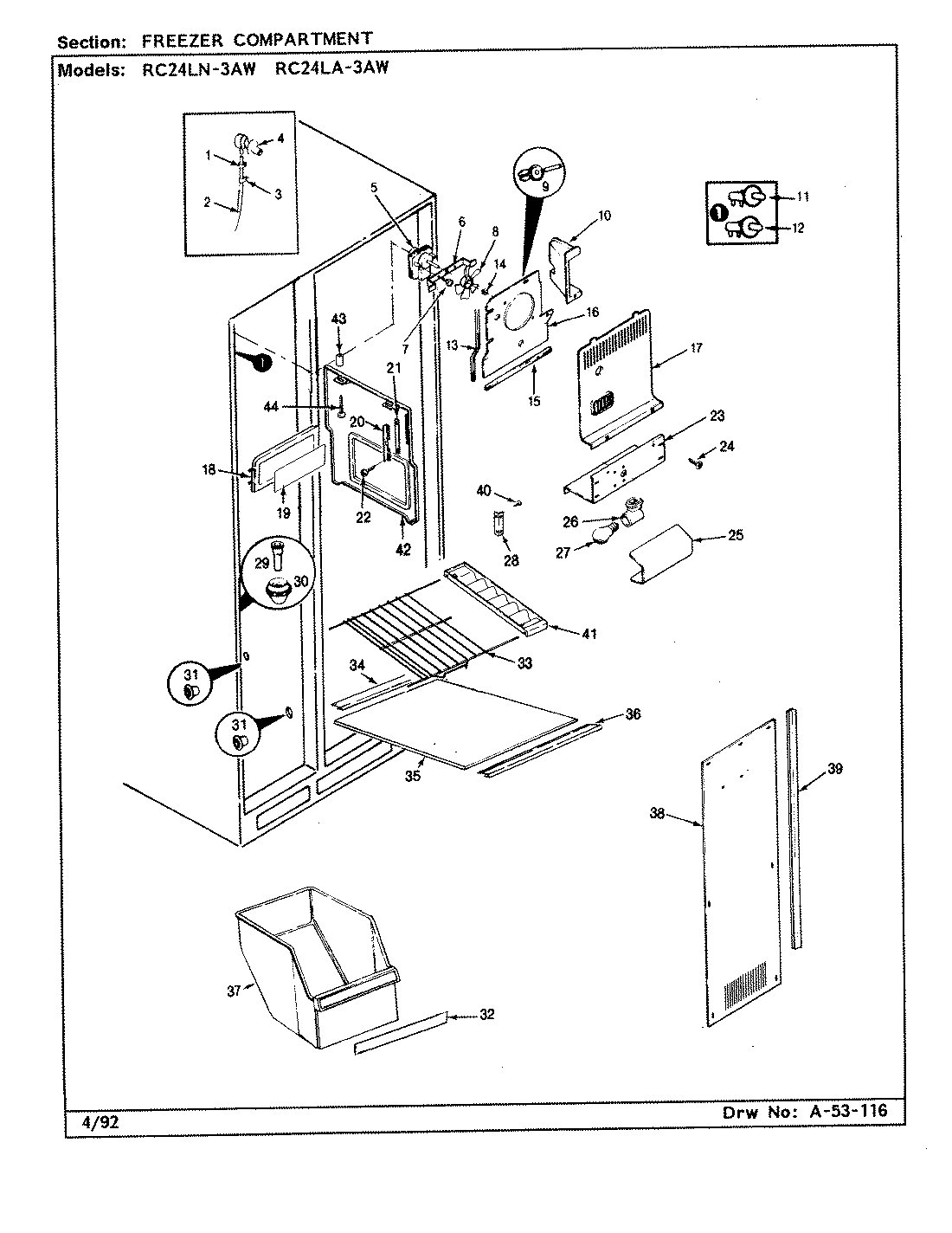

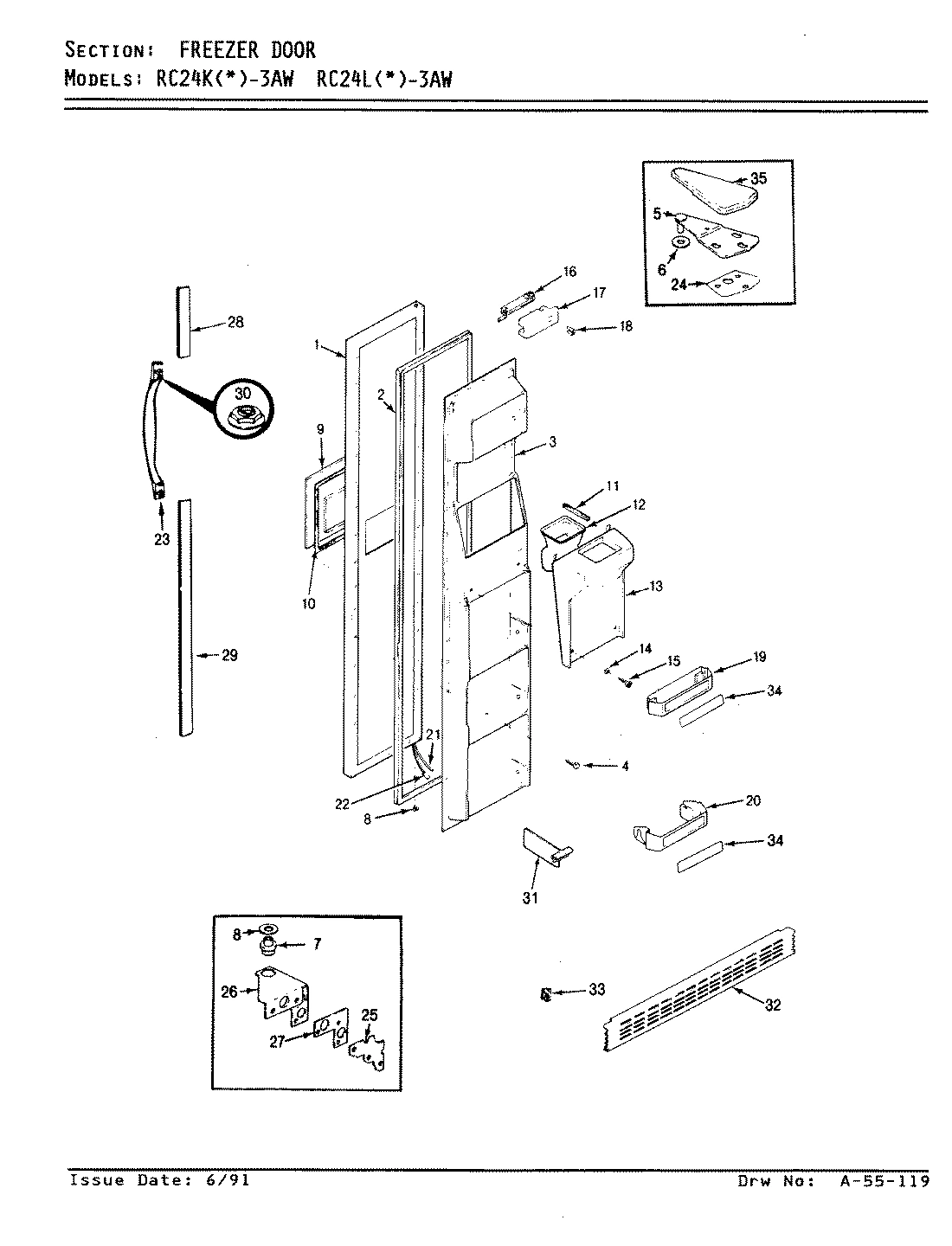

01 - FREEZER COMPARTMENT

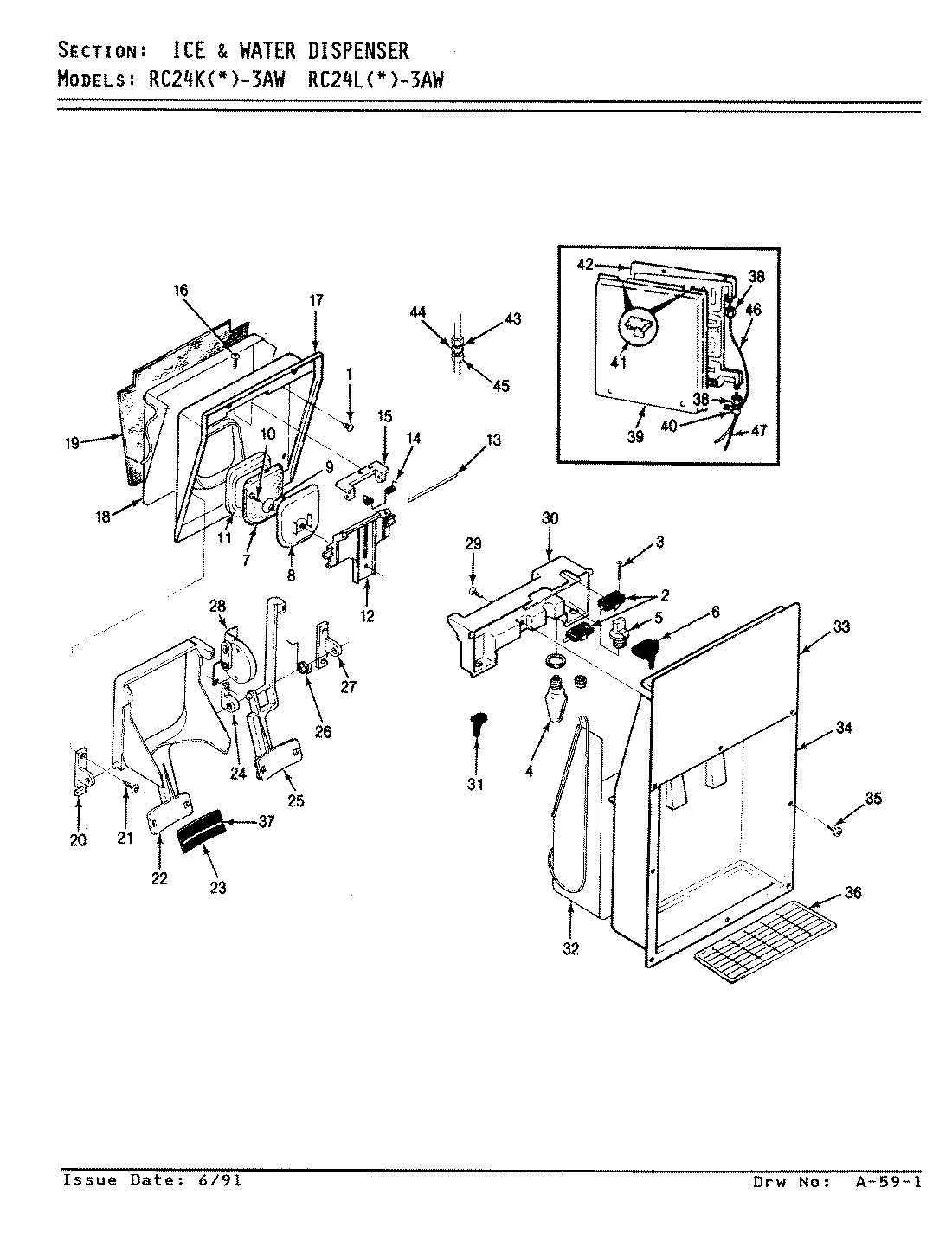

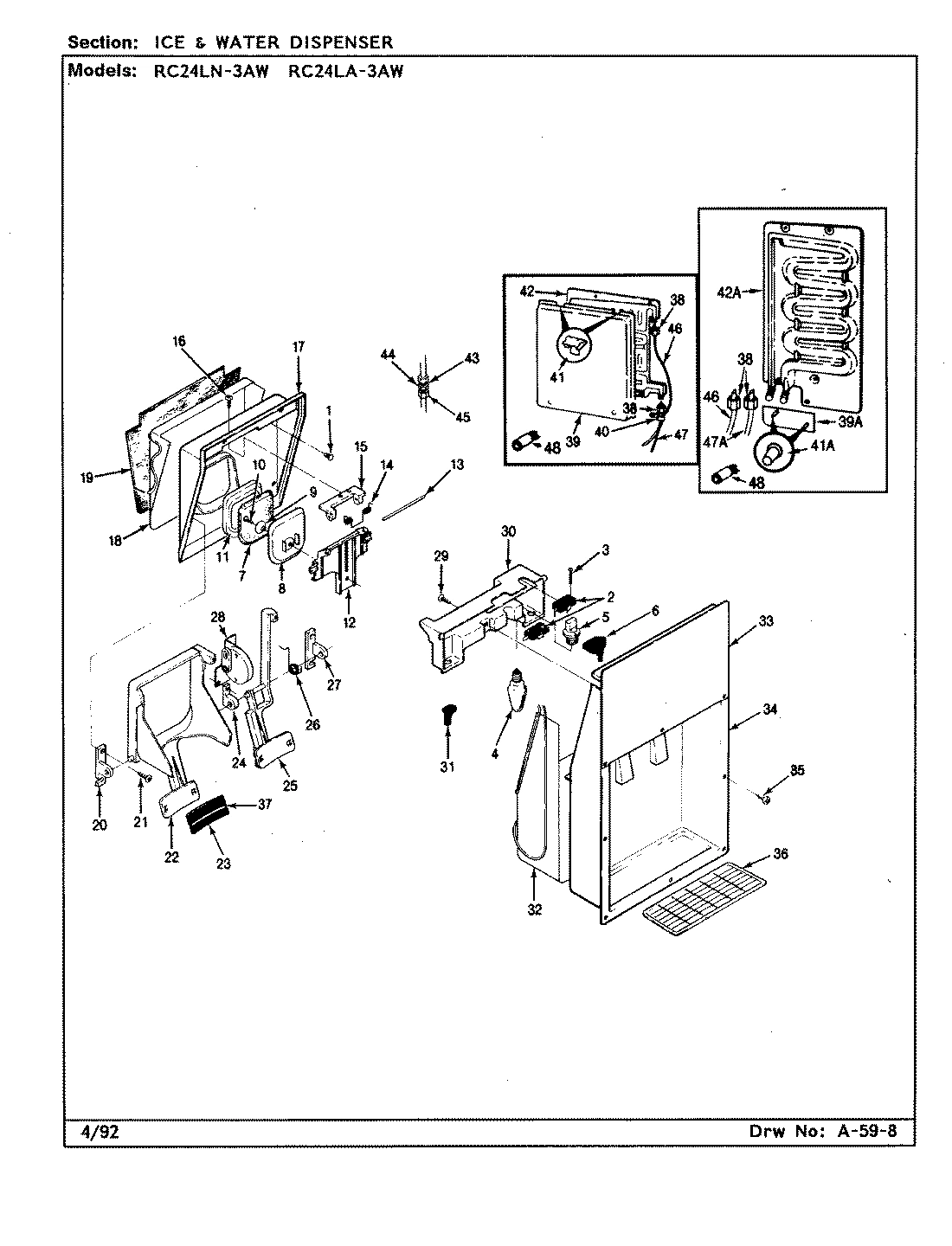

03 - ICE & WATER DISPENSER
Common parts from model Whirlpool RC24LN-3AW REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
RING, DRIVE WPL 630171 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
1
CLAMP, SPRING WPL 603334 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
FUNNEL-KIT WPL 675792 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
FRAME, SHELF WPL 656185 Contact Us For Availability
3
CLIP WPL 655171 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
4
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
4
WIRE HARNESS FRZ. WPL 690471 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
TRIM, CANT. SHELVES (FRONT) WPL 6817113 Contact Us For Availability
5
MOTOR WPL 564884 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
6
BAFFLE WPL 686101 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
6
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
6
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, PUSH WPL 673401 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
7
SCREW WPL 998645 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
SCREW WPL 405022103 Contact Us For Availability
8
FRONT WPL 685521 Contact Us For Availability
8
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
8
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
8
DOOR, ICE WPL 689571 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
INSERT, BIN FRONT WPL 687825 Contact Us For Availability
9
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
9
RIVET WPL 227156 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
NUT, INLET TUBING WPL 246851 Contact Us For Availability
10
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
10
SHIELD WPL 538371 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
11
INSERT, CRISPER PAN WPL 6812483 Contact Us For Availability
11
SWITCH WPL 564321 Contact Us For Availability
11
SEAL WPL 685602 Contact Us For Availability
12
LIGHT SWITCH WPL 689161 Contact Us For Availability
12
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
12
PAN, CRISPER WPL 6650914 Contact Us For Availability
13
HOUSING WPL 690812 Contact Us For Availability
13
CLAMP, TUBING WPL 535168 Contact Us For Availability
13
PAN, MEAT WPL 6651014 Contact Us For Availability
13
SEAL (44``) WPL 6632521 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
14
TUNNEL WPL 574101 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
INSERT, MEAT PAN WPL 6812484 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
15
RETAINER WPL 574111 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
15
SEAL WPL 689466 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
16
SHIELD, LIGHT WPL 655784 Contact Us For Availability
16
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
16
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
16
COIL COVER WPL 685502 Contact Us For Availability
17
SUPPORT WPL 536862 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
COVER, MEAT PAN WPL 656082 Contact Us For Availability
17
SEAL WPL 6632523 Contact Us For Availability
17
SHIELD, FAN WPL 672253 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
DOOR, ACCESS WPL 686201 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689381 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
19
CLIP WPL 566864 Contact Us For Availability
19
CONTROL HOUSING WPL 657372 Contact Us For Availability
19
INSERT WPL 687838 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
20
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
20
LATCH WPL 685721 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
21
SCREW WPL 4000171 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
RACK, WINE WPL 565194 Contact Us For Availability
21
SPACER WPL 686211 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
22
SCREW WPL 4000161 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
23
WHEEL WPL 298342 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
INSERT WPL 688219 Contact Us For Availability
23
BRACKET, MOTOR WPL 685511 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
SPRING, WINE RACK WPL 580571 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
GLASS, DELI WPL 6813928 Contact Us For Availability
25
SHIELD, LIGHT WPL 672921 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
26
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
26
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
26
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
26
PAN, DELI WPL 665118 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
27
BOLT, ADJ ROLLER WPL 564873 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
INSERT, DELI TRAY WPL 6812488 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
VALVE WPL 675591 Contact Us For Availability
28
SLIDE RAIL, DELI DRAWER WPL 688051 Contact Us For Availability
28
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
29
DRAIN TUBE WPL 265279 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
RAIL, HORIZONTAL SUPPORT WPL 672553 Contact Us For Availability
30
COVER ICE MAKER WPL 681131 Contact Us For Availability
30
GROMMET WPL 525261 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
31
KICKPLATE (BLK) WPL 689813 Contact Us For Availability
31
SCREW WPL 951051 Contact Us For Availability
31
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
31
RETAINER WPL 676851 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
32
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
32
SCREW WPL 951061 Contact Us For Availability
32
INSERT, FRZ. DRAWER WPL 6812489 Contact Us For Availability
32
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
33
SCREW WPL 4000221 Contact Us For Availability
33
CUP, SHELF WPL 674661 Contact Us For Availability
33
SHELF, DISPENSER WPL 686306 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
34
SCREW WPL 4010181 Contact Us For Availability
34
TRIM WPL 52014139 Contact Us For Availability
35
SCREW WPL 406026103 Contact Us For Availability
35
MOTOR, AUGER WPL 651861 Contact Us For Availability
35
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
35
SHELF WPL 6813925 Contact Us For Availability
35
SCREW WPL 405025103 Contact Us For Availability
36
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
36
TRIM, SHELF WPL 65561116 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
37
DRAWER, FRZ. WPL 6651214 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
38
SCREW WPL 40001512 Contact Us For Availability
38
COVER, COIL LOWER WPL 673353 Contact Us For Availability
39
SCREW WPL 4000211 Contact Us For Availability
39
CLIP WPL 693141 Contact Us For Availability
39
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
40
SCREW WPL 40002612 Contact Us For Availability
40
CLAMP, TANK TUBING WPL 591351 Contact Us For Availability
41
DIVIDER SHELF WPL 686291 Contact Us For Availability
42
DIVIDER WPL 686541 Contact Us For Availability
42
SCREW WPL 40004828 Contact Us For Availability
42
TANK, WATER WPL 690654 Contact Us For Availability
43
SPACER, DIVIDER WPL 688231 Contact Us For Availability
43
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
44
SCREW WPL 400035103 Contact Us For Availability
44
UNION, REDUCING WPL 676121 Contact Us For Availability
45
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
46
TUBING WPL 6757915 Contact Us For Availability
47
TUBING WPL 6718710 Contact Us For Availability
47
TUBING WPL 6757926 Contact Us For Availability
48
NYLON NUT WPL 1953036 Contact Us For Availability
× ![]()
Login and Registration Form
