Model Whirlpool RC24EY-3PW REFRIGERATOR – Common Parts & Diagrams

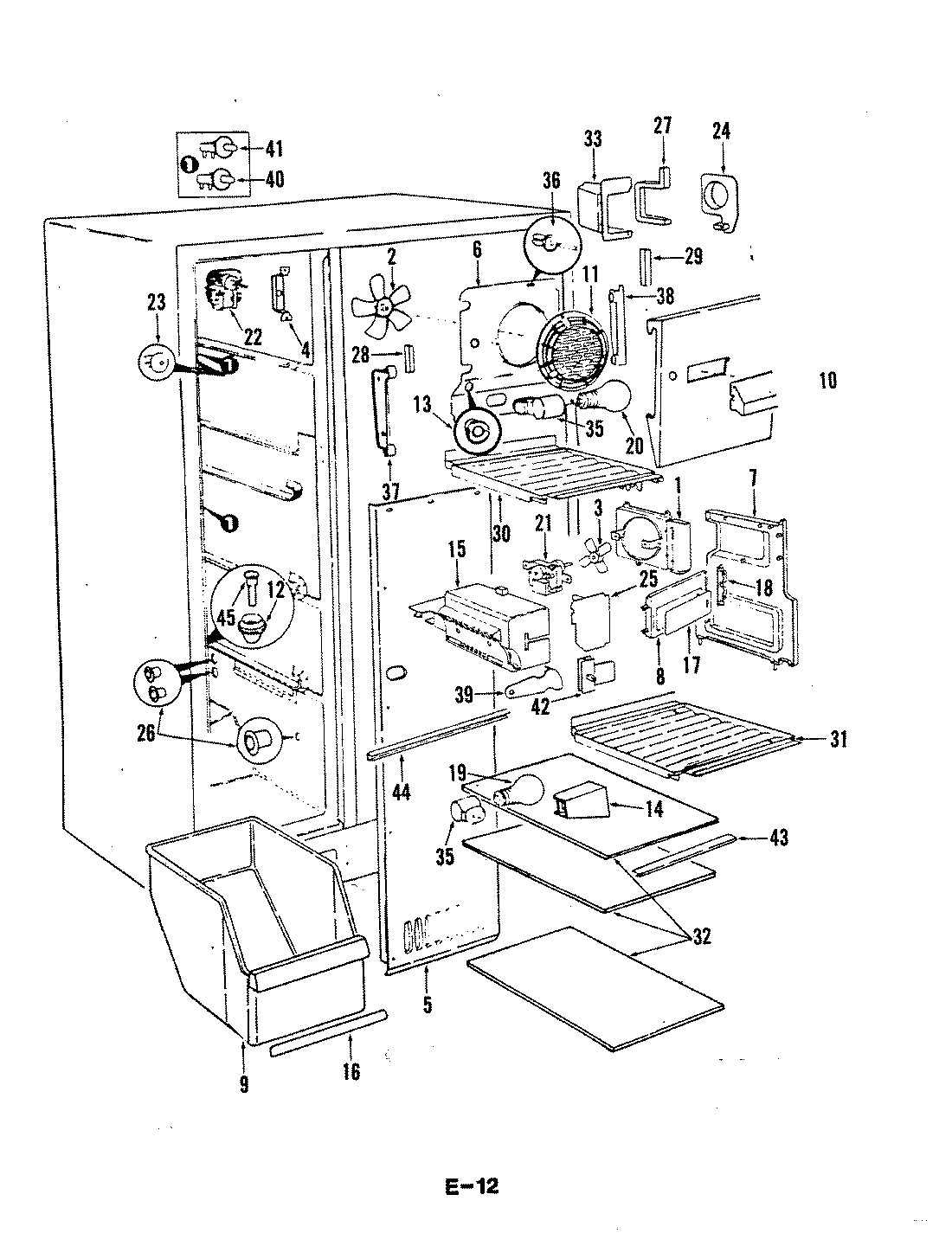

01 - FREEZER COMPARTMENT

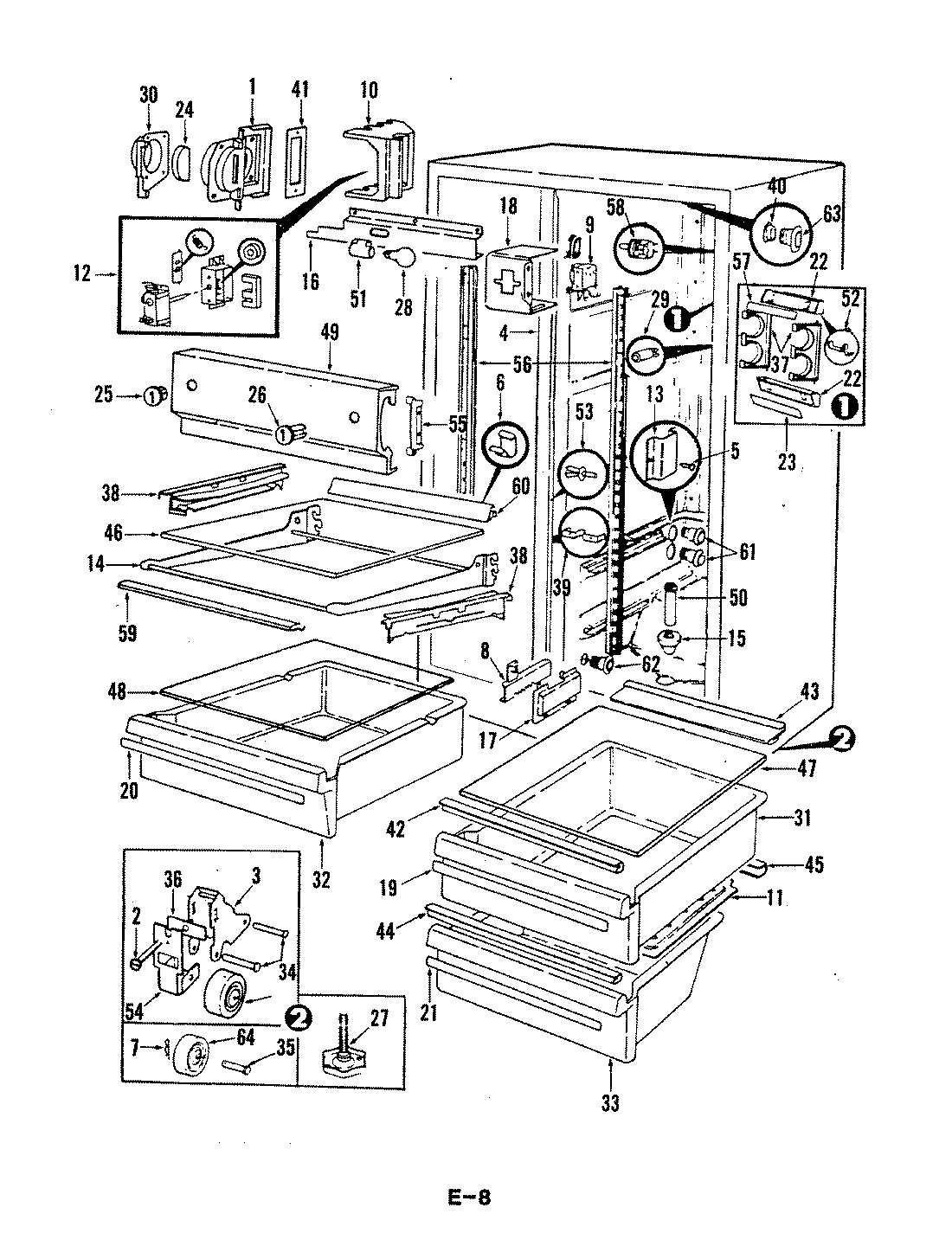

03 - FRESH FOOD COMPARTMENT

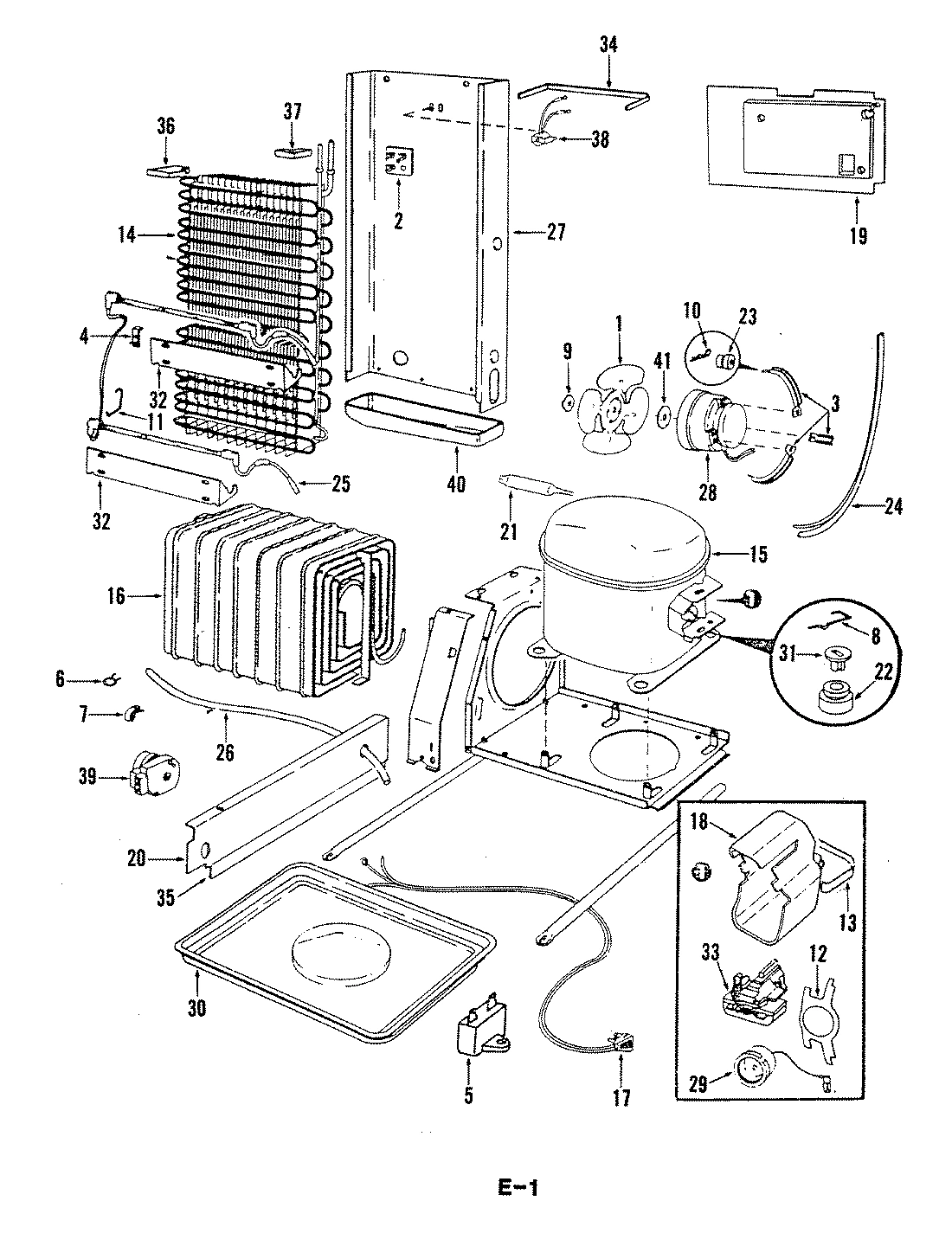

05 - UNIT COMPARTMENT & SYSTEM

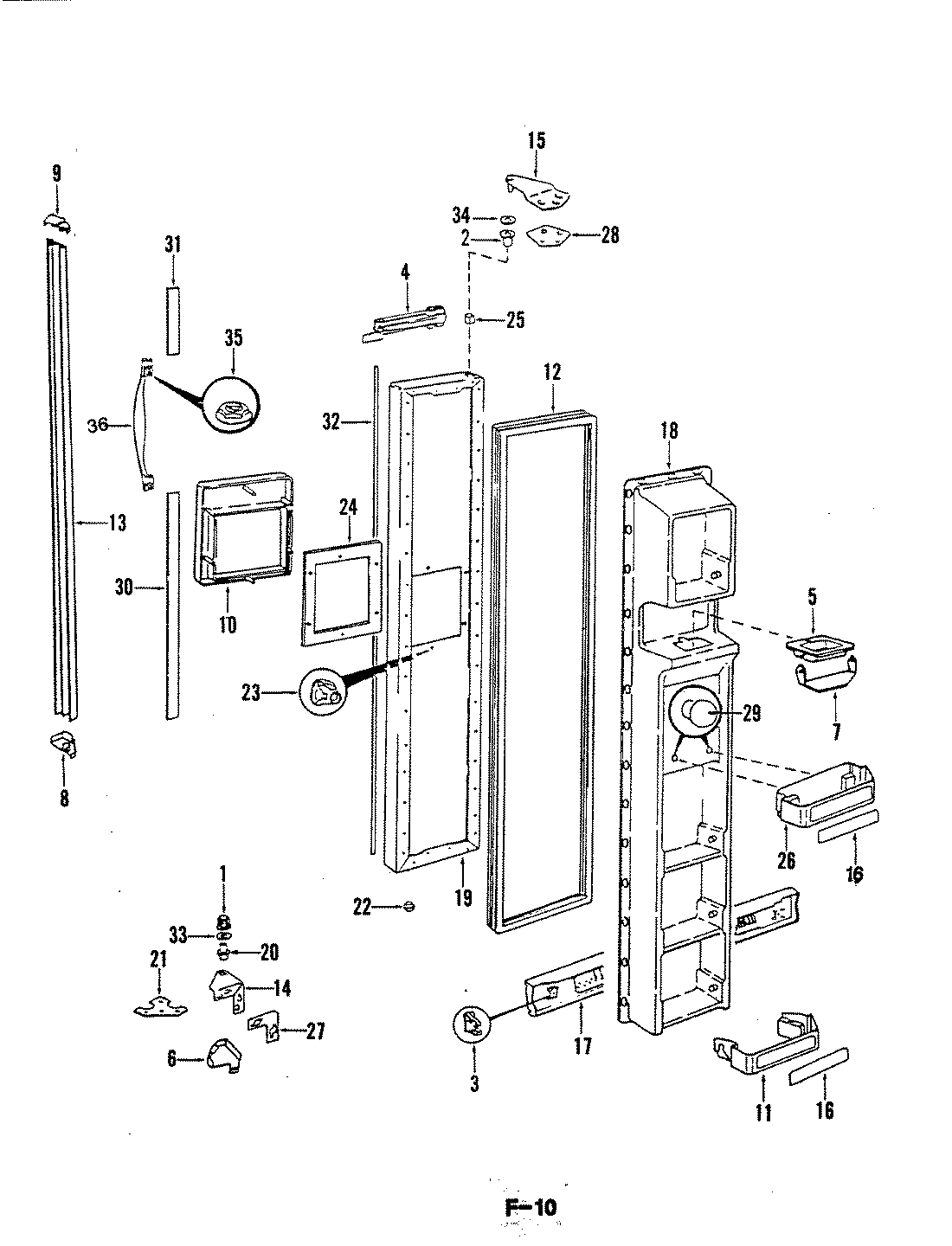

02 - FREEZER DOOR

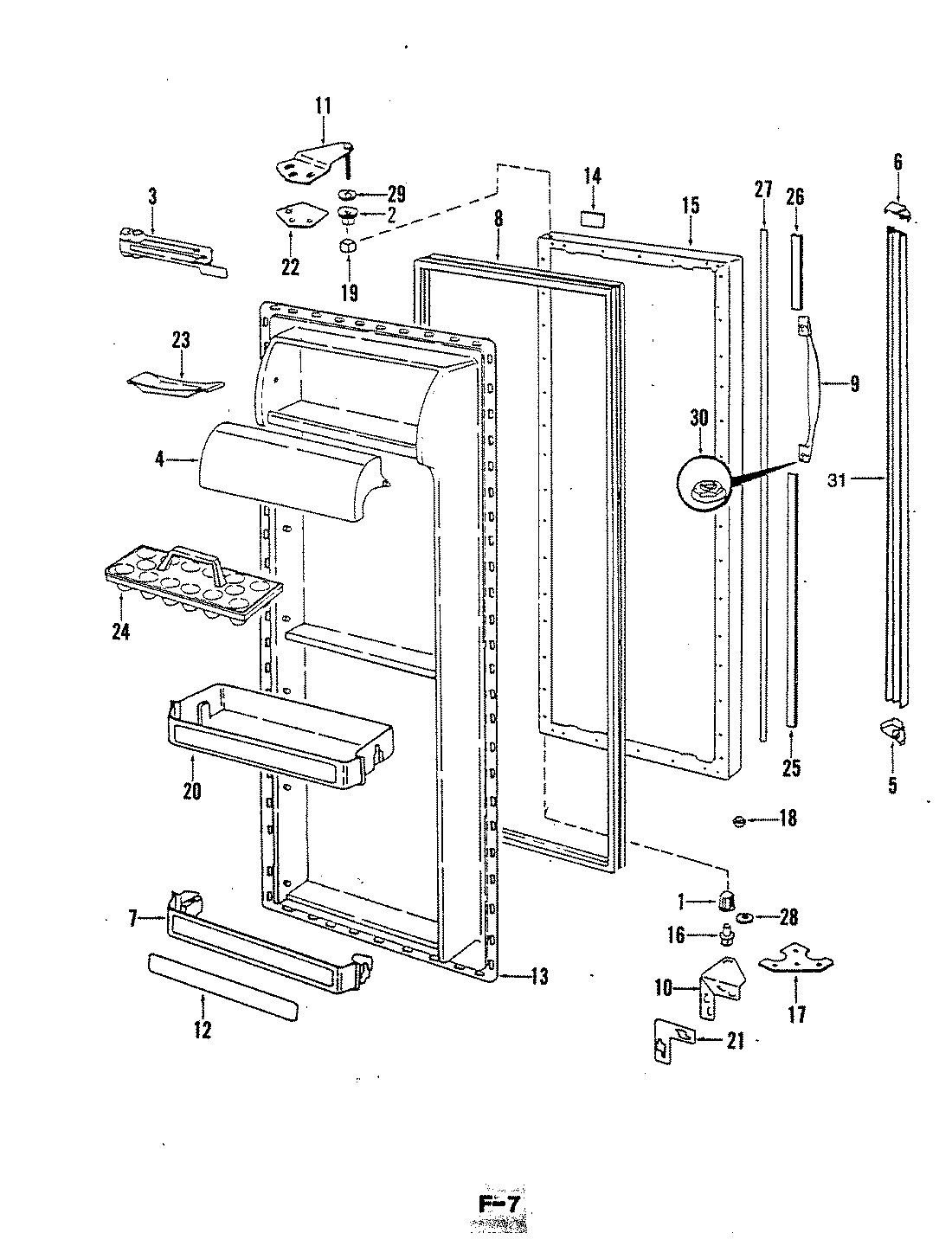

04 - FRESH FOOD DOOR

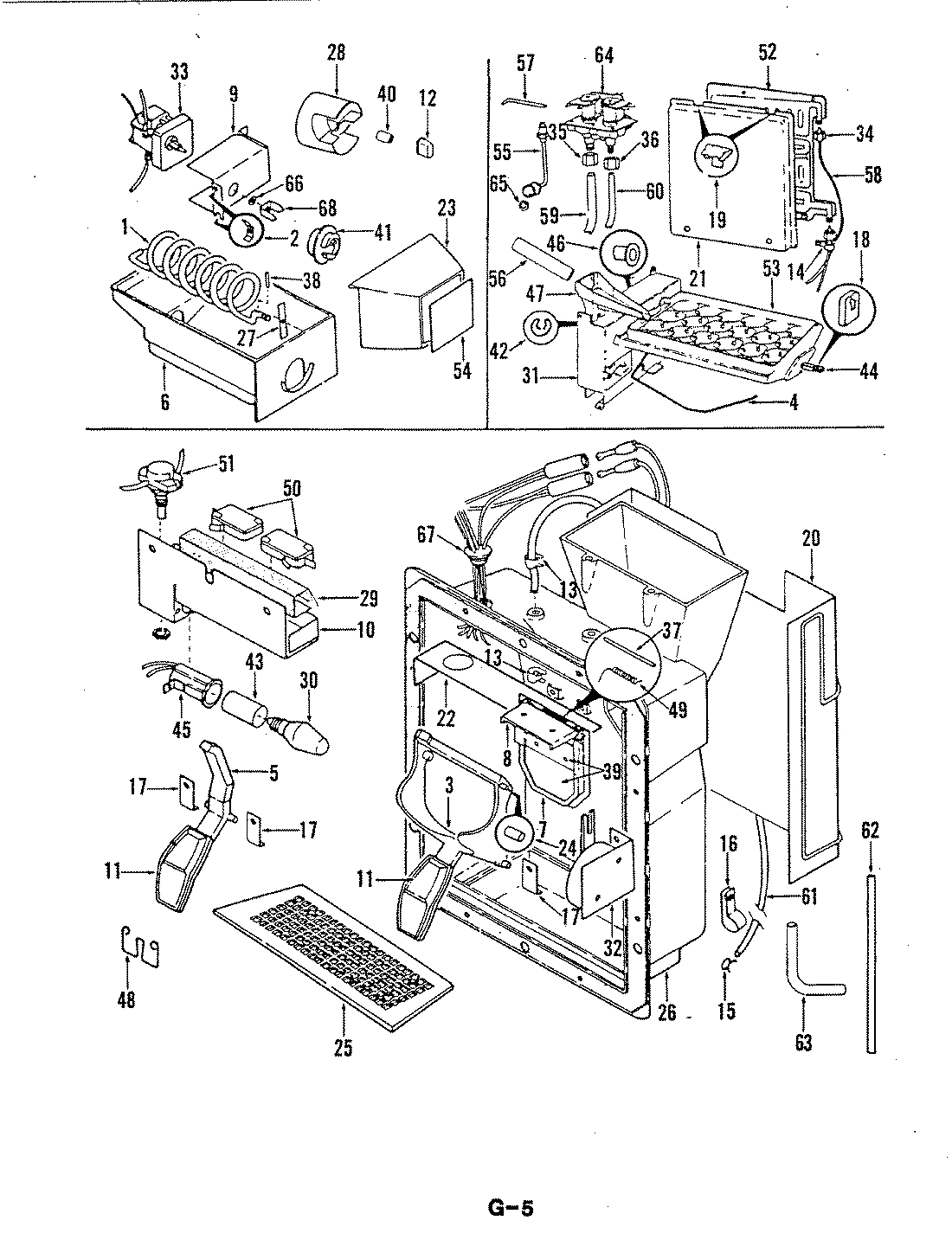

06 - WATER & ICE DISPENSER
Common parts from model Whirlpool RC24EY-3PW REFRIGERATOR
1
PLENUM BACK WPL 656391 Contact Us For Availability
1
ADAPTER WPL 656611 Contact Us For Availability
1
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
1
BRACKET, CLOSER WPL 526141 Contact Us For Availability
1
BUSHING WPL 660351 Contact Us For Availability
1
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
1
AUGER WPL 630992 Contact Us For Availability
2
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
2
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
2
BOARD, TERMINAL WPL 558781 Contact Us For Availability
2
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
2
SCREW ANCHOR WPL 604701 Contact Us For Availability
3
BLADE, FAN WPL 656882 Contact Us For Availability
3
BRACKET, WHEEL WPL 627941 Contact Us For Availability
3
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
3
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
3
CLOSER, DOOR WPL 544851 Contact Us For Availability
3
ARM,ICE WPL 630073 Contact Us For Availability
4
LEAD WPL 5465329 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
4
MULLION WPL 590261HW Contact Us For Availability
4
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
4
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
4
DOOR, DAIRY WPL 66184204 Contact Us For Availability
4
ARM, SENSOR WPL 523072 Contact Us For Availability
5
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
5
COVER, COIL WPL 6522410 Contact Us For Availability
5
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
5
CAPACITOR, RUN WPL 661211 Contact Us For Availability
5
COLLAR WPL 630202 Contact Us For Availability
5
END CAP WPL 579472 Contact Us For Availability
5
ARM, WATER WPL 630083 Contact Us For Availability
6
CUP, SHELF WPL 603131 Contact Us For Availability
6
COVER, COIL WPL 6269044 Contact Us For Availability
6
CLIP WPL 653581 Contact Us For Availability
6
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
6
WIRE COVER WPL 651311 Contact Us For Availability
6
END CAP WPL 579471 Contact Us For Availability
6
BIN WPL 630011 Contact Us For Availability
7
DIVIDER WPL 656231 Contact Us For Availability
7
CLIP WPL 566864 Contact Us For Availability
7
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
7
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
7
DOOR, ICE CHUTE WPL 630751 Contact Us For Availability
7
SHELF FRONT WPL 657814 Contact Us For Availability
7
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
8
IM DOOR WPL 656292 Contact Us For Availability
8
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
8
CLIP WPL 621651 Contact Us For Availability
8
GASKET WPL 537122 Contact Us For Availability
8
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
9
DRAWER, FRZ. WPL 655774 Contact Us For Availability
9
CONTROL, TEMPERATURE WPL 5288151 Contact Us For Availability
9
AUGER BOX WPL 630241 Contact Us For Availability
10
IM DUCT WPL 656531 Contact Us For Availability
10
INSULATION WPL 657081 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
ESCUTCHEON WPL 6048225 Contact Us For Availability
10
HINGE, LOWER WPL 6063012 Contact Us For Availability
10
BRACKET, SWITCH WPL 630132 Contact Us For Availability
11
FAN GRID WPL 626891 Contact Us For Availability
11
COVER, MEAT PAN WPL 656082 Contact Us For Availability
11
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
11
SHELF FRONT WPL 657016 Contact Us For Availability
11
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
11
PAD, ARM WPL 630661 Contact Us For Availability
12
GROMMET WPL 525261 Contact Us For Availability
12
DAMPER WPL 656811 Contact Us For Availability
12
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
12
GASKET WPL 537121 Contact Us For Availability
12
INSULATION, CLOSER WPL 526131 Contact Us For Availability
12
INSERT WPL 655719 Contact Us For Availability
12
BUSHING WPL 630231 Contact Us For Availability
13
BUSHING WPL 590901 Contact Us For Availability
13
AIR DEFLECTOR WPL 621281 Contact Us For Availability
13
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
13
HANDLE WPL 5683536 Contact Us For Availability
13
LINER, DOOR WPL 656413 Contact Us For Availability
13
CLAMP, SPRING WPL 603332 Contact Us For Availability
14
GUARD WPL 521971 Contact Us For Availability
14
FRAME, SHELF WPL 656182 Contact Us For Availability
14
EVAPORATOR WPL RA4364340 Contact Us For Availability
14
HINGE WPL 6063014 Contact Us For Availability
14
NAMEPLATE WPL 657911 Contact Us For Availability
14
CLAMP WPL 231977 Contact Us For Availability
14
CLAMP, SPRING WPL 603331 Contact Us For Availability
15
PLENUM WPL 656211 Contact Us For Availability
15
GROMMET WPL 555121 Contact Us For Availability
15
COMPRESSOR (NET) WPL RA996 Contact Us For Availability
15
PANEL, OUTER DOOR WPL 6239115HW Contact Us For Availability
15
CLAMP, TUBING WPL 96029 Contact Us For Availability
16
INSERT WPL 6558331 Contact Us For Availability
16
HOUSING WPL 597405 Contact Us For Availability
16
CONDENSER WPL RA436444 Contact Us For Availability
16
INSERT WPL 6557116 Contact Us For Availability
16
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
16
CLAMP, TUBING WPL 535168 Contact Us For Availability
17
INSERT WPL 657553 Contact Us For Availability
17
CONTROL HOUSING WPL 657371 Contact Us For Availability
17
CORD, POWER WPL 528902 Contact Us For Availability
17
KICKPLATE WPL 5647831 Contact Us For Availability
17
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
17
CLIP WPL 630352 Contact Us For Availability
18
IM ENCL LATCH WPL 656301 Contact Us For Availability
18
CONTROL HOUSING WPL 5368211 Contact Us For Availability
18
SLEEVE WPL 2608823 Contact Us For Availability
18
COVER, TERMINAL WPL 651891 Contact Us For Availability
18
LINER, DOOR WPL 657003 Contact Us For Availability
18
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
18
SCREW WPL 4030625 Contact Us For Availability
18
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
18
SCREW WPL 998687 Contact Us For Availability
18
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
19
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
19
INSERT WPL 6558317 Contact Us For Availability
19
COVER WPL 660331 Contact Us For Availability
19
PANEL, OUTER DOOR WPL 6306915HW Contact Us For Availability
19
SEAL SLEEVE WPL 559901 Contact Us For Availability
19
CLIP, WATER TANK MOUNTING WPL 620821 Contact Us For Availability
20
INSERT WPL 6558319 Contact Us For Availability
20
BAFFLE WPL 298384 Contact Us For Availability
20
PIN WPL 554791 Contact Us For Availability
20
SHELF FRONT WPL 657824 Contact Us For Availability
20
HEATER, FOUNTAIN WPL 649371 Contact Us For Availability
21
PARTY ICE MOTOR WPL 657541 Contact Us For Availability
21
INSERT WPL 6558318 Contact Us For Availability
21
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
21
COVER, WATER TANK WPL 598431 Contact Us For Availability
22
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
22
INSERT WPL 657533 Contact Us For Availability
22
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
22
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
22
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
23
NUT WPL 538211 Contact Us For Availability
23
INSERT WPL 657537 Contact Us For Availability
23
GROMMET, BRACKET WPL 569331 Contact Us For Availability
23
SCREW WPL 4000141 Contact Us For Availability
23
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
23
TRAY, BUTTER WPL 299362 Contact Us For Availability
23
ICE DISP FRONT WPL 662051 Contact Us For Availability
24
ORIFICE WPL 544231 Contact Us For Availability
24
INSULATION WPL 656711 Contact Us For Availability
24
HEAT EXCHANGER WPL RA4364540 Contact Us For Availability
24
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
24
TRAY, EGG WPL 600665 Contact Us For Availability
24
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
25
CONTROL BOARD WPL 656381 Contact Us For Availability
25
KNOB WPL 656582 Contact Us For Availability
25
HEATER, DEFROST WPL 527645 Contact Us For Availability
25
HANDLE EXT WPL 657748 Contact Us For Availability
25
GROMMET, WATER ENTRY WPL 598081 Contact Us For Availability
25
GRILL WPL 630251 Contact Us For Availability
26
SCREW WPL 4000151 Contact Us For Availability
26
SCREW WPL 4000161 Contact Us For Availability
26
SCREW WPL 4000221 Contact Us For Availability
26
SCREW WPL 4050121 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
KNOB WPL 656581 Contact Us For Availability
26
HOSE, DRAIN WPL 2691118 Contact Us For Availability
26
SHELF, FRZ. DOOR WPL 657096 Contact Us For Availability
26
HANDLE EXT WPL 657747 Contact Us For Availability
26
DISPENSER, WATER WPL 630003 Contact Us For Availability
27
SEAL WPL 5207710 Contact Us For Availability
27
LEG, LEVELING WPL 60128 Contact Us For Availability
27
HOUSING WPL 650332 Contact Us For Availability
27
SHIM WPL 606262 Contact Us For Availability
27
TRIM WPL 6577313 Contact Us For Availability
27
HUB, REINFORCING WPL 630841 Contact Us For Availability
28
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
28
FAN MOTOR WPL 280569 Contact Us For Availability
28
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
28
WASHER WPL 542331 Contact Us For Availability
28
IMPELLER WPL 630831 Contact Us For Availability
28
INSULATION WPL 630892 Contact Us For Availability
29
COIL SEAL WPL 528246 Contact Us For Availability
29
NYLON NUT WPL 195302 Contact Us For Availability
29
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
29
OVERLOAD WPL 5306780 Contact Us For Availability
29
SHELF STUD WPL 656601 Contact Us For Availability
29
WASHER WPL 521851 Contact Us For Availability
29
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
30
SHELF, FRZ. WPL 656517 Contact Us For Availability
30
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
30
PAN, DRAIN WPL 298394 Contact Us For Availability
30
PAN, FRZ. WPL 657718 Contact Us For Availability
30
FASTENER WPL 434003506 Contact Us For Availability
30
BULB, LIGHT WPL 631791 Contact Us For Availability
31
SHELF, FRZ. WPL 656518 Contact Us For Availability
31
PAN, CRISPER WPL 655744 Contact Us For Availability
31
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
31
HANDLE WPL 636863 Contact Us For Availability
31
ICEMAKER MECH WPL RA4371410 Contact Us For Availability
32
GLASS SHELF WPL 6559818 Contact Us For Availability
32
PAN, DELI WPL 655764 Contact Us For Availability
32
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
32
WASHER WPL 4200631 Contact Us For Availability
32
MOTOR, INERTIA WPL 652121 Contact Us For Availability
33
SHIELD WPL 538371 Contact Us For Availability
33
PAN, MEAT WPL 655754 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
33
SCREW WPL 641391 Contact Us For Availability
33
SCREW WPL 652751 Contact Us For Availability
33
RELAY, START WPL 655291 Contact Us For Availability
33
WASHER WPL 4200281 Contact Us For Availability
33
WASHER WPL 542332 Contact Us For Availability
33
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
33
MOTOR, AUGER WPL 651861 Contact Us For Availability
34
PIN, WHEEL WPL 649651 Contact Us For Availability
34
SEAL WPL 5207714 Contact Us For Availability
34
WASHER WPL 521852 Contact Us For Availability
35
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
35
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
35
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
36
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
36
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
36
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
37
SUPPORT WPL 536872 Contact Us For Availability
37
RACK, WINE WPL 565194 Contact Us For Availability
37
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
PIN, ICE DOOR WPL 630531 Contact Us For Availability
38
SUPPORT WPL 544242 Contact Us For Availability
38
SLIDE RAIL WPL 668121 Contact Us For Availability
38
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
38
PIN, AUGER WPL 630711 Contact Us For Availability
39
PLENUM FRONT WPL 656311 Contact Us For Availability
39
CLIP WPL 530604 Contact Us For Availability
39
TIMER, DEFROST WPL 657021 Contact Us For Availability
39
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
40
SWITCH WPL 564321 Contact Us For Availability
40
SCREW WPL 40003728 Contact Us For Availability
40
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
40
SCREW WPL 402005103 Contact Us For Availability
40
RETAINER WPL 574111 Contact Us For Availability
40
TROUGH, DRAIN WPL 535232 Contact Us For Availability
40
RETAINER WPL 630312 Contact Us For Availability
41
SEAL WPL 656191 Contact Us For Availability
41
SEAL WPL 656201 Contact Us For Availability
41
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
41
WIRE HARNESS WPL 659791 Contact Us For Availability
41
WIRE HARNESS WPL 661852 Contact Us For Availability
41
FLANGE HEATER WPL RA436841 Contact Us For Availability
41
RING, DRIVE WPL 630171 Contact Us For Availability
42
SWITCH, PLENUM WPL 657161 Contact Us For Availability
42
SEAL WPL 655932 Contact Us For Availability
42
SCREW WPL 40001512 Contact Us For Availability
42
SCREW WPL 4000391 Contact Us For Availability
42
SCREW WPL 4000841 Contact Us For Availability
42
SCREW WPL 405009103 Contact Us For Availability
42
SCREW WPL 4050211 Contact Us For Availability
42
SCREW WPL 405022103 Contact Us For Availability
42
RING, RETAINER WPL 587061 Contact Us For Availability
43
TRIM WPL 655682 Contact Us For Availability
43
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
43
SEAL WPL 630561 Contact Us For Availability
44
TRIM, SHELF WPL 65561411 Contact Us For Availability
44
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
44
SHAFT WPL 653192 Contact Us For Availability
45
DRAIN TUBE WPL 265275 Contact Us For Availability
45
WIRE HARNESS WPL 630872 Contact Us For Availability
45
WIRE HARNESS WPL 656761 Contact Us For Availability
45
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
45
SOCKET, LIGHT WPL 630391 Contact Us For Availability
46
GLASS SHELF WPL 6559814 Contact Us For Availability
46
SPACER WPL 653171 Contact Us For Availability
47
SHELF, CRISPER WPL 656874 Contact Us For Availability
47
SPOUT, FILL WPL 537481 Contact Us For Availability
48
GLASS SHELF WPL 6559816 Contact Us For Availability
48
SPRING WPL 633061 Contact Us For Availability
49
SHIELD, LIGHT WPL 656692 Contact Us For Availability
49
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
50
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
51
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
51
SPACER WPL 655121 Contact Us For Availability
51
SWITCH, LIGHT WPL 630401 Contact Us For Availability
52
SPRING, WINE RACK WPL 580571 Contact Us For Availability
52
WIRE TIE WPL 575763 Contact Us For Availability
52
TANK, WATER WPL 629201 Contact Us For Availability
53
STUD, (ALM) WPL 599209 Contact Us For Availability
53
TRAY, ICE WPL 596881 Contact Us For Availability
54
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
54
INSERT WPL 657073 Contact Us For Availability
55
SUPPORT WPL 536862 Contact Us For Availability
55
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
56
SUPPORT WPL 583811 Contact Us For Availability
56
TUBE, FILL WPL 584614 Contact Us For Availability
57
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
57
TUBE, FEEDER WPL 561251 Contact Us For Availability
58
SWITCH WPL 564322 Contact Us For Availability
58
TUBE WPL 556025 Contact Us For Availability
59
TRIM WPL 656142 Contact Us For Availability
59
TUBING, VALVE TO ICE MAKER WPL 556036 Contact Us For Availability
60
PLASTIC SLEEVE WPL 4008 Contact Us For Availability
60
TRIM WPL 6527614 Contact Us For Availability
60
TUBE WPL 556029 Contact Us For Availability
61
AIR TUNNEL WPL 537261 Contact Us For Availability
61
TUBING, FOUNTAIN WPL 556027 Contact Us For Availability
62
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
62
TUBING, WATER LINE WPL 6500215 Contact Us For Availability
63
TUNNEL WPL 574101 Contact Us For Availability
63
WATER LINE WPL 630382 Contact Us For Availability
64
WHEEL WPL 298342 Contact Us For Availability
64
WIRE HARNESS WPL 662011 Contact Us For Availability
64
VALVE, WATER WPL 565953 Contact Us For Availability
65
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
66
WASHER WPL 4200711 Contact Us For Availability
67
WIR WPL 630591 Contact Us For Availability
67
WPL 633721 WPL 633721 Contact Us For Availability
68
WPL 630521 WPL 630521 Contact Us For Availability
NI
SHIELD, LIGHT WPL 656542 Contact Us For Availability
× ![]()
Login and Registration Form
