Model Accelerated Cooking Products RC22S3-P1326310M Amana Menumaster RC22S3 – Common Parts & Diagrams

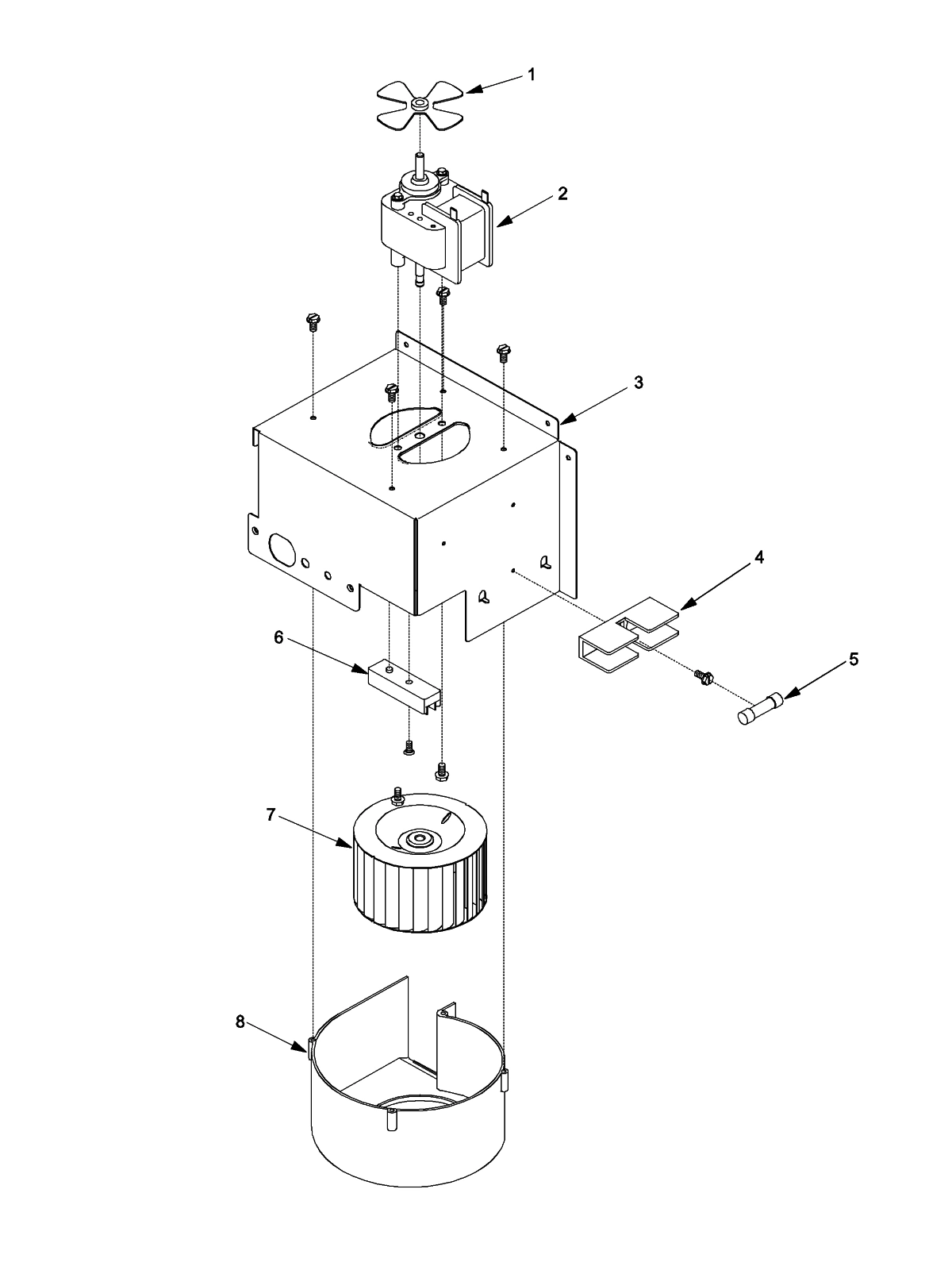

BLOWER

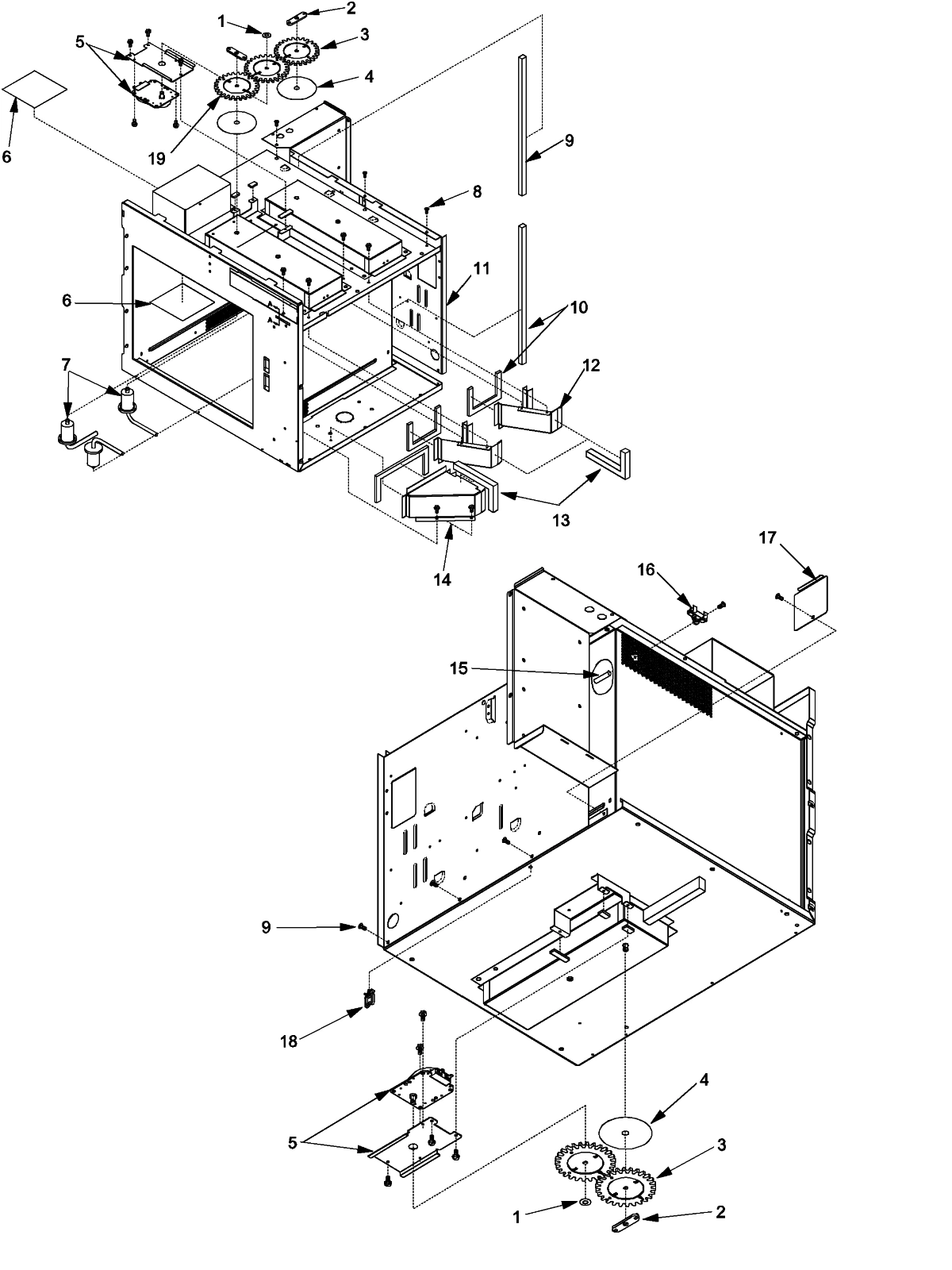

CAVITY

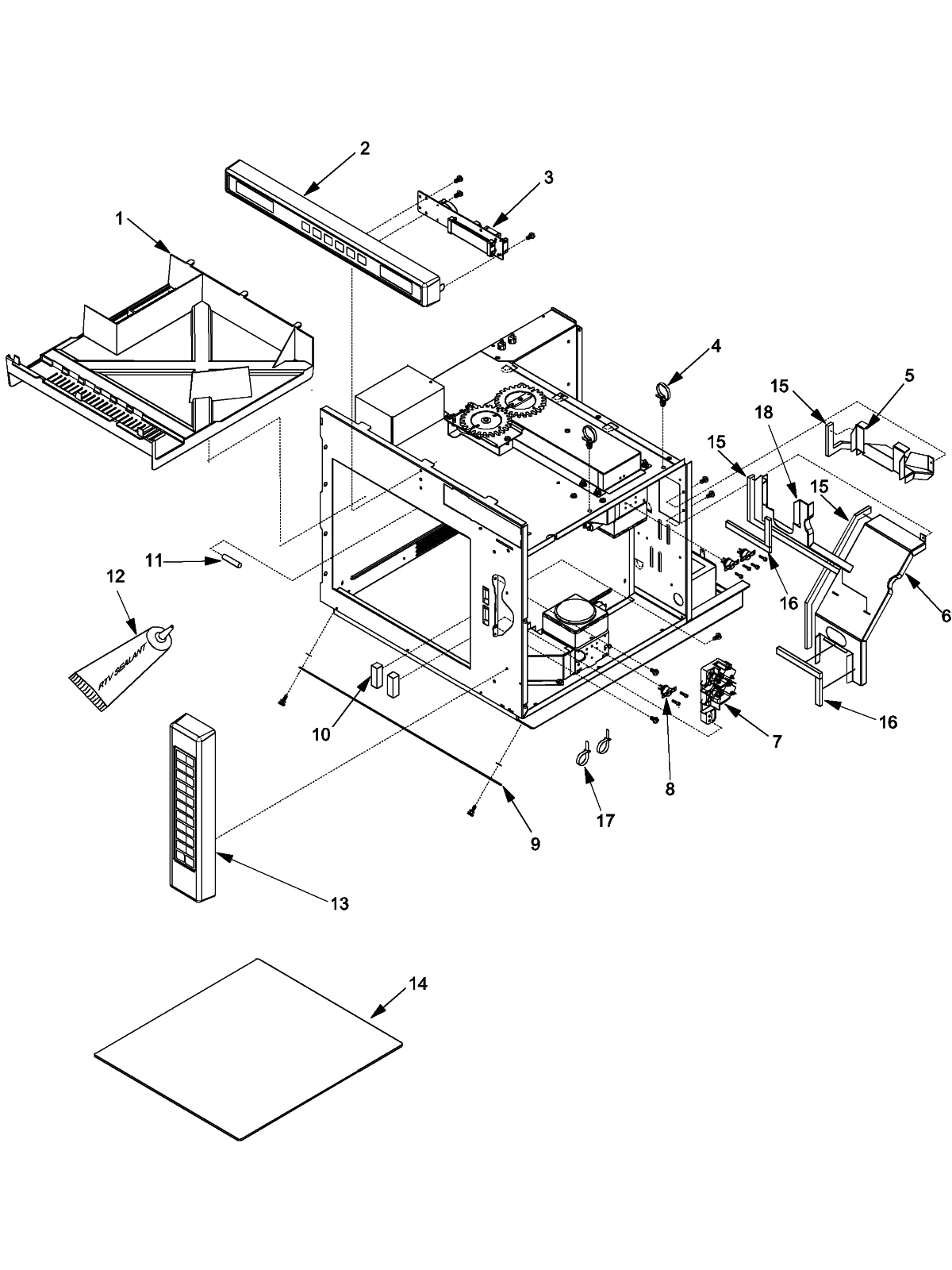

CONTROL

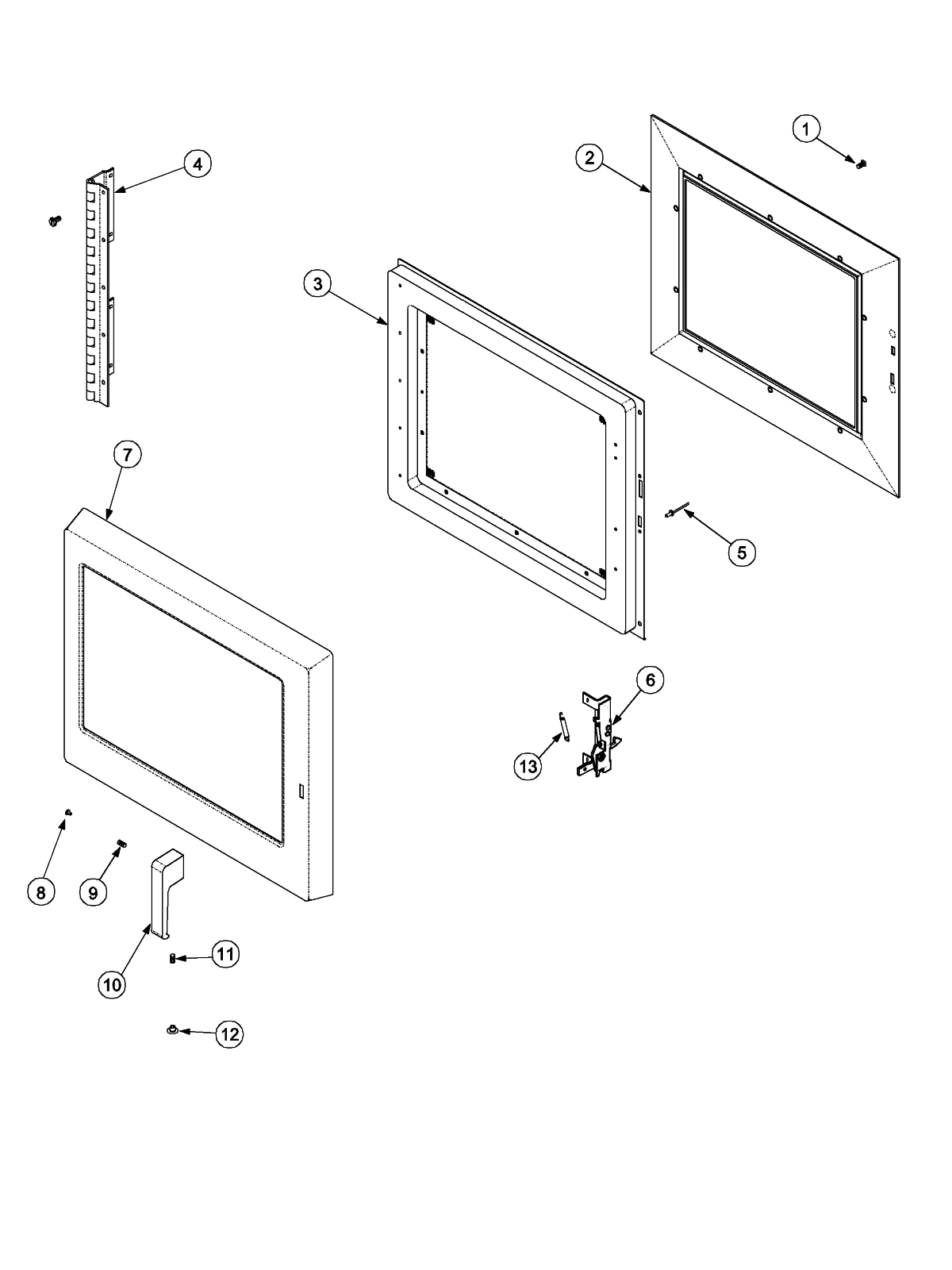

DOOR

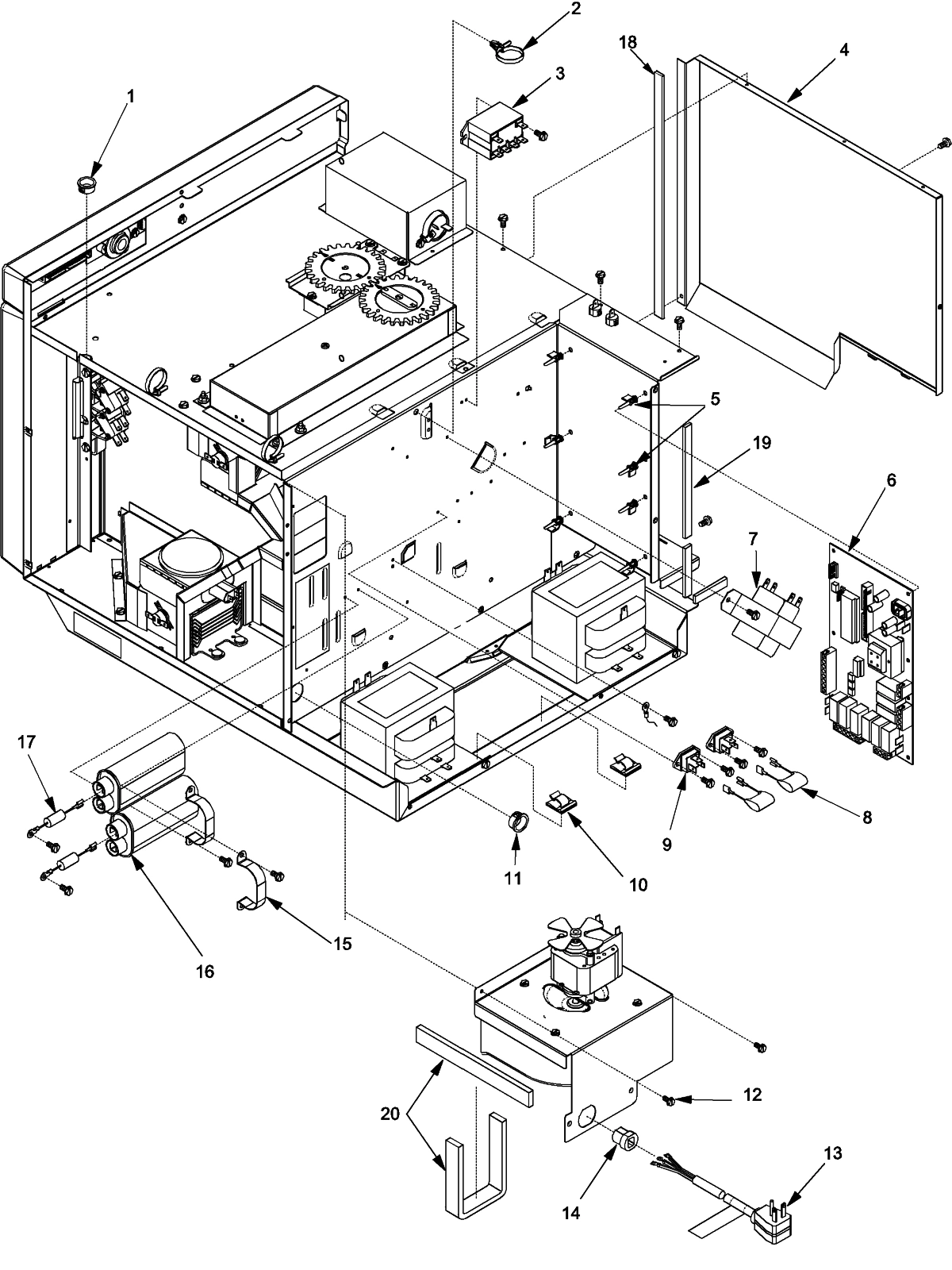

ELECTRICAL COMPONENTS

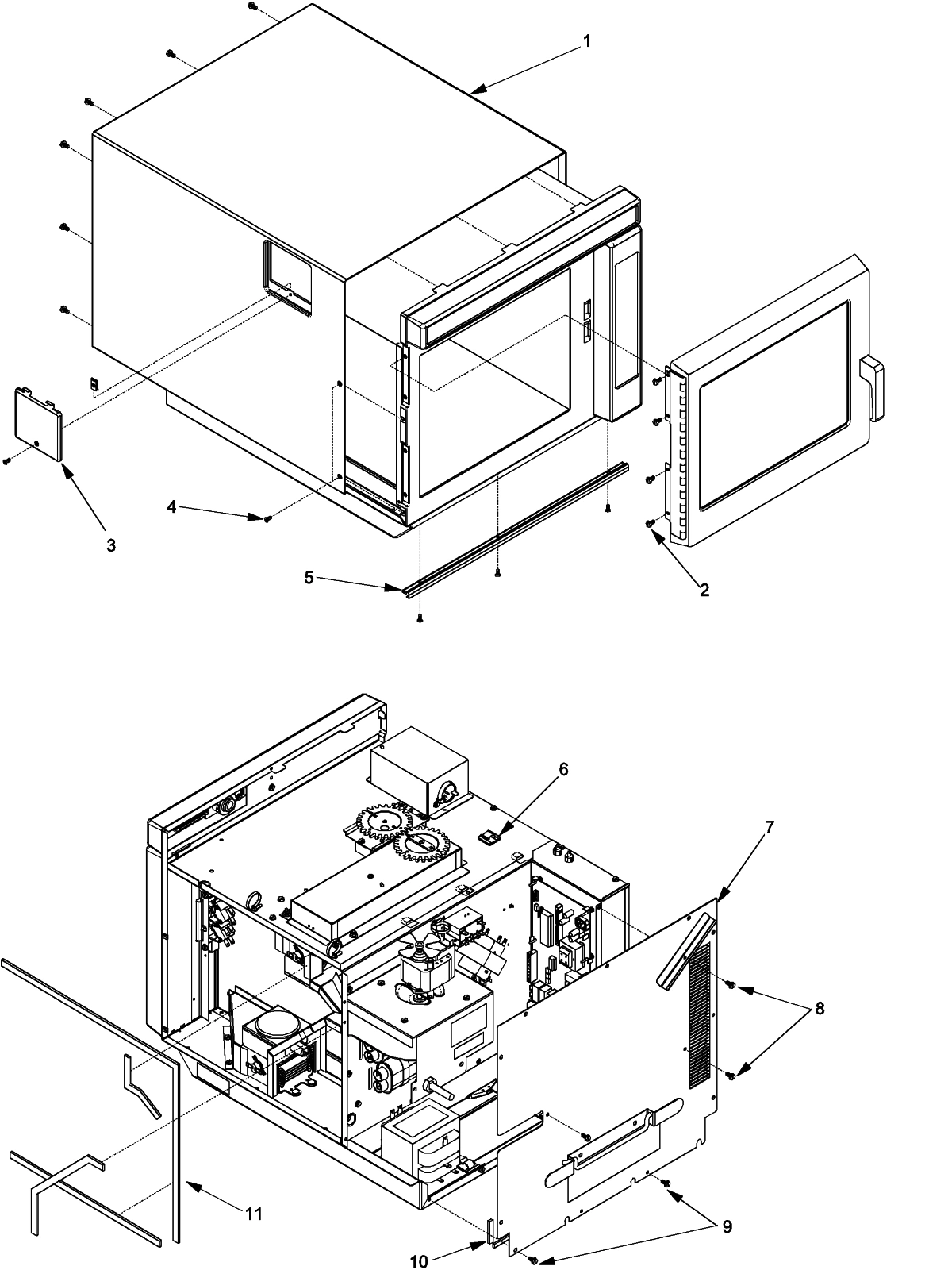

OUTERCASE
SUPPLEMENTAL INFORMATION
Common parts from model Accelerated Cooking Products RC22S3-P1326310M Amana Menumaster RC22S3
1
ANTENNA SHIELD ACP 59004008 Contact Us For Availability
1
SCREW, HI/LO Y DRIVE ACP M1260218 Contact Us For Availability
1
MAGNETIC Y-DRIVE BIT ACP 20001136 Contact Us For Availability
1
LAMP-41W ACP 10664502 Contact Us For Availability
1
BLADE, FAN ACP B5706704 Contact Us For Availability
1
WRAPPER- STAINLESS ACP 10908909Q Contact Us For Availability
1
HARNESS, INTERLOCK/DISPLAY BD ACP 12543101 Contact Us For Availability
1
HARNESS-OVEN LT ACP 12543401 Contact Us For Availability
1
HARNESS, LOWER ANTENNA MOTOR ACP 13018801 Contact Us For Availability
1
LABEL-MENU ACP 12155702 Contact Us For Availability
1
TECH SHEET-COMM'L MICRO **NO ACP RT2240007 Contact Us For Availability
1
KIT, HARNESS- HVB/DISPLAY ACP R0130265 Contact Us For Availability
1
HARNESS, HV ACP 12696201 Contact Us For Availability
2
MOTOR, BLOWER ACP 59174555 Contact Us For Availability
2
DOOR GLASS ASSY ACP 59002015 Contact Us For Availability
2
TOUCH PANEL ASSY- TOP ACP 59104128 Contact Us For Availability
2
SCREW, TF ACP 12992302 Contact Us For Availability
2
RECEPTACLE-LAMP ACP B8371401 Contact Us For Availability
2
GASKET ACP A3263904 Contact Us For Availability
3
MAGNETRON-2M248H ACP 59004010 Contact Us For Availability
3
COVER-LIGHT ACP 59174559 Contact Us For Availability
4
HINGE-DOOR ACP 14179140 Contact Us For Availability
4
WASHER-SPUR GEAR ACP 10903002 Contact Us For Availability
4
BASE PAN & GASKET ASSY ACP 10790306Q Contact Us For Availability
5
FUSE-30A ACP M0805205 Contact Us For Availability
5
MOTOR, ANTENNA (230V) ACP R0130263 Contact Us For Availability
5
SCREW, T F ACP 13095201 Contact Us For Availability
5
RIVET, POP ACP A4539601 Contact Us For Availability
5
TRIM ACP 59174560 Contact Us For Availability
6
KIT, LATCH ACP 12002757 Contact Us For Availability
6
CLIP-CORD ACP M0104106 Contact Us For Availability
7
SWITCH, INTERLOCK ASSY ACP 12002636 Contact Us For Availability
7
TRANSFORMER, HV ACP 59001626 Contact Us For Availability
7
KIT, ANTENNA ACP 14179133 Contact Us For Availability
7
OUTER DOOR ASSY- WINDOW ACP R0156918 Contact Us For Availability
7
WHEEL-BLOWER ACP C3670809 Contact Us For Availability
7
TRANSFORMER-AUTO ACP C8901509 Contact Us For Availability
7
PANEL, ACCESS- REAR ACP 10781607 Contact Us For Availability
8
SNUBBER ASSY ACP 59002017 Contact Us For Availability
8
SCREW ACP 12990525 Contact Us For Availability
9
TRIAC ACP 59174520 Contact Us For Availability
9
GRILLE-AIR INLET ACP 59174548 Contact Us For Availability
9
SET SCREW #10 X .25 ACP 13046901 Contact Us For Availability
9
SCREW ACP M0216716 Contact Us For Availability
10
HANDLE-DOOR ACP 59004023 Contact Us For Availability
11
SCREW, SET ACP 13047001 Contact Us For Availability
11
GASKET, PER FT ACP 59004077 Contact Us For Availability
12
SEALER ACP 59002167 Contact Us For Availability
12
PLUG-HOLE (BLK) ACP 12360703 Contact Us For Availability
13
TOUCH PANEL ASSY- SIDE ACP R0130109 Contact Us For Availability
13
CORD-POWER ACP 59002112 Contact Us For Availability
13
SPRING-DOOR LATCH ACP C8893502 Contact Us For Availability
14
KIT, CERAMIC TRAY W/SEALER ACP R0156942 Contact Us For Availability
14
RELIEF-STRAIN ACP M0370003 Contact Us For Availability
15
STRAP-CAPACITOR ACP A4055406 Contact Us For Availability
16
THERMAL CUTOUT ACP B5795315 Contact Us For Availability
16
CAPACITOR- .63 ACP 59001152 Contact Us For Availability
17
DIODE ACP 20057401 Contact Us For Availability
17
SCREW ACP 12990522 Contact Us For Availability
20
GASKET, PER FT ACP 59002162 Contact Us For Availability
× ![]()
