Model Whirlpool RC22KA-3AW REFRIGERATOR – Common Parts & Diagrams
04 - FRESH FOOD DOOR

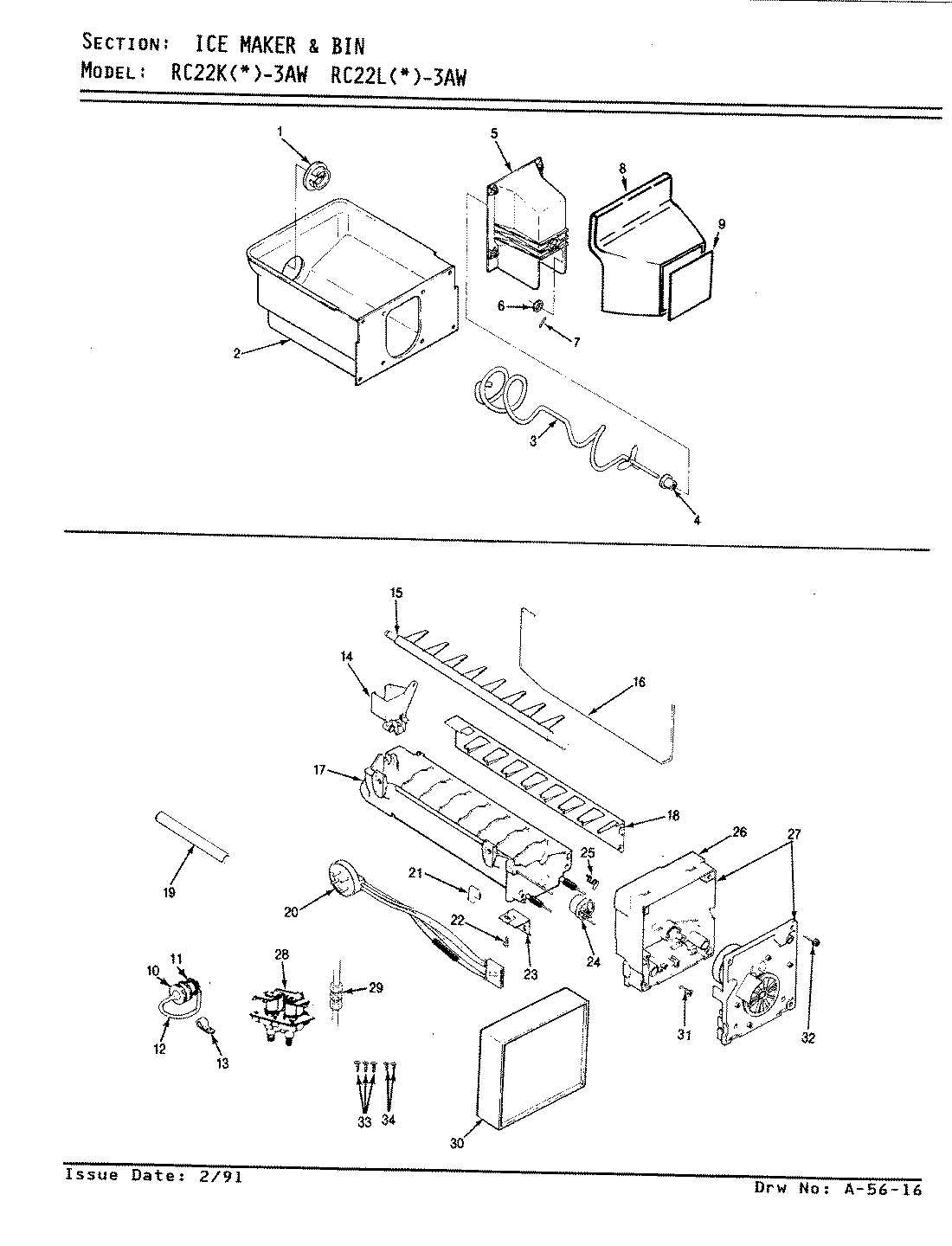

06 - ICE MAKER & BIN
02 - FREEZER DOOR

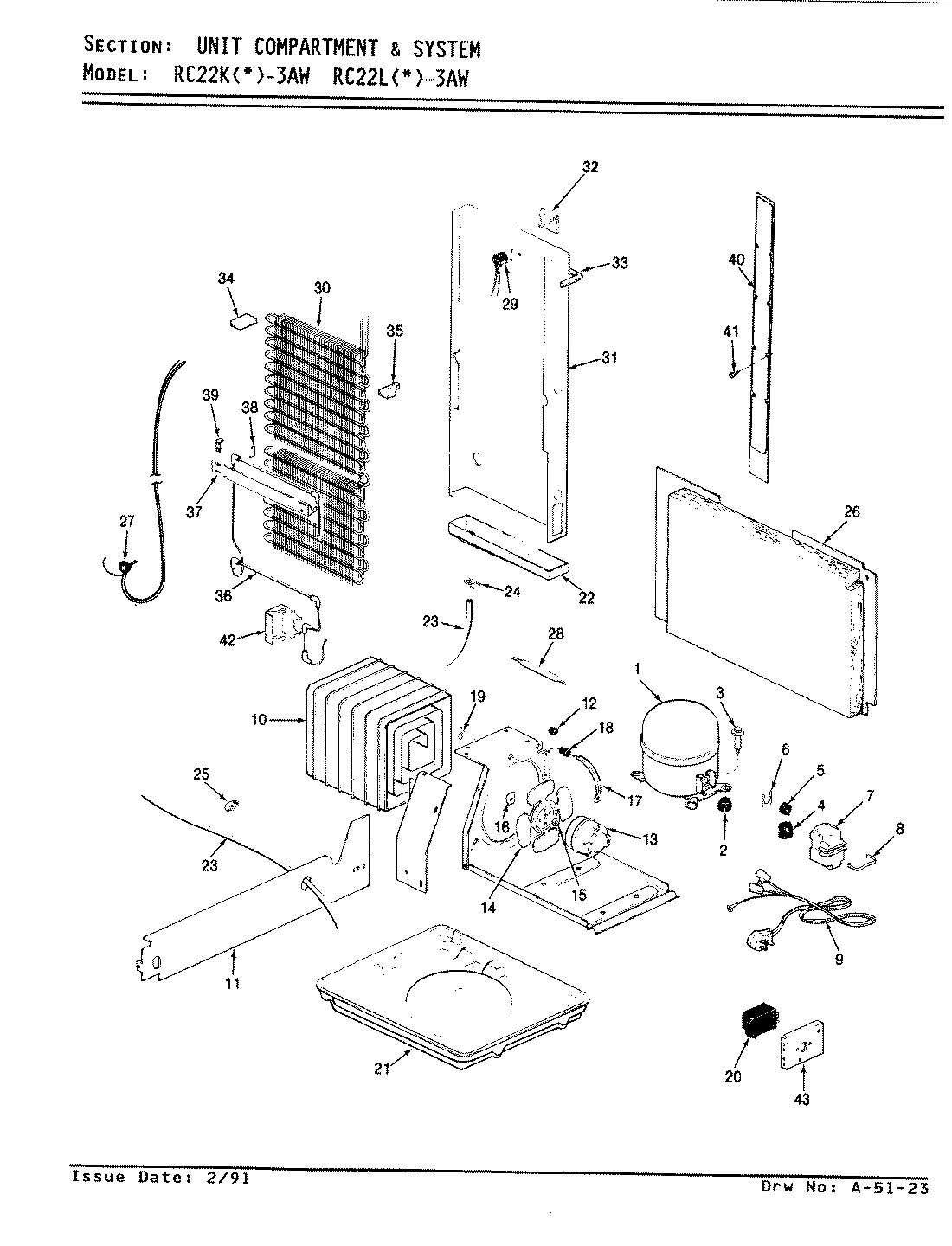

07 - UNIT COMPARTMENT & SYSTEM
01 - FREEZER COMPARTMENT

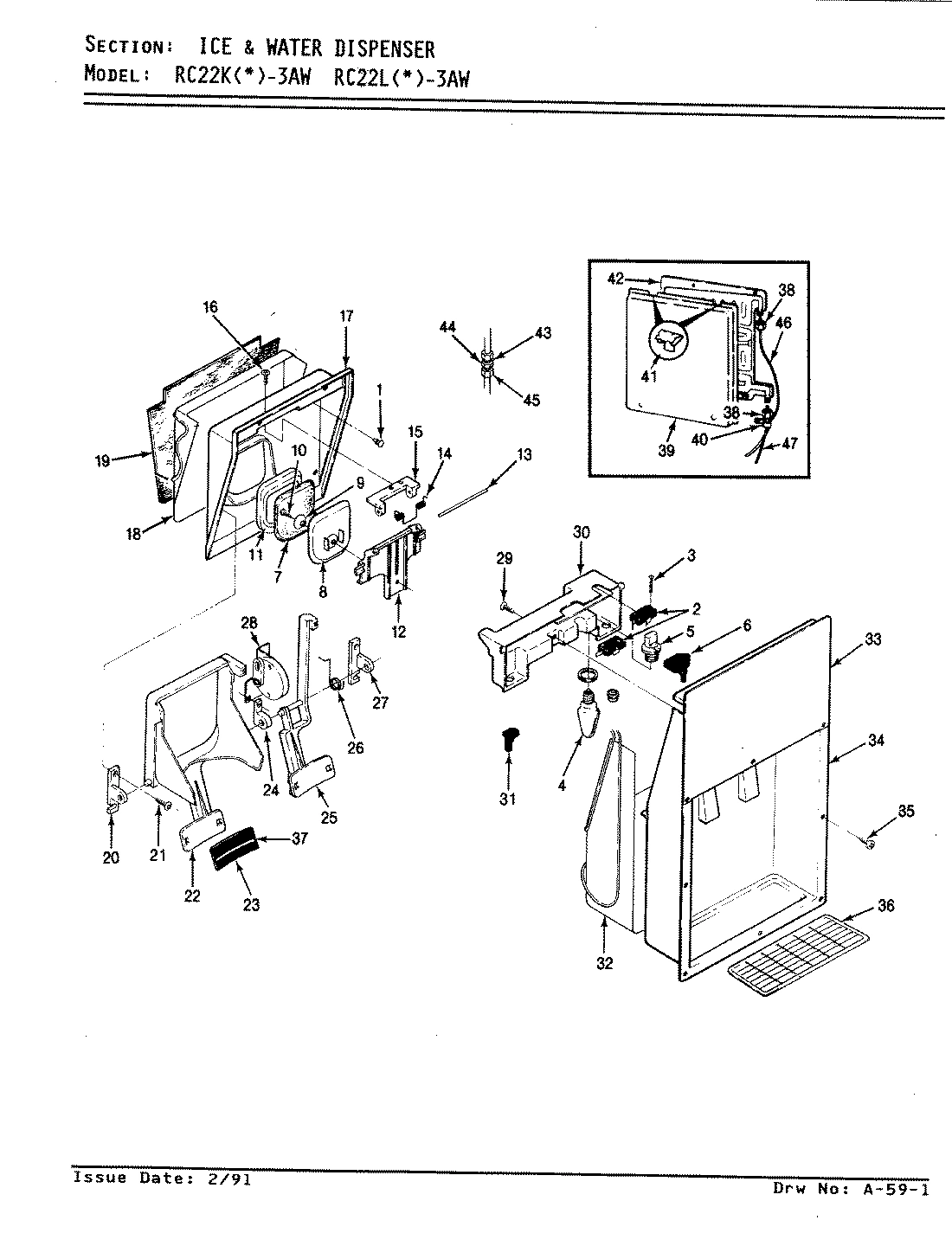

05 - ICE & WATER DISPENSER
03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RC22KA-3AW REFRIGERATOR
1
RING, DRIVE WPL 630171 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 684565AM Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
COMPRESSOR WPL RA1018 Contact Us For Availability
1
CLAMP, SPRING WPL 603334 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
2
FUNNEL-KIT WPL 675792 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
GASKET WPL 6692928 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
LINER, FRZ. DOOR WPL 685532 Contact Us For Availability
3
INSERT, FOOD STORAGE WPL 688811 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
CLIP WPL 655171 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
4
BEZEL WPL 669811 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
SCREW WPL 652755 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
NAMEPLATE (BLK) WPL 6698214 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
5
OVERLOAD WPL 6329419 Contact Us For Availability
5
MOTOR WPL 564884 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
INSERT WPL 681215 Contact Us For Availability
6
WASHER WPL 521851 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, PUSH WPL 673401 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
BAFFLE WPL 686131 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
HINGE PIN WPL 687891 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 998645 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
SCREW WPL 405022103 Contact Us For Availability
8
FRONT WPL 685521 Contact Us For Availability
8
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
8
DOOR, ICE WPL 685651 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
9
INSERT, BIN FRONT WPL 688801 Contact Us For Availability
9
ESCUTCHEON WPL 685943 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
RIVET WPL 227156 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
SCREW WPL 4000011 Contact Us For Availability
10
NUT, INLET TUBING WPL 246851 Contact Us For Availability
10
TAPE, ESCUTCHEON WPL 951211 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
SHIELD WPL 538371 Contact Us For Availability
10
BULB, LIGHT WPL 319561 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
11
LINER, DOOR WPL 659437 Contact Us For Availability
11
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
11
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
11
SEAL WPL 5207726 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
11
SWITCH WPL 564321 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
SEAL WPL 685602 Contact Us For Availability
12
GASKET WPL 5371216 Contact Us For Availability
12
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
12
CHUTE, ICE WPL 685701 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
STRIKE, DOOR WPL 685631 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
13
DOOR, DAIRY WPL 66184426 Contact Us For Availability
13
CLAMP, TUBING WPL 535168 Contact Us For Availability
13
ACCESS PANEL WPL 686341 Contact Us For Availability
13
INSULATION WPL 687681 Contact Us For Availability
13
INSULATION WPL 687721 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675602 Contact Us For Availability
13
SEAL WPL 6632533 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
STUD WPL 687862 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
SHELF FRONT WPL 657816 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
SCREW WPL 400021103 Contact Us For Availability
15
ANCHOR WPL 661704 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SEAL, FOAM TRAY WPL 6632514 Contact Us For Availability
15
BRACKET WPL 685621 Contact Us For Availability
15
SHIELD, LIGHT WPL 655784 Contact Us For Availability
16
CLOSER, DOOR WPL 544851 Contact Us For Availability
16
SHELF, PICK-OFF WPL 657826 Contact Us For Availability
16
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
16
CLIP, MOUNTING FAN BLADE WPL 550421 Contact Us For Availability
16
UPPER COVER WPL 685501 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
INSULATION, CLOSER WPL 526131 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
SPACER WPL 655121 Contact Us For Availability
17
LIGHT SWITCH WPL 689161 Contact Us For Availability
17
SHIELD, FAN WPL 672251 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
17
BACK, FOUNTAIN (ALM) WPL 685673 Contact Us For Availability
18
BRACKET, CLOSER WPL 526141 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
DOOR, ACCESS WPL 686201 Contact Us For Availability
18
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
18
NYLON NUT WPL 195302 Contact Us For Availability
19
TRAY, EGG WPL 600661 Contact Us For Availability
19
TUBE, FILL WPL 676761 Contact Us For Availability
19
P.O. SHELF WPL 687273 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
INSERT, ICE DOOR WPL 688781 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
19
SCREW WPL 6527542 Contact Us For Availability
19
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
20
SHELF FRONT WPL 657019 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
LATCH WPL 685721 Contact Us For Availability
20
SPACER WPL 686211 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
20
SLIDE RAIL, DELI DRAWER WPL 688051 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
TUBING PLASTIC-DOOR PANEL WPL 671871 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
SCREW WPL 406026103 Contact Us For Availability
21
MOTOR, AUGER WPL 651861 Contact Us For Availability
21
WIRE HARNESS WPL 674101 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
22
HINGE, UPPER WPL 5370922 Contact Us For Availability
22
SCREW WPL 998687 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
WIRE HARNESS WPL 689081 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
22
BOX, AUGER MOTOR WPL 672962 Contact Us For Availability
22
PADDLE, ICE WPL 685597 Contact Us For Availability
23
SCREW, HANDLE WPL 6527537 Contact Us For Availability
23
DOOR HANDLE----NA WPL 686564 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
HOSE, DRAIN WPL 2691125 Contact Us For Availability
23
SCREW WPL 40001512 Contact Us For Availability
23
PAD, PADDLE (ICE & WATER) WPL 687013 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
24
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
24
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
25
TAPPING PLATE WPL 659642 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
SHIELD, LIGHT WPL 672921 Contact Us For Availability
25
PADDLE, WATER (ALM) WPL 685583 Contact Us For Availability
25
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
26
SCREW WPL 403100801 Contact Us For Availability
26
HINGE, LOWER WPL 6771410 Contact Us For Availability
26
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
26
HINGE WPL 677144 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
26
TRIM, CANTILEVER SHELF WPL 681712 Contact Us For Availability
27
HINGE PIN WPL 687881 Contact Us For Availability
27
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
SLEEVE WPL 2608823 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
27
TRIM WPL 6527614 Contact Us For Availability
28
ORGANIZER, PICK-OFF SHELF WPL 666454 Contact Us For Availability
28
VALVE WPL 675591 Contact Us For Availability
28
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
29
FASTENER WPL 434003506 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
DRAIN TUBE WPL 224514 Contact Us For Availability
29
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
30
TRIM, HANDLE EXTENSION (UPPER) WPL 686143 Contact Us For Availability
30
COVER ICE MAKER WPL 681131 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
GROMMET WPL 525261 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
30
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
31
TRIM, HANDLE EXTENSION WPL 686144 Contact Us For Availability
31
SCREW WPL 951051 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
31
SEAL WPL 655932 Contact Us For Availability
32
SCREW WPL 951061 Contact Us For Availability
32
KICKPLATE WPL 5647826 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
INSERT WPL 681247 Contact Us For Availability
32
HEATER FOUNTAIN WPL 688201 Contact Us For Availability
33
SCREW WPL 4000221 Contact Us For Availability
33
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
33
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
CUP, SHELF WPL 674661 Contact Us For Availability
33
SHELF WPL 686301 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
33
PAN, CRISPER WPL 665194 Contact Us For Availability
34
SCREW WPL 4010181 Contact Us For Availability
34
INSERT WPL 681216 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
TRIM WPL 52014139 Contact Us For Availability
34
FOUNTAIN WPL 686242 Contact Us For Availability
34
FOUNTAIN WPL 686243 Contact Us For Availability
34
PAN, MEAT WPL 665213 Contact Us For Availability
35
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
SHELF, 2,3 & 4 FREEZER (GLASS) WPL 6813924 Contact Us For Availability
35
SCREW WPL 405025103 Contact Us For Availability
36
HEATER, DEFROST WPL 676791 Contact Us For Availability
36
TRIM, SHELF WPL 65561417 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
36
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
DRAWER, FRZ. WPL 6663650 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
37
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
COVER, COIL (LOWER) WPL 673354 Contact Us For Availability
38
COVER, MEAT PAN WPL 656082 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, COMPRESSOR WPL 688402 Contact Us For Availability
39
WIRE HARNESS WPL 688721 Contact Us For Availability
39
SCREW WPL 4000211 Contact Us For Availability
39
COIL COVER, GASKET WPL 675621 Contact Us For Availability
39
TANK COVER WPL 598432 Contact Us For Availability
39
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
SCREW WPL 4000261 Contact Us For Availability
40
CLAMP, TANK TUBING WPL 591351 Contact Us For Availability
40
CONTROL HOUSING WPL 657372 Contact Us For Availability
41
CLIP, WATER TANK MOUNTING WPL 620821 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
RIVET, REFLECTOR WPL 263973 Contact Us For Availability
42
REFLECTOR WPL 676801 Contact Us For Availability
42
SEAL AIR RETURN WPL 676931 Contact Us For Availability
42
TANK, WATER WPL 629201 Contact Us For Availability
42
AIR TUNNEL WPL 537261 Contact Us For Availability
43
MANUAL, USE & CARE WPL 1071002 Contact Us For Availability
43
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
43
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
43
RACK, WINE WPL 565194 Contact Us For Availability
44
UNION, REDUCING WPL 676121 Contact Us For Availability
44
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
45
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
45
INSERT WPL 688211 Contact Us For Availability
46
TUBING WPL 6757915 Contact Us For Availability
46
INSERT WPL 688212 Contact Us For Availability
47
TUBE WPL 675796 No Longer Available
47
TUBING WPL 6718710 Contact Us For Availability
47
SPRING, WINE RACK WPL 580571 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
54
SCREW WPL 4000171 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
57
GLASS, DELI WPL 6813928 Contact Us For Availability
58
P WPL 665183 Contact Us For Availability
59
WPL 6812434 WPL 6812434 Contact Us For Availability
× ![]()
Login and Registration Form
