Model Whirlpool RC22HA-3A REFRIGERATOR – Common Parts & Diagrams

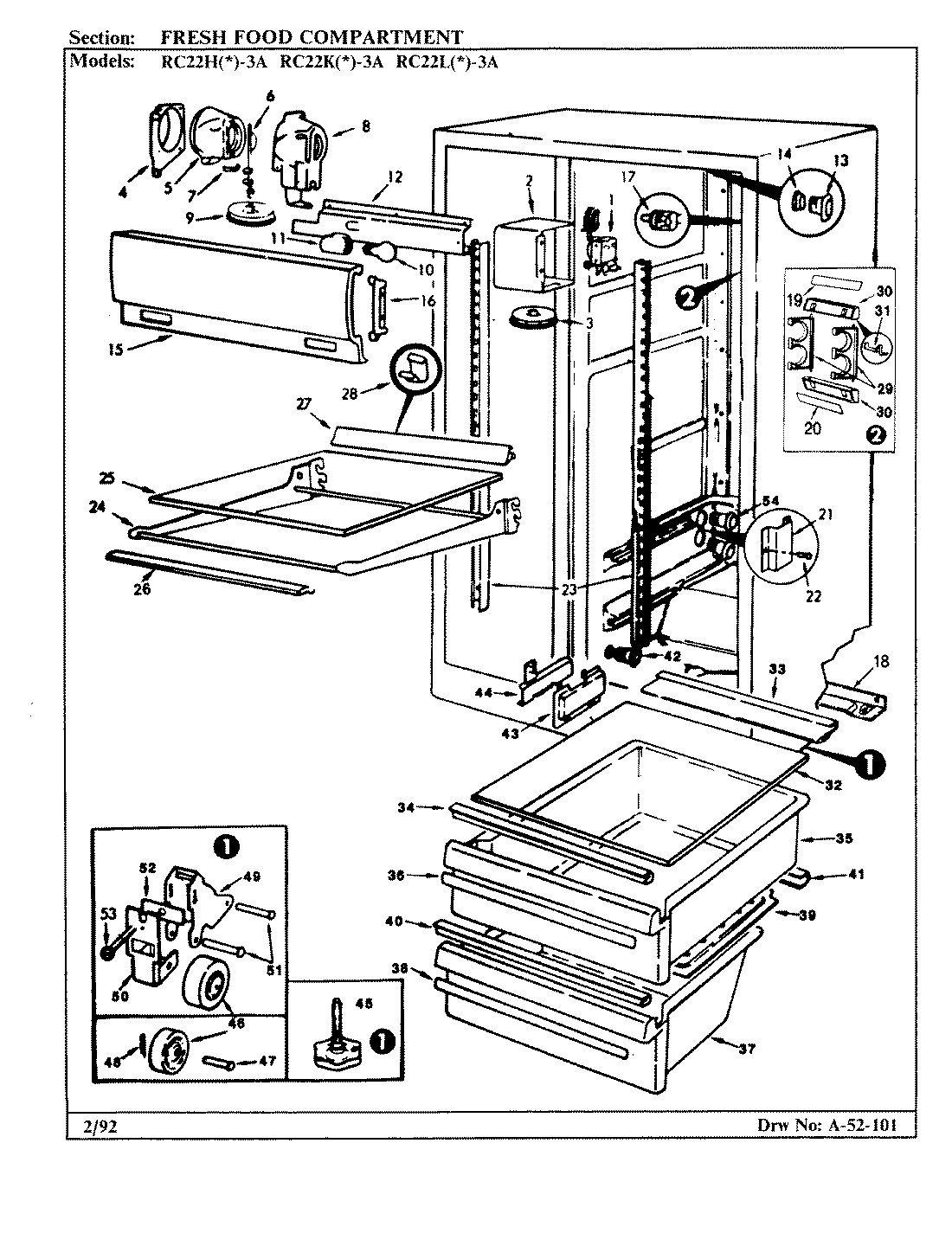

03 - FRESH FOOD COMPARTMENT

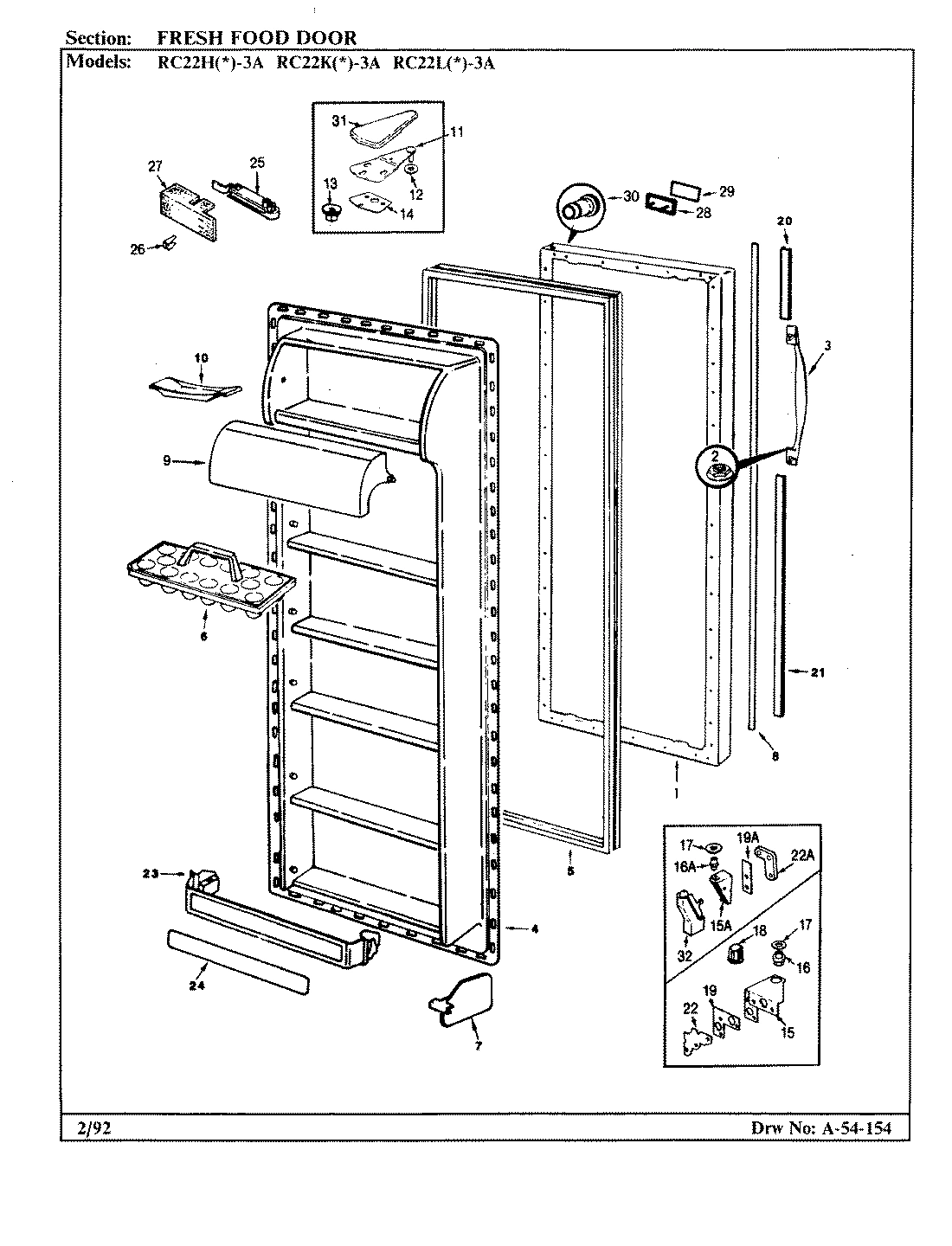

04 - FRESH FOOD DOOR

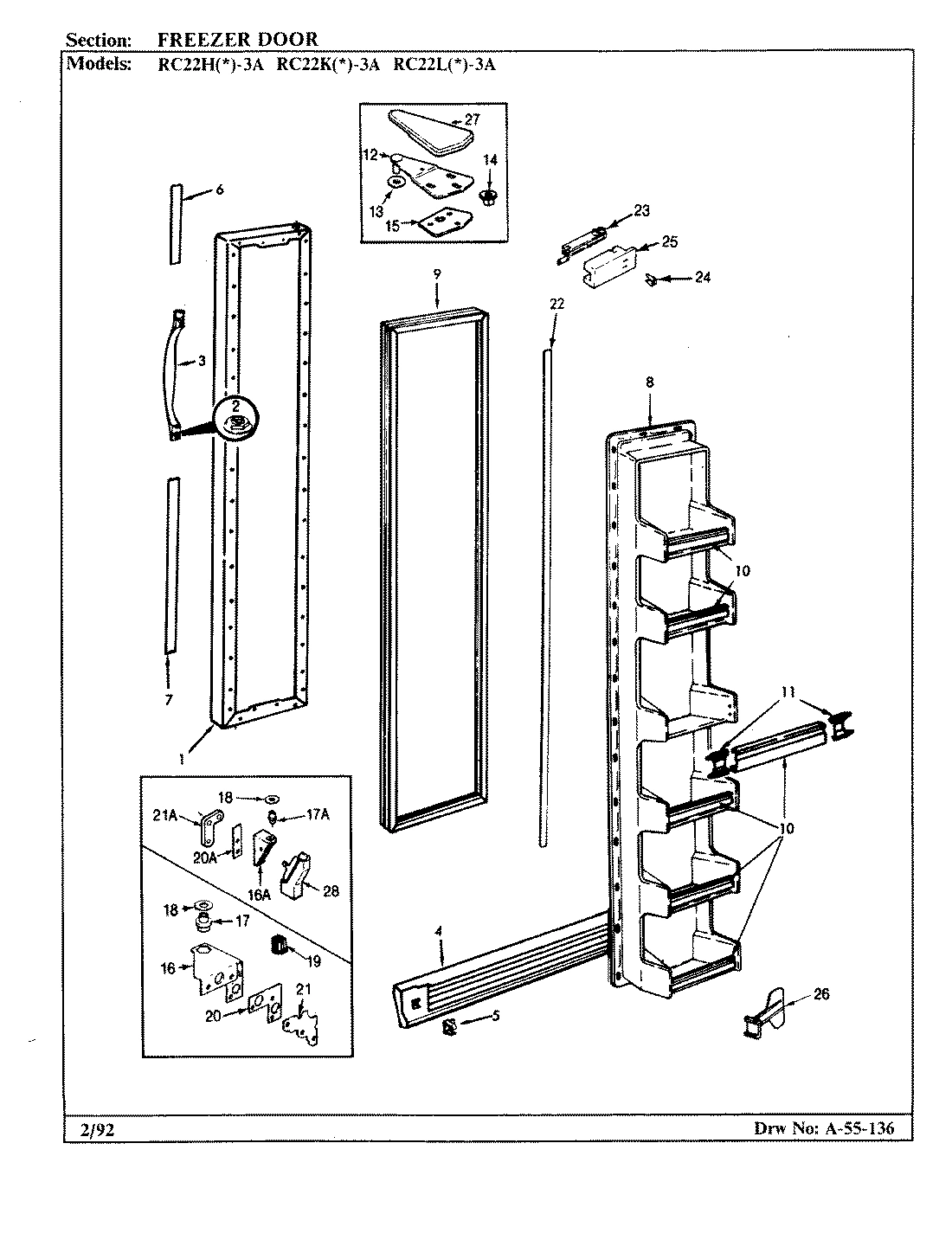

02 - FREEZER DOOR

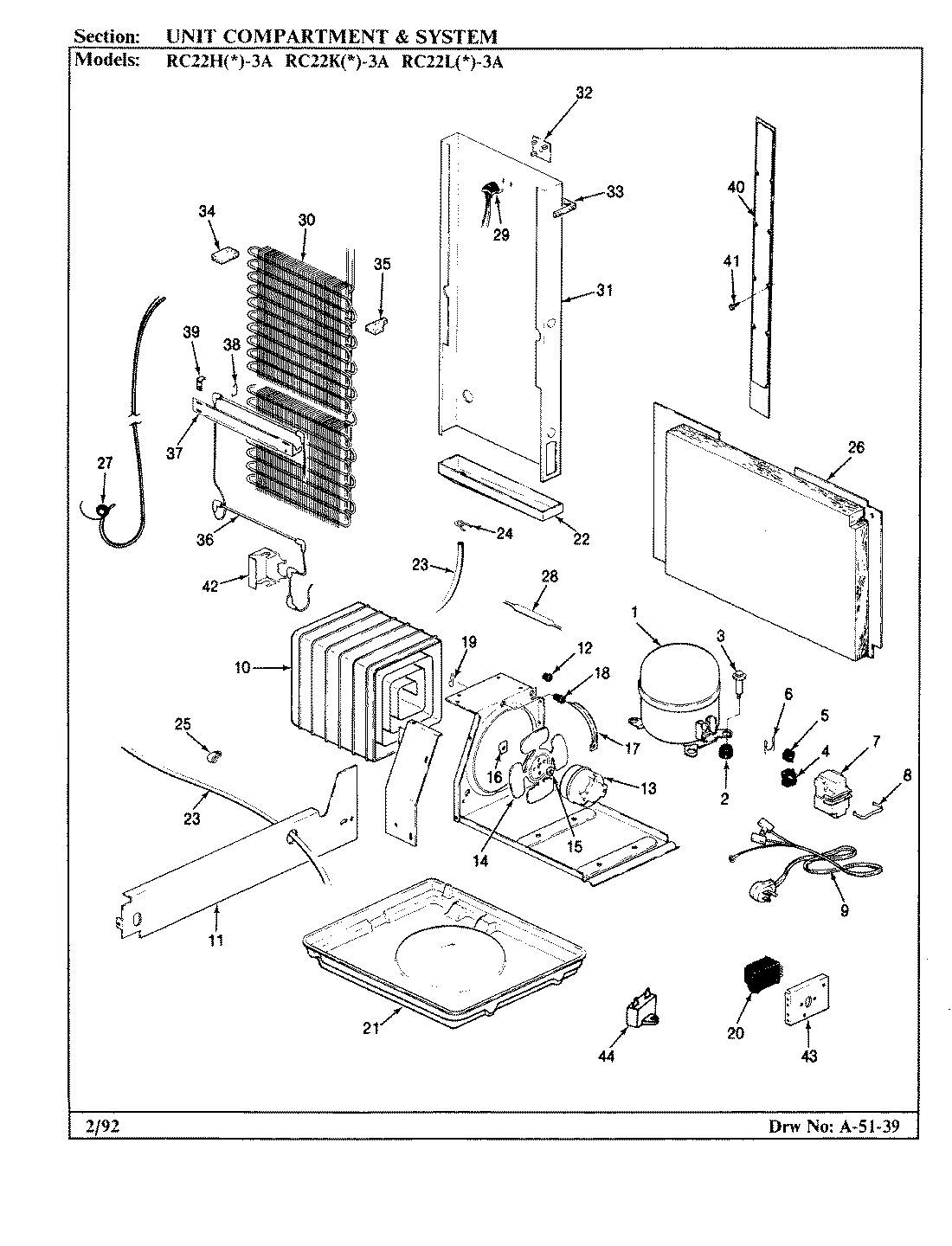

05 - UNIT COMPARTMENT & SYSTEM

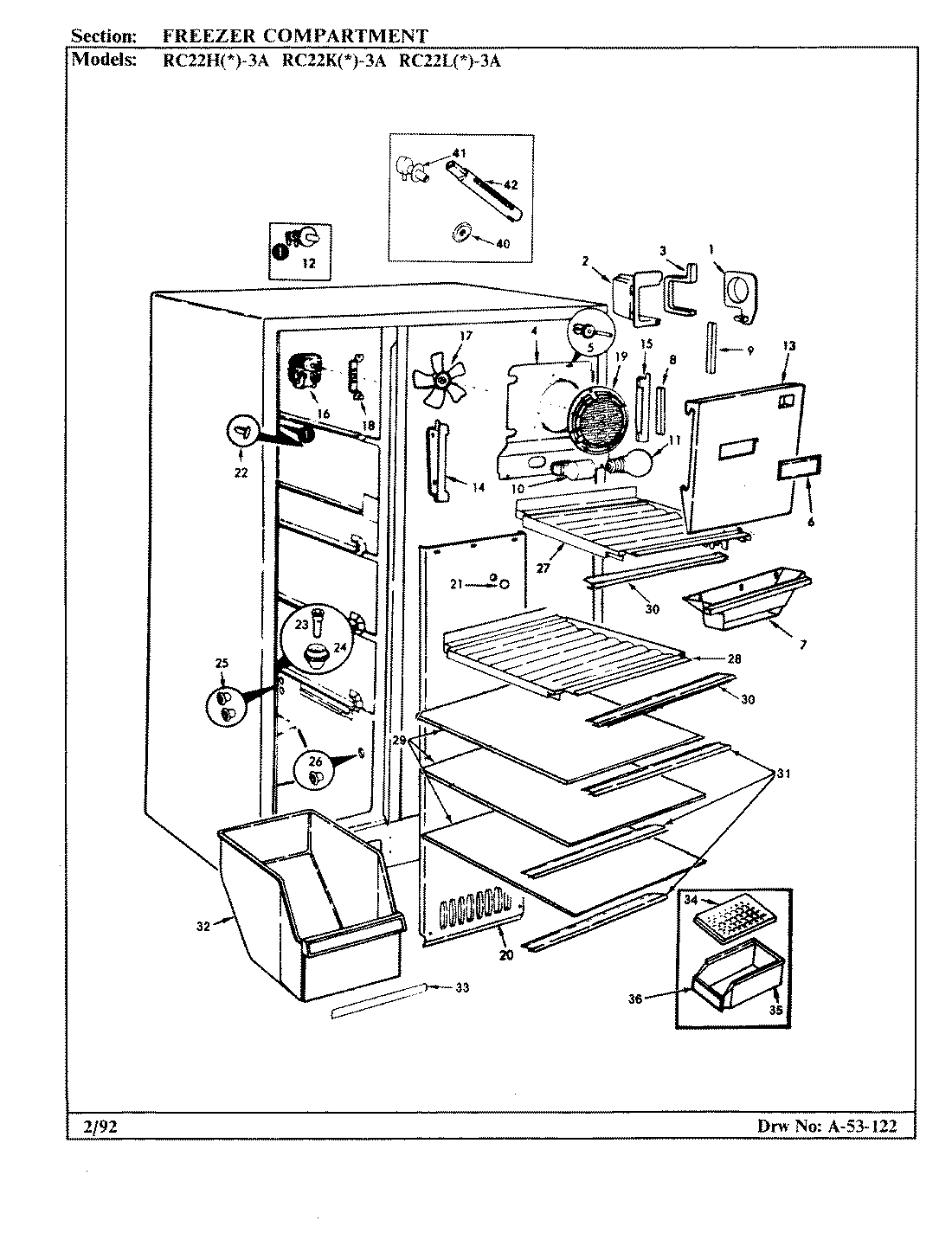

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool RC22HA-3A REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 6239115AM Contact Us For Availability
1
PANEL, OUTER DOOR WPL 6239115WW Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 6239131AM Contact Us For Availability
1
COMPRESSOR WPL RA1018 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
TRIM WPL 6817111 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
FASTENER WPL 434003506 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
3
HANDLE WPL 636863 Contact Us For Availability
3
WIRE HARNESS WPL 683722 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
LINER, DOOR WPL 659427 Contact Us For Availability
4
KICKPLATE WPL 5843749 Contact Us For Availability
4
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
PLUG WPL 539331 Contact Us For Availability
4
COVER WPL 682472 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
GASKET WPL 669292 Contact Us For Availability
5
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
5
OVERLOAD WPL 6329419 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
6
TRAY, EGG WPL 600661 Contact Us For Availability
6
HANDLE EXT WPL 657747 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT----NA WPL 683251 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
ORGANIZER, PICK-OFF SHELF WPL 666454 Contact Us For Availability
7
HANDLE EXT WPL 657748 Contact Us For Availability
7
TRIM WPL 686572 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
AIR DUCT ASM WPL 656931 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
SCREW WPL 652755 Contact Us For Availability
8
INNER PANEL WPL 59433205 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
COIL SEAL WPL 528246 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
DOOR, DAIRY WPL 66184326 Contact Us For Availability
9
GASKET WPL 6692928 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
10
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
10
TRAY, BUTTER WPL 299362 Contact Us For Availability
10
TRIM WPL 5925870 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
11
RETAINER WPL 652461 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 654941 Contact Us For Availability
12
HOUSING WPL 597401 Contact Us For Availability
12
SWITCH WPL 564322 Contact Us For Availability
12
HINGE, UPPER WPL 5370922 Contact Us For Availability
12
SCREW WPL 6527552 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
WASHER WPL 521851 Contact Us For Availability
13
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
SHIELD, LIGHT WPL 682461 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
15
SHIELD, LIGHT WPL 655784 Contact Us For Availability
15
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
15
SCREW WPL 4031001 Contact Us For Availability
15
HINGE, LOWER WPL 6063012 Contact Us For Availability
15
WASHER WPL 604861 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
17
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
18
SCREW WPL 6527542 Contact Us For Availability
18
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
18
WASHER WPL 542331 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
19
INSERT WPL 657533 Contact Us For Availability
19
SCREW WPL 4000171 Contact Us For Availability
19
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
GRID, FAN WPL 682531 Contact Us For Availability
20
INSERT WPL 657537 Contact Us For Availability
20
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
COVER, COIL WPL 652243 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
21
MOISTROL PAN WPL 298395 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
22
TRIM WPL 6577313 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
PLUG BUTTON WPL 675571 Contact Us For Availability
23
SCREW WPL 40003728 Contact Us For Availability
23
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
23
SHELF FRONT WPL 657816 Contact Us For Availability
23
CLOSER, DOOR WPL 544851 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
DRAIN TUBE WPL 224514 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
24
INSERT WPL 681215 Contact Us For Availability
24
BRACKET, CLOSER WPL 526141 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
25
GLASS SHELF WPL 681398 Contact Us For Availability
25
INSULATION, CLOSER WPL 526131 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
TRIM, CANTILEVER SHELF WPL 681712 Contact Us For Availability
26
ORGANIZER, SHELF WPL 665228 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
27
TRIM WPL 6527614 Contact Us For Availability
27
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950901 Contact Us For Availability
27
SHELF, FRZ. WPL 656513 Contact Us For Availability
28
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
28
BEZEL WPL 669811 Contact Us For Availability
28
SHELF, FRZ. No.2,3,4 WPL 656511 Contact Us For Availability
29
RACK, WINE WPL 565194 Contact Us For Availability
29
INSERT WPL 669822 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
SHELF WPL 6813917 Contact Us For Availability
30
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
30
RETAINER, NAMEPLATE BEZEL WPL 683811 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
TRIM WPL 663161 Contact Us For Availability
31
SPRING, WINE RACK WPL 580571 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
31
TRIM, SHELF WPL 65561417 Contact Us For Availability
32
GLASS SHELF WPL 6813912 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
DRAWER, FRZ. WPL 665127 Contact Us For Availability
33
CRISPER SEAL WPL 660922 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
33
INSERT WPL 681247 Contact Us For Availability
34
SEAL WPL 655932 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
ICE CUBE TRAY WPL 601121 Contact Us For Availability
35
PAN, CRISPER WPL 665192 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
PAN WPL 665921 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
INSERT WPL 681343 Contact Us For Availability
37
PAN, MEAT WPL 665211 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
38
INSERT WPL 6812434 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
CLAMP, SPRING WPL 603334 Contact Us For Availability
39
FUNNEL-KIT WPL 675792 Contact Us For Availability
39
COVER, MEAT PAN WPL 656084 Contact Us For Availability
39
MAIN WIRE HARNESS WPL 682512 Contact Us For Availability
40
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
CAP, CONNECTOR WPL 681871 Contact Us For Availability
41
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
41
GROMMET WPL 683961 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
42
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
42
CAP, FILL TUBE WPL 683261 Contact Us For Availability
43
CLIP WPL 566864 Contact Us For Availability
43
CONTROL HOUSING WPL 657371 Contact Us For Availability
43
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
43
SHIELD, HEATER WPL 400171 Contact Us For Availability
44
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
44
CAPACITOR, RUN WPL 658892 Contact Us For Availability
45
LEG, LEVELING WPL 686641 Contact Us For Availability
45
MANUAL, USE & CARE WPL 1071002 Contact Us For Availability
46
WHEEL WPL 298342 Contact Us For Availability
47
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
48
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
49
BRACKET, WHEEL WPL 627941 Contact Us For Availability
50
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
51
PIN, WHEEL WPL 649651 Contact Us For Availability
52
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
AIR TUNNEL WPL 537261 Contact Us For Availability
× ![]()
Login and Registration Form
