Model Whirlpool RC20LN-3AW REFRIGERATOR – Common Parts & Diagrams

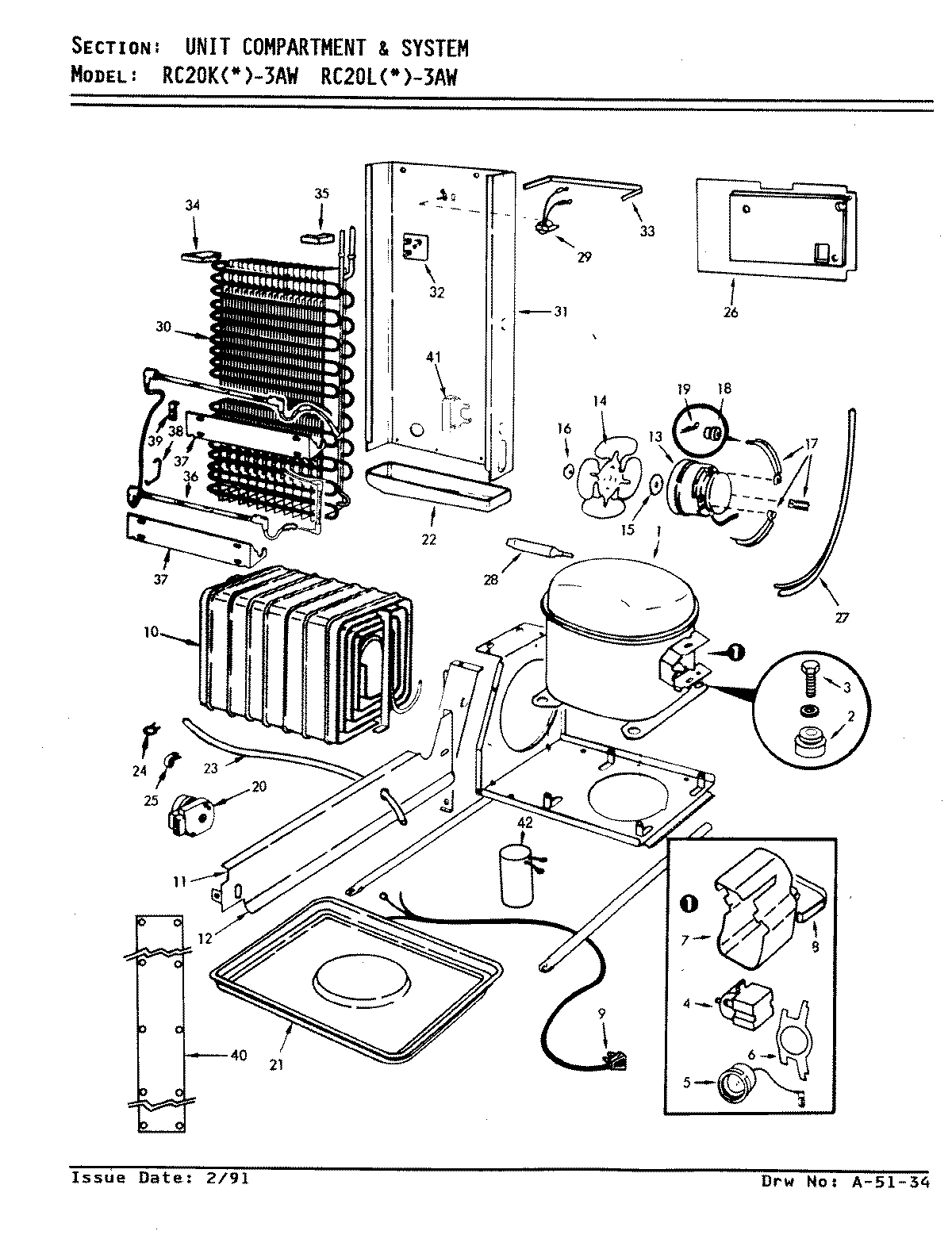

06 - UNIT COMPARTMENT & SYSTEM

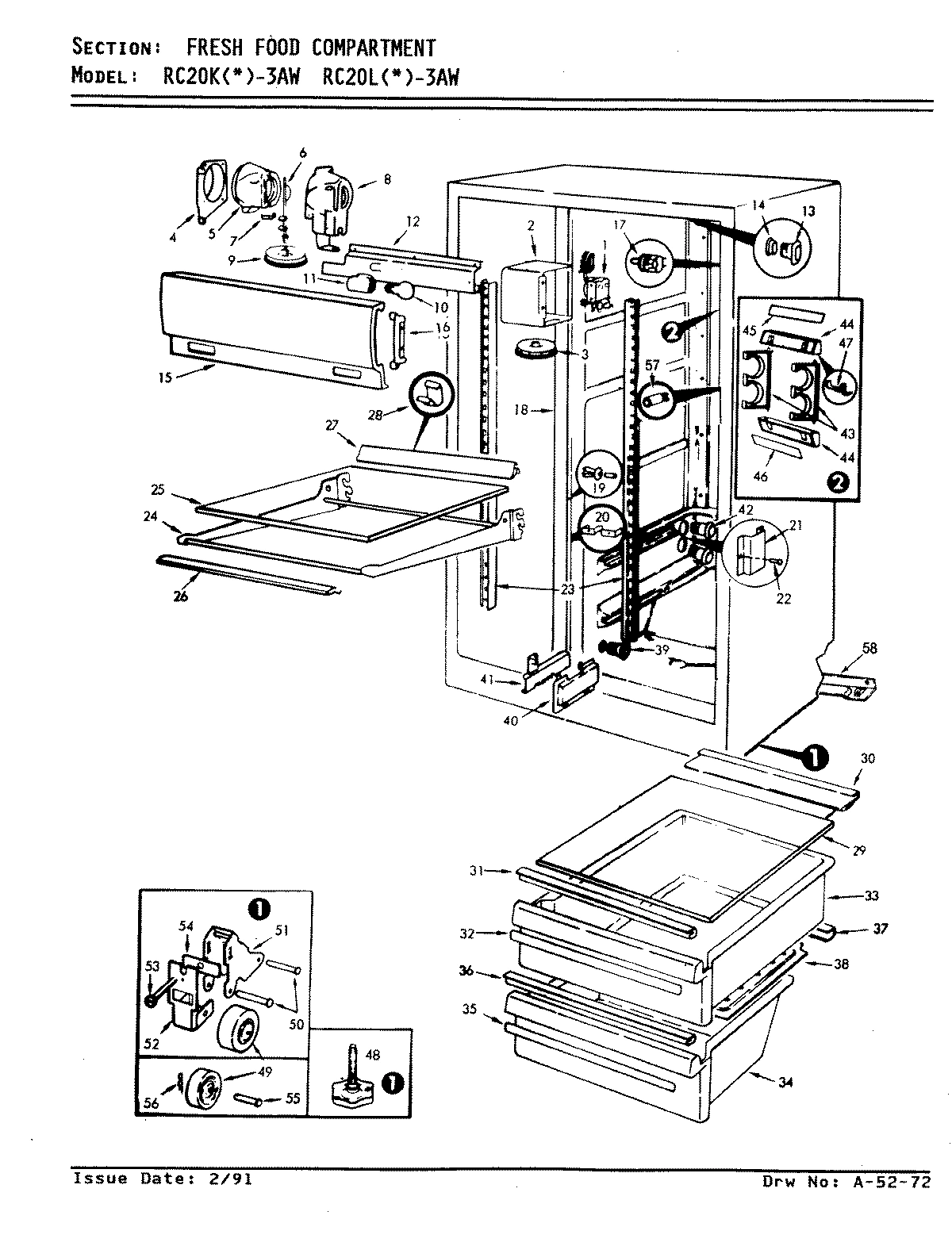

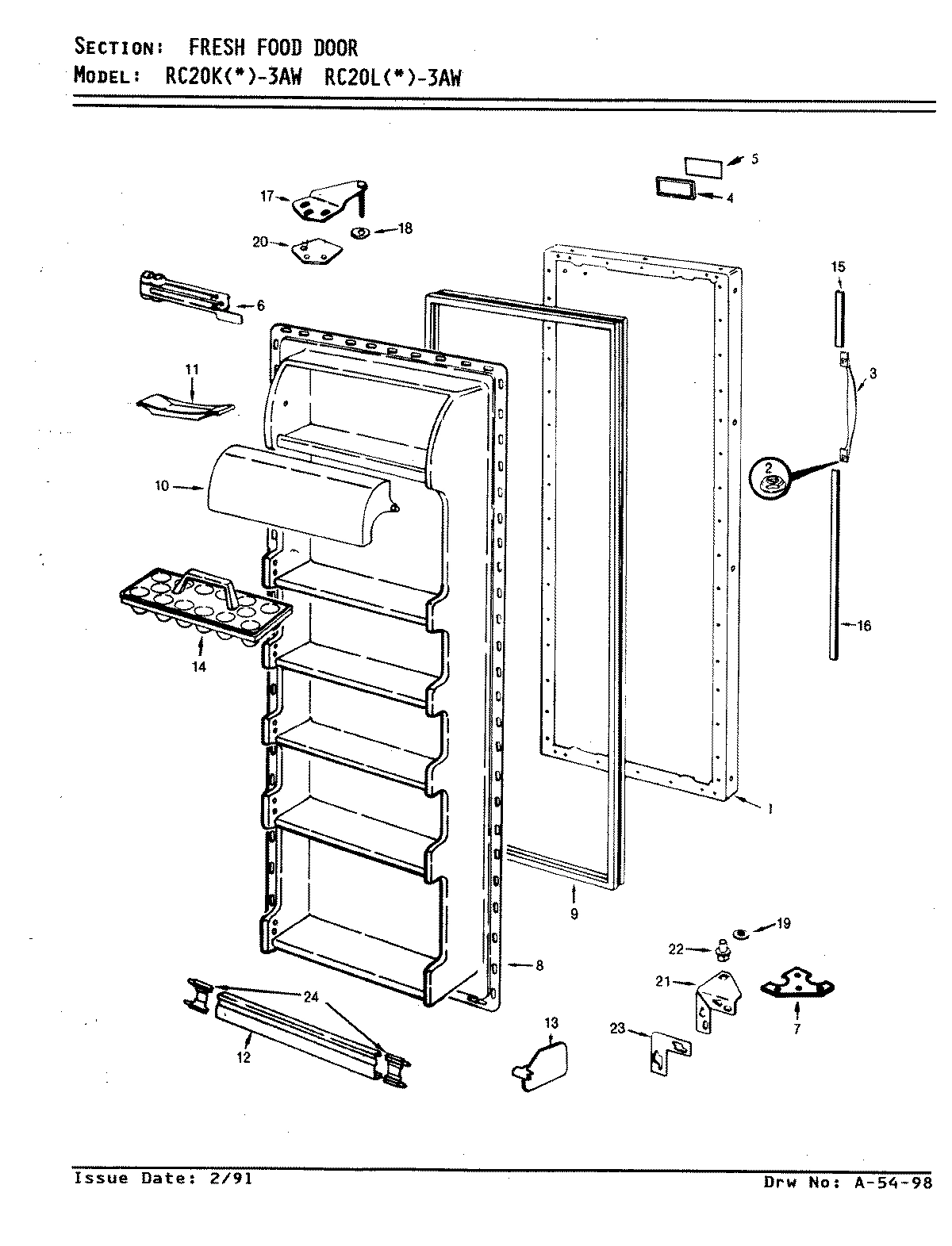

02 - FRESH FOOD COMPARTMENT

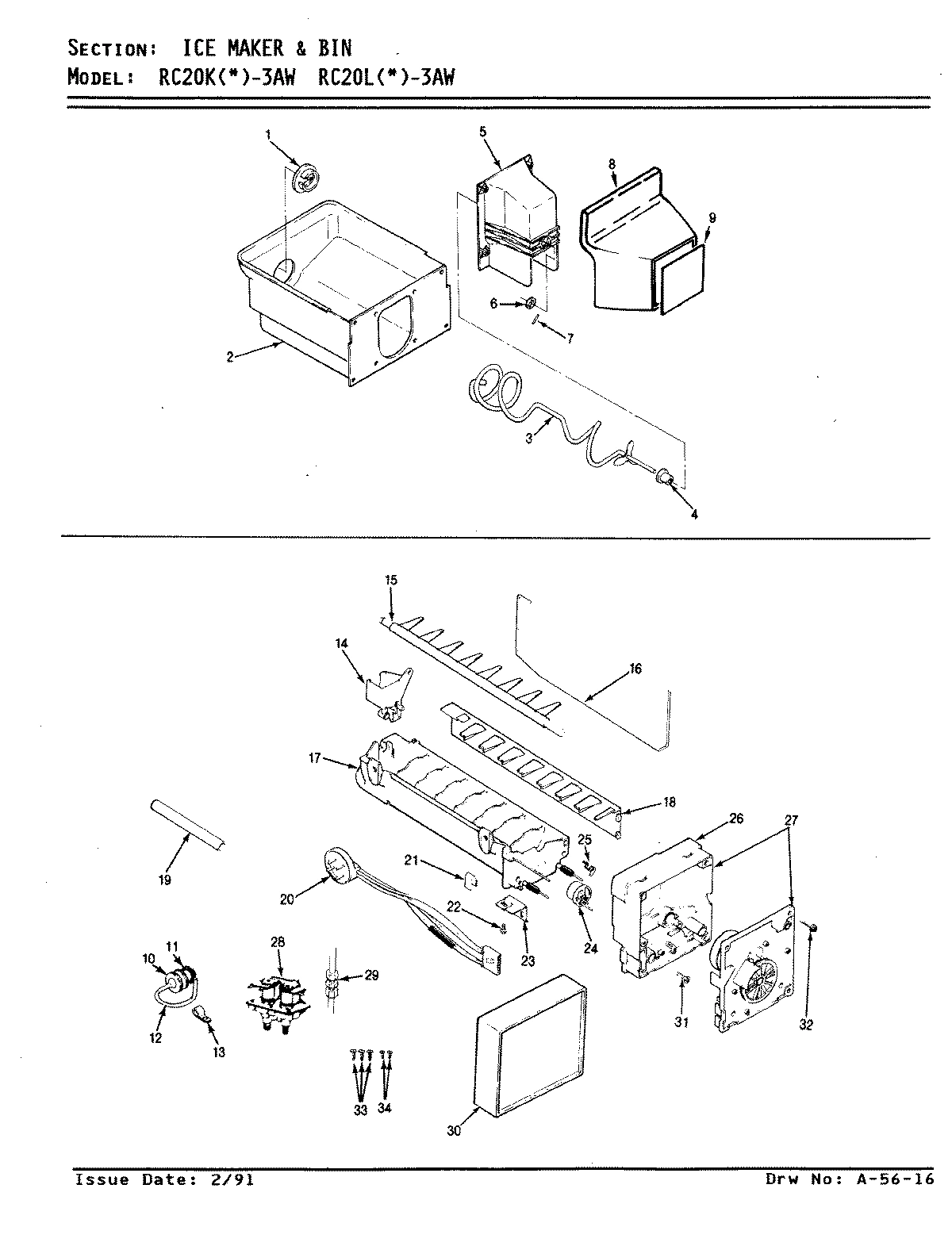

04 - ICE MAKER & BIN
05 - SHELVES & ACCESSORIES
01 - FREEZER COMPARTMENT

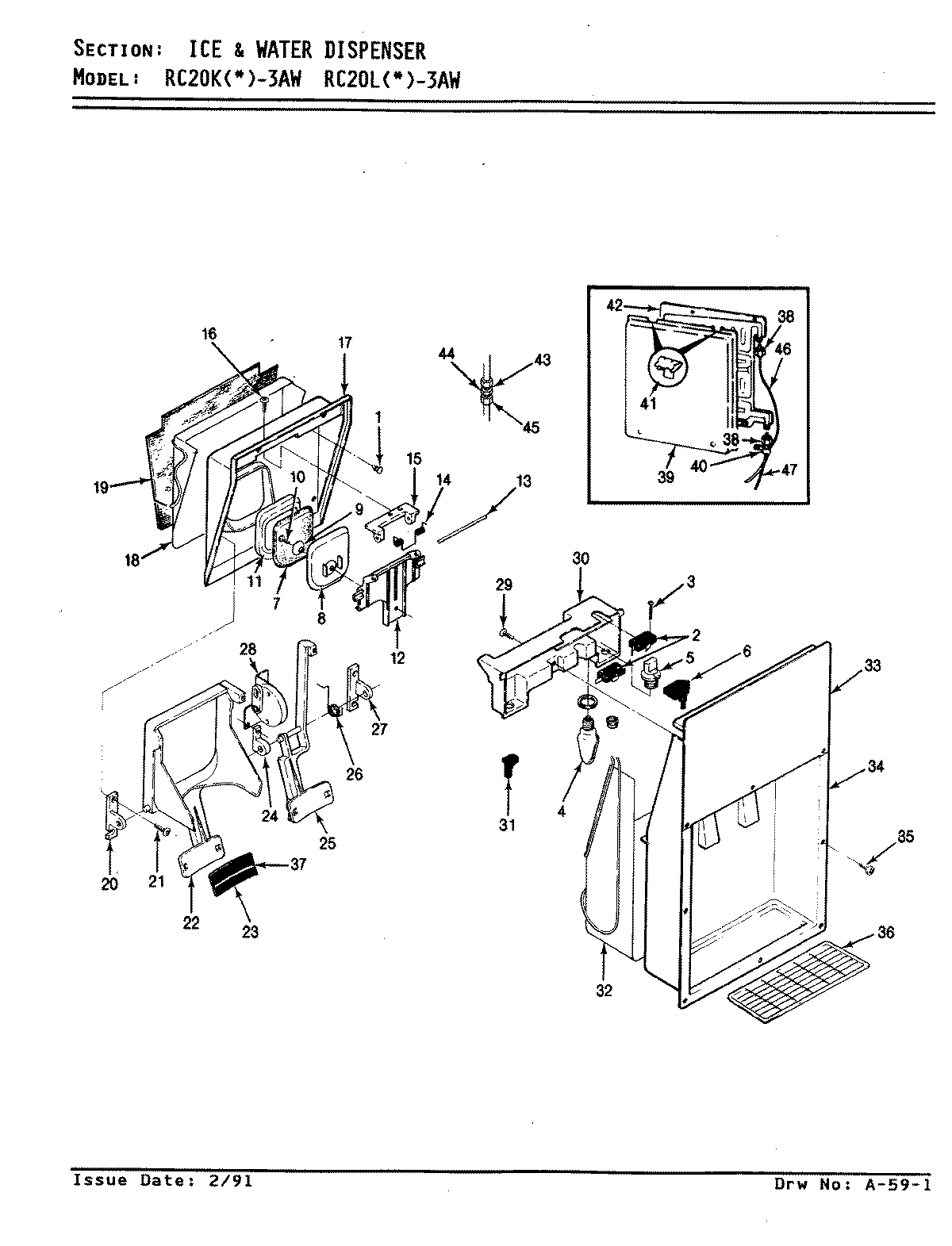

03 - ICE & WATER DISPENSER
Common parts from model Whirlpool RC20LN-3AW REFRIGERATOR
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288141 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
RING, DRIVE WPL 630171 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
1
CLAMP, SPRING WPL 603334 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
FUNNEL-KIT WPL 675792 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
WIRE HARNESS, COMPRESSOR WPL 688411 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
FRAME, SHELF WPL 656186 Contact Us For Availability
3
CLIP WPL 655171 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
GLASS, CANTILEVER SHELF WPL 6813930 Contact Us For Availability
4
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
TRIM, CONT. SHELF (FRONT) WPL 6817115 Contact Us For Availability
5
MOTOR WPL 564884 Contact Us For Availability
5
WIRE HARNESS FRZ. WPL 690471 Contact Us For Availability
5
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
BAFFLE, FREEZER CONTROL WPL 686102 Contact Us For Availability
6
THRUST WASHER WPL 678341 Contact Us For Availability
6
TRIM WPL 6527629 Contact Us For Availability
6
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
6
WIRE NUT WPL 271162 Contact Us For Availability
6
SWITCH, PUSH WPL 673401 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 998645 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
SCREW WPL 405022103 Contact Us For Availability
8
FRONT WPL 685521 Contact Us For Availability
8
SHELF, CRISPER (GLASS) WPL 6813931 Contact Us For Availability
8
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
8
DOOR, ICE WPL 685651 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
INSERT, BIN FRONT WPL 687825 Contact Us For Availability
9
SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability
9
RIVET WPL 227156 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
NUT, INLET TUBING WPL 246851 Contact Us For Availability
10
TRIM WPL 666501 Contact Us For Availability
10
SHIELD WPL 538371 Contact Us For Availability
10
SCREW WPL 405116103 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
11
INSERT WPL 6812486 Contact Us For Availability
11
SWITCH WPL 564321 Contact Us For Availability
11
SEAL WPL 685602 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
LIGHT SWITCH WPL 689161 Contact Us For Availability
12
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
12
PAN, CRISPER WPL 6650913 Contact Us For Availability
12
STRIKE, DOOR WPL 685631 Contact Us For Availability
13
CORD WPL 296752 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684813 Contact Us For Availability
13
HOUSING WPL 690811 Contact Us For Availability
13
CLAMP, TUBING WPL 535168 Contact Us For Availability
13
PAN, MEAT WPL 6651013 Contact Us For Availability
13
SEAL WPL 6632533 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
TUNNEL WPL 574101 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
INSERT, MEAT PAN WPL 6812487 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
RETAINER WPL 574111 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
15
SEAL WPL 689464 Contact Us For Availability
15
BRACKET WPL 685621 Contact Us For Availability
16
CLIP, MOUNTING FAN BLADE WPL 550421 Contact Us For Availability
16
SHIELD, LIGHT WPL 6557831 Contact Us For Availability
16
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
16
ARM, SENSOR WPL 681121 Contact Us For Availability
16
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
16
UPPER COVER WPL 685501 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
SUPPORT WPL 536862 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
COVER, MEAT PAN WPL 656085 Contact Us For Availability
17
SHIELD, FAN WPL 672251 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
DOOR, ACCESS WPL 686201 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
TUBE, FILL WPL 676761 Contact Us For Availability
19
CONTROL HOUSING WPL 657372 Contact Us For Availability
19
INSERT WPL 687838 Contact Us For Availability
19
INSULATION, FOIL WPL 687141 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
20
CLIP WPL 566864 Contact Us For Availability
20
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
20
LATCH WPL 685721 Contact Us For Availability
20
SPACER WPL 686211 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
SCREW WPL 4000171 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
RACK, WINE WPL 565194 Contact Us For Availability
21
BOX, AUGER MOTOR WPL 672962 Contact Us For Availability
21
SCREW WPL 405024103 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
WHEEL WPL 298342 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
INSERT WPL 688219 Contact Us For Availability
23
SHIELD, LIGHT WPL 672921 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
SPRING, WINE RACK WPL 580571 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
BULB, LIGHT WPL 319561 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
26
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
26
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
DRAIN TUBE WPL 265279 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
VALVE WPL 675591 Contact Us For Availability
28
GROMMET WPL 525261 Contact Us For Availability
28
MOTOR, INERTIA WPL 688271 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
UNION, COMPRESSION WPL 542671 Contact Us For Availability
29
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
29
RETAINER WPL 676851 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
SUPPORT RAIL WPL 672551 Contact Us For Availability
30
COVER ICE MAKER WPL 681131 Contact Us For Availability
30
INSERT, CRISPER PAN WPL 6812485 Contact Us For Availability
30
BRACKET WPL 686261 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
KICKPLATE WPL 689811 Contact Us For Availability
31
SCREW WPL 951051 Contact Us For Availability
31
CUP, SHELF WPL 674661 Contact Us For Availability
31
SHELF, DISPENSER WPL 686305 Contact Us For Availability
31
PLUNGER WPL 685681 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
32
SCREW WPL 951061 Contact Us For Availability
32
TRIM WPL 6527610 Contact Us For Availability
32
HEATER, FOUNTAIN WPL 689361 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
SCREW WPL 4000221 Contact Us For Availability
33
SHELF, 2,3 & 4 FREEZER (GLASS) WPL 6813924 Contact Us For Availability
33
FOUNTAIN FRONT WPL 686251 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
SCREW WPL 4010181 Contact Us For Availability
34
TRIM, SHELF WPL 65561117 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
SCREW WPL 406026103 Contact Us For Availability
35
MOTOR, AUGER WPL 651861 Contact Us For Availability
35
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
35
DRAWER, FRZ. WPL 6651213 Contact Us For Availability
35
SCREW WPL 405025103 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
36
COVER, COIL (LOWER) WPL 673354 Contact Us For Availability
36
GRILL WPL 686311 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
SCREW WPL 4000211 Contact Us For Availability
37
SCREW WPL 40001512 Contact Us For Availability
37
COIL COVER, GASKET WPL 675621 Contact Us For Availability
37
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
SCREW WPL 4000261 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 688722 Contact Us For Availability
39
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
40
CLAMP, TANK TUBING WPL 591351 Contact Us For Availability
41
SEAL AIR RETURN WPL 676931 Contact Us For Availability
41
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
42
SCREW WPL 40004828 Contact Us For Availability
42
TANK, WATER WPL 690653 Contact Us For Availability
43
MANUAL, USE & CARE WPL 1071002 Contact Us For Availability
43
CAPACITOR, RUN WPL 658892 Contact Us For Availability
43
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
44
UNION, REDUCING WPL 676121 Contact Us For Availability
45
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
46
TUBING WPL 6757915 Contact Us For Availability
47
TUBING, VALVE TO TANK (5/16``) WPL 6718714 Contact Us For Availability
48
NYLON NUT WPL 1953036 Contact Us For Availability
× ![]()
Login and Registration Form
