Model Whirlpool RC203TDV REFRIGERATOR – Common Parts & Diagrams

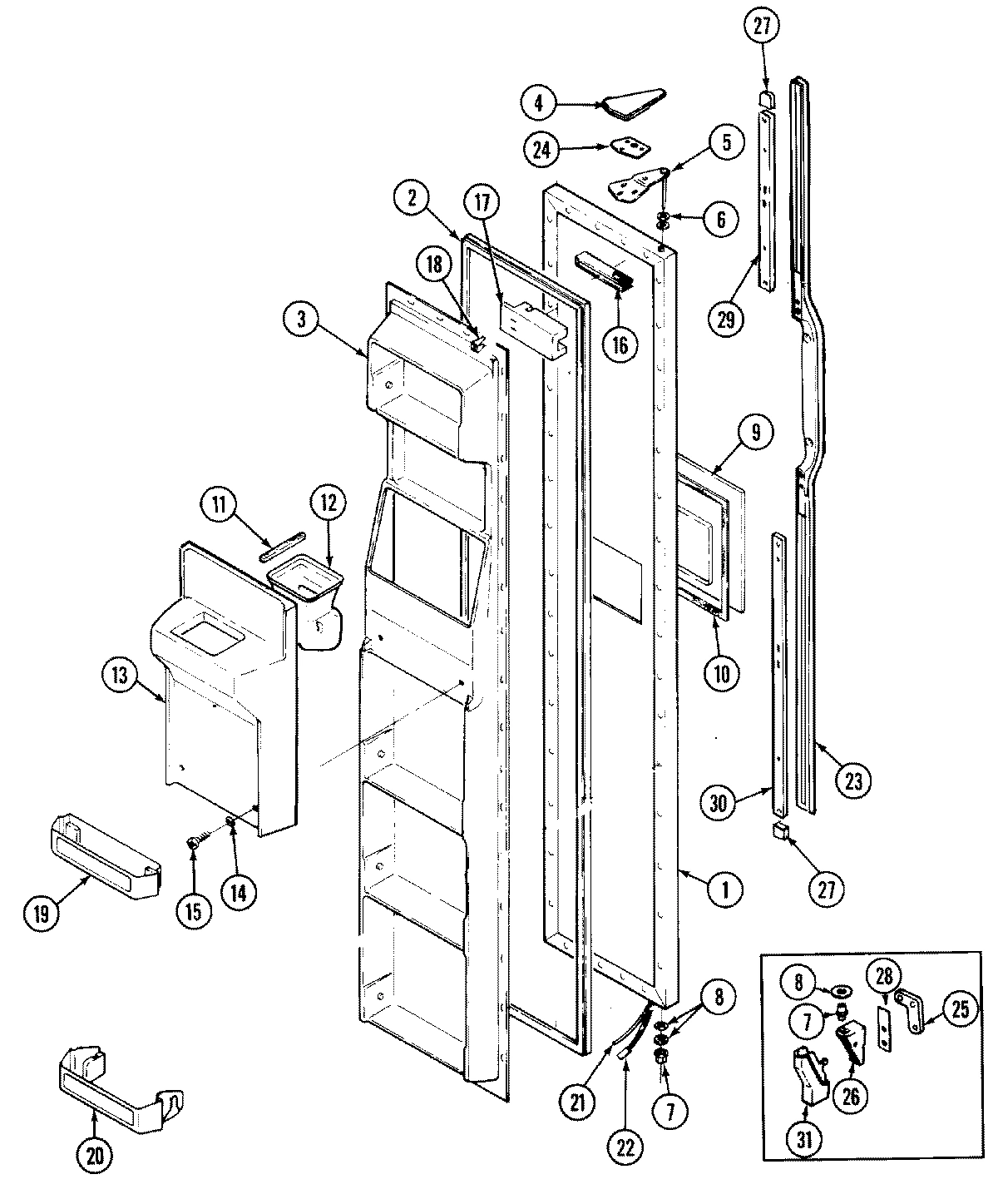

02 - FREEZER DOOR

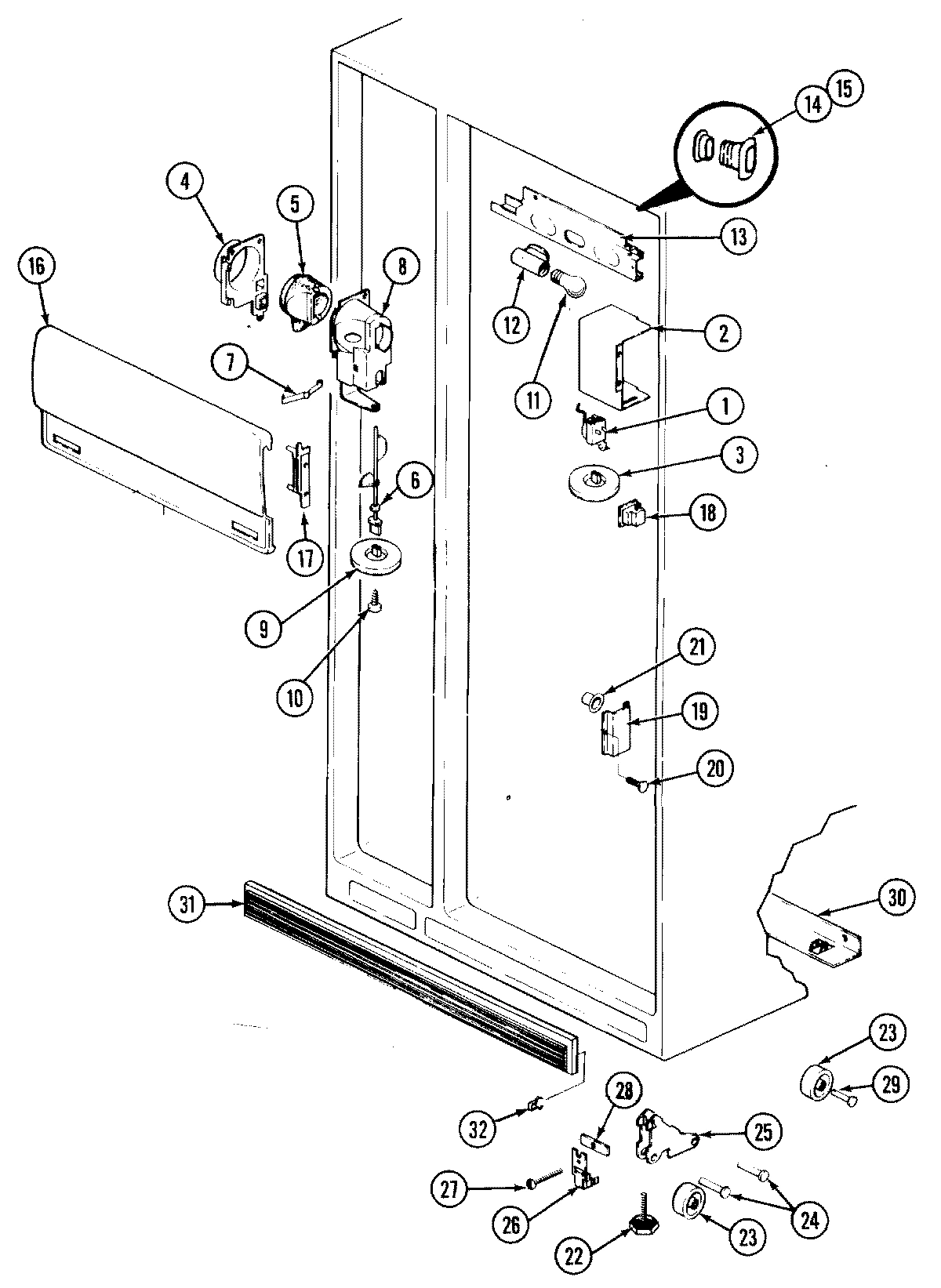

03 - FRESH FOOD COMPARTMENT

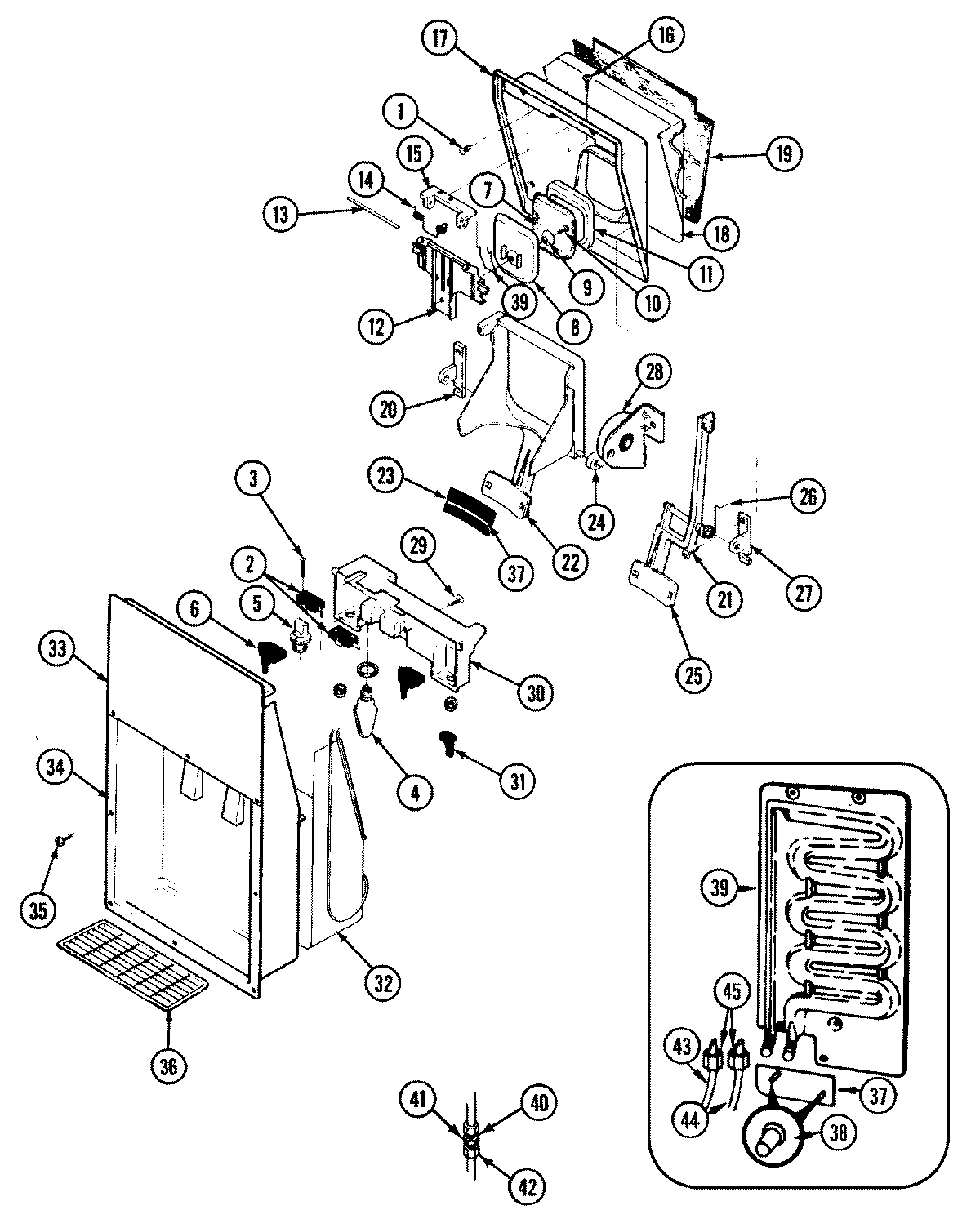

05 - ICE & WATER DISPENSER

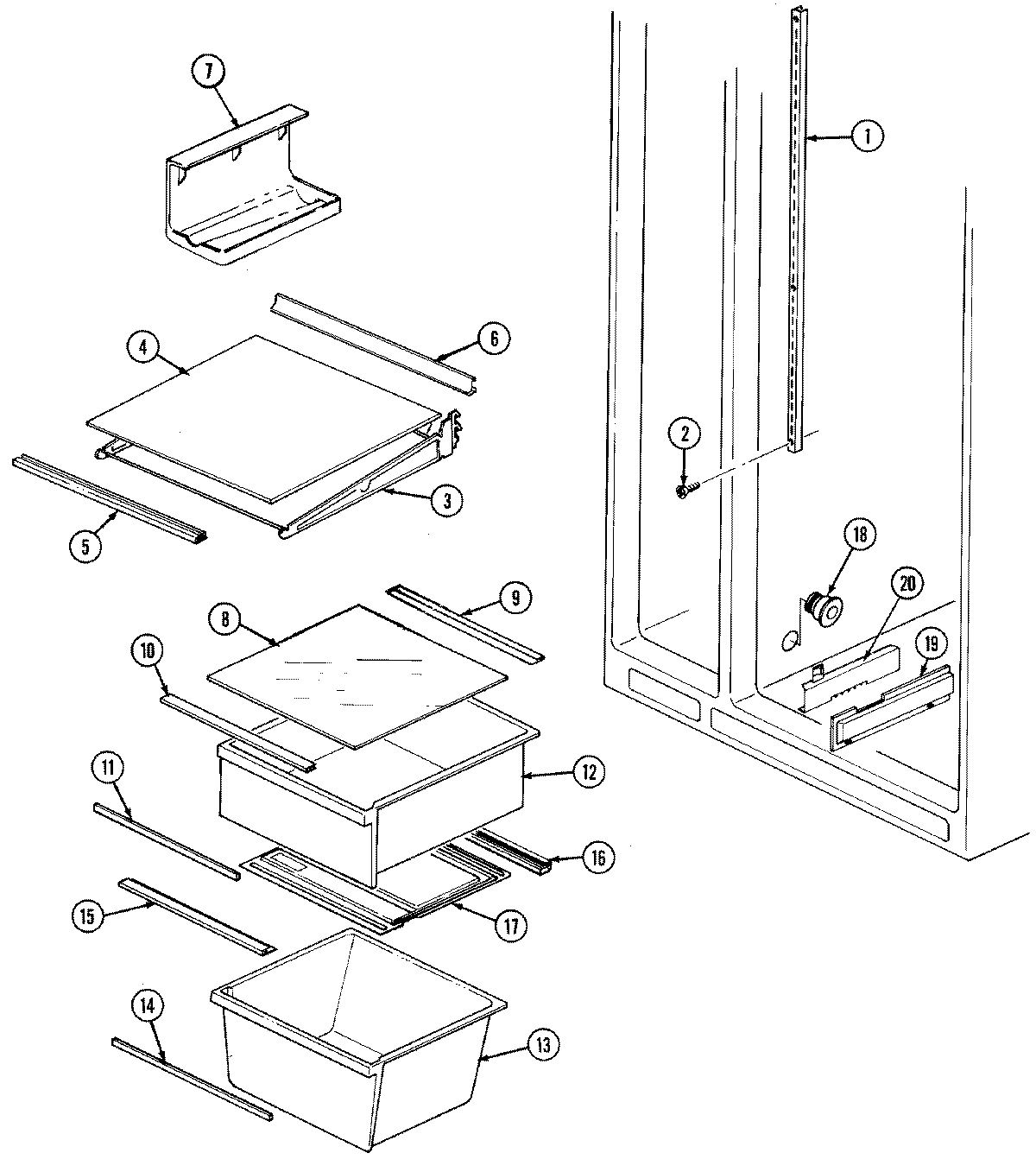

07 - SHELVES & ACCESSORIES

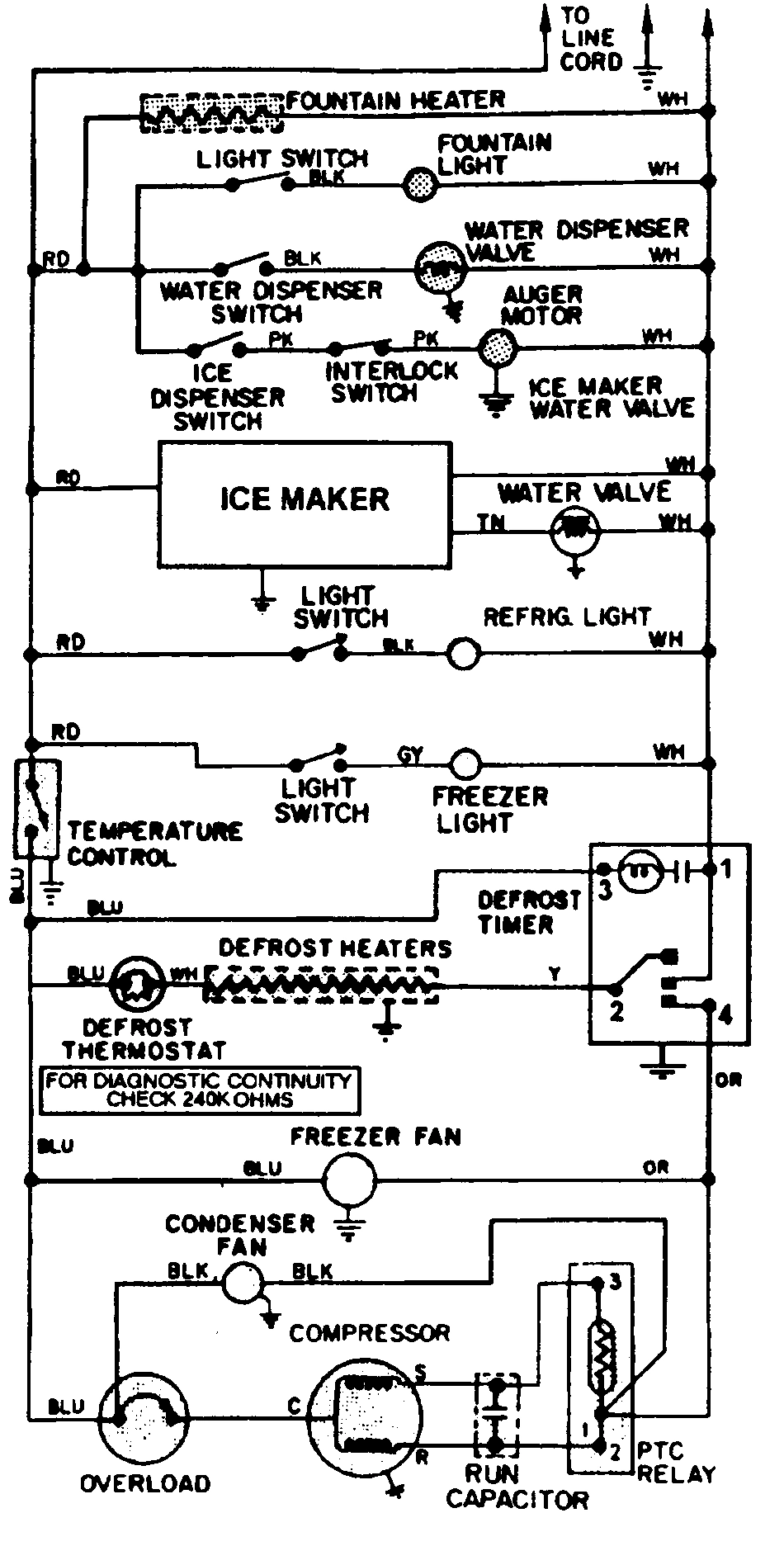

09 - WIRING INFORMATION

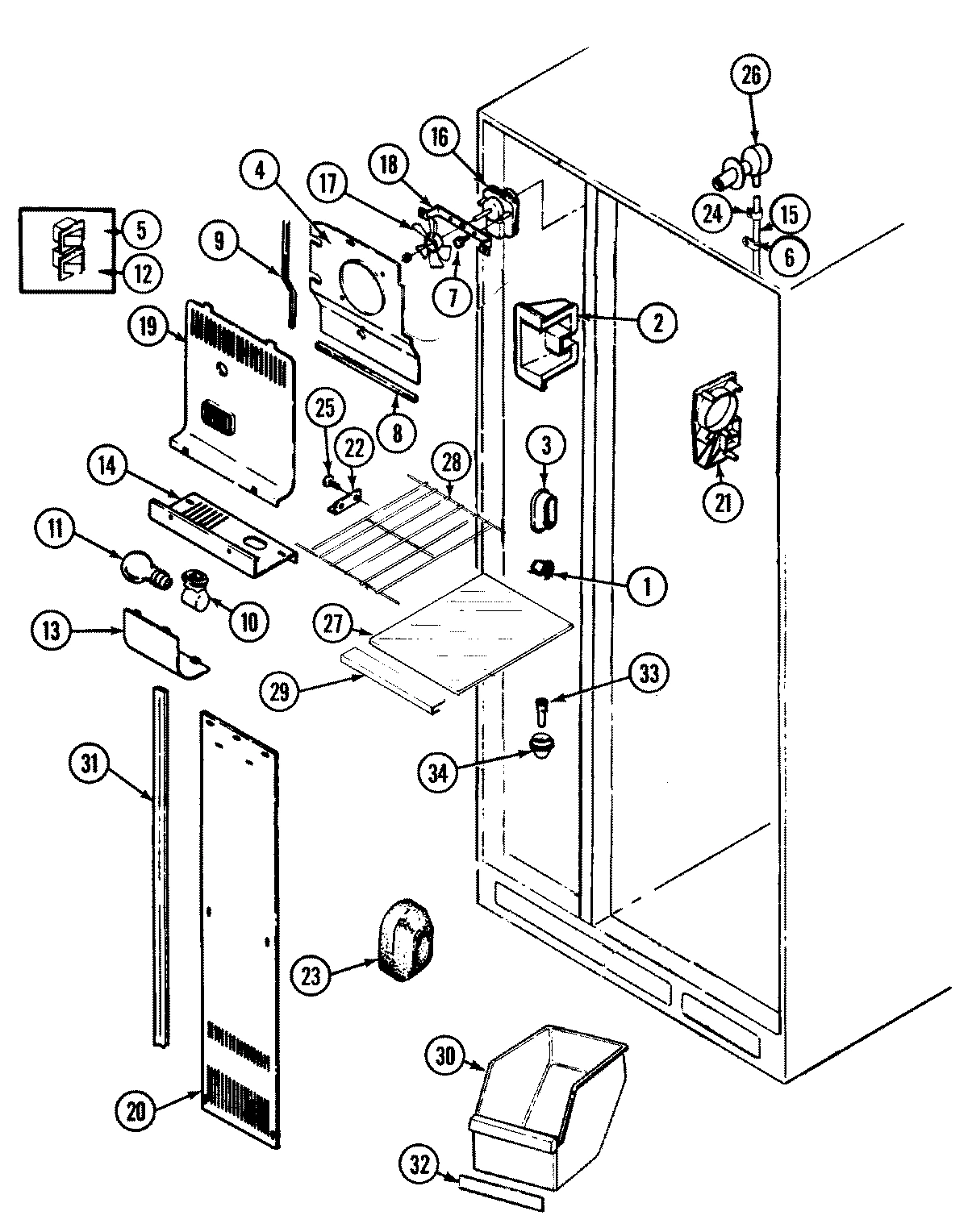

01 - FREEZER COMPARTMENT

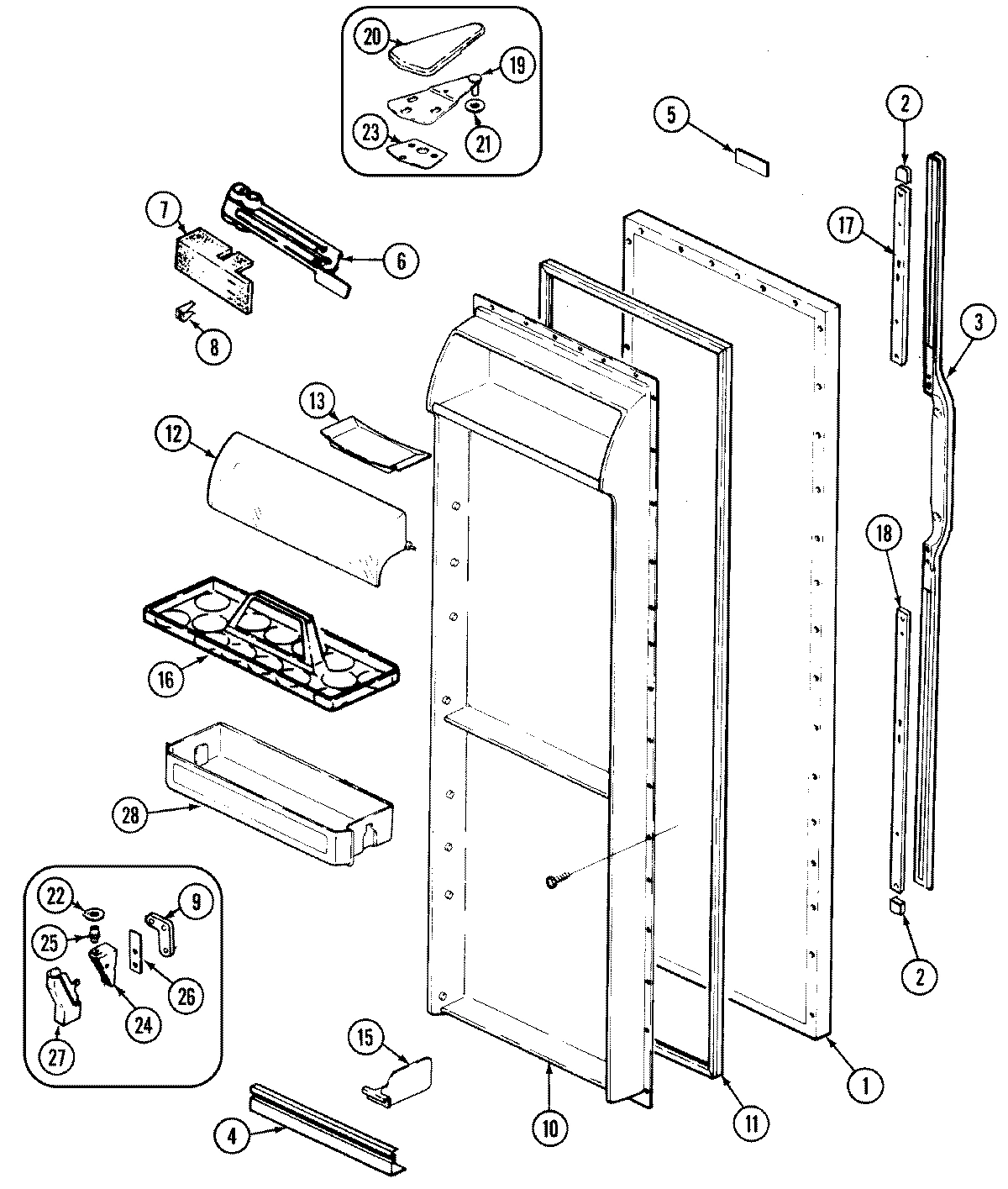

04 - FRESH FOOD DOOR

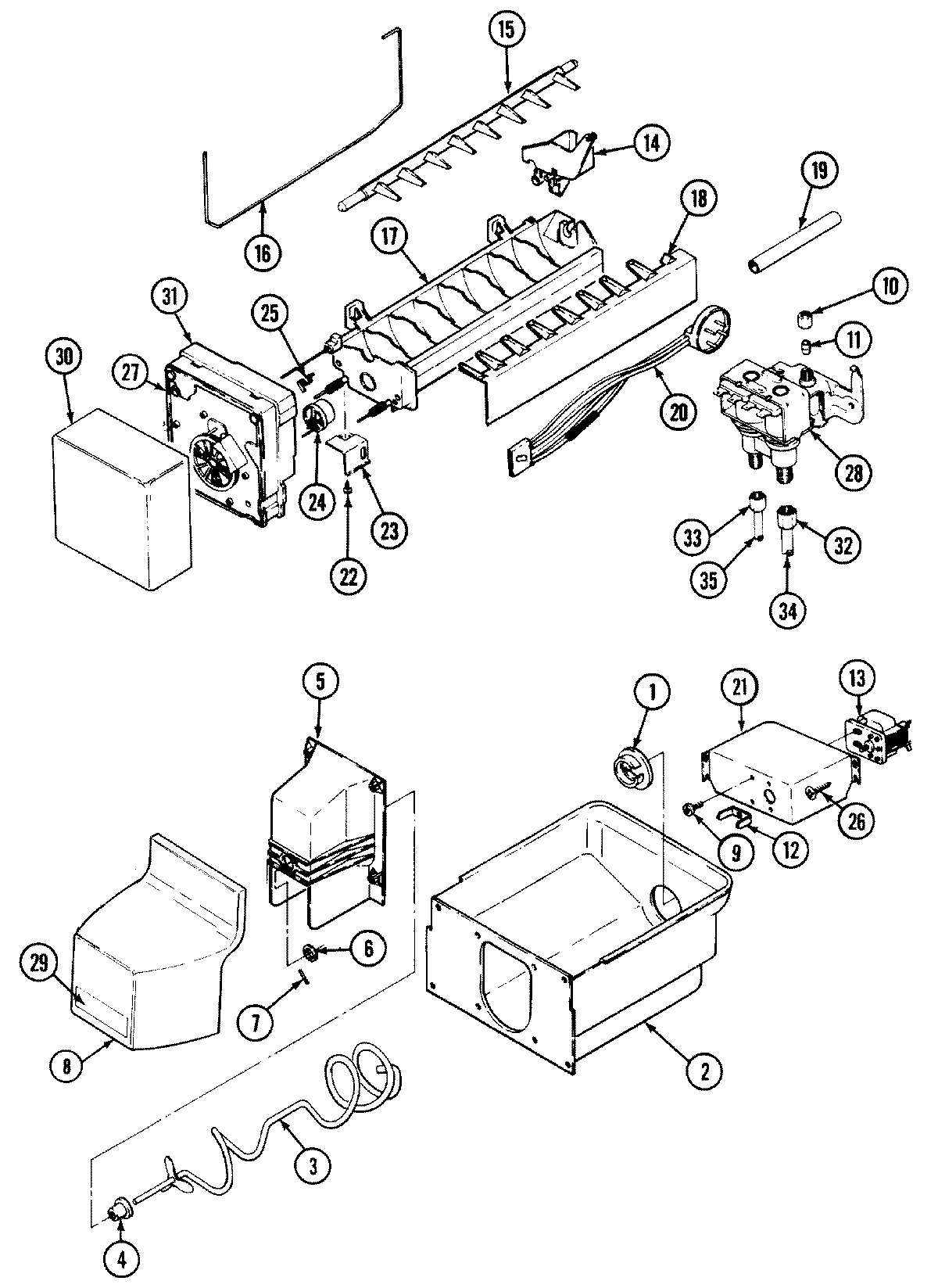

06 - ICE MAKER & BIN

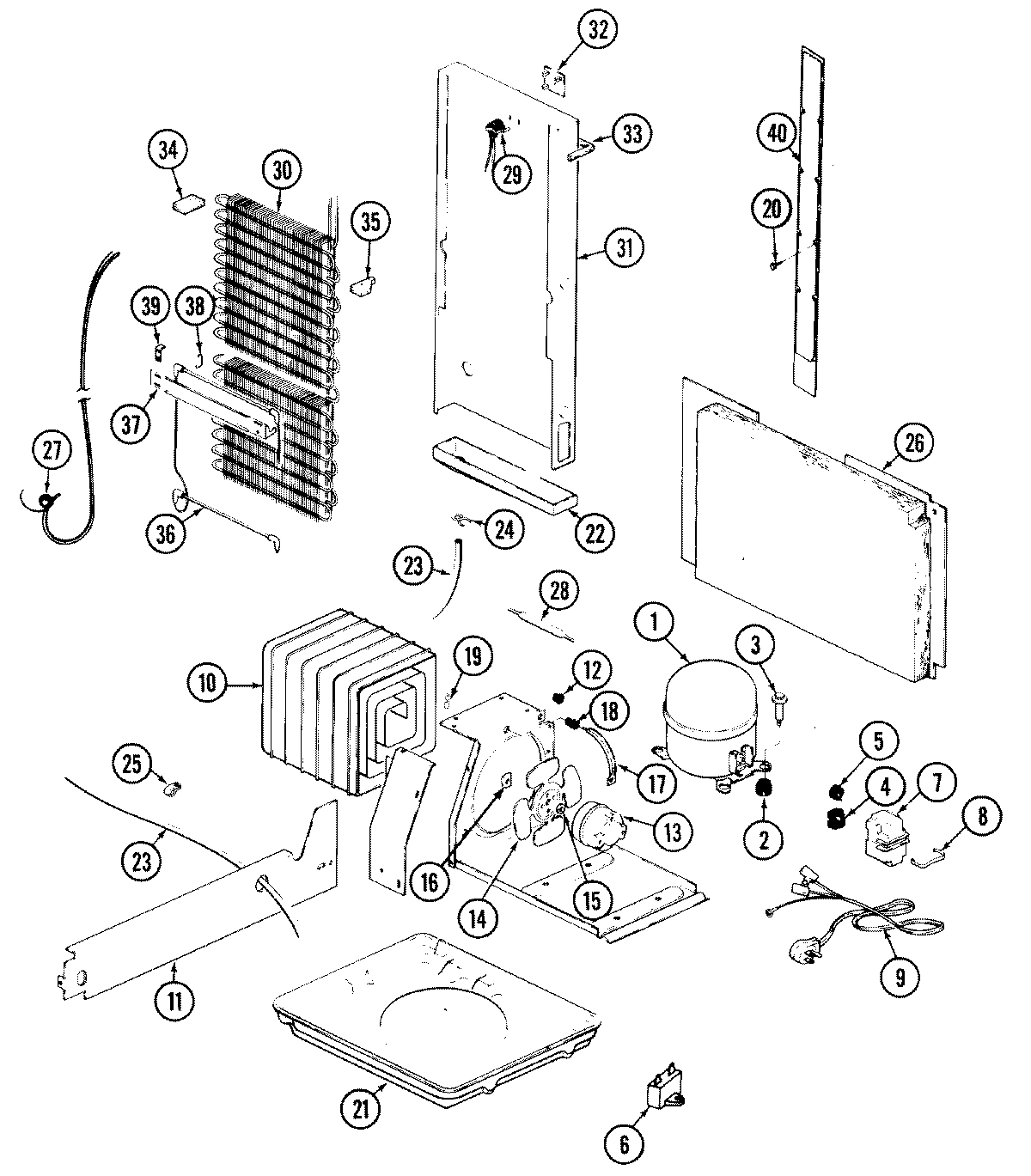

08 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RC203TDV REFRIGERATOR
1
SCREW WPL 4010241 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
PANEL, OUTER DOOR (WHT) WPL 723411WW Contact Us For Availability
1
RING, DRIVE WPL 700272 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
COMPRESSOR WPL RA10111 Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
END CAP, HANDLE WPL 695901 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
BIN WPL 678261 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
LINER, FRZ. DOOR WPL 692531 Contact Us For Availability
3
KIT, HANDLE ASSY. (WHT) WPL 12000039 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SCREW WPL 4050711 Contact Us For Availability
3
FRAME, SHELF WPL 701066 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
4
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
4
BULB, LIGHT WPL 631791 Contact Us For Availability
4
GLASS, CANTILEVER SHELF WPL 6813930 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
TRIM, SHELF WPL 7011162 Contact Us For Availability
4
RETAINER, BOTTLE WPL 701121 Contact Us For Availability
4
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
TRIM, SHELF (FRONT) WPL 7010712 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
5
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
5
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
5
ICE DAM WPL 678291 Contact Us For Availability
5
OVERLOAD WPL 691053 Contact Us For Availability
6
CLOSER, DOOR WPL 692581 Contact Us For Availability
6
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
6
NUT, WIRE WPL 271165 Contact Us For Availability
6
WIRE HARNESS, SWITCH WPL 684911 Contact Us For Availability
6
SWITCH, LIGHT WPL 698325 Contact Us For Availability
6
TRIM, SHELF WPL 701104 Contact Us For Availability
6
WASHER, THRUST WPL 678342 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
7
PIN, HINGE REFRIG. WPL 698441 Contact Us For Availability
7
INSULATION, DOOR CLOSER WPL 692631 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
7
HOLDER, BEVERAGE WPL 696151 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
BRACKET, CLOSER WPL 692611 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
SCREW WPL 40502335 Contact Us For Availability
8
DOOR, ICE WPL 689572 Contact Us For Availability
8
SCREW WPL 41501335 Contact Us For Availability
8
SHELF, CRISPER (GLASS) WPL 6813931 Contact Us For Availability
8
SEAL WPL 689466 Contact Us For Availability
8
FRONT ASSY, ICE DISP WPL 6987511 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
9
ESCUTCHEON (WHT) WPL 685945 Contact Us For Availability
9
SCREW WPL 6527559 Contact Us For Availability
9
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
RETAINER WPL 685661 Contact Us For Availability
9
SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability
9
SEAL WPL 6632520 Contact Us For Availability
9
SCREW WPL 406026103 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
10
SCREW WPL 652755 Contact Us For Availability
10
TAPE, ESCUTCHEON WPL 951211 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
10
SCREW WPL 40511635 Contact Us For Availability
10
TRIM WPL 666501 Contact Us For Availability
10
LINER, F.F. DOOR WPL 692381 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
11
SEAL WPL 5207726 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
11
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
11
INSERT, CRISPER PAN HANDLE WPL 68124103 Contact Us For Availability
11
SCREW WPL 998645 Contact Us For Availability
11
GASKET WPL 700243 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
12
CHUTE, ICE WPL 692201 Contact Us For Availability
12
SWITCH, LIGHT WPL 669871 Contact Us For Availability
12
STRIKE, ICE DOOR WPL 685632 Contact Us For Availability
12
PAN, CRISPER LOWER WPL 6650925 Contact Us For Availability
12
DOOR, DAIRY WPL 66184393 Contact Us For Availability
12
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
13
INSULATION WPL 687681 Contact Us For Availability
13
PANEL, ACCESS WPL 692231 Contact Us For Availability
13
HOUSING, LITE & WIRE WPL 691931 Contact Us For Availability
13
SHAFT WPL 685641 Contact Us For Availability
13
PAN, MEAT WPL 6651025 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
TRAY, BUTTER WPL 299362 Contact Us For Availability
13
MOTOR, AUGER WPL 651861 Contact Us For Availability
13
WIRE HARNESS, AUGER MOTOR WPL 690481 Contact Us For Availability
13
CORD WPL 296752 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684457 Contact Us For Availability
14
STUD WPL 687862 Contact Us For Availability
14
TUNNEL, WIRE WPL 691972 Contact Us For Availability
14
SPRING WPL 687651 Contact Us For Availability
14
INSERT, MEAT FRONT HANDLE WPL 68124102 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 672962 Contact Us For Availability
14
FRONT, PICK-OFF WPL 698715 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
15
FUNNEL-KIT WPL 675792 Contact Us For Availability
15
SCREW WPL 400021103 Contact Us For Availability
15
RETAINER WPL 572821 Contact Us For Availability
15
BRACKET, PIVOT WPL 689581 Contact Us For Availability
15
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
15
ORGANIZER, SHELF WPL 701141 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
16
SHIELD, LIGHT WPL 691945 Contact Us For Availability
16
SCREW WPL 40501335 Contact Us For Availability
16
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
16
TRAY, EGG WPL 600661 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
17
TRIM, HANDLE EXT. (UPPER) WPL 695863 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
BACK, FOUNTAIN (WHT) WPL 685672 Contact Us For Availability
17
COVER, MEAT PAN WPL 656085 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
TRIM, HANDLE EXT. (LOWER) WPL 695864 Contact Us For Availability
18
HEATER, FOUNTAIN BACK WPL 689371 Contact Us For Availability
18
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
HINGE, UPPER WPL 5370922 Contact Us For Availability
19
SHELF, PICK-OFF WPL 698737 Contact Us For Availability
19
TRIM, PADDLE PAD WPL 687631 Contact Us For Availability
19
CONTROL HOUSING WPL 657372 Contact Us For Availability
19
SHIELD, FAN WPL 672251 Contact Us For Availability
19
SCREW WPL 998687 Contact Us For Availability
19
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
19
CLIP, MOUNTING FAN BLADE WPL 550421 Contact Us For Availability
20
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
20
FRONT, PICK-OFF WPL 698707 Contact Us For Availability
20
PIVOT, ACTUATOR (LT) WPL 686271 Contact Us For Availability
20
CLIP WPL 566864 Contact Us For Availability
20
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
20
COVER, COIL LOWER WPL 673353 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
20
SEAL AIR RETURN WPL 676931 Contact Us For Availability
21
WASHER WPL 521851 Contact Us For Availability
21
TUBING PLASTIC-DOOR PANEL WPL 671871 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
22
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
22
WIRE HARNESS, DOOR WPL 698659 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
PADDLE, ICE (WHT) WPL 691122 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
23
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
23
WHEEL ASSY. WPL 628307 Contact Us For Availability
23
PAD, PADDLE (WHT) WPL 691742 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
24
PIVOT, ACTUATOR (CENTER) WPL 687641 Contact Us For Availability
24
CLAMP, SPRING WPL 603334 Contact Us For Availability
24
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
25
PADDLE, WATER (WHT) WPL 685582 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
SCREW WPL 40001536 Contact Us For Availability
25
PIN, HINGE WPL 700601 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
26
PLUG BUTTON WPL 694801 Contact Us For Availability
26
HINGE, LOWER (ZINC) WPL 695163 Contact Us For Availability
26
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
26
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
26
SPRING, PADDLE RETURN WPL 687671 Contact Us For Availability
26
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
26
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
26
SCREW WPL 40002636 Contact Us For Availability
26
COVER WPL 663393 Contact Us For Availability
27
COVER, LOWER HINGE (WHT) WPL 689784 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
27
PIVOT, ACTUATOR (RT)---NA WPL 686281 Contact Us For Availability
27
SHELF, 2,3 & 4 FREEZER (GLASS) WPL 6813924 Contact Us For Availability
27
SCREW WPL 4000211 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL 6501316 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
BUMPER, DOOR WPL 282726 Contact Us For Availability
28
MOTOR, INTERIA----NA WPL 692751 Contact Us For Availability
28
SHELF, DISPENSER WPL 686305 Contact Us For Availability
28
SCREW WPL 4010181 Contact Us For Availability
28
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
29
PIN, WHEEL WPL 649651 Contact Us For Availability
29
TRIM, SHELF WPL 701371 Contact Us For Availability
29
FRONT ASSY, I/M SXS WPL 698745 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
RAIL, HORIZONTAL SUPPORT WPL 61001030 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
BRACKET, SWITCH WPL 686262 Contact Us For Availability
30
NUT WPL 701761 Contact Us For Availability
30
DRAWER, FRZ. WPL 6651225 Contact Us For Availability
30
COVER, ICE MAKER WPL 683282 Contact Us For Availability
30
EVAPORATOR WPL 5255121 Contact Us For Availability
31
SCREW, HINGE COVER (BLACK) WPL 6527547 Contact Us For Availability
31
KICKPLATE WPL 689817 Contact Us For Availability
31
PLUNGER WPL 685682 Contact Us For Availability
31
CLIP WPL 693141 Contact Us For Availability
31
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
31
SCREW WPL 951061 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
32
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
32
GRILL WPL 686311 Contact Us For Availability
32
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
32
INSERT, DRAWER WPL 68124100 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
TIMER, DEFROST WPL 682333 Contact Us For Availability
33
FRONT, FOUNTAIN WPL 689551 Contact Us For Availability
33
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
33
TUBE, DRAIN WPL 2652711 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
34
GROMMET WPL 525261 Contact Us For Availability
34
TUBING, VALVE TO TANK (5/16``) WPL 6718713 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
CLAMP, TUBING WPL 535168 Contact Us For Availability
35
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
35
SCREW WPL 4000161 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
36
HEATER, DEFROST WPL 698481 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
NYLON NUT WPL 1953036 Contact Us For Availability
38
SCREW WPL 40004828 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
TANK, WATER WPL 690658 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 702662 Contact Us For Availability
40
COVER WPL 663811 Contact Us For Availability
41
UNION, REDUCING WPL 676121 Contact Us For Availability
42
MANUAL, USE & CARE WPL 1084293 Contact Us For Availability
44
TUBING, FOUNTAIN TO COIL WPL 6718727 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001097 Contact Us For Availability
× ![]()
Login and Registration Form
