Model Whirlpool RC202TAV REFRIGERATOR – Common Parts & Diagrams
09 - UNIT COMPARTMENT & SYSTEM

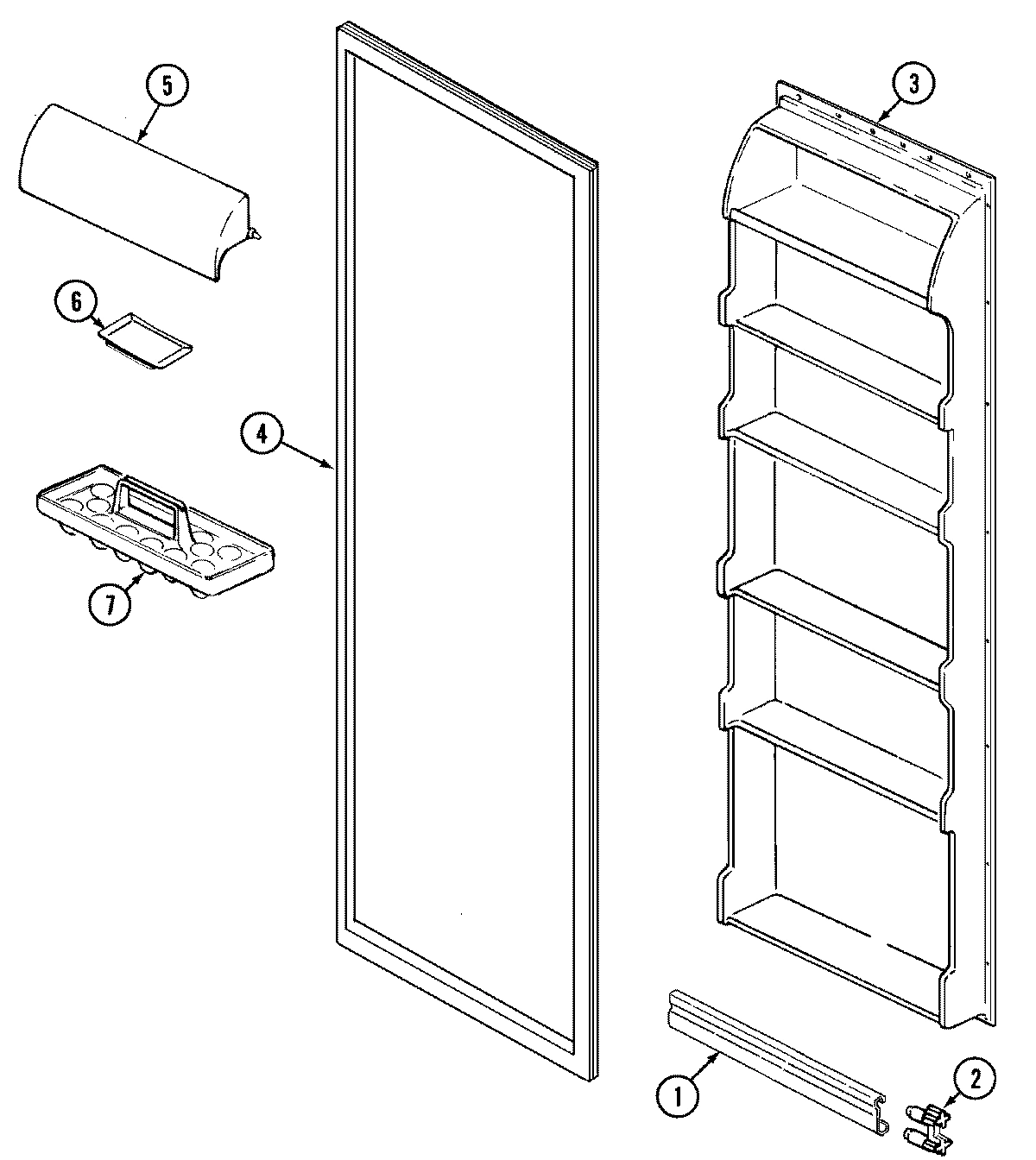

05 - FRESH FOOD INNER DOOR

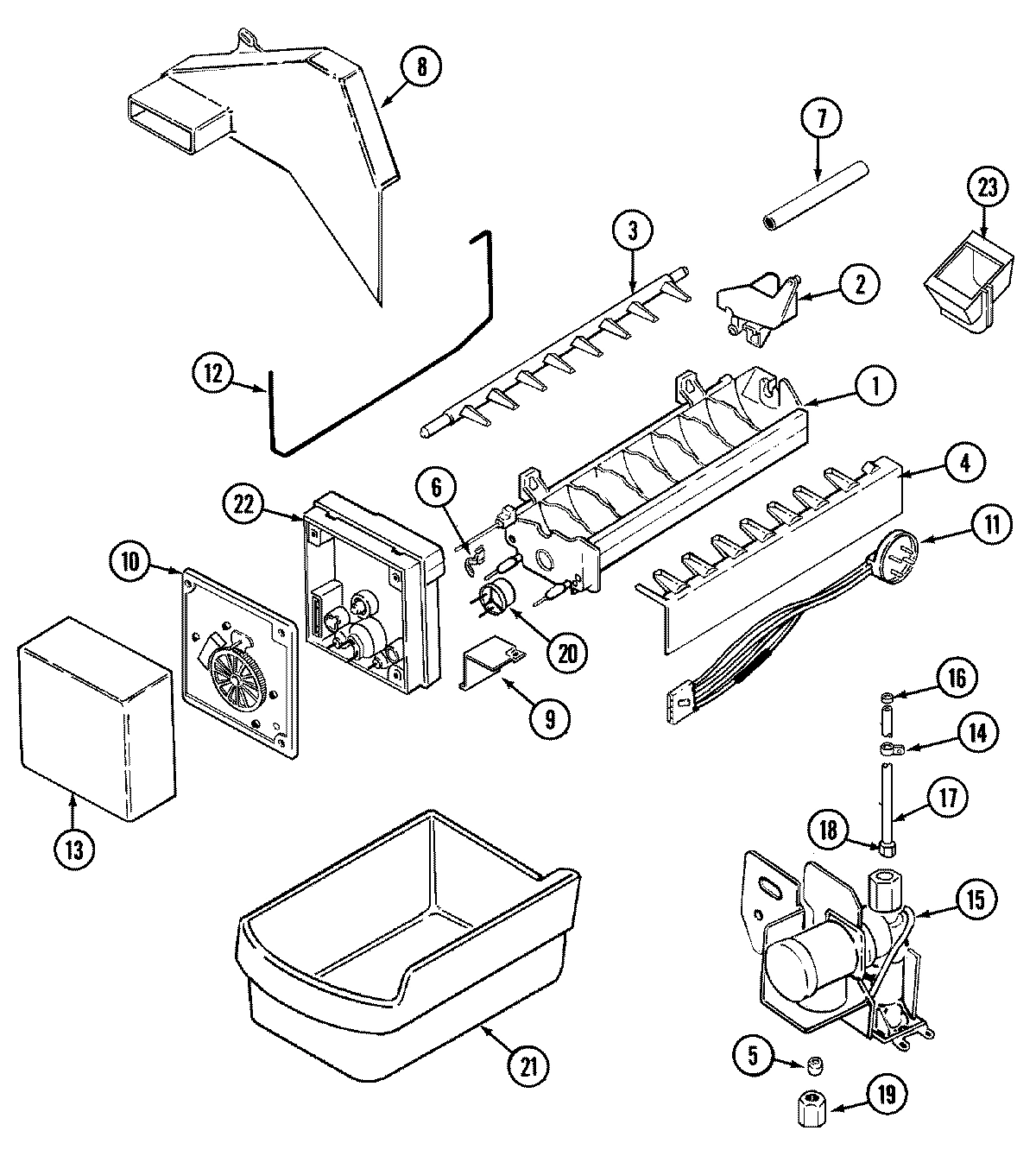

07 - OPTIONAL ICE MAKER KIT-ICE

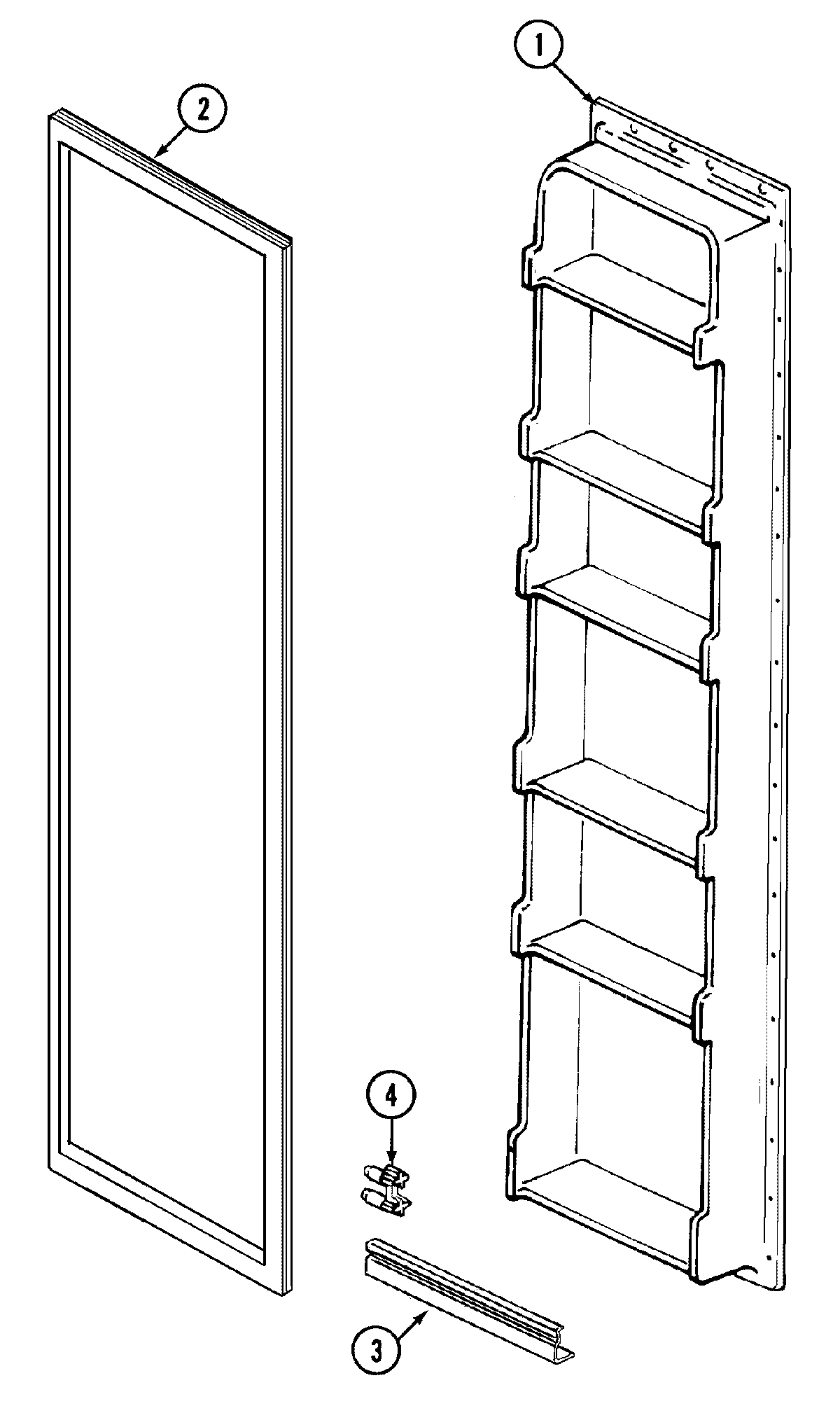

02 - FREEZER INNER DOOR

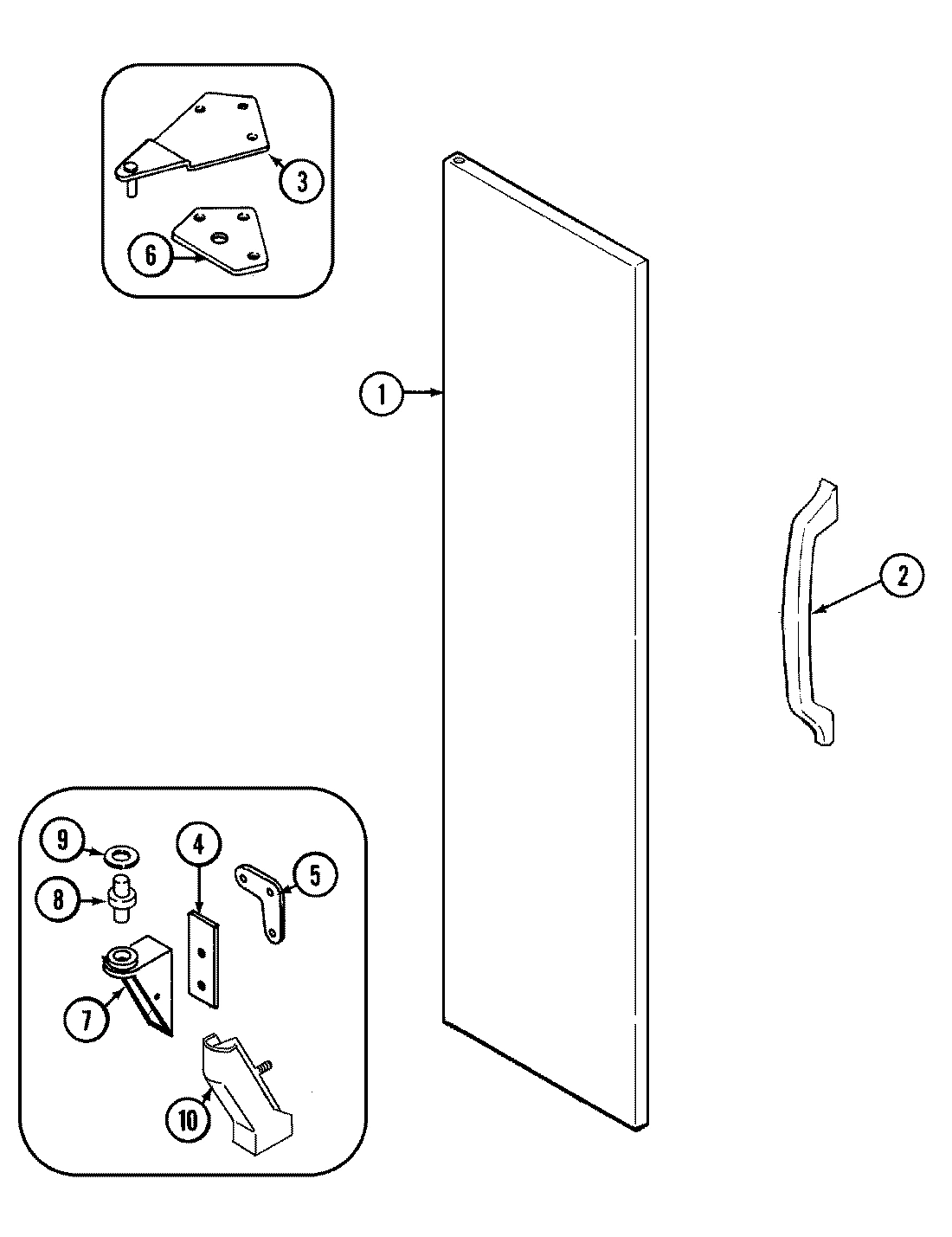

03 - FREEZER OUTER DOOR

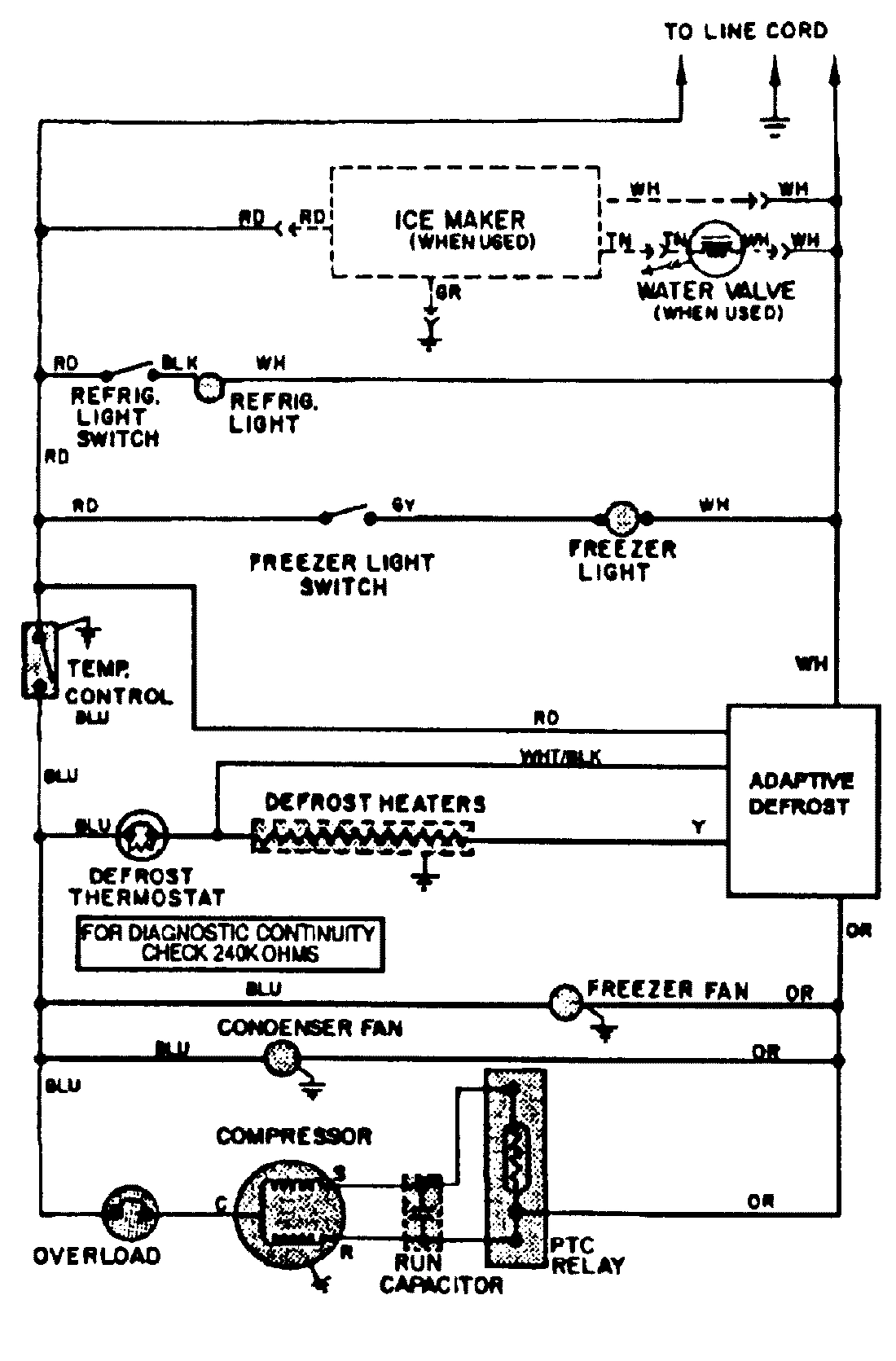

10 - WIRING INFORMATION

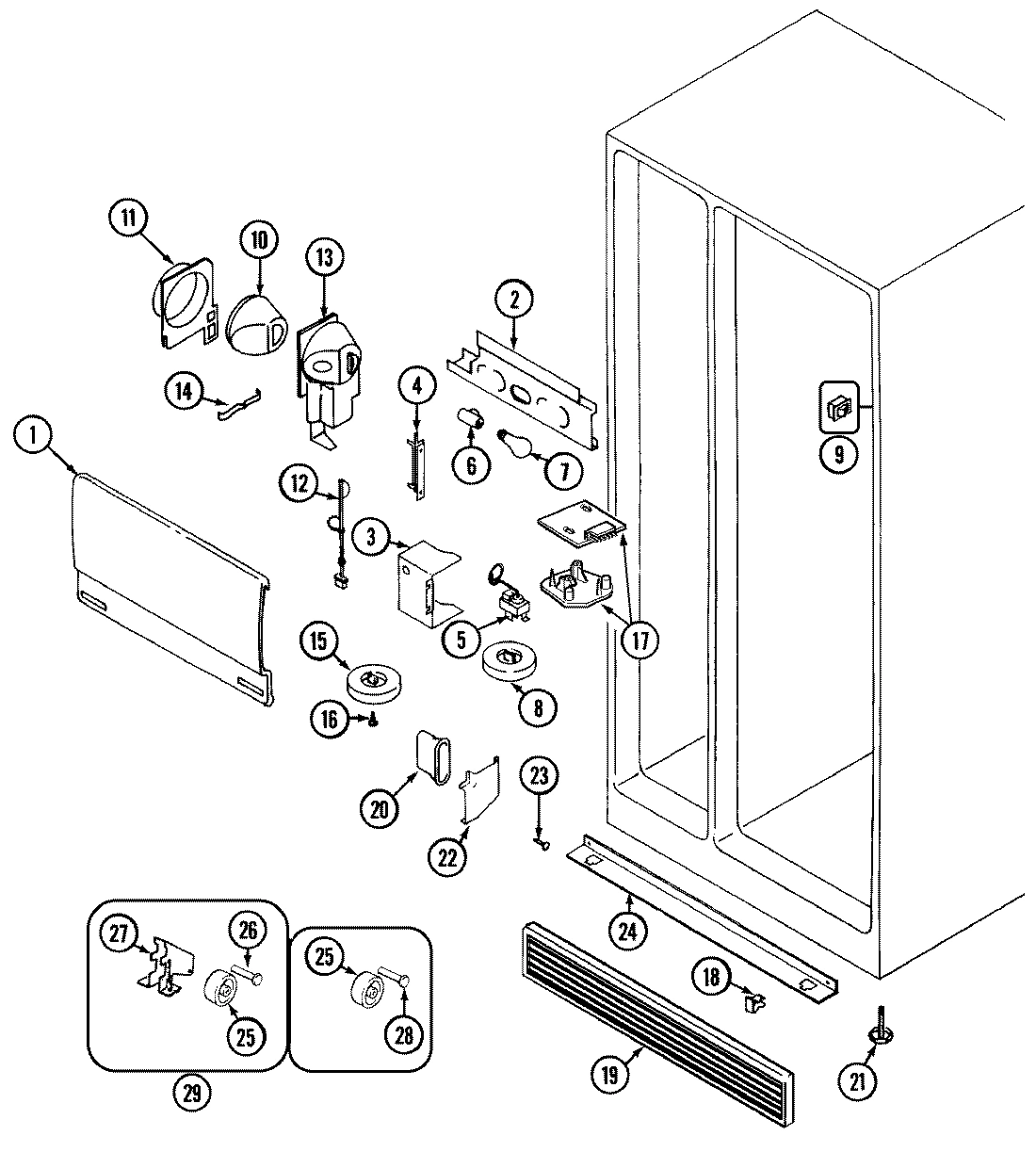

04 - FRESH FOOD COMPARTMENT

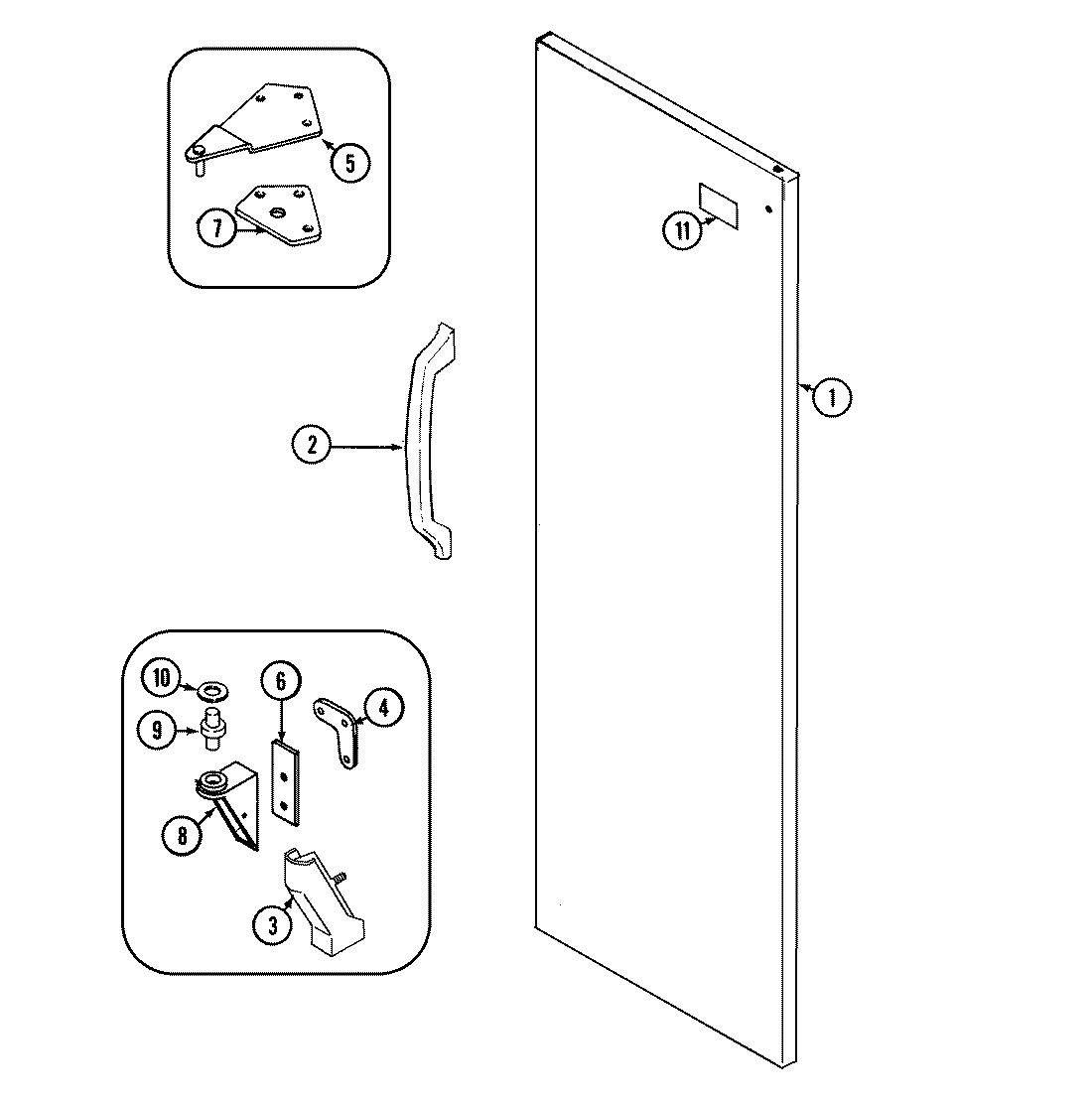

06 - FRESH FOOD OUTER DOOR

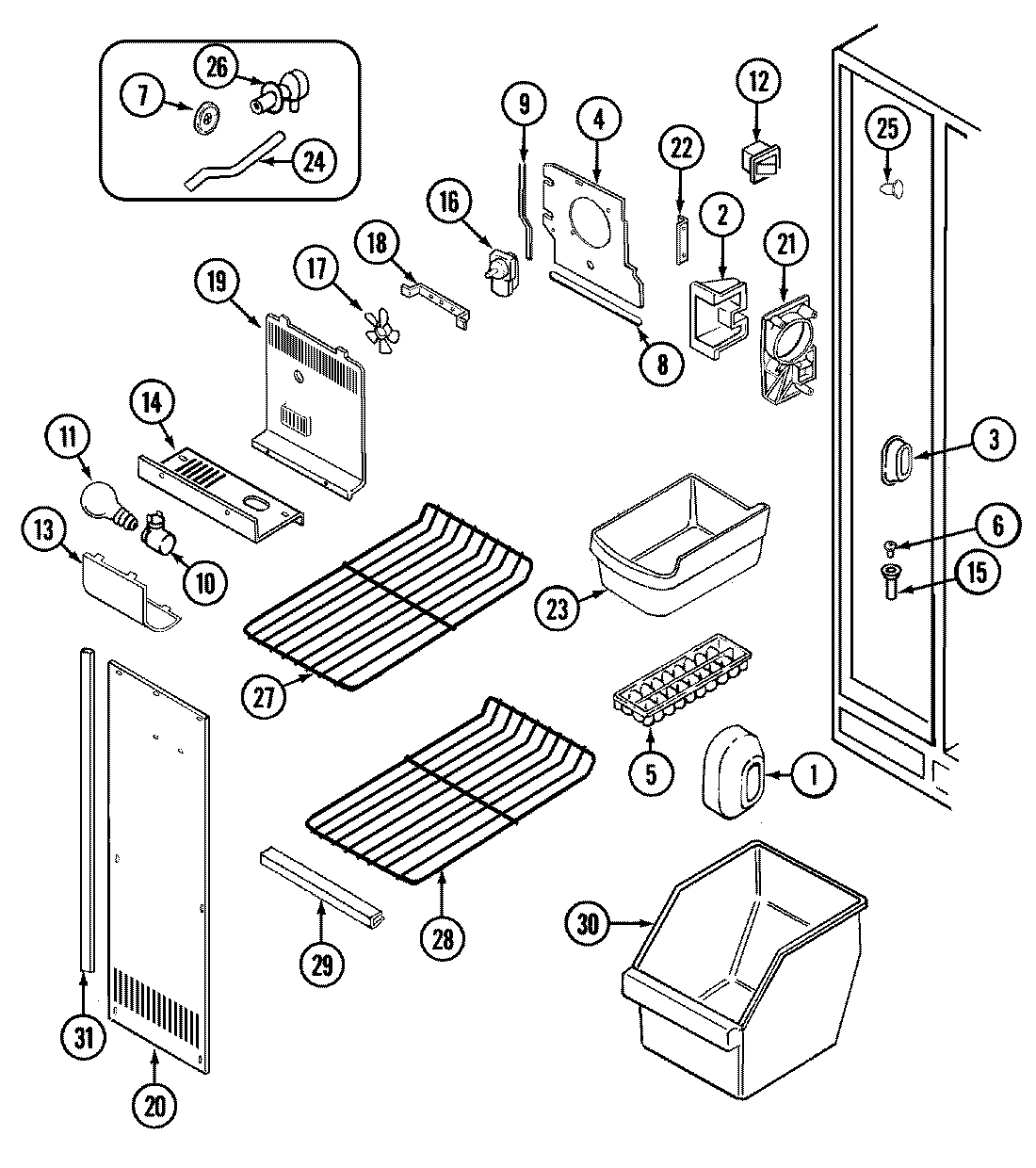

01 - FREEZER COMPARTMENT

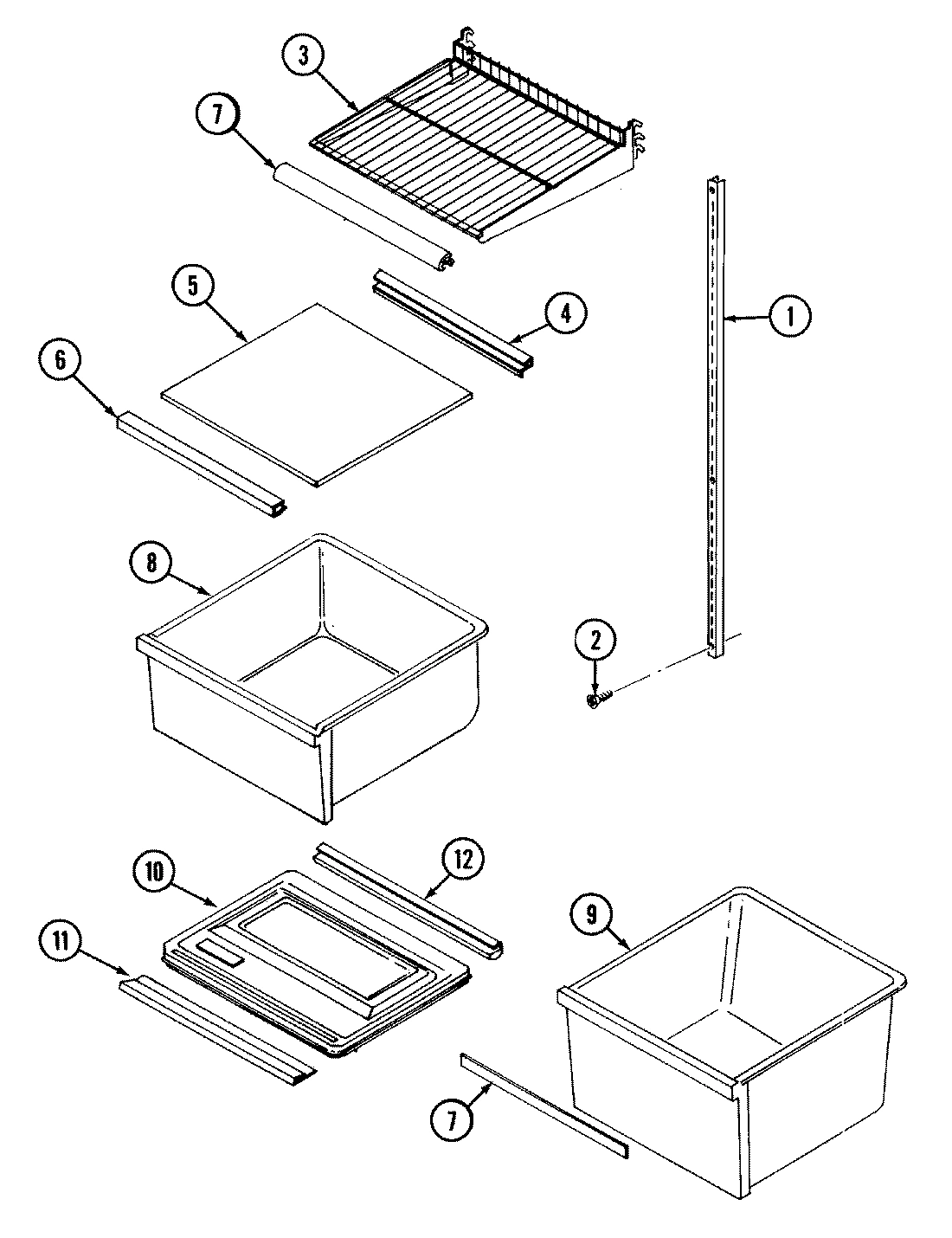

08 - SHELVES & ACCESSORIES
Common parts from model Whirlpool RC202TAV REFRIGERATOR
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
TRIM, SHELF WPL 701118 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 692461 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 723463WW Contact Us For Availability
1
SHIELD, LIGHT WPL 691945 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 723472WW Contact Us For Availability
1
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
KIT, HANDLE ASSY. (WHT) WPL 12000051 Contact Us For Availability
2
HOUSING, LITE & WIRE WPL 691931 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
LINER, F.F. DOOR WPL 692381 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
TRIM, SHELF WPL 701111 Contact Us For Availability
3
COVER, LOWER HINGE (WHT) WPL 61001611 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
SHELF, WIRE WPL 701058 Contact Us For Availability
4
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
4
GASKET WPL 700243 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SCREW WPL 6527559 Contact Us For Availability
4
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability
5
OVERLOAD WPL 61001785 Contact Us For Availability
5
DOOR, DAIRY WPL 66184393 Contact Us For Availability
5
SLEEVE, BRASS WPL 694311 Contact Us For Availability
5
HINGE, UPPER WPL 5370928 Contact Us For Availability
5
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696945 Contact Us For Availability
5
TRAY, ICE WPL 592812 Contact Us For Availability
5
SHELF, CRISPER WPL 656875 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
6
TRAY, BUTTER WPL 299362 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
6
TUBE, DRAIN WPL 2652711 Contact Us For Availability
6
TRIM WPL 666501 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
CLIP, FILL TUBE WPL 678771 Contact Us For Availability
7
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
7
BULB, LIGHT WPL 557711 Contact Us For Availability
7
CAP, CONNECTOR WPL 681871 Contact Us For Availability
7
TRIM, SHELF WPL 61001569 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
DUCT, AIR WPL 701981 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
DUCT, AIR WPL 701983 Contact Us For Availability
8
HINGE, LOWER WPL 61001587 Contact Us For Availability
8
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
8
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
PAN, CRISPER LOWER WPL 6650925 Contact Us For Availability
8
INSERT, CRISPER PAN HANDLE WPL 68124103 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
PAN, MEAT WPL 6651025 Contact Us For Availability
9
INSERT, MEAT FRONT HANDLE WPL 68124102 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
COVER, MEAT PAN WPL 656085 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 61001230 Contact Us For Availability
11
NAMEPLATE (WHT) WPL 6698231 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 61001533 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
SWITCH, LIGHT WPL 669871 Contact Us For Availability
12
BAFFLE, FREEZER CONTROL WPL 686102 Contact Us For Availability
12
SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
COVER, ICE MAKER WPL 683282 Contact Us For Availability
13
SCREW WPL 4150171 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
SUPPORT, LIGHT SHIELD WPL 61001701 Contact Us For Availability
15
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
15
SCREW WPL 4010171 Contact Us For Availability
15
KNOB WPL 2989312 Contact Us For Availability
15
GROMMET WPL 525261 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
WIRE HARNESS FREEZER WPL 700391 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
SCREW WPL 4050071 Contact Us For Availability
17
ADAPTIVE DEFROST ASSY. WPL 61004304 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 61001770 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
SCREW WPL 998645 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 61004303 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
KICKPLATE WPL 689817 Contact Us For Availability
19
SHIELD, FAN WPL 61001756 Contact Us For Availability
20
HEATER, DEFROST WPL 698481 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
20
SCREW WPL 40001536 Contact Us For Availability
20
COVER, COIL LOWER WPL 673352 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
21
LEG, LEVELING WPL 686641 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
SCREW WPL 4000171 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
COVER, AIR RETURN WPL 699821 Contact Us For Availability
22
BRACKET, SUPPORT WPL 61001703 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
PAN, ICE WPL 683461 Contact Us For Availability
23
TROUGH, WATER INLET WPL 61001305 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
RAIL, HORIZONTAL SUPPORT WPL 61001030 Contact Us For Availability
24
SCREW WPL 6527542 Contact Us For Availability
24
PLUG, TUBE WPL 675933 Contact Us For Availability
24
TUBE, FILL WPL 676761 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
WHEEL WPL 698121 Contact Us For Availability
25
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
PIN, WHEEL WPL 649651 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
27
COVER, UNIT COMPARTMENT WPL 61001228 Contact Us For Availability
27
SCREW WPL 4000621 Contact Us For Availability
27
BRACKET WPL 528461 Contact Us For Availability
27
SHELF, 1 WPL 6660337 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501325 Contact Us For Availability
28
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
28
SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability
29
DRIER WPL 139001 Contact Us For Availability
29
WHEEL ASSY. (FRONT) WPL 720191 Contact Us For Availability
29
TRIM, SHELF WPL 61001163 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
DRAWER, FRZ. WPL 6651225 Contact Us For Availability
30
INSERT, DRAWER WPL 68124100 Contact Us For Availability
31
EVAPORATOR WPL 5255121 Contact Us For Availability
31
GASKET, LOWER COVER WPL 61001771 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
MANUAL, USE & CARE WPL 1084293 Contact Us For Availability
40
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002460 Contact Us For Availability
× ![]()
Login and Registration Form
