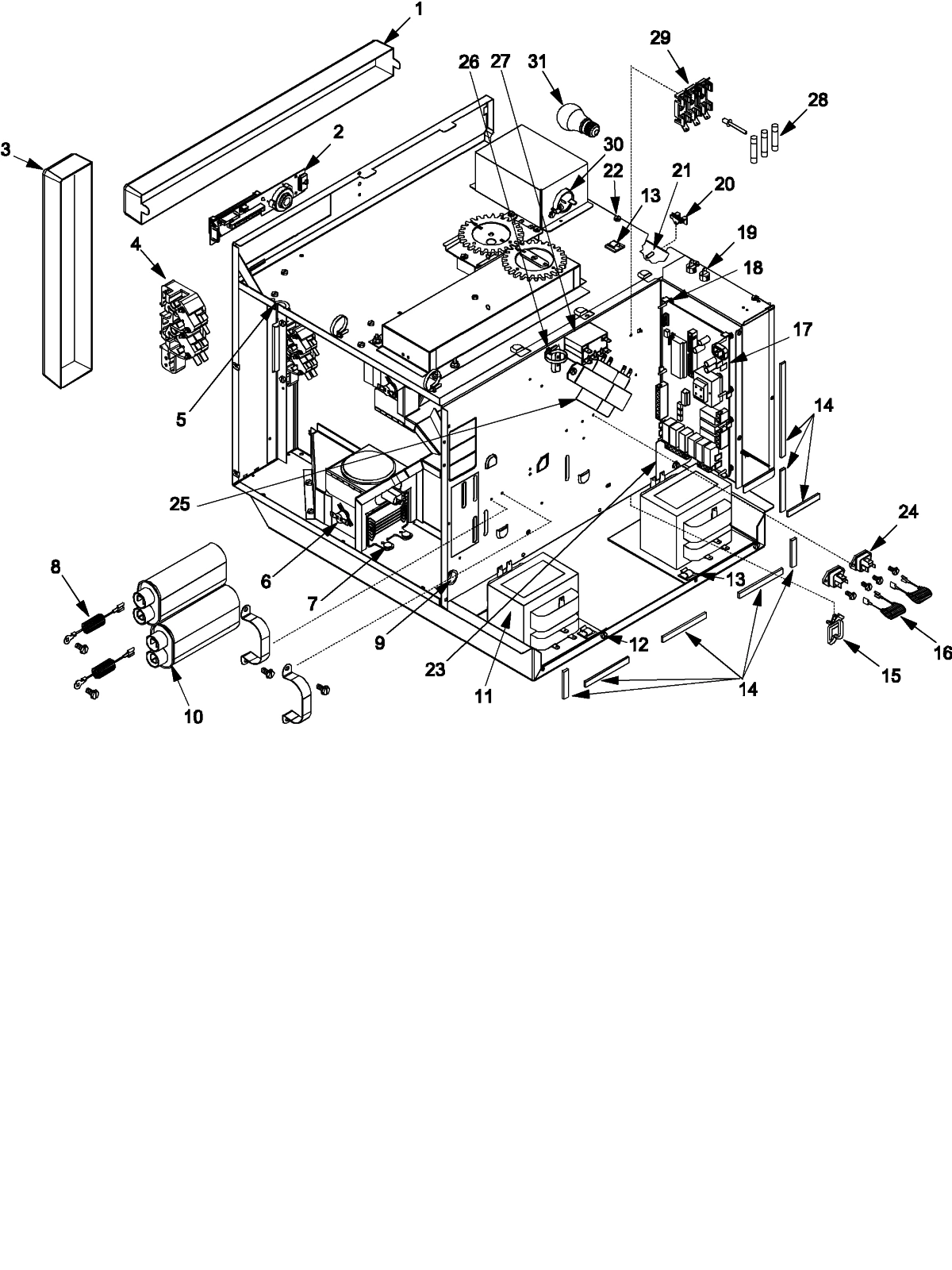

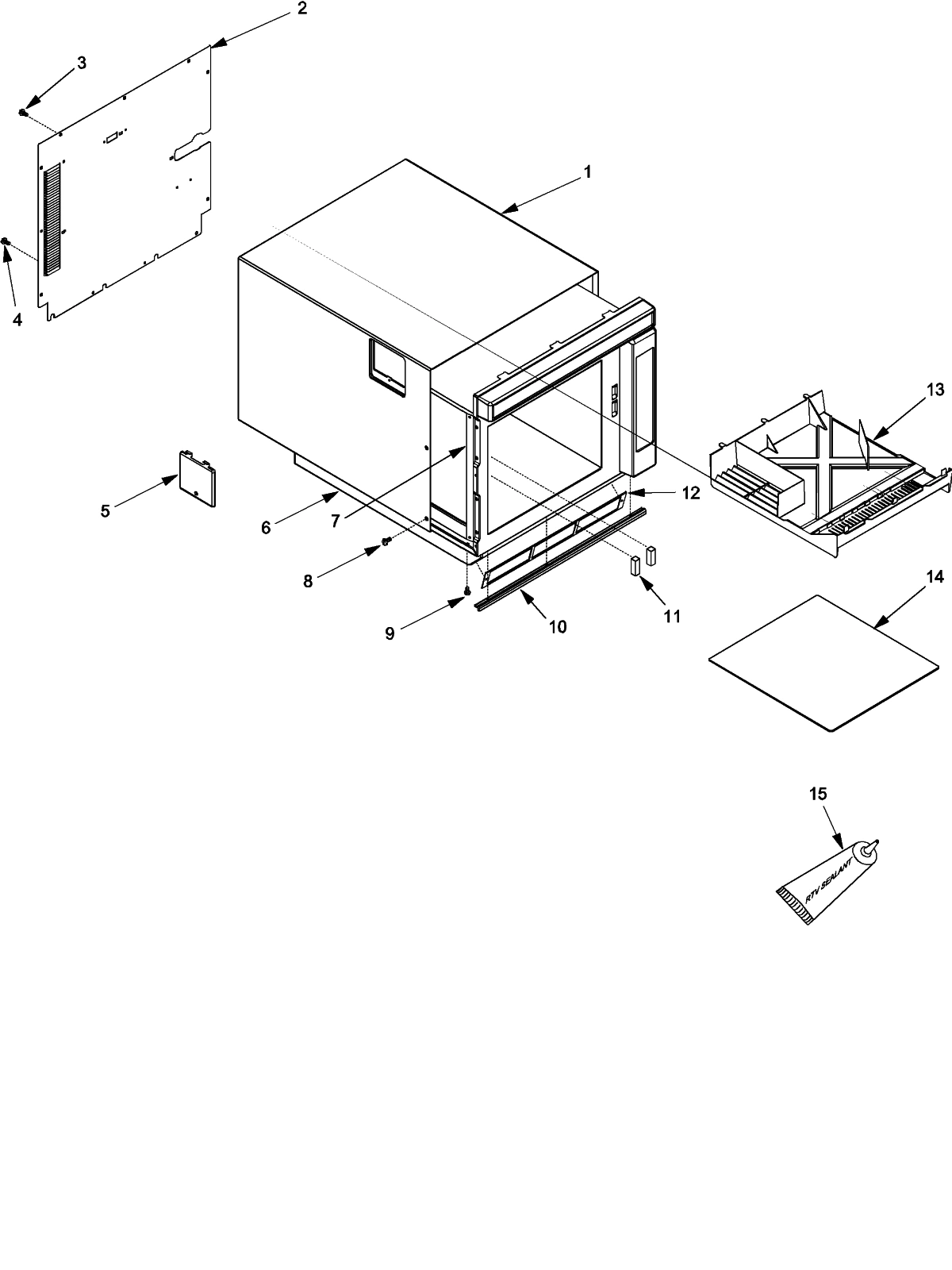

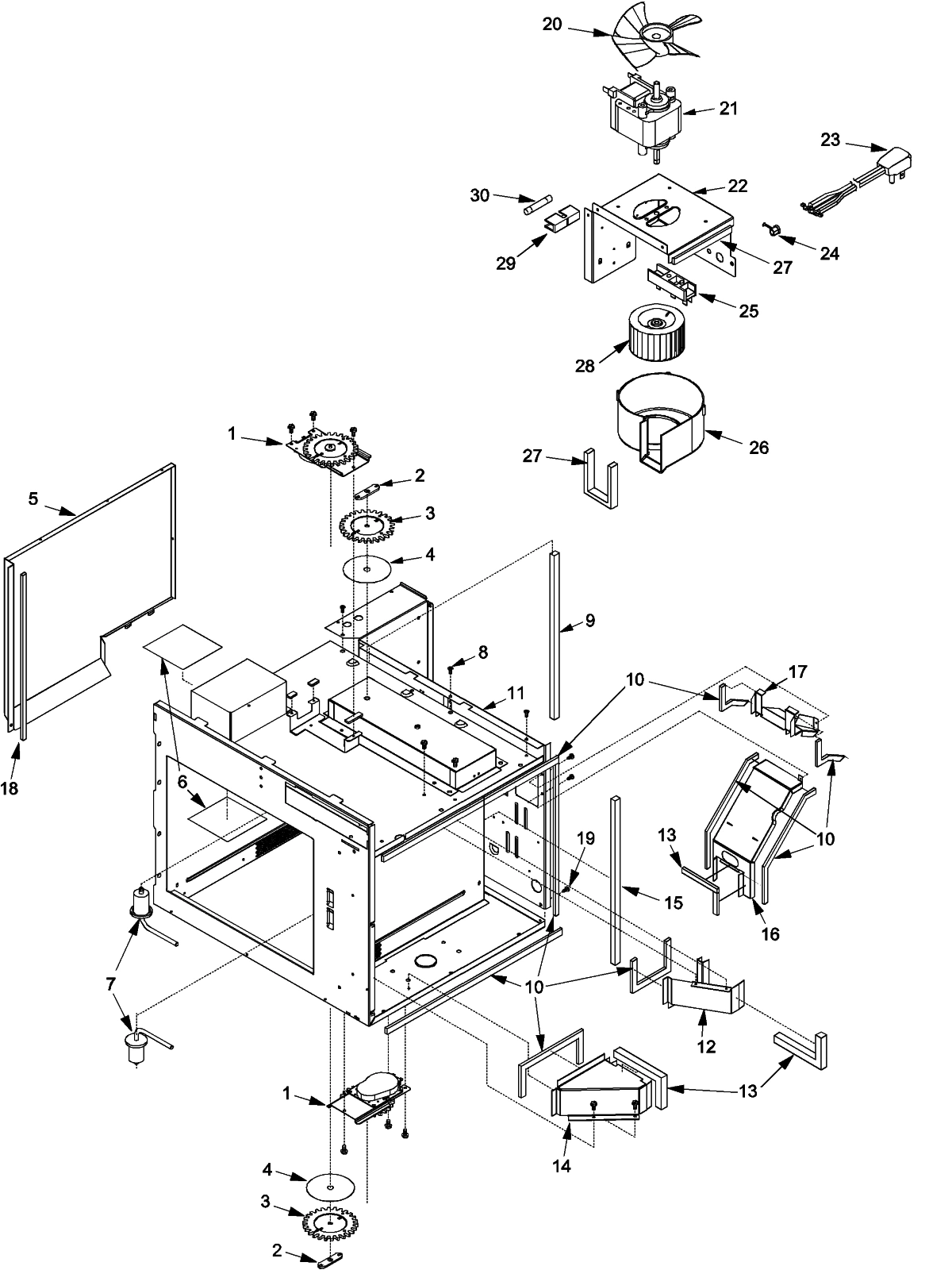

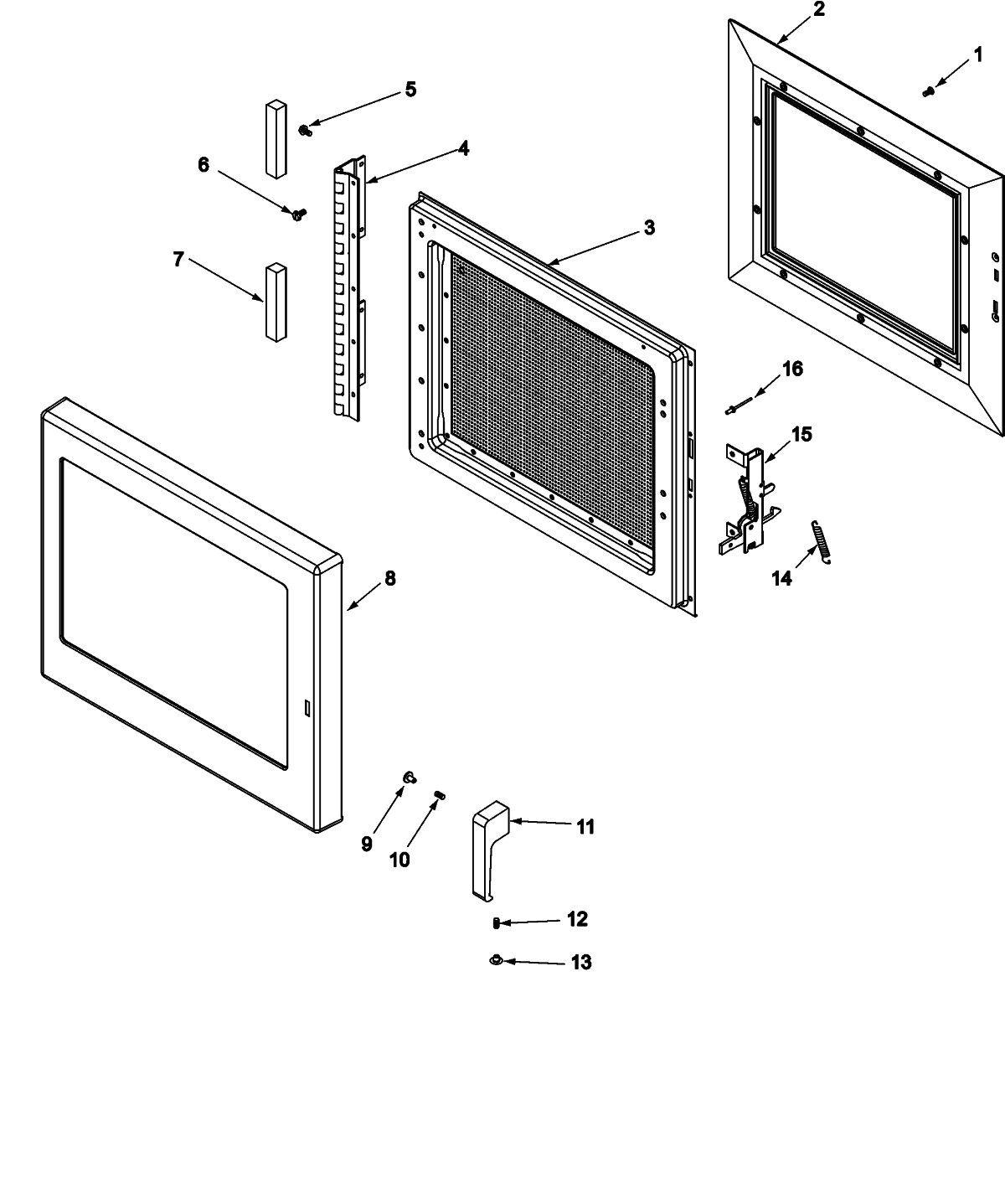

Model Accelerated Cooking Products RC17SED-P1326313M Amana Menumaster RC17SED – Common Parts &amp; Diagrams

1

59104128 Amana Top Touch Panel Assembly Backorder ACP 59104128 $160.44

1

M1260218 Amana Y-Drive HI LO Screw In Stock ACP M1260218 $5.31

1

R0130263 Amana Antenna Motor (230V) In Stock ACP R0130263 $64.28

2

59002015 Amana Inner Door Assembly In Stock ACP 59002015 $57.76

2

PANEL, ACCESS- REAR ACP 10781607 Contact Us For Availability

3

12990525 Amana Screw - Small Head Backorder ACP 12990525 $4.82

3

R0130109 Amana Side Touch Panel Assembly In Stock ACP R0130109 $162.89

3

TECH SHEET-COMM'L MICRO **NO ACP RT2240007 Contact Us For Availability

4

10903002 Amana Washer Spur Gear Backorder ACP 10903002 $4.82

4

12002636 Amana Interlock Switch Kit In Stock ACP 12002636 $69.04

4

14179140 Amana Hinge and Door Ring Weld Kit Backorder ACP 14179140 $98.28

4

SCREW ACP M0216716 Contact Us For Availability

5

59174559 Amana Light Cover Hardware Backorder ACP 59174559 $27.62

6

10790306Q Amana Baspn & Gasket Assembly Backorder ACP 10790306Q $212.52

6

20001136 Amana Non-Magnetic Y-Drive Bit Backorder ACP 20001136 $78.79

7

14179133 Amana Antenna & Motor Kit In Stock ACP 14179133 $105.84

7

59004010 Amana Magnetron In Stock ACP 59004010 $120.83

7

KIT, HARNESS- HVB/DISPLAY ACP R0130265 Contact Us For Availability

7

BRKT-HINGE SUPPORT ACP 12189003 Contact Us For Availability

8

20057401 Amana Diode In Stock ACP 20057401 $7.57

8

R0156918 Amana Outer Door Lens Retainer Assem Backorder ACP R0156918 $214.20

8

HARNESS, INTERLOCK/DISPLAY BD ACP 12543101 Contact Us For Availability

9

12991605 Amana Screw TC/HEX ROHS Backorder ACP 12991605 $4.82

9

HARNESS-OVEN LT ACP 12543401 Contact Us For Availability

13018801 Amana LW Antenna Motor Harness Backorder ACP 13018801 $11.73

13046901 Amana Cone Screw Set Backorder ACP 13046901 $4.82

13095201 Amana Screw, Oval Backorder ACP 13095201 $4.82

59174534 Amana Capacitor and Diode Kit In Stock ACP 59174534 $47.65

59174560 Amana Trim Assembly & Screws Backorder ACP 59174560 $23.37

11

59001626 Amana Transformer HV Backorder ACP 59001626 $189.74

11

59004023 Amana Handle and Screw Kit Backorder ACP 59004023 $54.58

11

KIT, HARNESS ACP R0130264 Contact Us For Availability

13047001 Amana Dog Screw Set Backorder ACP 13047001 $5.39

59174548 Amana Grill Assembly, Air Inlet & Th Backorder ACP 59174548 $81.95

M0274066 Amana Nylon Washer Backorder ACP M0274066 $4.82

HARNESS, HV ACP 12597801 Contact Us For Availability

13

12155702 Amana Menu Label Backorder ACP 12155702 $5.71

13

12360703 Amana Button Plug Backorder ACP 12360703 $4.82

13

59004008 Amana Antenna Shield In Stock ACP 59004008 $50.21

14

C8893502 Amana Door Latch Spring Backorder ACP C8893502 $4.82

14

R0156942 Amana Tray Assembly In Stock ACP R0156942 $130.67

14

KIT, CAVITY- 2 TUBE "S" CHASSIS ACP 59214762 Contact Us For Availability

15

12002757 Amana RC Chassis Latch Kit In Stock ACP 12002757 $67.05

15

59002167 Amana Sealer In Stock ACP 59002167 $14.95

15

KIT, FUSE- 15 AMP ACP 12001916 Contact Us For Availability

16

59002017 Amana Snubber Assembly Backorder ACP 59002017 $36.09

16

A4539601 Amana Pop Rivet Backorder ACP A4539601 $4.82

20

B5706704 Amana Motor Fan Blade Backorder ACP B5706704 $6.65

20

B5795315 Amana Cavity Thermal Cutout Backorder ACP B5795315 $9.07

21

59174555 Amana Blower Motor Assembly - MC, RC In Stock ACP 59174555 $323.10

23

59002112 Amana Power Cord Backorder ACP 59002112 $34.02

23

PLATE-PARTITION ACP 20172301 Contact Us For Availability

24

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $54.35

25

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $4.82

25

TRANSFORMER-AUTO ACP C8901509 Contact Us For Availability

26

M0322202 Amana Tie Wire Backorder ACP M0322202 $4.82

28

C3670809 Amana Blower Wheel Backorder ACP C3670809 $33.45

30

12992302 Amana RoHS Hex Head Screw Backorder ACP 12992302 $4.82

30

B8371401 Amana Lamp Receptacle Backorder ACP B8371401 $6.67

30

M0805205 Amana 30A Fuse In Stock ACP M0805205 $7.46

31

10664502 Amana 41W Lamp Backorder ACP 10664502 $4.82
