Model Accelerated Cooking Products RC17SD2-P1329609M Amana Menumaster RC17SD2 – Common Parts & Diagrams
ANTENNAS, BLOWER, DUCTS,

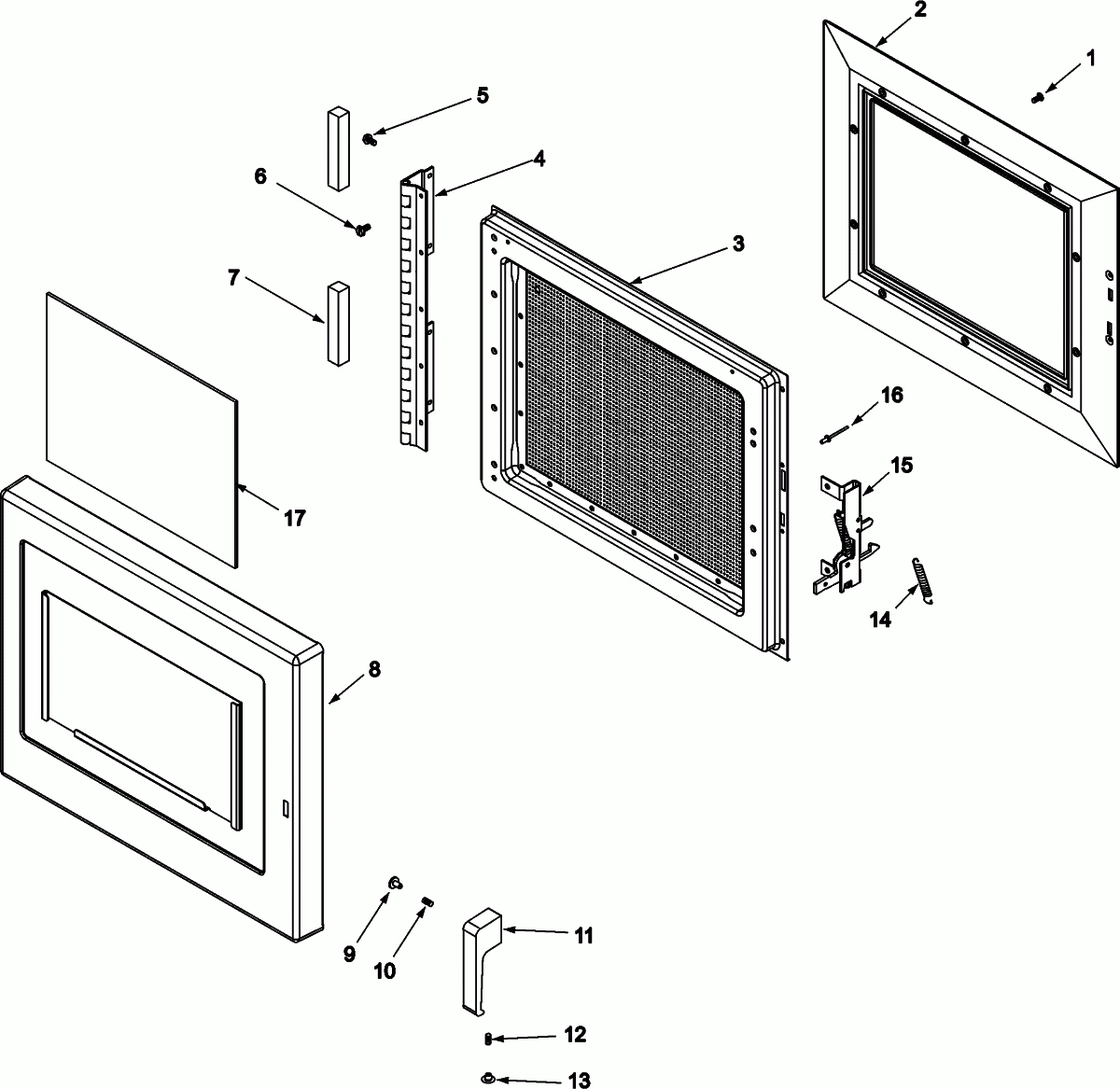

DOOR
ELECTRICAL COMPONENTS
SUPPLEMENTAL INFORMATION
TRAY, GREASE SHIELD, CABINET,
Common parts from model Accelerated Cooking Products RC17SD2-P1329609M Amana Menumaster RC17SD2
1
MOTOR, ANTENNA (230V) ACP R0130263 Contact Us For Availability
1
TOUCH PANEL ASSY- TOP ACP 59104128 Contact Us For Availability
1
SCREW, HI/LO Y DRIVE ACP M1260218 Contact Us For Availability
1
MAGNETIC Y-DRIVE BIT ACP 20001136 Contact Us For Availability
1
WRAPPER- STAINLESS ACP 10908909Q Contact Us For Availability
2
DOOR GLASS ASSY ACP 59002015 Contact Us For Availability
2
PANEL, ACCESS- REAR ACP 10781607 Contact Us For Availability
3
TOUCH PANEL ASSY- SIDE ACP R0130109 Contact Us For Availability
3
SCREW ACP 12990525 Contact Us For Availability
4
SWITCH, INTERLOCK ASSY ACP 12002636 Contact Us For Availability
4
HINGE-DOOR ACP 14179140 Contact Us For Availability
4
WASHER-SPUR GEAR ACP 10903002 Contact Us For Availability
4
SCREW ACP M0216716 Contact Us For Availability
5
COVER-LIGHT ACP 59174559 Contact Us For Availability
6
BASEPAN & GASKET ASSY ACP 10790306Q Contact Us For Availability
7
MAGNETRON-2M248H ACP 59004010 Contact Us For Availability
7
KIT, ANTENNA ACP 14179133 Contact Us For Availability
7
KIT, HARNESS- HVB/DISPLAY ACP R0130265 Contact Us For Availability
7
BRKT-HINGE SUPPORT ACP 12189003 Contact Us For Availability
8
OUTER DOOR ASSY- SOLID MH ACP R0156920 Contact Us For Availability
8
DIODE ACP 20057401 Contact Us For Availability
8
HARNESS, INTERLOCK/DISPLAY BD ACP 12543101 Contact Us For Availability
9
HARNESS-OVEN LT ACP 12543401 Contact Us For Availability
9
SCREW ACP 12991605 Contact Us For Availability
10
CAPACITOR- .69 ACP 59174534 Contact Us For Availability
10
SCREW, T F ACP 13095201 Contact Us For Availability
10
SET SCREW #10 X .25 ACP 13046901 Contact Us For Availability
10
HARNESS, LOWER ANTENNA MOTOR ACP 13018801 Contact Us For Availability
10
TRIM ACP 59174560 Contact Us For Availability
11
TRANSFORMER, HV ACP 59001626 Contact Us For Availability
11
HANDLE-DOOR ACP 59004023 Contact Us For Availability
11
HARNESS, WIRE ACP 59001229 Contact Us For Availability
12
SCREW, DECORATIVE ACP 59174548 Contact Us For Availability
12
SCREW, SET ACP 13047001 Contact Us For Availability
12
HARNESS, HV ACP 59001020 Contact Us For Availability
12
WASHER-NYLON ACP M0274066 Contact Us For Availability
13
ANTENNA SHIELD ACP 59004008 Contact Us For Availability
13
PLUG-HOLE (BLK) ACP 12360703 Contact Us For Availability
13
LABEL-MENU ACP 12155702 Contact Us For Availability
14
KIT, CERAMIC TRAY W/SEALER ACP R0156942 Contact Us For Availability
14
SPRING-DOOR LATCH ACP C8893502 Contact Us For Availability
14
KIT, CAVITY- 2 TUBE "S" CHASSIS ACP 59214762 Contact Us For Availability
15
KIT, LATCH ACP 12002757 Contact Us For Availability
15
SEALER ACP 59002167 Contact Us For Availability
15
KIT, FUSE- 15 AMP ACP 12001916 Contact Us For Availability
16
SNUBBER ASSY ACP 59002017 Contact Us For Availability
20
BLADE, FAN ACP B5706704 Contact Us For Availability
20
THERMAL CUTOUT ACP B5795315 Contact Us For Availability
21
MOTOR, BLOWER ACP 59174555 Contact Us For Availability
23
KIT, POWER CORD ACP 59002112 Contact Us For Availability
24
TRIAC ACP 59174520 Contact Us For Availability
25
TRANSFORMER-AUTO ACP C8901509 Contact Us For Availability
26
TIE-WIRE ACP M0322202 Contact Us For Availability
27
RELAY ACP 59001981 Contact Us For Availability
28
FUSE-15A ACP M0805102 Contact Us For Availability
28
WHEEL-BLOWER ACP C3670809 Contact Us For Availability
29
RIVET, POP ACP A4539601 Contact Us For Availability
29
BLOCK, FUSE- 3 POLE ACP 59001682 Contact Us For Availability
30
FUSE-30A ACP M0805205 Contact Us For Availability
30
SCREW, TF ACP 12992302 Contact Us For Availability
30
RECEPTACLE-LAMP ACP B8371401 Contact Us For Availability
31
LAMP-41W ACP 10664502 Contact Us For Availability
× ![]()
