Model Accelerated Cooking Products RC17-P1191104M Amana Menumaster RC17 – Common Parts & Diagrams

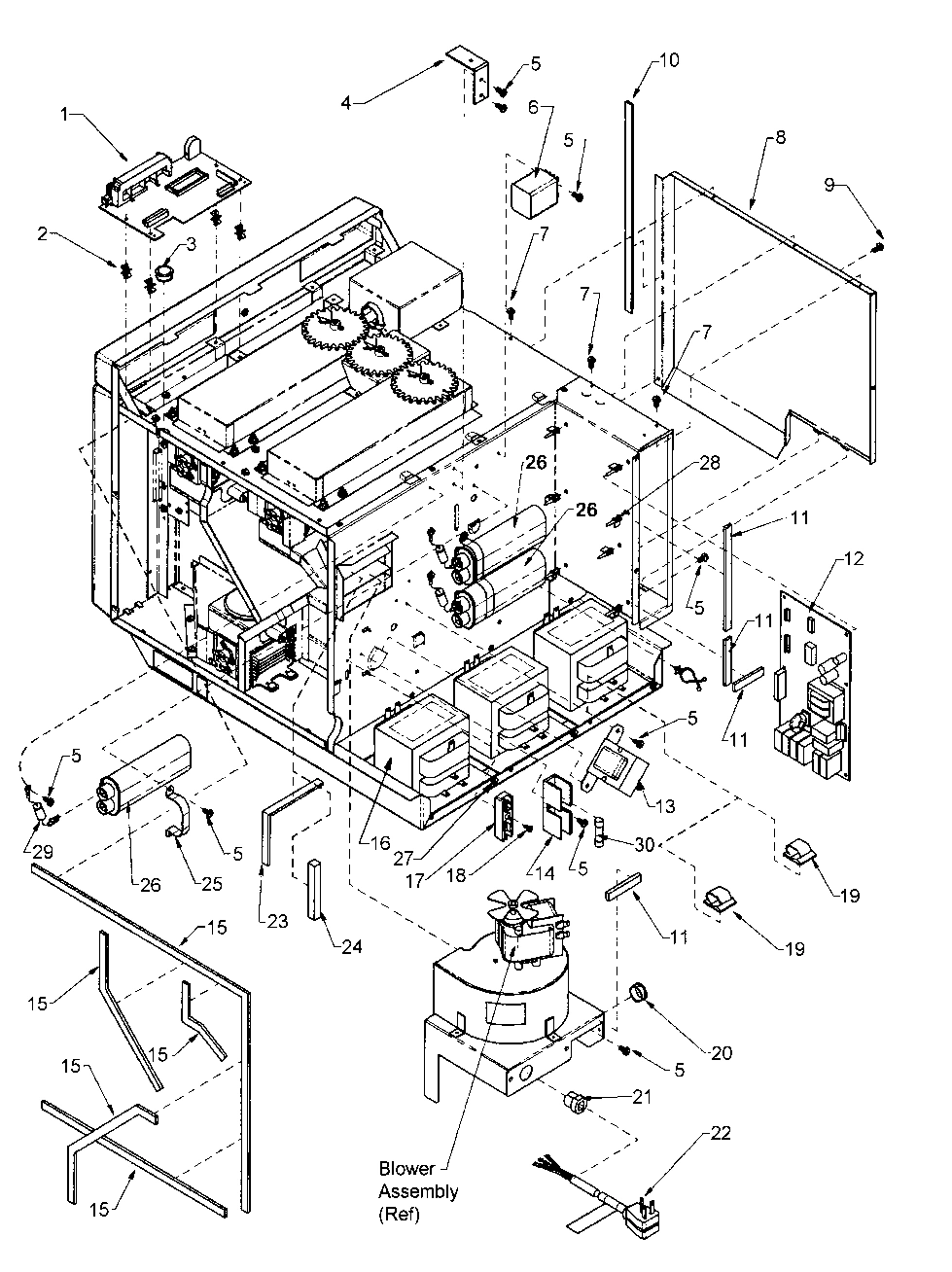

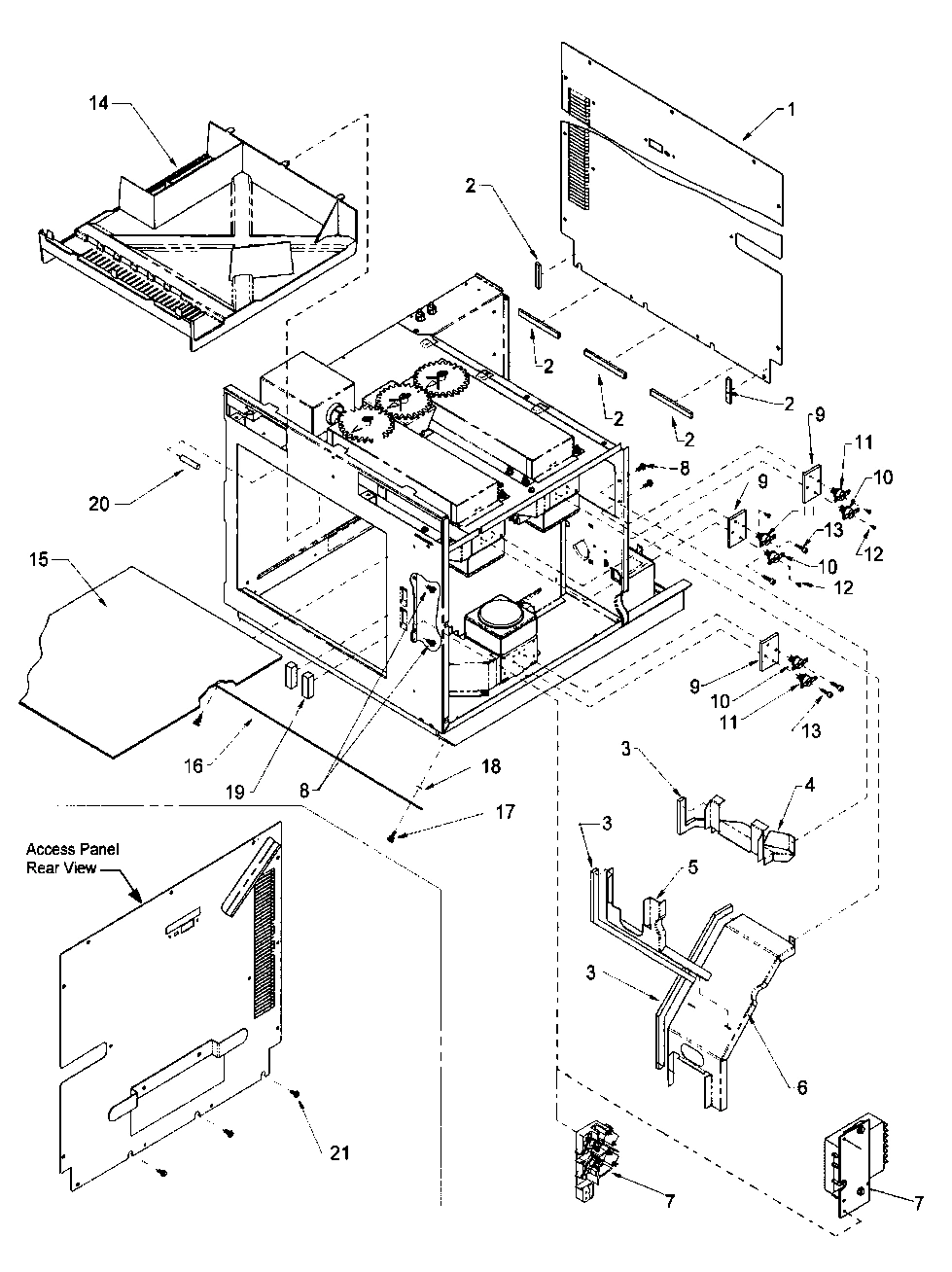

CHASSIS ASSEMBLY PARTS 1
CHASSIS ASSEMBLY PARTS 2
CHASSIS ASSEMBLY PARTS 3
CHASSIS ASSEMBLY PARTS 4
DOOR ASSEMBLY
MISCELLAEOUS INFORMATION
OUTERCASE ASSEMBLY
TOUCH PANEL & BLOWER-TRIAC ASSEMBLY
Common parts from model Accelerated Cooking Products RC17-P1191104M Amana Menumaster RC17
1
KIT, ANTENNA MOTOR ACP R0150102 Contact Us For Availability
1
TOUCH PANEL ASSY- TOP ACP R0156915 Contact Us For Availability
2
BUSHING-TERMINAL ACP M0325401 Contact Us For Availability
2
KIT, INNER DOOR & WELD ACP R0156921 Contact Us For Availability
2
TOUCH PANEL ASSY- SIDE ACP R0156912 Contact Us For Availability
3
BRACKET, MOTOR ACP 10782202 Contact Us For Availability
5
BRKT-HINGE SUPPORT ACP 12189003 Contact Us For Availability
6
KIT, GEAR ACP R0156917 Contact Us For Availability
6
KIT, CAVITY-2 TUBE ACP R0000107 Contact Us For Availability
6
SCREW ACP 12990609 Contact Us For Availability
7
KIT, FUSE- 15 AMP ACP 12001916 Contact Us For Availability
7
MOTOR, BLOWER ACP 10773301 Contact Us For Availability
8
PIN, COTTER ACP M1200005 Contact Us For Availability
8
GASKET ACP A3263904 Contact Us For Availability
9
RIVET, POP ACP A4539605 Contact Us For Availability
9
WELD, SCROLL ACP 10797202 Contact Us For Availability
10
PLATE-PARTITION ACP 20172301 Contact Us For Availability
11
BRACKET, BLOW SCROLL ACP 10984001 Contact Us For Availability
13
SCREW ACP 12990523 Contact Us For Availability
14
HARNESS, TRANSFORMER ACP 10993301 Contact Us For Availability
14
NUT, SPEED ACP M0288102 Contact Us For Availability
17
BASE PAN & GASKET ASSY ACP 10790301 Contact Us For Availability
19
ANTENNA ASSY, PLAIN TIP ACP 10787601 Contact Us For Availability
21
DUCT, EXHAUST- TOP ACP R0156940 Contact Us For Availability
22
HARNESS, OVEN LAMP ACP 10901201 Contact Us For Availability
× ![]()
