Model Maytag RC10BPB COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - Page 1
01 - MISCELLAEOUS INFORMATION

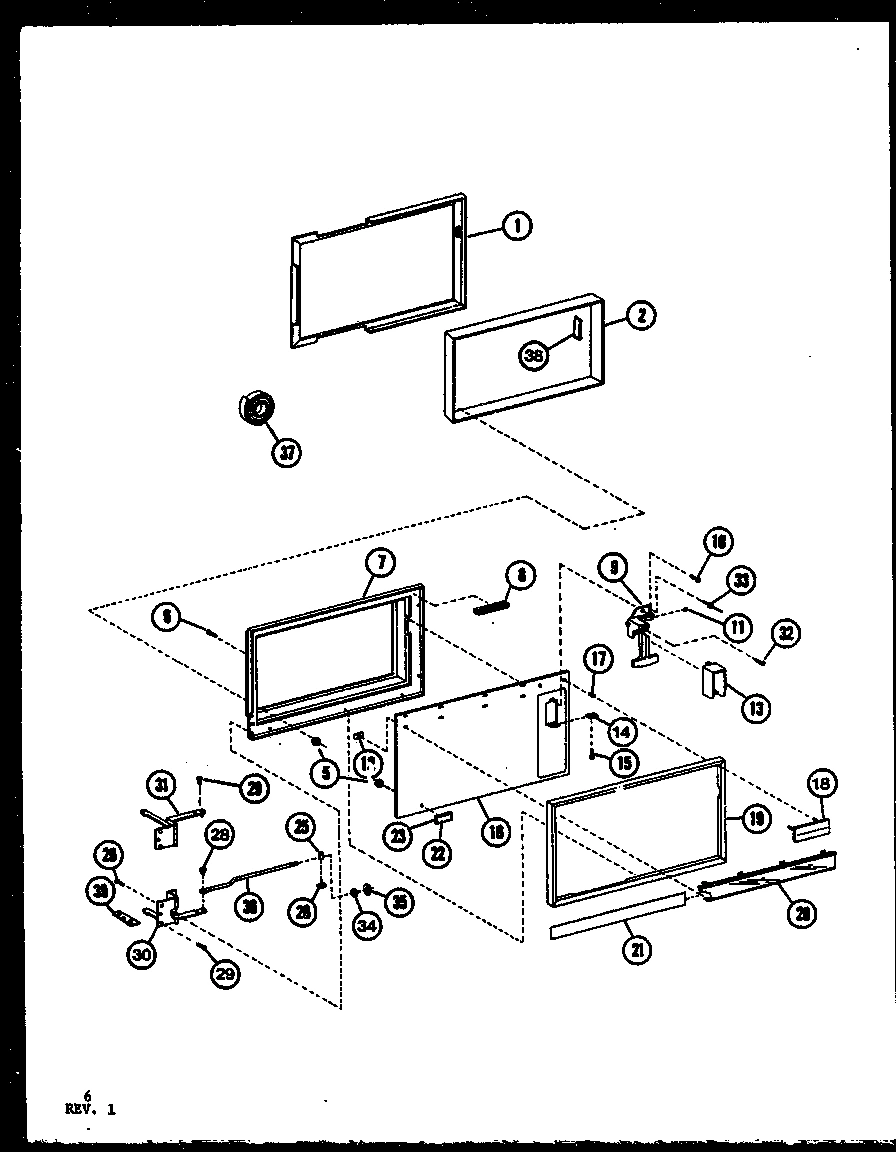

02 - PAGE 1
03 - CONTROL ASSY

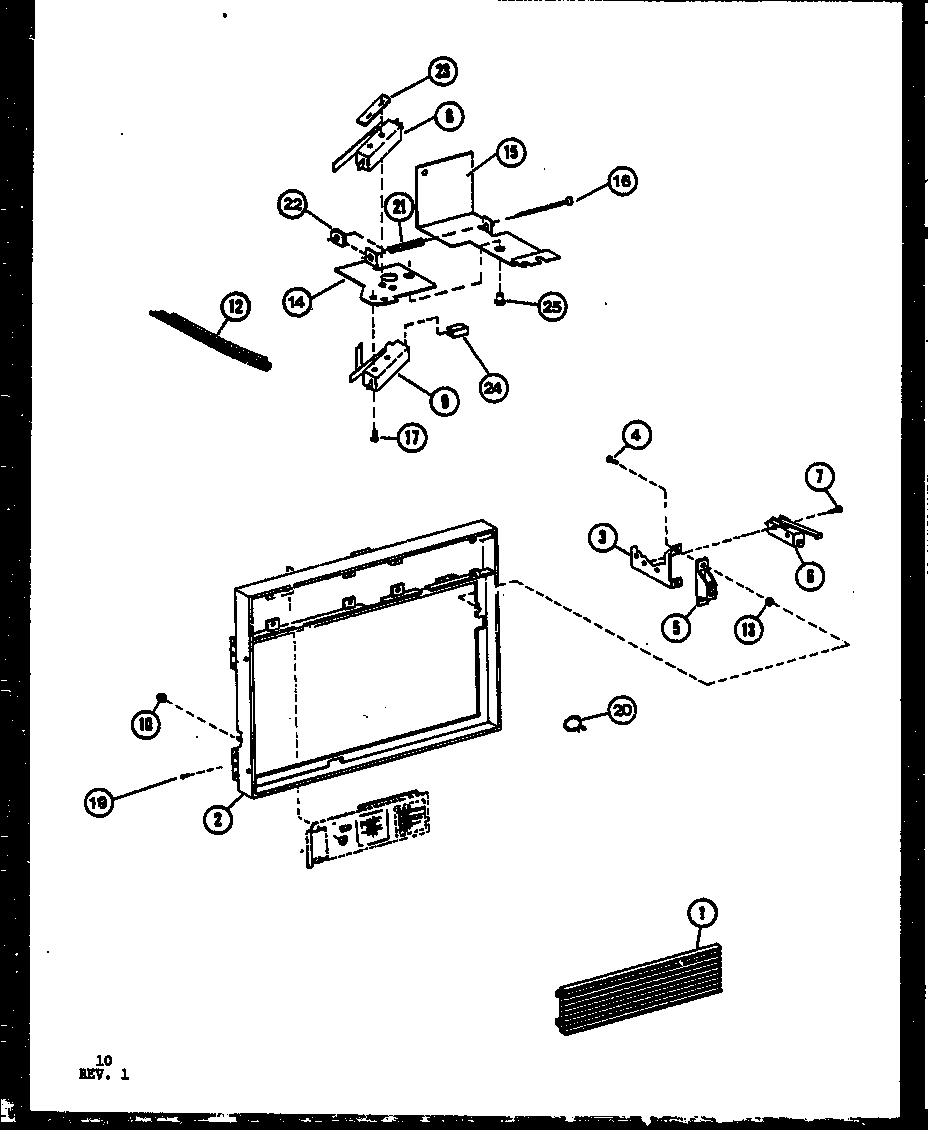

04 - PAGE 3

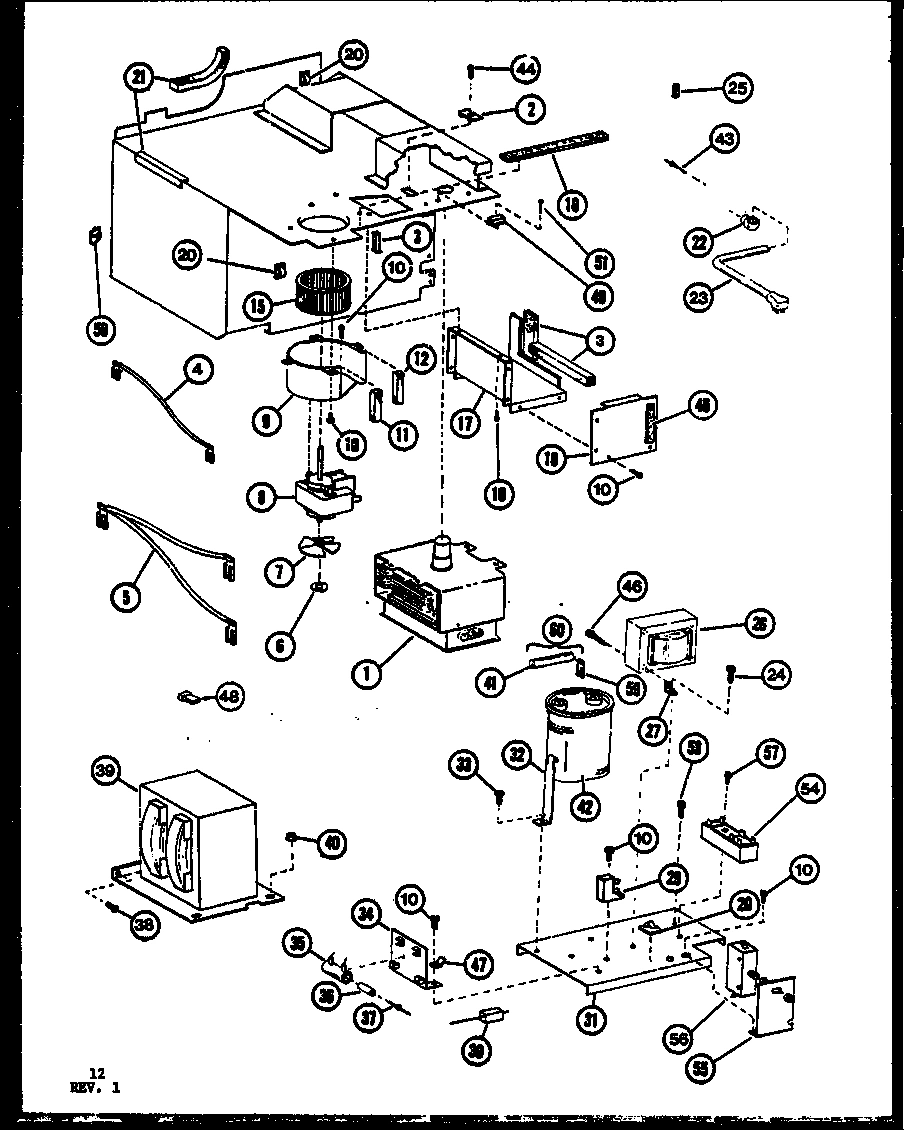

05 - PAGE 4

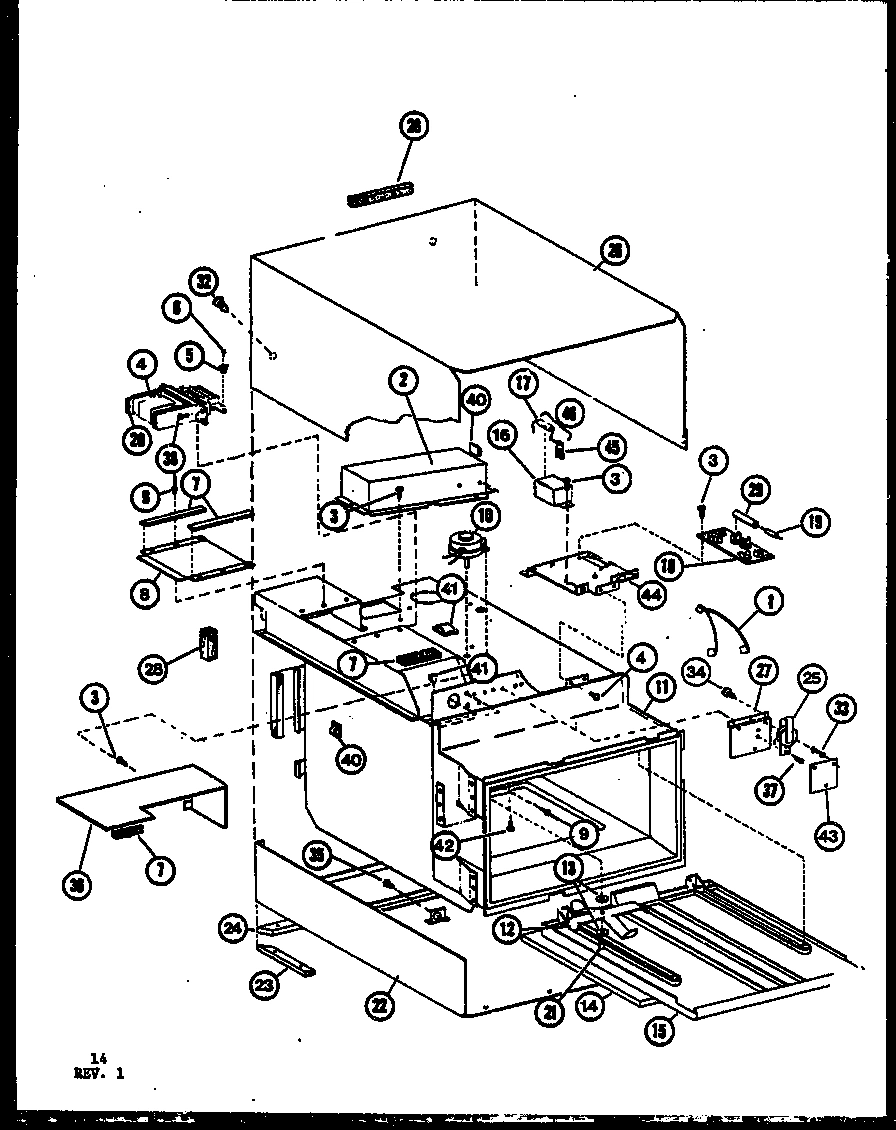

06 - PAGE 5

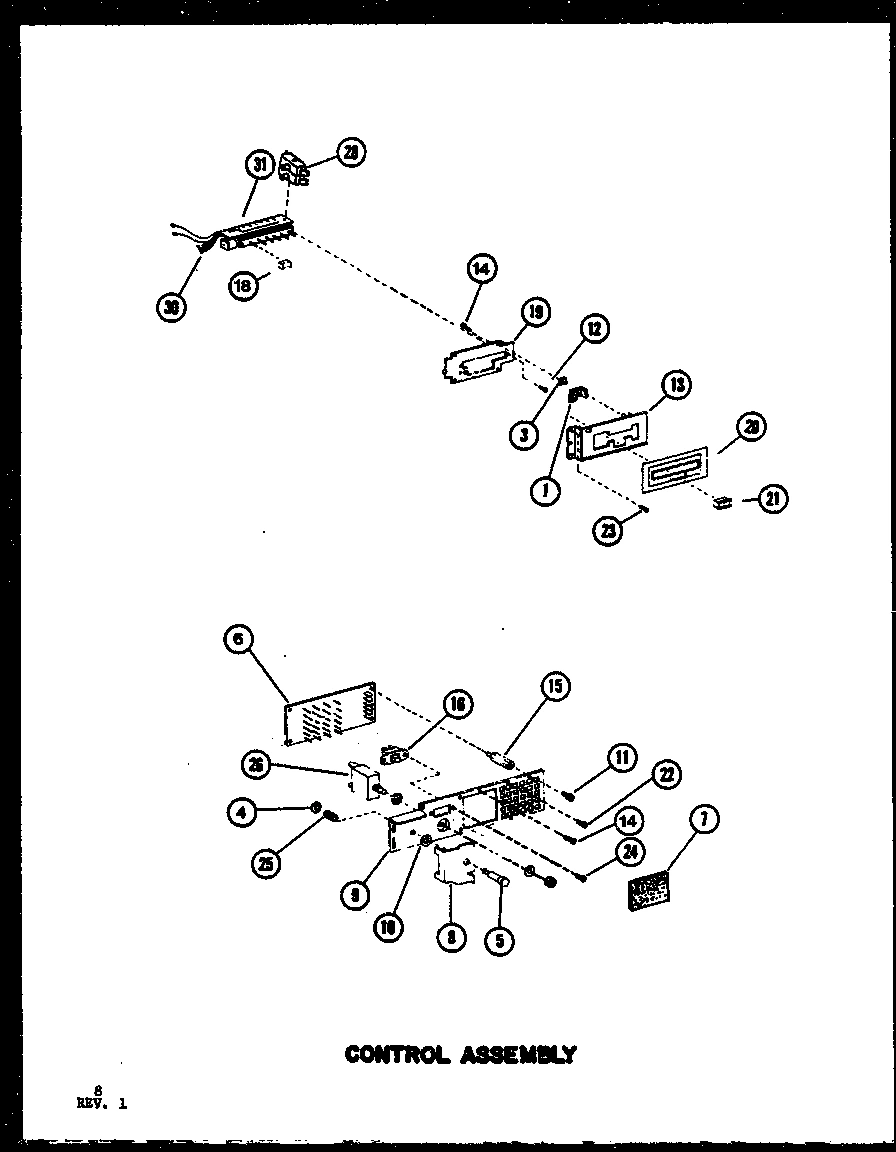

01 - CONTROL ASSY
02 - Page 1
03 - Page 3
04 - Page 4
05 - Page 5
Common parts from model Maytag RC10BPB COMMERCIAL MICROWAVE
1
BRACKET ESCUTCH MAY B5760402 Contact Us For Availability
1
MAY C8853301 MAY C8853301 Contact Us For Availability
1
JUMPER WIRE MAY D7365113 Contact Us For Availability
1
MAY D7396401 MAY D7396401 Contact Us For Availability
1
MAY C8835108 MAY C8835108 Contact Us For Availability
2
INNER DOOR KIT MAY D7143802 Contact Us For Availability
2
BRKT-MAG TUBE MAY B5774402 Contact Us For Availability
2
MAY D7224902 MAY D7224902 Contact Us For Availability
2
MAY D7293502 MAY D7293502 Contact Us For Availability
3
MAY M0287713 MAY M0287713 Contact Us For Availability
3
MAY B8343706 MAY B8343706 Contact Us For Availability
3
MAY B5675403 MAY B5675403 Contact Us For Availability
4
MAY B8311801 MAY B8311801 Contact Us For Availability
4
JUMPER WIRE MAY D7292627 Contact Us For Availability
4
MAY D7292630 MAY D7292630 Contact Us For Availability
4
JUMPER WIRE MAY D7384624 Contact Us For Availability
4
MAY C8720509 MAY C8720509 Contact Us For Availability
5
THERMAL PROTECTOR MAY B5684102 Contact Us For Availability
5
NUT K MAY M0288801 Contact Us For Availability
5
MAY B8312001 MAY B8312001 Contact Us For Availability
5
MAY C3680202 MAY C3680202 Contact Us For Availability
5
JUMPER WIRE MAY D7292650 Contact Us For Availability
5
THERMAL PROTECTOR MAY B5684108 Contact Us For Availability
6
MAY C8720505 MAY C8720505 Contact Us For Availability
6
SCREW MAY M0234114 Contact Us For Availability
6
SCREW MAY M0253418 Contact Us For Availability
6
MAY M0118901 MAY M0118901 Contact Us For Availability
6
MAY D7443803 MAY D7443803 Contact Us For Availability
6
MAY A3163414 MAY A3163414 Contact Us For Availability
7
THERMAL PROTECTOR MAY B5684106 Contact Us For Availability
7
MAY M0227520 MAY M0227520 Contact Us For Availability
7
FAN BLADE-BLOWER MAY B5706702 Contact Us For Availability
7
GASKET K MAY A4591129 Contact Us For Availability
7
MAY B8343501 MAY B8343501 Contact Us For Availability
7
MAY D7132501 MAY D7132501 Contact Us For Availability
8
MAY B5714101 MAY B5714101 Contact Us For Availability
8
GASKET MAY A4591128 Contact Us For Availability
8
MAY B8317301 MAY B8317301 Contact Us For Availability
8
SWITCH-INTERLOCK (LIMIT) MAY C3670014 Contact Us For Availability
8
MAY C8811601 MAY C8811601 Contact Us For Availability
9
MAY A4539605 MAY A4539605 Contact Us For Availability
9
MAY D7178504 MAY D7178504 Contact Us For Availability
9
MAY D7457801 MAY D7457801 Contact Us For Availability
9
INTLK SW-WELD MAY B8324002 Contact Us For Availability
9
MAY C8710708 MAY C8710708 Contact Us For Availability
10
MAY M0234029 MAY M0234029 Contact Us For Availability
10
MAY M0282901 MAY M0282901 Contact Us For Availability
10
MAY M0118904 MAY M0118904 Contact Us For Availability
10
MAY B5602812 MAY B5602812 Contact Us For Availability
11
MAY A3184901 MAY A3184901 Contact Us For Availability
11
GUIDES HNDL K MAY A3195701 Contact Us For Availability
11
MAY D7265709 MAY D7265709 Contact Us For Availability
12
MAY M0113503 MAY M0113503 Contact Us For Availability
12
STIRRER BLADE (ANTENNA) MAY C8708601 Contact Us For Availability
12
SCREW MAY M0202501 Contact Us For Availability
12
MAY A1020806 MAY A1020806 Contact Us For Availability
12
MAY A3030309 MAY A3030309 Contact Us For Availability
12
MAY M0286401 MAY M0286401 Contact Us For Availability
13
MAY B5718903 MAY B5718903 Contact Us For Availability
13
MAY A3109101 MAY A3109101 Contact Us For Availability
13
BEZEL-DOOR HANDLE MAY B5671901 Contact Us For Availability
13
ESCUTCHEON TIMER A MAY C8868702 Contact Us For Availability
13
MAY M0270522 MAY M0270522 Contact Us For Availability
14
MAY B5795001 MAY B5795001 Contact Us For Availability
14
SPEED NUT MAY M0288102 Contact Us For Availability
14
MAY C8875301 MAY C8875301 Contact Us For Availability
15
MAY M0230017 MAY M0230017 Contact Us For Availability
15
MAY M0580506 MAY M0580506 Contact Us For Availability
15
BRACKET INTERLOCK MAY B8332501 Contact Us For Availability
15
MAY C3670805 MAY C3670805 Contact Us For Availability
15
SUB D7457103 MAY D7457101 Contact Us For Availability
16
MAY A3030302 MAY A3030302 Contact Us For Availability
16
MAY B5602809 MAY B5602809 Contact Us For Availability
16
MAY M0211025 MAY M0211025 Contact Us For Availability
16
RELAY K MAY C8873901 Contact Us For Availability
16
MAY B8312101 MAY B8312101 Contact Us For Availability
16
MAY D7178601 MAY D7178601 Contact Us For Availability
17
MAY M0308606 MAY M0308606 Contact Us For Availability
17
MAY M0113005 MAY M0113005 Contact Us For Availability
17
MAY M0213123 MAY M0213123 Contact Us For Availability
17
MAY C8934201 MAY C8934201 Contact Us For Availability
18
MAY B5691003 MAY B5691003 Contact Us For Availability
18
ESCUTCHEON MAY C3668803 Contact Us For Availability
18
MAY A3230302 MAY A3230302 Contact Us For Availability
18
MAY B8323201 MAY B8323201 Contact Us For Availability
18
MAY C8844701 MAY C8844701 Contact Us For Availability
19
MAY D7265707 MAY D7265707 Contact Us For Availability
19
OUTER DOOR RING MAY D7132701 Contact Us For Availability
19
MAY B8313502 MAY B8313502 Contact Us For Availability
19
MAY M0205631 MAY M0205631 Contact Us For Availability
19
FUSE RESISTOR K MAY M0308107 Contact Us For Availability
20
MAY A3225401 MAY A3225401 Contact Us For Availability
20
MAY A3225402 MAY A3225402 Contact Us For Availability
20
MAY M0321204 MAY M0321204 Contact Us For Availability
20
MAY B8332901 MAY B8332901 Contact Us For Availability
20
MAY B5674501 MAY B5674501 Contact Us For Availability
21
CLIP MAY M0114002 Contact Us For Availability
21
SPRING A MAY A3277701 Contact Us For Availability
21
GROMMET PER IN. MAY A3261702 Contact Us For Availability
21
MAY B5751901 MAY B5751901 Contact Us For Availability
21
MAY C8713301 MAY C8713301 Contact Us For Availability
22
STRAIN RELIEF MAY M0370007 Contact Us For Availability
22
MAY D7508806 MAY D7508806 Contact Us For Availability
22
MAY B5694718 MAY B5694718 Contact Us For Availability
22
MAY M0288010 MAY M0288010 Contact Us For Availability
23
MAY D7396201 MAY D7396201 Contact Us For Availability
23
MAY B5694901 MAY B5694901 Contact Us For Availability
23
MAY M0253217 MAY M0253217 Contact Us For Availability
23
CORD, POWER MAY B5674403 Contact Us For Availability
23
MAY M0289505 MAY M0289505 Contact Us For Availability
23
MAY C8870705 MAY C8870705 Contact Us For Availability
24
MAY A1002301 MAY A1002301 Contact Us For Availability
24
MAY M0202516 MAY M0202516 Contact Us For Availability
24
MAY M0216529 MAY M0216529 Contact Us For Availability
24
GASKET,BASE PAN Q MAY C8870704 Contact Us For Availability
25
MAY R0159006 MAY R0159006 Contact Us For Availability
25
MAY B5787001 MAY B5787001 Contact Us For Availability
25
MAY A3181801 MAY A3181801 Contact Us For Availability
25
SPRING-GRILLE RET MAY B8315601 Contact Us For Availability
25
RIVET A-K MAY M1205109 Contact Us For Availability
25
MAY B5107619 MAY B5107619 Contact Us For Availability
26
BUSHING MAY A3182101 Contact Us For Availability
26
TRANS FILAMENT MAY C8798801 Contact Us For Availability
26
MAY B8300009 MAY B8300009 Contact Us For Availability
26
MAY M0341302 MAY M0341302 Contact Us For Availability
27
MAY A3230402 MAY A3230402 Contact Us For Availability
27
MAY C3669601 MAY C3669601 Contact Us For Availability
27
MAY B5779401 MAY B5779401 Contact Us For Availability
28
MAY B5751401 MAY B5751401 Contact Us For Availability
28
MAY A3030308 MAY A3030308 Contact Us For Availability
28
BUSHING-DOOR ARM MAY A3185001 Contact Us For Availability
28
MAY B8301903 MAY B8301903 Contact Us For Availability
29
MAY M0341301 MAY M0341301 Contact Us For Availability
29
SCREW MAY M0253230 Contact Us For Availability
29
KIT, DIODE MAY B5767803 Contact Us For Availability
29
RESISTOR K MAY M0308607 Contact Us For Availability
30
MAY M0308103 MAY M0308103 Contact Us For Availability
30
MAY C8873601 MAY C8873601 Contact Us For Availability
30
MAY C3666306 MAY C3666306 Contact Us For Availability
30
MAY M0308502 MAY M0308502 Contact Us For Availability
31
MAY C8941602 MAY C8941602 Contact Us For Availability
31
MAY C3666305 MAY C3666305 Contact Us For Availability
31
MAY C8714402 MAY C8714402 Contact Us For Availability
32
SCREW MAY M0234030 Contact Us For Availability
32
MAY A3204505 MAY A3204505 Contact Us For Availability
33
RIVET, POP (WHT) MAY B5642906 Contact Us For Availability
33
SUPPORT P.C. BOARD MAY M0580505 Contact Us For Availability
34
MAY D7262401 MAY D7262401 Contact Us For Availability
34
MAY M0213815 MAY M0213815 Contact Us For Availability
34
MAY M0270501 MAY M0270501 Contact Us For Availability
34
MAY B5780901 MAY B5780901 Contact Us For Availability
35
MAY C8732601 MAY C8732601 Contact Us For Availability
35
MAY M0282007 MAY M0282007 Contact Us For Availability
35
MAY M0308604 MAY M0308604 Contact Us For Availability
36
MAY C8732602 MAY C8732602 Contact Us For Availability
36
ARM, DR STOP K MAY B5748702 Contact Us For Availability
36
SHIELD TOP MAY D7500601 Contact Us For Availability
36
MAY B5748703 MAY B5748703 Contact Us For Availability
36
MAY M0321703 MAY M0321703 Contact Us For Availability
37
TAPE PER ROLL MAY M0275154 Contact Us For Availability
37
MAY M0275163 MAY M0275163 Contact Us For Availability
37
MAY M0308108 MAY M0308108 Contact Us For Availability
38
MAY M0216517 MAY M0216517 Contact Us For Availability
39
MAY C8757503 MAY C8757503 Contact Us For Availability
39
MAY A3250301 MAY A3250301 Contact Us For Availability
39
MAY D7374901 MAY D7374901 Contact Us For Availability
40
MAY B5674306 MAY B5674306 Contact Us For Availability
40
MAY M0104101 MAY M0104101 Contact Us For Availability
40
MAY M0282015 MAY M0282015 Contact Us For Availability
41
MAY M0104102 MAY M0104102 Contact Us For Availability
41
MAY M0305202 MAY M0305202 Contact Us For Availability
42
MAY B5743701 MAY B5743701 Contact Us For Availability
42
MAY C8790510 MAY C8790510 Contact Us For Availability
42
MAY M0253504 MAY M0253504 Contact Us For Availability
43
MAY C8770601 MAY C8770601 Contact Us For Availability
43
MAY C8756501 MAY C8756501 Contact Us For Availability
43
MAY A4539601 MAY A4539601 Contact Us For Availability
44
MAY B5788301 MAY B5788301 Contact Us For Availability
44
MAY M0216531 MAY M0216531 Contact Us For Availability
44
PLATE MAY C8756503 Contact Us For Availability
45
MAY A3030303 MAY A3030303 Contact Us For Availability
45
TERMINAL PB A MAY M0320704 Contact Us For Availability
46
MAY M0305402 MAY M0305402 Contact Us For Availability
046
RESISTOR ASSEMBLY MAY NLA Contact Us For Availability
46
MAY M0218136 MAY M0218136 Contact Us For Availability
46
MAY B8320102 MAY B8320102 Contact Us For Availability
47
MAY M0320901 MAY M0320901 Contact Us For Availability
48
WASHER MAY M0273612 Contact Us For Availability
48
INSULATOR, TERM. K MAY M0325301 Contact Us For Availability
49
MAY M0234025 MAY M0234025 Contact Us For Availability
49
MAY B5795302 MAY B5795302 Contact Us For Availability
50
MAY B5675501 MAY B5675501 Contact Us For Availability
50
MAY M0118801 MAY M0118801 Contact Us For Availability
51
MAY B5763401 MAY B5763401 Contact Us For Availability
53
MAY B5798101 MAY B5798101 Contact Us For Availability
53
SCREW MAY M0258015 Contact Us For Availability
54
MAY R0195011 MAY R0195011 Contact Us For Availability
54
MAY B5677207 MAY B5677207 Contact Us For Availability
55
MAY B8332701 MAY B8332701 Contact Us For Availability
56
MAY C8715202 MAY C8715202 Contact Us For Availability
57
MAY M0234117 MAY M0234117 Contact Us For Availability
59
MAY M0320542 MAY M0320542 Contact Us For Availability
60
MAY A1001901 MAY A1001901 Contact Us For Availability
NI
MAY M0218115 MAY M0218115 Contact Us For Availability
NI
MAY M0275501 MAY M0275501 Contact Us For Availability
NI
MAY M0275560 MAY M0275560 Contact Us For Availability
× ![]()
