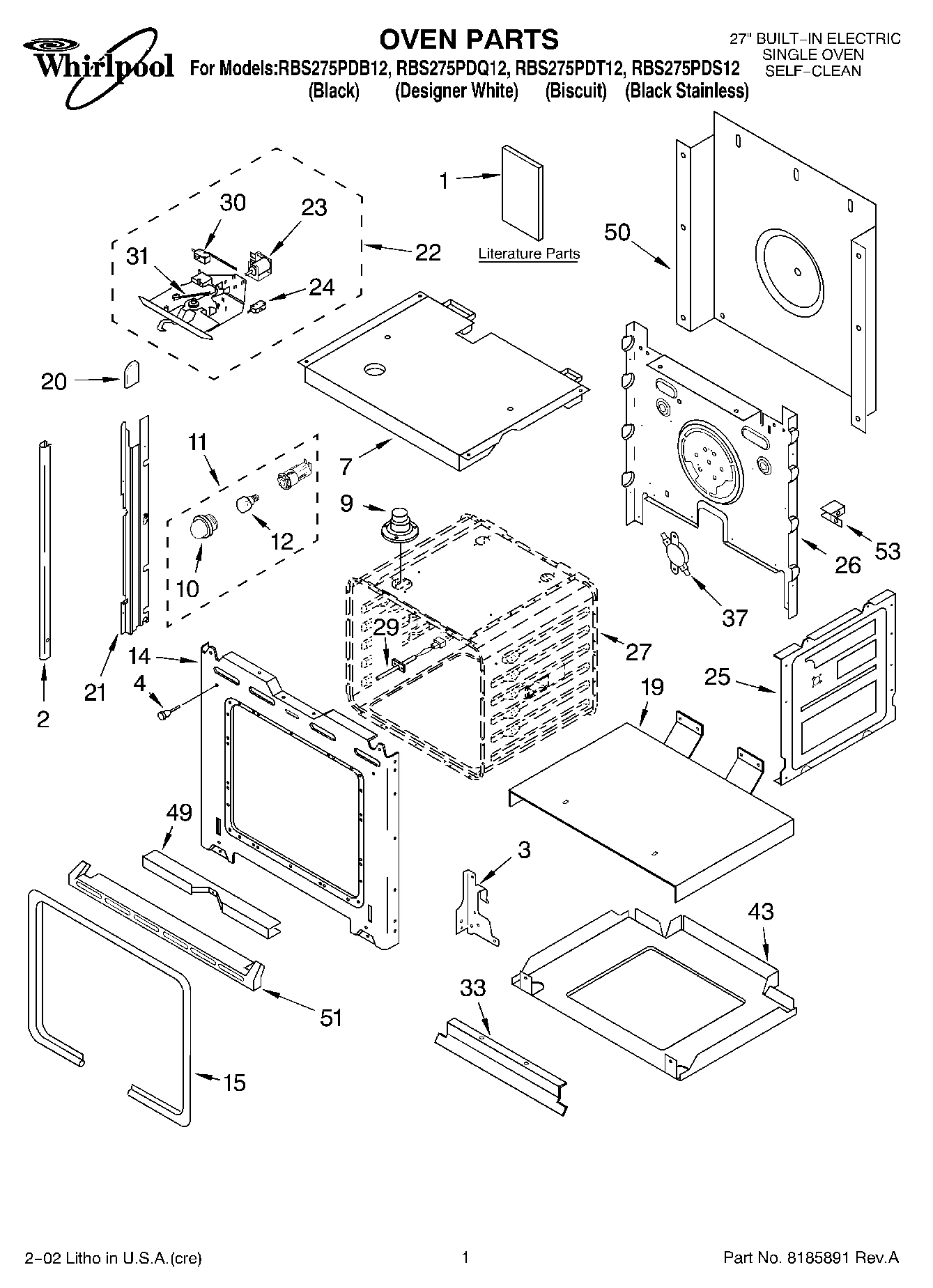

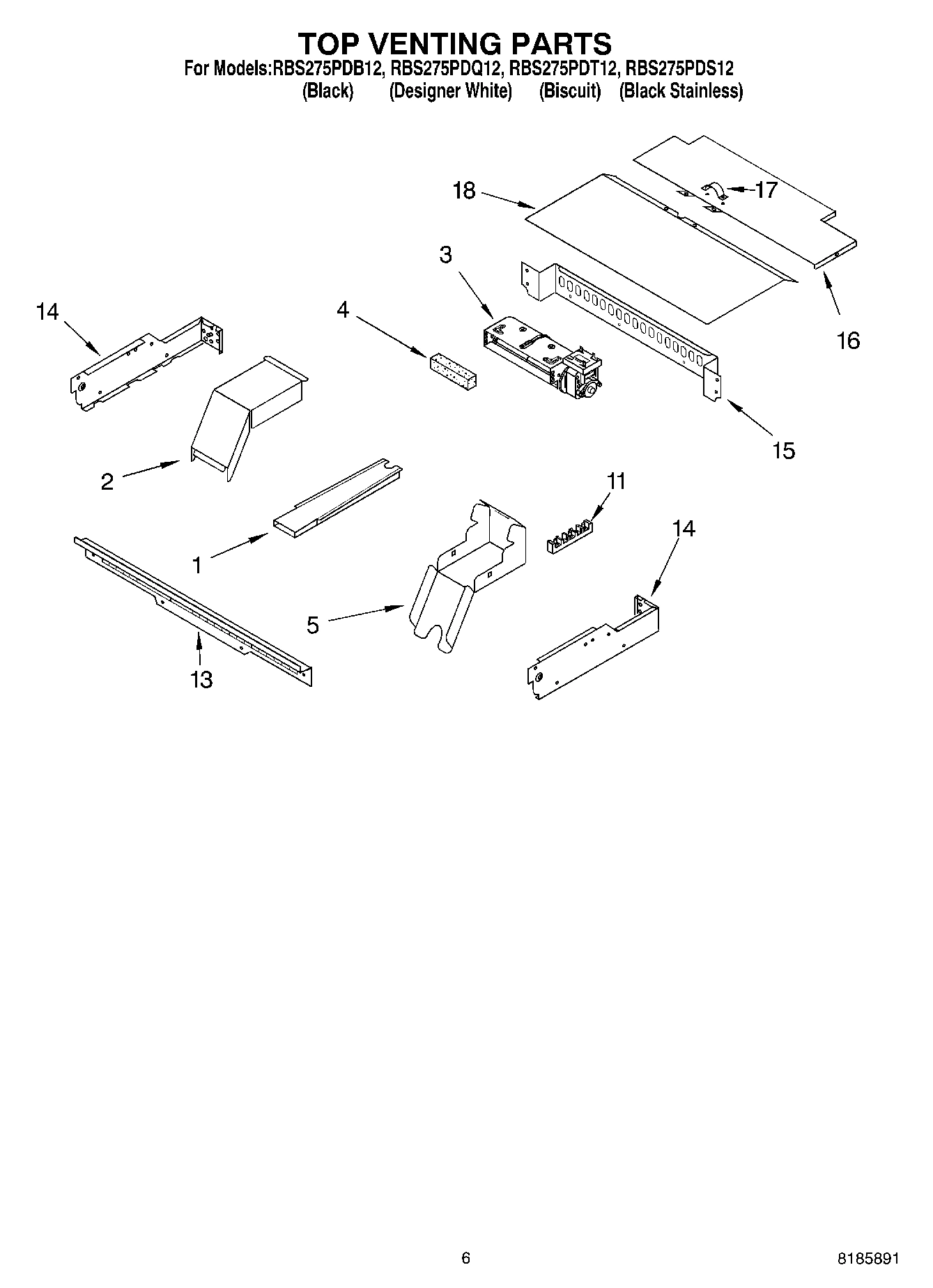

Model Whirlpool RBS275PDS12 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

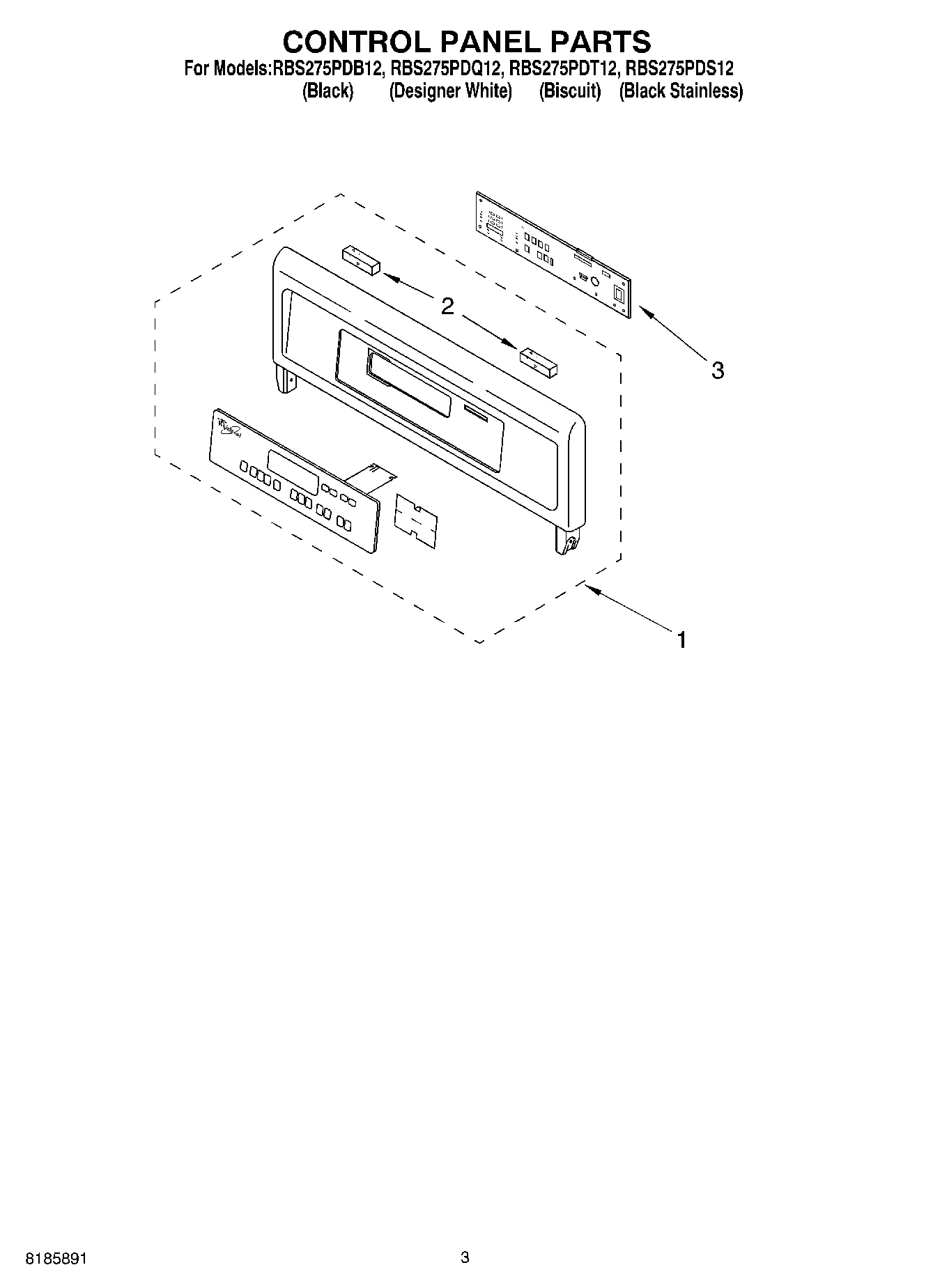

Control Panel Assy. W/Membrane Switch (White WPL 8300453 Contact Us For Availability

1

Screw WPL 4449040 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300454 Contact Us For Availability

1

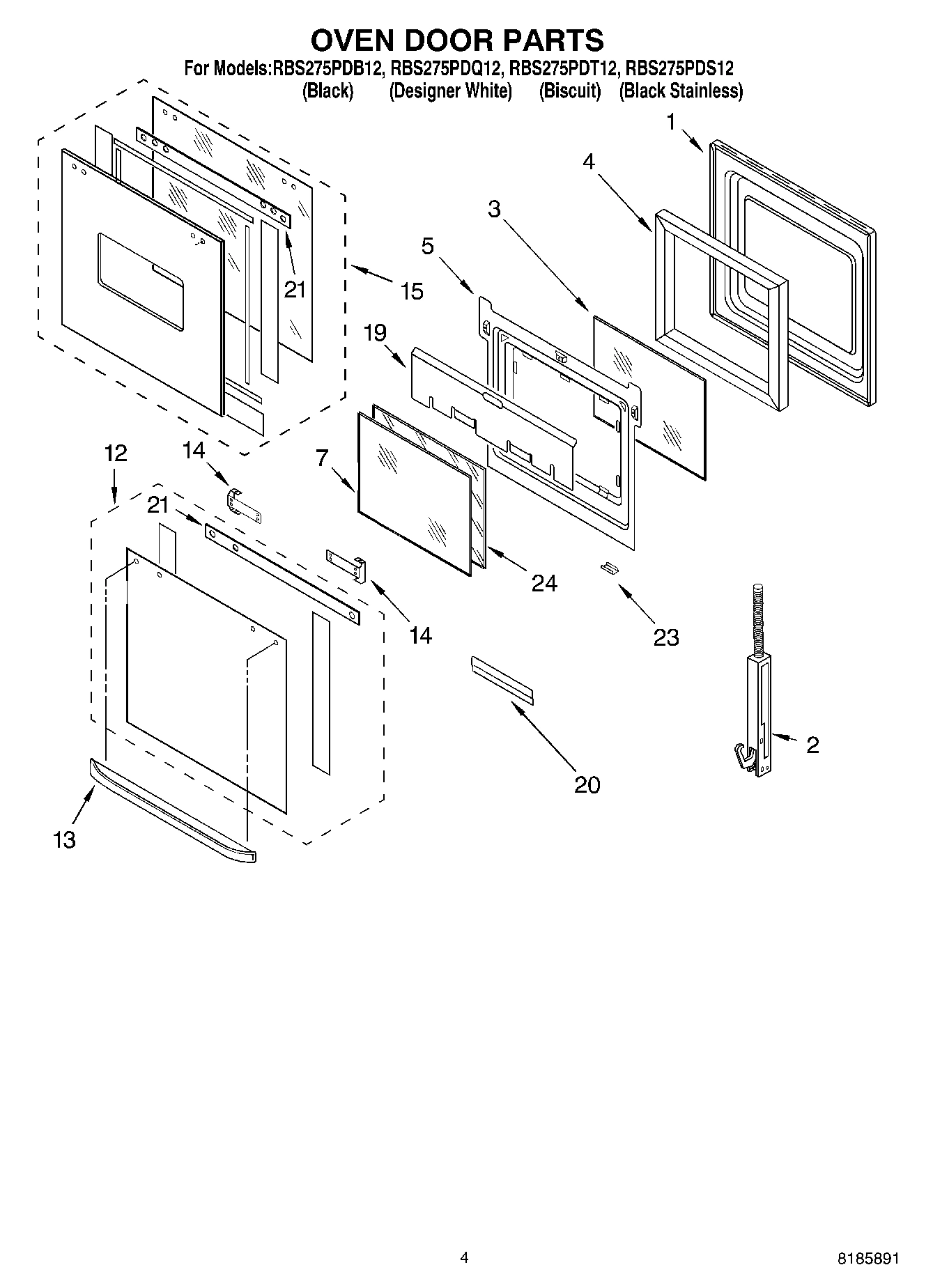

Door Liner WPL 4455617 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $39.24

2

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $42.93

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $42.00

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $65.29

2

Gasket, Control Panel WPL 4451033 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Microcomputer WPL 4452892 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

Retainer, Glass WPL 8300777 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

Screw WPL 3400080 Contact Us For Availability

12

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

12

Door Glass, Assy (White) WPL 4452063 Contact Us For Availability

12

Door Glass Assy (Biscuit) WPL 8300257 Contact Us For Availability

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black) WPL 4448405 Contact Us For Availability

Door Handle (White) WPL 4448406 Contact Us For Availability

Door Handle (Biscuit) WPL 8300255 Contact Us For Availability

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Door Glass, Assy (Black Stainless) WPL 8300905 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Cover, Top Front WPL 4450553 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455733 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

21

Seal, Door WPL 8300819 Contact Us For Availability

22

Latch Assy WPL 4451896 Contact Us For Availability

23

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

23

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

24

Glass, Inner WPL 4455256 Contact Us For Availability

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

53

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51
