Model Whirlpool RBS270PDB1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

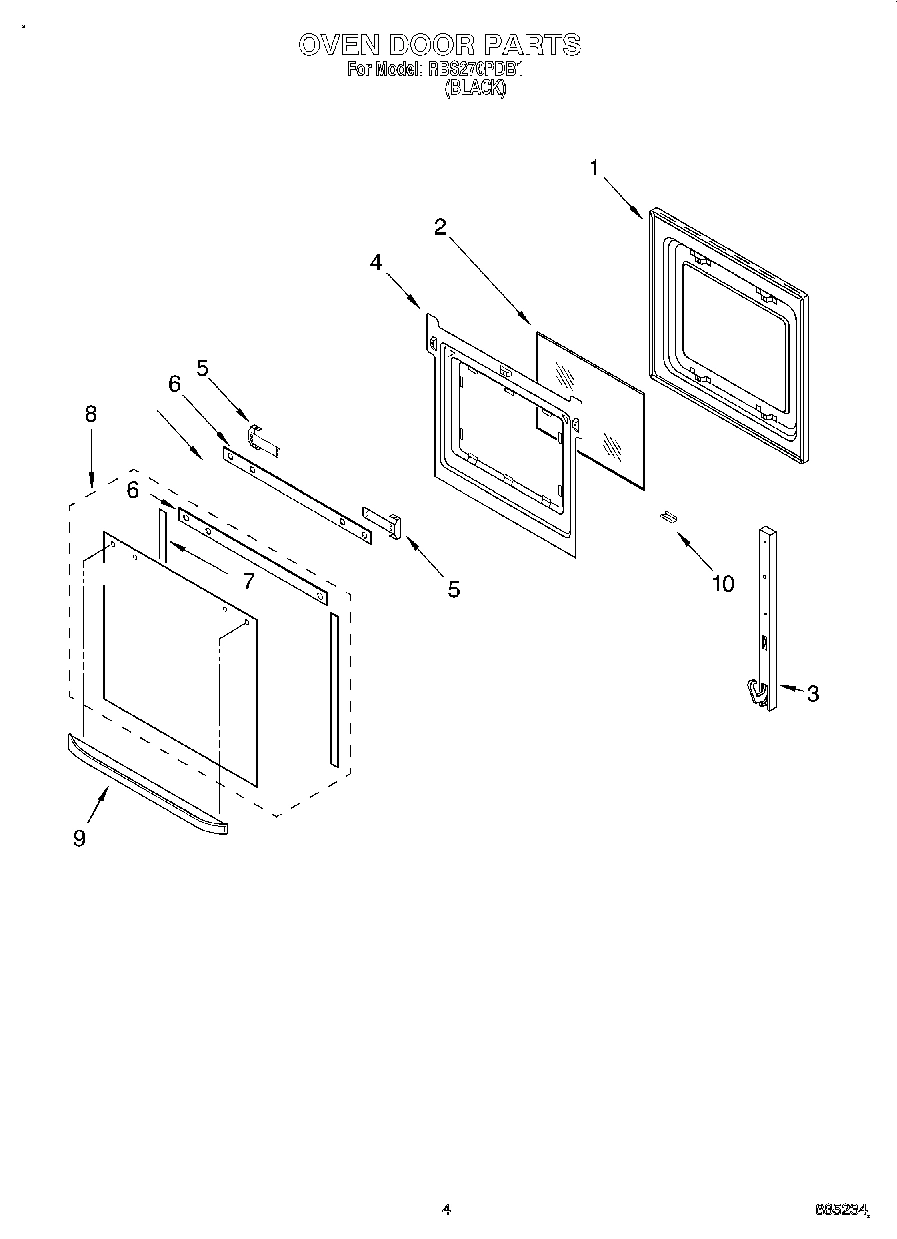

03 - OVEN DOOR

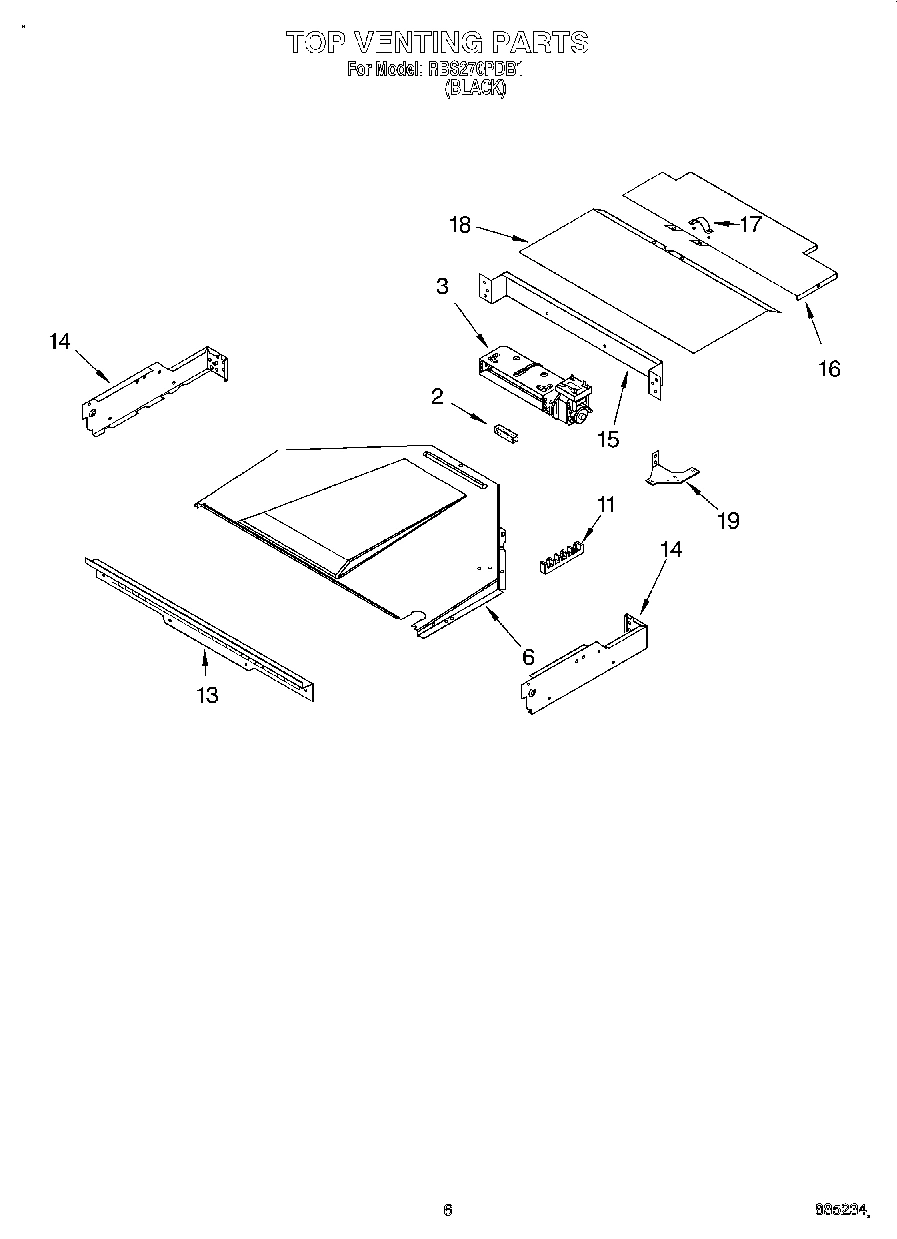

05 - TOP VENTING, OPTIONAL
04 - INTERNAL OVEN
01 - OVEN
02 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RBS270PDB1 BUILT-IN ELECTRIC SINGLE OVEN
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450568 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4450916 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450844 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450847 Contact Us For Availability
1
Control Panel Assy. (W/Membrane Switch) WPL 4451330 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Plug, Button WPL 4448982 Contact Us For Availability
3
Microcomputer WPL 4448873 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Cabinet Divider WPL 4450536 Contact Us For Availability
7
Partition WPL 4451165 Contact Us For Availability
8
Deflector, Heat WPL 4450051 Contact Us For Availability
9
Screw (4) WPL 4449746 Contact Us For Availability
9
Tube, Vent WPL 4450967 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
15
Gasket, Door WPL 4450492 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Harness, Wire (Door Switch) WPL 4450298 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Main) WPL 4450964 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
19
Support, Insulation WPL 4450541 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Chassis WPL 4451168 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI120780A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
× ![]()
