Model Whirlpool RBS245PDT15 24`` BUILT-IN ELECTRIC SINGLE OVEN SELF-CLEAN – Common Parts & Diagrams
01 - OVEN PARTS
05 - TOP VENTING PARTS, OPTIONAL PARTS

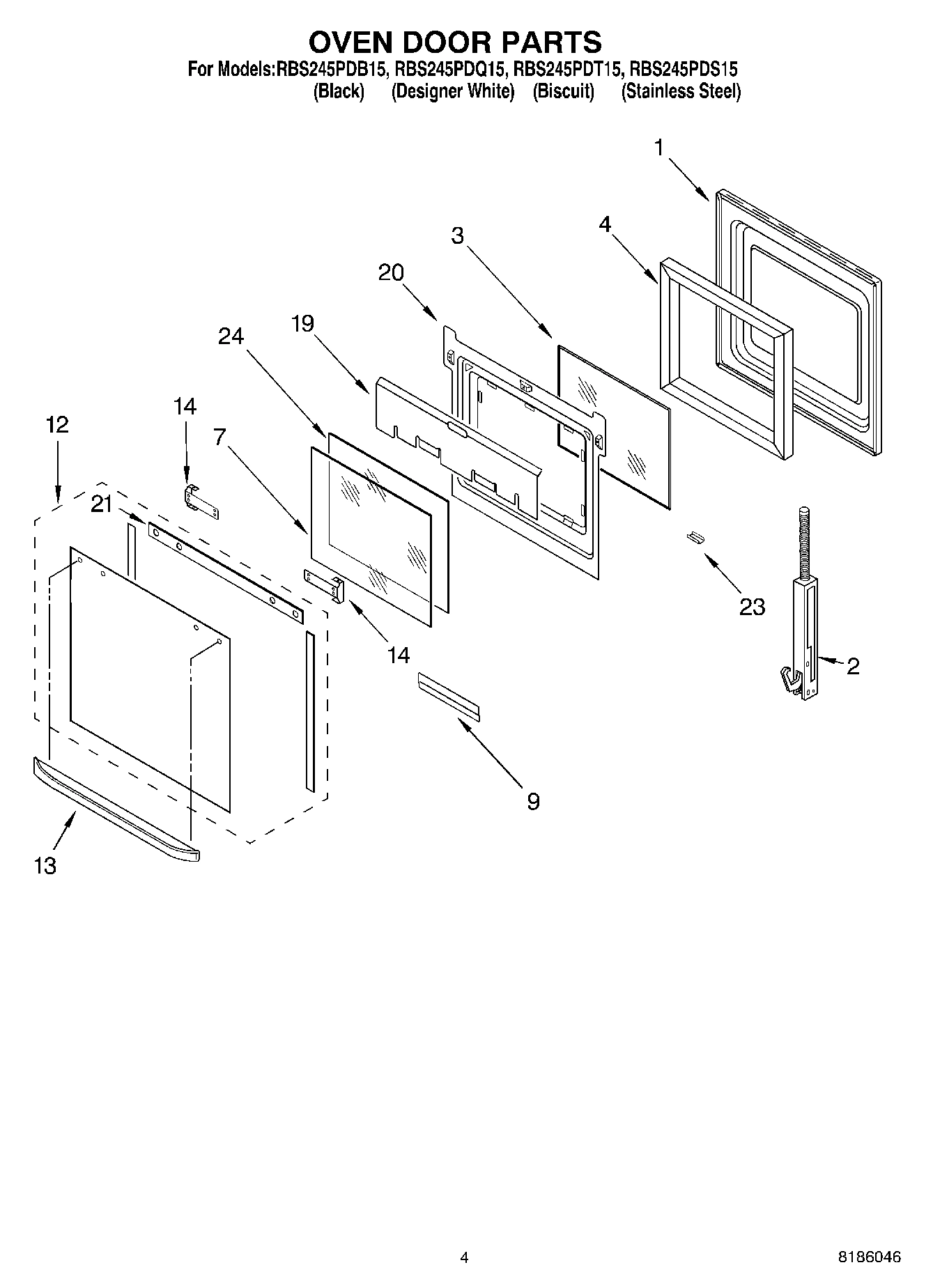

03 - OVEN DOOR PARTS

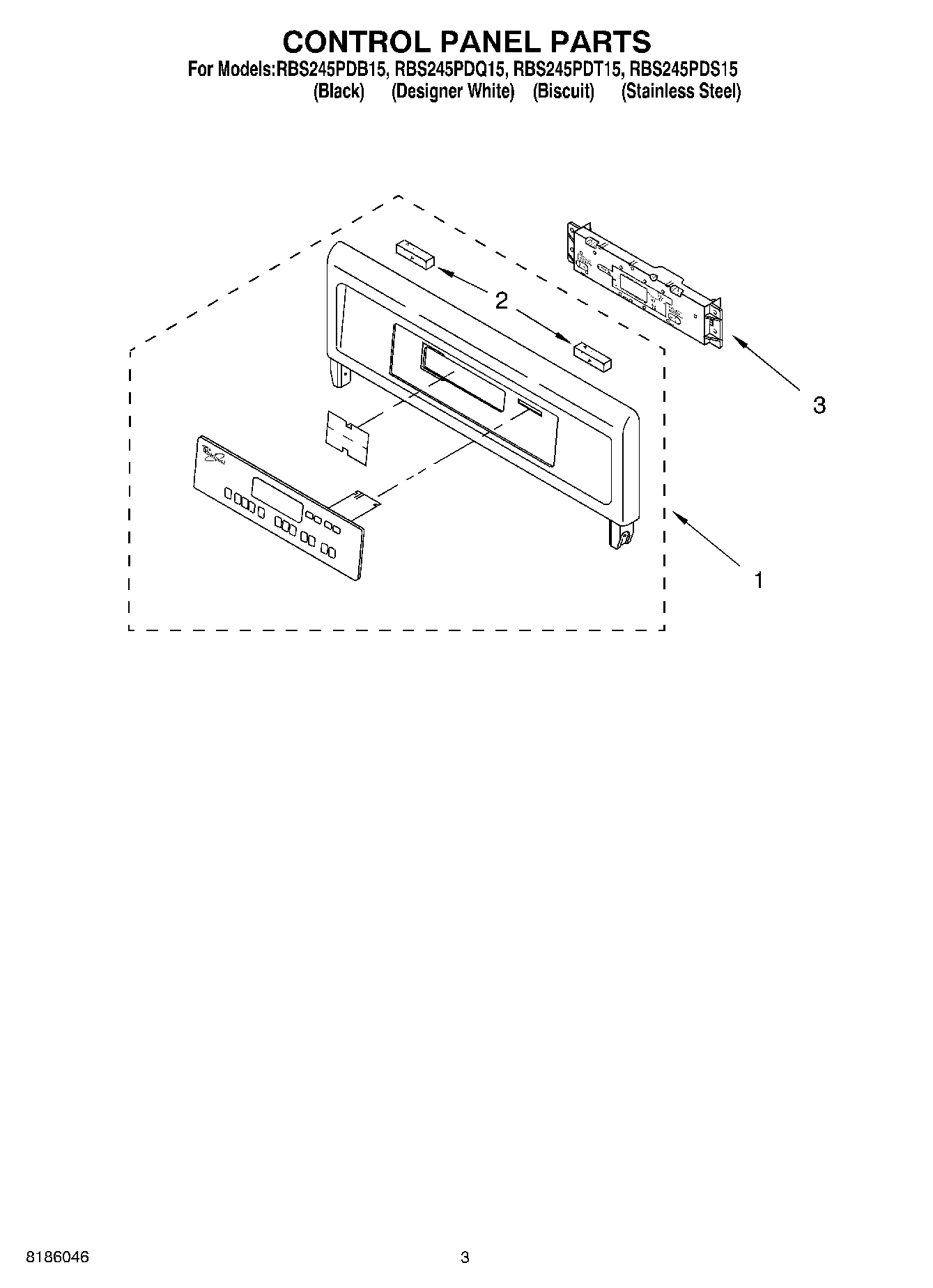

02 - CONTROL PANEL PARTS

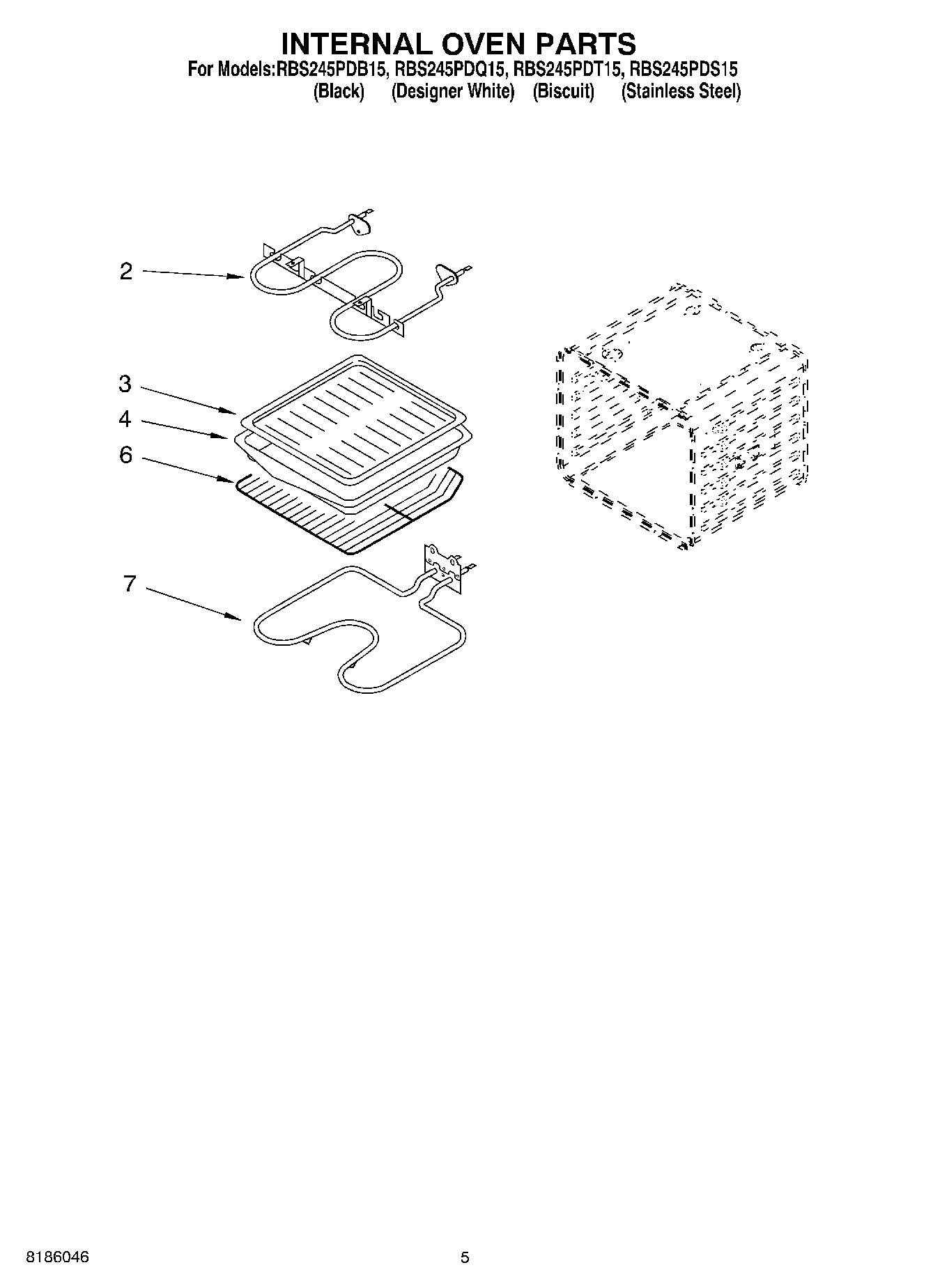

04 - INTERNAL OVEN PARTS
Common parts from model Whirlpool RBS245PDT15 24`` BUILT-IN ELECTRIC SINGLE OVEN SELF-CLEAN
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
Pin Hinge Kit WPL 814381 Contact Us For Availability
Clamp WPL 4448664 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
Screw, Ground WPL 4450800 Contact Us For Availability
Support, Wiring WPL 4451761 Contact Us For Availability
Spacer, Harness WPL 4452222 Contact Us For Availability
Harness, Wire (Main) WPL 4456004 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
WPL ARI120688A WPL ARI120688A Contact Us For Availability
WPL ARI120689A WPL ARI120689A Contact Us For Availability
WPL ARI120690A WPL ARI120690A Contact Us For Availability
WPL ARI120691A WPL ARI120691A Contact Us For Availability
WPL ARI120692A WPL ARI120692A Contact Us For Availability
NOTE: The screws and nuts required to attach WPL ARI120687A Contact Us For Availability
NOTE: The screws and nuts required to attach WPL ARI120686A Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 8300455 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 8300456 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 8300529 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Hinge, Door (R.Side (Red)) WPL 8300567 Contact Us For Availability
2
Hinge, Door (L.Side (Red)) WPL 8300568 Contact Us For Availability
2
Gasket, Control Panel WPL 4451032 Contact Us For Availability
3
Blower 60MM WPL 4455334 Contact Us For Availability
3
Control, Encl Assy WPL 8301919 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
6
Rack, Oven WPL 4448716 Contact Us For Availability
7
Glass, Inner WPL 4449251 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
12
Door Glass Assy (Black Model) WPL 4452059 Contact Us For Availability
12
Door Glass Assy (White Model) WPL 4452060 Contact Us For Availability
12
Door Glass Assy (Biscuit Model) WPL 8300527 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448547 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448402 Contact Us For Availability
13
Door Handle (White Model) WPL 4448403 Contact Us For Availability
13
Door Handle (Biscuit Model) WPL 8300512 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450549 Contact Us For Availability
18
Cover, Top Front WPL 4452365 Contact Us For Availability
19
Shield, Heat WPL 4450360 Contact Us For Availability
21
Seal, Door Top WPL 8300818 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
24
Glass, Inner WPL 4455255 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448473 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448474 Contact Us For Availability
51
Trim, Bottom (Biscuit M WPL 8300528 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL ARI120685A WPL ARI120685A Contact Us For Availability
× ![]()
