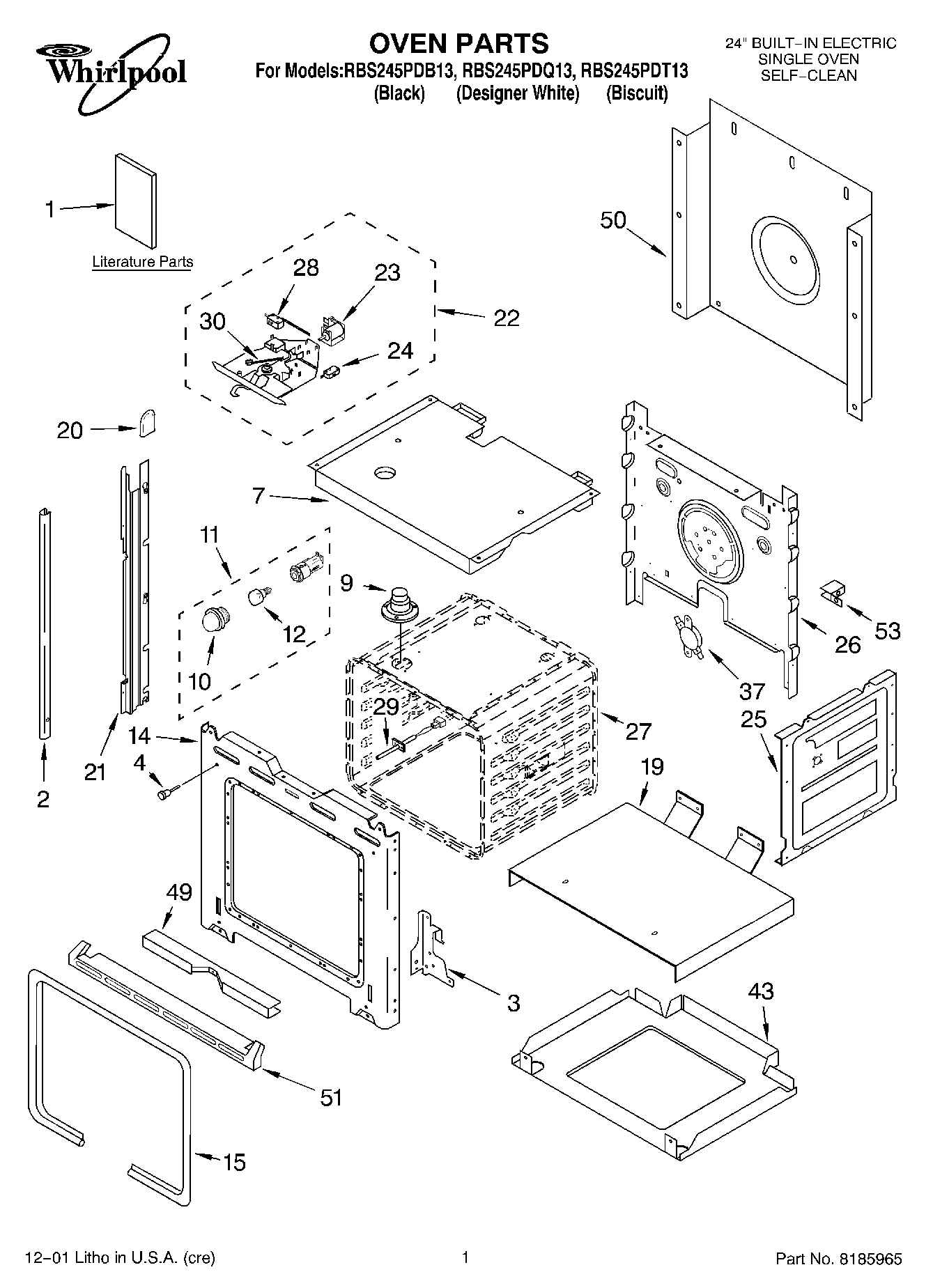

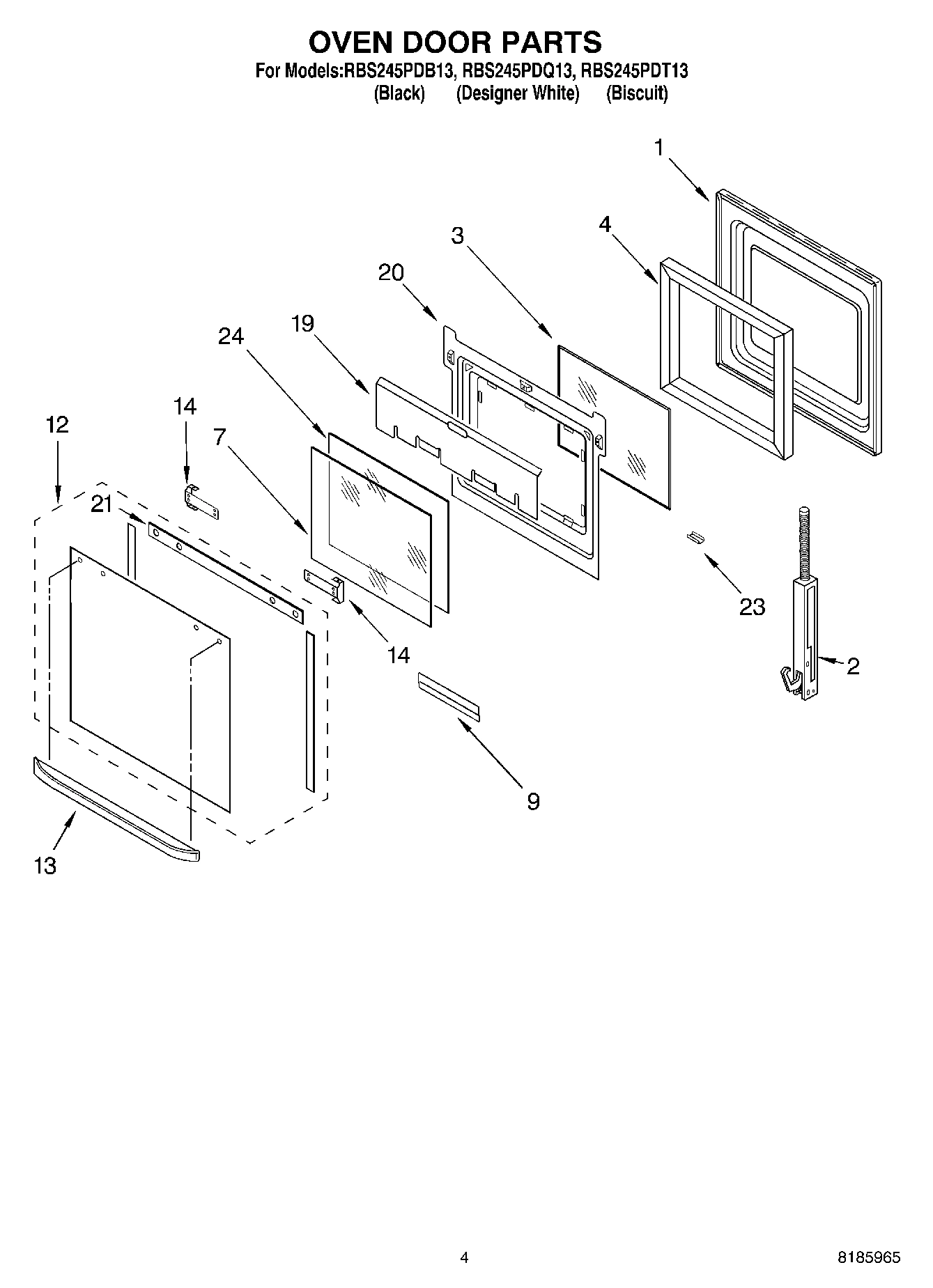

Model Whirlpool RBS245PDB13 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

WP8303698 Whirlpool Door Liner Backorder WPL WP8303698 $177.38

1

Screw WPL 4449040 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 8300455 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300456 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Biscui WPL 8300529 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $65.29

2

Hinge, Door (Right Hand) WPL 8300567 Contact Us For Availability

2

Hinge, Door (Left Hand) WPL 8300568 Contact Us For Availability

2

Gasket, Control Panel WPL 4451032 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $64.91

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Microcomputer WPL 4452892 Contact Us For Availability

3

Blower 60MM WPL 8300788 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

4

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Glass, Inner WPL 4449251 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

Screw WPL 3400080 Contact Us For Availability

12

Door Glass Assy (Black Model) WPL 4452059 Contact Us For Availability

12

Door Glass Assy (White Model) WPL 4452060 Contact Us For Availability

12

Door Glass Assy (Biscuit Model) WPL 8300527 Contact Us For Availability

4448547 Whirlpool Oven Vent Control Backorder WPL 4448547 $38.19

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black Model) WPL 4448402 Contact Us For Availability

Door Handle (White Model) WPL 4448403 Contact Us For Availability

Door Handle (Biscuit Model) WPL 8300512 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

WP4455380 Whirlpool Door Gasket Backorder WPL WP4455380 $59.75

15

Back, Control WPL 4452244 Contact Us For Availability

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $26.21

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Cover, Top Front WPL 4452365 Contact Us For Availability

Harness, Wire (Main) WPL 4455733 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

19

Shield, Heat WPL 4450360 Contact Us For Availability

20

4457130 Whirlpool Oven Retainer Backorder WPL 4457130 $44.71

21

Seal, Door Top WPL 8300818 Contact Us For Availability

22

Latch Assy WPL 4451896 Contact Us For Availability

23

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Micro Switch N.A. WPL 4452312 Contact Us For Availability

24

Glass, Inner WPL 4455255 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

51

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51
