Model Whirlpool RBD277PDQ1 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams
04 - INTERNAL OVEN
03 - OVEN DOOR

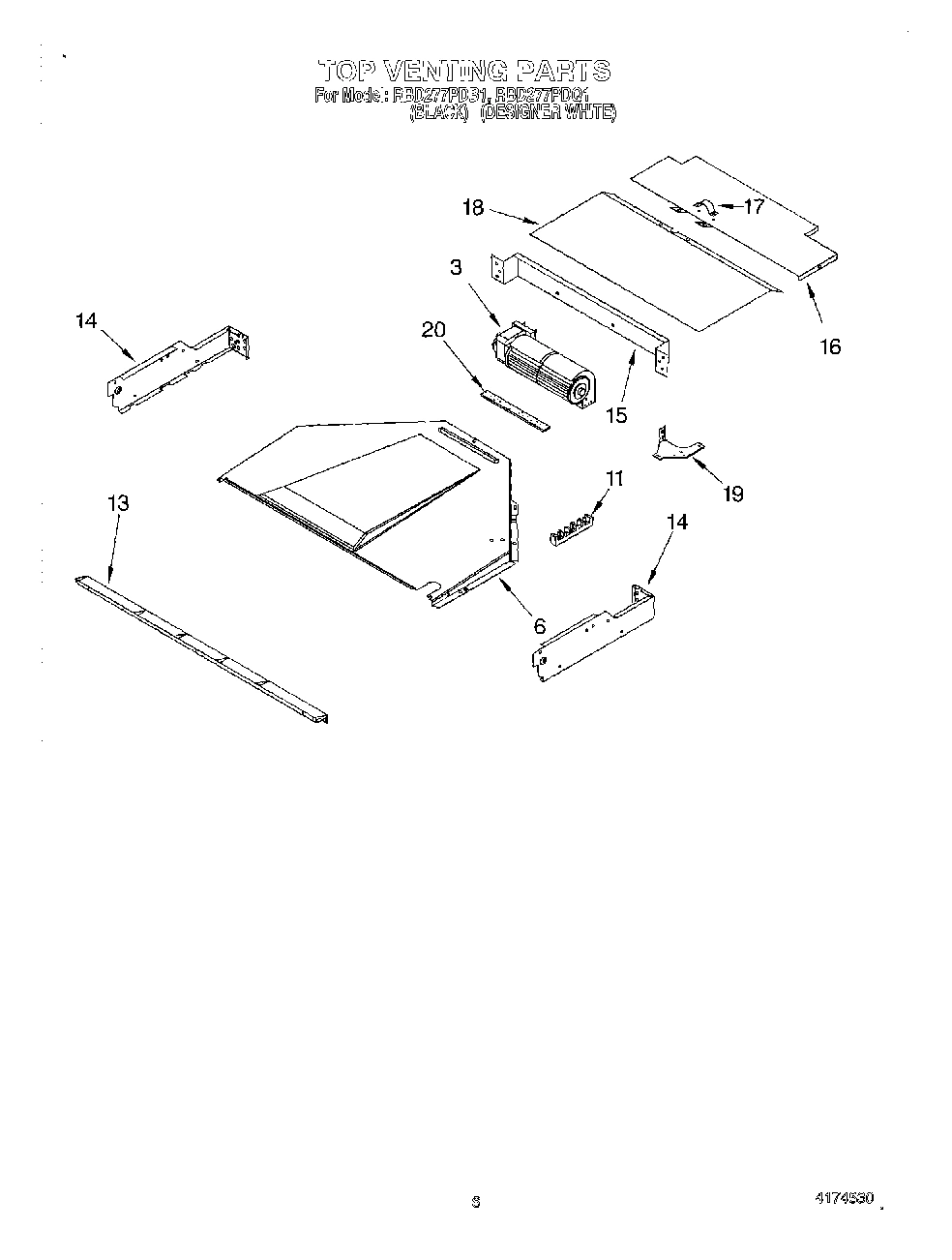

05 - TOP VENTING, OPTIONAL

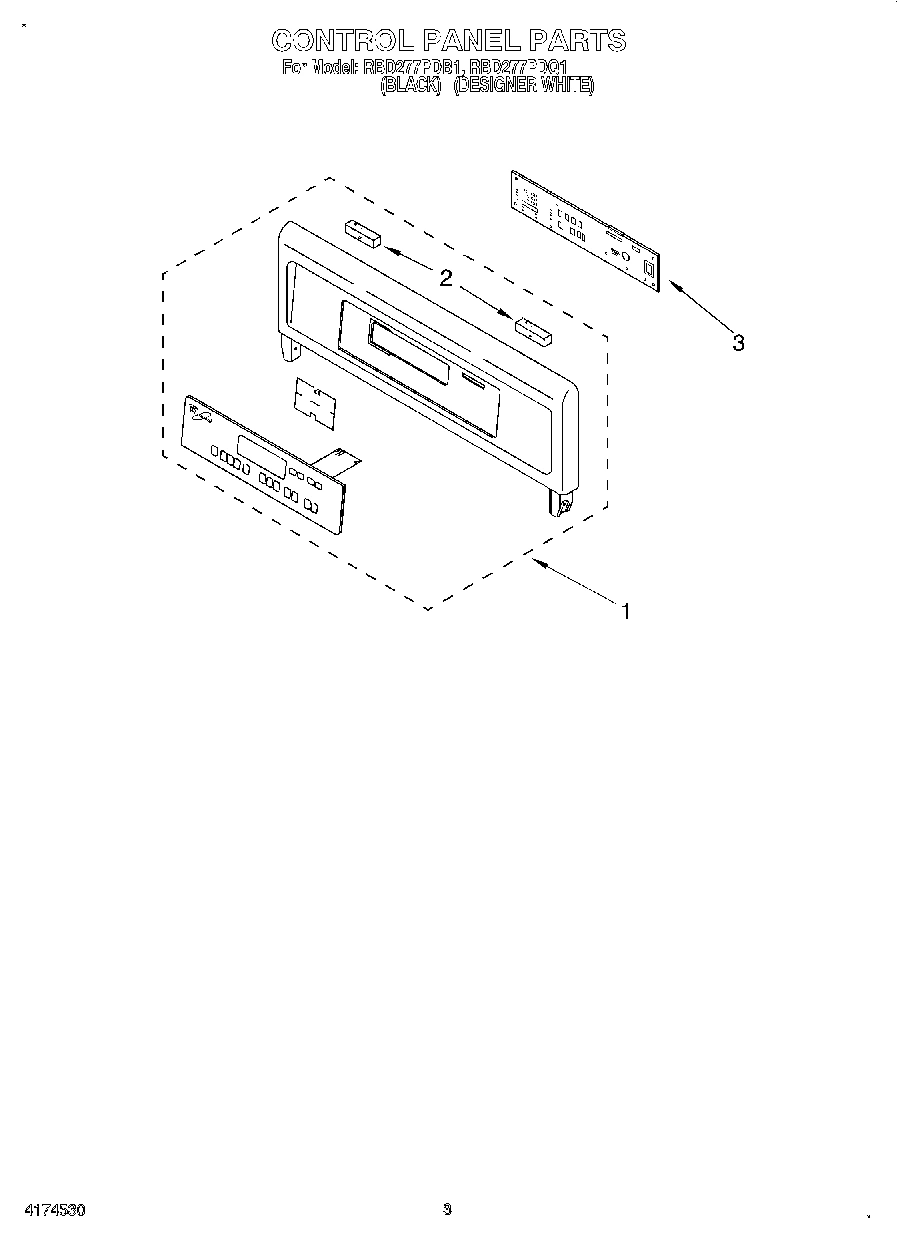

02 - CONTROL PANEL, LITERATURE

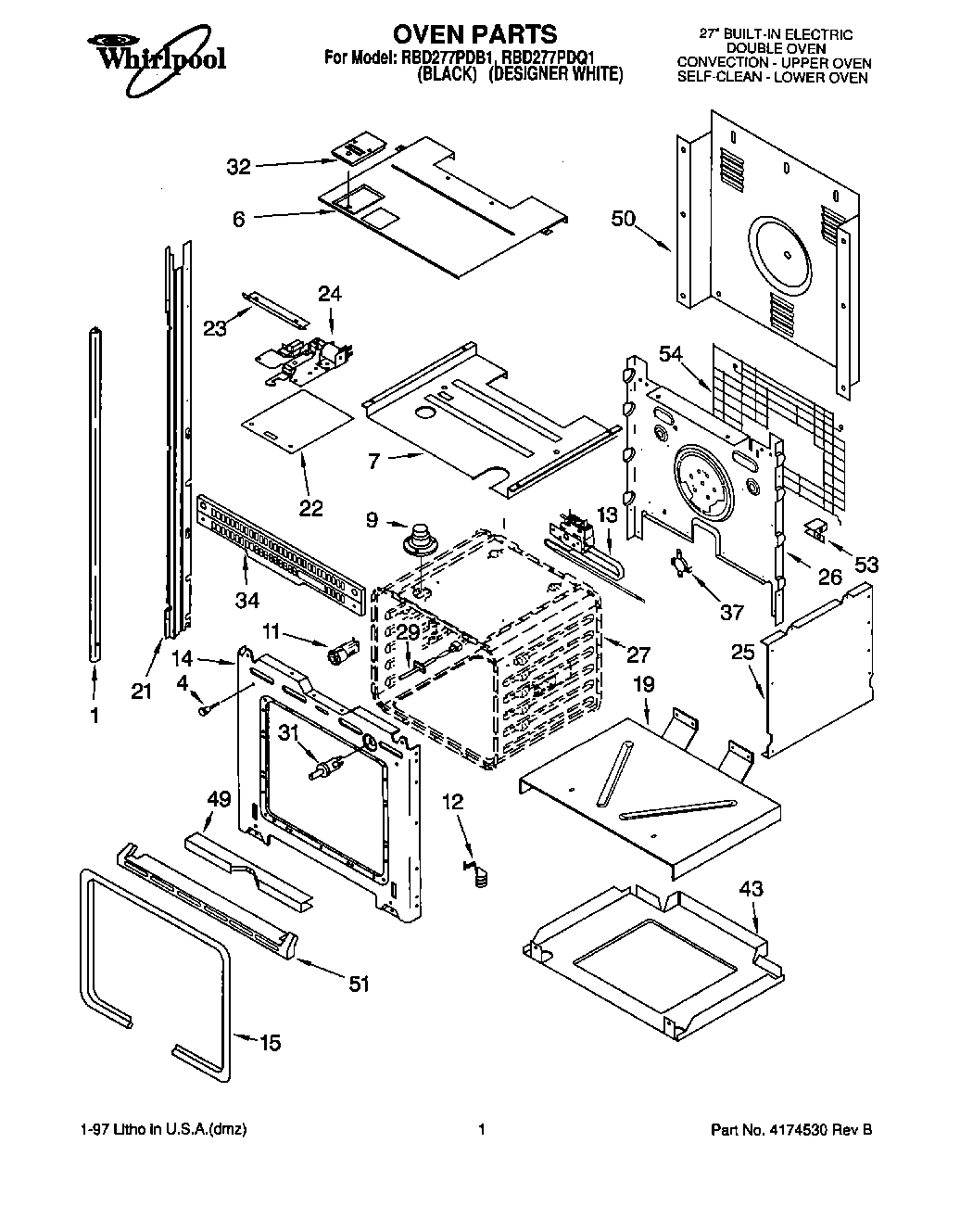

01 - OVEN
Common parts from model Whirlpool RBD277PDQ1 BUILT-IN ELECTRIC DOUBLE OVEN
Cookbook, T/C Ovens WPL LIT4449237 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450569 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4450941 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (Black WPL 4451310 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (White WPL 4451311 Contact Us For Availability
1
Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
1
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
1
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
2
Screw WPL 4449899 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448876 Contact Us For Availability
5
Bracket, Handle WPL 4450813 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4451038 Contact Us For Availability
7
Partition WPL 4451165 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Support, Insulation WPL 4450541 Contact Us For Availability
20
Conduit Asm. WPL 4450953 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
20
Seal, Foam WPL 3182384 Contact Us For Availability
20
Harness, Wire (Latch) WPL 4450753 Contact Us For Availability
20
Harness, Wire (Main) WPL 4450942 Contact Us For Availability
20
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
20
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
20
Roll WPL 814387 Contact Us For Availability
22
Screw WPL 4450289 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
24
Latch, Assy WPL 4450332 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Chassis WPL 4451168 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI120190A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
34
Vent, Center WPL 4449049 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
