Model Whirlpool RBD275PDS12 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

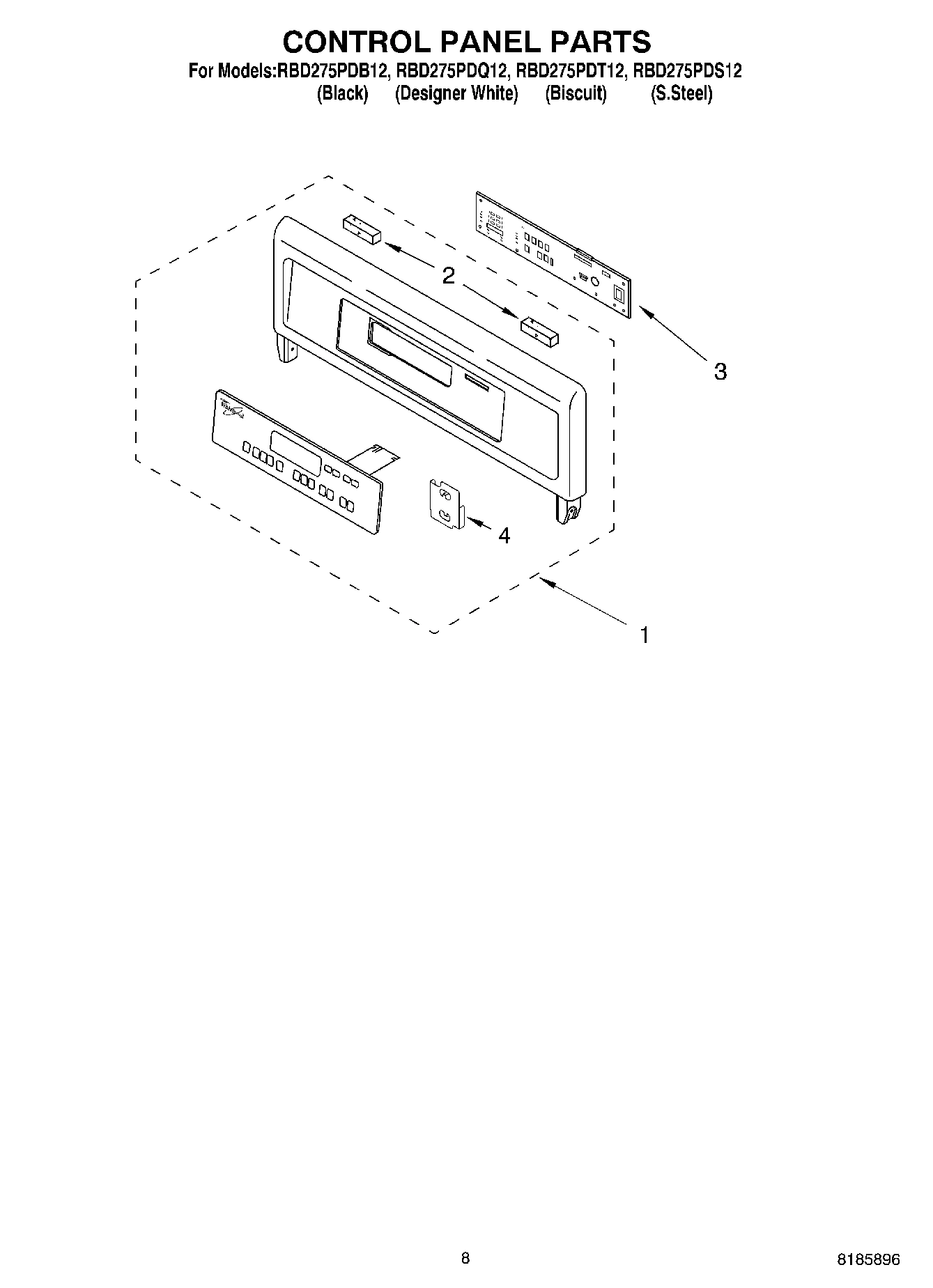

Control Panel Assy. W/Membrane Switch (Black WPL 8300429 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 8300430 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451887 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300655 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8300772 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Biscui WPL 8300531 Contact Us For Availability

1

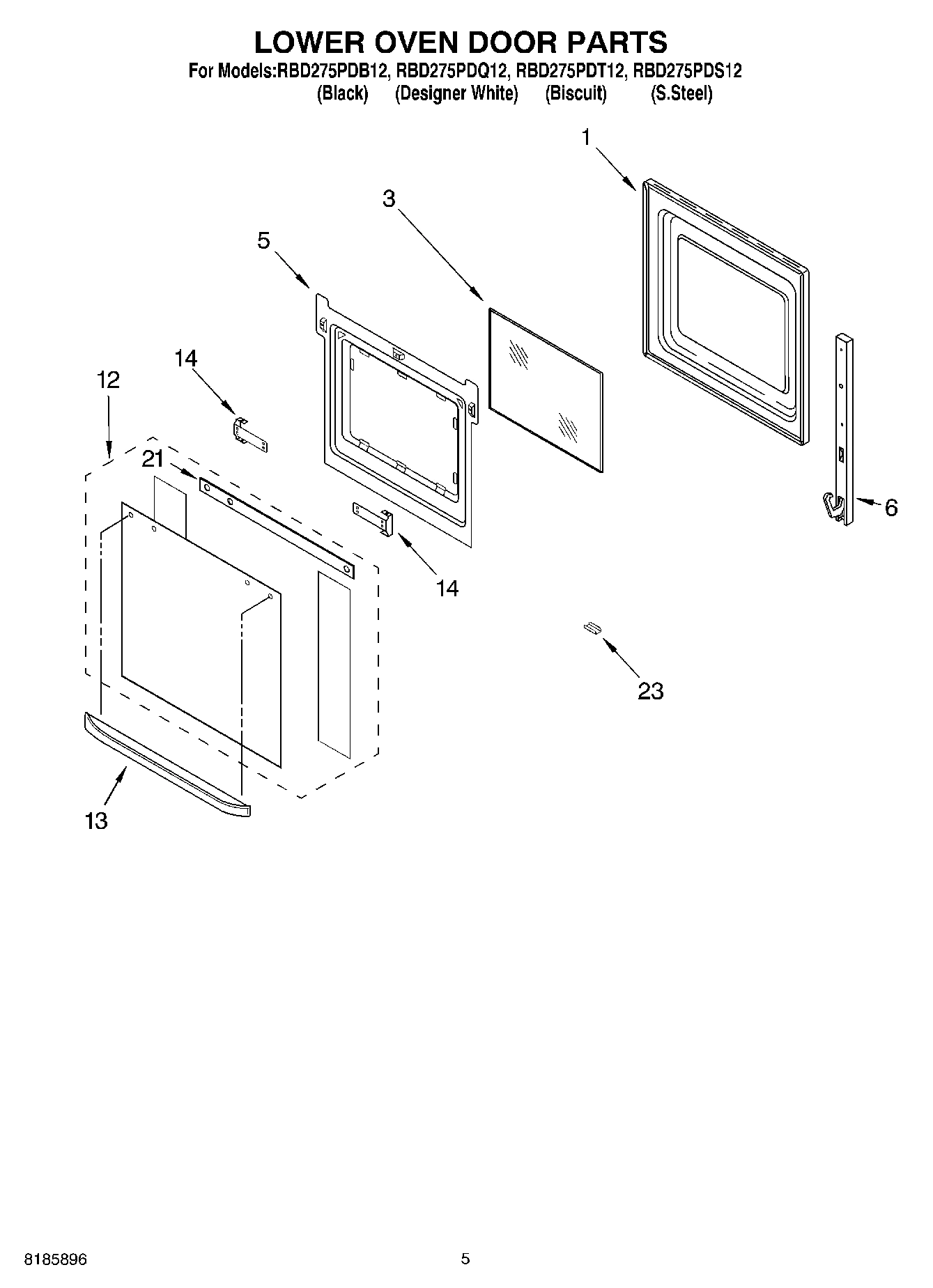

Door Liner WPL 4455617 Contact Us For Availability

2

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $42.93

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $42.00

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $65.29

2

Blower 60MM WPL 4455334 Contact Us For Availability

2

Trim, Side (White) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (RH White) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450854 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4452122 Contact Us For Availability

2

Trim, Side (LH Biscuit Screw) WPL 4452123 Contact Us For Availability

2

Gasket, Control Panel WPL 4451033 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Microcomputer WPL 4452890 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Insulator, Membrane Switch WPL 3192690 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

Switch, Micro WPL 4452312 Contact Us For Availability

5

Retainer, Glass WPL 8300777 Contact Us For Availability

6

4450935 Whirlpool Oven Door Plug Backorder WPL 4450935 $9.39

6

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

6

WP9760563 Whirlpool Door Hinge Backorder WPL WP9760563 $37.79

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Hinge, Door (R.Side (L.Brown)) WPL 8300565 Contact Us For Availability

6

Hinge, Door (L.Side (L.Brown)) WPL 8300566 Contact Us For Availability

6

Hinge, Door (L.Side (Grey)) WPL 8300781 Contact Us For Availability

7

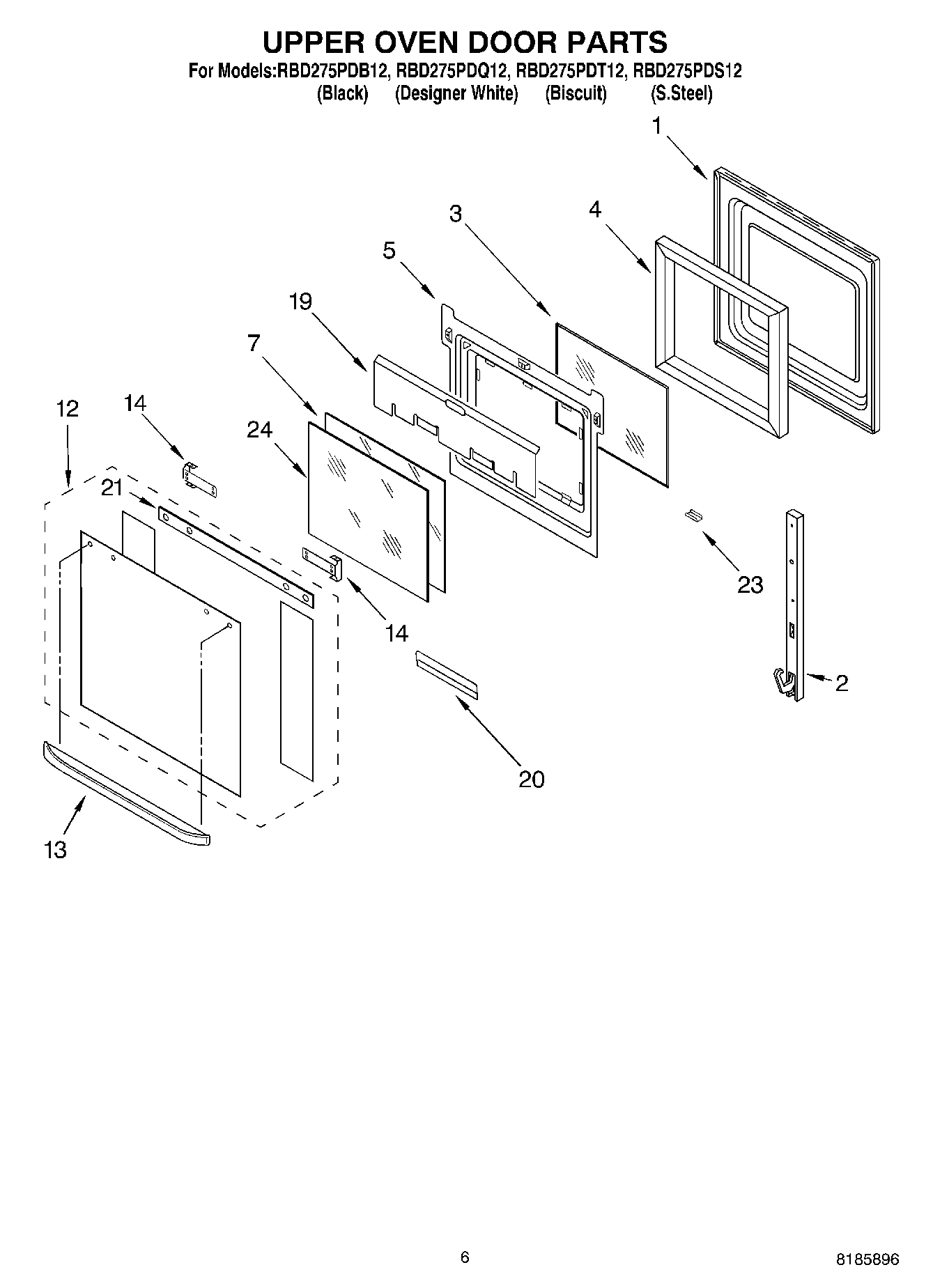

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

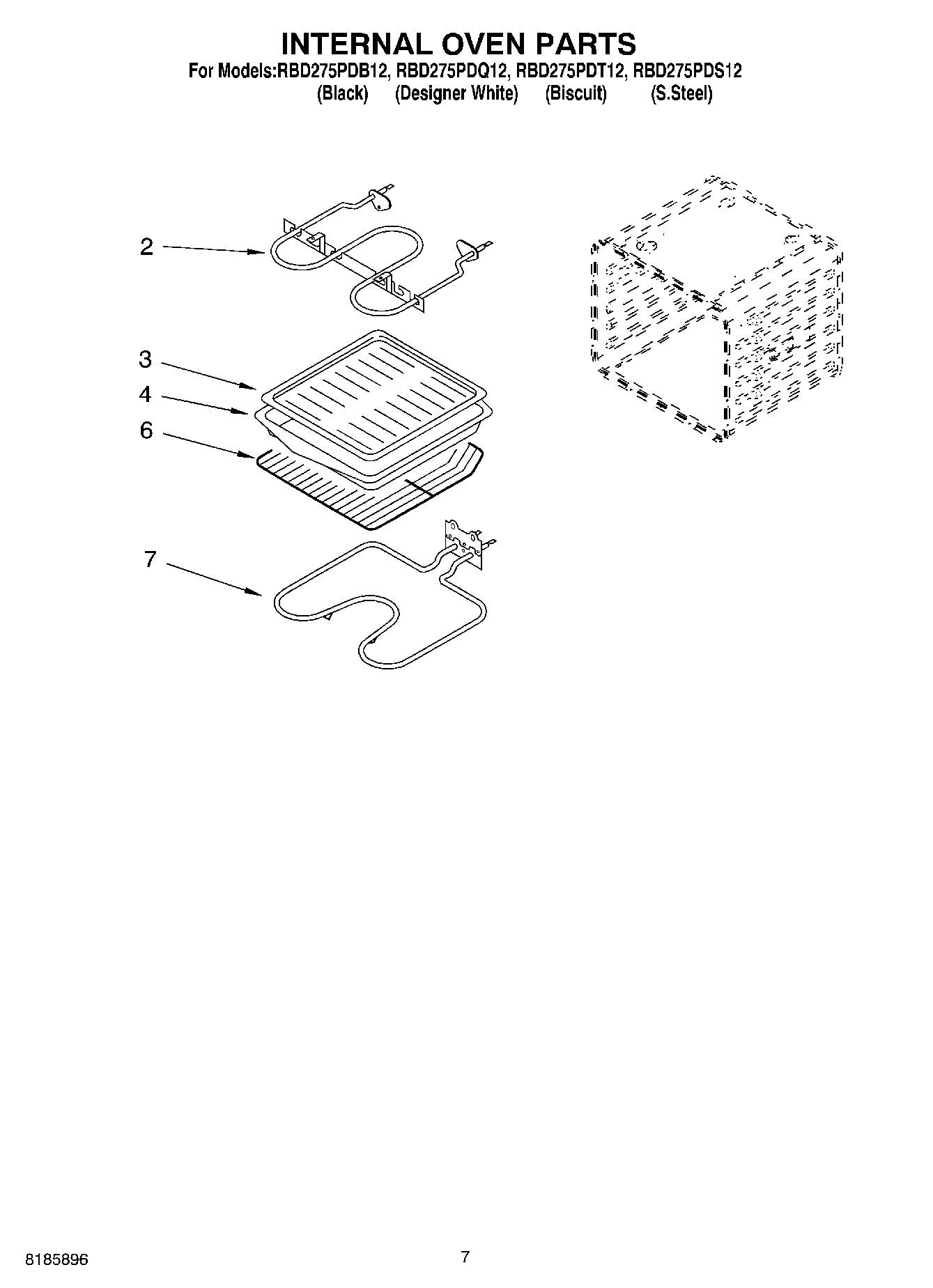

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Top, Chassis WPL 4455285 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

10

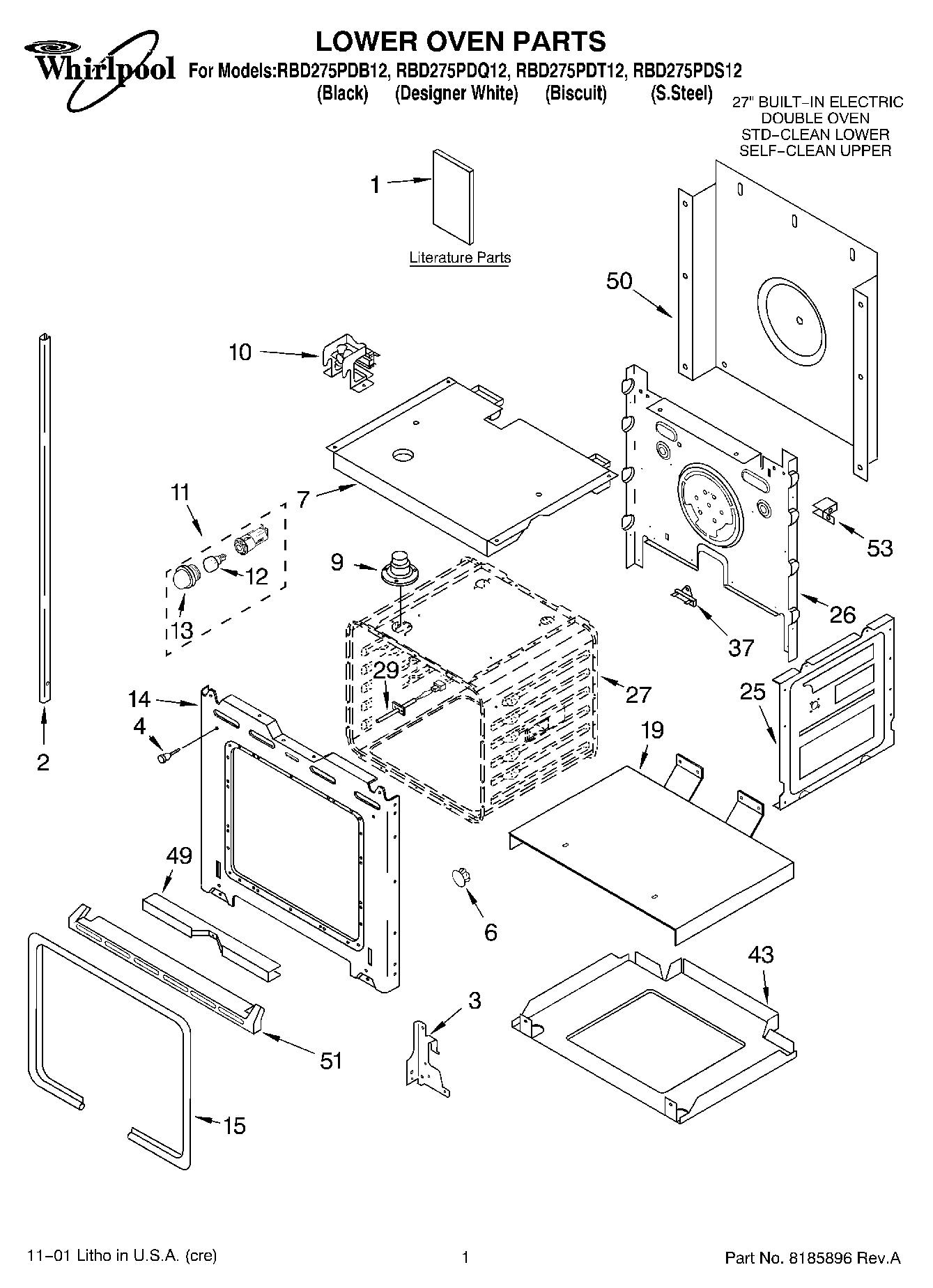

Fan & Bracket Assy WPL 4451664 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $35.32

11

Screw WPL 3400080 Contact Us For Availability

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

Door Glass Assy (Biscuit) WPL 8300257 Contact Us For Availability

Door Glass, Assy (S.Steel Model) WPL 8300704 Contact Us For Availability

Door Glass, Assy (S.Steel Model) WPL 8300994 Contact Us For Availability

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black Model) WPL 4448405 Contact Us For Availability

Door Handle (White Model) WPL 4448406 Contact Us For Availability

Door Handle (Biscuit Model) WPL 8300255 Contact Us For Availability

Lens, Light WPL 4452165 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Gasket, Door WPL 4450492 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Retainer, Glass WPL 4451668 Contact Us For Availability

Conduit, Double WPL 4450953 Contact Us For Availability

21

Seal, Door Top WPL 8300819 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

23

Retainer, Clip (Biscuit Model) WPL 4452119 Contact Us For Availability

24

Latch Assy WPL 4451896 Contact Us For Availability

24

Glass, Inner WPL 4455256 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI119993A Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

37

WP4451354 Whirlpool Thermal Fuse Assembly Backorder WPL WP4451354 $16.23

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability

Trim, Bottom (Biscuit Model) WPL 4452414 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

Insulation, Wrap WPL 4449315 Contact Us For Availability

Support, Bracket WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability
